ON SALE NOW !! C20 LDR Air Station With tank and dryer

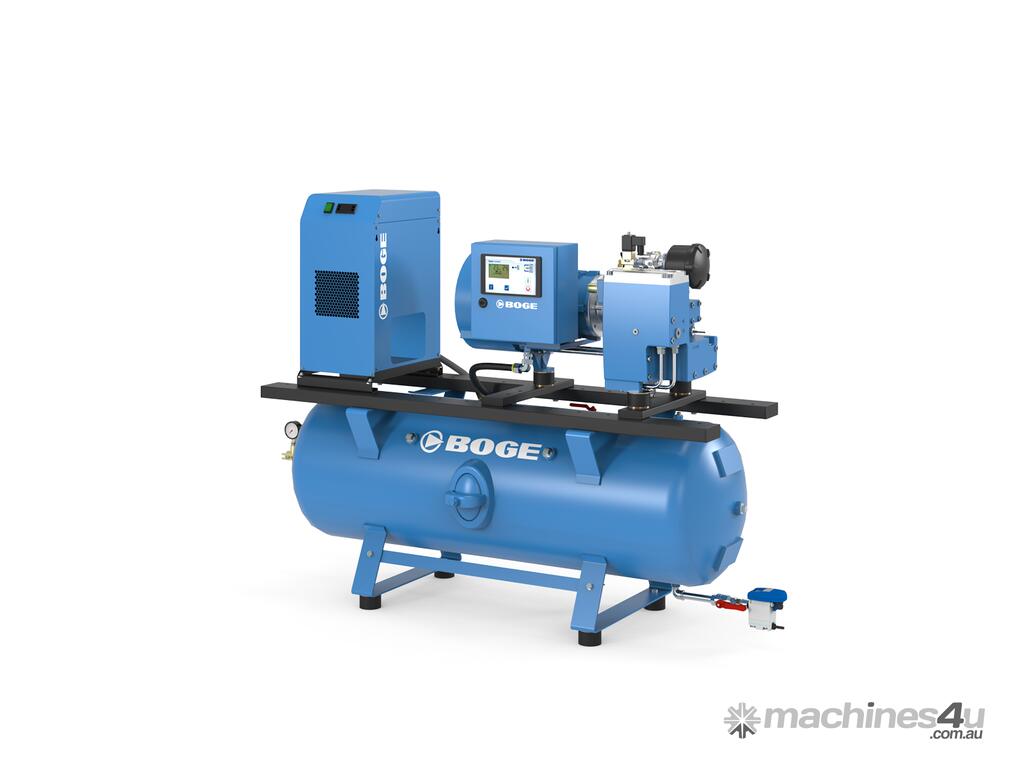

BOGE compressed air centre C 20 LDR 350 air cooled
Screw compressor with BOGE energy saving refrigerant compressed air dryer
on horizontal compressed air receiver
Complete and ready to connect, fully automatic operation, with CE approval stamp

Maintenance friendly
– For routine inspections and maintenance all components must be accessible
easily and from the front
– Very simple maintenance through common access opening for oil separator cartridge
and high efficiency oil filter; valveless oil circuit
– This minimises your maintenance and service costs

BOGE Energy-saving refrigerant compressed air dryer of series DS
– Large-scale components not only stand for low pressure loss and
avoid overcompression but also mean the greatest reliability and
guaranteed durability
– Low operating costs to to optimally harmonised components
– The refrigerant dryer in the DS series is characterised by an unusually low
pressure loss. This means that less pressure loss must be compensated at the compressor.
That saves 6% energy costs per bar less overcompression
– The environmentally friendly refrigerant that is used has no ozone depletion potential and
ensures maximum conservation of resources and environmentally friendly
and modern refrigerant dryer operation
together with recyclable materials and high energy efficiency,
– The built in components are tried and tested in practice. The intelligent layout
of the robust heat exchanger package guarantees energy saving operation
– Standard with level controlled condensate drain
?
Additional features
– Compressor unit isolated from mechanical vibration
– Motor protection IP 55 with PTC thermistors
– Integrated electrical switch cabinet (IP 54)
– Constant low oil carry-over in all operating phases due to efficient
pre-separation in the integral compressed air-oil separator
– Compressed air aftercooler for low compressed air outlet temperatures
– No condensate in the oil due to thermostatically controlled oil cooler
– Powder coated surface, light blue, RAL 5012
– Instrument panel on holder with all necessary instruments, such as a type tested
safety valve, pressure gauge, control flange with nozzle bore
– Shut-off valve on compressed air outlet, condensate drain valve as standard

Technical Data:
Effective free air delivery of complete unit
measured according to ISO 1217 Part C 2,25 m³/min
at maximum compressor overpressure 8,0 bar
Main drive motor nominal power 15,00 kW
Required power input of the dryer 0,78 kW
Protection type / Insulation class of the motor IP 55 / F
Operating voltage (compressor) 400 V / 50 Hz
Control voltage (compressor) 24 V AC / 24 V DC
Operating-/control voltage (dryer) 230 V / 50 Hz
Cooling air volume flow (compressor) 4800,00 m³/h
Cooling air volume flow (dryer) 380,00 m³/h
Suction or ambient temperature (min...max) +5...+40 °C
Compressed air outlet temperature above ambient temperature 9 K
Pressure dew point at inlet conditions according to DIN ISO 7183 +3 °C
Residual oil content in compressed air < 3 mg/m³
Receiver volume 350 l
Permissible maximum receiver pressure 11,0 bar

silenced version (acc. to dimensioned drawing): M 3200.0863
Unit sound pressure level (in accordance with DIN EN ISO 2151) 75 dB(A)
Width / Depth / Height 2020 / 720 / 1365 mm
Compressed air connection (ball valve) G ½
Compressed air connection (ball valve) G 1
Weight 380,0 kg
