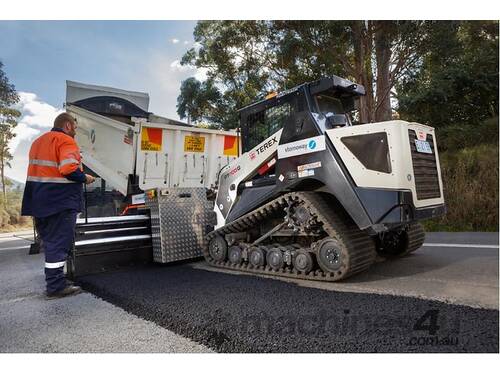

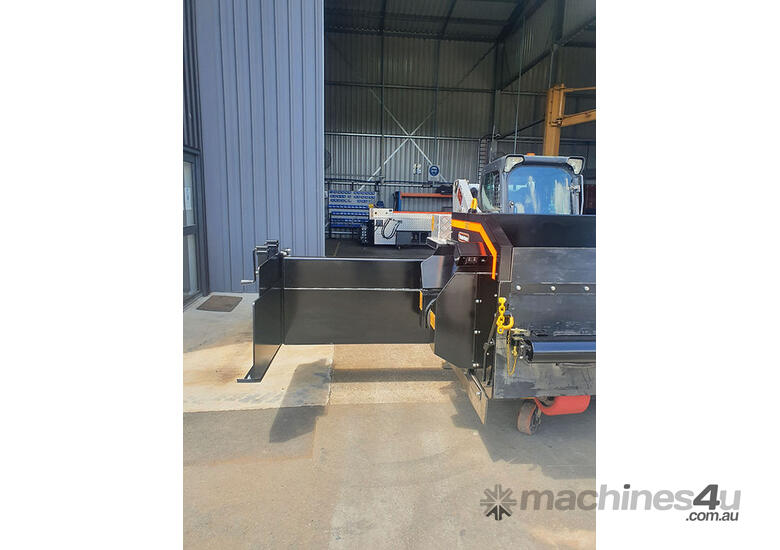

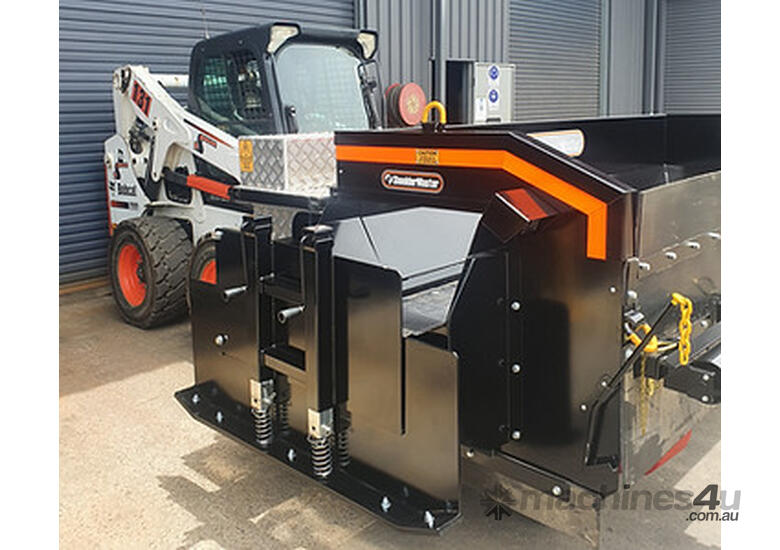

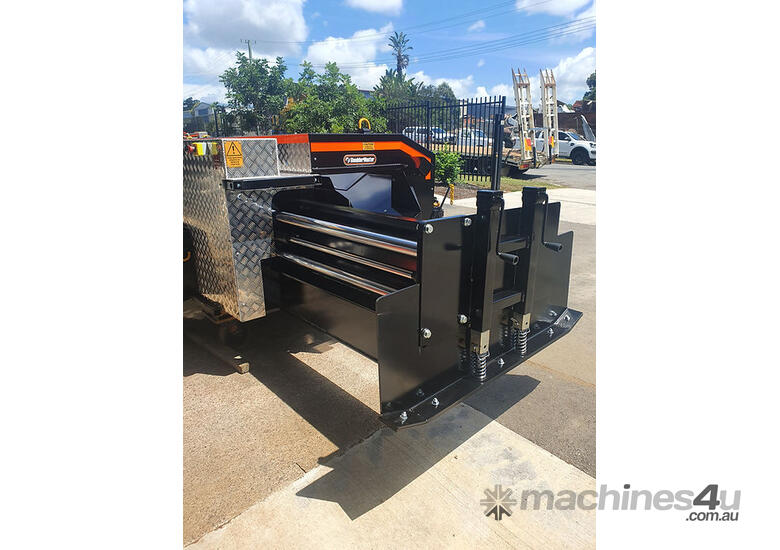

The ShoulderMaster SM1500 is ShoulderMasters' original skidsteer/wheeled loader shoulder paving attachment capable of laying gravel and asphalt materials. The SM1500 has a horizontal screed adjustment range between 300mm to 1300mm, with a hydraulic tilt function for grade control allowing materials to be placed on grades +/- 5 degrees.
Technical Specifications:
Tare Weight: 2,160kg / 4,762lbs
Length: 3,100mm / 10'2"
Width: 1,862mm / 6'11"
Height: 1,190mm / 3'11"
Screed Width Adjustment: 300mm to 1300mm / 12" to 5'11"
Screed Height Adjustment relative to pavement level: -100 to +50mm / -3.9" to +1.9"
Minimum Power Requirement: 53kw / 70hp
Optimal Hydraulic Flow: 80l/minute / 21gal/minute
Screed Slope Adjustment: +/- 5 degree
Drive Mechanism: Reduction gearbox (chain & sprocket)
Conveyor: Chain drive with heat resistant belt
Safety: E-Stop
Electrical Connection: 12V
