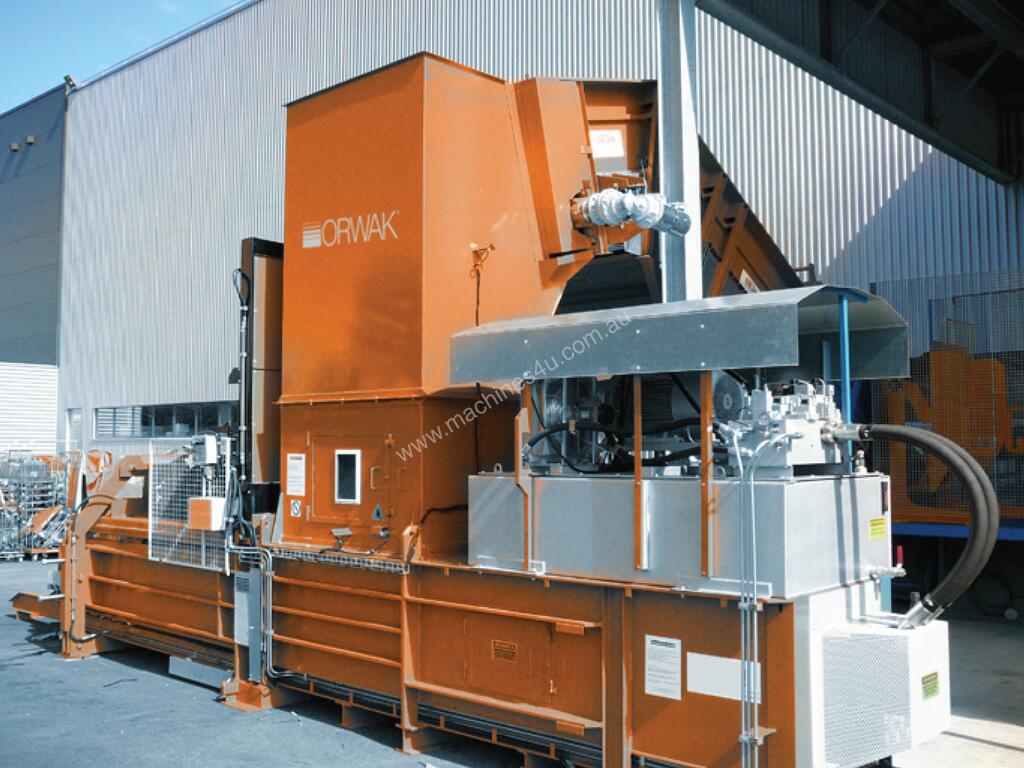

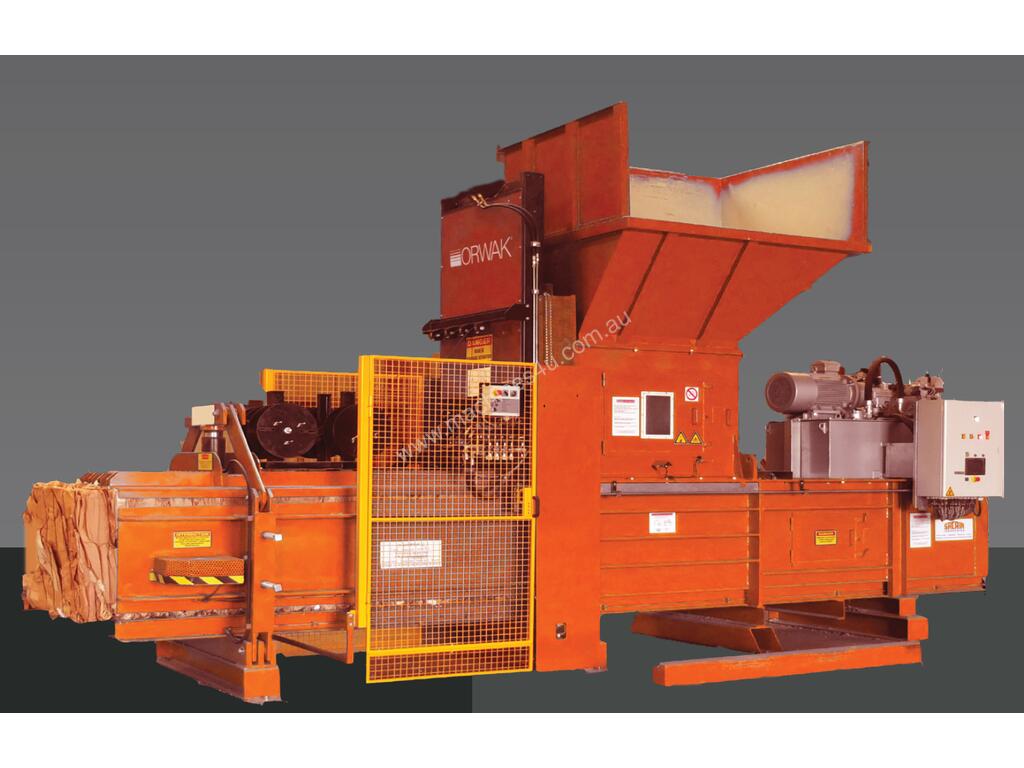

ORWAK HORIZONTAL mill size baler AUTO TIE 500kg

ORWAK HORIZONTAL PRODUCTS
Automatic solutions for continuous output of mill-size bales

Please note the indicated price is the starting price for the range and may not represent the product in the photos. For a free quote optimised for your application please contact us .

CENTRALIZED WASTE HANDLING
Our fully automated horizontal 80 ton baler meets the challenges by centralised waste handling in many businesses and organisations where huge volumes of recyclable paper-based and plastic wrapping are produced. We offer well proven technology for special demands! The automatic tying and continuous baling allows multi-shift operation.

TIME SAVING FEATURES
- Based on more than 50 years of experience
AUTO START
- Equipped with photocell start as standard
HIGH SPEED
- Fast throughput of the material
PROGRESSIVE CUTTING SYSTEM
- Reliable proven design
BALE COUNTER & OIL COOLER
- So you know what you are doing and can rely bale weights all year round
ADJUSTABLE BALE LENGTH
- Individual settings to meet your needs
CHOICE BETWEEN VERTICAL & HORIZONTAL AUTOMATIC TYING
- Vertical is standard and horizontal an option

WHY ORWAK HORIZONTAL
Effective large-scale waste handling
Improved internal and external logistics
Safe and comfortable working environment
Excellent control over the throughput
Increased income when delivering high-quality bales to the recycling industry.

TECHNICAL DATA
MODEL 500 AT
Machine dimensions (LxWxH mm witout bale exit) 7700x1850x3450
Feed opening (mm) 1400 x1000
Infeed capacity (m3) 1.12
Press force (t) 50
Motor (kW / Hp) 15/22
Surface pressure (kg/cm2) 6.25/7.5
Cycles per minute 2-Mar
Channel section (mm) 1000 x 800
Oil tank capacity (L) 400/500
Total machine weight (kg) 8500/9000
Production rate with load (m3/h) 80-150
Production accord. density (t/h) 2.5-4.5
Automatic binding 4 wires Ø 3.2
Bale size (mm) 1000x800x
adjustable lenght adjustable lenght
Bale weight cardboard (kg) 400-600 kg (depends on bale length)


OPTIONS
Horizontal Tying
Conveyors
Bin Lifter
Metal Detectors
Oil Heater
Additional Guarding
Installation
Commissioning
Customisation and Engineering support to suit site
