TWO ROLLERS AUTOMATIC GLUING MACHINE MOD. S2R-1300 STANDARD
ACCORDING TO CE RULES - VOLT 400/50/3ph

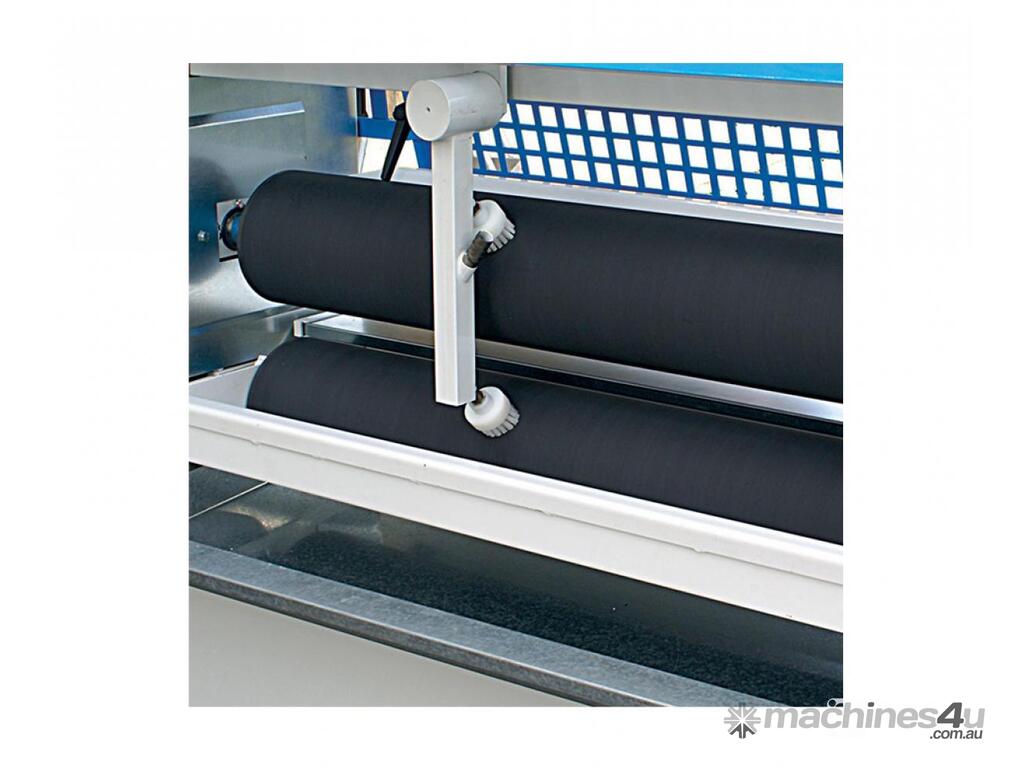

MAIN CHARACTERISTICS SPREADING is uniform and constant throughout the working width, thanks to a technological innovation and to special dampers compensating the differences of non calibrated panels. SPREADING ROLLERS coated with a suitable layer of special “antiacid synthetic rubber” give the possibility to perform several grindings and therefore give a long life.
HOMOGENOUS BATCHING of the glue to be applied obtained by means of ground rollers distribution tanks.
SUITABLE PROTECTION DEVICES: For all moving parts guarantee the operator’s utmost safety.
ELECTRICAL SYSTEM, fully sealed in compliance with EC regulations, with control button pad, voltage 24 volts.
Specifications:
Working width 1300 mm.
Working height 0-100 mm.
Spreading rollers diameter 185 mm.
Feed speed 18 mt. min.
Motor power 0,37 kW
Height of working surface 795 mm.
Roller grooving 2 mm.
We have some stock machines on the way to AU.
1300mm S2R with Variable roller speed, Washing device & Stainless steel Glue tank. POA
