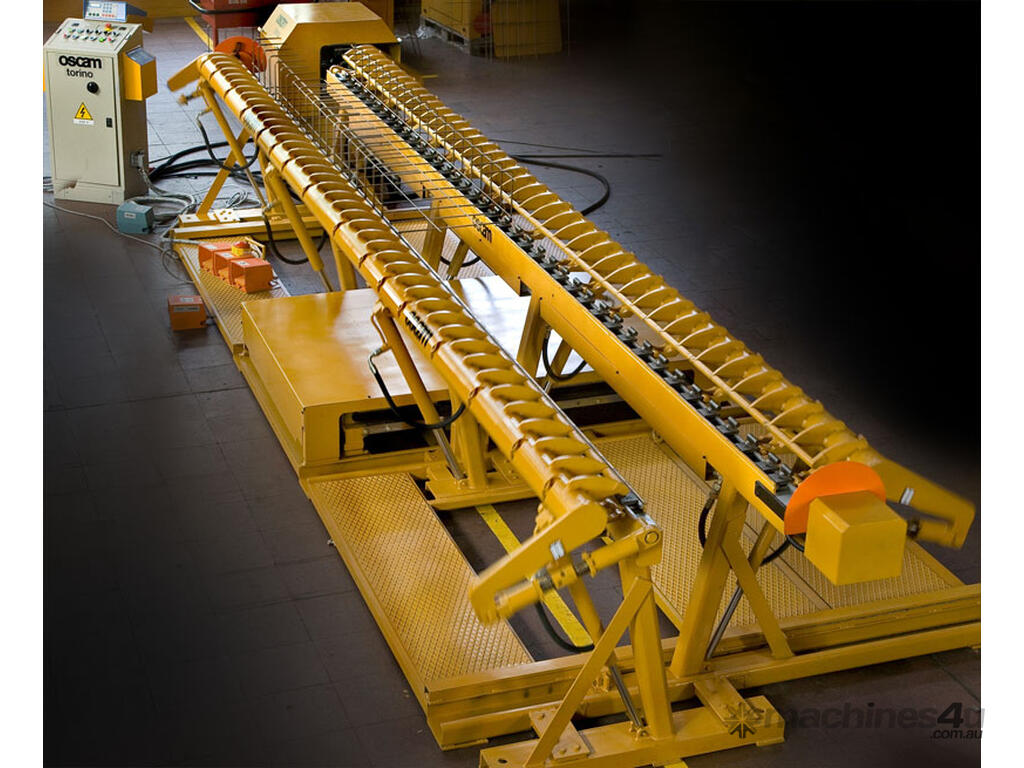

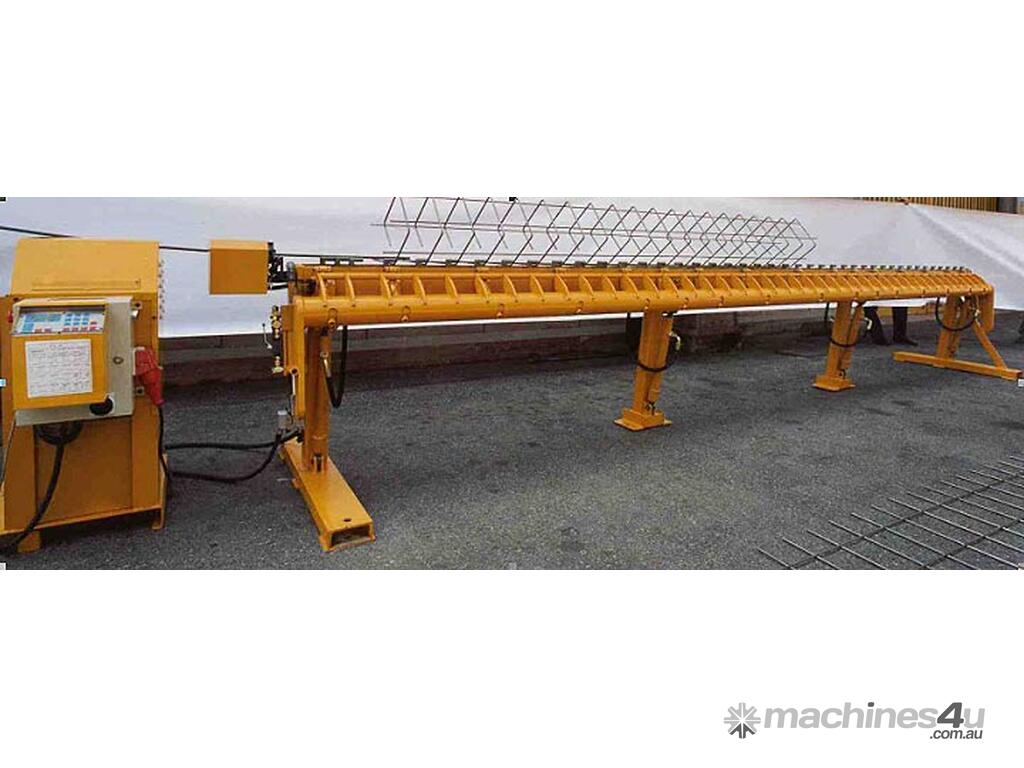

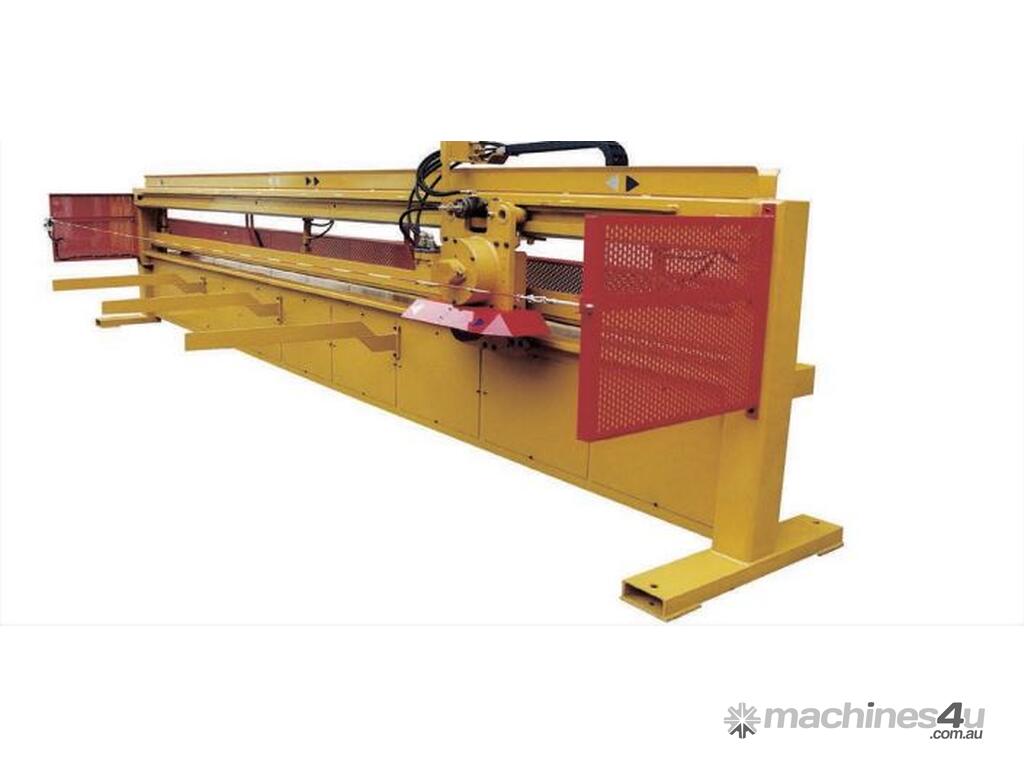

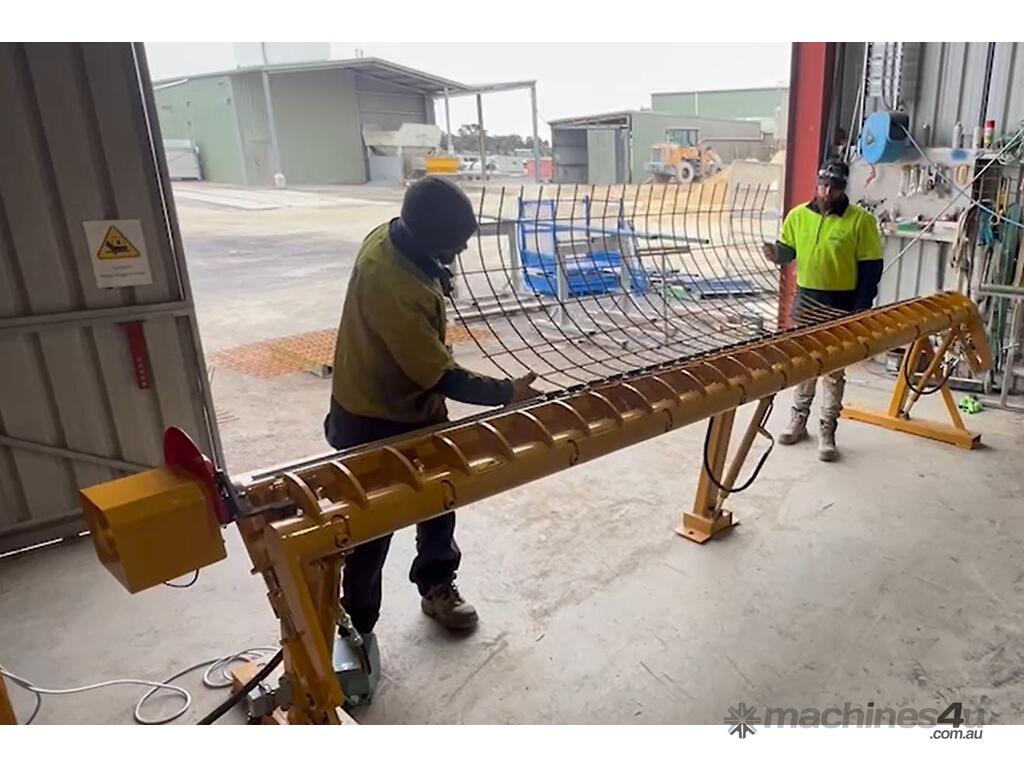

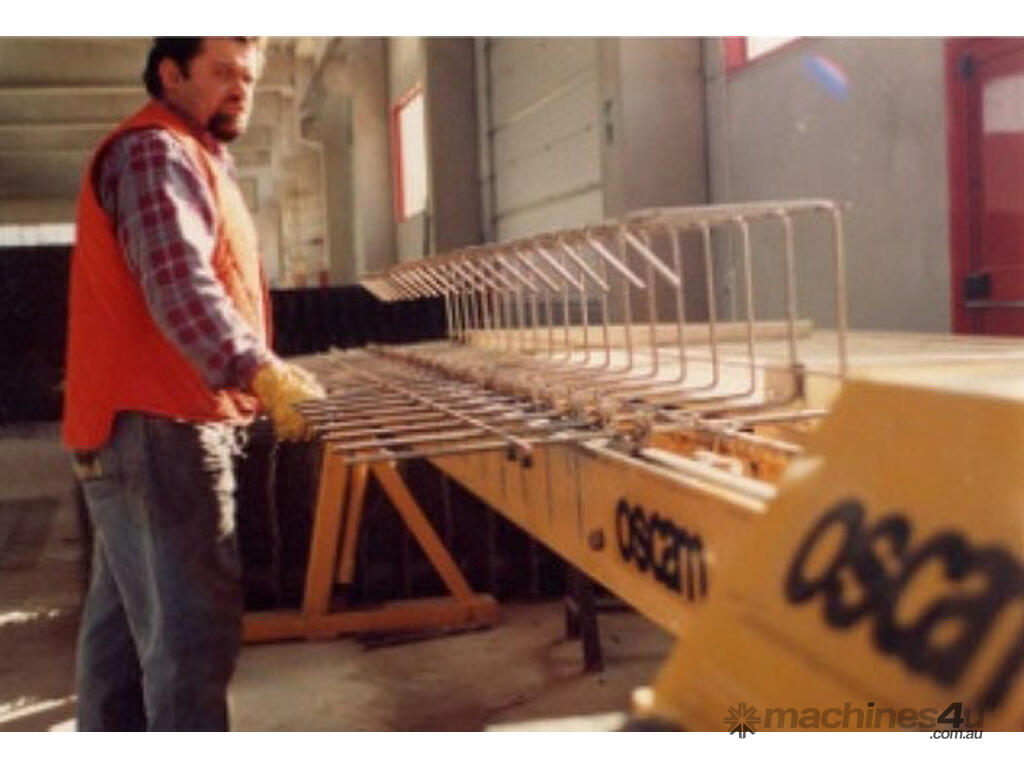

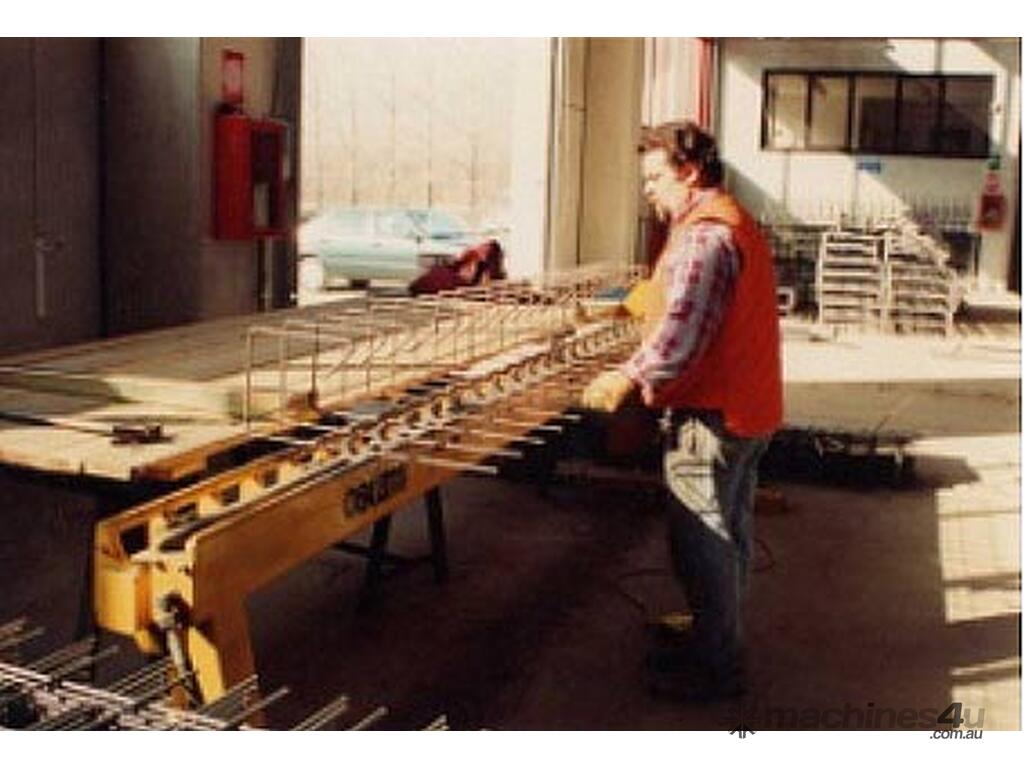

The mesh bending machines create complete polygonal mesh cages in a few seconds, thus reducing manual labor. The fastest way to create slabs, columns, walls, and more. The mesh bending machines are suitable to be used by preshape- but also precast companies who appreciate the speed and ease of manufacturing the reinforcing elements required.
Mod. P10/84 and P12/84

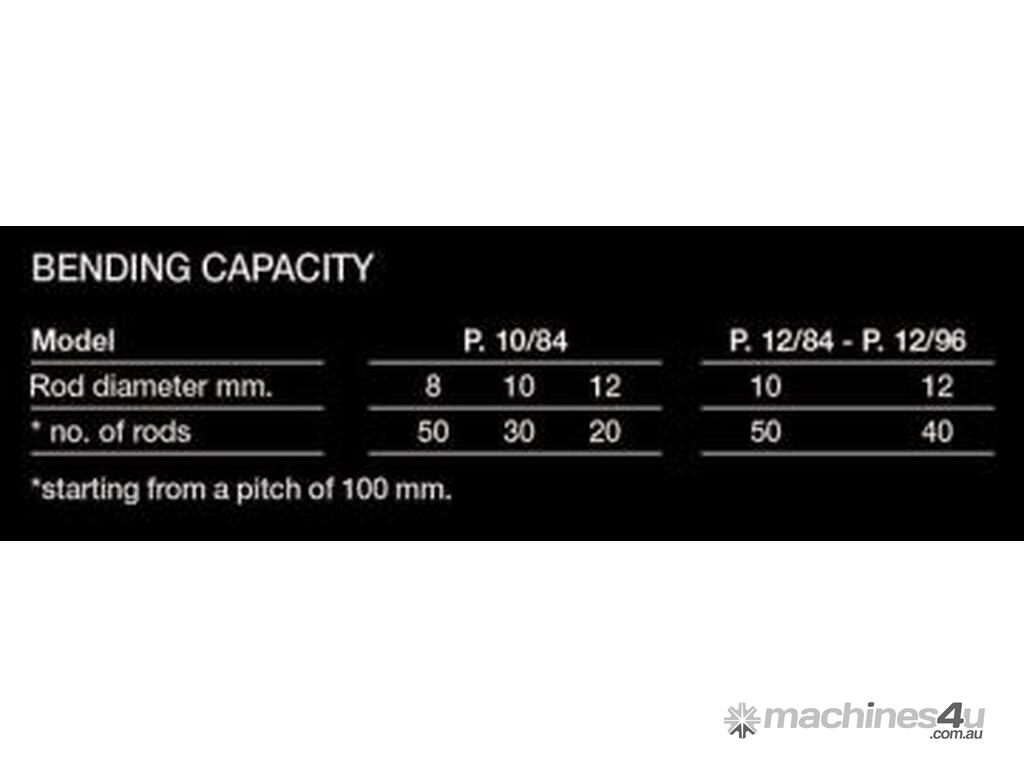

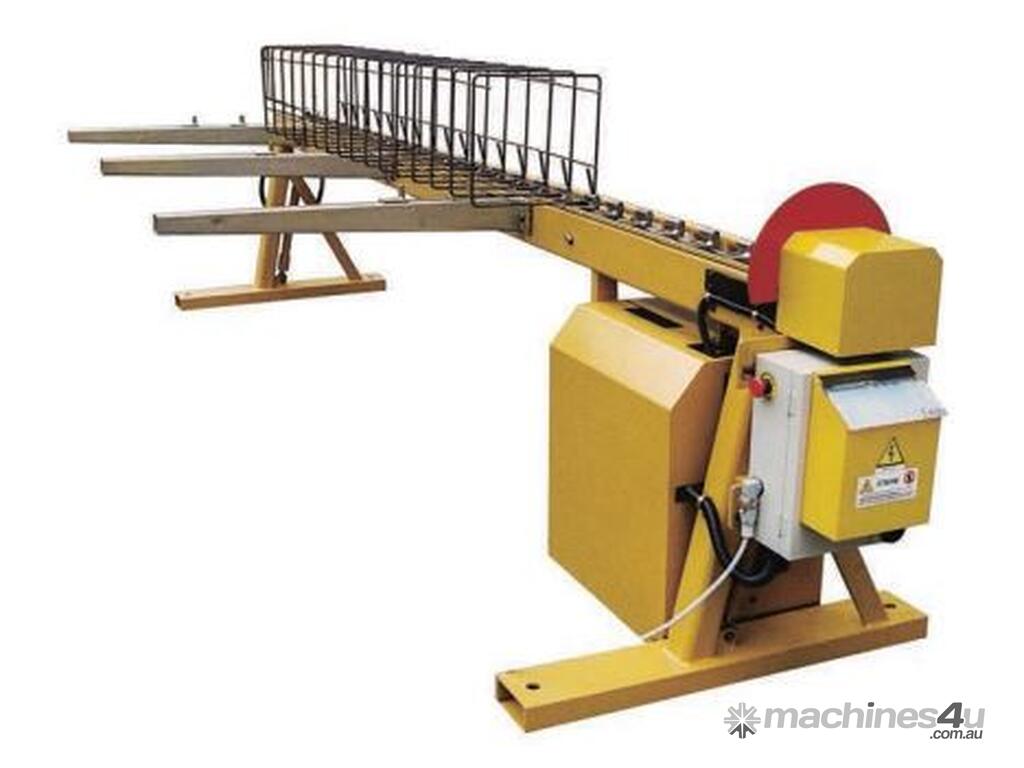

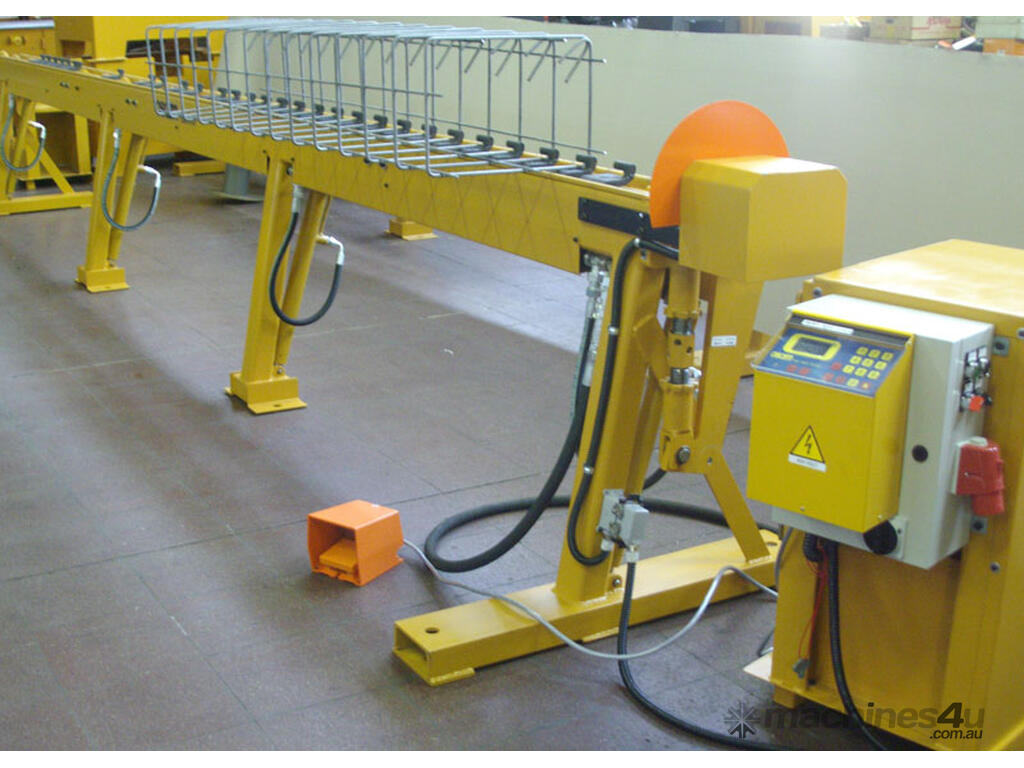

Machine for bending electro-welded mesh panels (maximum diameter of the wire 10 or 12 mm) and create polygonal cages in a few seconds.

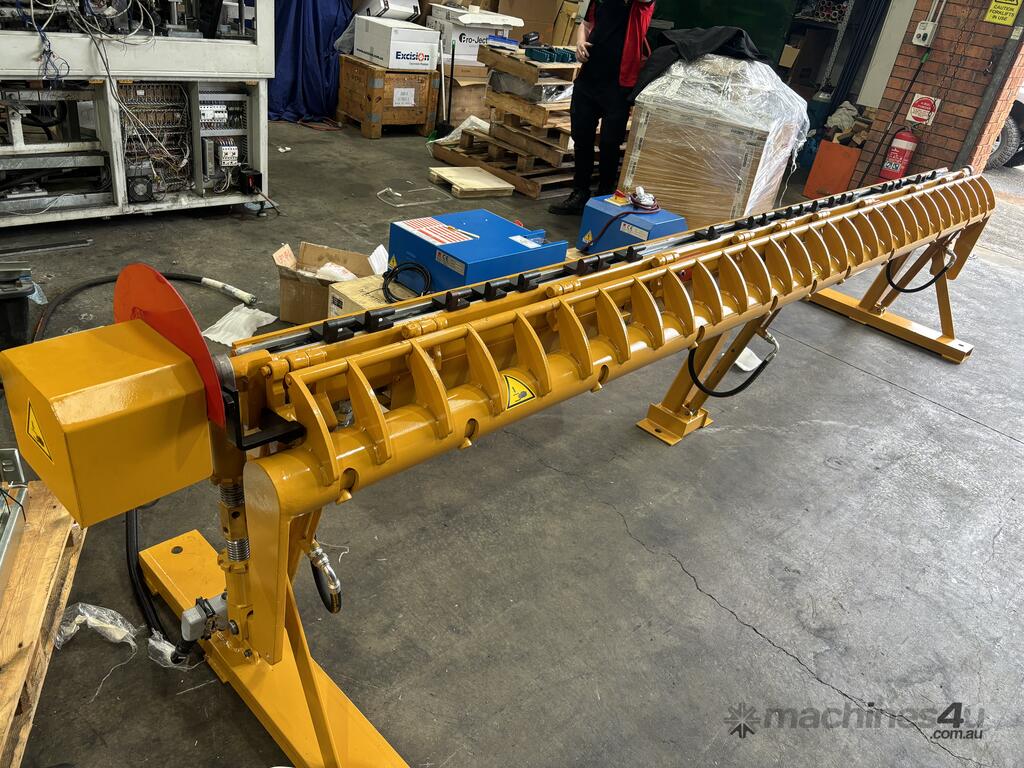

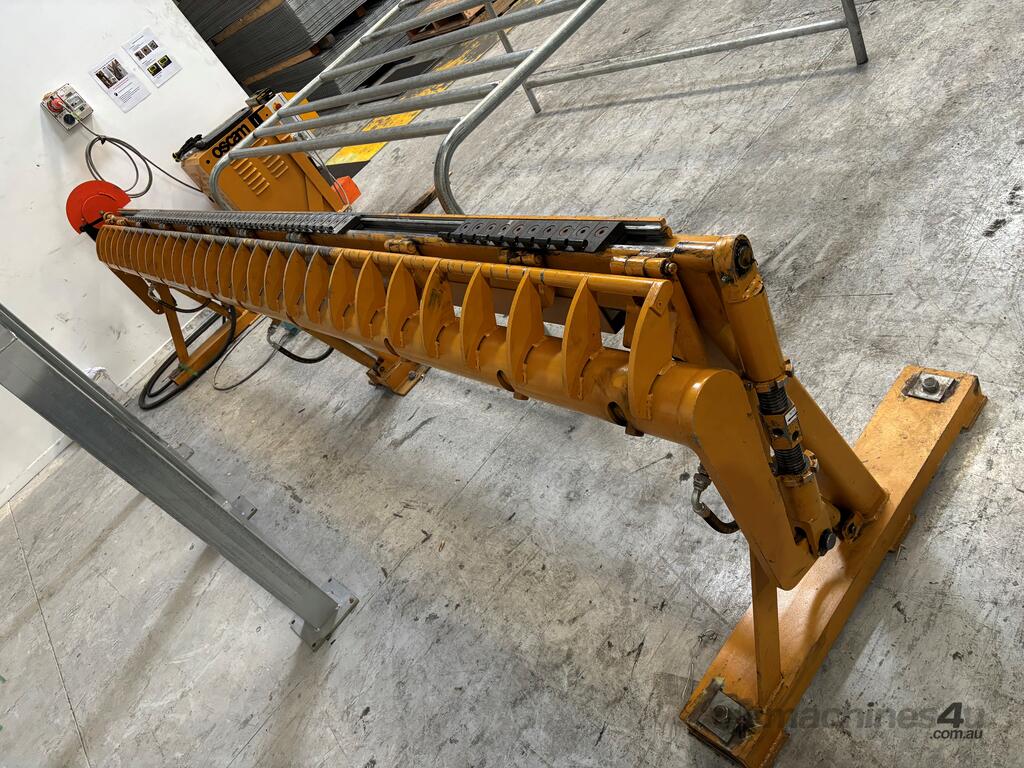

Model P12/96 4000mm with Easy Angle Electronic control – Price From A$ 60,000-00 + GST

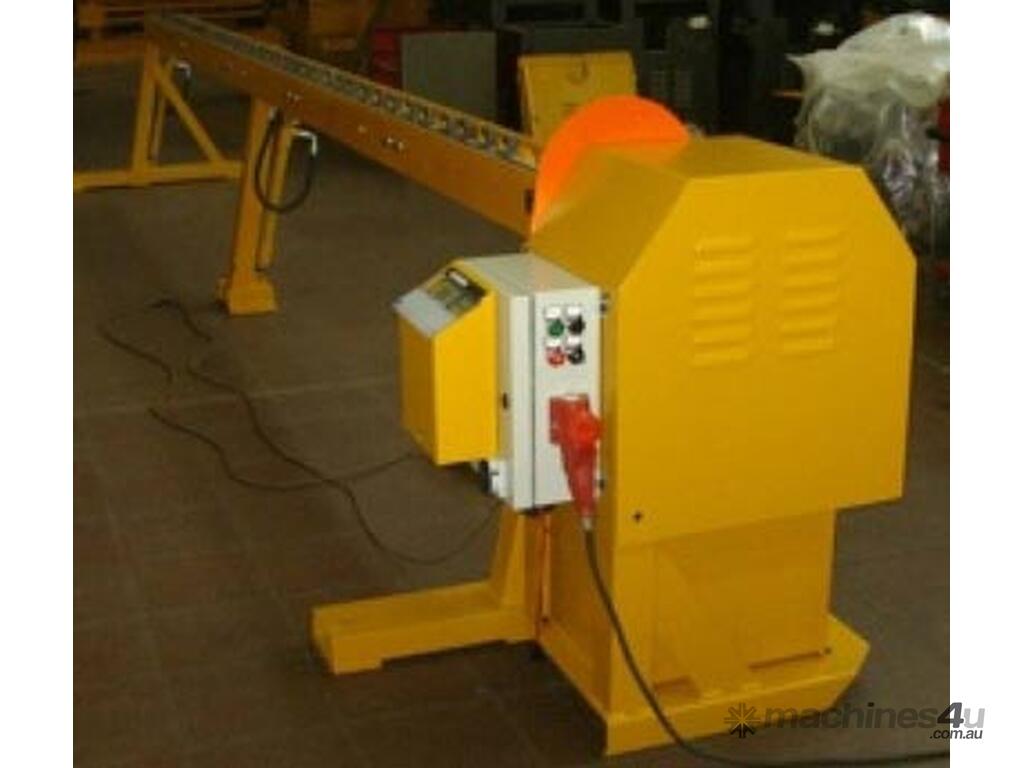

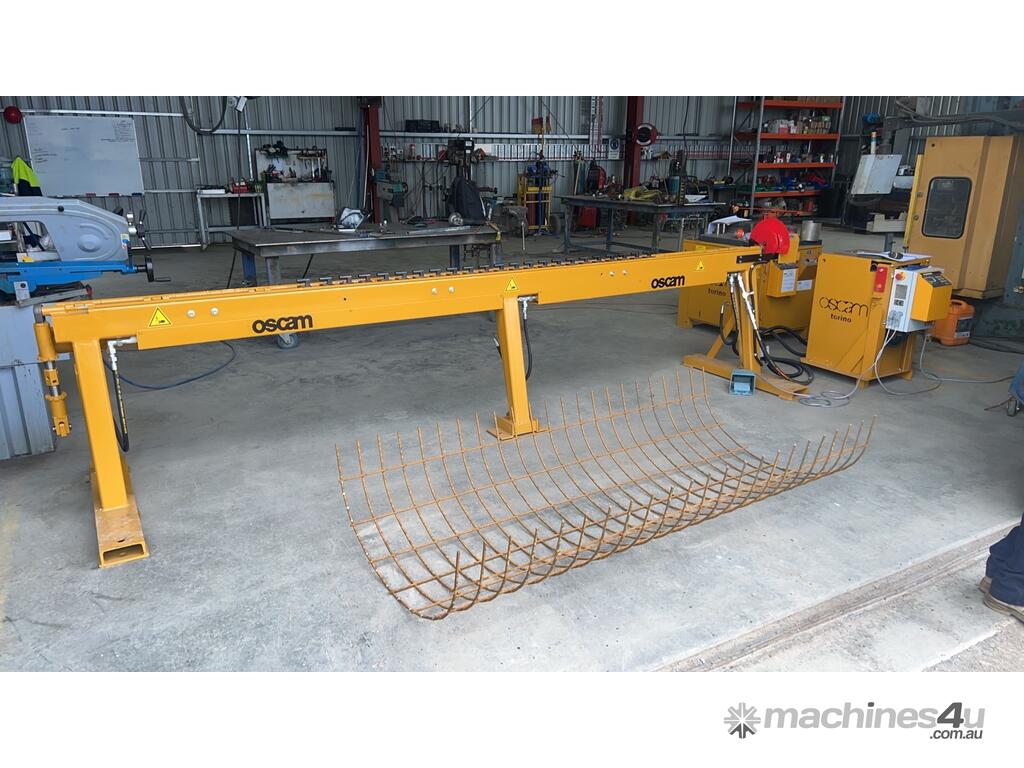

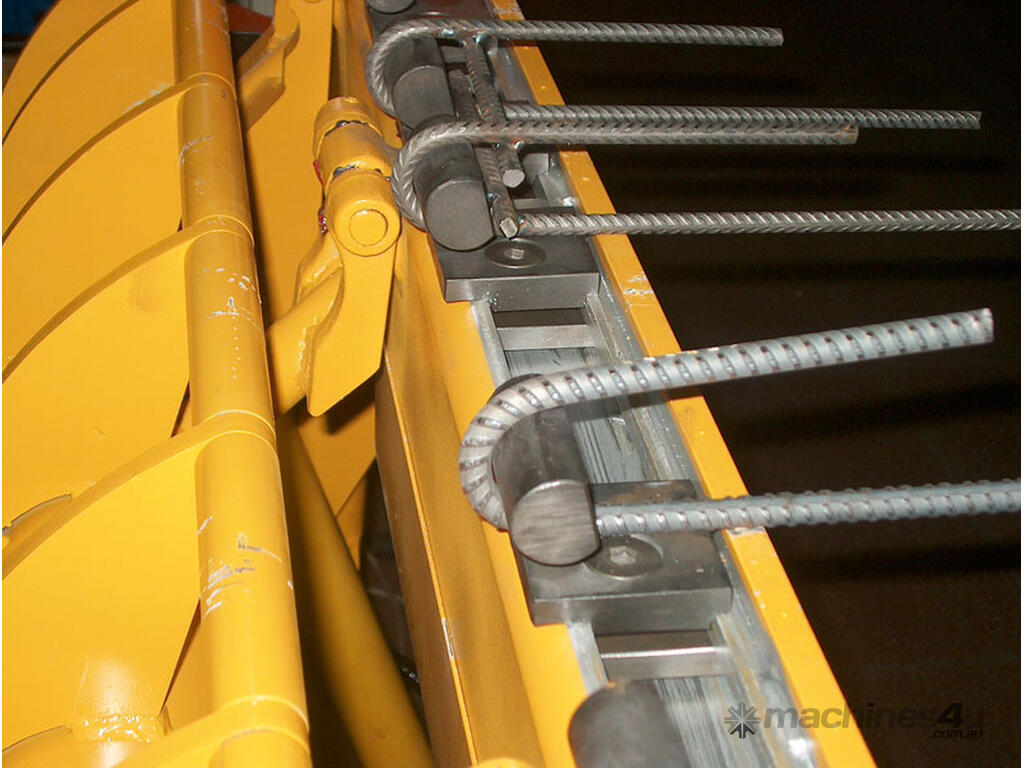

An adjustable arm version allows both are bending the shorter sides and vary the bending radius according to the pins used.

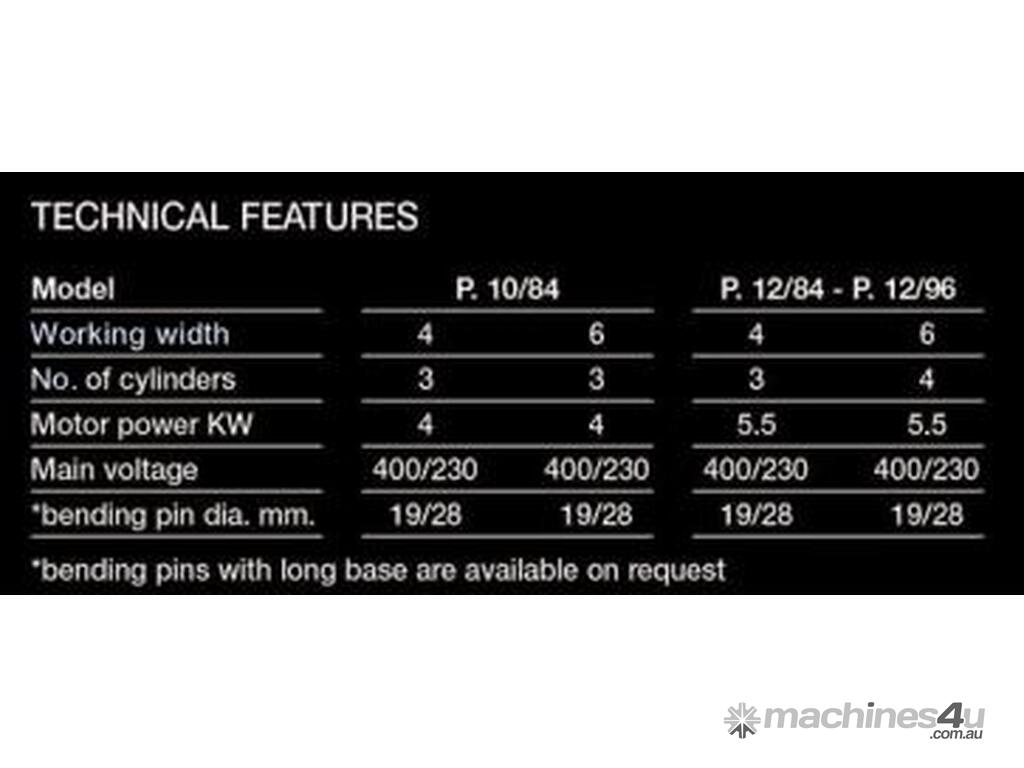

All models are available in standard usable lengths of 4 and 6 m (special lengths are available upon request).
SPEED CONTROL: allows the bending speed adjustment

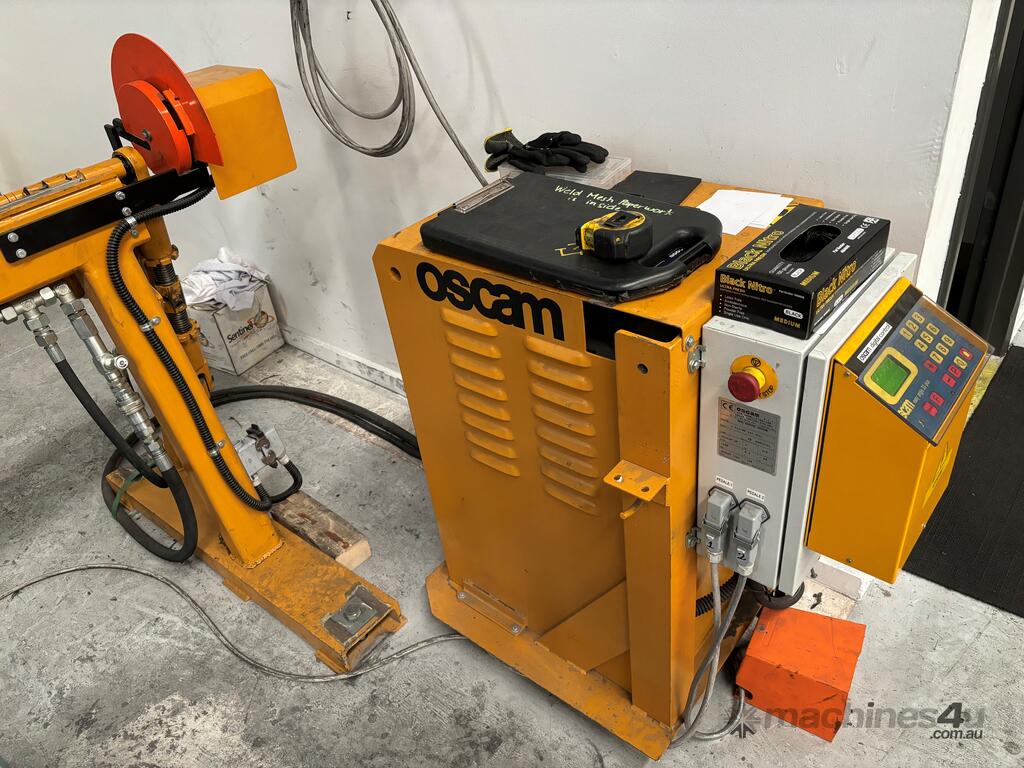

AVAILABLE OPTIONAL: EASY ANGLE MINICOMPUTER

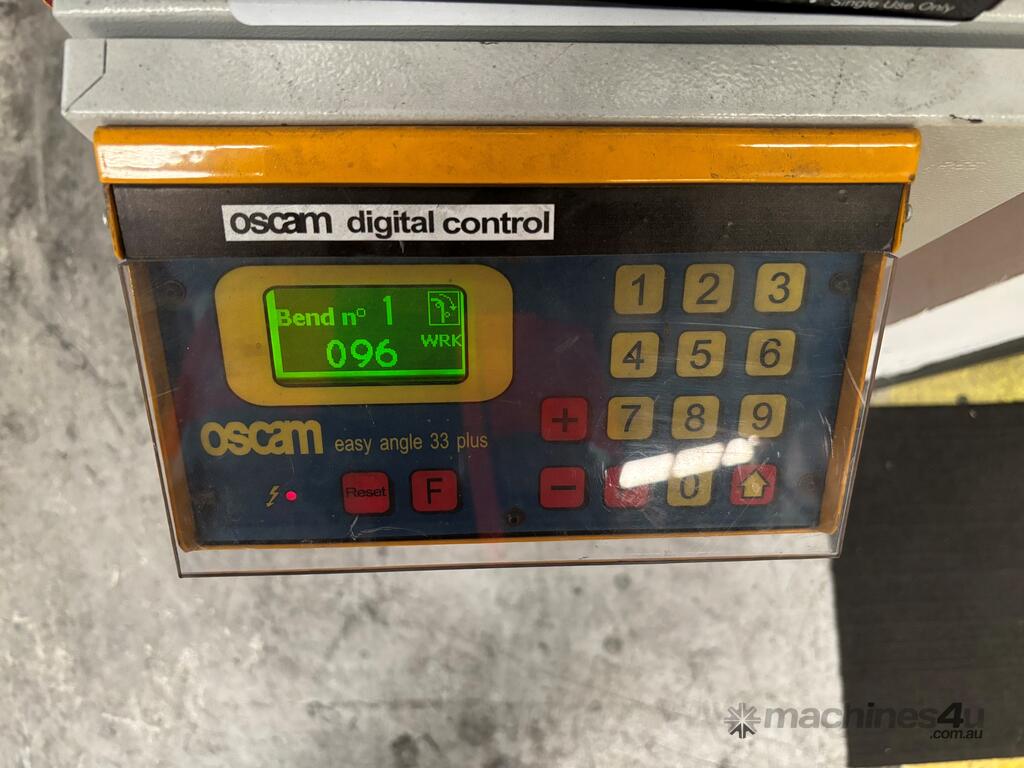

The electronic programmer Easy Angle is studied to manage the bending cycle on bending machines and mesh bending machines.
It can be connected to a barcode reader or to a serial port to import working data (bending angles and number of pieces to produce)
It is possible to schedule the bending sequence of the main processed shapes and any desired shape.
Equipped with:
Countercycle of the produced pieces with an automatic stopping system at the end of the scheduled production
Auto-diagnostic system visualized on the display that shows possible anomalies
Possibility to adjust the angles without changing the set values up to +/- 9°. Particularly suitable when you have to process different types of iron.
It can be used on mesh bending machines, combined cutting/bending machines, and bending machines.
