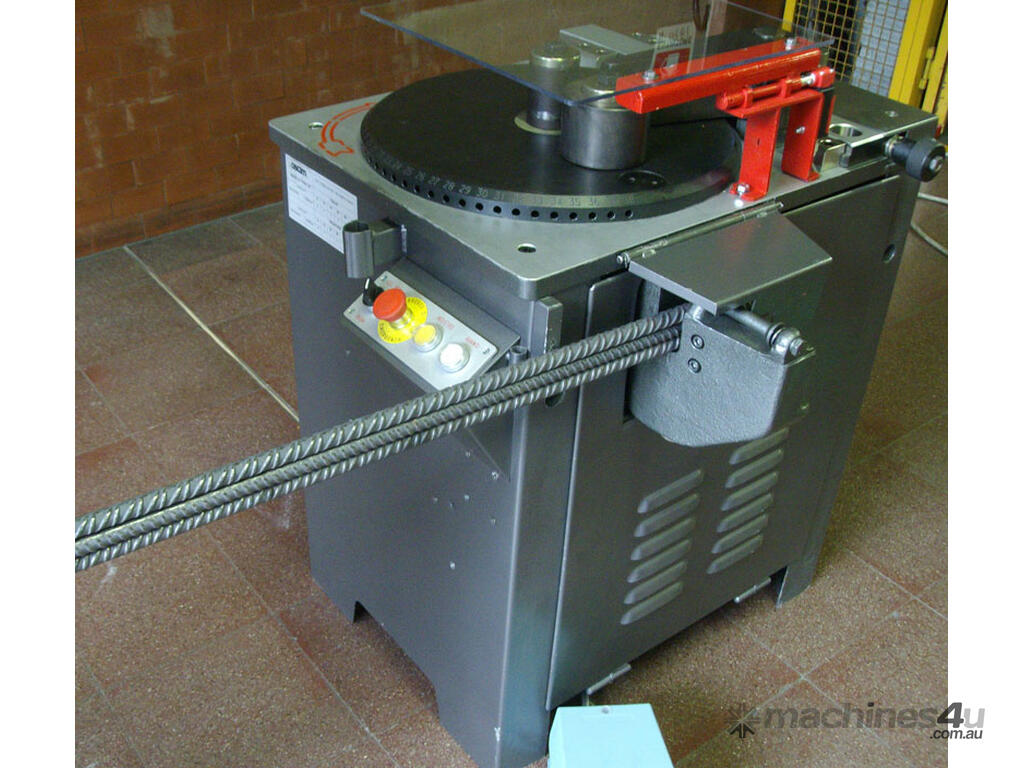

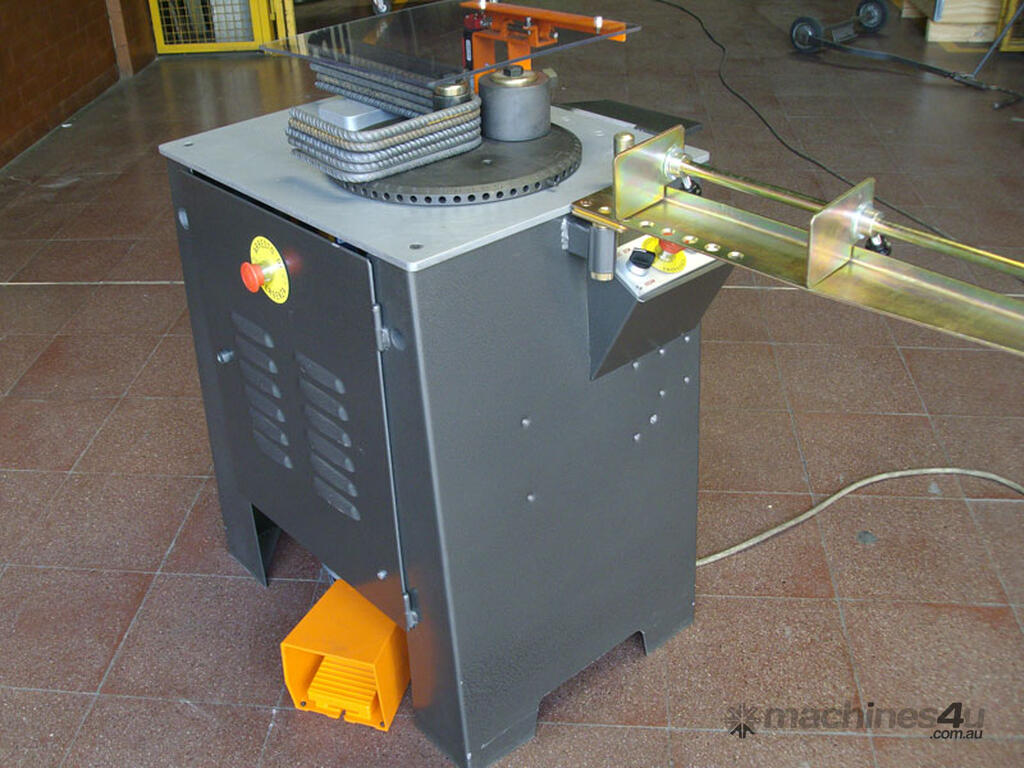

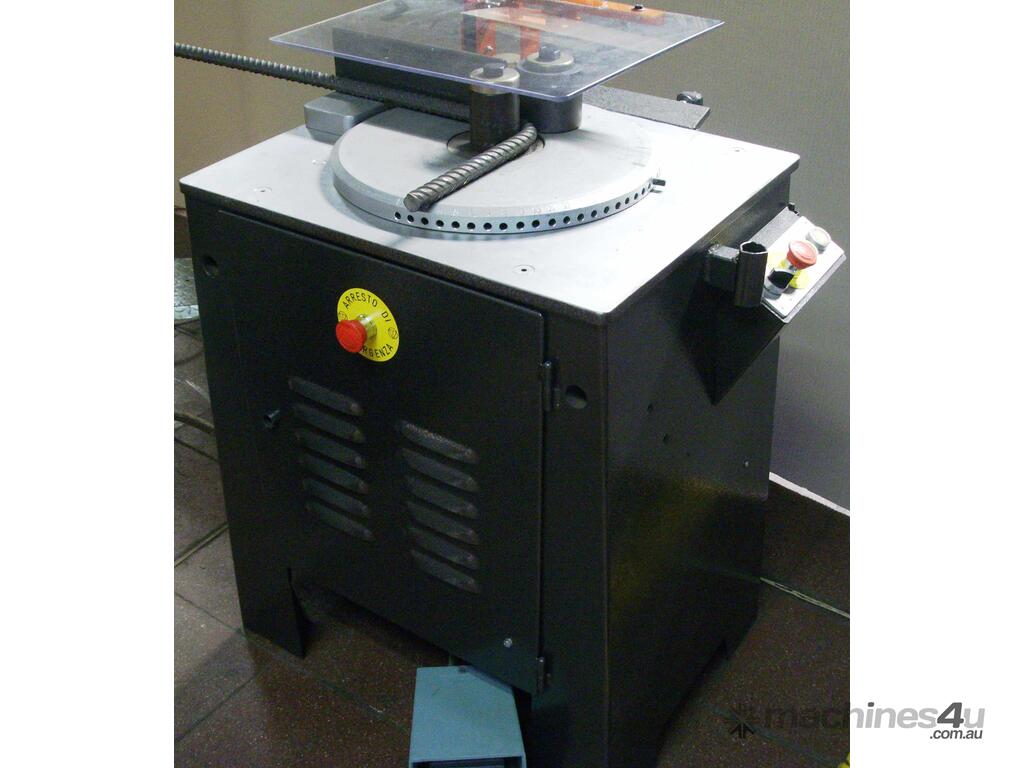

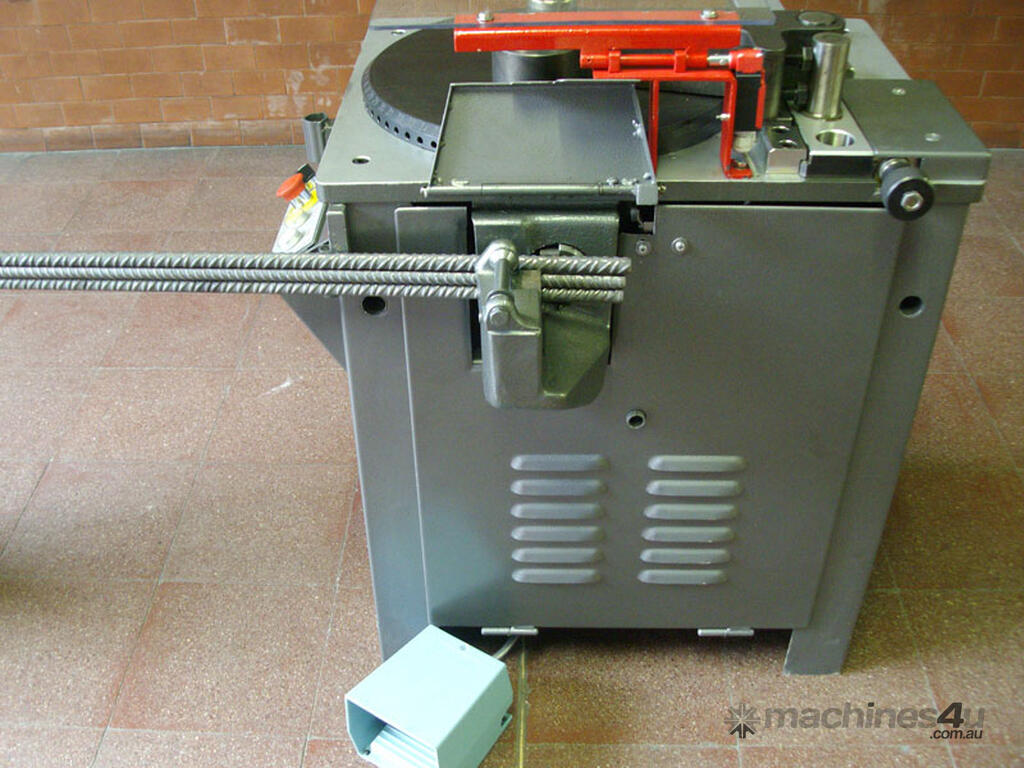

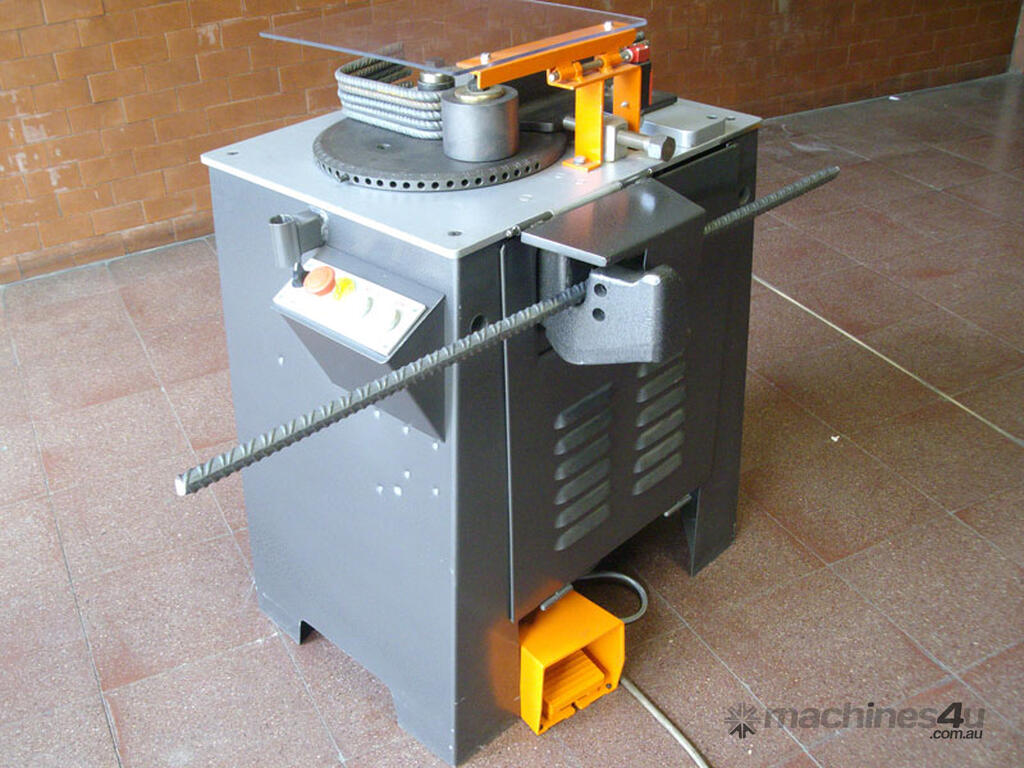

OSCAM - Rod Bending Machine with combined automatic shears [made in Italy]

Particularly suited to carry out small and medium-scale works in building sites by limiting investment costs and space. These machines, like all Oscam bending machines, are automatic and allow to create any bend angle, with reversal and automatic return to the starting point.

They consist of a strong load-bearing base with a single-block structure made of moulded steel. Compared to other models, a cutting arm has been added and this is joined as a single block to the robust cast steel box. All the kinematics, including rod and knife holder, are constantly immersed in an oil bath.

Like the other bending machines, they use the exclusive fixed-pin system that improves the precision and quality of the bend.

mod. 20/22 single-phase

max cutting diameter  20 mm
max bending diameter  22 mm
The bending and cutting machine is fitted with interchangeable quick-release pins, a pedal for remote control and, upon request, can be provided with a splined pin to create right-angle bends.
Bending time: 2,8 seconds for a 180° bend
AVAILABLE OPTIONAL: splined pin to create right angle bends, stirrup meter, Mini computer Easy Angle

mod. TP 22/25

max cutting diameter  22 mm
max bending diameter 25 mm
The machine is supplied with a pedal for remote control and, upon request, can be supplied with a splined pin for right-angle bends.
Bending time: 2,8 seconds for a 180° bend
AVAILABLE OPTIONAL: splined pin to create right angle bends, stirrup meter, Mini computer Easy Angle

mod. TP 25/26

max cutting bar diameter  25 mm
max bending bar diameter  26 mm
The machine is supplied with a pedal for remote control.
Bending time 2,8 seconds for 180° bends

mod. TP 30/32

max cutting bar diameter 30 mm
max bending bar diameter 32 mm
The machine is supplied with a pedal for remote control.
Bending time 4,3 seconds for 180° bends
