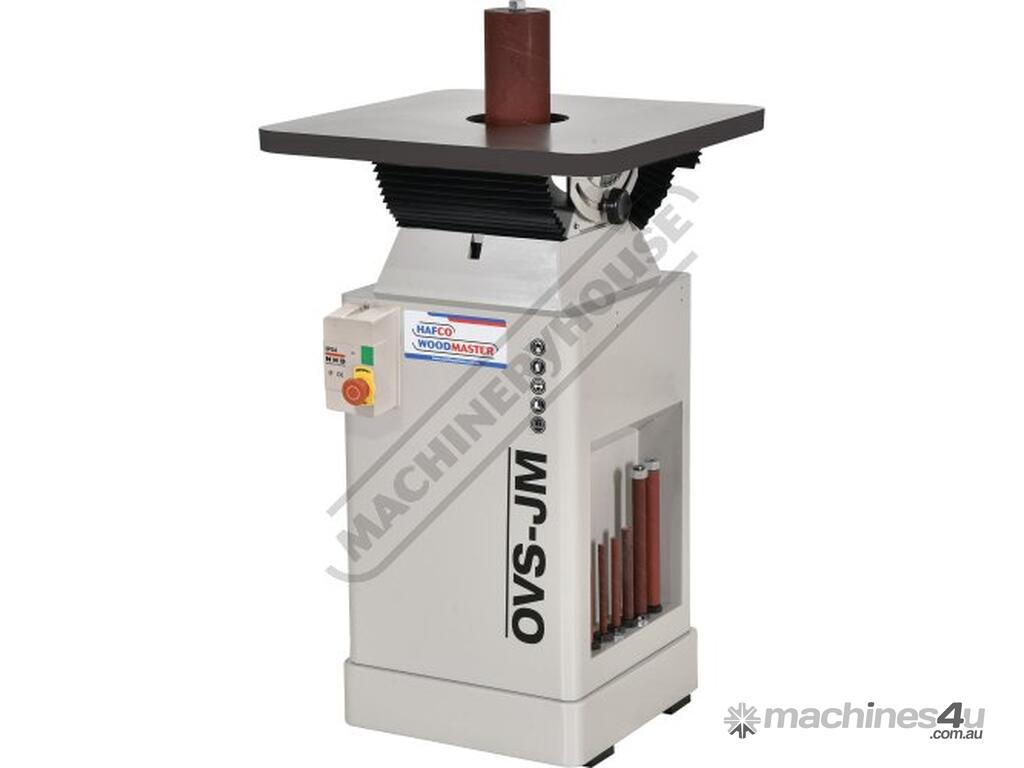

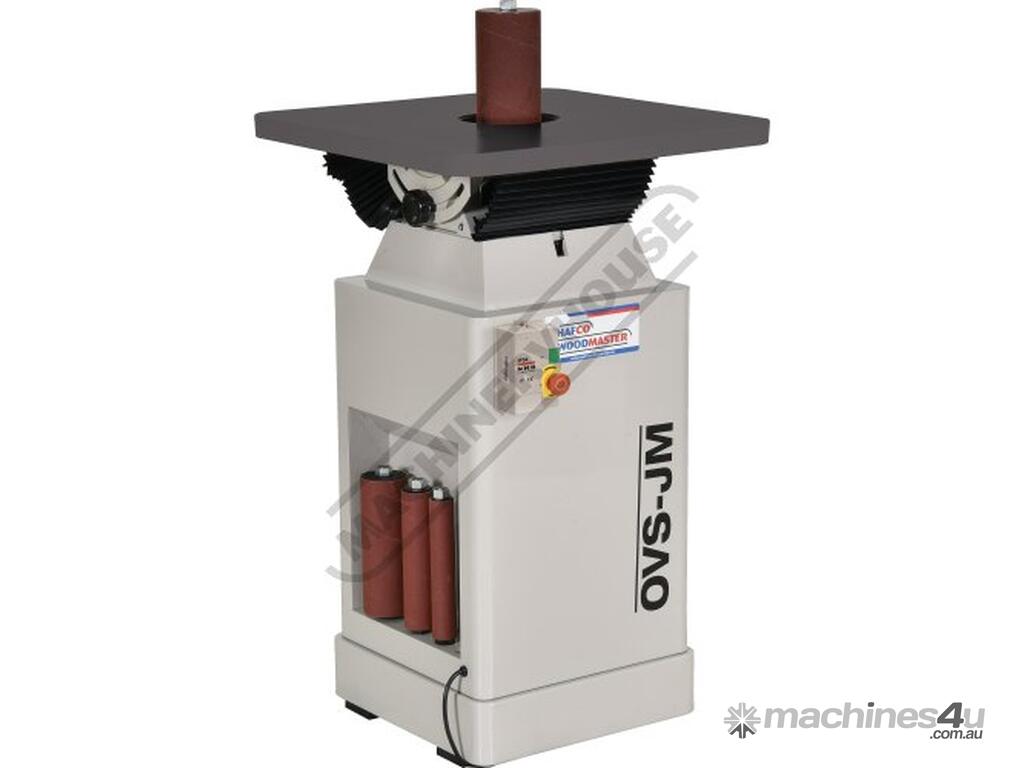

OVS-JM Vertical Oscillating Bobbin Sander with Cabinet Stand Ø1/4 - 4" Sanding Sleeves Tilting Table

HAFCO-WOODMASTER OVS-JM Vertical Oscillating Bobbin Sander with Cabinet Stand Ø1/4 - 4" Sanding Sleeves Tilting Table To 45 Degrees
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W795

Features:
Used for sanding deep and wide work pieces front edges narrow inner curves horizontal vertical diagonal with or across the grain
User- friendly features including dust collection port which allows connection to dust extractor equipment for a cleaner and safer working environment
The rubber drum can be fitted on both ends to fully utilise the entire spindle
Bobbin oscillation stroke of 38mm to spread workload on sandpaper sleeves
This machine accommodates ten sizes of spindle from 1/4" to 4" diameter to fit the various rubber drum diameters

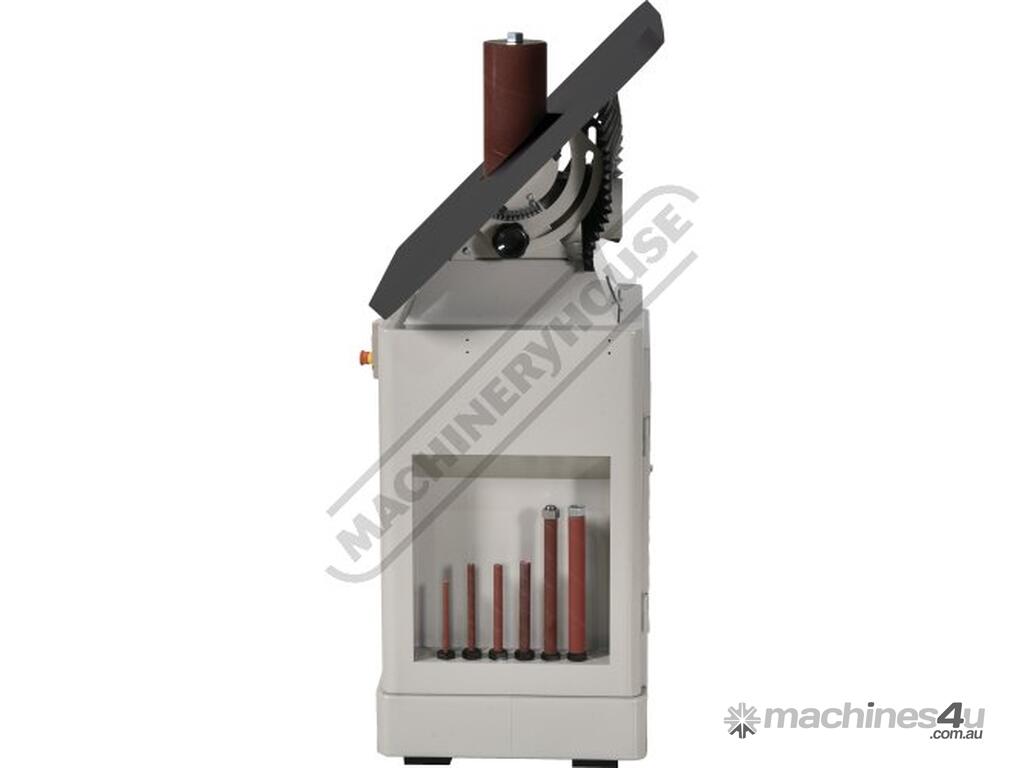

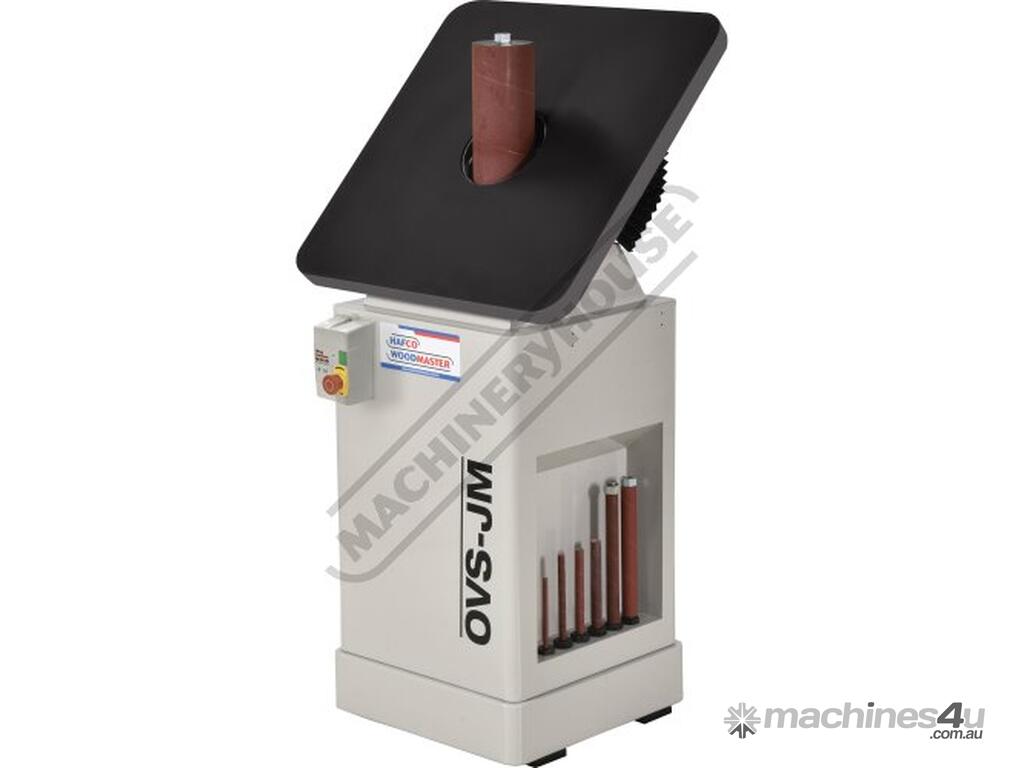

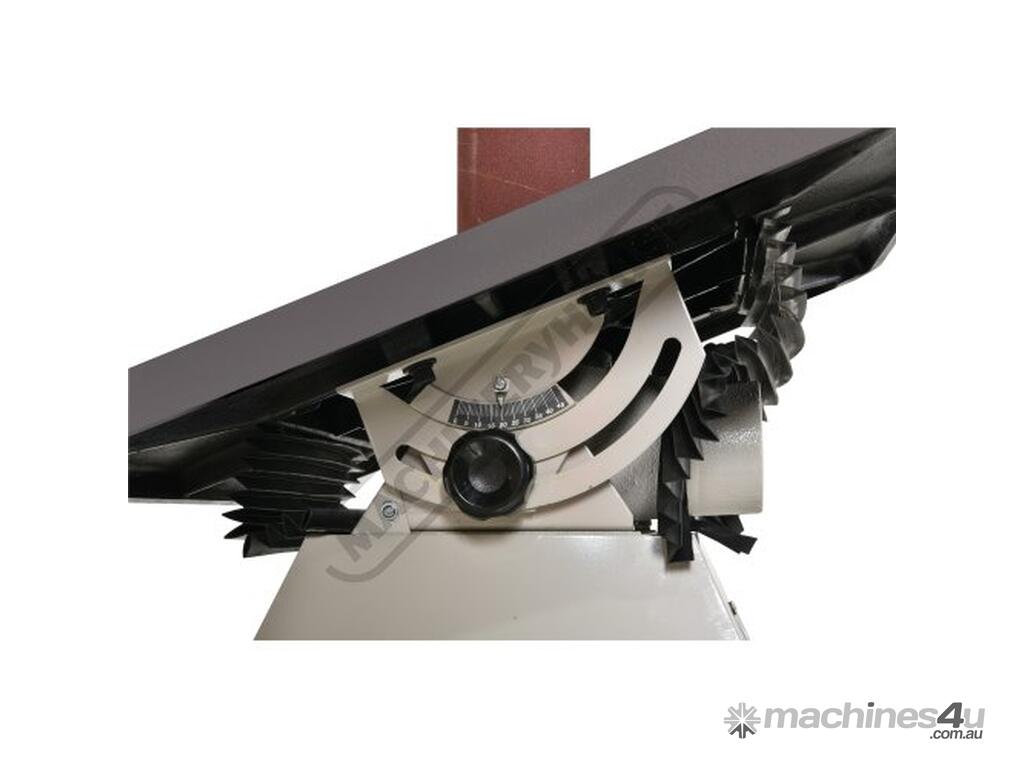

The tilting table can be easily tilted by loosening the two lock knobs located at both sides under the table for the sanding of bevelled parts. A graduated scale is attached to read the tilting degree

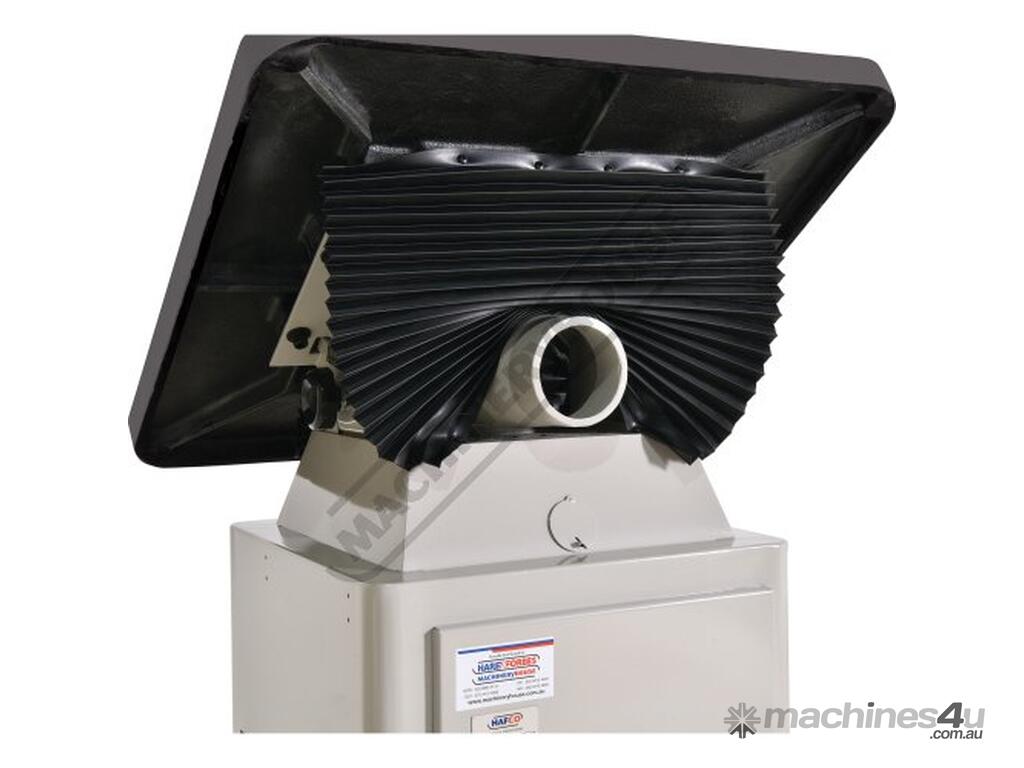

A dust hood is built under the table for connection to dust collector. The dust hood outlet is 4" diameter
Spindle change is easily made by using the supplied wrench
The oscillating sanding provides an extremely fine sanding finish
Easily interchanged spindles
The tilting table is precision ground
Heavy gauge steel frame

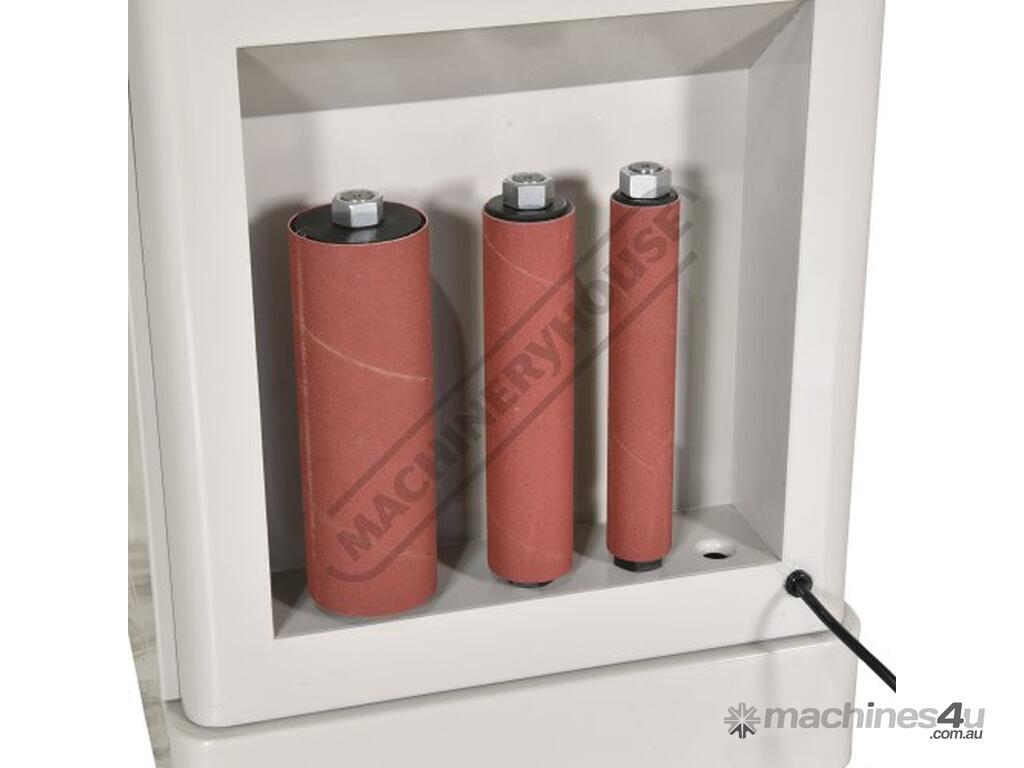

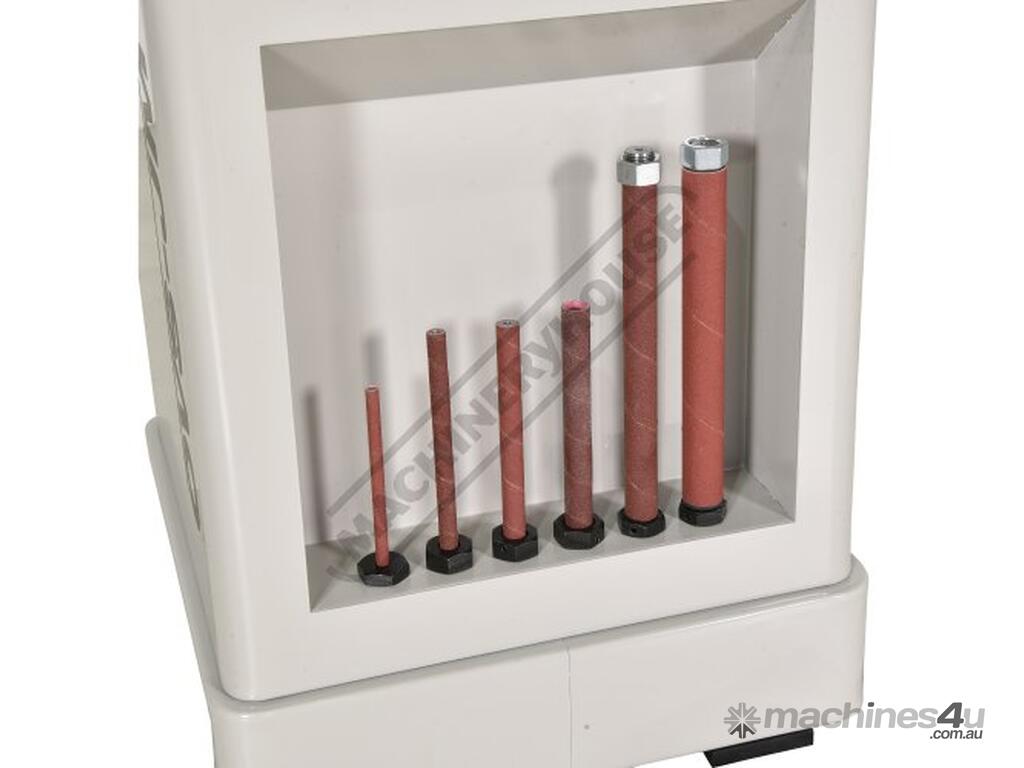

On-board accessory storage ensures convenient storage of all drums and table inserts plates
Heavy duty precision ground cast iron tilting table 609 x 609mm for greater stability accuracy and durability
Rotating and oscillating action ensures exceptional finishing results
Powered by an 1hp 240V motor provides ample power
Oscillating per minute: 75 times
Sanding spindle speed: 1725rpm
Table height: 990mm

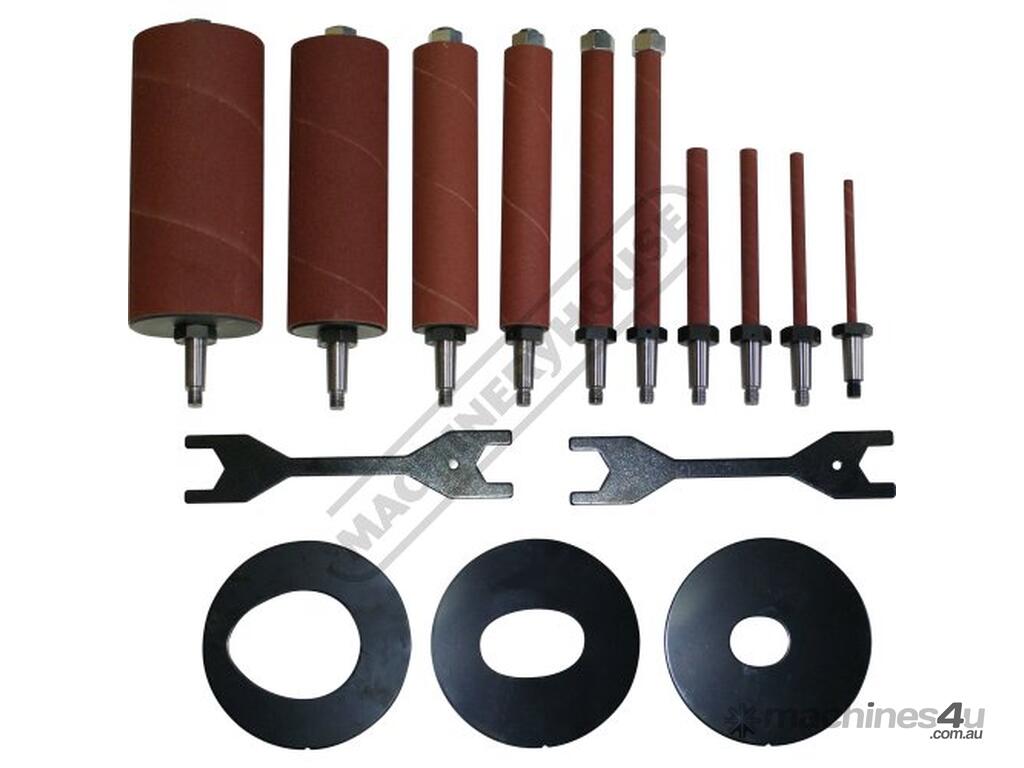

Includes:
- Sanding Spindles & Sleeves:
- 1/4" x 5" long
- 3/8" x 6" long
- 1/2" x 6" long
- 5/8" x 6" long
- 3/4" x 9" long
- 1" x 9" long
- 1-1/2" x 9" long
- 2" x 9" long
- 3" x 9" long
- 4" x 9" long



Specifications:
ORDER CODE: W795
MODEL: OVS-JM
Sanding Spindle Sleeve Sizes (Inch): 1/4", 3/8", 1/2", 5/8", 3/4"
Sanding Spindle Sleeve Sizes (Inch): 1", 1-1/2", 2", 3" & 4"
Table Size (mm): 609 x 609
Table Height (mm): 990
Oscillating Stroke (mm): 38
Sanding Spindle Speed (rpm): 1725
Tilting Work Table (Deg.): 45º
Dust Port Size (mm): Ø100
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H): 620 x 620 x 1200
Weight (kg): 145


To Purchase Online Please Visit The Machineryhouse & Search For 'W795'
