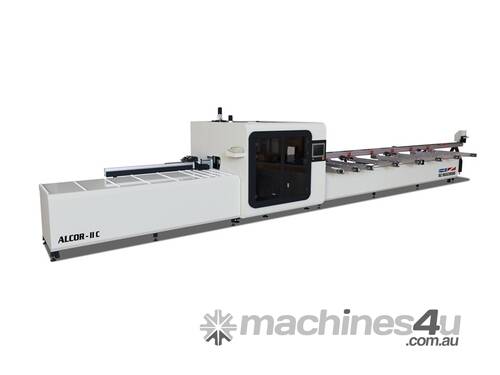

OZ MACHINE Profile Machining and cutting centre 8 Axis CNC

See it in action - click on the Video
FEATURES

Used for cutting, milling, punching and marking processes on 4 surfaces of profiles.

Servo controlled cutting

Servo controlled rotation axis

Automatic positioning at all degrees between 30° and 150° with servo motion system

Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles

Industrial PC with Windows based touchscreen and easy to use practical interface

Remote access

Data transfer over remote network connection, Ethernet and USB

Guard cabin for cutting and machining area

Adjustable saw blade travel speed

Discharge unit with pneumatic conveying system

Resume feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces

Feeding capacity for 10 profiles

High cutting capacity to increase efficiency

High speed axis movements

Automatic lubrication in processing area

Ability to process 4 different surfaces of a profile

Ability to use cutting and processing units independently

Standard Equipment

550mm saw blade

Automatic waste discharge unit

Barcode printer



Optional Equipment

Compatibility with CAM programs


Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST
