OZ MACHINE Radial Double Mitre Saw. 3 axis . 6000mm. Versatile / productive

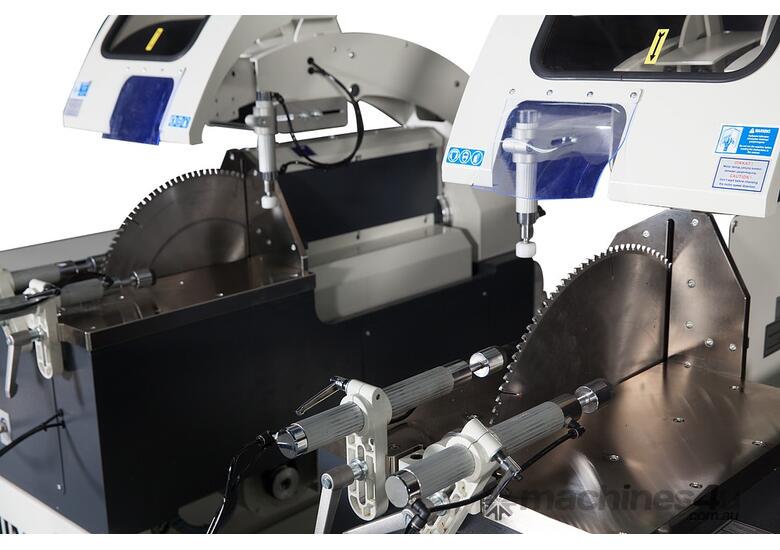

Radial double Mitresaw. 550mm diameter blades. 6000mm capacity.
3 axis Servo control of cutting length and any angle setting 90-30 degrees

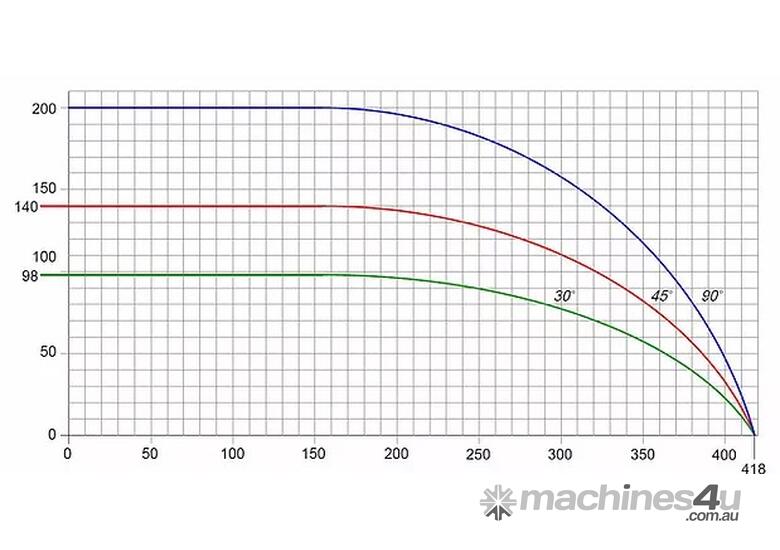

Big capacity up to 200mm high and up to 418mm wide.
High efficiency.

FEATURES

Hydro-Pneumatic cutting

Servo controlled rotation axis

Secure cutting by the cover equipped with a safety sensor

Automatic positioning at all degrees between 30° and 90° with servo motion system

Industrial PC with Windows based touchscreen and easy to use practical interface

Remote access

Data transfer over remote network connection, Ethernet and USB

Batch processing and precision cutting

Ability to perform cutting automatically from the list or manually

Adjustable saw blade travel speed

Ability to control saw blade travel distance

Process programming and large memory

Automatic horizontal and vertical clamps

Roller conveyor on moving head

Batch profile slicing

Automatic size calculation for mold cutting

Automatic profile support unit


Standard Equipment

550mm saw blade (2 pcs)

Conveyor (1 pcs right, 1 pcs left)

Cooling system


Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST
