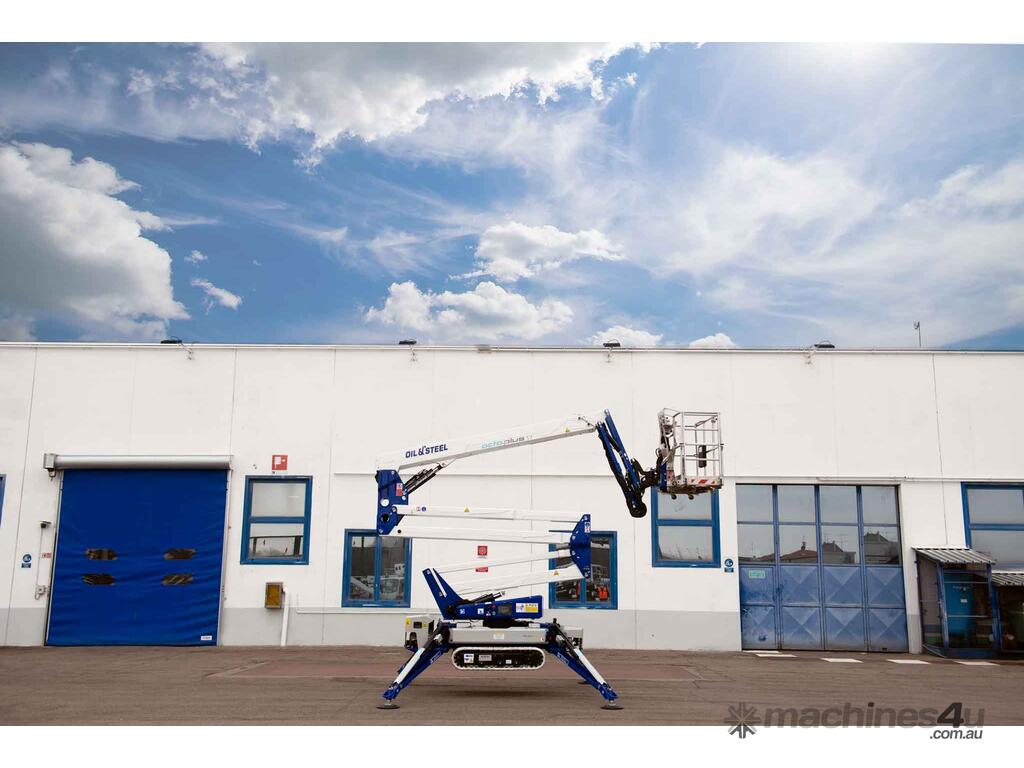

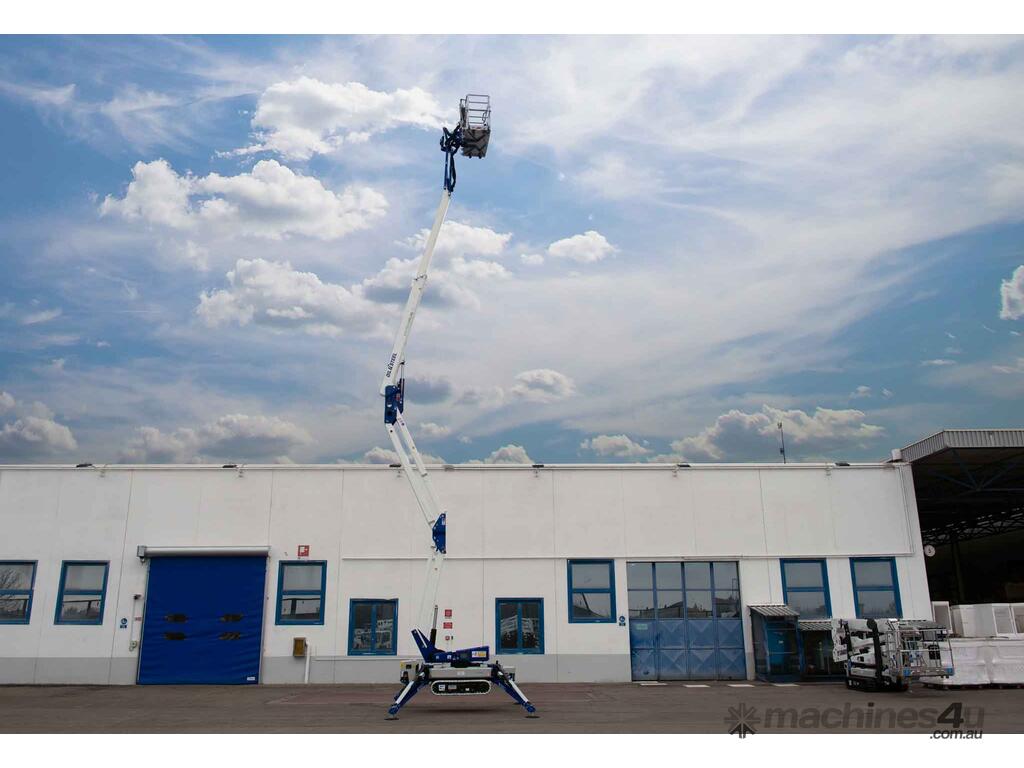

Meet the OctoPlus 17, a compact and lightweight Spider Lift designed for exceptional performance at an unbeatable price. With its short transport length and narrow profile, the OctoPlus 17 navigates tight spaces with ease, making it the ideal solution for challenging access scenarios.
Key Features

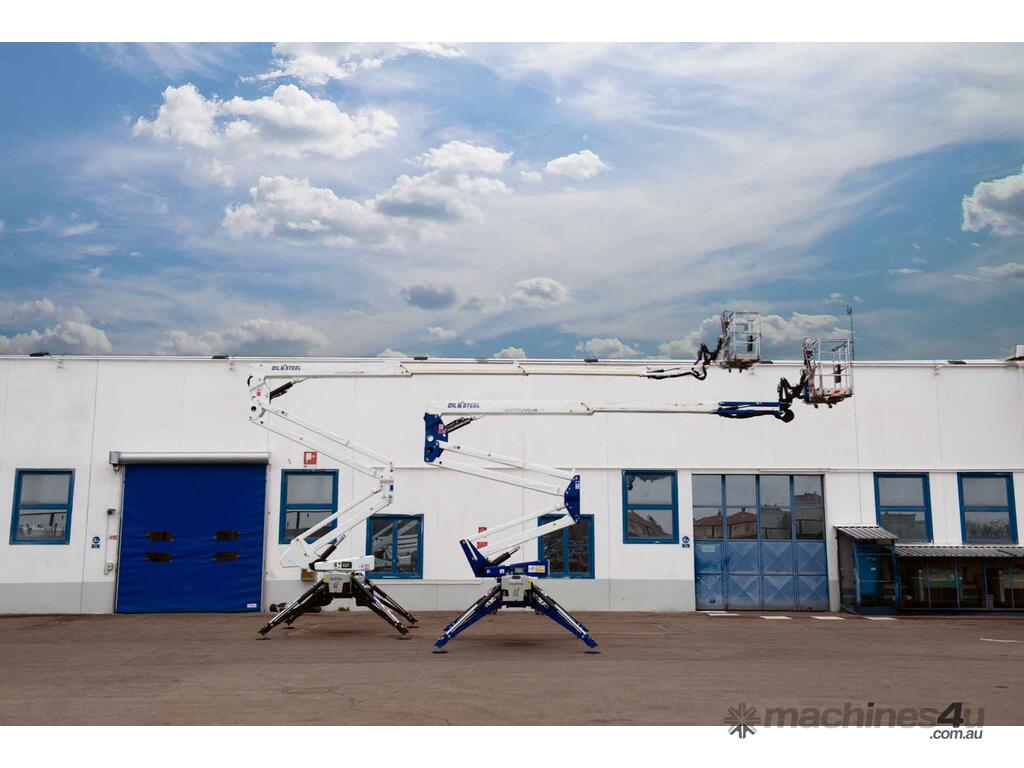

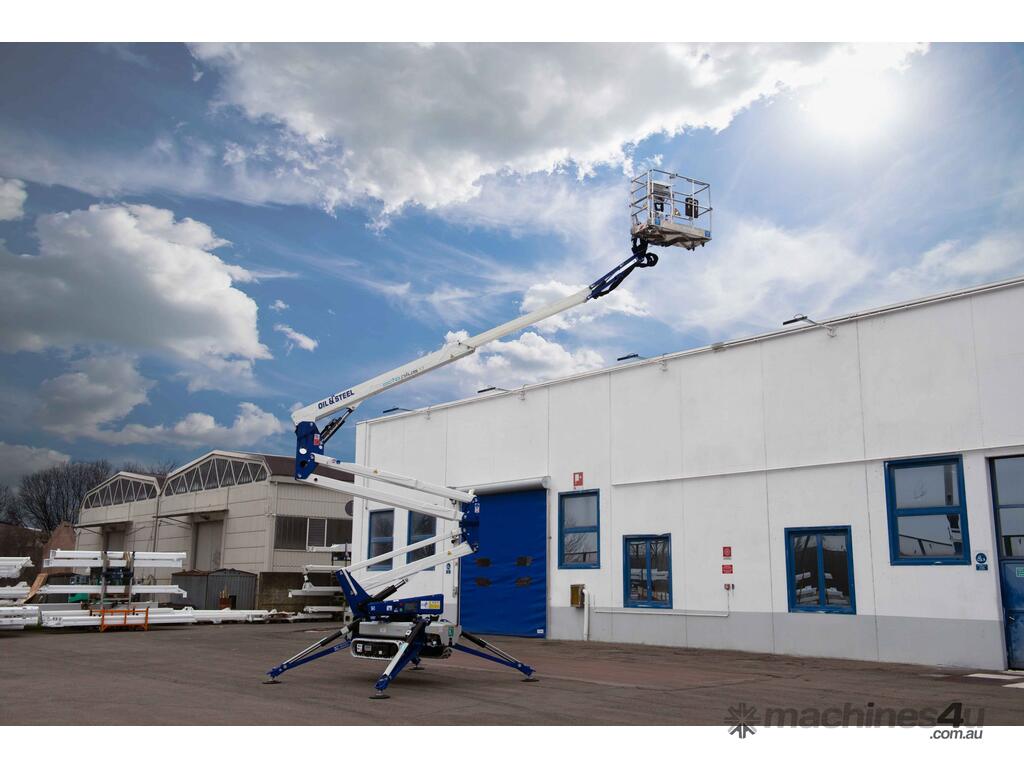

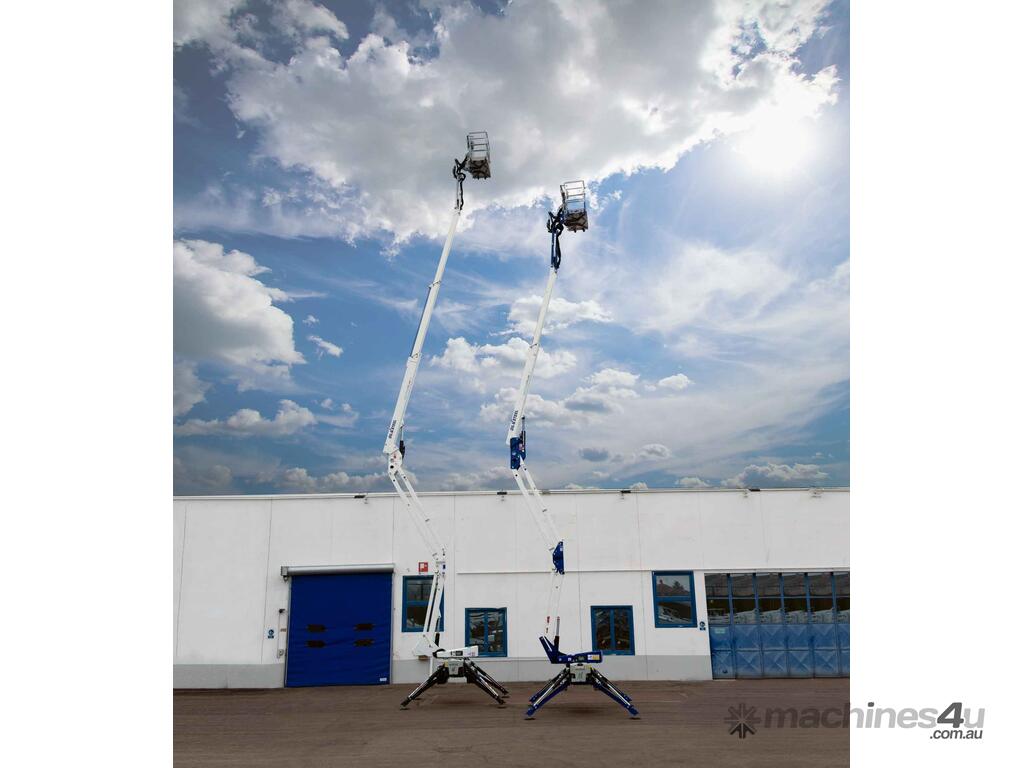

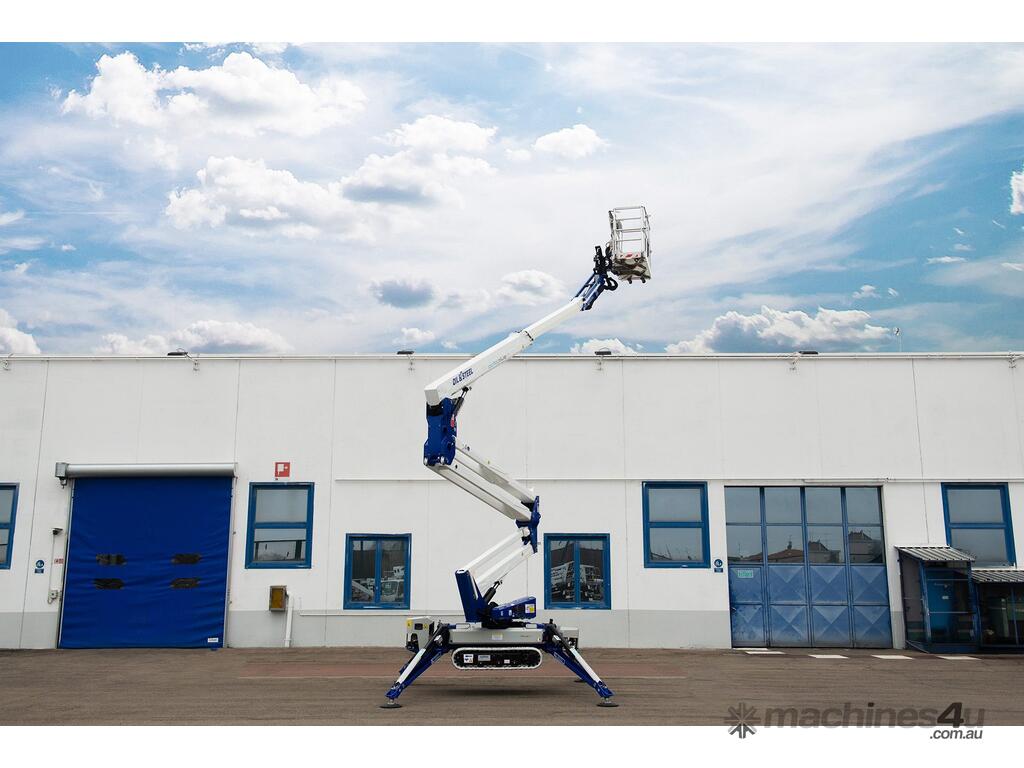

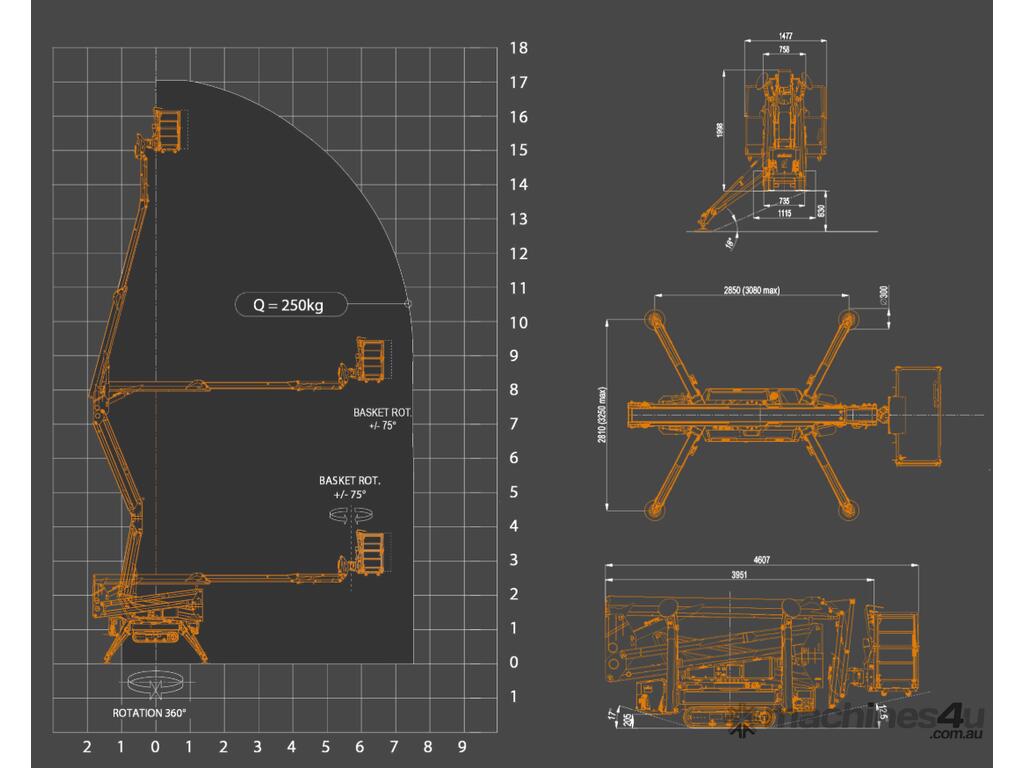

Outstanding Reach: 17 m vertical and 8 m horizontal reach, unrestricted.
Compact Dimensions: At only 785 mm wide, 3,951 mm long, and 1,998 mm high, it fits through a single doorway.

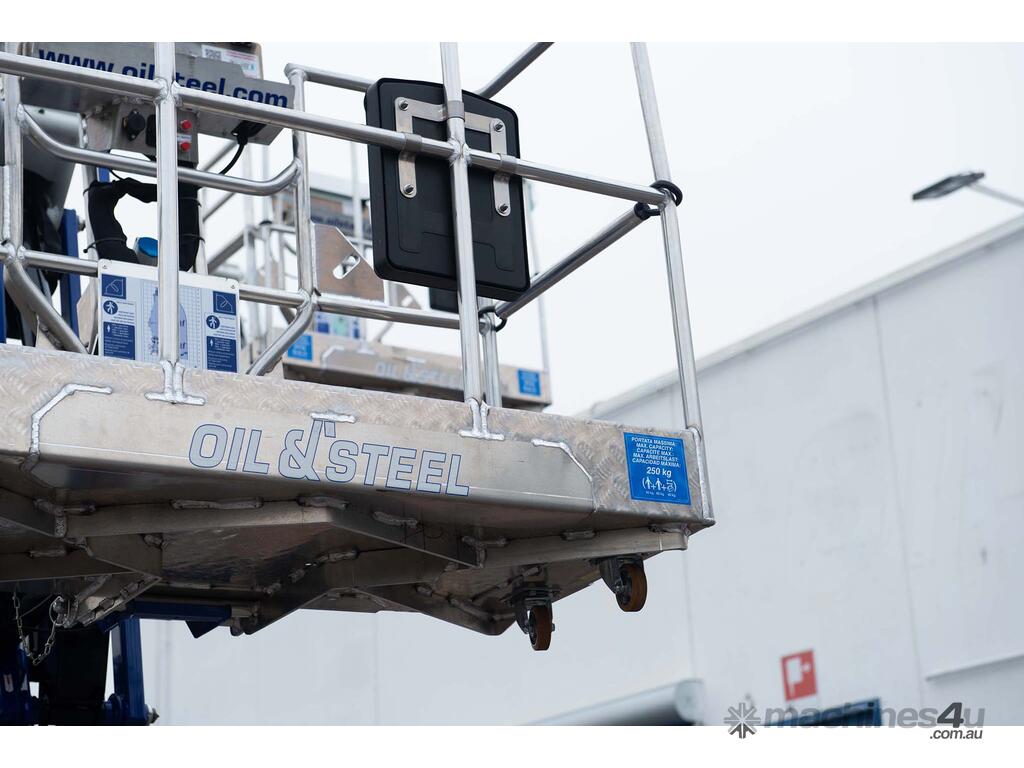

High Basket Capacity: 250 kg, leading its class for maximum load.

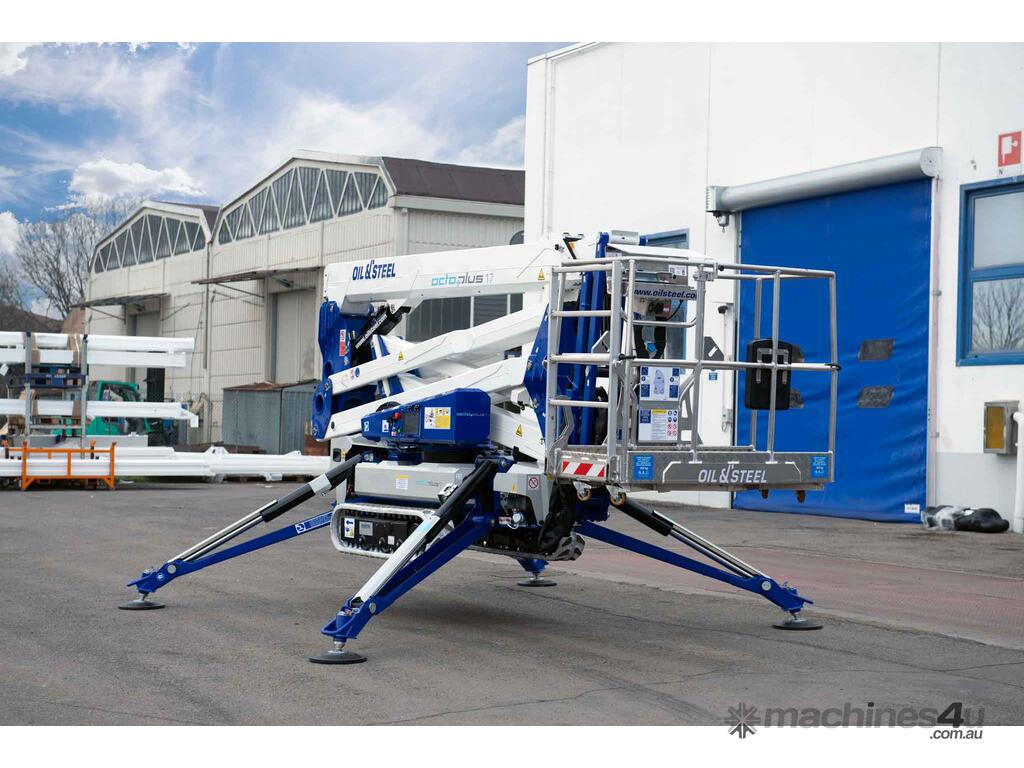

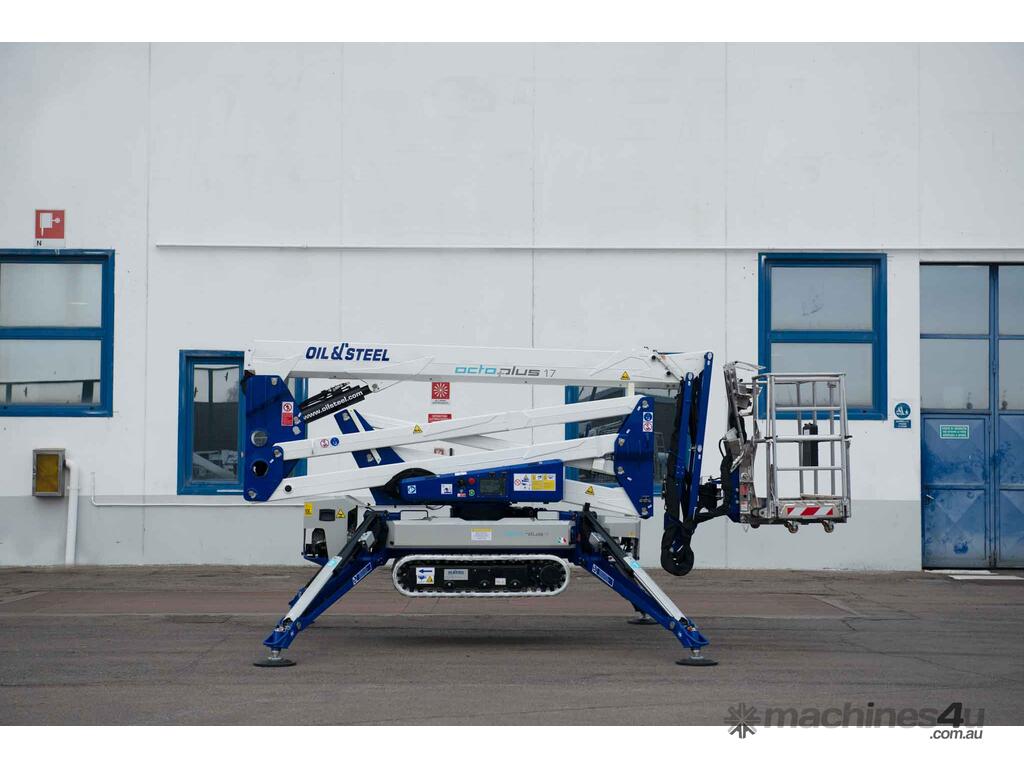

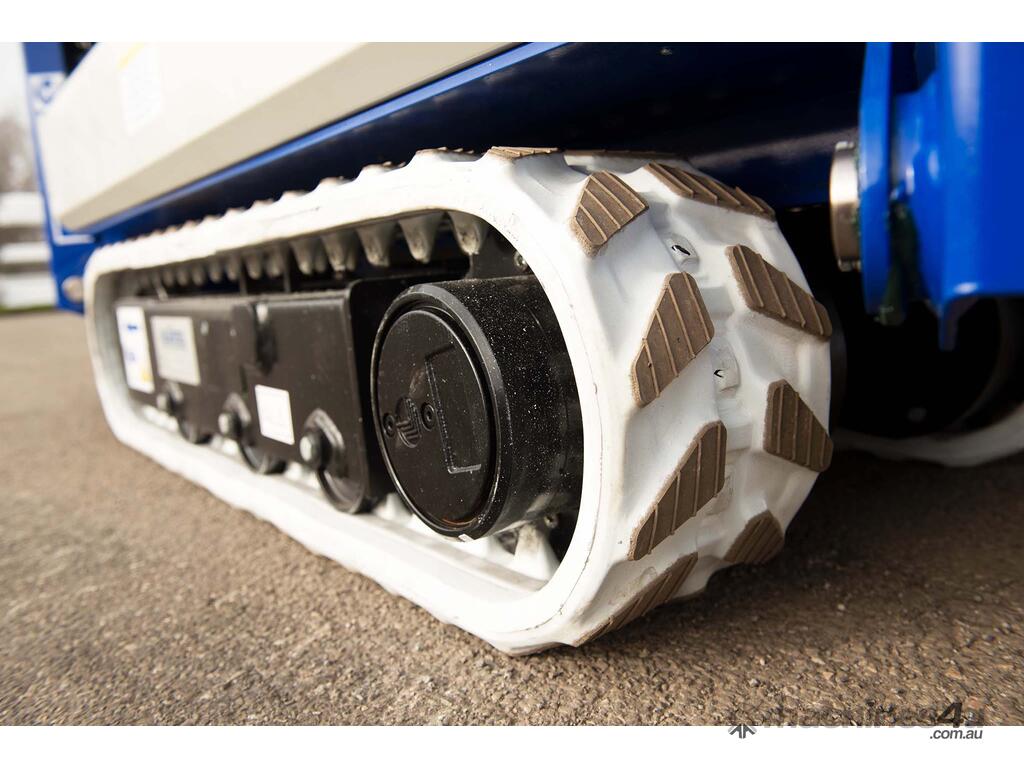

Stable and Versatile: Level up 20° slopes, extendable tracks, and 630 mm stabilisation height.

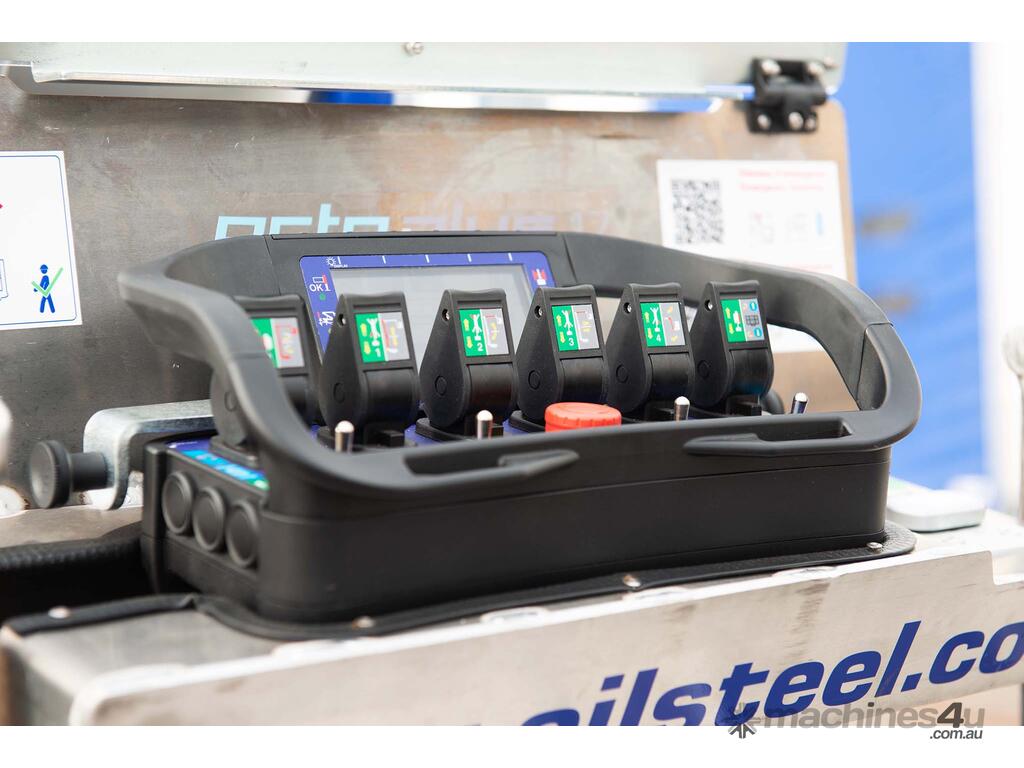

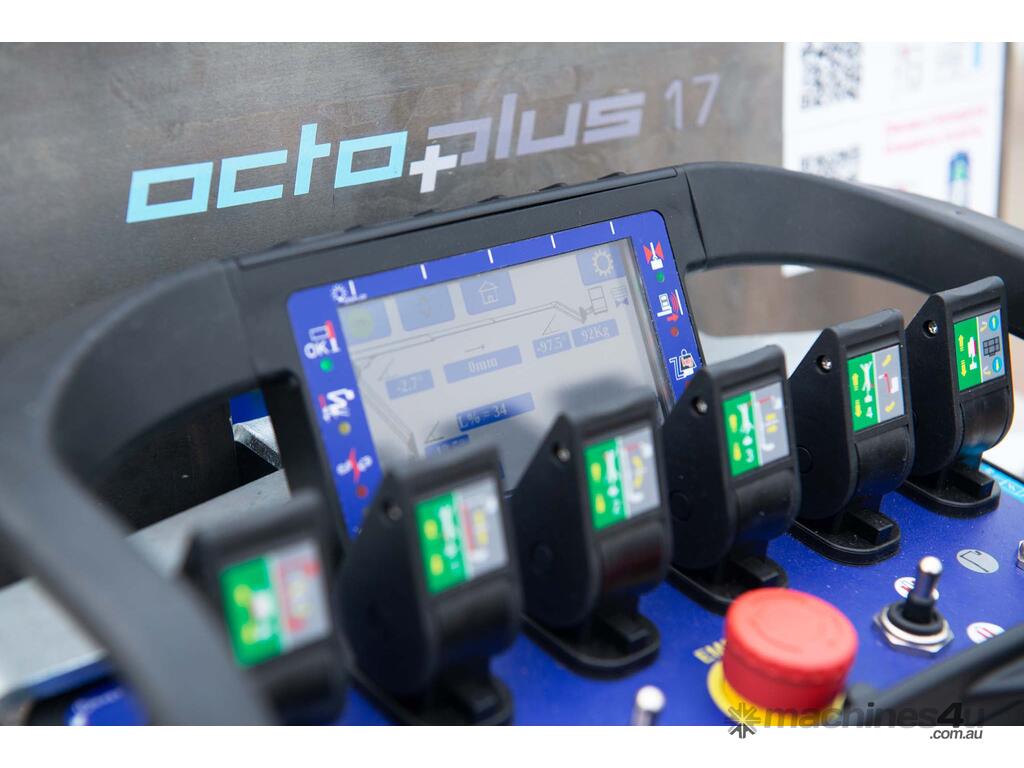

Ease of Control: Smooth proportional functions with a Radio Remote Control Unit and optional 7-inch display.

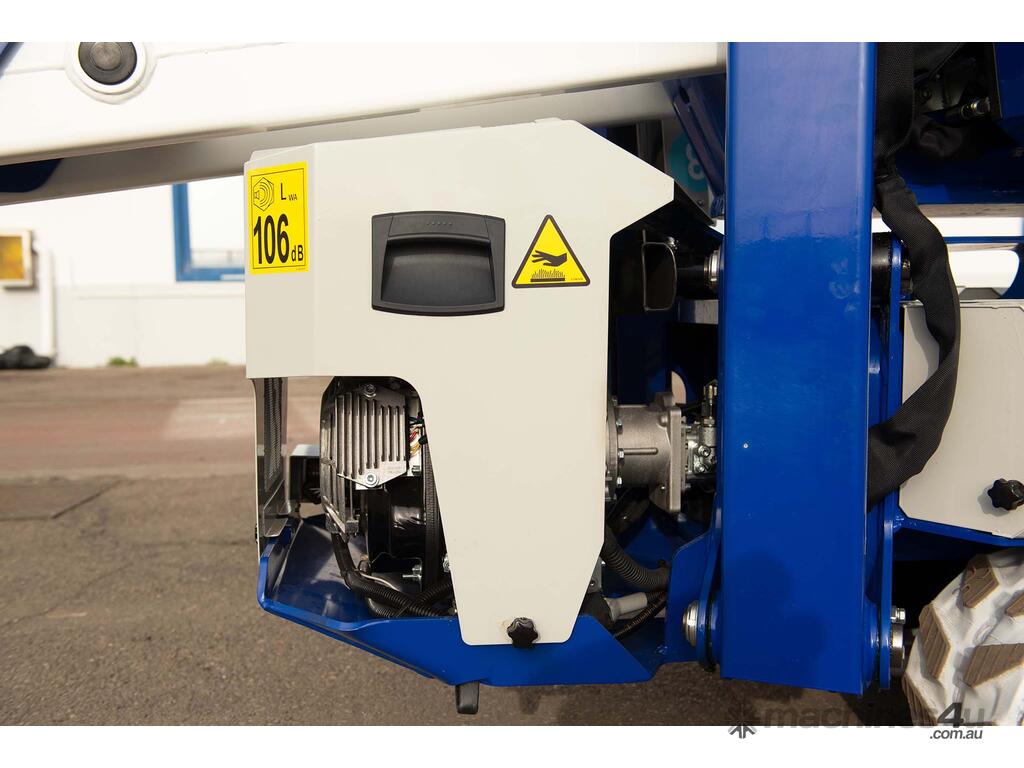

Environmentally Friendly: Hybrid (Diesel + 230V plug-in) or EV (Lithium Battery + 230V plug-in) options available.
Specifications
Working height: 17.0 m
Max outreach: 7.6 m
Basket height: 15.0 m
Basket capacity: 250 kg
Transport dimensions: 785 mm (W) x 3,951 mm (L) x 1,998 mm (H)
Weight: 2,330 kg

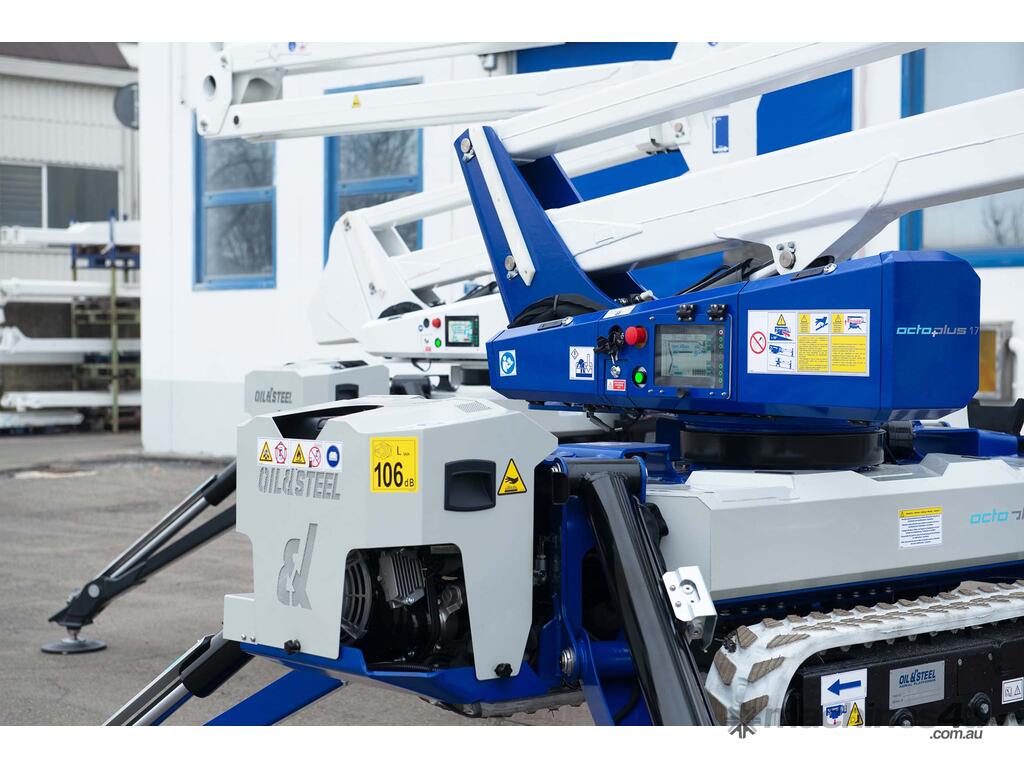

Turret rotation: ±180°
Track width: Adjustable from 735 to 1,1
Standard Features
Hydraulically expandable undercarriage
Emergency lowering system
230V socket in the basket

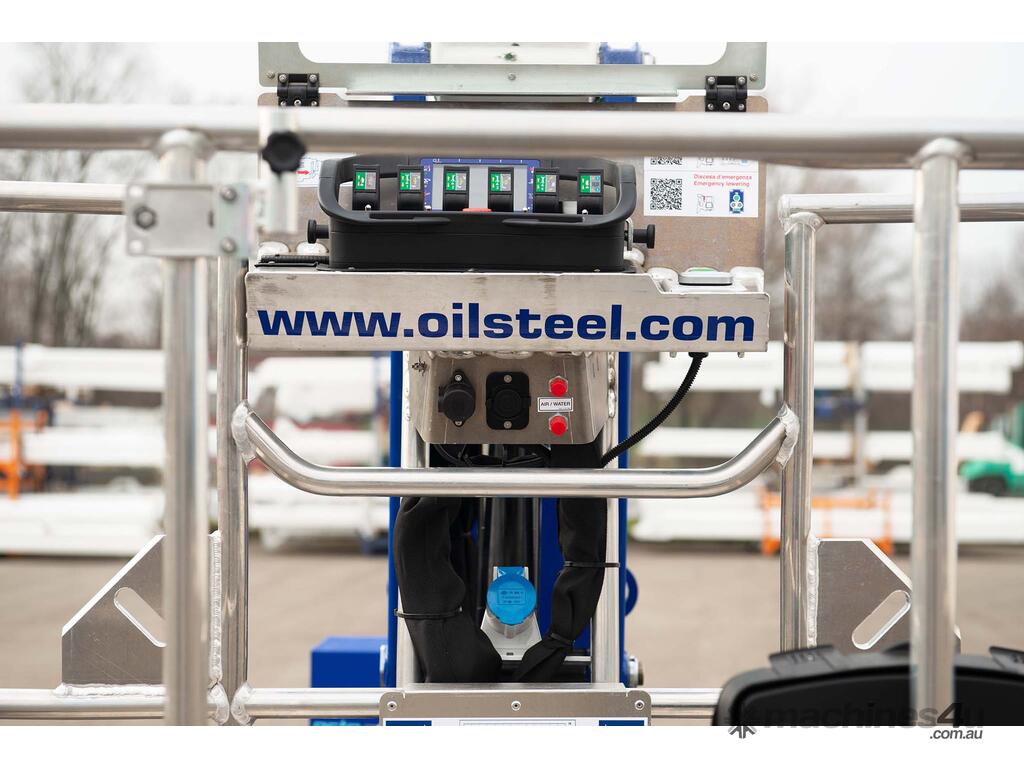

Proportional remote controls
Automatic stabilisation and slope sensors
Optional Features
Lithium Battery for eco-friendly operation
Advanced basket functions (Memory, Vertical Wall, Homing)

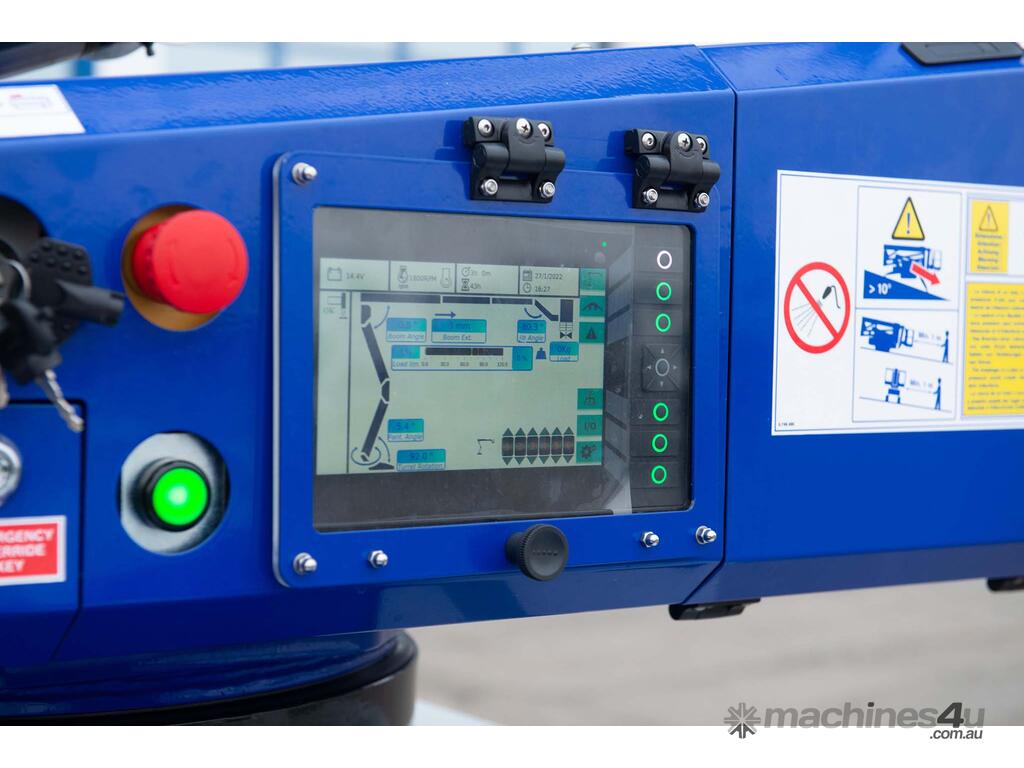

7-inch display for enhanced machine monitoring

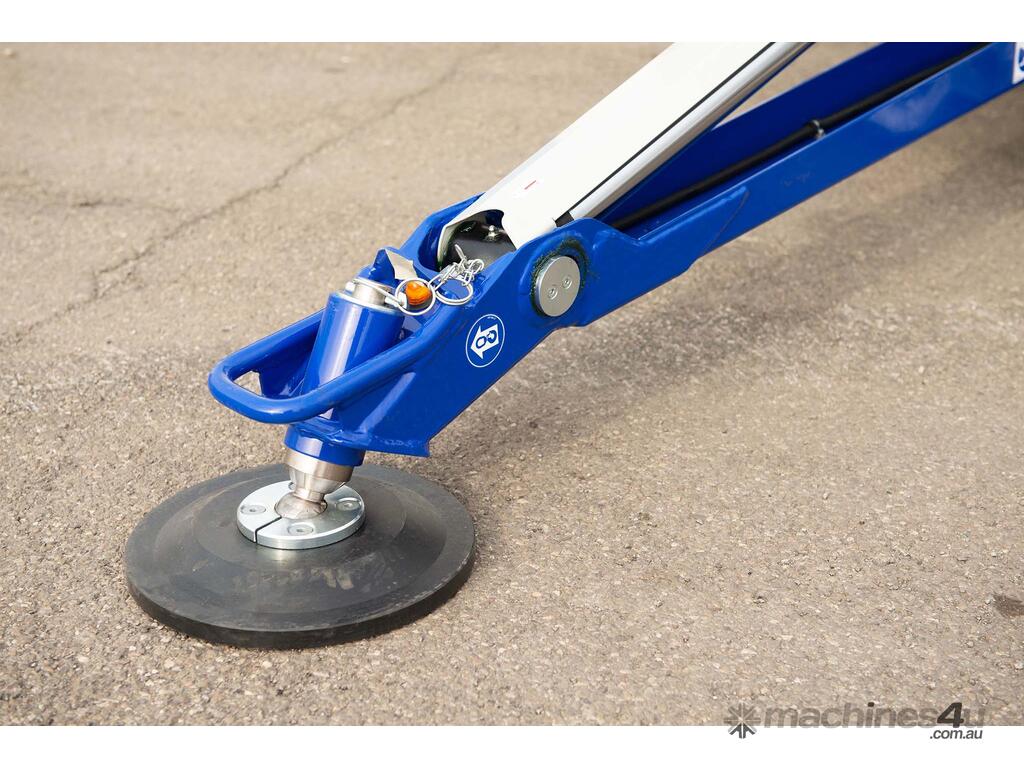

Outrigger plates for added stability
Why Choose the OctoPlus 17?
2-Year Warranty: Standard with extended programs available.
Cost-Effective Service Plans: Choose from 1- to 5-year package
Need reliable, high-quality access equipment? Atlantic Rentals offers a modern fleet of Spider Lifts, Athena Lifts, and Spider Cranes to suit your project’s requirements. Our experienced team ensures safe, efficient service every time. Call us today to book your access platform!
