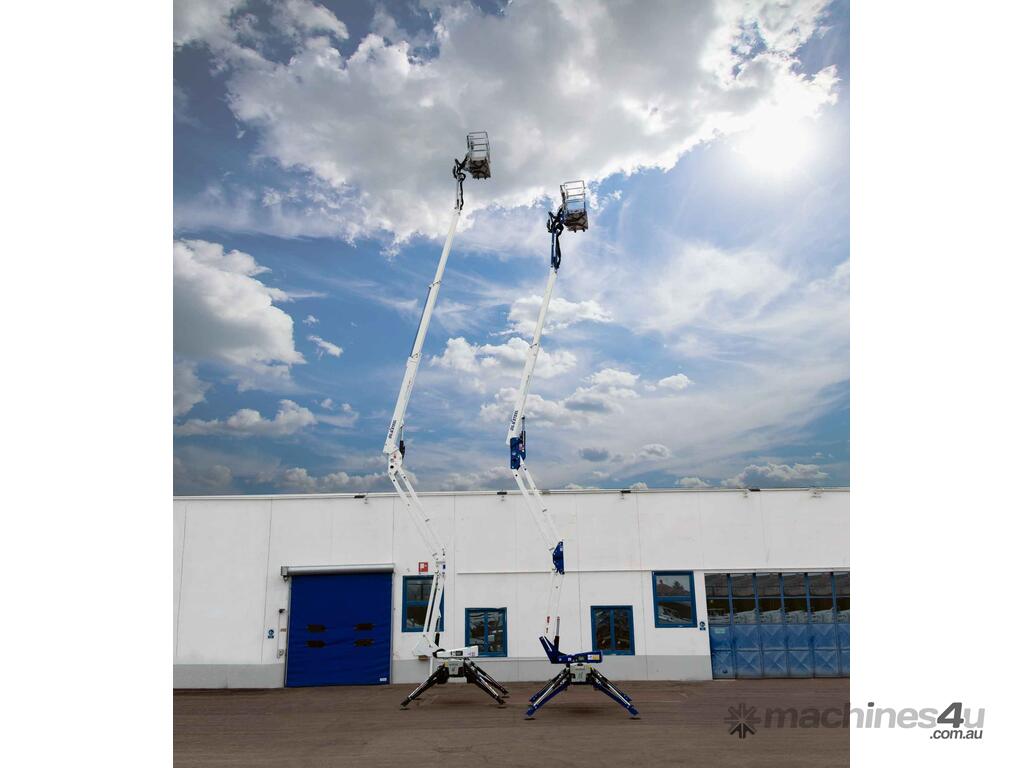

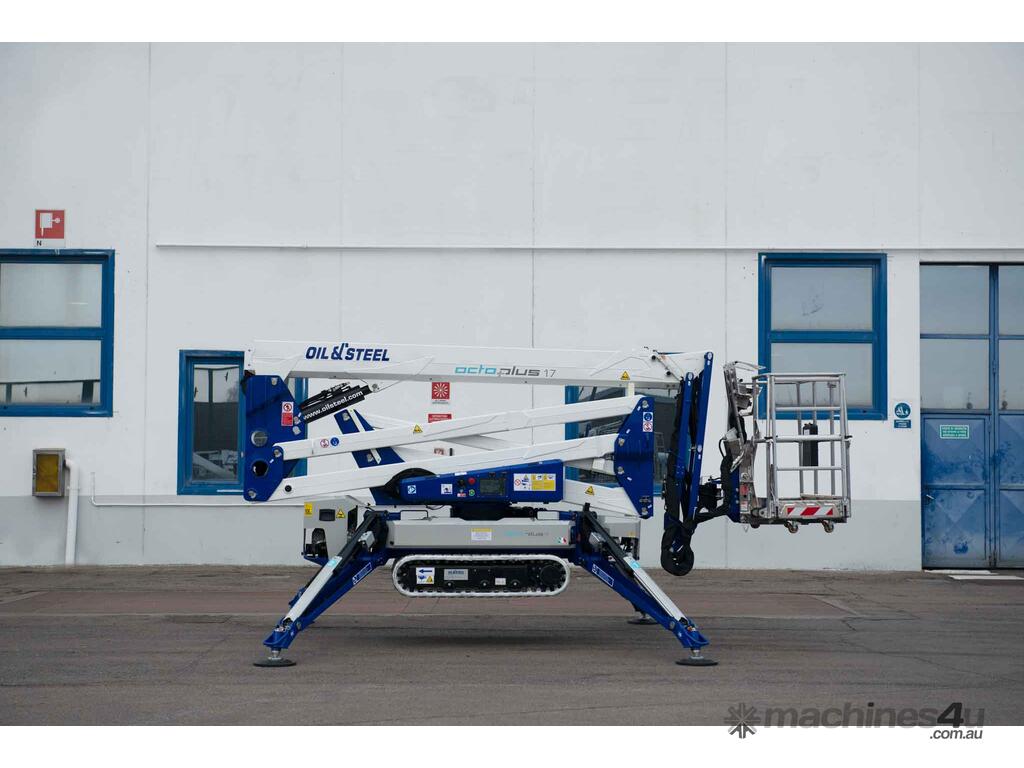

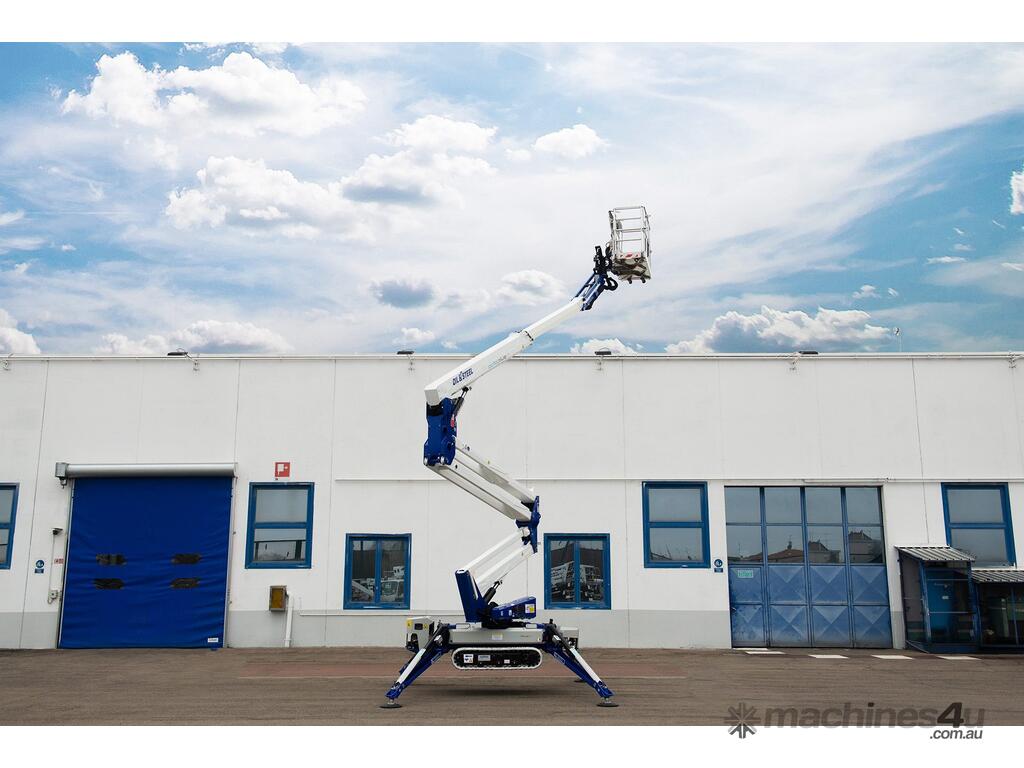

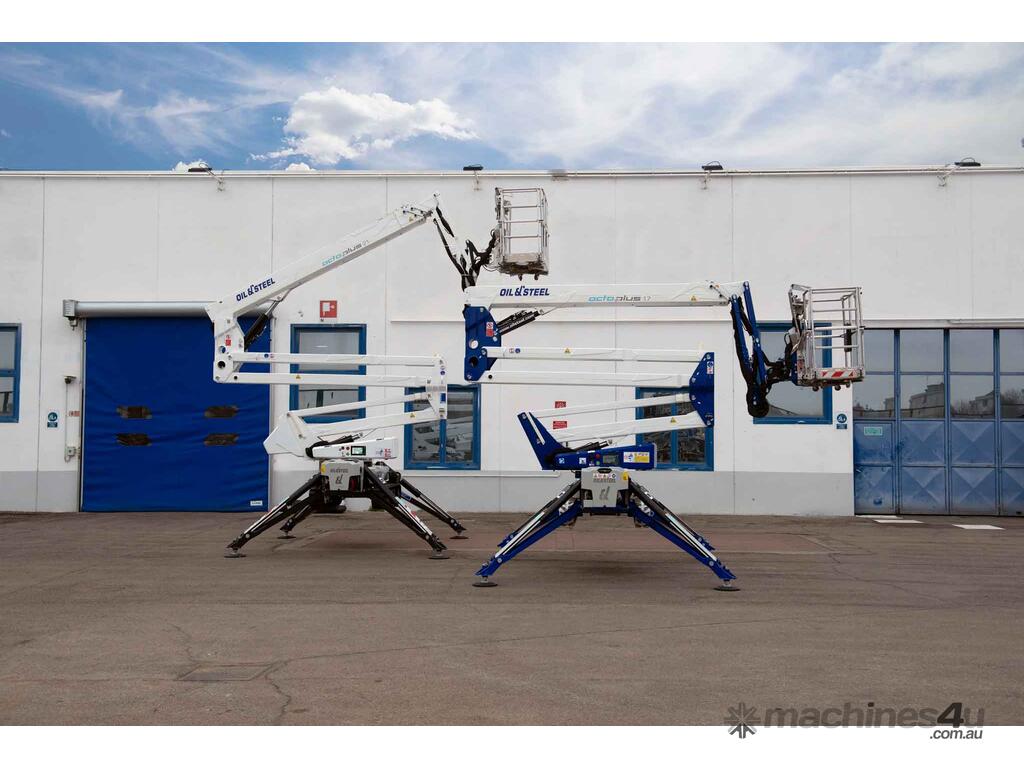

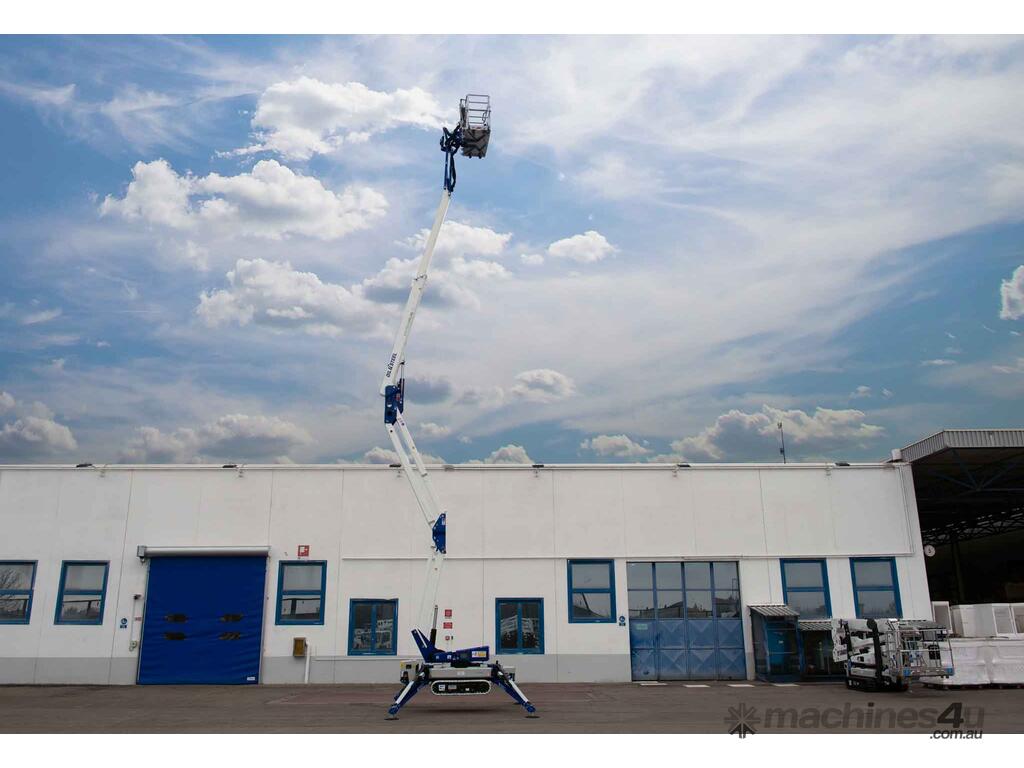

Introducing the OctoPlus 17 Spider Lift – compact, lightweight, and powerful, offering remarkable reach at an unbeatable price. Its short transport length makes it ideal for navigating tight spaces, while its impressive capabilities deliver exceptional performance in both indoor and outdoor environments.
Key Features:

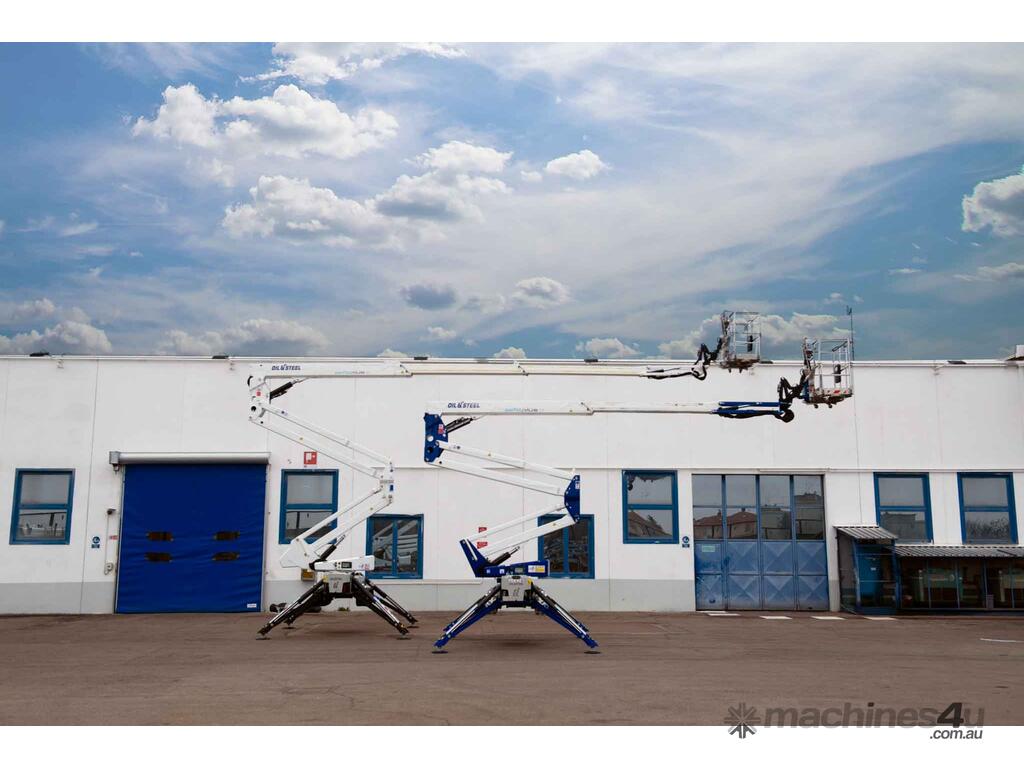

Unmatched Reach: 56 ft (17 m) vertical, 26 ft (8 m) horizontal.
Compact Design: 785 mm wide, 3,951 mm long, 1,998 mm high – fits through a single door.
Basket Capacity: 250 kg – leading capacity in this size range.

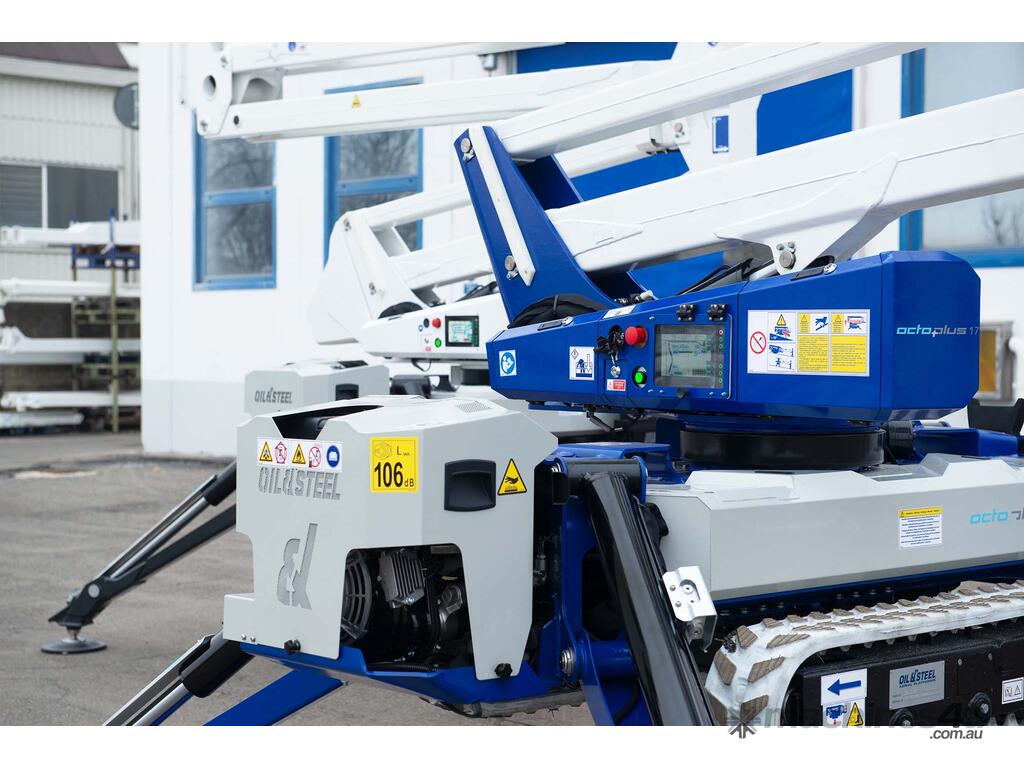

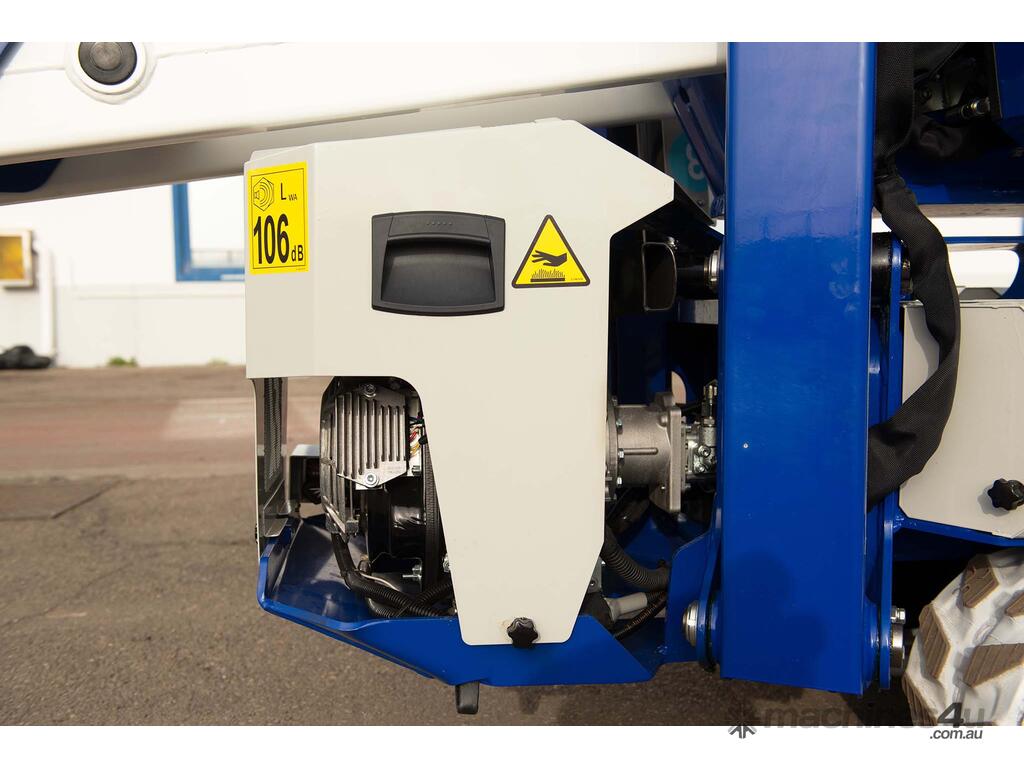

Hybrid Power Options: Diesel and 230v electric motor, or EV version with Lithium battery.

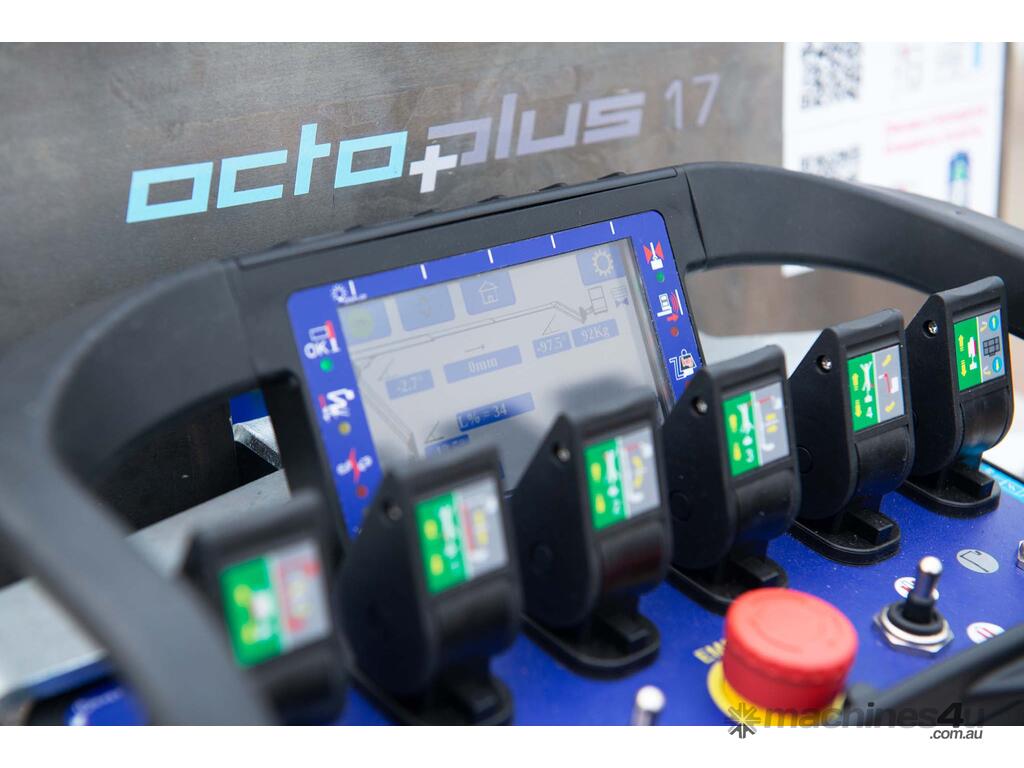

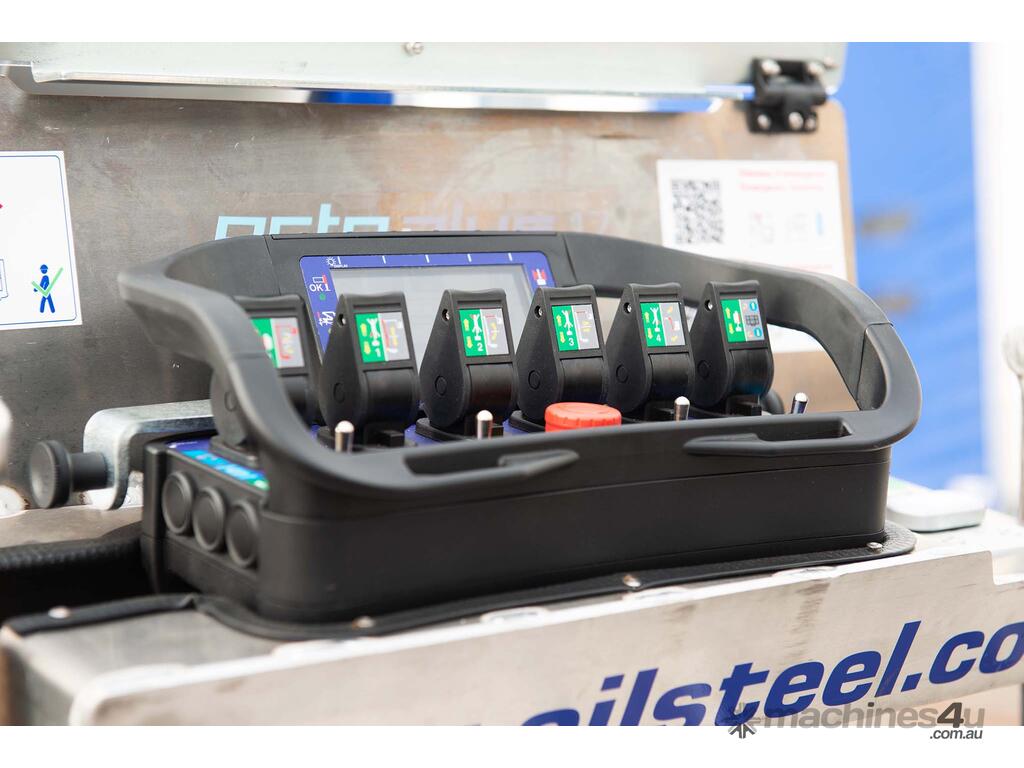

Radio Remote Control: Smooth proportional control with optional 7-inch display.

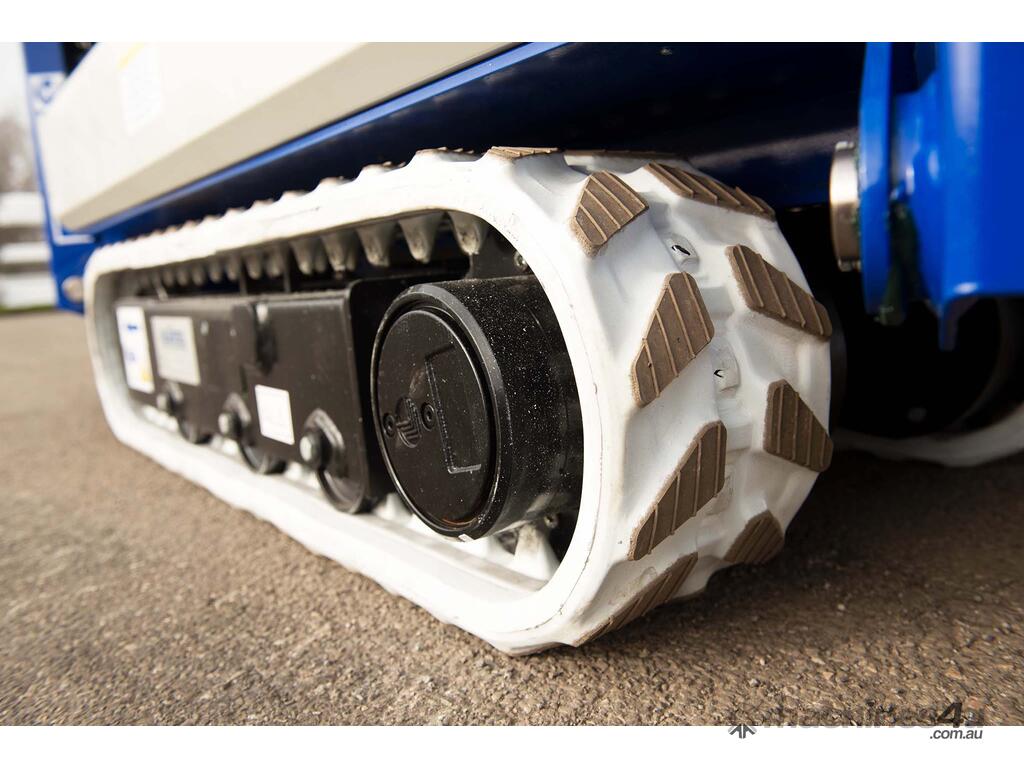

Terrain Adaptability: Levels 20° slopes, extendable tracks, and a stabilisation height of 630 mm.
Auto Level Feature for easy setup on uneven ground.

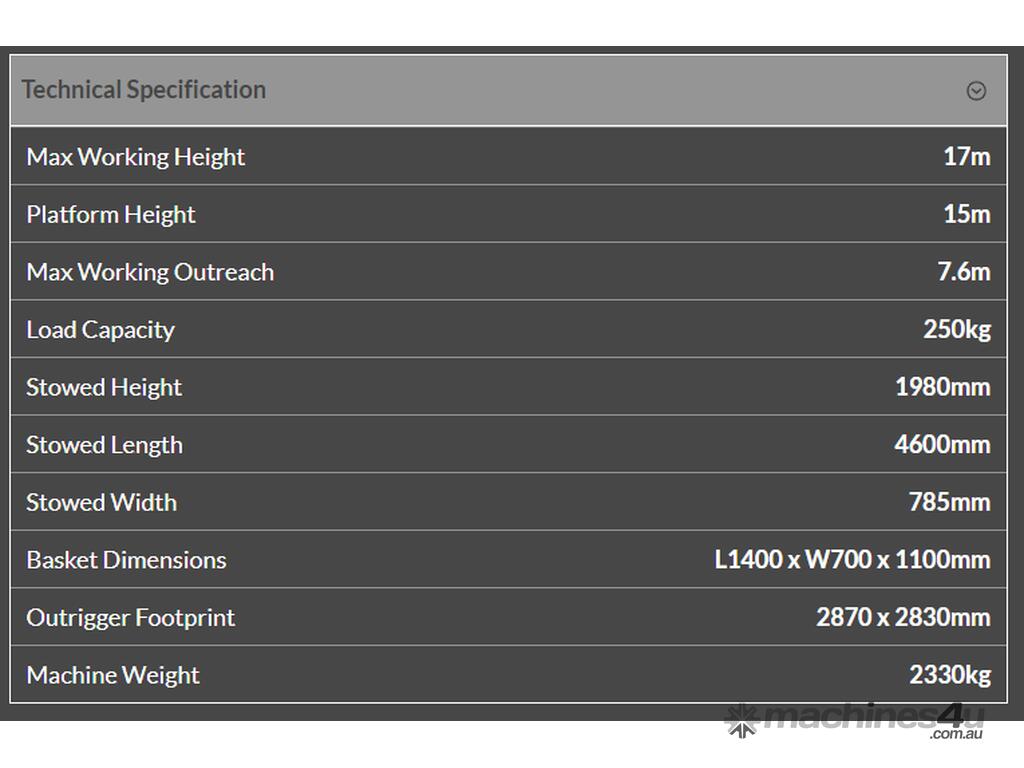

Specifications:

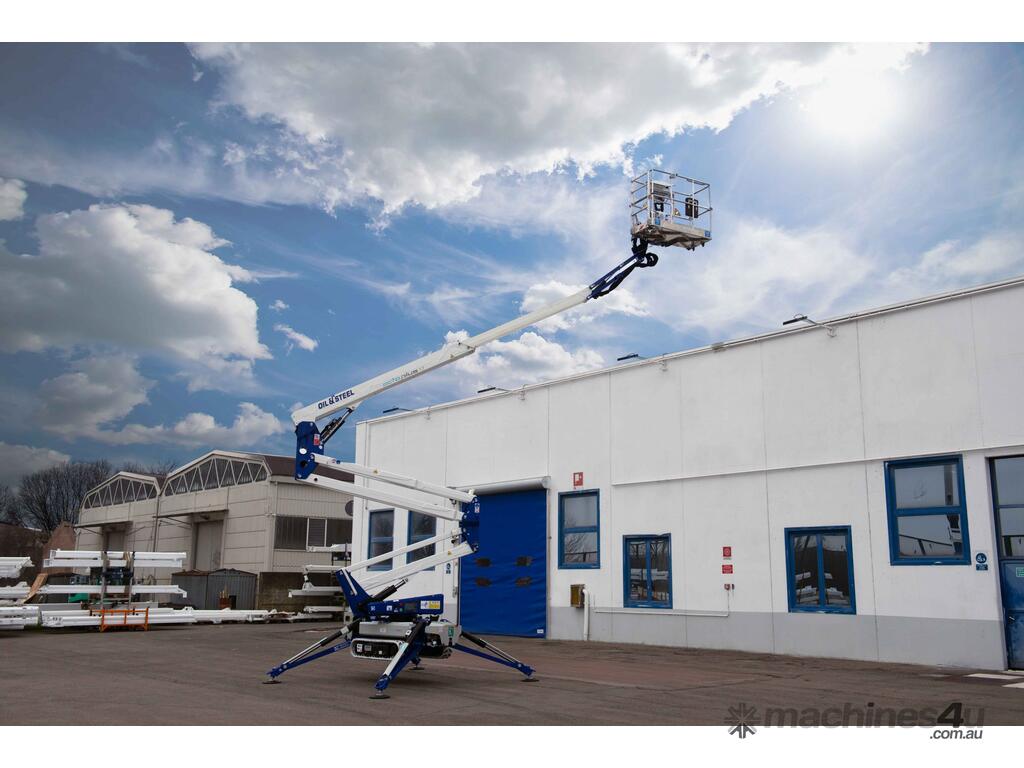

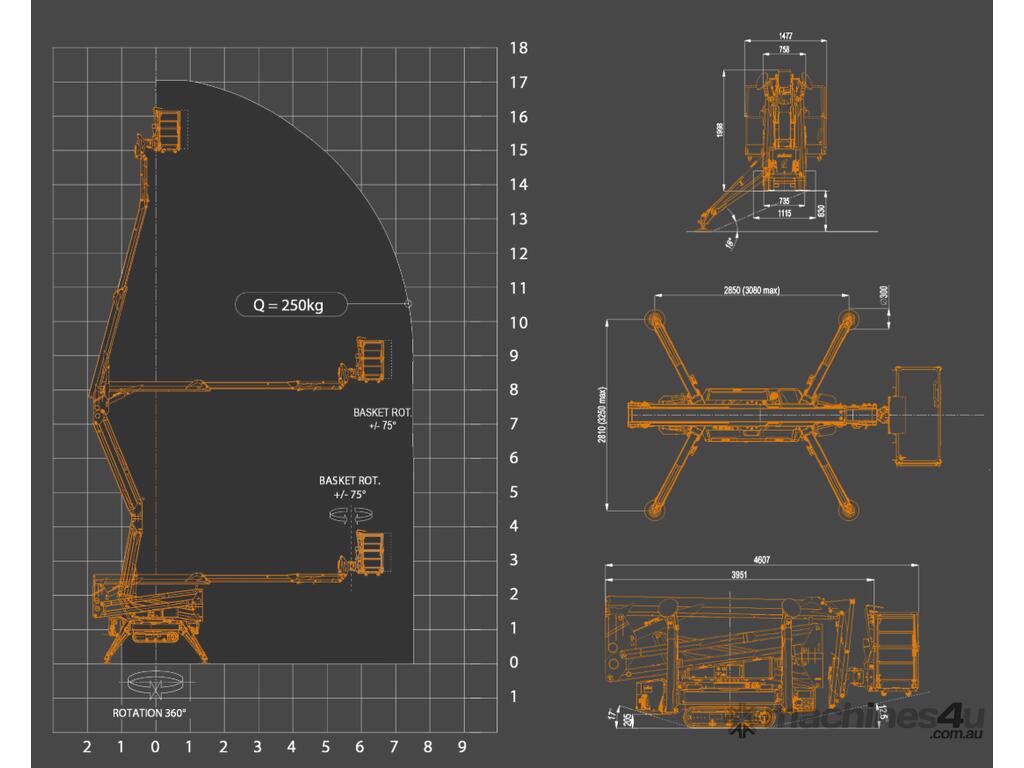

Working Height: 56 ft (17.0 m)

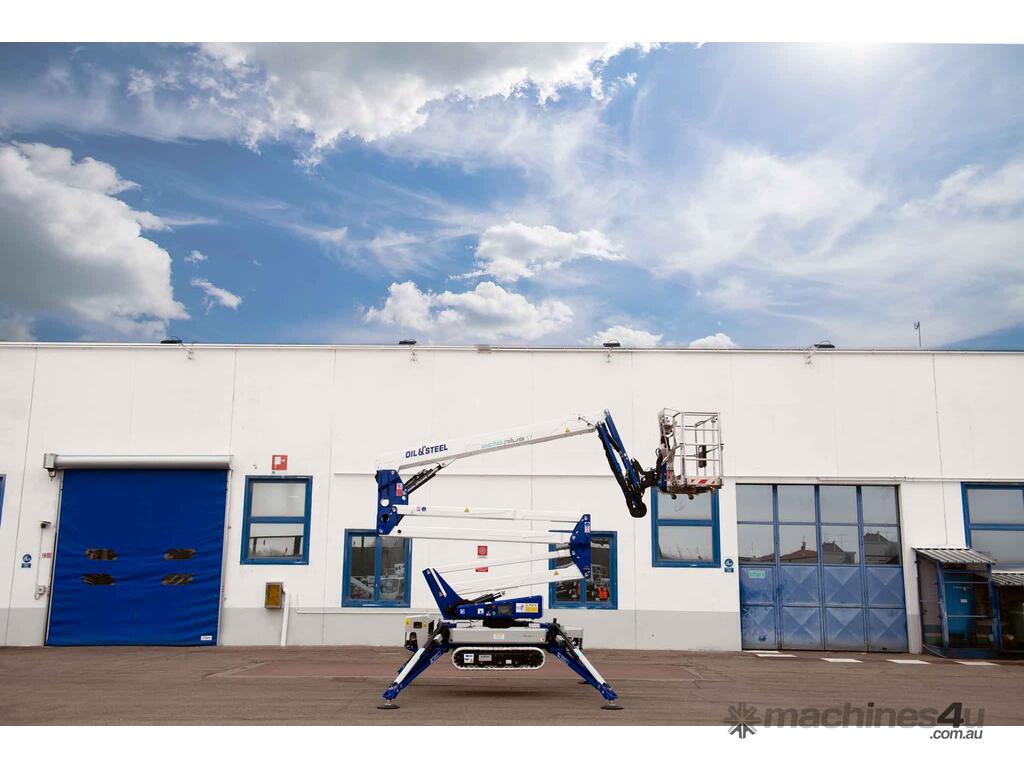

Max Outreach: 26 ft (7.6 m)
Basket Load Capacity: 250 kg

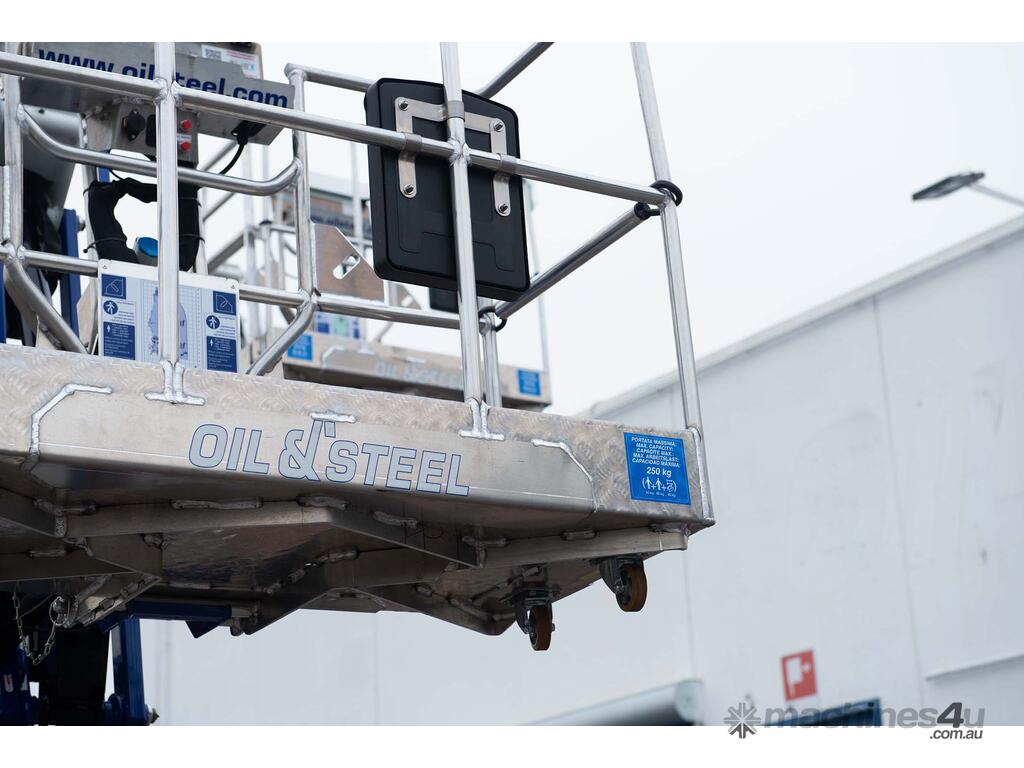

Basket Size: 1400 x 700 x 1100 mm
GVW: 2,330 kg
Track Width: 735 - 1,115 mm
Transport Dimensions: 785 mm (W) x 3,951 mm (L) x 1,998 mm (H)

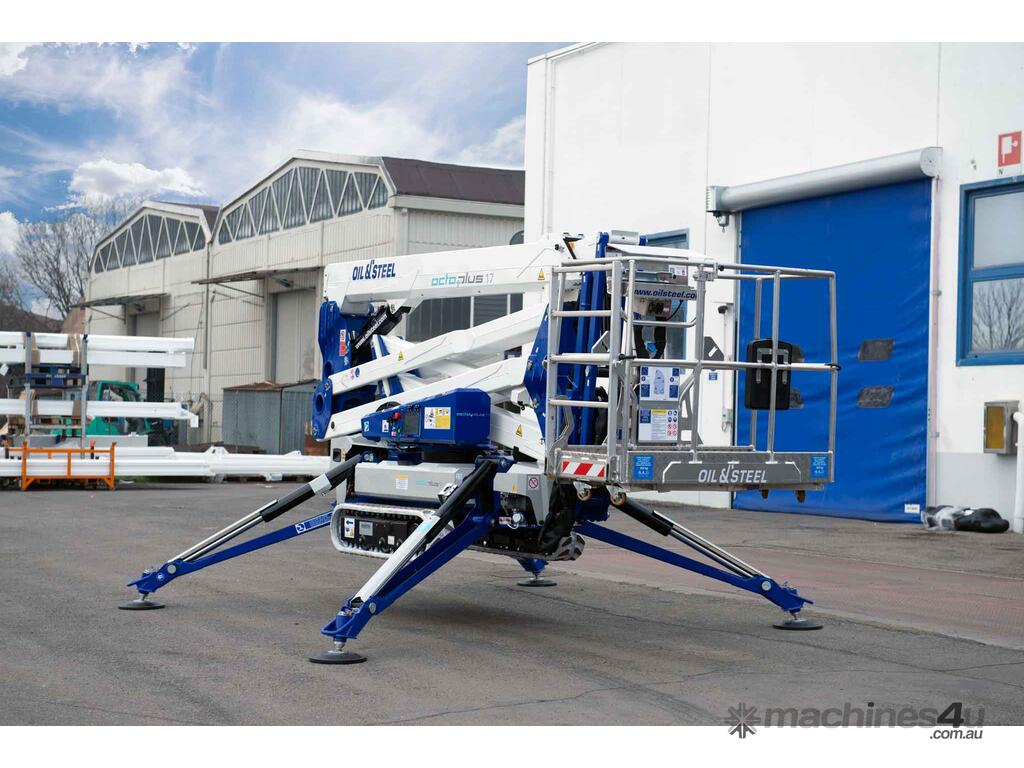

Outrigger Footprint: 2,870 mm x 2,830 mm
Standard Features:
Hydraulically expandable undercarriage
Manual hand pump & Emergency Lowering System
Multifunction remote control & auxiliary electric pump

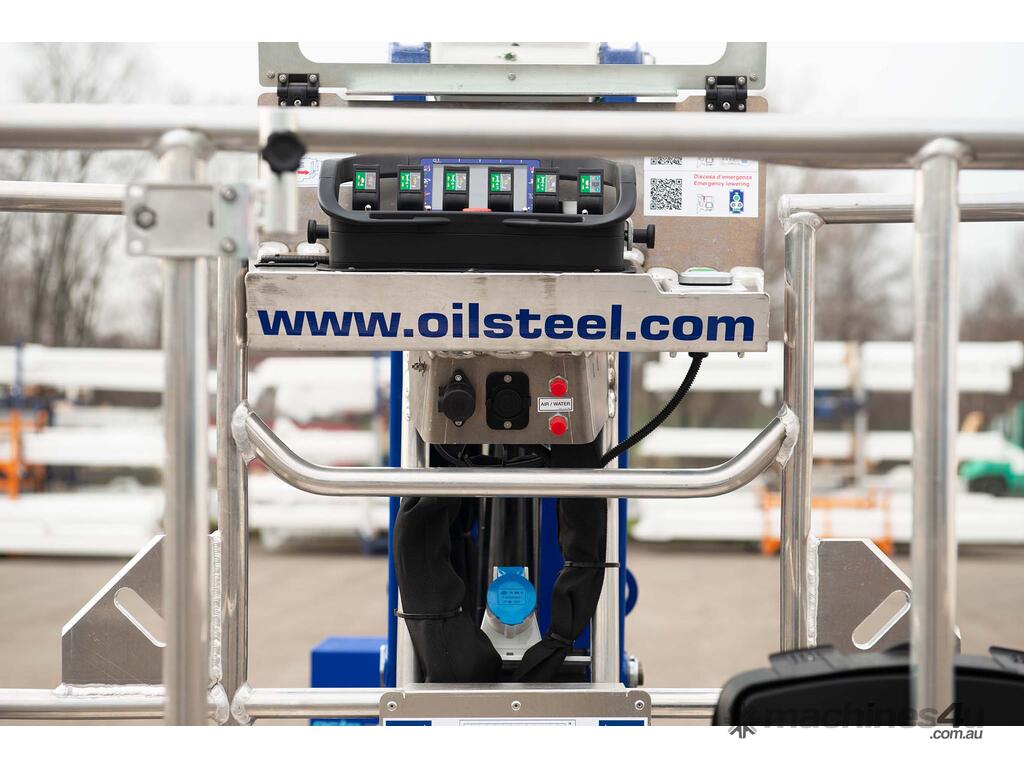

Power in the basket & automatic stabilisation
Optional Features:
Lithium battery, Homing, Memory, Vertical Wall functions

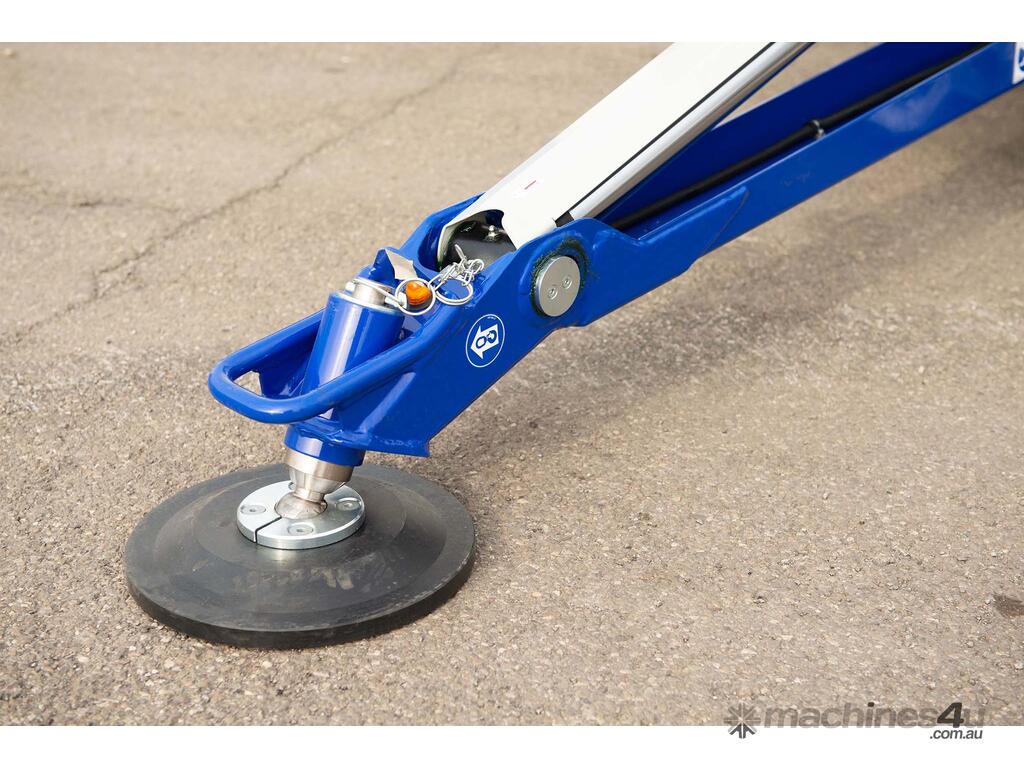

7” display, Outrigger plates
Additional Benefits:
2-Year Standard Warranty with optional extended warranty
Cost-effective service packages (1-5 years available)
Need reliable, high-quality access equipment? Atlantic Rentals offers a modern fleet of Spider Lifts, Athena Lifts, and Spider Cranes to suit your project’s requirements. Our experienced team ensures safe, efficient service every time. Call us today to book your access platform!
