Industrial 25” Planer with Helical Cutterhead. Traditional designed machine that has been a workhorse through the years.
Helical carbide inserts are indexed for quick changing.
Massive cast iron construction throughout allows up to a 1/4” cut.
Polished built-in table roller assists movement of rough stock.
Segmented infeed roller and sectional chip breaker easily handle rough stock.
Dual outfeed rollers assist with heavy stock.
3-speed gear box provides the perfect feed rate.
Magnetic controls with emergency off switch for safer operation.

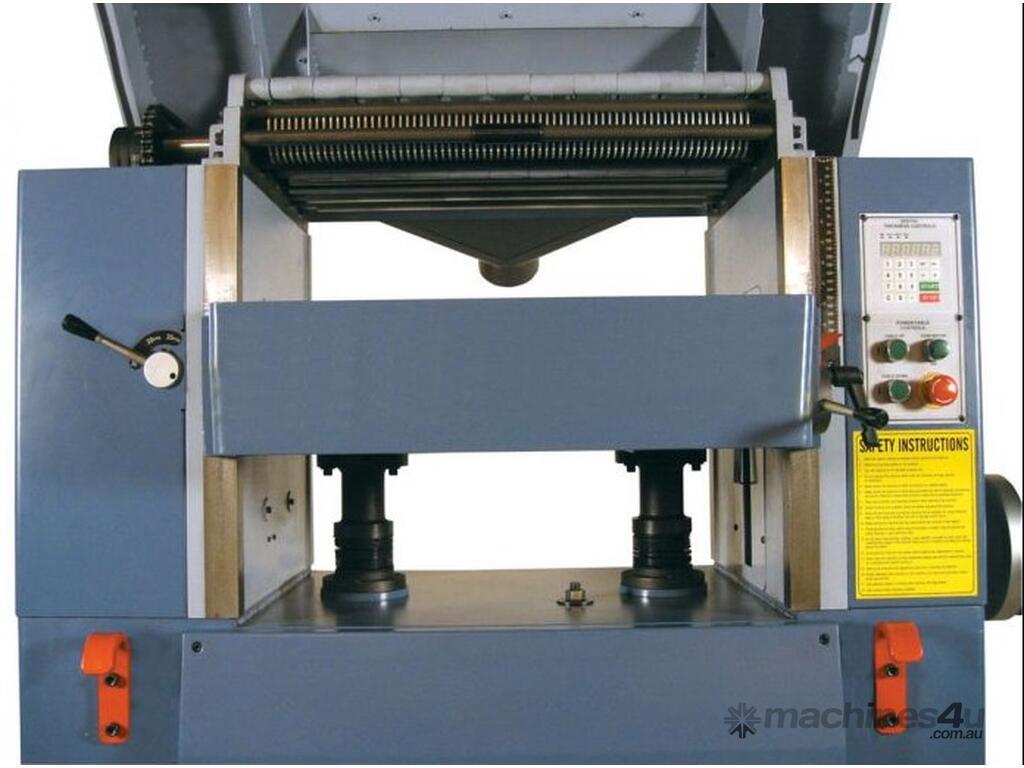

Control panel with digital readout allows precise thickness settings.
Power assisted table makes for quick, accurate, adjustments.

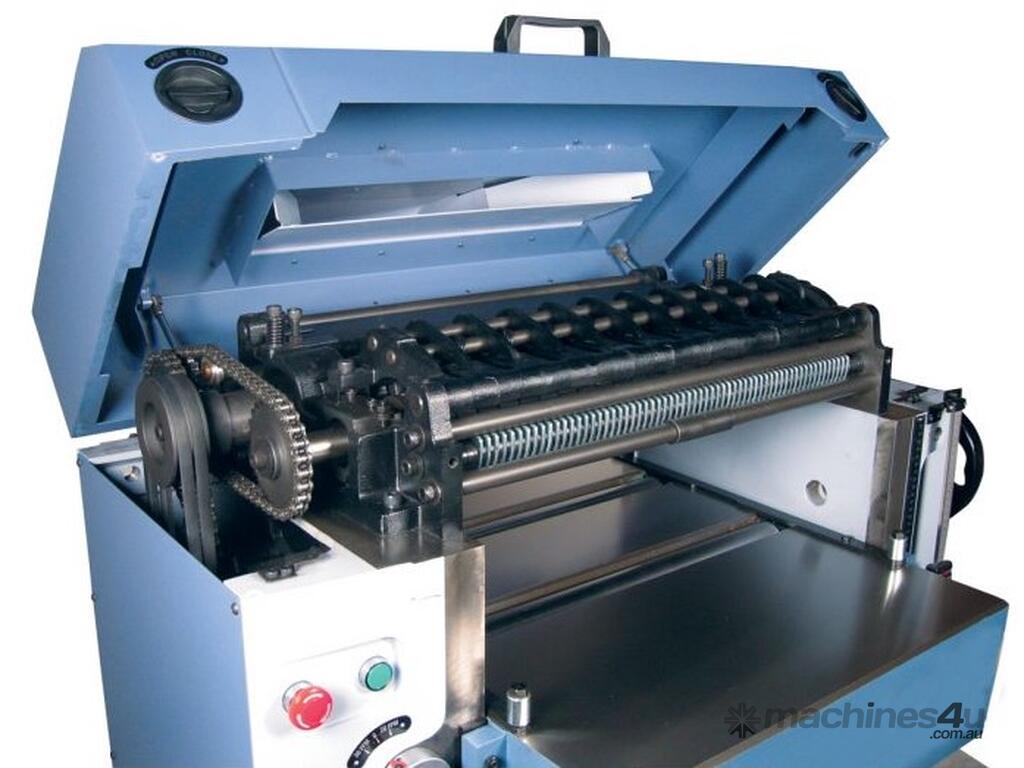

Hinged access to cutter head and feed rollers for quick set-up.
5” dust chute easily handles chip removal.
Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
Powerful TEFC motor available in 15HP 415V.
Stock Number 4470B
Maximum Stock Width 25”
Maximum Stock Thickness 9-1/4”
Minimum Stock Thickness 15/64
Minimum Stock Length 10?
Dust Port Diameter 5?
Minimum CFM Required 900 CFM
Infeed Roller Diameter 3?
Steel Outfeed Roller Diameter 3? (x2)
Feed Speeds 20, 25 and 30 FPM
Bed Rollers 2, Adjustable
Table Size 26” x 32”
Cutterhead Diameter 3-3/8”
Cutterhead Speed 4,800 RPM
Number of Knives Byrd 125
Footprint 47-1/2” L x 21” W
Table Support 2-Column
