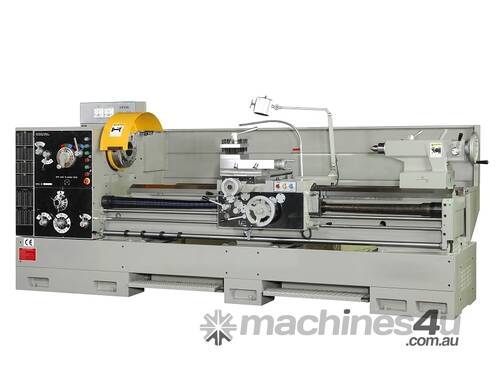

Ollie Elite Heavy Duty Precision Lathe: 610x 3093 mm, 104mm Spindle Bore

Discover Ollie Elite Lathes – your gateway to precision, quality, and performance. Handcrafted in Taiwan with pride, these lathes offer seamless, quiet operation and robust safety features without compromising on value. Every lathe undergoes a meticulous inspection by the company's owner before shipment. Manufactured by Taiwan's best, Ollie Elite lathes are designed for effortless operation, safety, and years of dependable use. From continuous heavy machining to user-friendly controls, these lathes excel in performance and reliability – setting the standard in the industry.

FEATURES:
1. The clutch headstock is suitable for big and repeatability processing parts.
2. The spindle bore is 105mm (4"), uses Timken roller bearings, 3-point support, make the ability of heavy-cutting stronger.
3. The spindle bore uses Electro Magnetic brake.

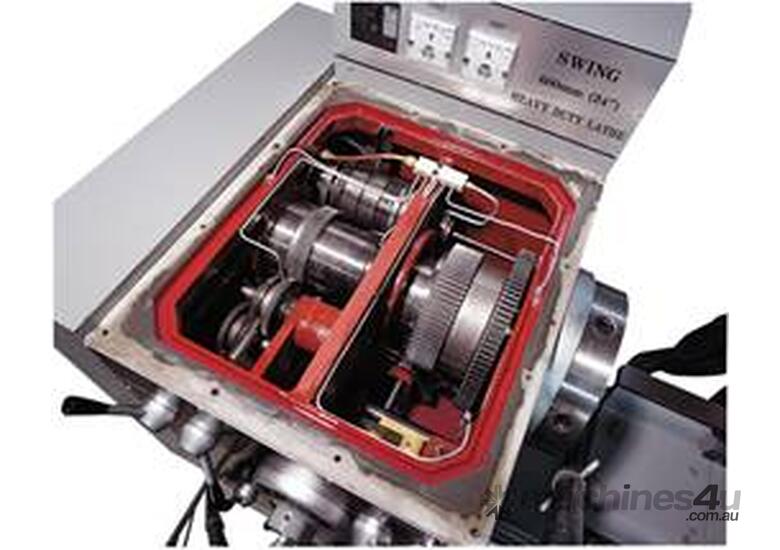

4. We have Automatic lubrication system & Tank on the headstock and gearbox. The pump with lubricating oil tank can strengthen the lubrication, lower the temperature and increase the heat dissipation.
5. True Universal gear box with DP & MP thread don't need to change the exchange gear.
6. A wide range of threading can be easily change by the handle,
7. Multiple threading can be chosen by the handle switching.

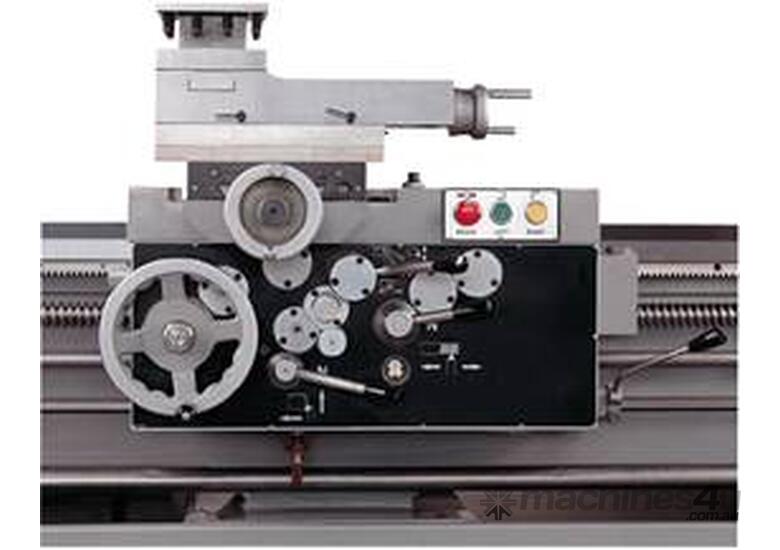

8. 4-way Rapid Traverse system.
9. Easy to use auto feed.
10. The Overload safety protection inside the apron.
11. The Automatic lubrication system & Tank in the apron and cross slide can automatically lubricate when operating.

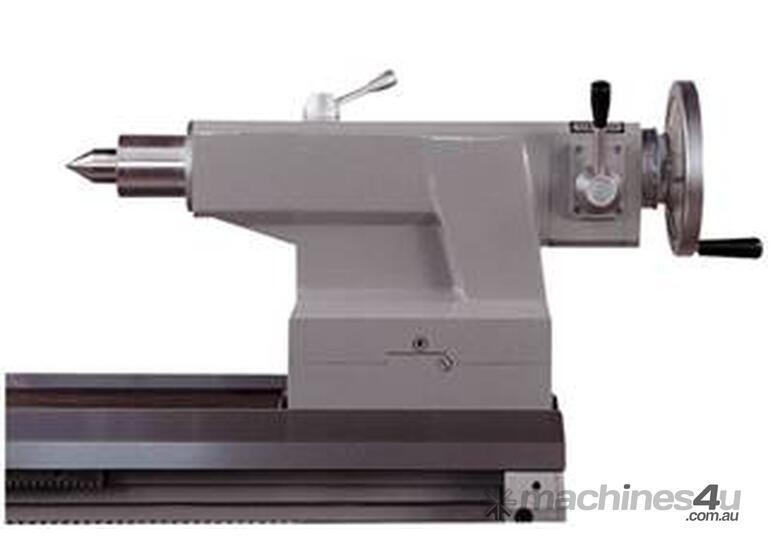

12. 2 Speeds feed Tailstock makes easily operation.
13. The bed rails 485 mm(19"), 65? makes more stability of heavy cutting.
14. Has small start-up current, can ease the burden of equipment and motor instant start
15. 15 hp motor

Clutch type headstock
Electromagnetic brake
Universal gear box with dp & mp thread
Multiple threading
4 way rapid traverse system with clutch
Overload safety protection
2 speeds feed tailstock
Automatic lubrication system & tank
4-position auto carriage feed stop
4-way tool post
Threading dial indicator
Foot brake & emergency stop
Steady rest 8-3/4"~13"
Coolant pump
Main motor 15hp
Work lamp low volt
Splash guard
Level pads
Adjust tools & toolbox
Centre sleeve
Two dead centres
D1-11 camlock with spindle wrench
English manual & part list
3-jaw strong chuck 15" (direct mounted)
4-jaw chuck 20" (direct mounted)
10"- steady rest (220 to 330 mm capacity) with rollers
Follow rest
Face plate 20"
Carriage micro stop set
Lead screw cover
Chuck safety guard with limit switch
CE electrical system
2 axis DRO
Upgrade to 20” 3-jaws chuck (direct mounted)
4-jaw chuck 25" (direct mounted)
Quick change tool post
Steady rest (280mm to 430mm) with rollers
Steady rest (355mm to 530mm) with rollers
Taper turning attachment
20hp motor

Manufactured to order, delivery approximately 100 days.
