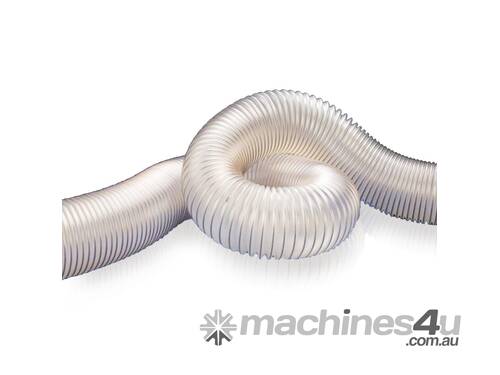

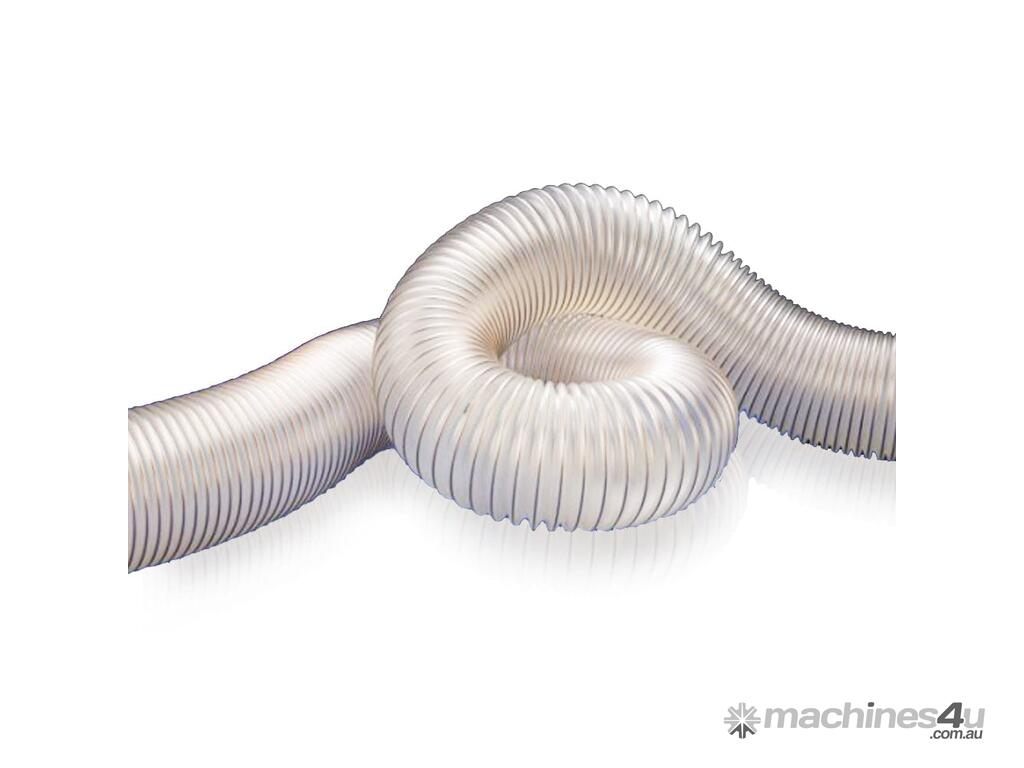

The Oltre Clear PU Flexible Antistatic Duct is a durable and versatile solution designed for a wide range of dust extraction, ventilation, and industrial applications. This ducting provides exceptional flexibility, strength, and resistance to abrasion, making it ideal for both light and heavy-duty use.
Key Features
Material: High-quality clear polyurethane (PU) for excellent durability and wear resistance.
Antistatic Properties: Ensures safety in environments with static electricity risks, such as dust extraction systems.
Flexibility: Highly flexible construction allows for easy installation, even in tight or complex spaces.
Transparency: Clear material allows for visual inspection of debris flow.
Temperature Range: Operates efficiently in temperatures from -40? to +90?, withstanding brief surges up to 125?.
Reinforced Spring Steel Wire: Provides enhanced structural integrity while maintaining flexibility.
Specifications
Length: Sold per 5 metres (cut from a 10m roll).
Diameter Options: Available in various diameters to suit different applications - Available in 25mm to 305mm diameters.
Material Type: Clear polyurethane (PU) with antistatic properties.
Applications
Dust extraction systems for woodworking, metalworking, and other industries.
for abrasive solids such as dust, powder, fibres, chips and particles
for dust removal (de-dusting) and suction plants.
for extraction arms and dust collection equipment
for CNC machining areas
Ventilation systems for HVAC and industrial processes.
for industrial air movement and fume control - gaseous environments such as oil gas and welding fumes,
Transporting granules, powders, or fine materials in production lines.
Nature
Good chemical resistance, can be grounded to eliminate static electricity (according to BGR 132, formerly ZH 1/200), the bending radius is approximately equal to the outer diameter.
Specification
Construction
Spring Steel Wire integrated in wall
Wall Thickness - 0.4 mm approx.
Material
Duct Wall - Polyurethane (PUR)
Spiral - Elastic Steel Wire (Copper Plated)
Standard Colour
Transparent
Other Properties
Optimised flow properties
Microbe and hydrolysis resistant
Good resistance to chemicals
Good resistance to UV and ozone
Very good low temperature flexibility
Small bending radius
Kink-proof
Gas and liquid tight
Good resistance to abrasion
Excellent compressibility 3:1
Can be made anti-static by grounding the spiral •
Good tensile strength
Operating Temperature Range (-40 °C to +90 °C):
The ducting is designed to handle continuous exposure to temperatures as low as -40? and as high as +90? without losing its structural integrity or performance.
Instantaneous Temperature (125?):
The ducting can withstand brief or instantaneous exposure to temperatures up to 125?, such as sudden heat spikes or surges, without permanent damage. However, it is not recommended for prolonged use at this temperature.
What This Means for Delivery Systems:
Cold Applications: Suitable for low-temperature environments, such as refrigerated systems or cold industrial settings.
Hot Air or Dust Collection Systems: Can handle warm or hot air, such as from dust collection or HVAC systems, and occasional high-temperature events, like heat spikes from machinery.
Limitations: Prolonged exposure to temperatures exceeding +90? or sustained exposure to 125? can cause material degradation, leading to reduced durability and performance.
If you're using this ducting in a high-heat or demanding environment, ensure it aligns with these temperature specifications for optimal performance.
Important Notes:
Ensure compatibility with your system's requirements before purchase.
Installation in high-static environments should follow proper grounding procedures.
Other Technical Specifications
ID
OD
Overpressure
Vacuum
Bending Radius
Weight
SKU
mm
mm
bar
bar
mm
kg/m
25
32
1.300
0.340
32
0.14
Special Order
32
39
1.100
0.320
39
0.17
Special Order
38
46
0.900
0.300
46
0.19
Special Order
50
58
0.700
0.240
58
0.27
Special Order
60
68
0.560
0.210
68
0.31
Special Order
63
71
0.550
0.180
71
0.34
8000352-5
75
84
0.470
0.130
84
0.44
8000353-5
80
88
0.430
0.120
88
0.47
Special Order
90
98
0.390
0.100
98
0.49
Special Order
100
108
0.350
0.080
108
0.52
8600640-5
114
122
0.300
0.070
122
0.59
Special Order
120
128
0.290
0.070
128
0.62
Special Order
125
133
0.280
0.060
133
0.64
8600641-5
140
148
0.250
0.050
148
0.72
Special Order
150
158
0.170
0.050
158
0.76
8600642-5
160
168
0.160
0.040
168
0.81
Special Order
178
186
0.140
0.040
186
0.89
8600751-5
180
188
0.140
0.040
188
0.90
Special Order
200
208
0.130
0.030
208
1.10
8600752-5
203
211
0.130
0.030
211
1.10
Special Order
254
262
0.100
0.015
262
1.30
8601284-5
305
313
0.090
0.010
313
1.70
Special Order
Order Now
Choose the Oltre Clear PU Flexible Antistatic Duct for a reliable, durable, and versatile solution to your industrial ducting needs. Available in custom lengths per 5-metre increments.
Shipping Note:
For bulky items like ducting, we pack them softly or around your other items to keep shipping costs as low as possible. Please note that these items may be subject to slight squashing during transit.
If you require extra protection to ensure your items arrive in perfect condition, we can arrange custom crating or packaging (POA). Please contact us for more details.
