Omicron Automation Boom Filler - Mobile Filling Machine (10L to 1000L) - 100% Australian Made

Boom Filler - Mobile Filling Machine 10L to 1000L

100% AUSTRALIAN MADE AND LOCALLY SERVICED

Available: Food Grade & Chemical Grade (Price apply)

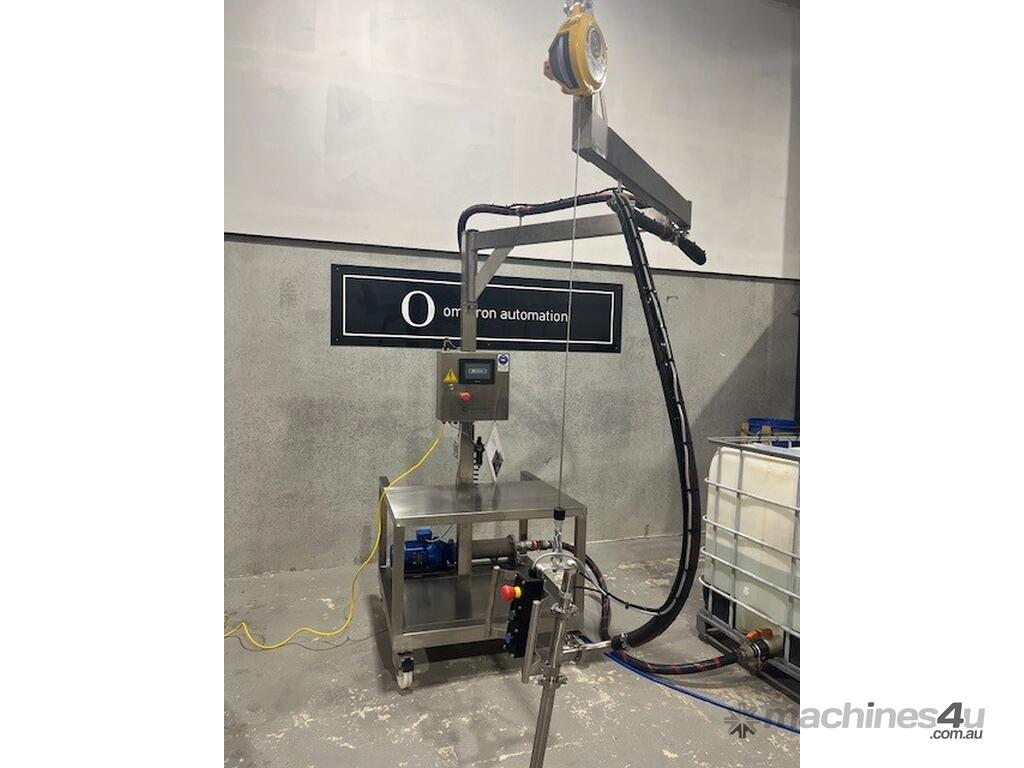

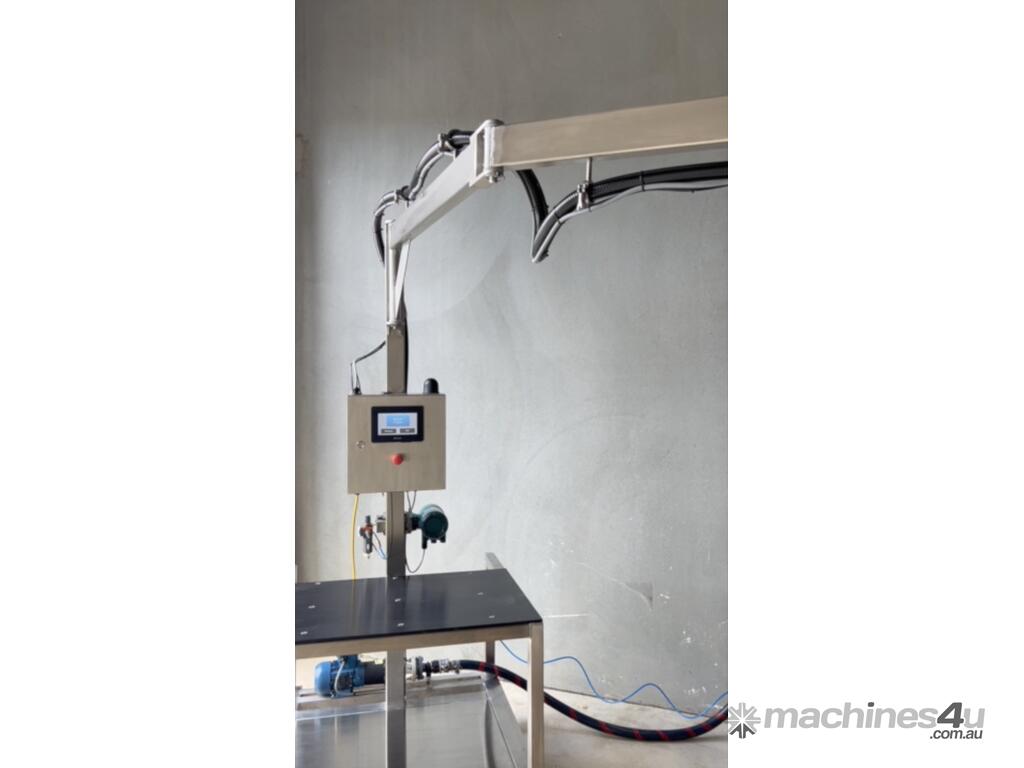

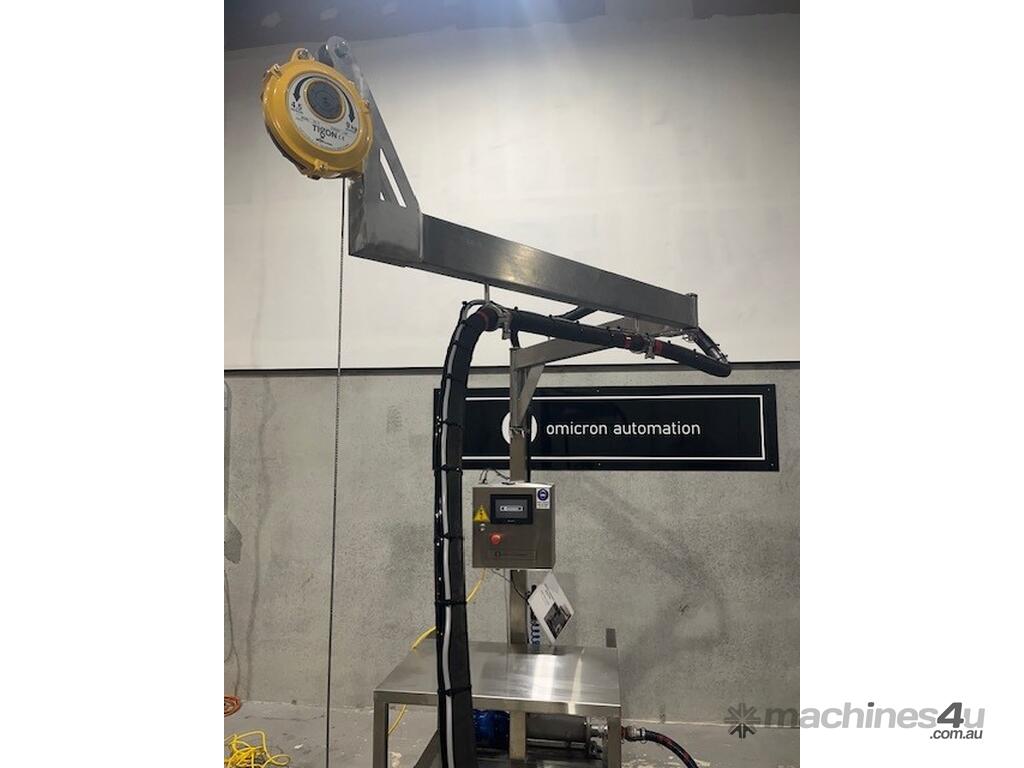

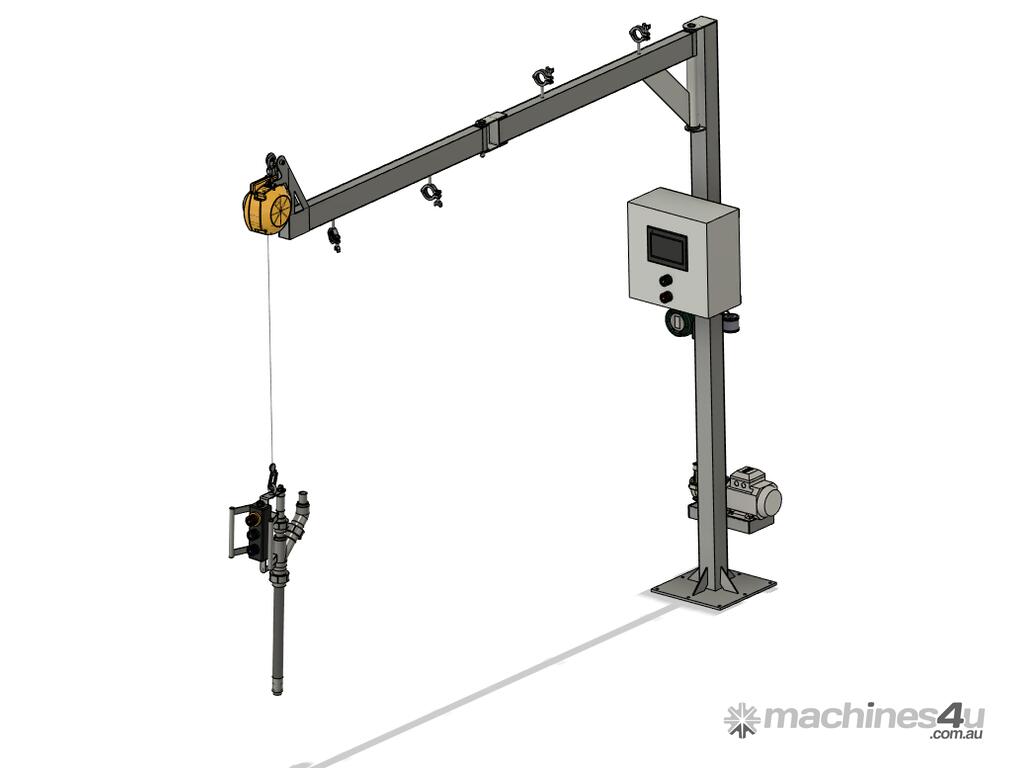

'Boom Filler' by Omicron Automation.

Designed and built by our team of engineers and tradesmen in Leongatha, Victoria.

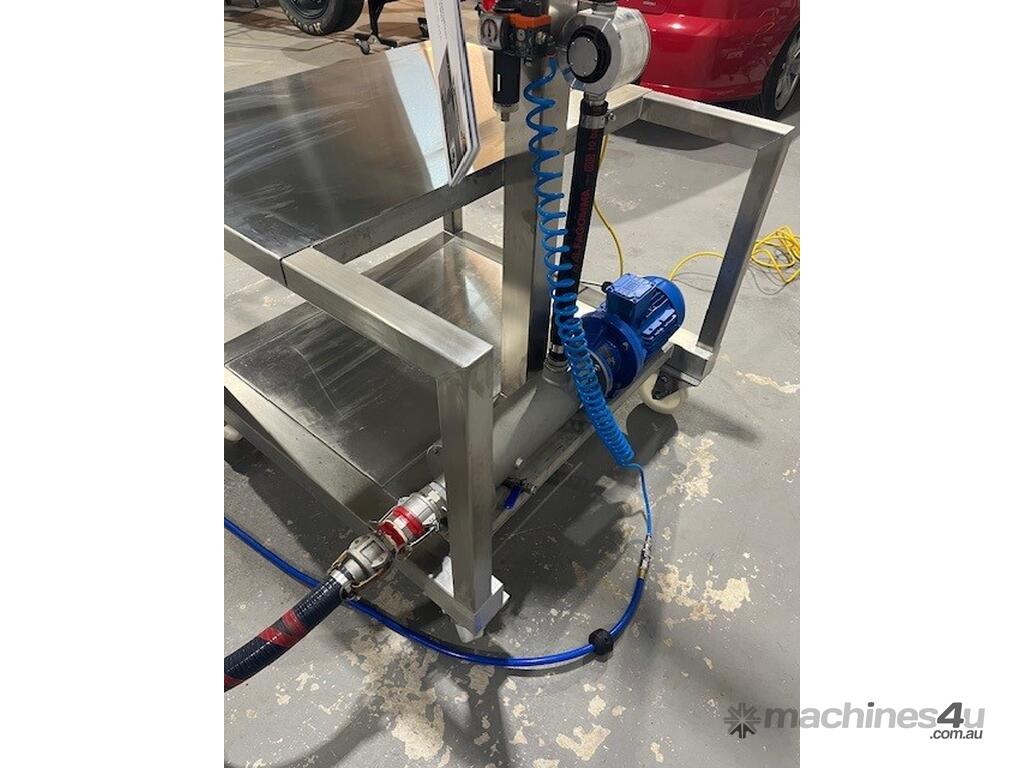

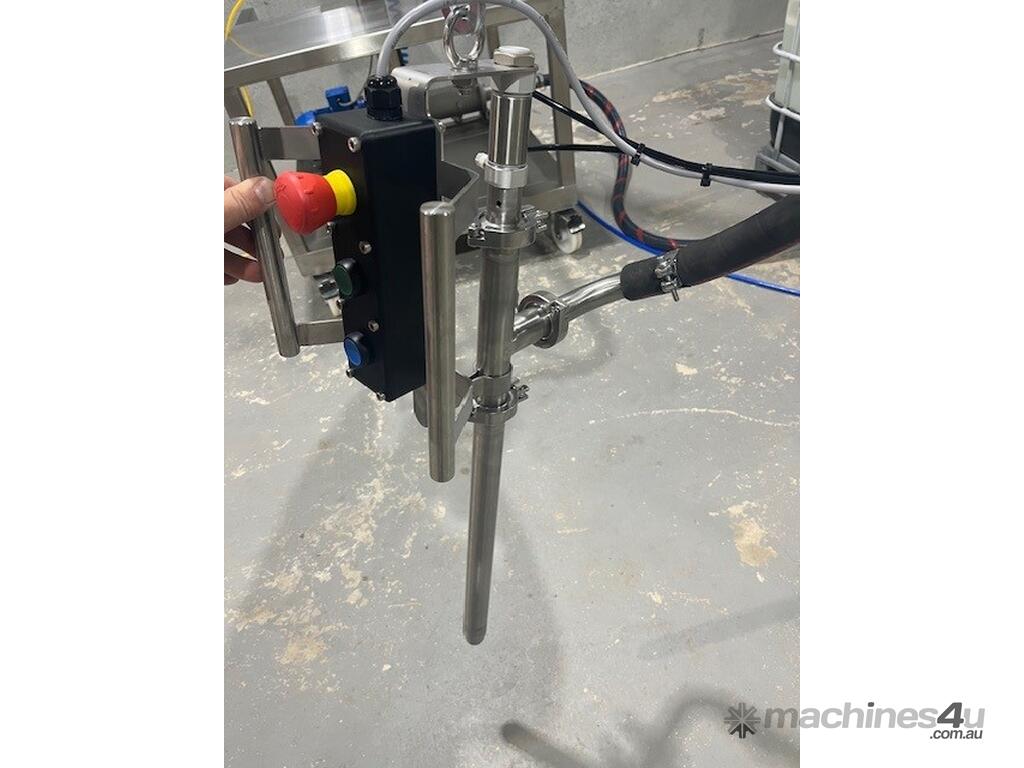

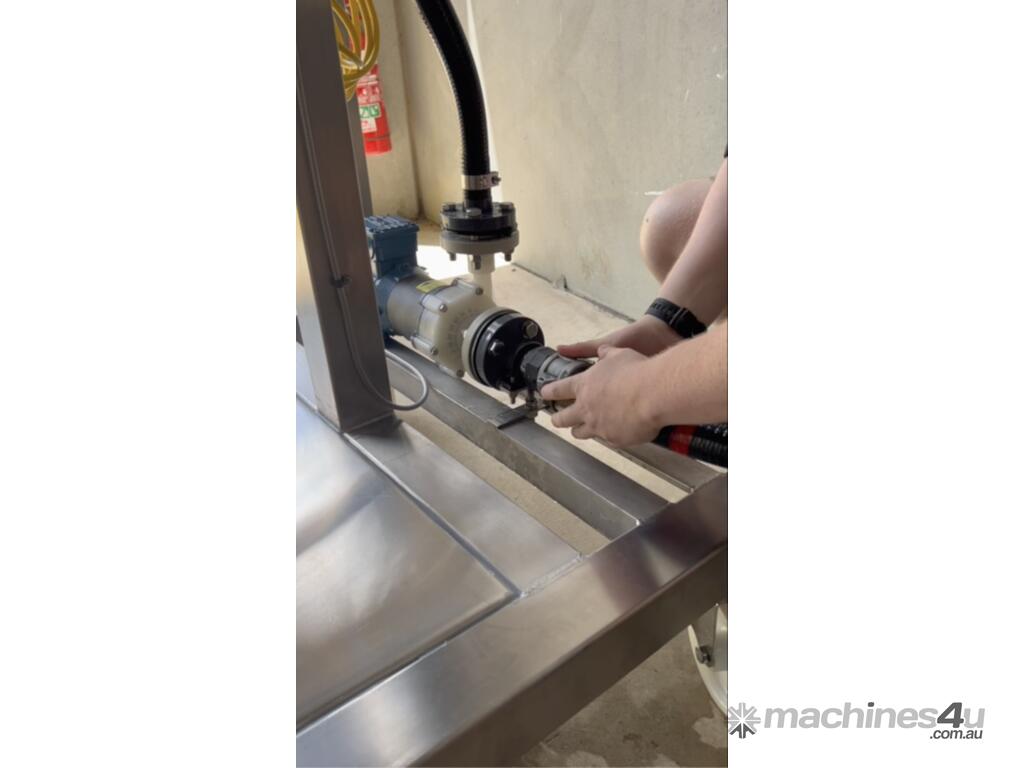

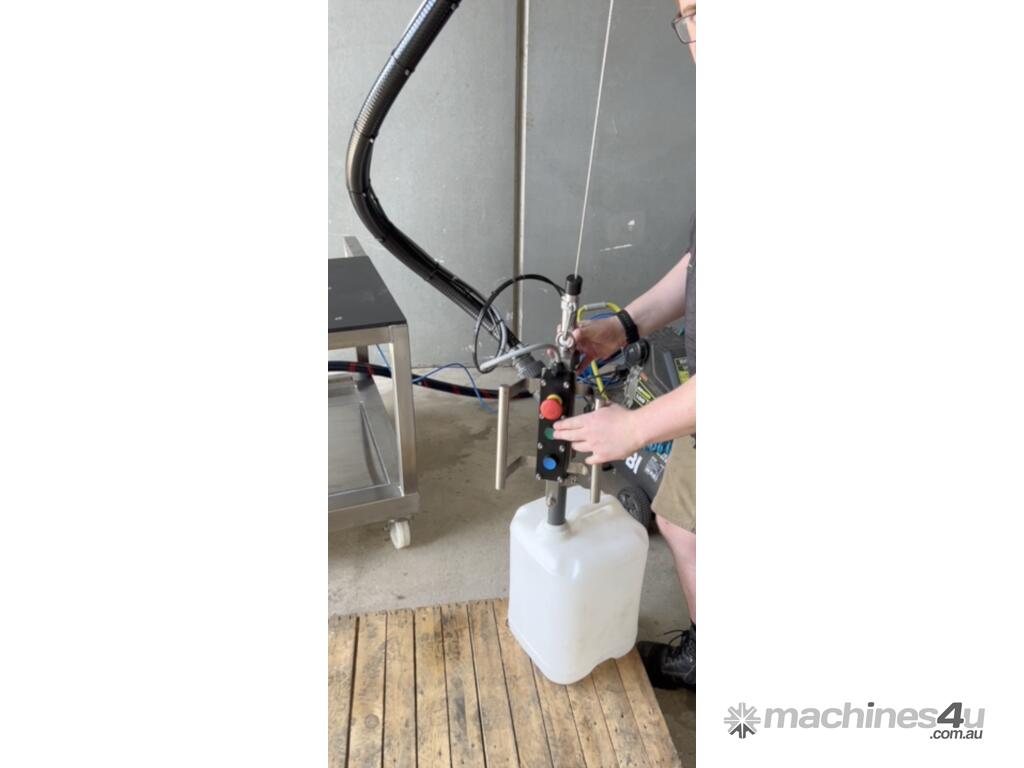

This extremely versatile mobile filling machine is capable of accurately filling containers ranging from 10L to 1000L. Through variable pump speed control, accuracy of +/-10ml is achievable, without compromising fill time and avoiding product foaming and agitation. This machine is equipped with stainless steel or PVC fill heads capable of handling a range of viscosities.

Estimated throughput: 5L container, filled, capped with our capping tool, 6-8 per min. (filling low viscosity, low foaming product)

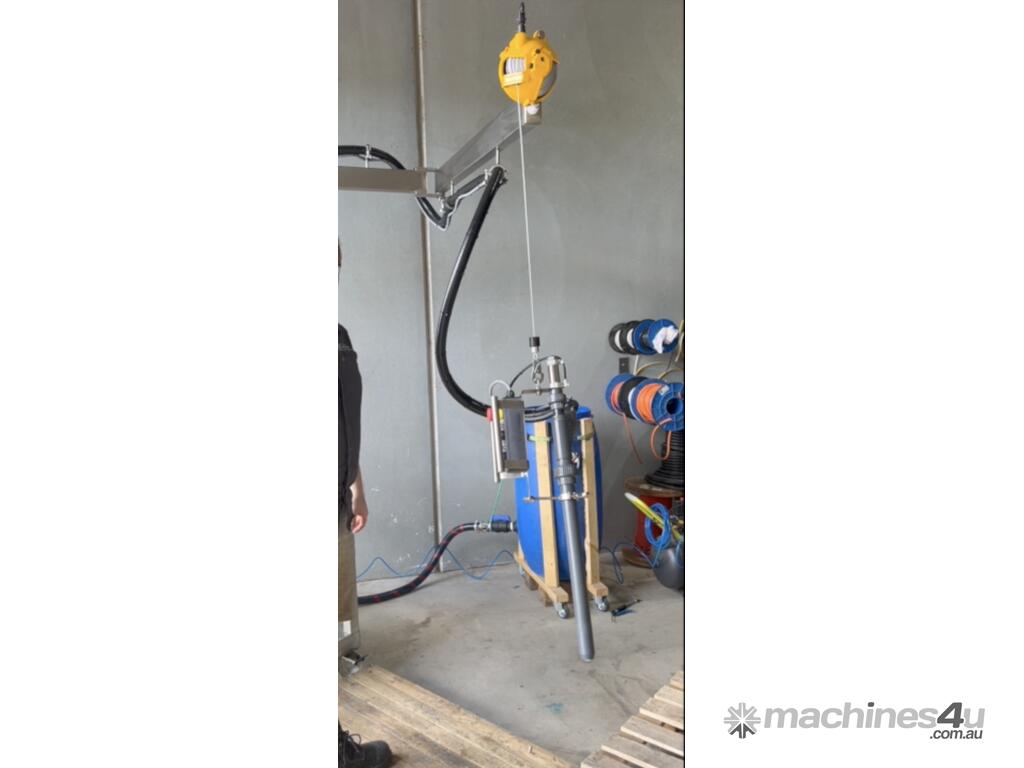

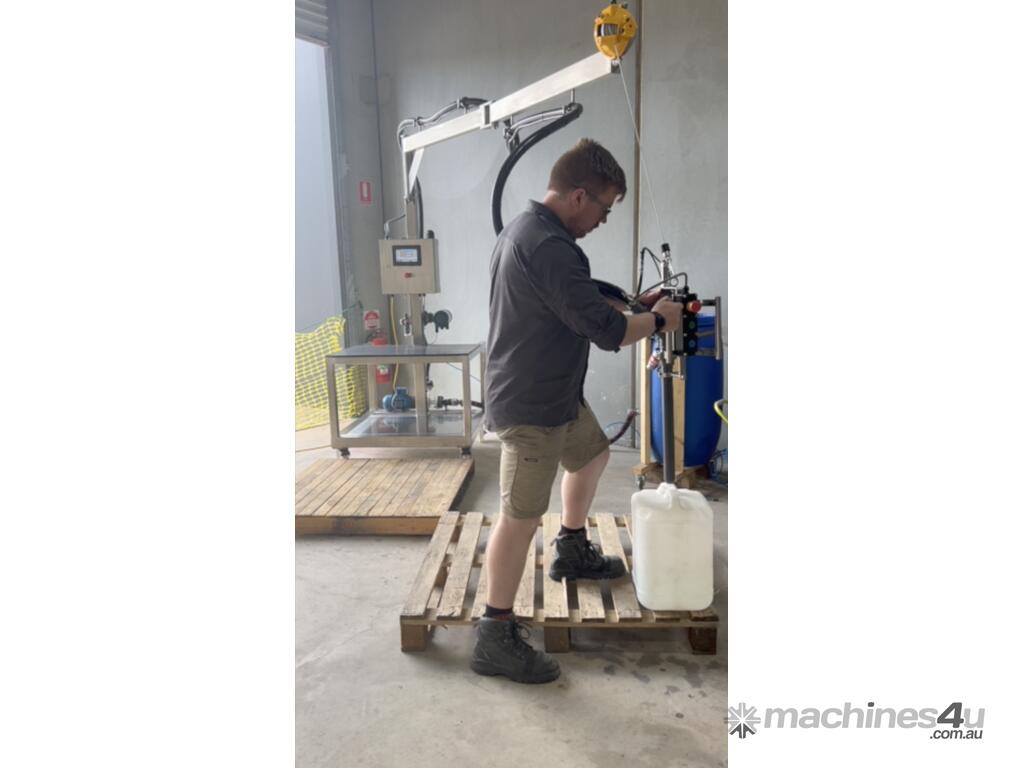

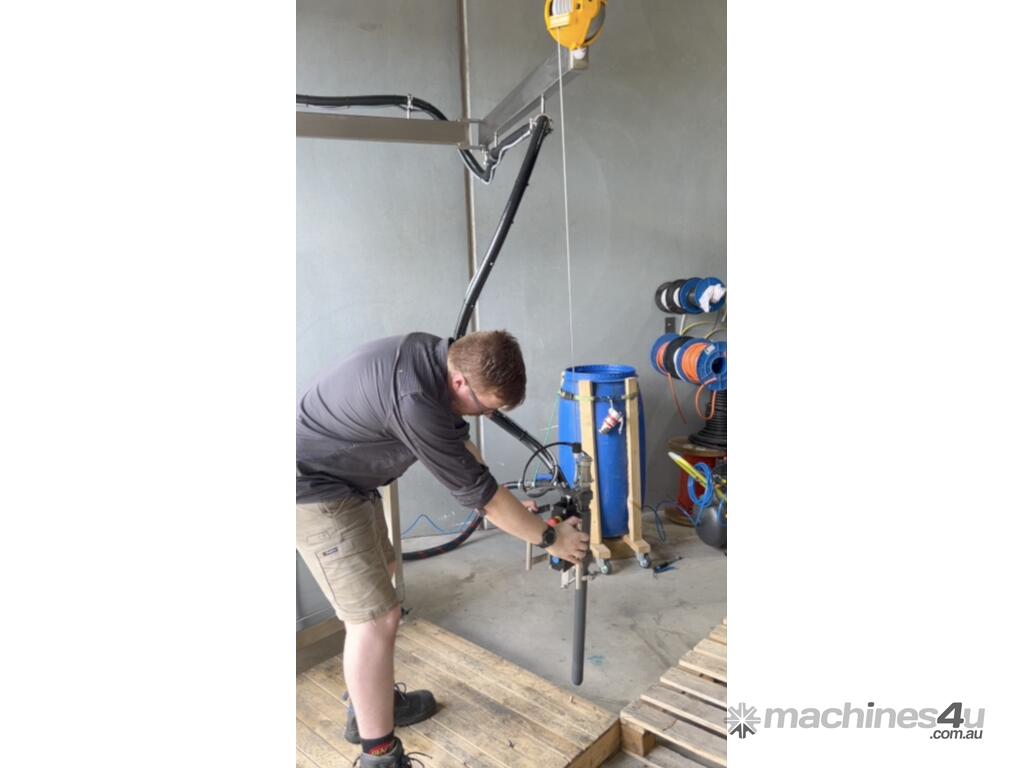

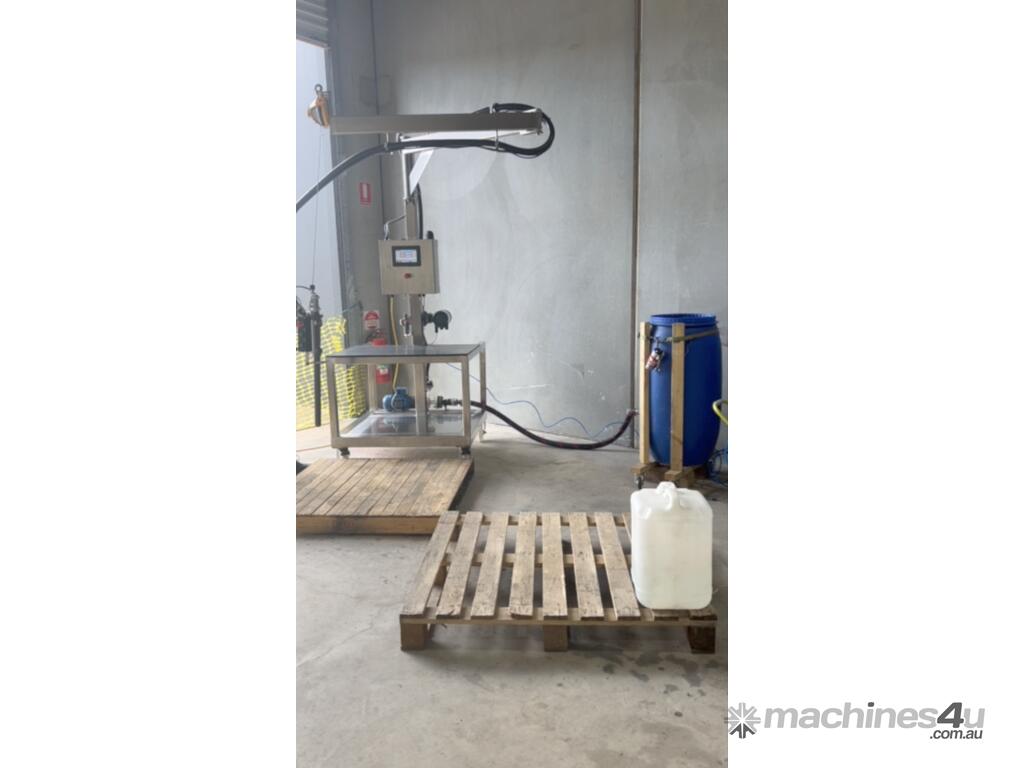

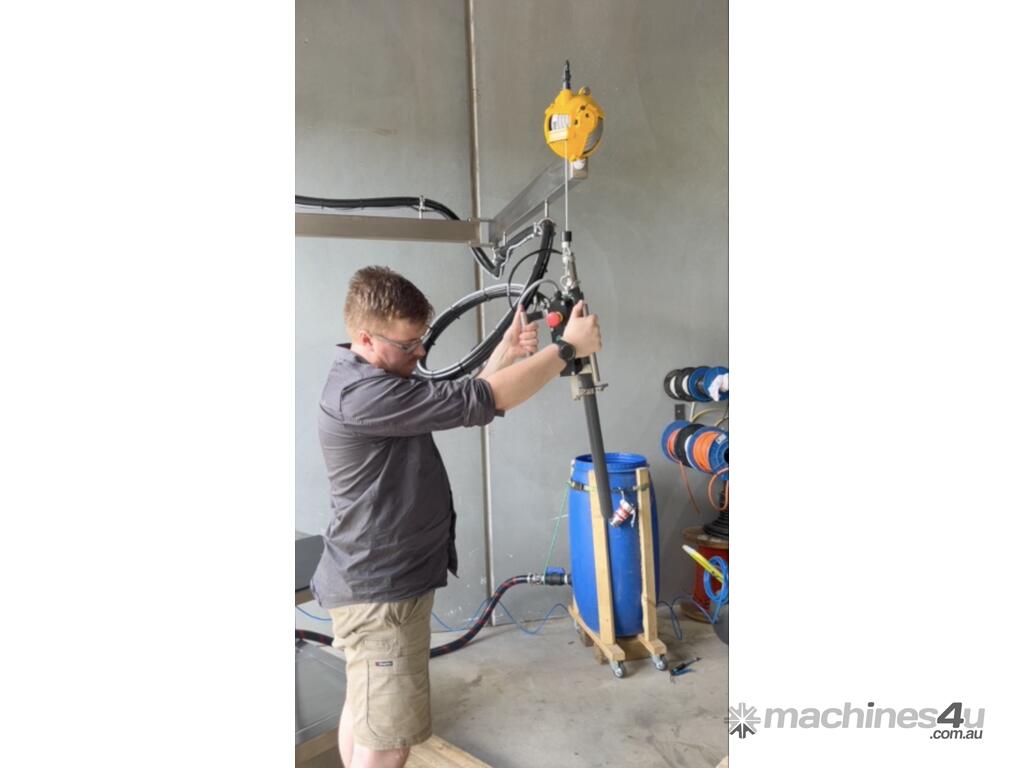

Designed with ergonomics in mind, the 'Boom' filler is easily manoeuvred throughout it's broad operating range, allowing drums to be filled in situ. Along with simplifying the overall batching process, this substantially reduces manual handing risks for the operator.

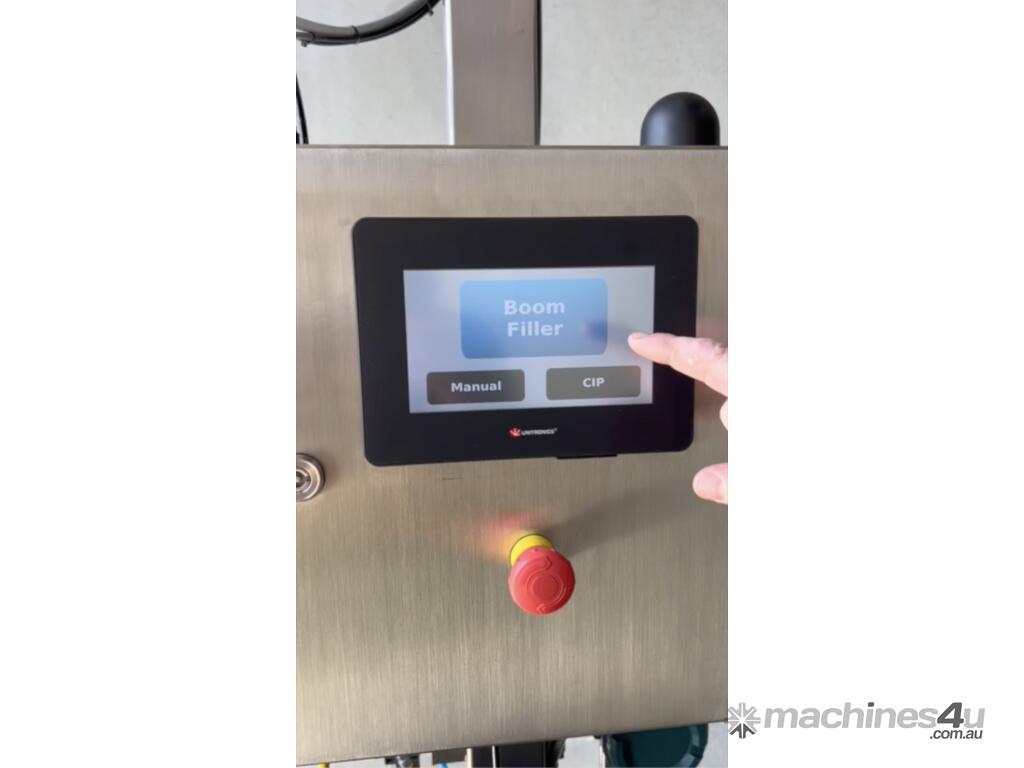

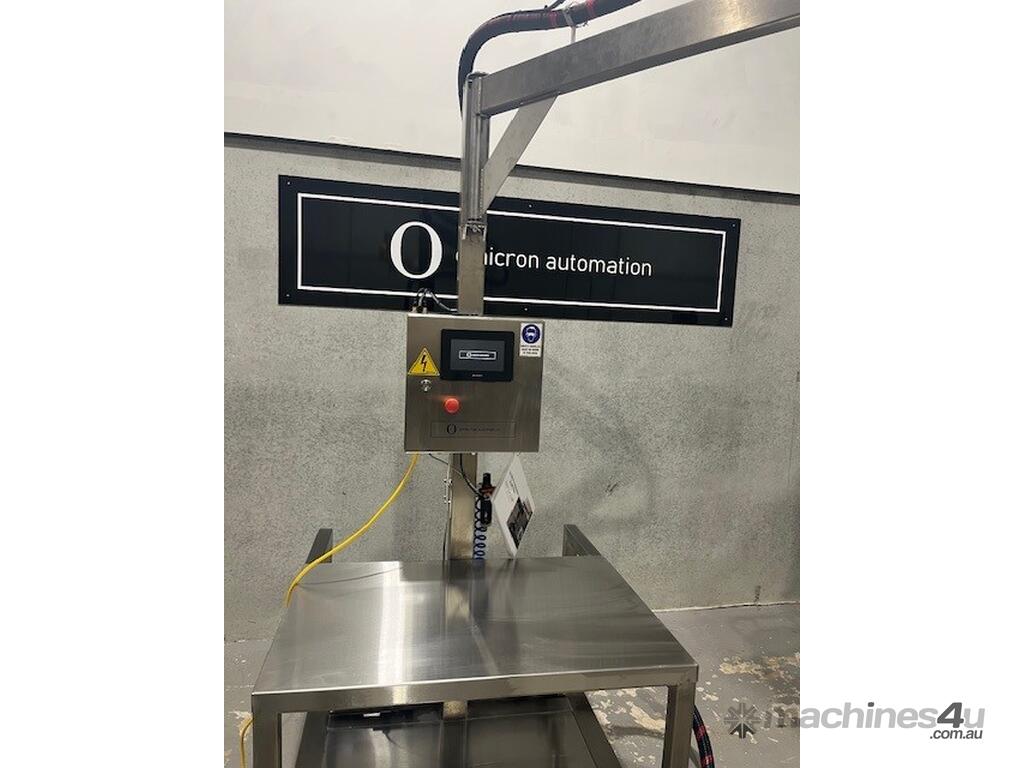

The 7in colour touch screen is intuitive and simple, and provides the operator necessary data to track and monitor each fill. Navigation between pre-saved filling 'recipes', the machine's CIP (Clean In Place) function as well as a manual/diagnostics mode is accessible with only a few clicks.
Built-in remote access means on-site commissioning can be carried out remotely, and at very low cost.

The machine can be partially disassembled (no tools required) to pack down into a 1200mm x 1200mm x 2400mm crate for efficient local and international freight.

Built with high quality componentry, stainless steel, Omicron Automation's Boom & Table Filler is a proven asset to any large or small liquid batching plant.
