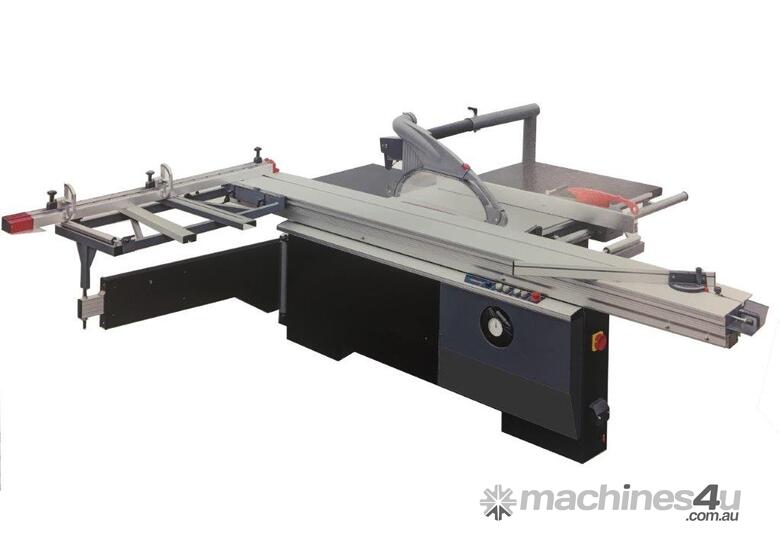

Outstanding value!. PRIMA 2500mm Panel Saw. Cast saw unit, precise sliding table,

We Have now sold well over 300 of these machines and guarantee them with 100%
confidence. We have several customers who have 2 or three of these saws. We sell many saws by recommendation. If you have any doubt come and have a look for yourself or ask us for the phone number of someone who has one.

We can provide installation and provide on site service. We carry a FULL range of spare parts

Specifications

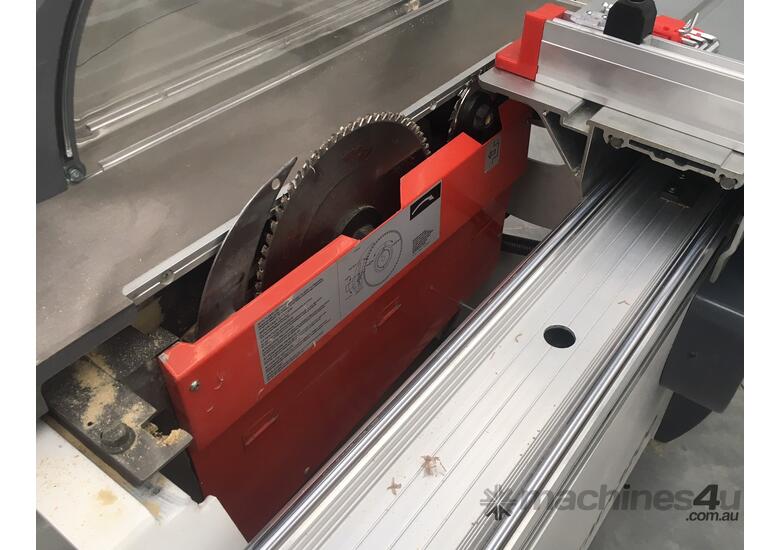

Precision aluminium sliding table assembly, with excellent accuracy.

Smooth table movement on horizontally opposed V-slideways with rollers running between.
Heavy duty outrigger frame locks firmly to sliding table.
Large section crosscut fence with two work stops with magnifying lens.
Heavy swinging support arm below outrigger frame, to easily support panels.

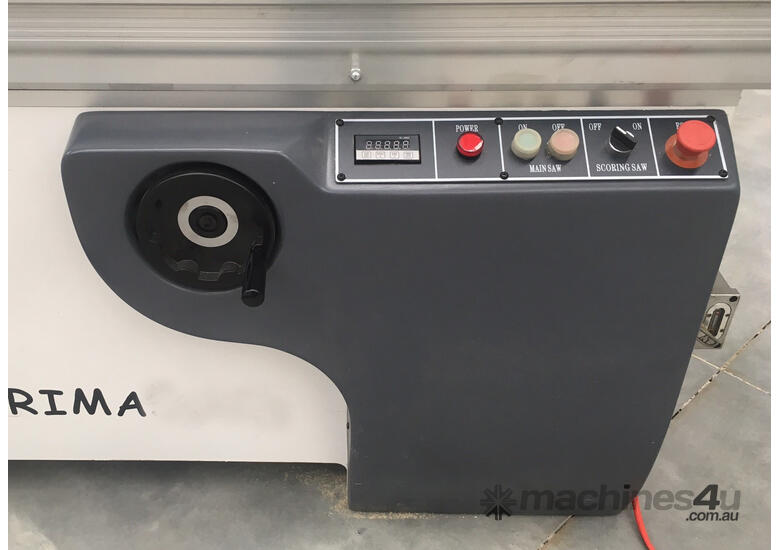

Rise and fall of main saw blade by handwheel below rip fence.
Adjustment of scoring blade by two knobs below rip fence.
Tilting of saw blade assembly to required angle by handwheel with digital readout of angle setting.
Heavy duty ripping fence mounted on 40mm diameter round bar.
Overhead frame mounted safety guard with dust exhaust outlet.
Machined cast iron main table supported by heavy gauge pressed steel machine body.
All sealed ball race bearings on saw blade arbors.
Two blade speeds by belt change on pulleys – 4000 or 6000 rpm.
One Freud main saw blade and scoring blade included.
Motor brake

Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST

TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details


Technical Data

Dimensions of sliding table 2500 mm x 360 mm
Maximum saw blade diameter 300 mm
Diameter of scoring saw blade 120 mm
Saw blade assembly tilting 0º to 45º
Maximum depth of cut 90º 80 mm
Maximum depth of cut 45º 60 mm
Main saw blade motor - three phase 5.0 hp
- single phase 3.0 hp
Scoring saw blade motor - three phase 1.0 hp
- single phase 0.5 hp
Maximum width of cut on rip fence 1250 mm
Nett weight of machine 620 kg
