Over Driven Bar Clamp Hydraulic Guillotine: 2500 x 6.5mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

"A very forgiving machine"

The EPIC 2500 x 6.5mm Over Driven Bar Clamp Hydraulic Guillotines are designed and manufactured in the company's NSW workshop. EPIC has been designing and manufacturing sheet metal processing equipment for more than 40 years. EPIC’s high quality Australian-made machines are built for precision and reliability, and are made to last.

ONE-PIECE FABRICATED CLAMP

The guillotine is equipped with a one-piece fabricated clamp. Pressure automatically adjusts in line with the shearing force.

TOP BEAM GUIDED BY FULLY MACHINED HEAVY-DUTY SLIDES

The top beam on EPIC’s over driven guillotines is guided by fully machined heavy-duty slides. The slides are brass lined to provide an excellent cut and long life. The slides are fully adjustable to allow for regrinds, and have lubrication points.

DOUBLE-ACTING CLAMP CYLINDERS

Double-acting hard chromium-plated cylinders connected to the cutting beam accomplish the shearing operation, providing maximum tonnage and transferring all forces safely and smoothly to the frame.

OPTIONAL VARIABLE RAKE ADJUSTMENT

EPIC’S variable rake adjustment supports cutting light gauge material with a faster stroke and minimal twist. Adjusting the rake reduces the distance the guillotine has to travel, thereby speeding up the stroke.

OPTIONAL RAPID BLADE ADJUSTMENT

If the guillotine is intended for shearing varied thicknesses of material, EPIC recommends incorporating rapid blade adjustment. This option supports simple setting of the blade gap via a handle at the back of the machine.

EPIC has technical services Australia-wide. Plus, we offer personal customisation and modification of all our machines.

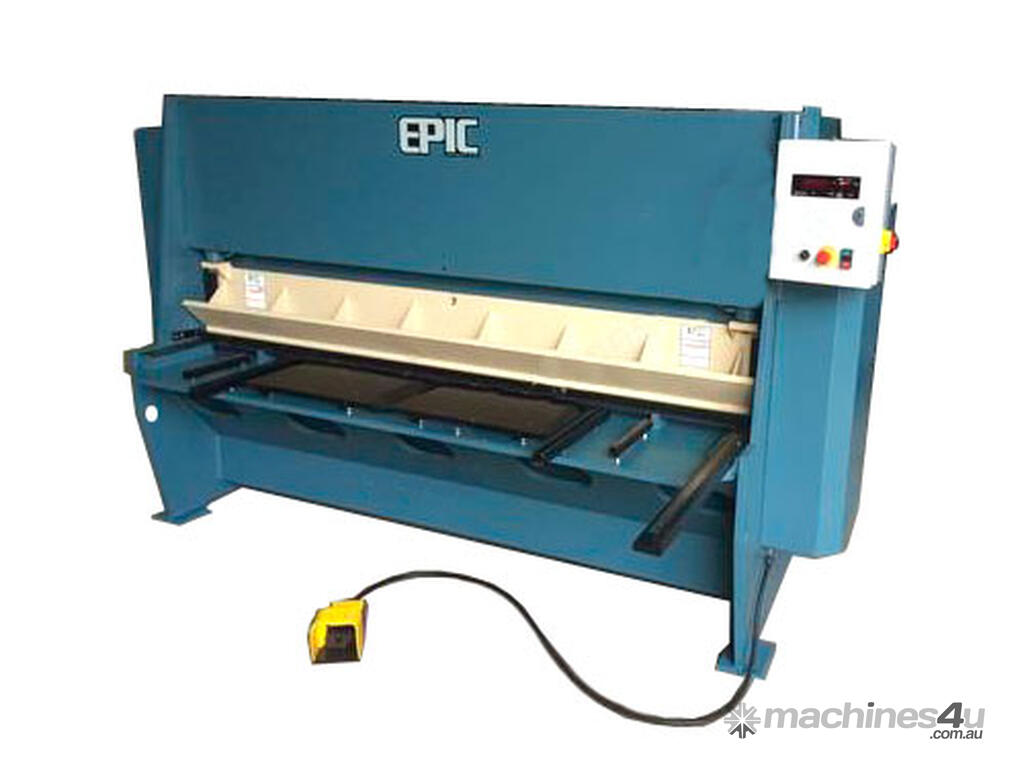

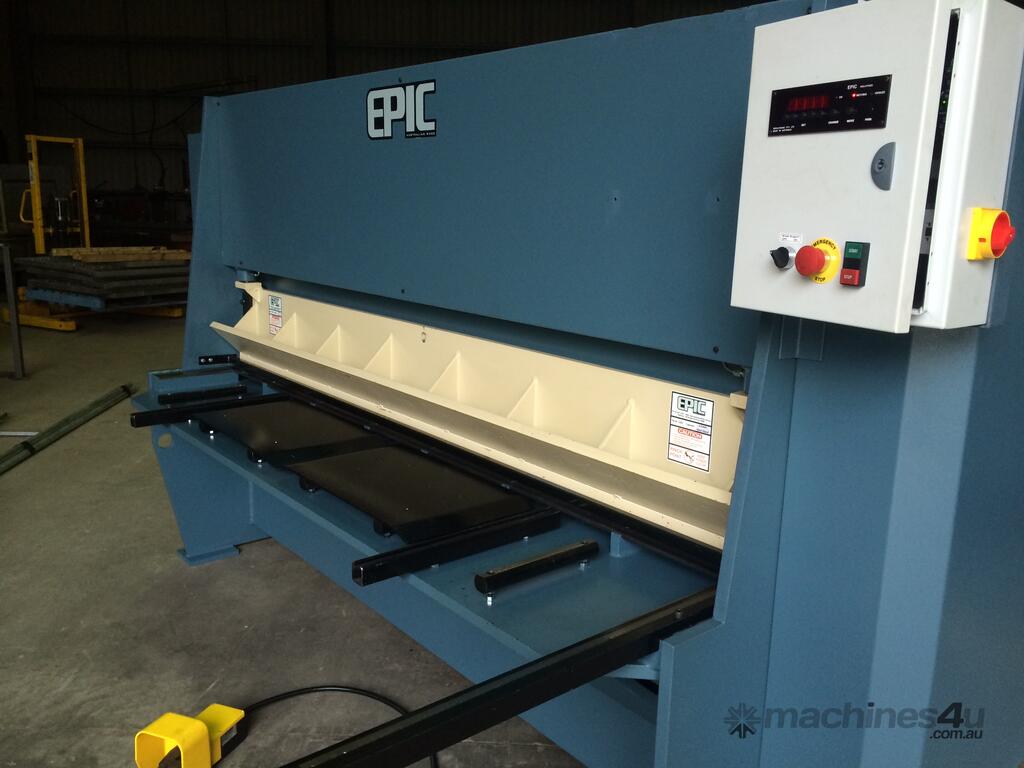

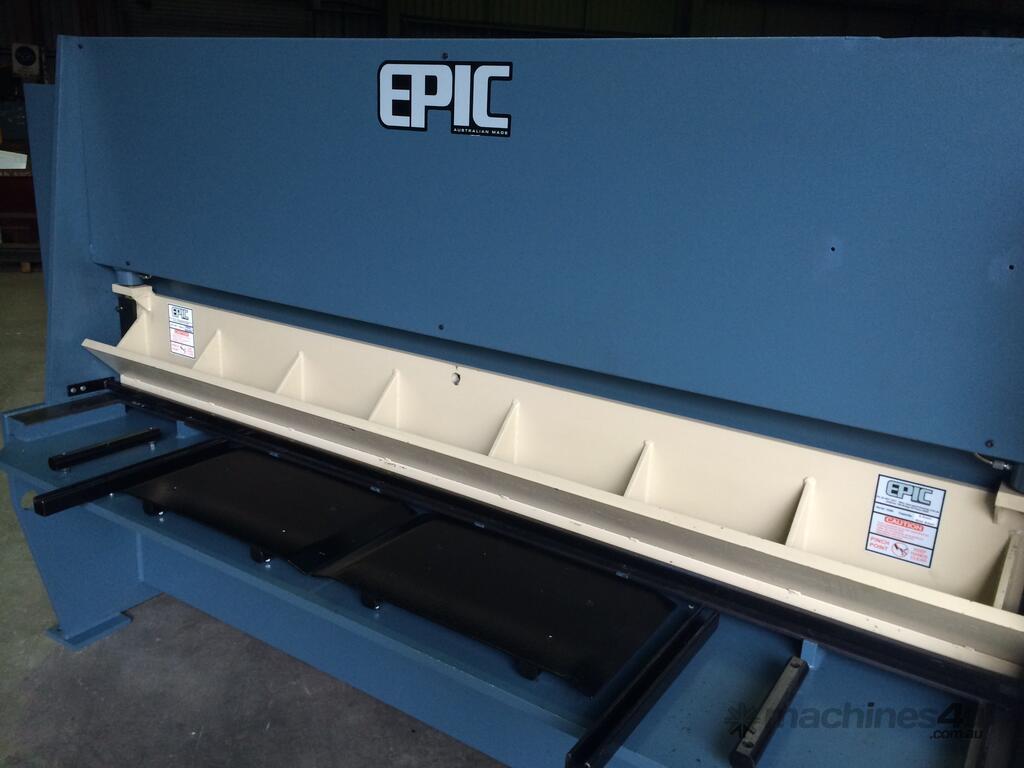

EPIC 2500 x 6.5mm Over Driven Bar Clamp Hydraulic Guillotine
Model No. 2500ODBG6.5

Machine Capacity:
- 6.5mm mild steel cutting capacity
- 2500mm cutting length

Standard Features:
- One-piece fabricated clamp
- Superior quality Australian-made D2 shearing blades
- Shadow line lighting
- 14 strokes/min at maximum rate
- Electrics low voltage 24Volt to foot switch with overload protection
- Rear infrared safety guarding
- Cutting operation provided by large diameter hydraulic rams
- Machined 1000mm squaring arm

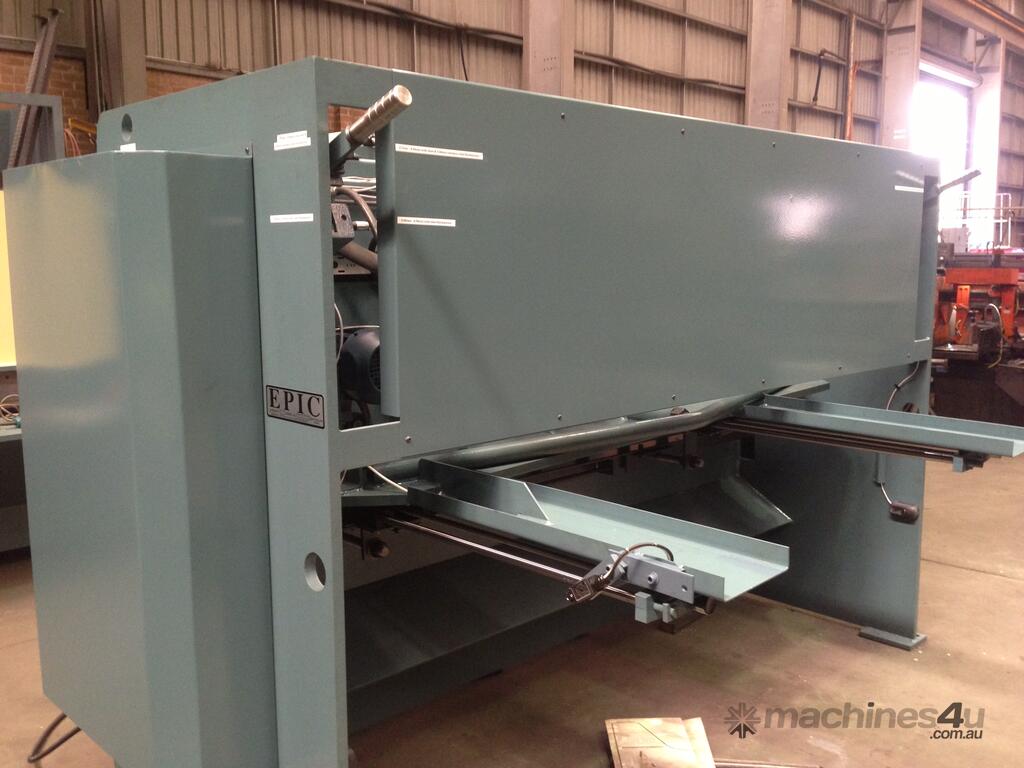

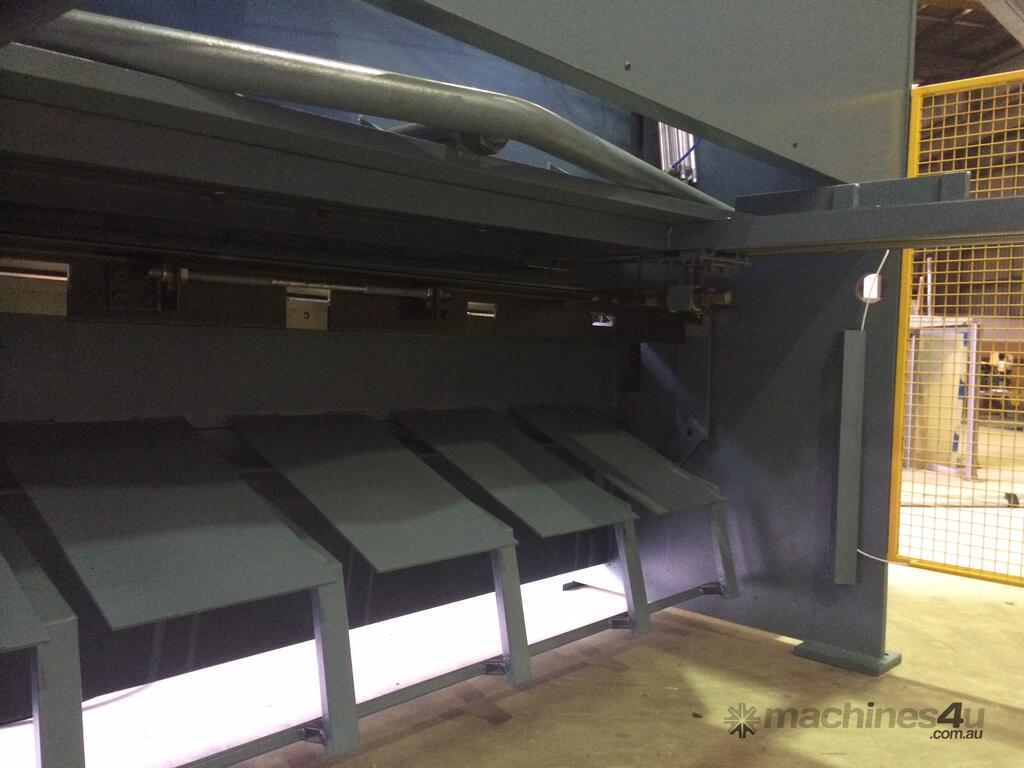

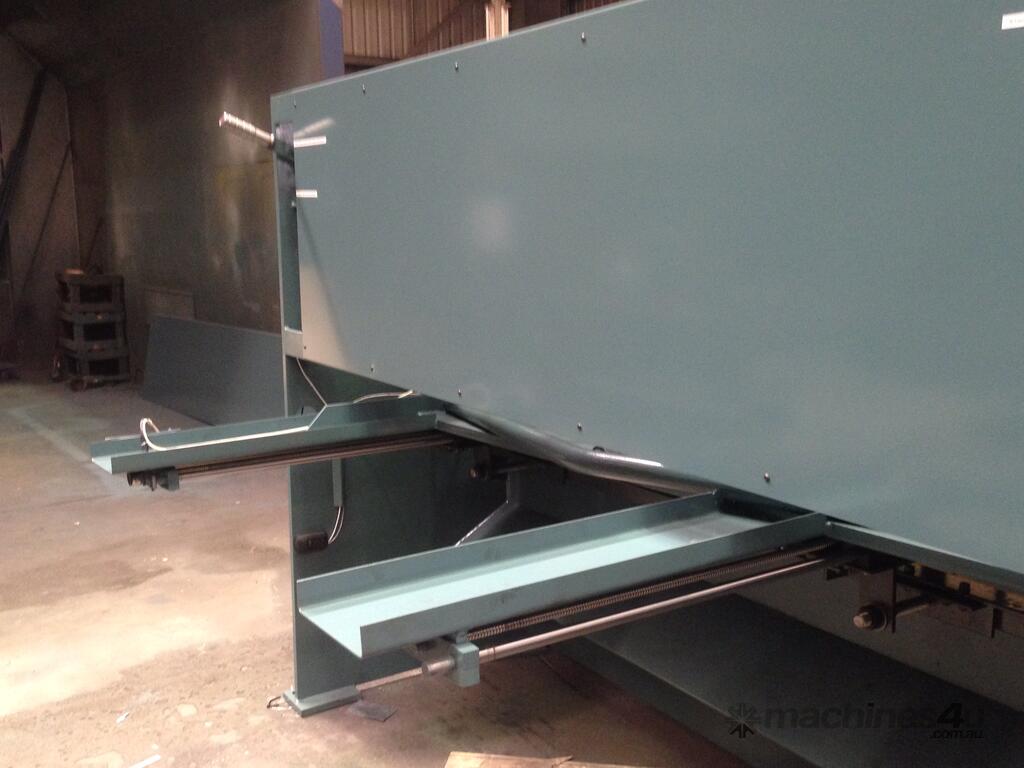

- Fabricated rear chute for off-cut material
- Clamp-type back gauge with fine screw adjustment

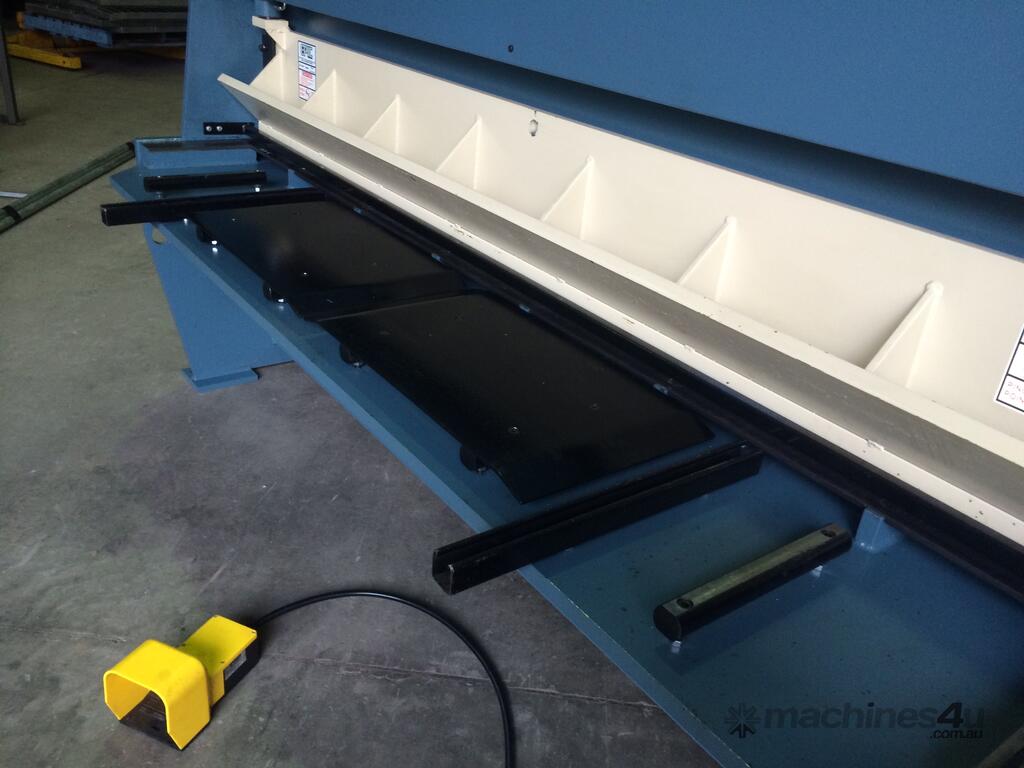

- Front sheet supports
- Inching mode
- Fixed rake
- Top beam guided by fully machined brass-lined heavy-duty slides

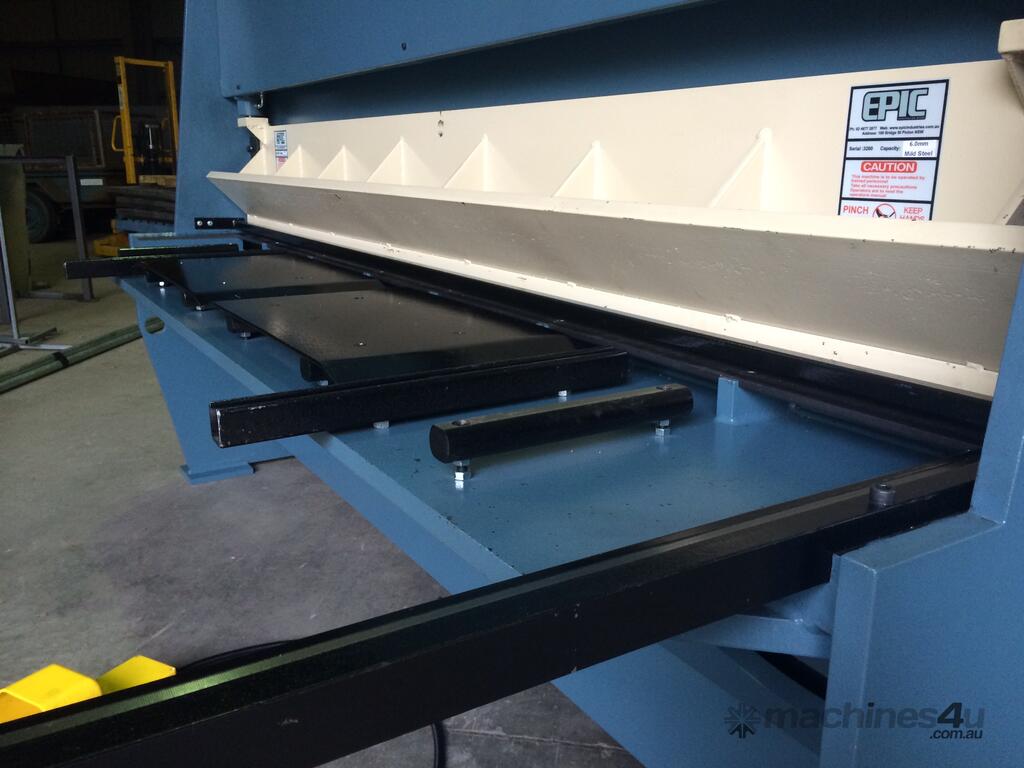

- Unique EPIC-designed bar table with ball transfers for attaching flat plates for delicate work
- All wear points with grease fittings for lubrication
- Double-acting hard chromium-plated cylinders connected to the cutting beam

Optional Features:
- Machine paint colours
- Pneumatic sheet supports
- Individual clamps
- Longer squaring bars, or extra squaring bars
- Flat, machined table
- Shadow line lighting
- Rapid blade adjustment
- Variable rake adjustment – cut light gauge material with a faster stroke and minimal twist
- Extra safety options – suitable for government departments

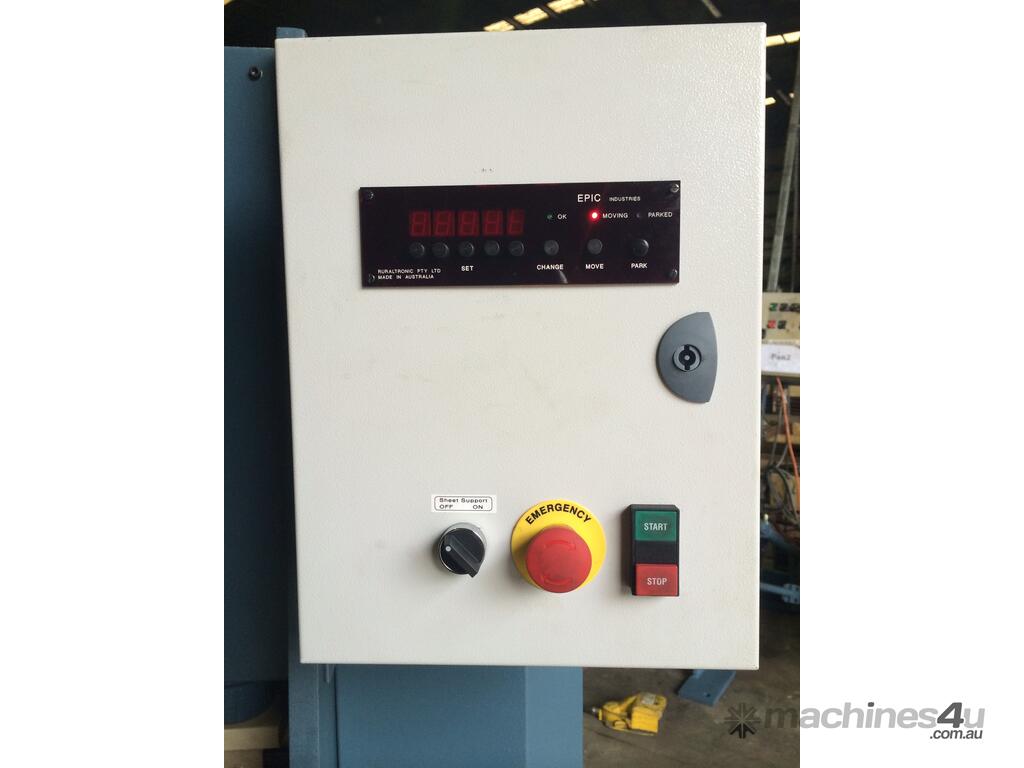

- EPIC electronic control ball screw back gauge with 800mm travel and digital readout

Contact EPIC to discuss freight and financing, plus any personal customisation and modifications you require.

The EPIC Over Driven Bar Clamp Hydraulic Guillotine range:
- 1250mm (4.0mm, 6.5mm mild steel machines)
- 1860mm (4.0mm, 6.5mm mild steel machines)
- 2500mm (4.0mm, 6.5mm mild steel machines)
- 3070mm (4.0mm, 6.5mm mild steel machines)
- 3675mm (3.0mm, 5.0mm mild steel machines)
- 4020mm (3.0mm, 5.0mm mild steel machines)

Get in touch, for more information about our over driven guillotines or any of our sheet metal machinery range.
