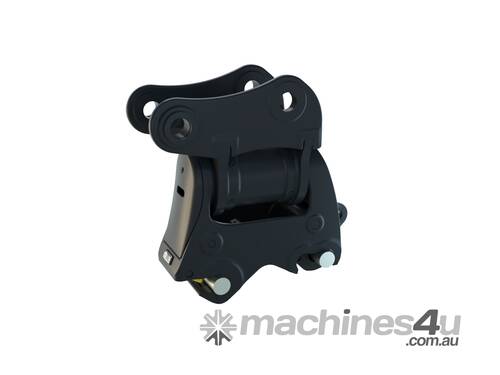

P Class - 3.5T Powerlatch Tilt Quick Hitches

Product Code: P Class
Excavator: 3.5T
Tilt: 180
Weight: 101kg
Pin Diameter: 40mm
Pin Centres: 172-200mm
Max Bucket Width: 1100mm
Max Work Pressure: 90 bar

The next generation PowerLatch Tilt is our most powerful and innovative hydraulic tilting quick hitch yet

Performance from every angle

Our all-new tilting quick hitch offers 180-degree tilt for 3.5 to 20 tonne excavators. Capable of withstanding the most challenging working environments.

Lightest, lowest and strongest

The 180-degree tilt functionality on all models increases versatility and flexibility for the operator and makes the Tilt hitch a must have for a variety of applications such as grading, road construction and demolition.

Its cast compact design is achieved through innovative top mounted arms, which reduce the overall height and weight of the PowerLatch Tilt for enhanced performance and productivity.

Achieve more from your machine with up to 180 degree tilt from the all new PowerLatch Tilt.
Offers operators additional tool flexibility without having to reposition the excavator.
Improves machine versatility, productivity and reduces fuel costs resulting in increased profit.
Meets all relevant Global legislation, including EN474, Machinery Directive 2006/42/EC, AS13031, NSW Workpaper and ISO 13031.
The PowerLatch ‘twinlocking’ hitch will only allow the release of attachments in a safe, curled position.
In the event of hydraulic failure or accidently operating the switch, the PowerLatch will automatically lock on both front and rear pins, mechanically and independently.
Ensures the attachment remains securely engaged complying with all current and future global legislation.
The lightest, strongest, lowest profile innovative fully cast body.
100% cast from high tensile steel delivering exceptionally strong performance.
Optimized strength to weight ratio to enhance performance while reducing fuel consumption.
Proven global track record of withstanding the most challenging working environments.
Slimline, external cylinder-free tilt design.
Ideal for working with the narrowest of attachments for all manner of tasks, from channel clearing and grading to house building.
Don’t have to worry about damaging external rams or cylinders.
Turn your excavator from a digging machine to a multi-tooled carrier ideal for performing versatile functions.
Eliminate extra equipment on your jobsite as variable pin centre design allows you to easily pick up and swap the widest range of OEM attachments.
The Miller | NGDF PowerLatch Tilt hitch allows you to change attachments quickly from the comfort and security of your cab.
Maximising machine productivity with less repositioning of machine and minimise machine down time.
Miller | NGDF have partnered with a leading German rotating motor company HKS.
Spiral bevel motor allows 90 degree movement with a very robust, low maintenance self-lubricating motor.
Auto-lube system saves end-users having to stop work to grease, in what might be a hazardous environment which increases productivity and keeps you working safely.
