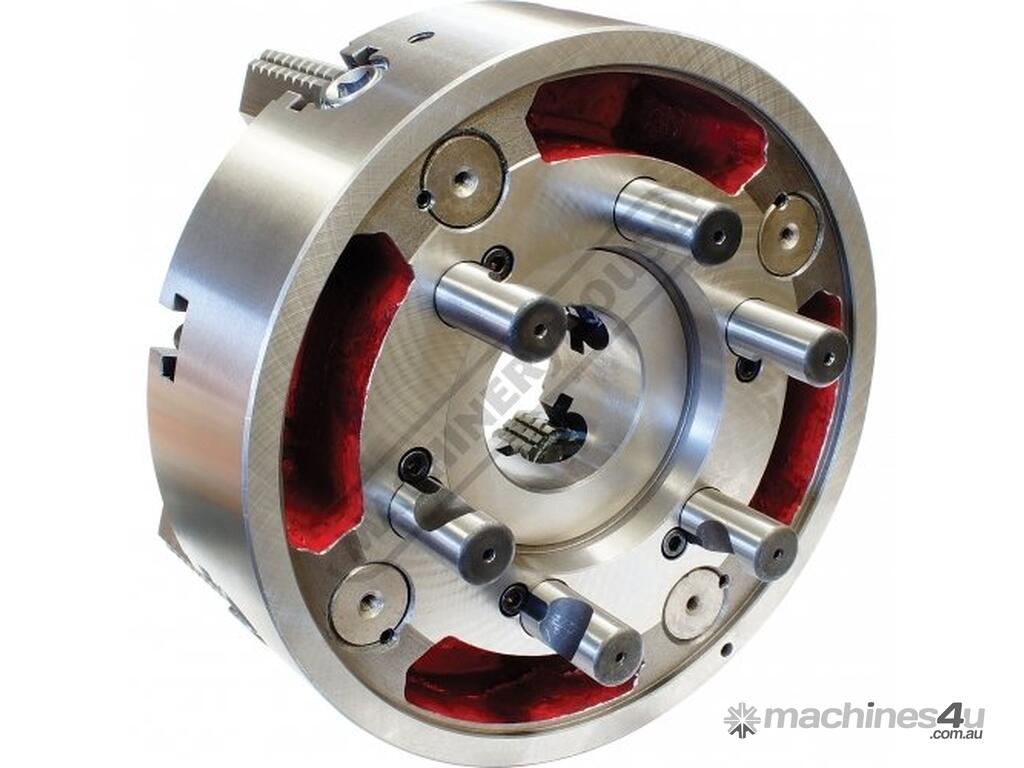

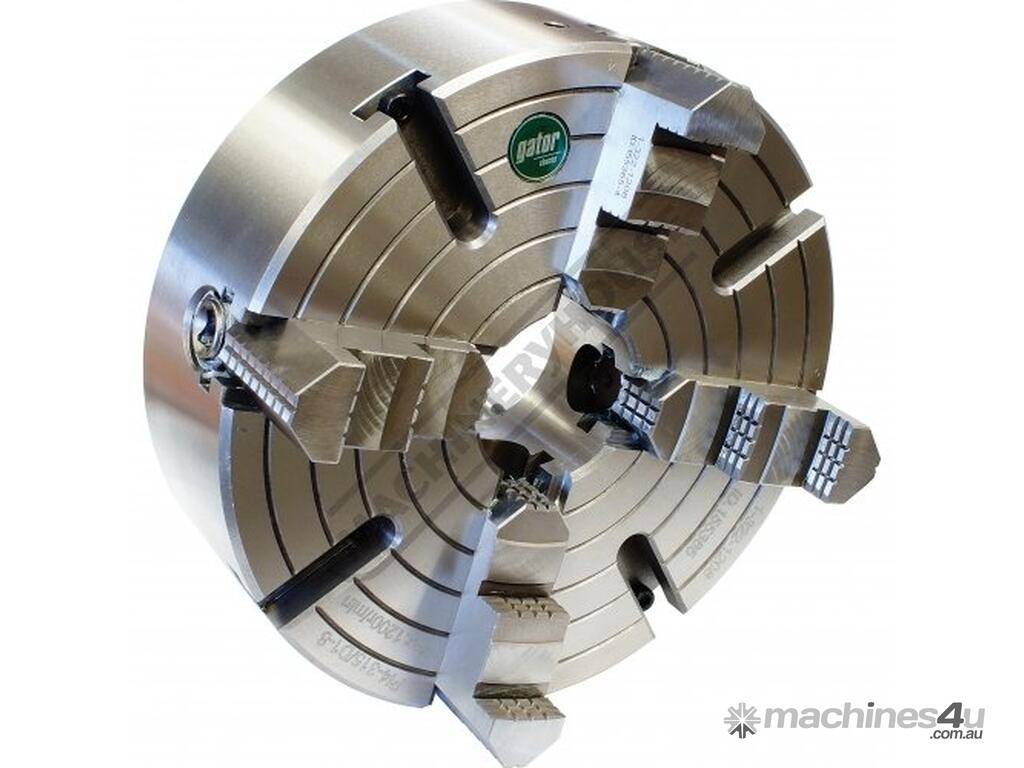

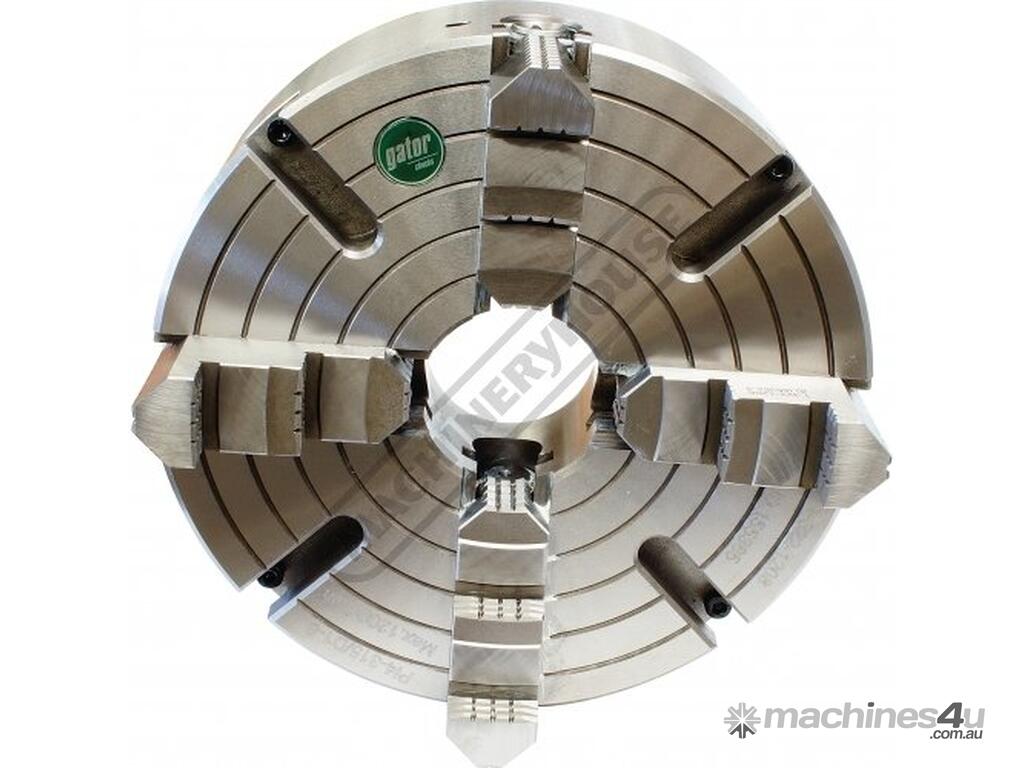

P14-315/D1-8 4 Jaw Independent Lathe Chuck Ø315mm D1-8 Camlock Mount

GATOR P14-315/D Jaw Independent Lathe Chuck Ø315mm D1-8 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C7188

The "P" series chucks are to German standards and feature jaws that are individually adjustable, allowing firm gripping of odd shaped items. The semi steel chuck has jaws manufactured from hardened high quality alloy steel. Thrust bearings and operating screws made of case hardened steel.

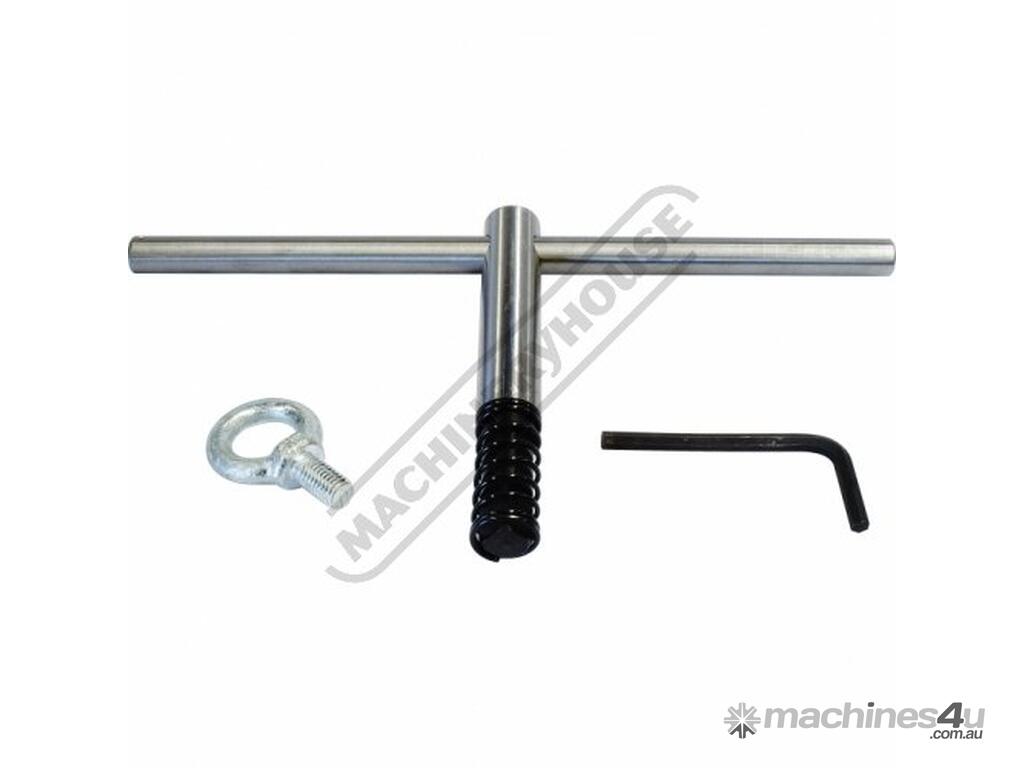

Supplied with CAMLOCK PINS, 1 set of jaws and wrench.
Manufactured to DIN55029

Features:
German design


Specifications:
ORDER CODE: C7188
Chuck Size (mm): Ø315
Camlock: D1-8
Speed (rpm): 1200
D1 (mm): 139.72
D2 (mm): 171.4
D3 (mm): 80
H1 (mm): 95
h (mm): ~
Nett Weight (kg): 40
