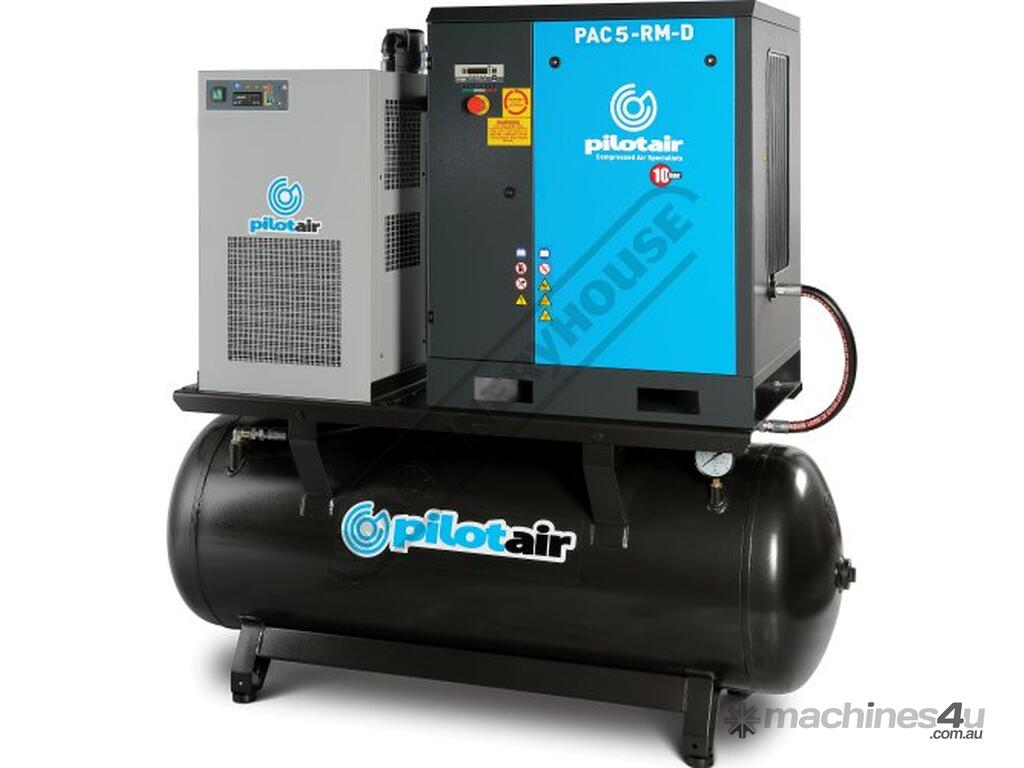

PAC5-RM-D Rotary Screw Pilot Air Compressor & Integrated Air Dryer Italian Designed & Manufactured A

PILOT AIR COMPRESSORS PAC5-RM-D Rotary Screw Pilot Air Compressor & Integrated Air Dryer Italian Designed & Manufactured Air End 648L/Min. 22.9CFM 10 Bar
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C5352

The PAC series: The choice for your workshop or industrial requirements all with Pilot Air’s Legendary reliability & long life value

Features:
ETMII - Installed on models from 4 to 15kW
Controller with multi-function backlight display the menu is alphanumeric type. In the main screen are displayed:
Working pressure (offload/load)
Oil temperature
Total working hours
On-load working hours
Compressor status led (stand-by offload load)
Hours remaining before maintenance
Four maintenance timers (air cartridge oil oil filter oil separator)
Automatic re-start after power failure
Cooling fan temperature settable
Compressor remote start settable
Integrated sequence phase relay
Easily accessible for service & maintenance

Remote monitoring (on demand)
GSM/GPRS/Ethernet/WiFi module (for online compressor status remote assistance connection with PC Smartphone and Tablet connection between neighbour compressors)

Master/slave function
It is possible to connect up to 4 compressors for managing distribution of the workload in such a way to equalize the hours dynamically changing set pressures of the various compressors

Italian Designed & Manufactured Air End
High efficiency and reliability
Lower air end speeds mean reduced wear and longer life
Designed for continuous operation without a drop in performance

Poly – V Belt Driven
Long life and minimum maintenance

Simple Maintenance
Easily accessible internal components ensure efficient maintenance

Cooling System
Thermally controlled independent radial fan ensures constant air/oil temperatures even during heavy working conditions

F.A.D. as per ISO1217 7.5 - 9.5 Bar
Sound level measured in accordance with PNEUROP / CAGI Standards.
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements

Warranty: 2 years on compressor pump 1 year on all other components.

Includes:
- 3 Micron Pre-Filter for Refrigerated Air Dryer - 1/2" BSPF - FTP012
- Integrated refrigerated air dryer



Specifications:
ORDER CODE: C5352
MODEL: PAC5-RM-D
Free Air Delivery (LPM / CFM): 648 / 22.9
Air Displacement (LPM / CFM): ~
Includes Air Dryer System (Yes / No): Yes
Standard Operating Pressure (bar): 10
Air Receiver Tank (Litre): 268
Noise Level (dBA): 64
Transmission Drive (Type): Belt Drive
Motor power (kW / hp): 5.5 / 7.5
Motor Voltge (V / Amps): 415
Tank drain Voltage (V / Amps): ~
Dimensions (L x W x H) (mm): 1500 x 600 x 1510
Nett Weight (kg): 222
