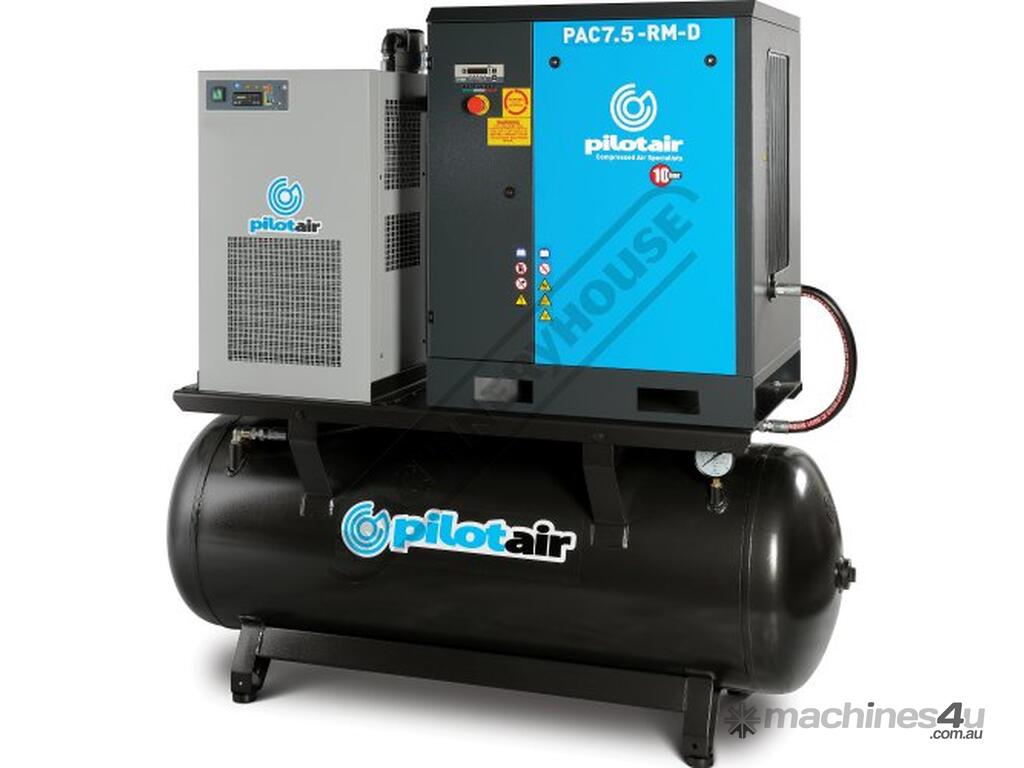

PAC7.5-RM-D/500 Rotary Screw Pilot Air Compressor & Integrated Air Dryer Italian Designed & Manufact

PILOT AIR COMPRESSORS PAC7.5-RM-D/500 Rotary Screw Pilot Air Compressor & Integrated Air Dryer Italian Designed & Manufactured Air End 1002L/Min. 35.3CFM 10 Bar
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C5362

The PAC series: The choice for your workshop or industrial requirements all with Pilot Air’s Legendary reliability & long life value

Features:
ETMII - Installed on models from 4 to 15kW
Controller with multi-function backlight display the menu is alphanumeric type. In the main screen are displayed:
- Working pressure (offload/load)
- Oil temperature
- Total working hours
- On-load working hours
- Compressor status led (stand-by offload load)
- Hours remaining before maintenance
- Four maintenance timers (air cartridge oil oil filter oil separator)
- Automatic re-start after power failure
- Cooling fan temperature settable
- Compressor remote start settable
- Integrated sequence phase relay
- Easily accessible for service & maintenance

Remote monitoring (on demand)
GSM/GPRS/Ethernet/WiFi module (for online compressor status remote assistance connection with PC Smartphone and Tablet connection between neighbour compressors)

Master/slave function
It is possible to connect up to 4 compressors for managing distribution of the workload in such a way to equalize the hours dynamically changing set pressures of the various compressors

Italian Designed & Manufactured Air End
- High efficiency and reliability
- Lower air end speeds mean reduced wear and longer life
- Designed for continuous operation without a drop in performance

Poly – V Belt Driven
- Long life and minimum maintenance

Simple Maintenance
- Easily accessible internal components ensure efficient maintenance

Cooling System
- Thermally controlled independent radial fan ensures constant air/oil temperatures even during heavy working conditions

F.A.D. as per ISO1217 7.5 - 9.5 Bar
- Sound level measured in accordance with PNEUROP / CAGI Standards.
- Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements

Warranty: 2 years on compressor pump 1 year on all other components.

Includes:
- 3 Micron Pre-Filter for Refrigerated Air Dryer - 1/2" BSPF - FTP012
- Integrated refrigerated air dryer



Specifications:
ORDER CODE: C5362
MODEL: PAC7.5-RM-D/500
Free Air Delivery (LPM / CFM): 1002 / 35.3
Air Displacement (LPM / CFM): ~
Includes Air Dryer System (Yes / No): Yes
Standard Operating Pressure (bar): 10
Air Receiver Tank (Litre): 500
Noise Level (dBA): 68
Transmission Drive (Type): Belt Drive
Motor power (kW / hp): 7.5 / 10
Motor Voltge (V / Amps): 415
Tank drain Voltage (V / Amps): ~
Dimensions (L x W x H) (mm): 1900 x 720 x 1800
Nett Weight (kg): 320
