PACKAGE - XN17 1.7t + 8 ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

RHINOCEROS XN17 + 8 X ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

NEW RHINOCEROS XN17 1.7TON MINI EXCAVATOR INCLUDES SEAT MOUNTED CONTROLS, SWING BOOM AND A WORLD RENOWNED QUALITY BUILT JAPANESE D902 KUBOTA 3CYL DIESEL ENGINE.

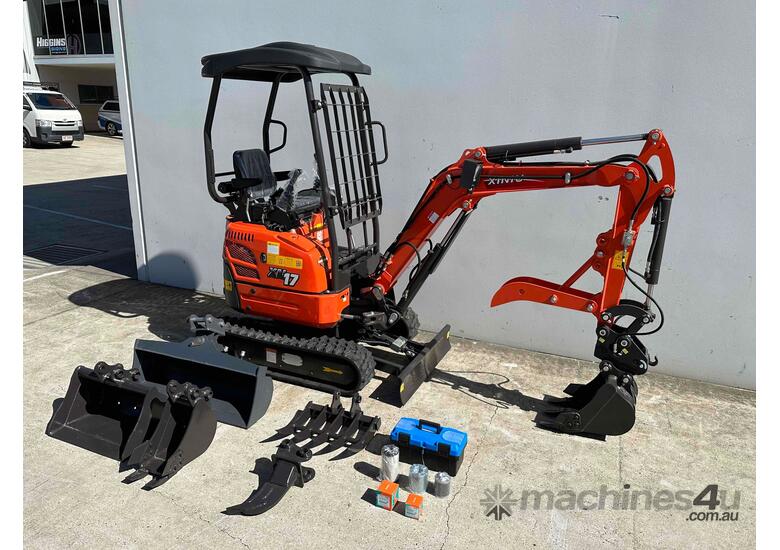

8 X ATTACHMENTS ( 200,300,600MM BUCKETS AND 1000MM TILTING MUD BUCKET, RIPPER, RAKE, THUMB GRAB AND HYDRAULIC QUICK HITCH )

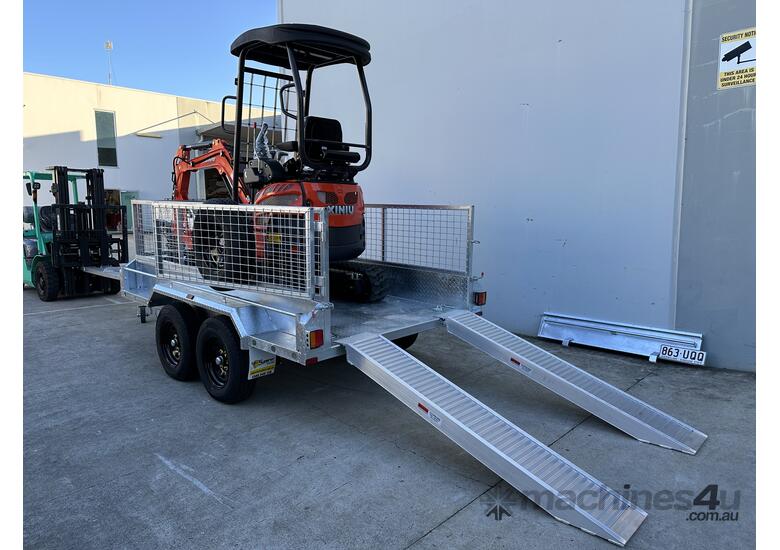

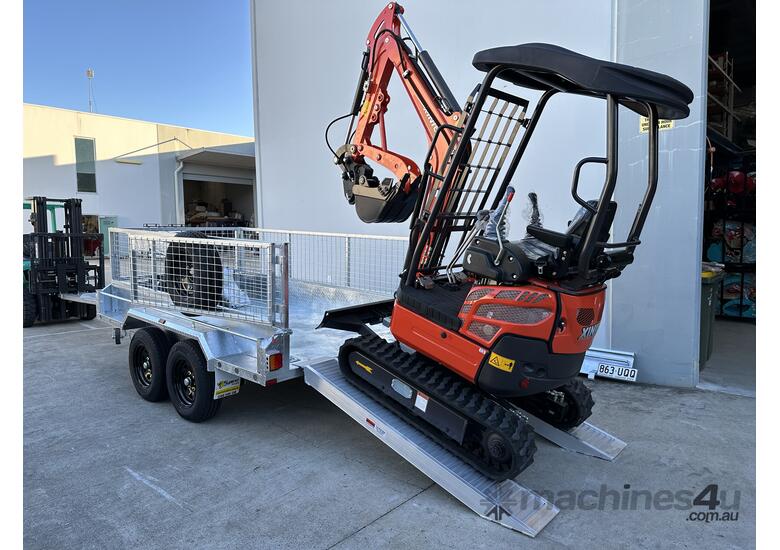

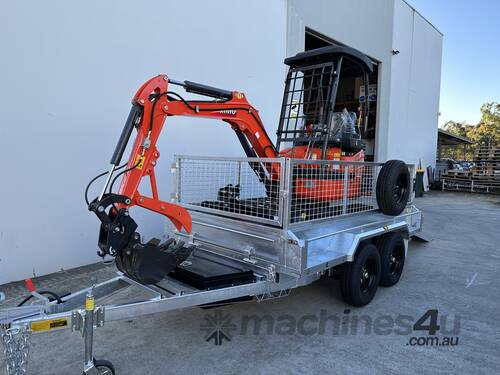

NEW 3.5T GAL HYDRAULIC TIPPING TRAILER 10X5 - 12MONTHS REGO - ALLOY RAMPS


The Rhinoceros Company is one of the original Chinese manufactures to produce mini excavators. The company is a major supplier of mini excavators world wide with many satisfied customers. Productions is well over the 5000 units per year ranging from .8ton to 9ton. The Rhinoceros XN17 model is fitted with a genuine Japanese built EPA approved Kubota 3cyl Diesel engine, swing boom, smooth joystick controls and piped for breaker and auger.

Many components are imported from world leading manufacturing countrys such as the hydrualic system including USA EATON Drive and swing motor and

The Rhinoceros Company takes pride in only suppliing the best quality mini excavators and understands the importance of after sales service. Happy Customers for the long term is the motto.

Buying a Rhinoceros XN17 will save you absolute thousands $$$ of a name brand mini excavator, so why pay more ?

Features include : Seat mounted controls / swing boom / hydraulic quick hitch / front protection cage / tool box / full set of filters .

The 8 attachments listed below are included.

Attachments included:
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Tilting Mud Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake
- Thumb Grab
- Filter set and tool box
Optional Trailers :
Plant Trailer 10x5 3.5T
Hydraulic Tipper 10x5 3.5T

SPECIFICATION:

Model : XN17
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand RHINOCEROS
Operating Weight : 1700kg
Digging bucket capacity : 0.045cbm
Digging bucket width : 400mm
Engine : Kubota D902 3cyl
Max Rated power : 23.5hp/3600/r/min
Displacement : 0.898L
Bore stroke : 72mm x 73.6mm
Hydraulic Gear Pump : Taifeng
Working Pump flow : 23.3L/Min
Valve : BEIFANG
Displacement : 6.8ml/r
Swing motor : EATON
Traveling motor : EATON
Fuel tank capacity : 19L


MAIN DIMENSIONS

Overall dimension( LxWxH) : 3160x1040x2377mm
Total length of track : 1670mm

MAIN DEMENSIONS
Overall dimension( LxWxH)
3160x1040x2377 mm
Platform ground clearance
437 mm
Platform back turning radius
740 mm
Chassis width
1040 mm
Track width
180 mm
Chassis ground clearance
132 mm

OPERATING RANGE

Max. Digging depth
2150 mm
Max. Vertical digging depth
1740 mm
Max. Digging height
3275 mm
Max. Dumping height
2310 mm
Max. Digging radius on ground
3470mm
Min. Rotation radius
1440 mm


ATTACHMENT PRICES :
XN17 200mm Trench Bucket $400..............................
XN17 400mm General Purpose Bucket $425......
XN17 600mm General Purpose Bucket $450......
XN17 1000mm Batter Bucket $550..............................
XN17 Digger inc 300mm Auger $2950.....................
XN17 Ripper $350.......................................................................
XN17 Rake $350...........................................................................
XN17 Log Grab $450..............................................................
XN17 Manual Quick Hitch $350.....................................
XN17 Tilting Mud Bucket $1250 ...................................
XN17 Rock Breaker $2950.................................................
30mm pins / 140mm pin centre / 108mm between ears

* Prices inc gst
* Pictures for illustration purpose only - Specifications and prices are subject to change without notice
