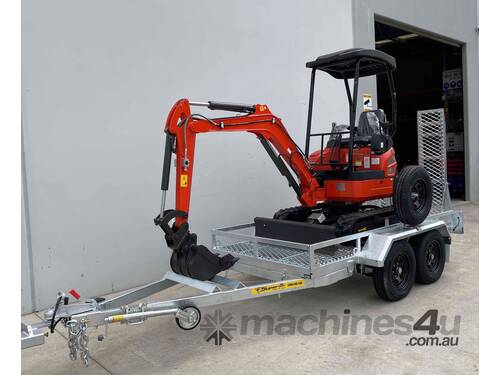

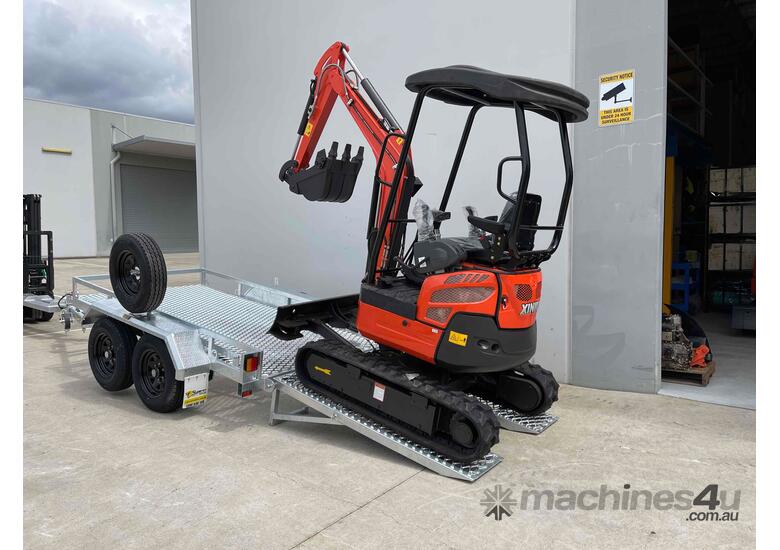

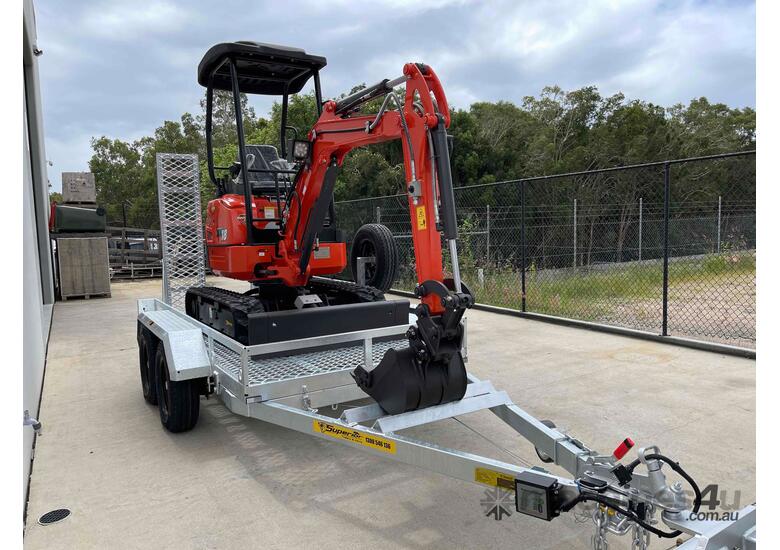

RHINOCEROS XN18 + 8 X ATTACHMENTS + 3.5T PLANT TRAILER
NEW RHINOCEROS XN18 1.8TON MINI EXCAVATOR INCLUDES PILOT CONTROLS, SWING BOOM, ADJUSTABLE RUBBER TRACKS AND A WORLD RENOWNED QUALITY BUILT JAPANESE KUBOTA 3CYL DIESEL ENGINE.
8 X ATTACHMENTS ( 200,300,600MM BUCKETS AND 1000MM TILTING MUD BUCKET, RIPPER, RAKE, 5 FINGER GRAB AND HYDRAULIC QUICK HITCH )
NEW 3.5T GAL PLANT TRAILER 10X5 - 12MONTHS REGO
The Rhinoceros Company is one of the original Chinese manufactures to produce mini excavator. The company is a major supplier of mini excavators world wide with many satisfied customers. Productions is well over the 5000 units per year ranging from .8ton to 9ton. The Rhinoceros XN18 model fitted with a genuine EPA approved Kubota 3cyl Diesel engine, 2 speed tracking, swing boom, smooth servo controls, piped for breaker and auger. The Rhinoceros XN18 is set to become Australia's smartest choice for a quality, reliable and most affordable 1.8 mini excavator.
Many components are imported from world leading manufacturing country's such as the hydraulic system - USA EATON swing motor and KOREAN DONGHYUAN traveling motor.
The Rhinoceros Company takes pride in only supplying the best quality mini excavators and understands the importance of after sales service. Happy Customers for the long term is the motto.
Buying a Rhinoceros XN18 will save you absolute thousands $$$ of a name brand mini excavator, so why pay more ? The 8 attachments listed below comes standard.
Rhinoceros XN18 comes with warranty, spare Parts and after sales support for piece of mind.
3.5T PLANT TRAILER SPECIFICATIONS:
100x50x5mm square tube drawbar. 1900mm length
2x10mm safety chain
100x50x4 RHS chassis
8mm mesh floor
Side panels: 50x50x2.5mm
RHS tie down rail
2.5mm checker plate mudguard
AU standard electric brake coupler led lights with 7pin plug
10 inch electric braked axles x 2
195 15c wheels
60x8mmx7 leaf rocker roller spring
Atm 3500kgs
THE RHINOCEROS XN18 1.8T MINI EXCAVATOR COMES WITH THE FOLLOWING ATTACHMENTS
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Tilting Mud Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake
- Hydraulic Thumb Grab
- Filter set and tool box
Optional Attachments available :
Post Hole Digger, 300mm Auger : $ 2950.00
Hydraulic Hammer EDT200 : $2950.00
RHINOCEROS XN18 SPECIFICATION :
Operating Weight 1800kg
Adjustable Rubber Tracks ( 990mm - 1240mm )
400mm GP Digging bucket capacity 0.045cbm ( fitted to machine )
Engine GENUINE JAPANESE KUBOTA 3CYL DIESEL ENGINE
Max Rated power 23.5hp/3600/r/min
Displacement 0.898 L
Traveling motor : DONGHYUAN KOREAN
Swing Motor : EATON USA
Speed/Digging force
Max.travel speed?high/low? 3.4 / 1.9 km/h
swing speed 10.5 rpm
Max. Gradeability 30°?58%?
Bucket digging force 13.5KN
Bucket arm digging force 10.1 KN
Theoretical Maximum traction 17.5 KN
Ground specific pressure 32.8KPA
Working pressure 22 Mpa
Flow rate 39.6L/Min
Hydraulic oil tank capacity 15.3L
Engine oil tank capacity 2.8(1.3)L
Fuel tank capacity 19 L
Main dimension Unit (mm)
a Wheelbase 1230
b Total length of track 1590
c Platform ground clearance 473
d Counterweight turning radius 740
e Chassis 1220
f Track width 230
g Track height 360
h Length 3400
i Height (From seat to ground) 1660
j Total height 2350
k boom swing - left 390
I boom swing - right 510
Operating range Unit?mm?
A Max. Digging radius on ground 3610 mm
B Max. Digging radius 3700 mm
C Max. Digging depth 2150 mm
D Max. Digging height 3275 mm
E Max. Dumping height 2310 mm
F Max. Vertical digging depth 1740 mm
G Min. Rotation radius 1580 mm
H Max. Upgrade height of bulldozer blade 275 mm
I Max. Digging depth of bulldozer blade 180 mm
* Pictures for illustration purpose only - Specifications and prices are subject to change without notice
