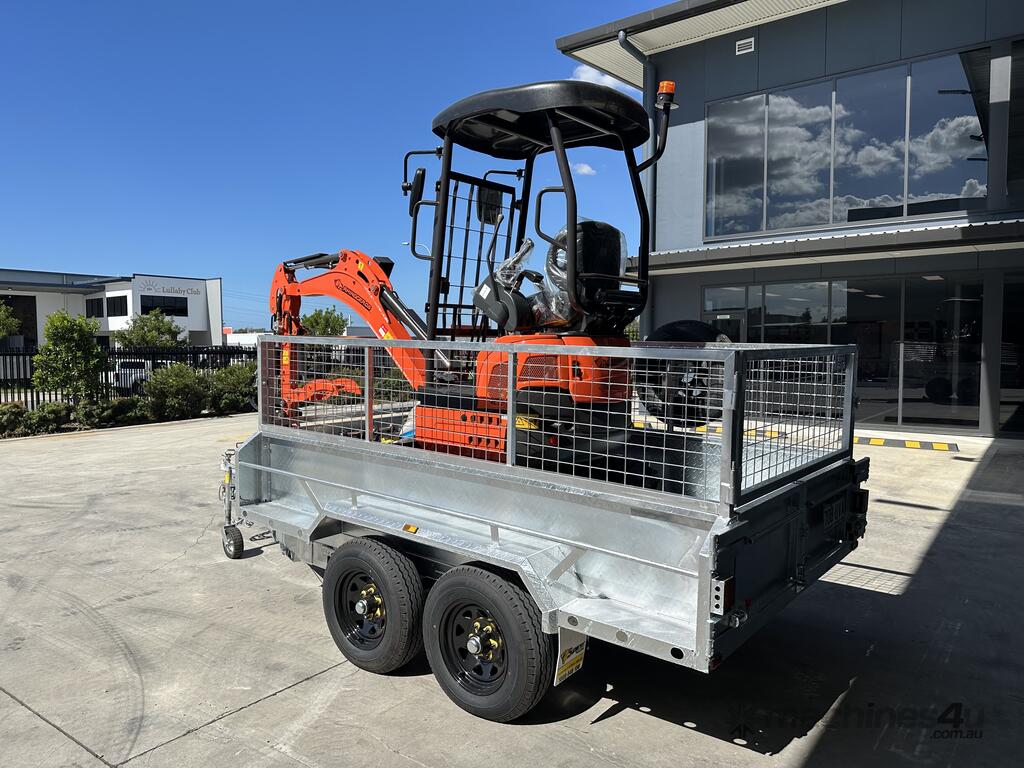

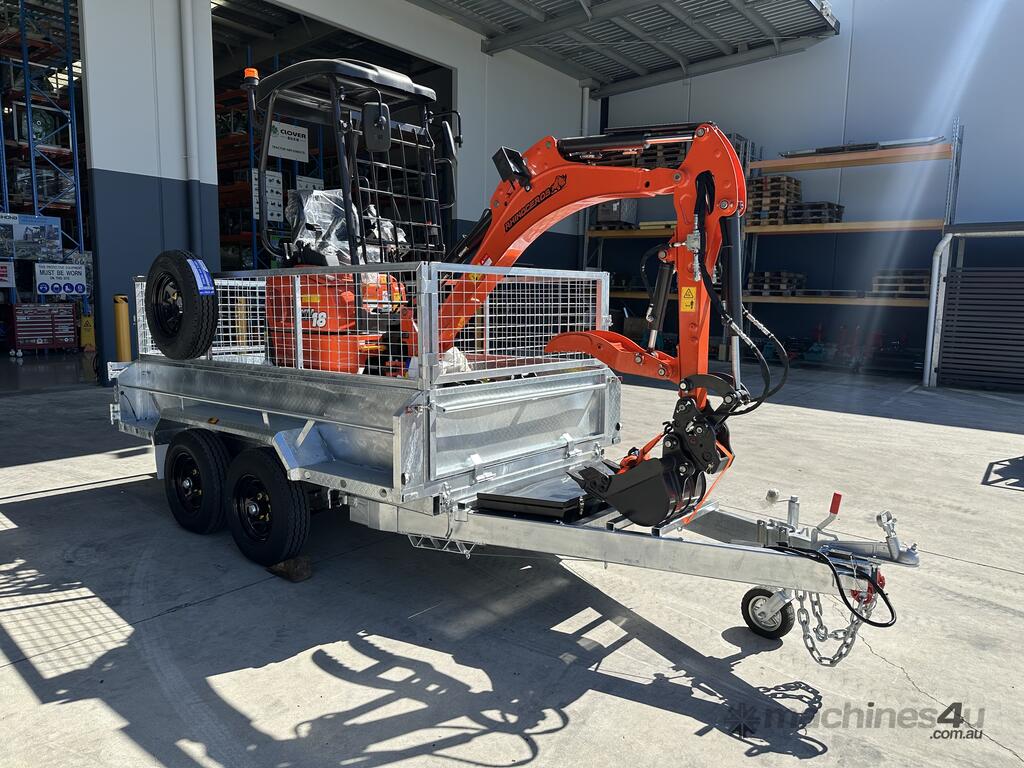

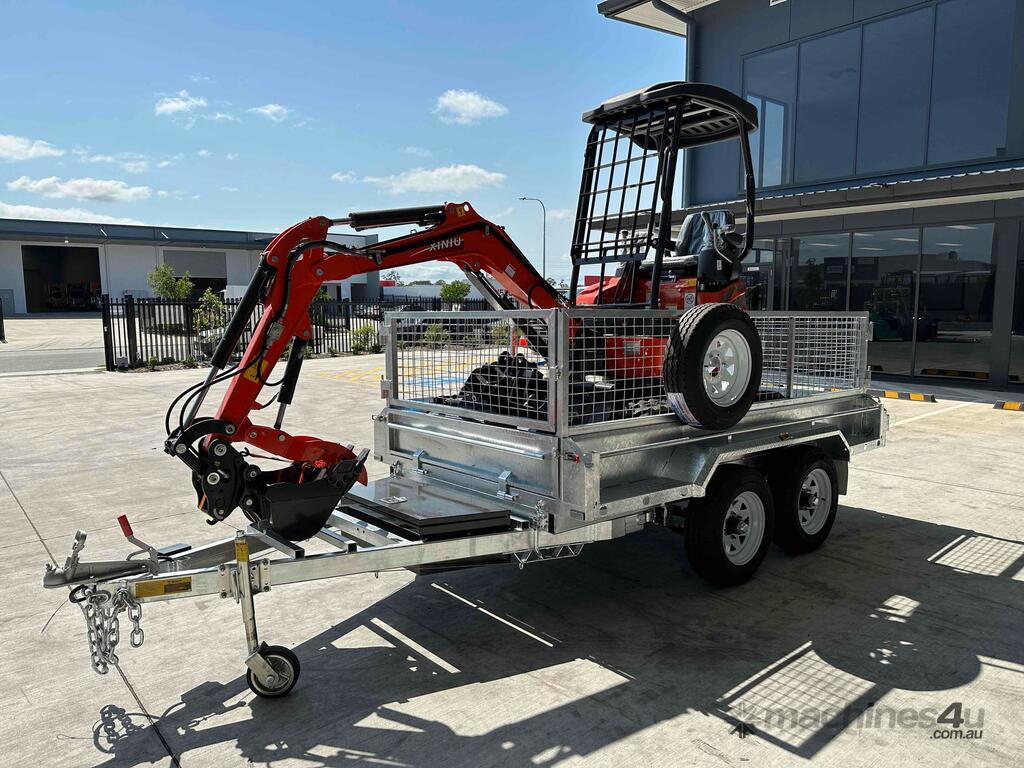

PACKAGE - XN18L 1.8t + 8 ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

RHINOCEROS XN18L + 8 X ATTACHMENTS + 3.5T HYDRAULIC TIPPING TRAILER

NEW RHINOCEROS XN18L 1.8TON MINI EXCAVATOR INCLUDES PILOT CONTROLS, SWING BOOM, AND A WORLD RENOWNED QUALITY BUILT JAPANESE KUBOTA 3CYL DIESEL ENGINE.

8 X ATTACHMENTS ( 200,300,600MM & 1000MM BUCKETS, RIPPER, RAKE, HYDRAULIC THUMB GRAB HYDRAULIC QUICK HITCH )

NEW 3.5T 10X5 GAL HYDRAULIC TIPPING TRAILER 12 MONTHS REGO ALLOY LOADING RAMPS

# SOLD TO THE AUSTRALIAN MARKET FOR OVER 5 YEARS

# RELIABLE / POWERFUL / QUALITY MACHINE

RHINOCEROS XN18L - 1.8T 3CY KUBOTA DIESEL ENGINE.

PRICE $22,990.00 INC GST ( HYDRAULIC QUICK HITCH / 400MM BUCKET / HYDRAULIC THUMB GRAB )

PRICE $24500.00 INC GST ( HYDRAULIC QUICK HITCH / 200MM, 400MM, 600MM AND 1000MM BUCKETS/ HYDRAULIC THUMB GRAB / RIPPER / STICK RAKE )

PRICE $35000.00 INC GST ( HYDRAULIC QUICK HITCH / 200MM, 400MM, 600MM AND 1000MM BUCKETS/ HYDRAULIC THUMB GRAB / RIPPER / STICK RAKE + 10X5 HYDRAULIC TIPPING TRAILER )


NEW MODEL - NEW BOOM WITH MAIN HYDRAULIC CYLINDER LOCATED ON TOP ALSO A MASSIVE 2417MM DIGGING DEPTH !!

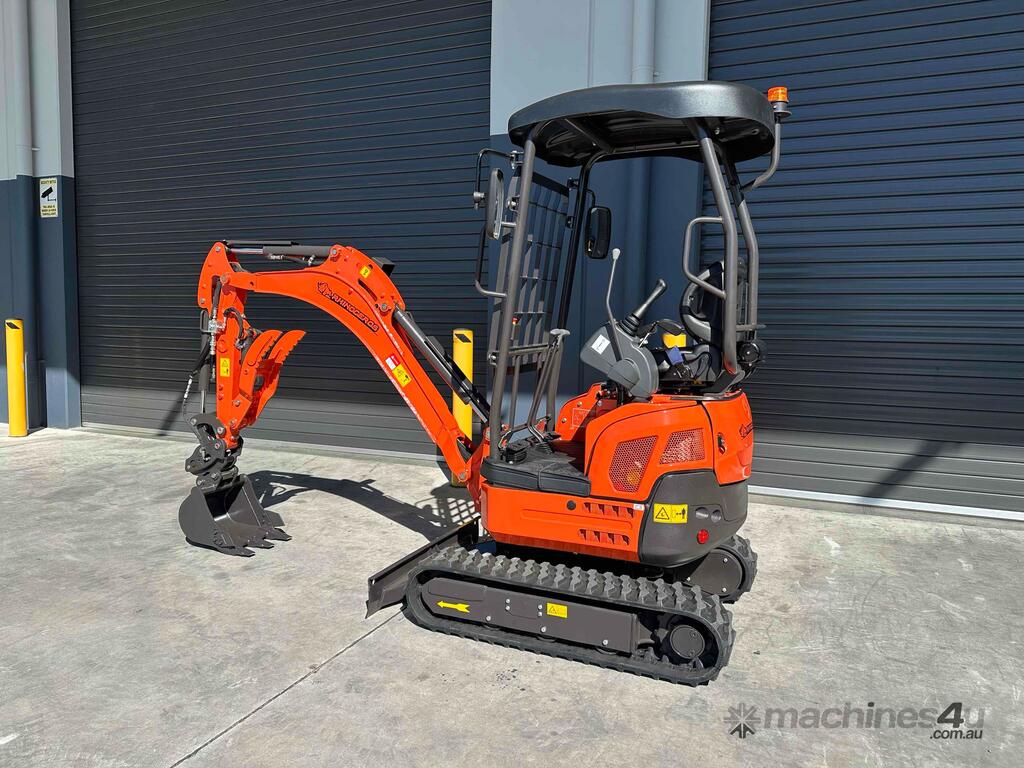

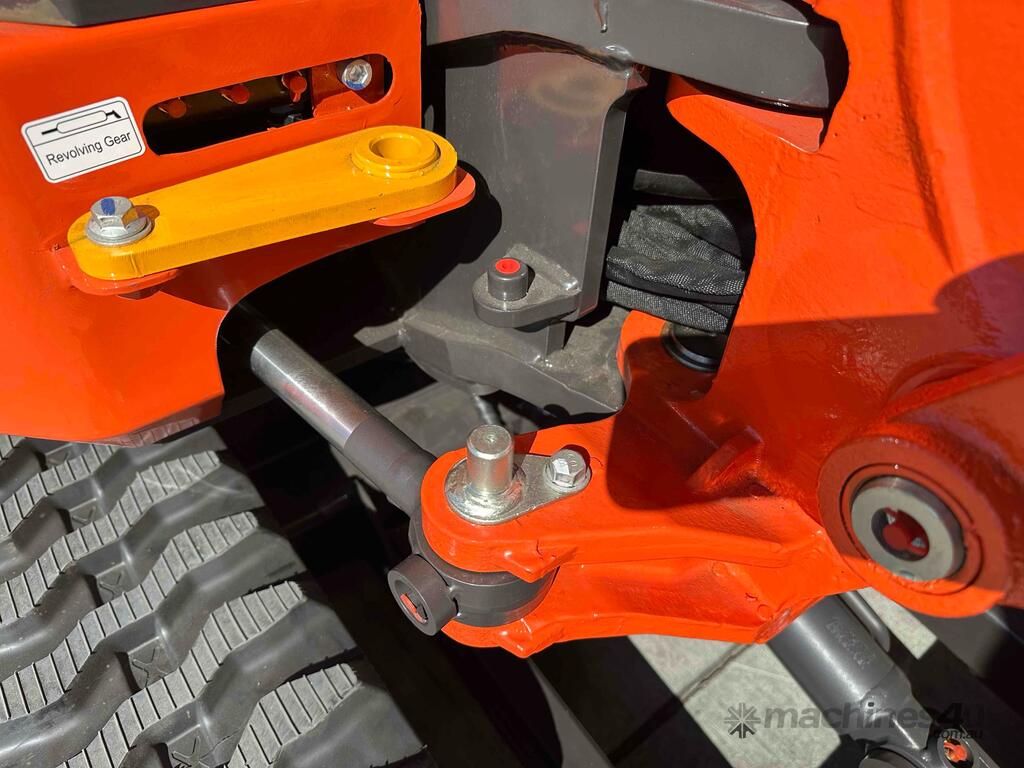

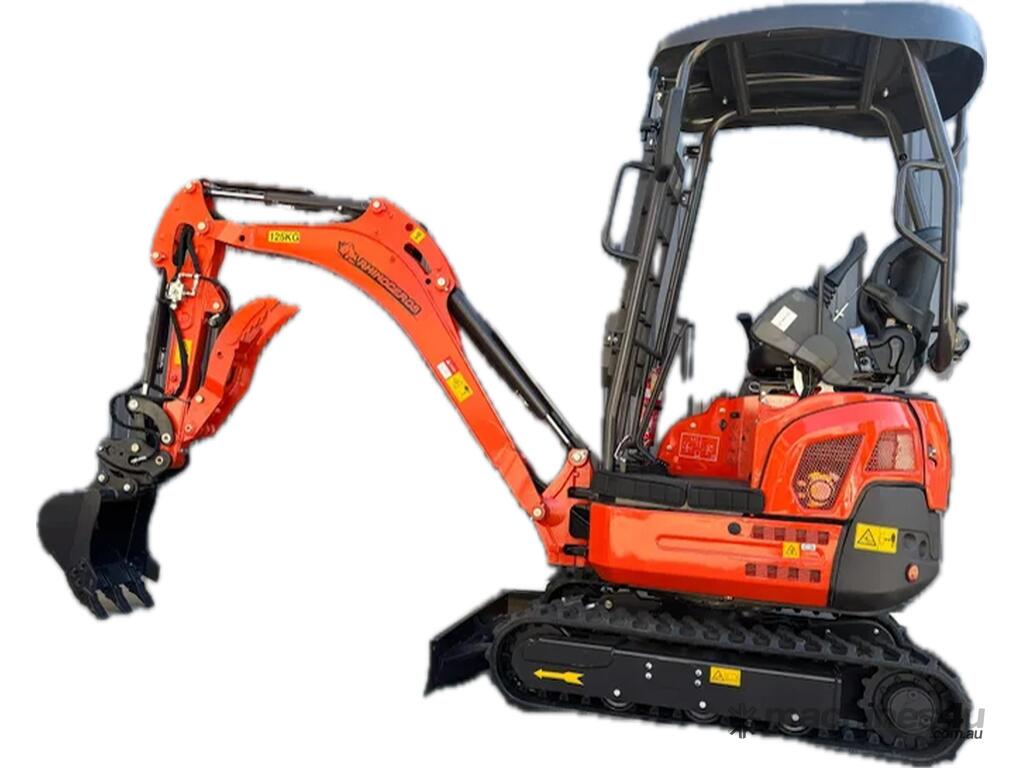

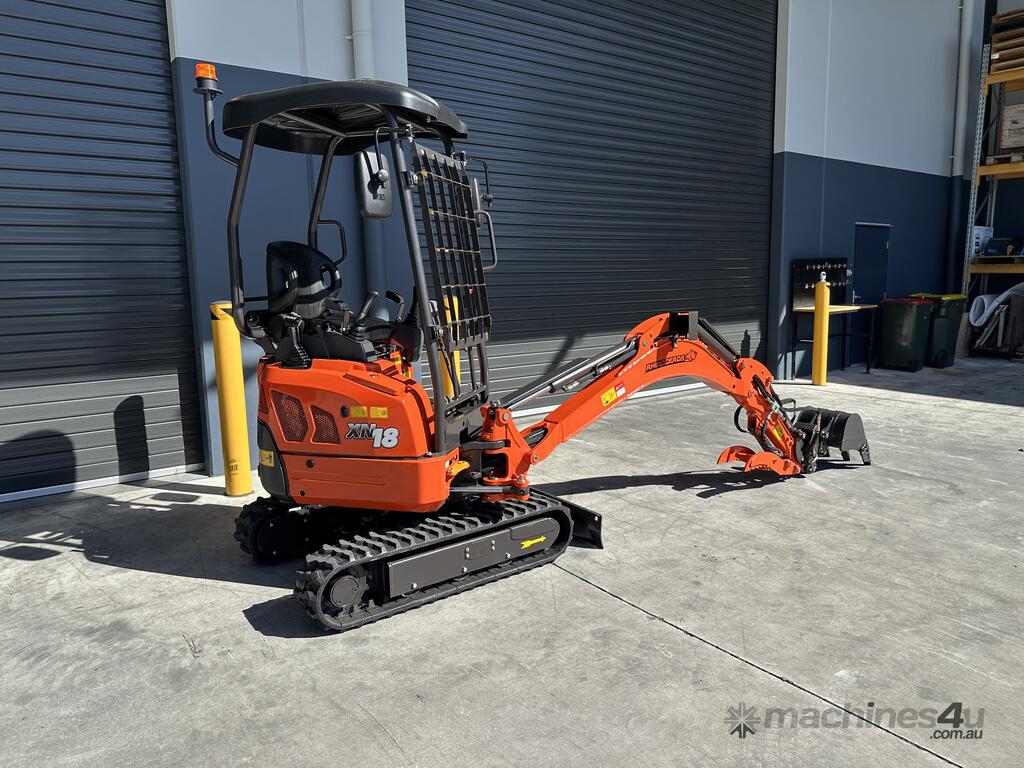

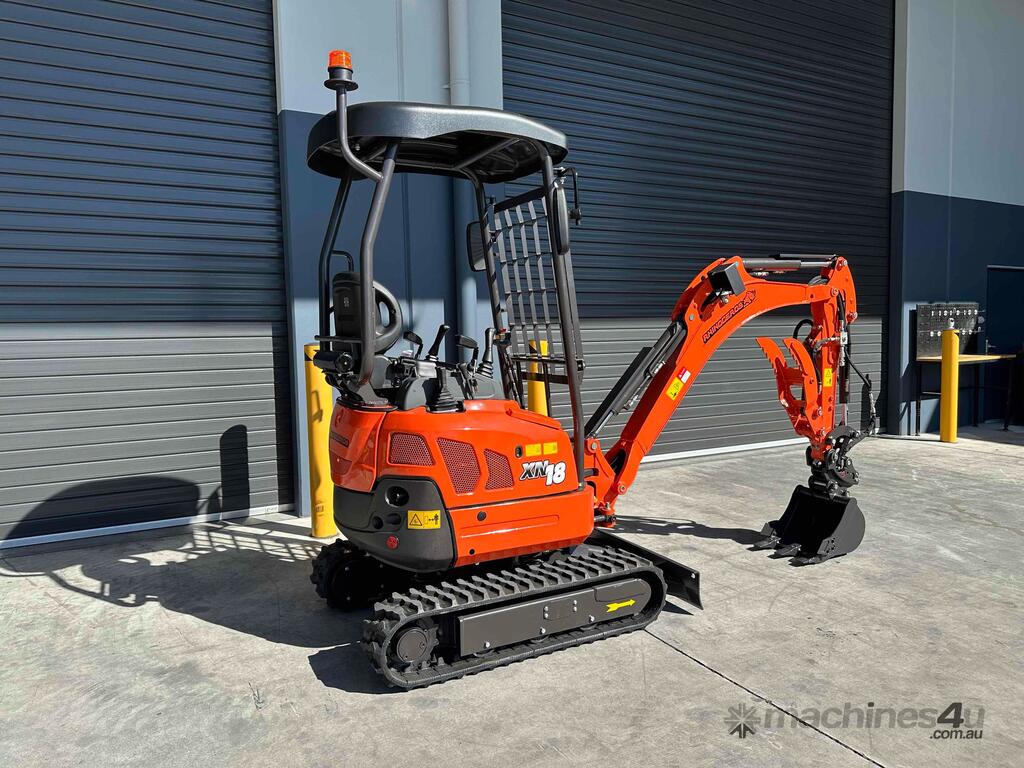

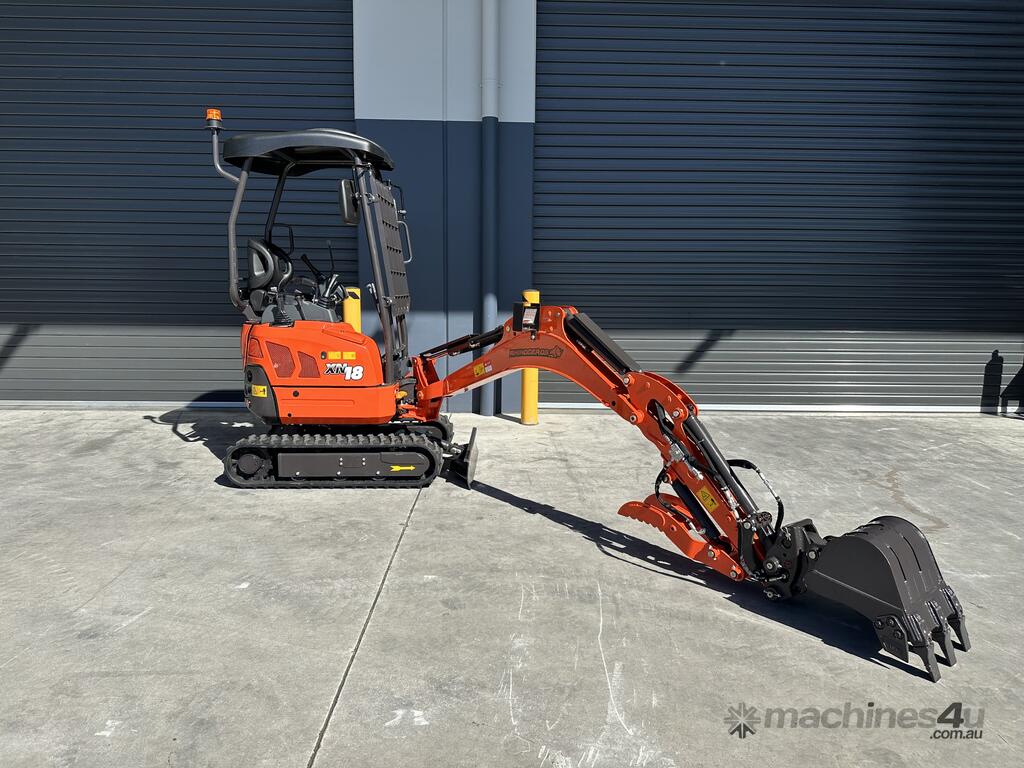

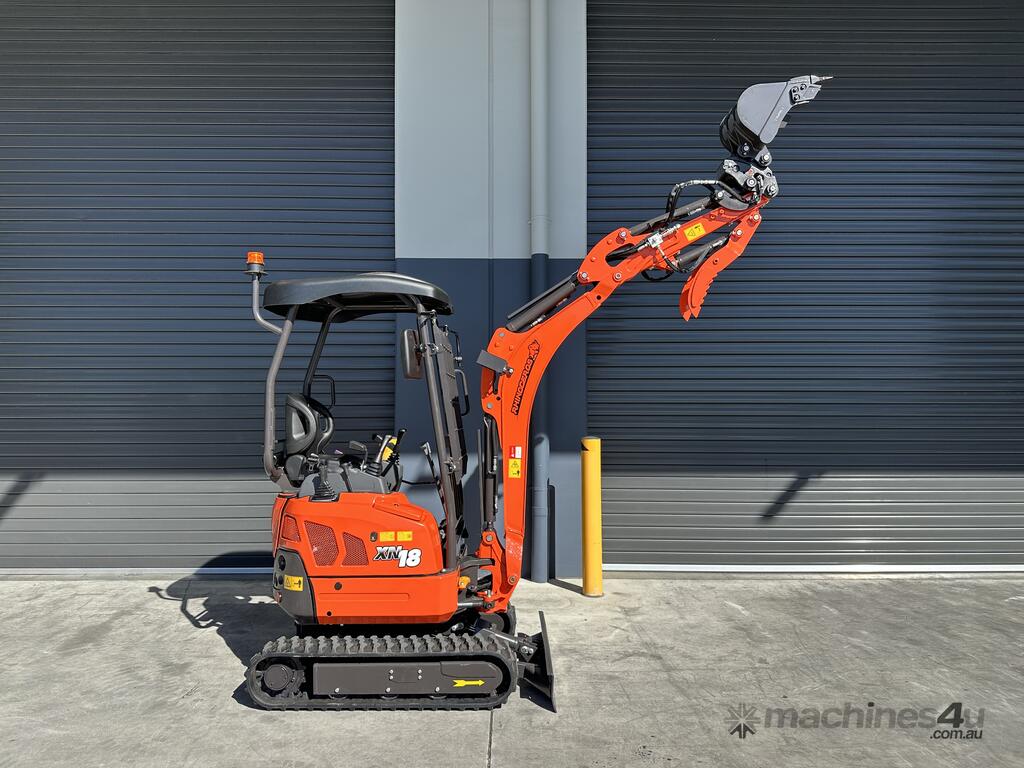

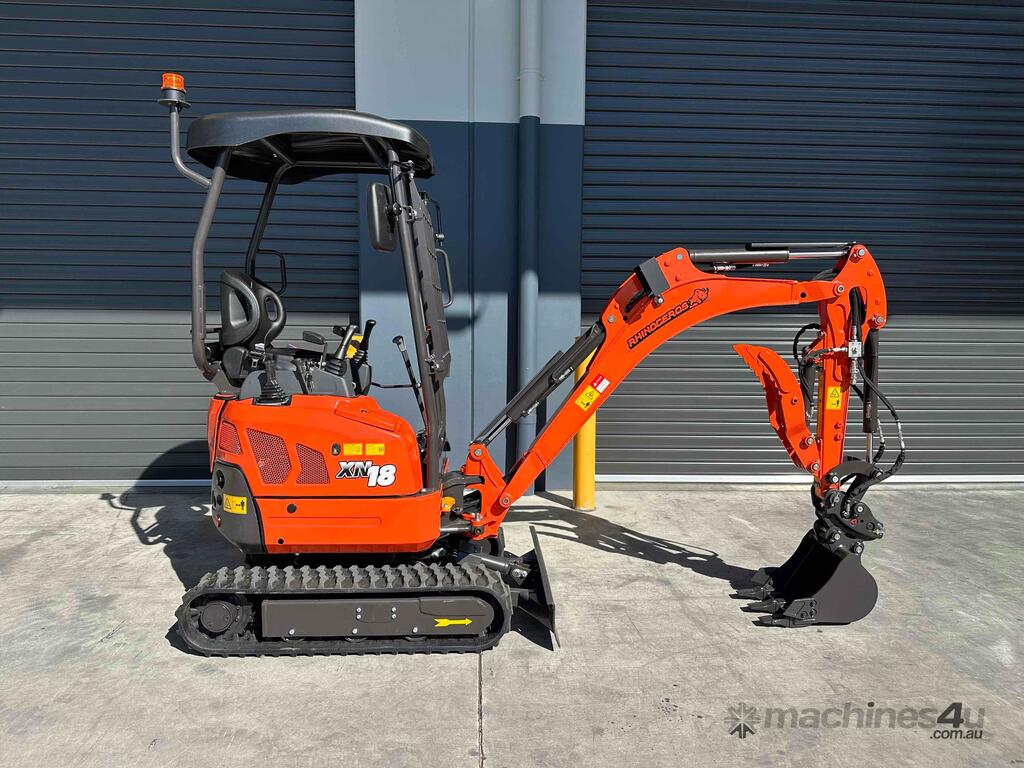

The Rhinoceros XN18L Mini Excavator is a versatile and compact machine weighing 1.8 tons, equipped with a Japanese Kubota D902 3cyl diesel engine, and features 2-speed tracking, hydraulic quick hitch as well as a new swing boom with main lifting hydraulic cylinder located on top . All hydraulic hoses are mounted inside the boom.

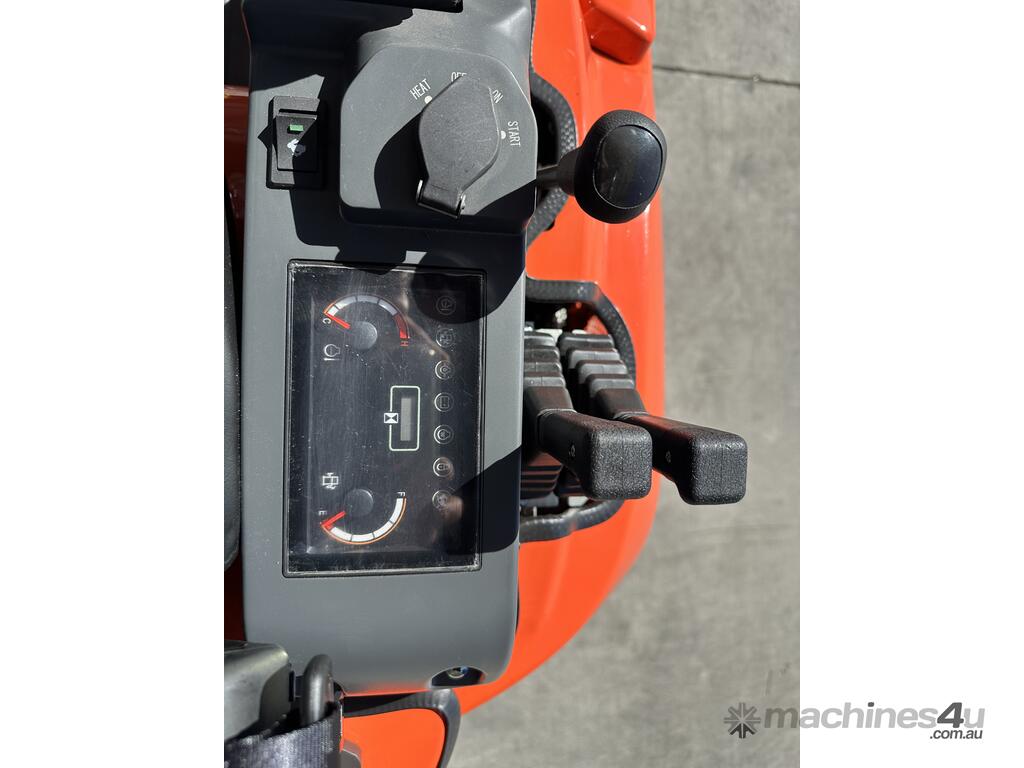

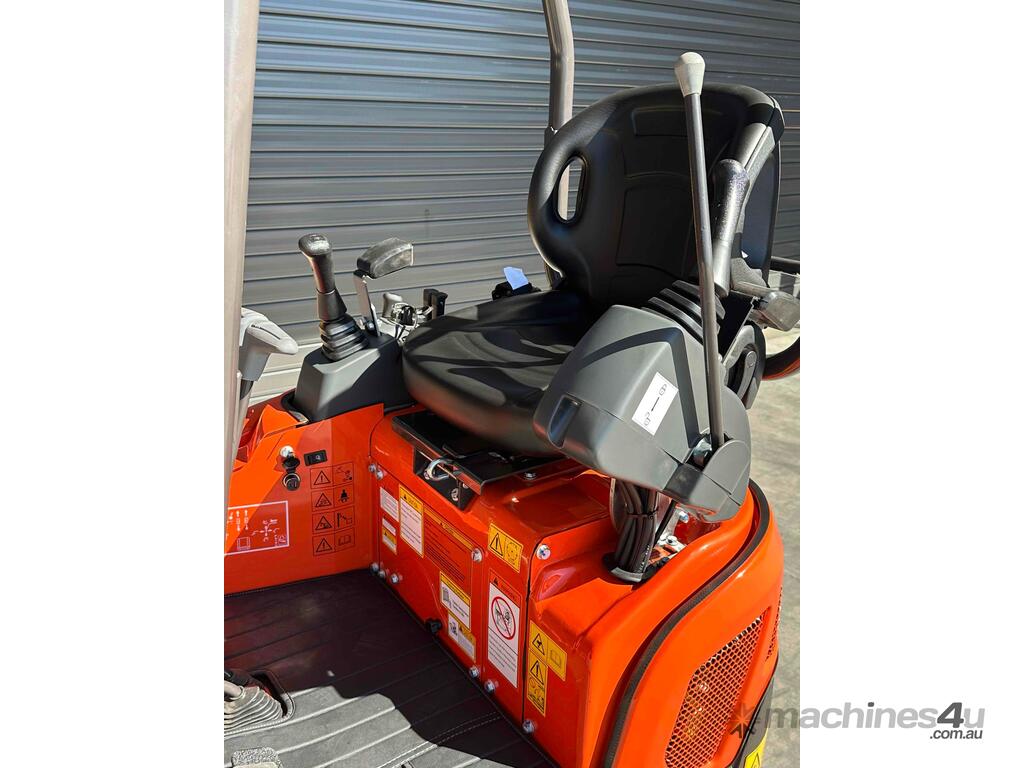

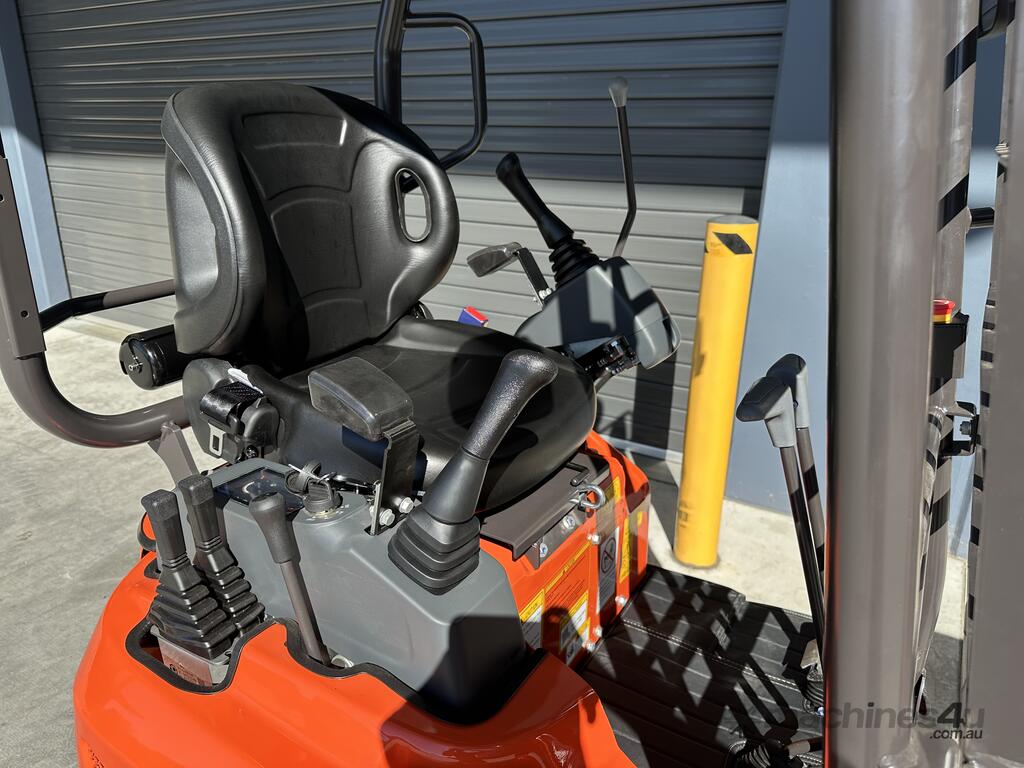

Its ergonomically designed seat mounted pilot control joysticks enhance comfort and precision, while the high-quality hydraulic system, including a constant variable piston pump and auxiliary output, allows for smooth operation and compatibility with various attachments such as post hole diggers, rock breakers and tilting mud buckets .

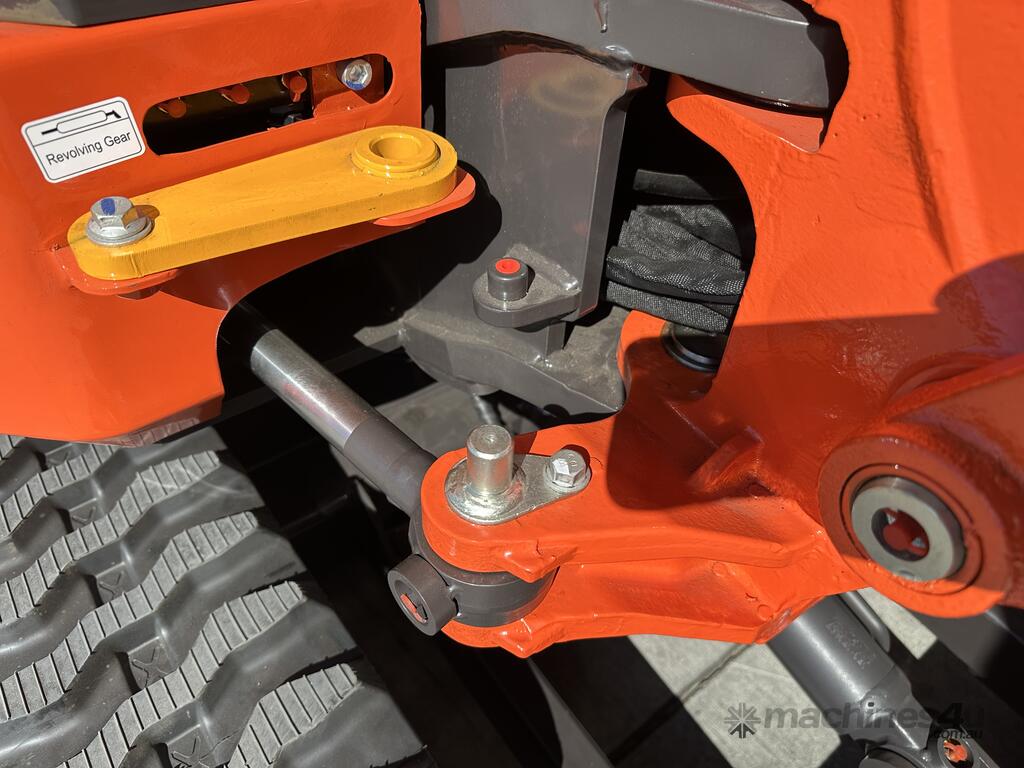

The swing boom and solid dozer blade further improve its capability to work in confined areas, making it an ideal choice for landscaping, excavation, and construction tasks.

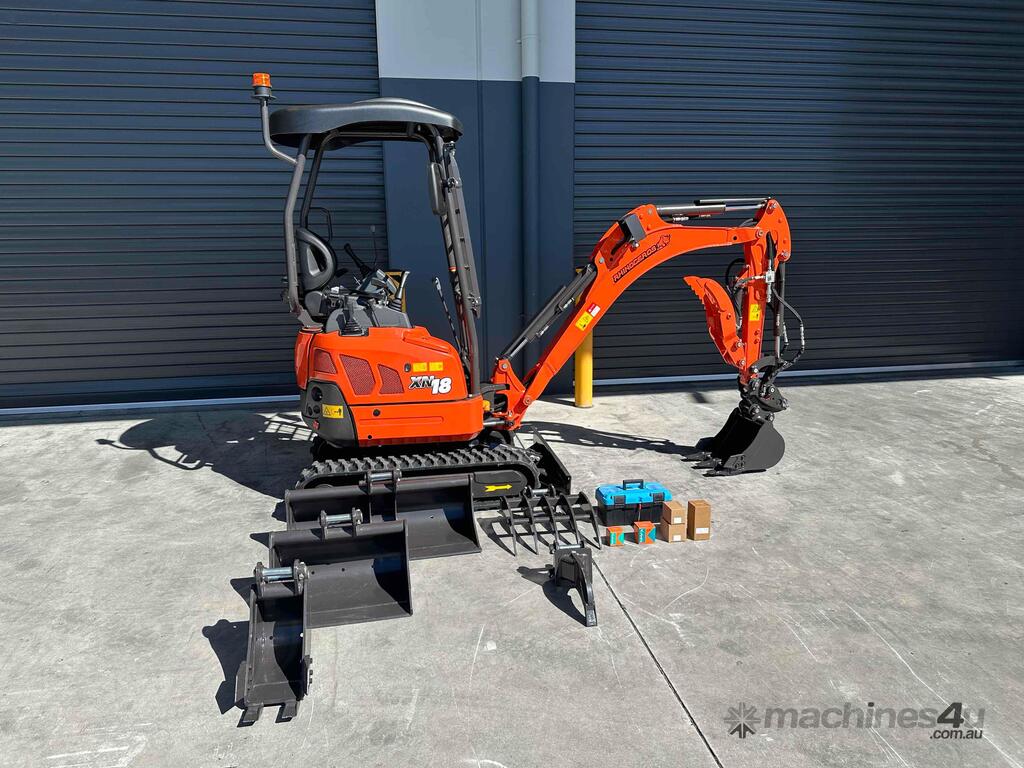

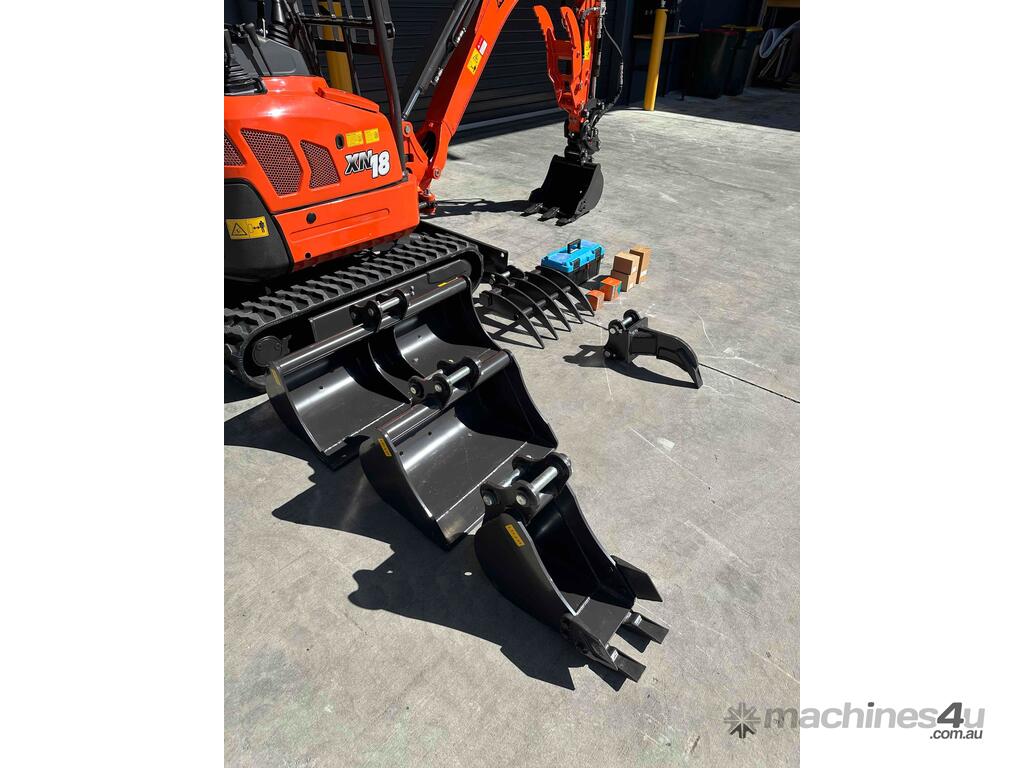

Available Attachments :
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Mud Bucket

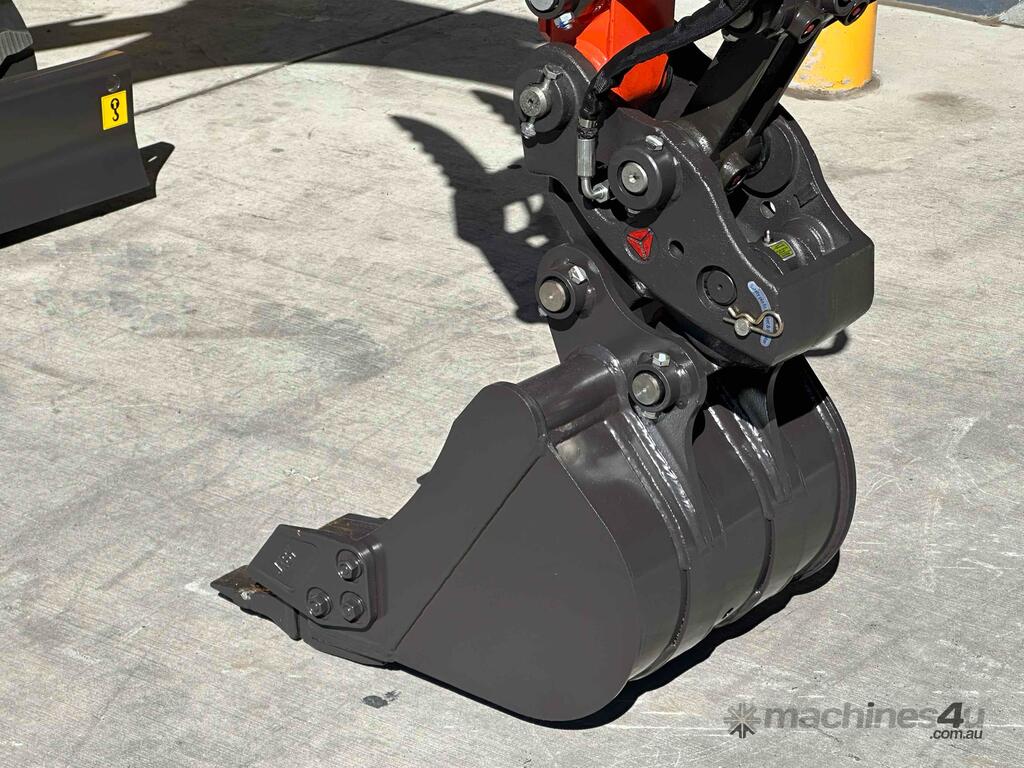

- Hydraulic Quick Hitch
- Ripper
- Rake

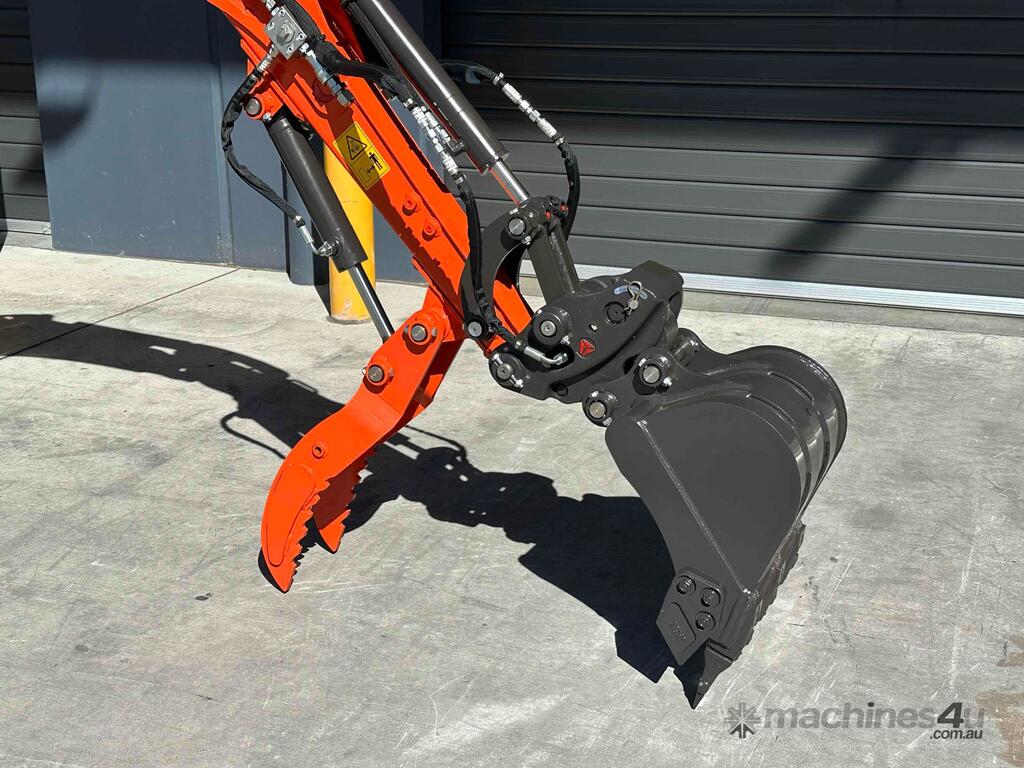

- Hydraulic Thumb Grab

Optional Attachments and Trailers:
Plant Trailer 10x5 3.5T

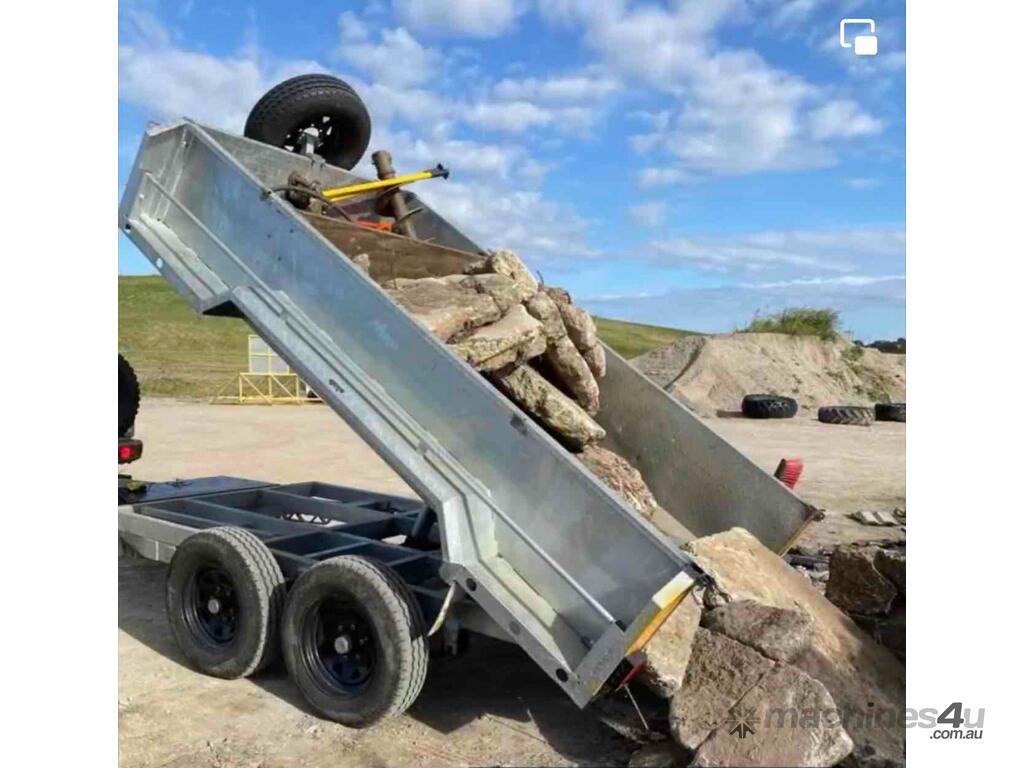

Hydraulic Tipper 10x5 3.5T
Rock Breaker
1000mm Tilting Mud Bucket

SPECIFICATION:
Model : XN18L
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand: RHINOCEROS
Operating Weight: 1800kg
Digging bucket capacity: 0.045cbm
Digging bucket width: 400mm

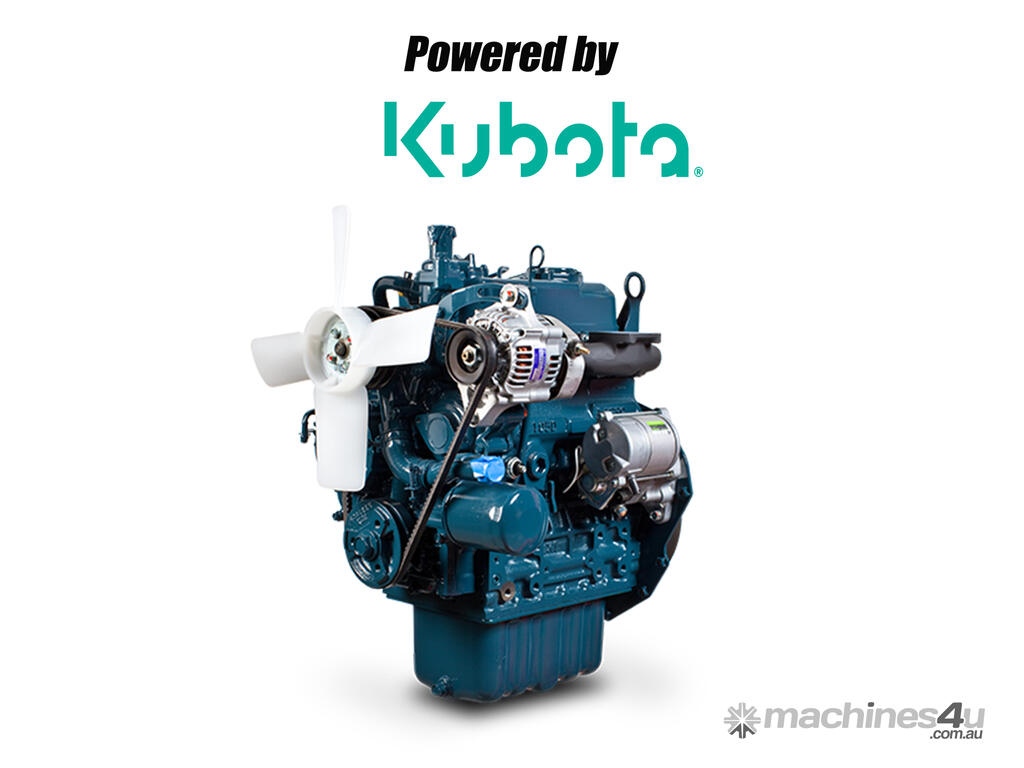

Engine: Kubota D902 3cyl diesel engine
Emissions Regulation: EPA Final Tier 4
Max Rated power: 23hp/3600rpm
Displacement: 0.898L
Bore stroke : 72mm x 73.6mm
Main pump : KDK Variable displacement piston pump
Working Pump flow : 39.6L/Min
Valve : BEIFANG
Displacement : 6.8ml/r
Swing motor : EATON USA
Traveling motor : EATON USA
Fuel tank capacity : 19L


MAIN DIMENSIONS
Overall dimension( LxWxH) : 2360x1150x2320mm
Total length of track : 1450mm
Platform ground clearance : 440mm
Platform back turning radius : 790mm
Rubber Track only width : 230mm
Track height : 320mm

OPERATING RANGE
Max. Digging depth : 2417mm
Max. Vertical digging depth : 1740mm
Max. Digging height : 3275mm
Max. Dumping height : 2310mm
Max. Digging radius on ground : 3470 mm
Min. Rotation radius : 1440mm
Max. Upgrade height of bulldozer blade : 262mm
Max. Digging depth of bulldozer blade : 192mm
Bucket Digging Force : 13.5kN


Rhinoceros XN18L comes with warranty, spare parts and after sales support for peace of mind.

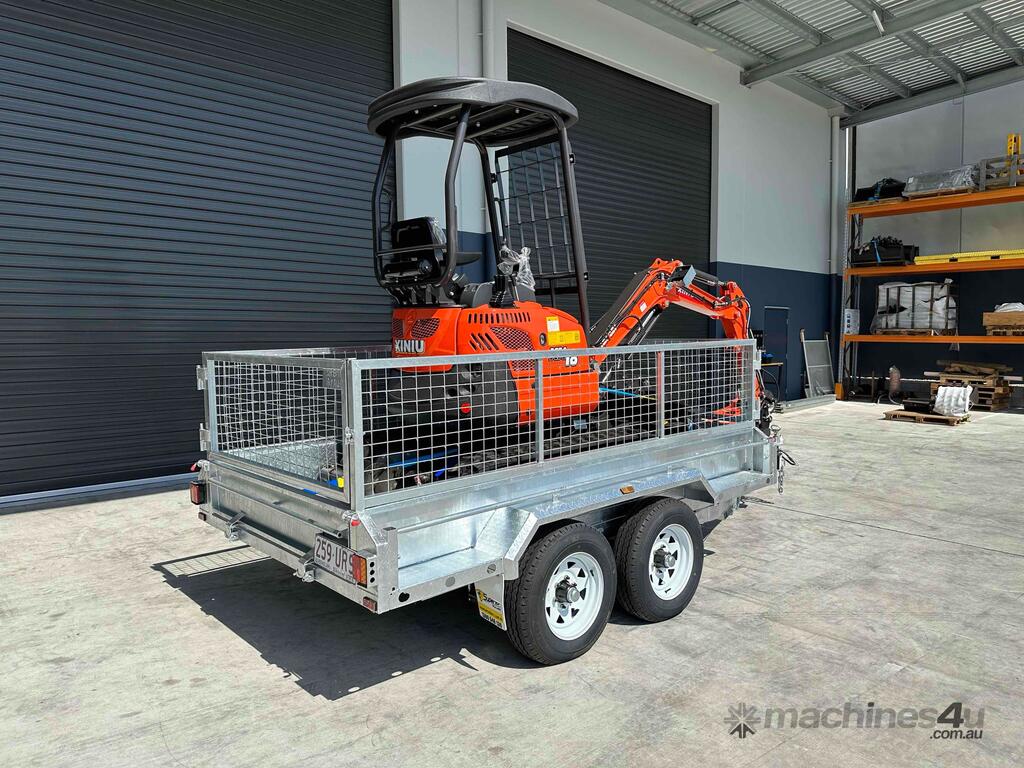

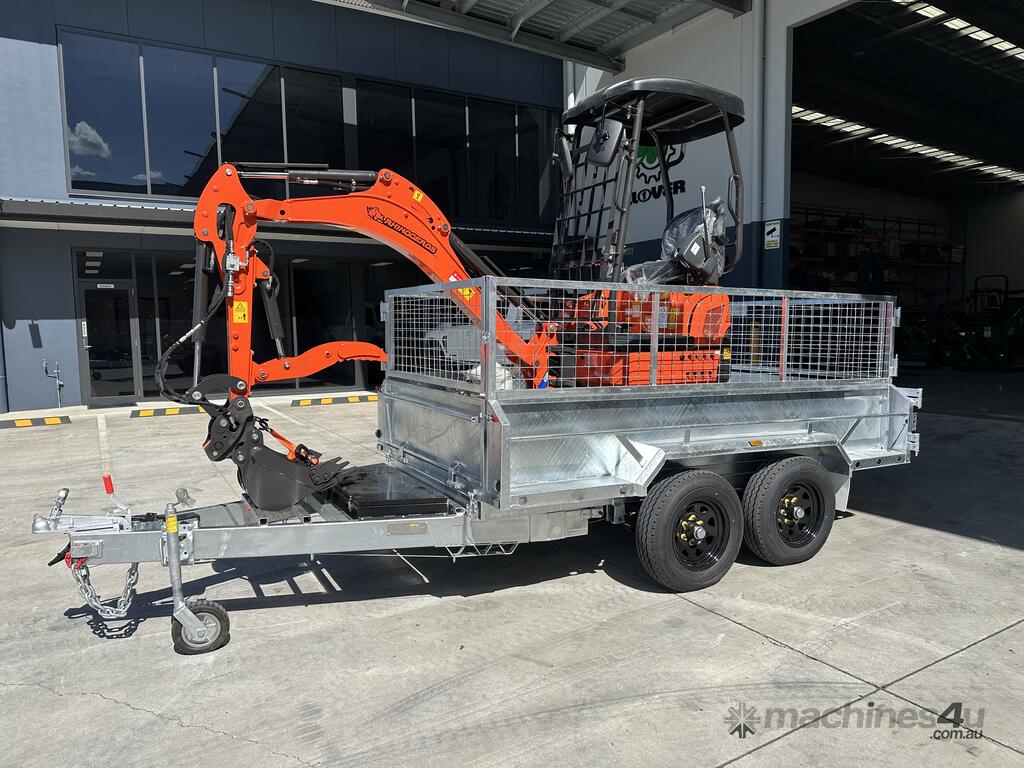

3.5T PLANT TRAILER SPECIFICATIONS:

ATM : 3500kg

Tare : 1150kg

Internal Size : 3040x1820mm

External Size : 5080x2350mm

Drawbar : 1900mm 100x50x3.0mm Tube

Finish : Hot Dipped Galvanized (Rust free)

Side : 500mm High (One Piece of Checker Plate Fold Up)

Floor : 2.66mm 2 Piece of Fully Welded Checker Plate

Mudguard : Triple Folded Mudguard with Full Length Footsteps

Jockey Wheel : 10" Steel Rim Swing up

Tyre : Brand New 15" 195/75R15C Light Truck

Wheel : Sunraysia Style with 5 Studs Ford Hub Pattern

Axle : 50x50mm Square Solid

Suspension : Heavy Duty Greasable Rocker Roller Suspension

Spring : Heavy Duty 7 Leaf Eye to Eye Spring 8mm Per Leaf

Coupling : 50mm ADR Approved Australia Standard with Grease Nipples

Trailer plug : Flat 7 Pin Plug

Safety Chain : 10mm

Brake : Electric Brake Upgrade

Light : LED Set



* Pictures for illustration purpose only - Specifications and prices are subject to change without notice
