PACKSERV Auto Capper Electronic Timer * up to 60 units / minute *

The Packserv PCM-1A-E conveyor mounted auto capper is the perfect unit for the capping of almost any style of container closure whether screw-on, push-on, trigger-pack or spray-pack.
This unit features it’s own sensor and gating system to ensure consistency and simplicity with rates of up to 60 units per minute.

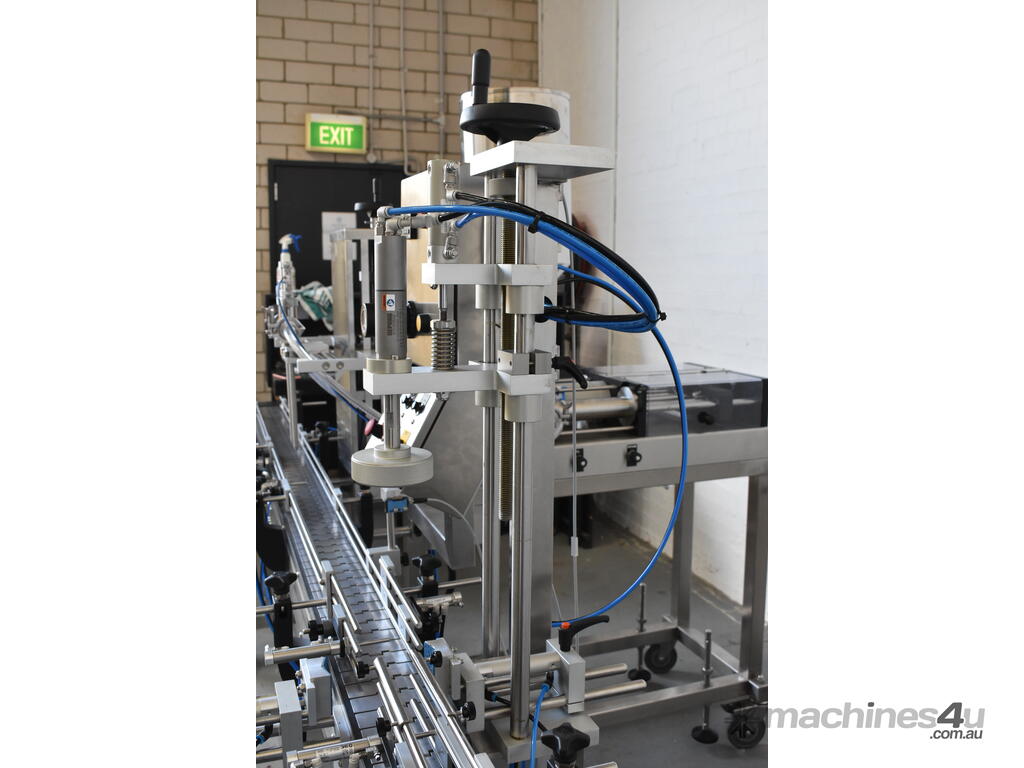

Our PCM-1A-E Auto Capper is an automatic cap tightener designed to mount onto continuously running slat-type conveyors.

It is capable of tightening a vast range of closures at rates of up to 60 units per minute. Capable of tightening any kind of screw-on or push-on closure; when utilised with out PT-7 trigger-pack unit can additional tighten trigger-pack, pump and mist-spray closures.

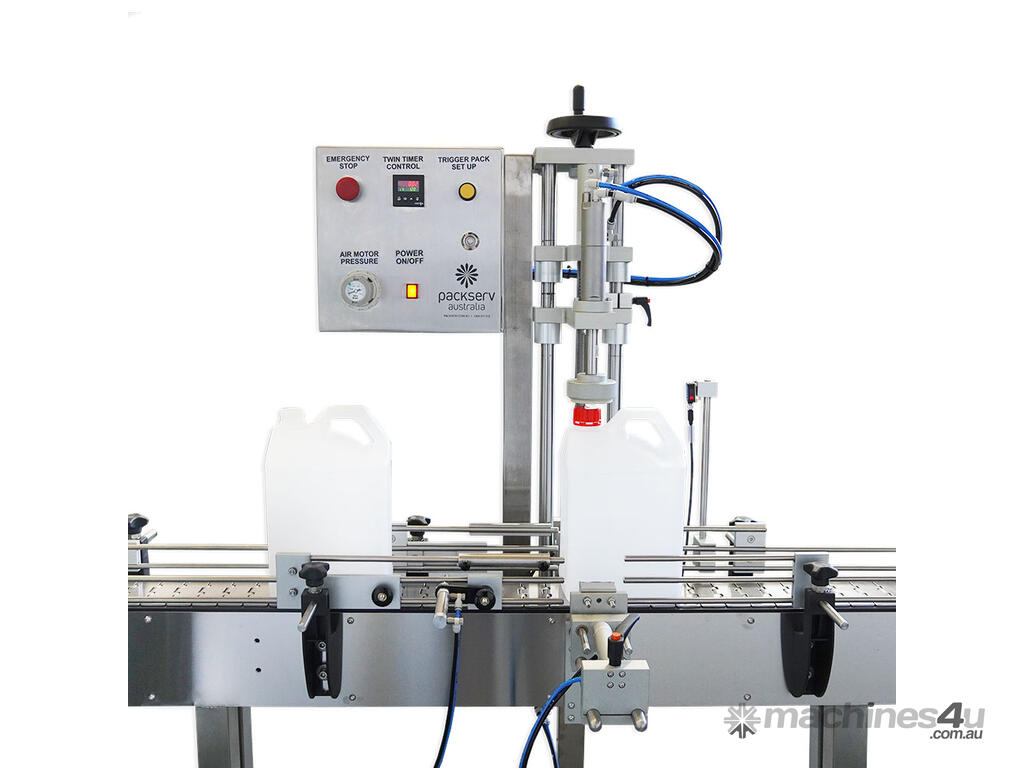

During operation, containers will arrive at the Auto Capper by an inline conveyor, with caps pre-positioned upstream either manually or by automatic cap placement equipment. A photoelectric sensor or whisker switch detects the presence of a container and initiates machine operation through an electronic timer control unit which in turns the tightening head, jaws and gates system.

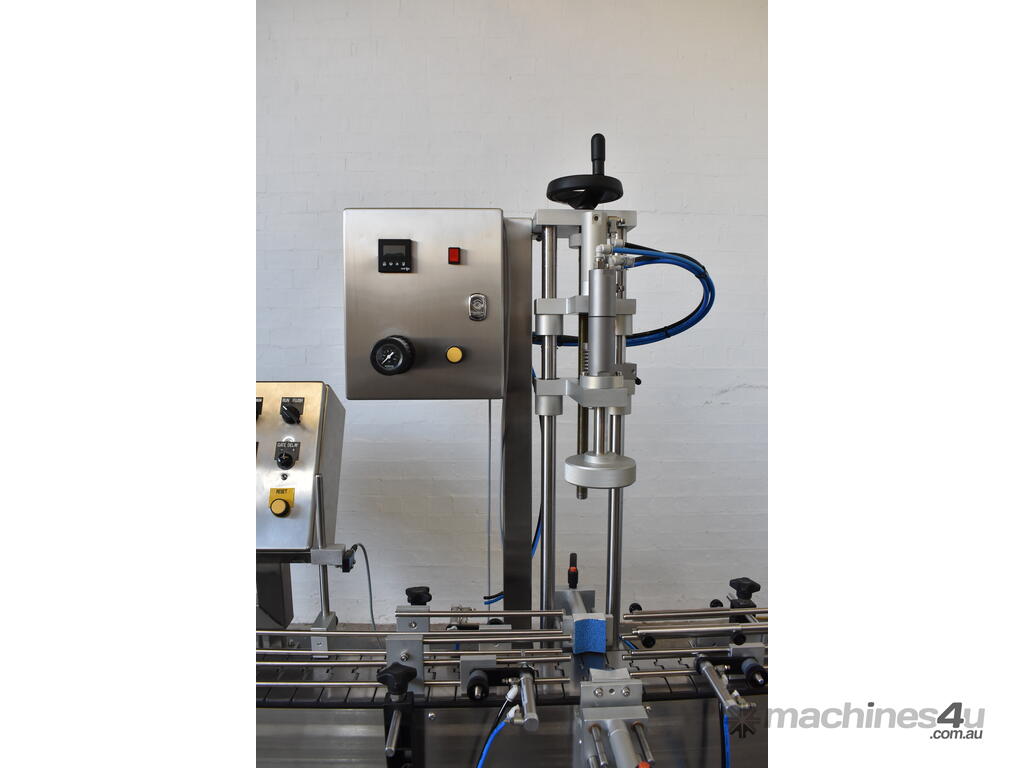

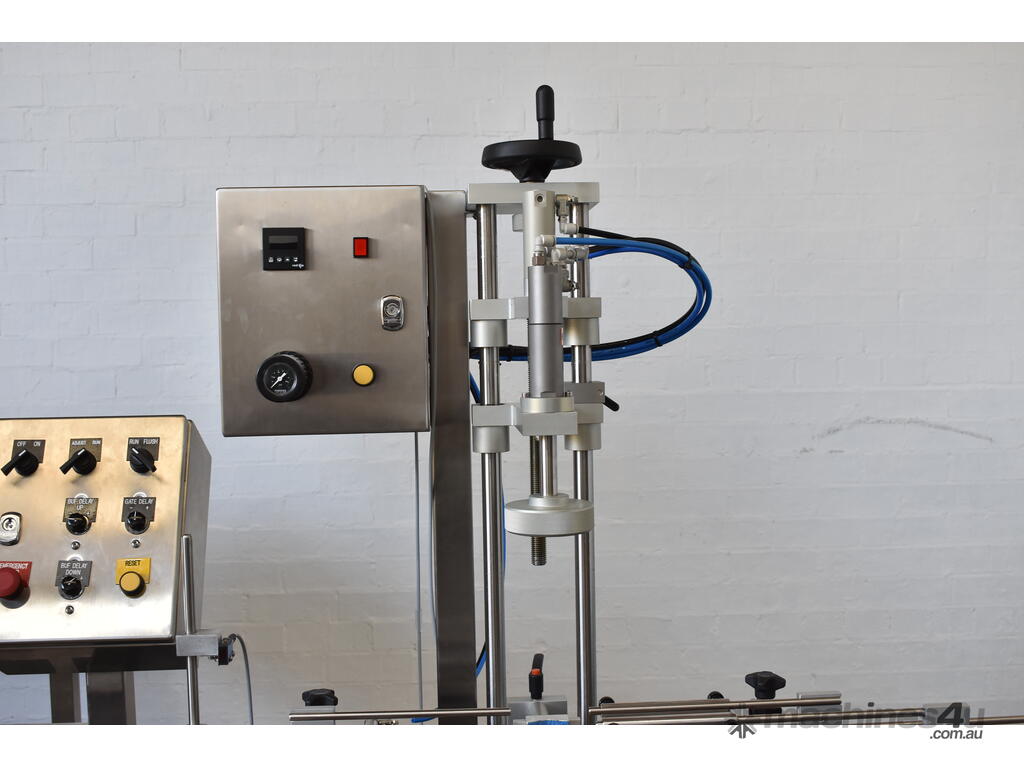

The control unit of the PCM-1A-E provides a comprehensive yet simple control of all the different elements to ensure any container and closure type can be adequately and efficiently tightened whilst still offering fast set-ups and container changeover. The programmable digital timer and pneumatic controls ensure optimum ease of use for the operator.

The PCM-1A-E Auto Capper is supplied complete with a conveyor or conveyor mounting frame, pneumatic container gating and clamping devices, and aluminium clamping jaws (with non-marking friction facing) which are contoured to the individual container profile or use one of our existing templates to ensure universal container application. Jaws for glass containers are supplied with plastic slippers to prevent the container scoring the conveyor during the bottling process.

Weight 40 kilograms
Length 500mm
Width 400mm
Height 1800mm
Power Supply Air compression
Construction Type 316 stainless steel and aluminium construction
Container Type Suitable for all container types capable of standing on a moving conveyor
Mounting: Mounts to a conveyor
Industries Food, cosmetic, pharmaceutical
Motor Deprag Air Motor Drive
Air Pressure 600kpa (80psi) pressure requirement
Additional Power Supply Single Phase, 10 AMP
Units Per Minute Cap 20-60 units per minute
Noise Medium
Capping Chucks 10-130mm standard chucks
Custom Capping Chucks Supplied on request
Closure Type Screw, pump, mist, trigger, push and snap closures
Torque Torque adjustable
Conveyor Stand-alone bolt on machine, or supplied with various conveyor options
Flameproof No
Setting Adjustments No tools required
Timer Control Electronic timer control
Changeover Speed Fast changeover of bottles/containers
Caps Size 10mm to 130mm caps

- Automatic Function
- Utilises an electronic digital timer

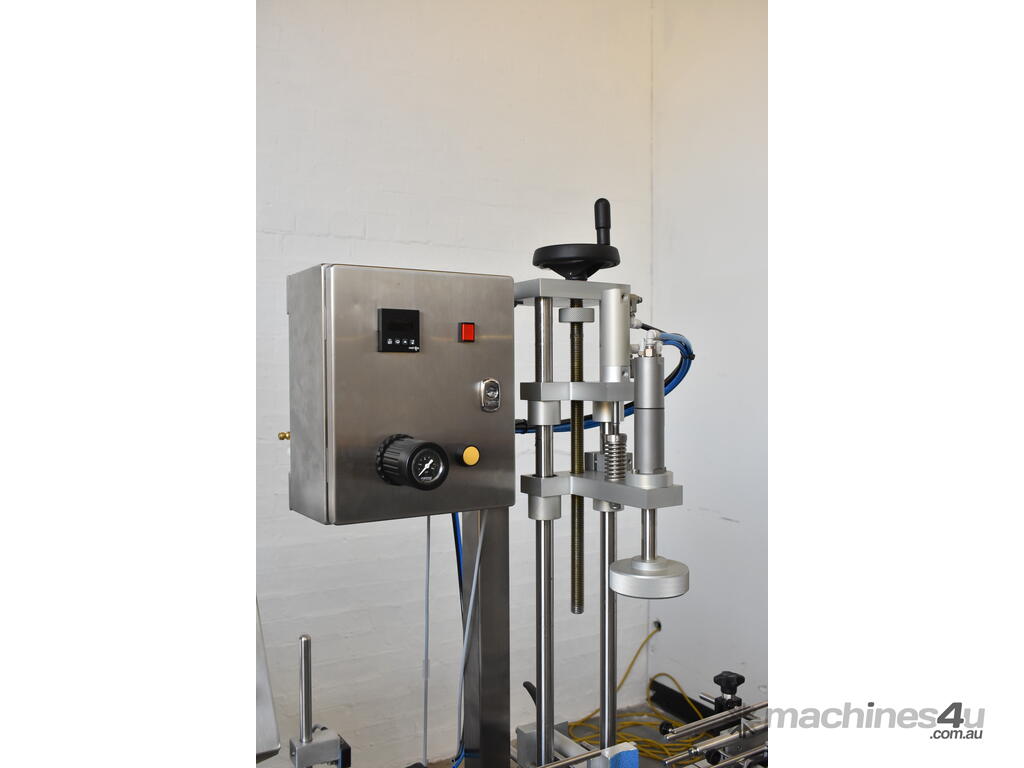

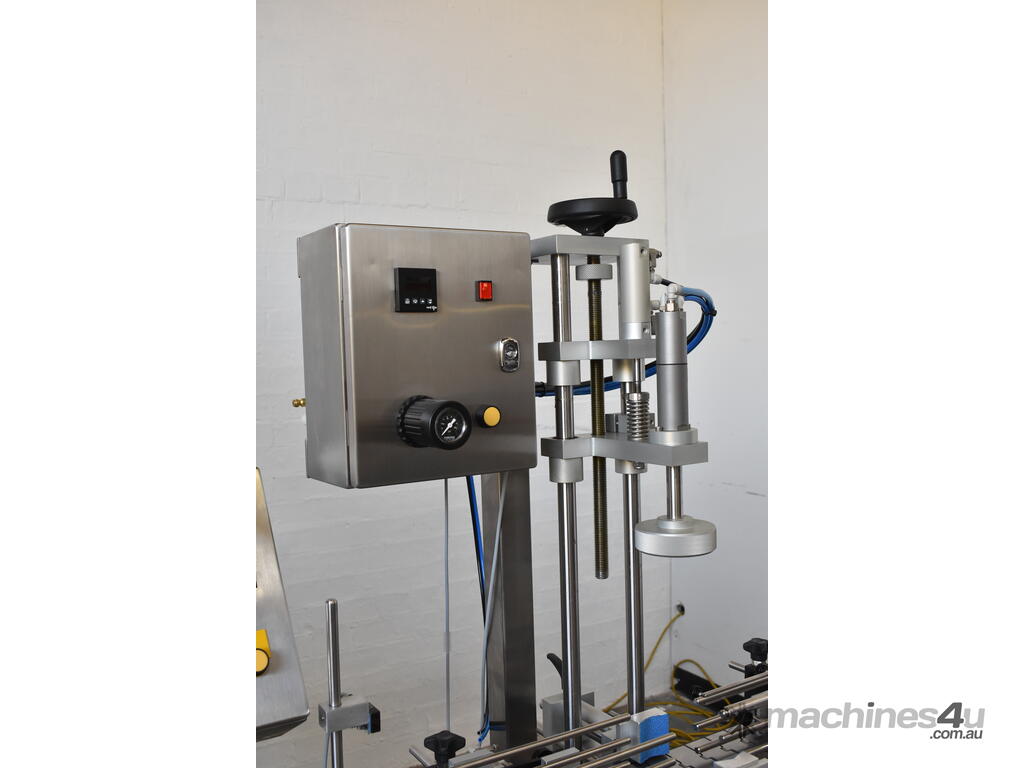

- Features container height adjustment hand-wheel and locking ring
- Quick container and cap size changeover with limited tools
- High quality Deprag air motor drive

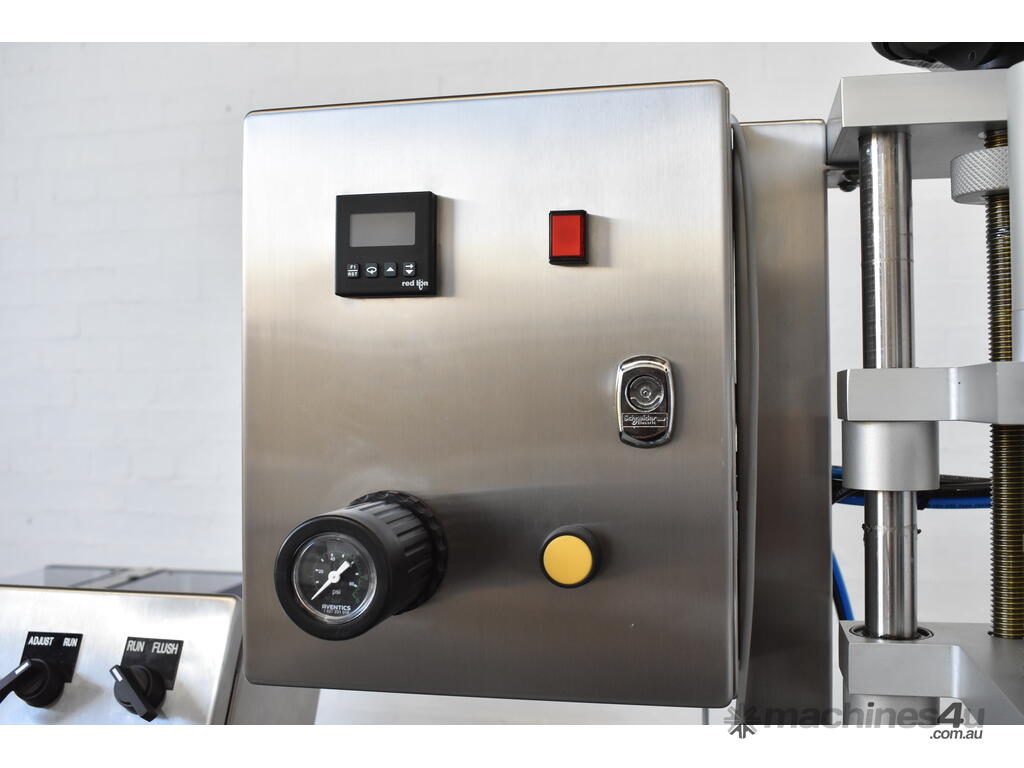

- Precise torque setting via pressure regulator and gauge
- Sturdy low maintenance construction
- Dual direction air motor
- Special tightening chucks and clamping jaws
- Various chuck liner materials
- Trigger pack attachment PT-7 available
- Chuck sizes from 10mm-130mm

Mounting:
Conveyor Mounted

Purchase Inclusions:

1 x base machine
1 x chuck (10-130mm sizes available)
1 x liner
2 x jaw assemblies (including flat or v-jaws)
1 x gate, bracket and clamp
1 x height adjusting clamp
1 x air motor
1 x power cord
1 x sensor, rod and block
