PACKSERV Overhead Belt Conveyor * bucket & pale closures *

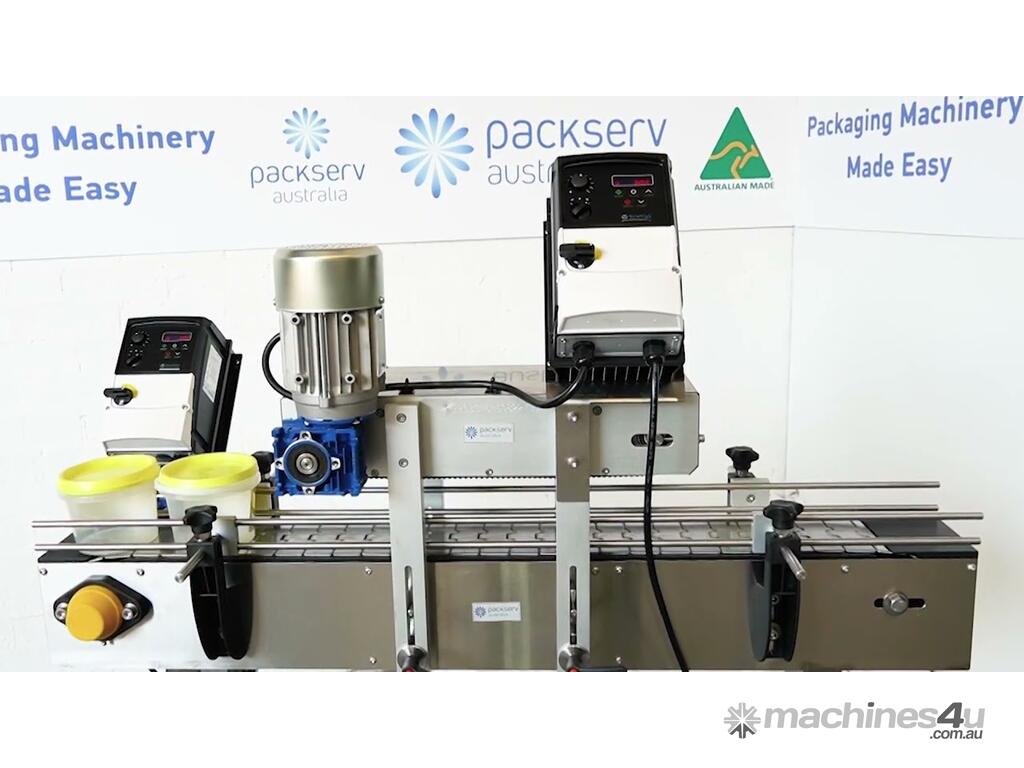

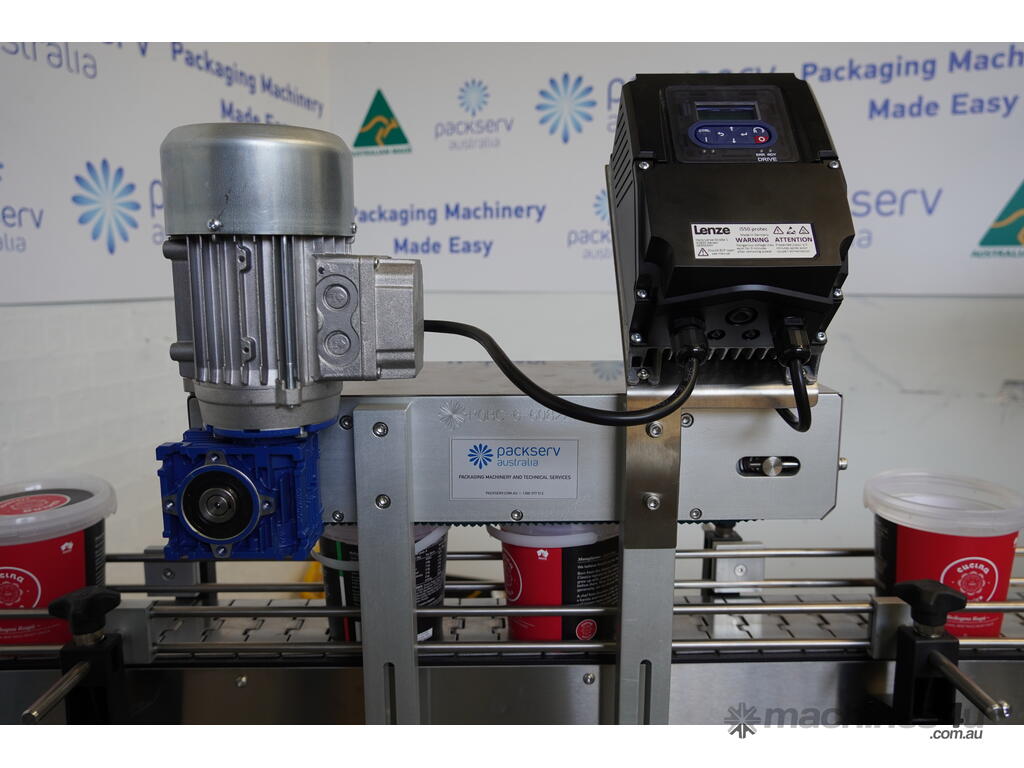

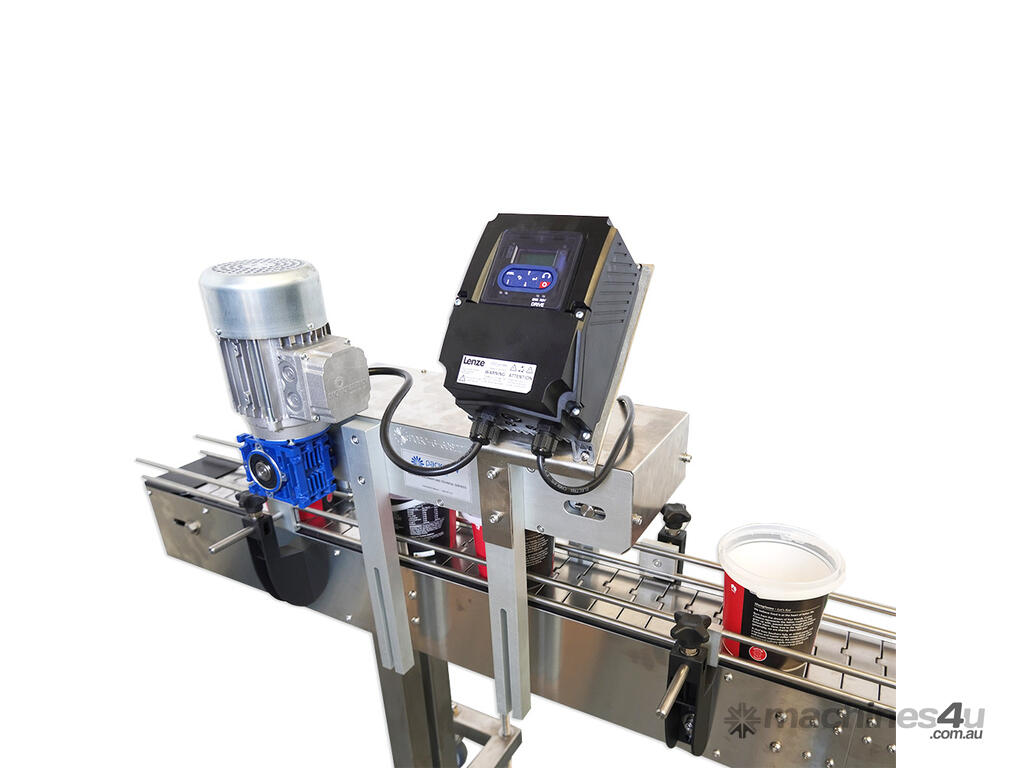

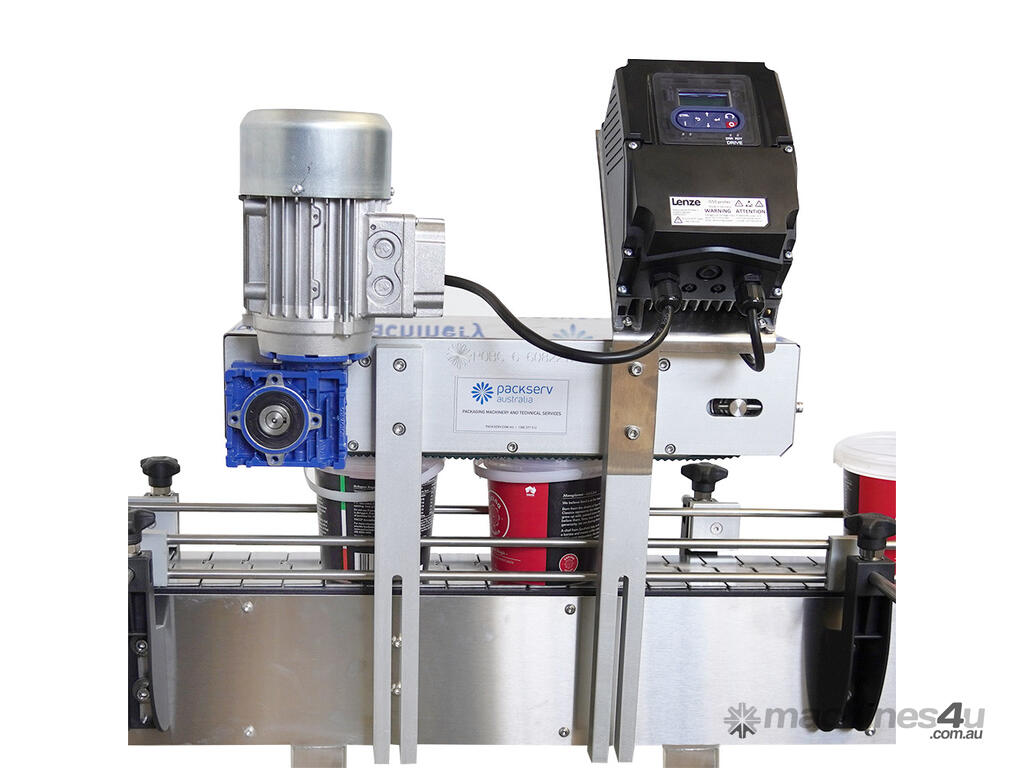

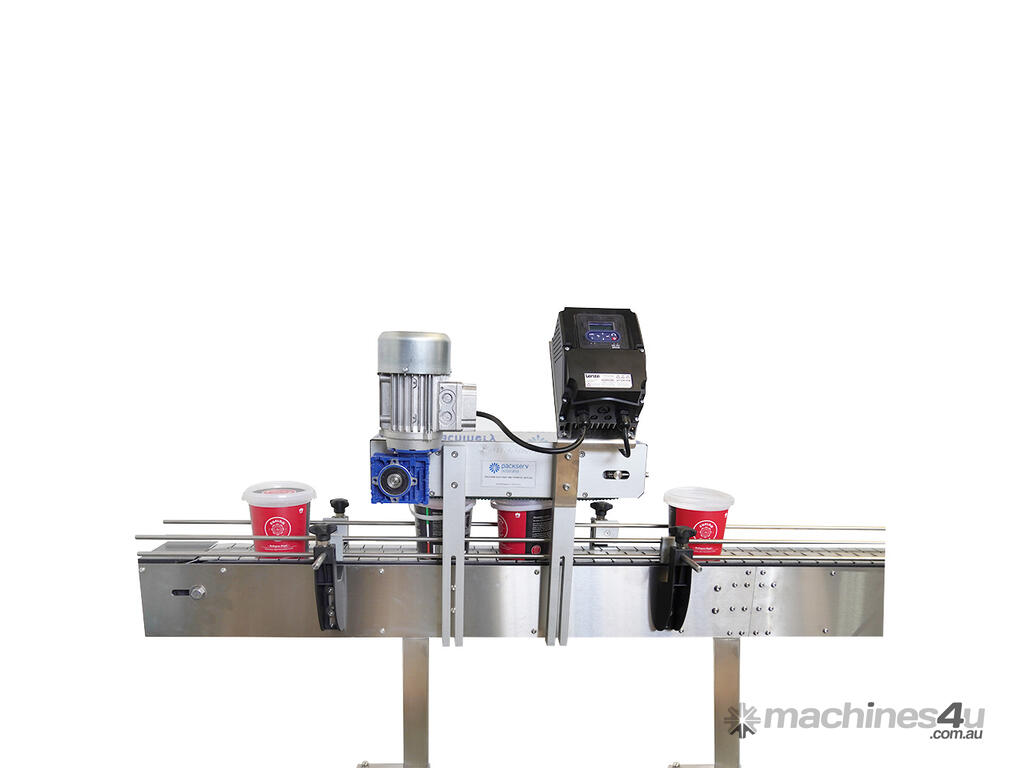

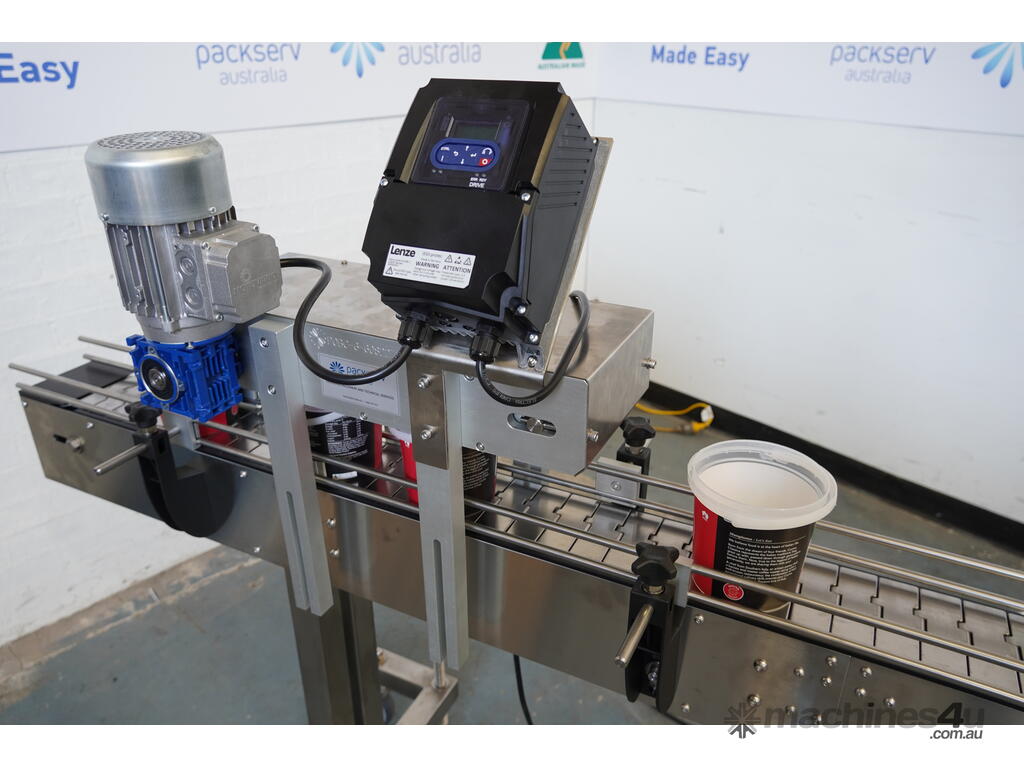

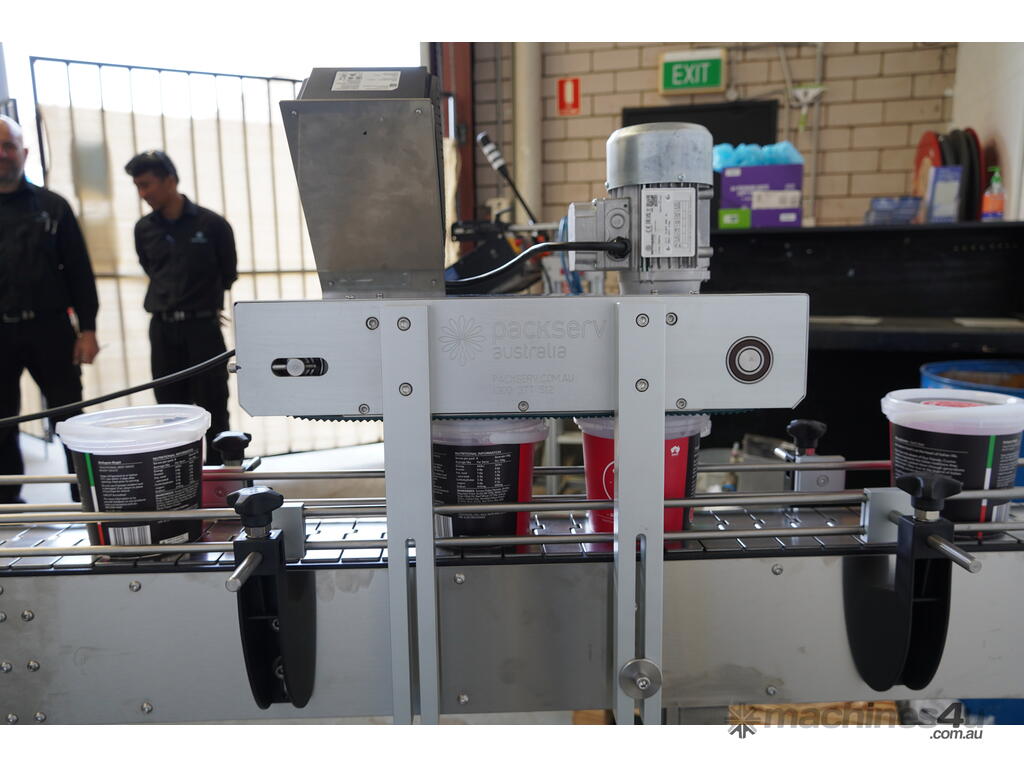

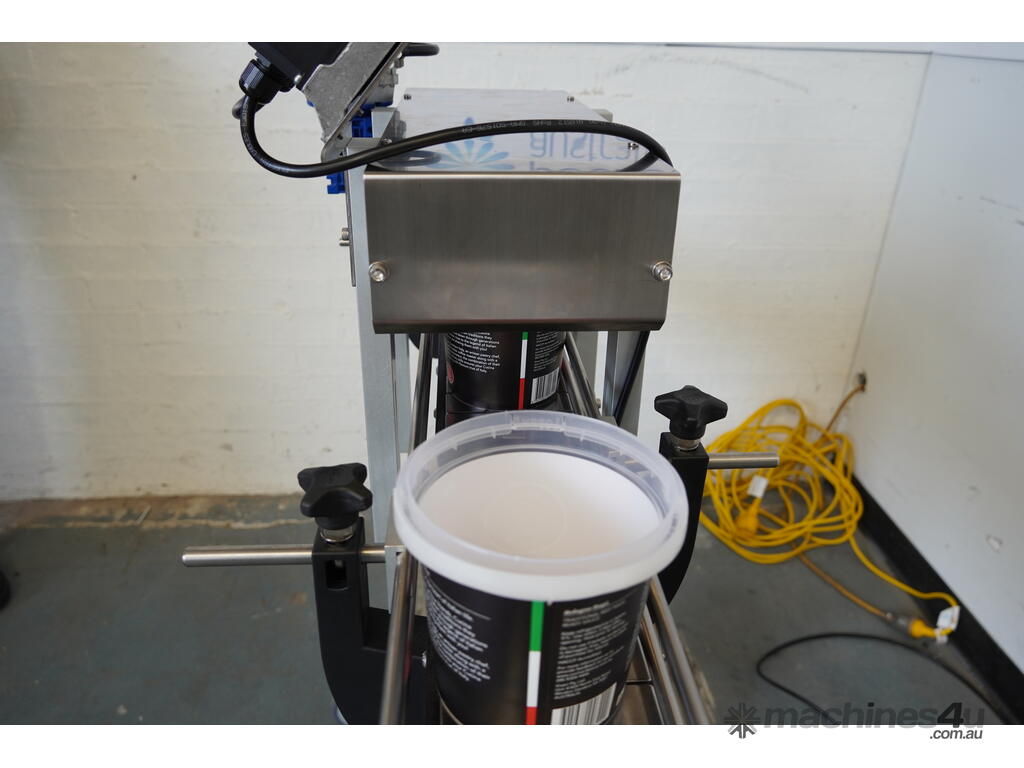

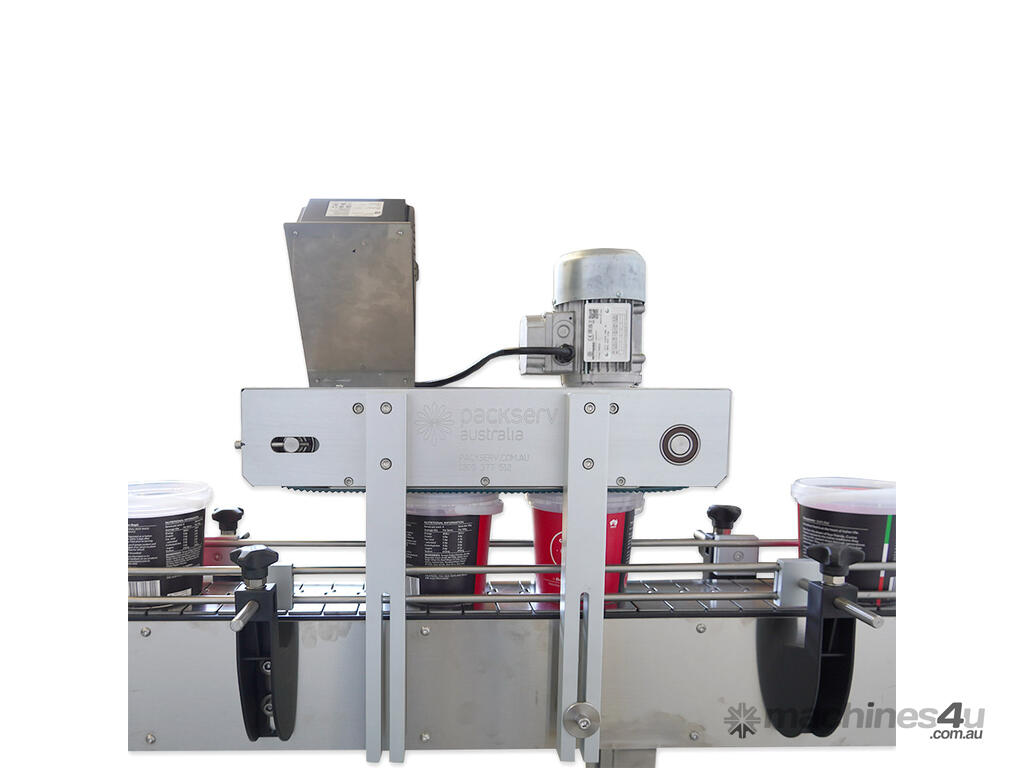

The Packserv POBC-6 Overhead Belt Conveyor is a bolt on accessory to our range of conveyors.

Normally mounted over the end of a PSC-6-4.8 Stainless Steel Slat Conveyor, the POBC can be used to gently and gradually roll the bead of the lid on a pale slowly down as it travels through the reducing gap between the conveyors. It’s a great solution for any bucket and pale closures, even used in some applications for closing paint tins.

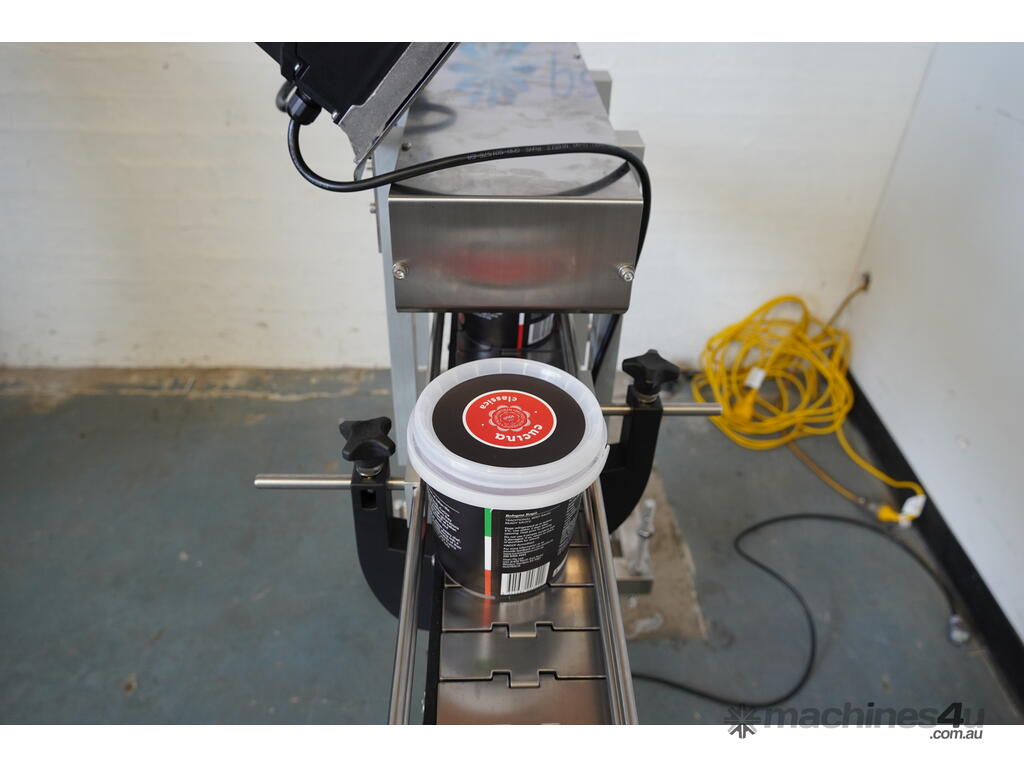

Our POBC-6 is a bolt on solution specifically for closing the lid on pales and buckets by gradually pressing the lid down starting on one side and rolling the bead down as it gets pressed between two conveyors slowly narrowing in height.

Weight 80 kilograms
Length 4800mm
Width 500mm
Height 1200mm
Operating Height 900mm slat height, adjustable on frame
Power Supply Single phase 240V, 10 Amp
Construction Type All 316 stainless steel and engineering grade plastics
Container Type All containers regardless of shape/material that will stand on their own
Mounting Lockable castors
Industries All food, pharmaceutical and industrial applications
Noise Low
Conveyor 406 stainless steel slat material (high-performance stainless)
Speed Variable speed control
Guide Rails Fully adjustable, height and width
Reversible Yes

- Automatic Function
- Mounted on lockable castors for easier manoeuvrability
- Conveyor comes with height adjusting jacks
- Variable speed control
- Conveyor is also available in other lengths including 2.4m and 3.6m
- Comes with adjustable guide rails
- Suitable for food and pharmaceutical use
- Fast changeover of containers

Mounting:
Frame bolting to conveyor



Purchase Inclusions:

1 x base machine
4 x rubber feet and levelling jacks
4 x castors/wheels
1 x full set of adjustable guide rails
1 x reversible and variable speed controller
1 x full 406 stainless steel slat set
