PACKSERV Pack Leader Automatic Wrap Around Labeller * 30 - 60 units / minute * - Hire

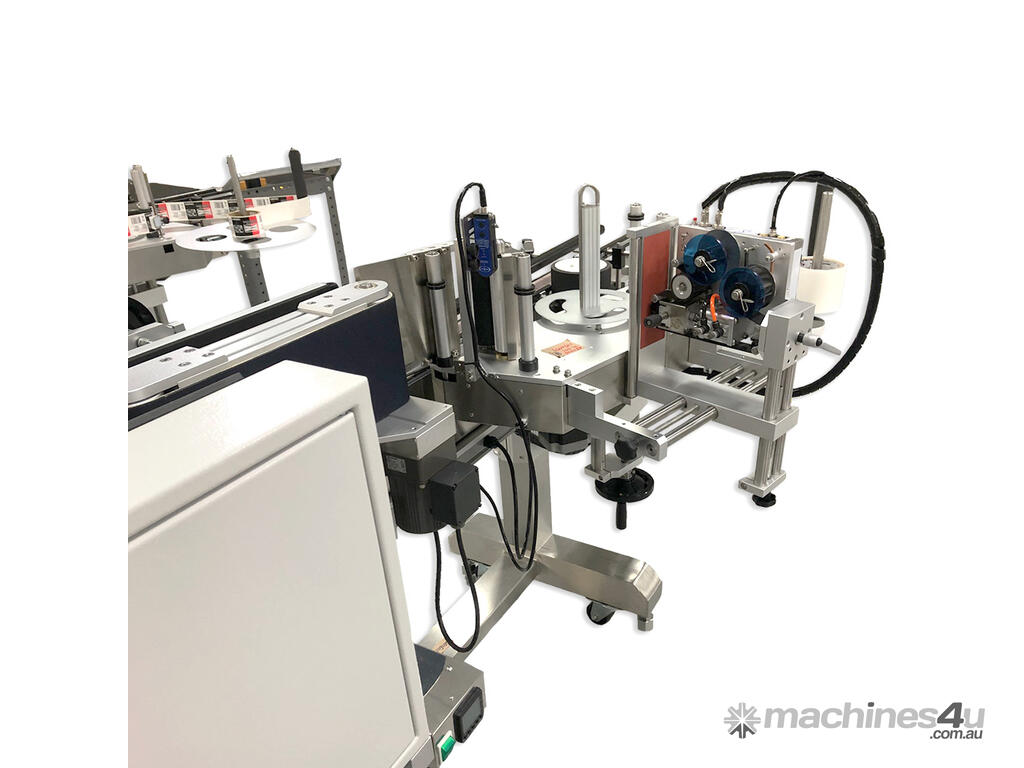

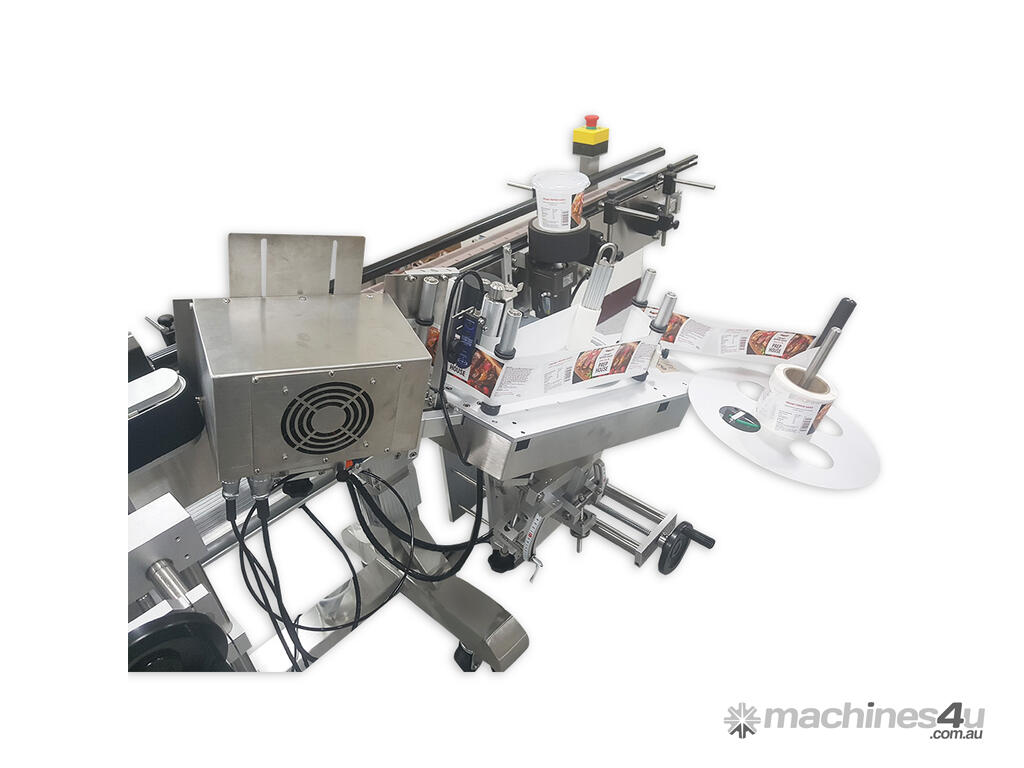

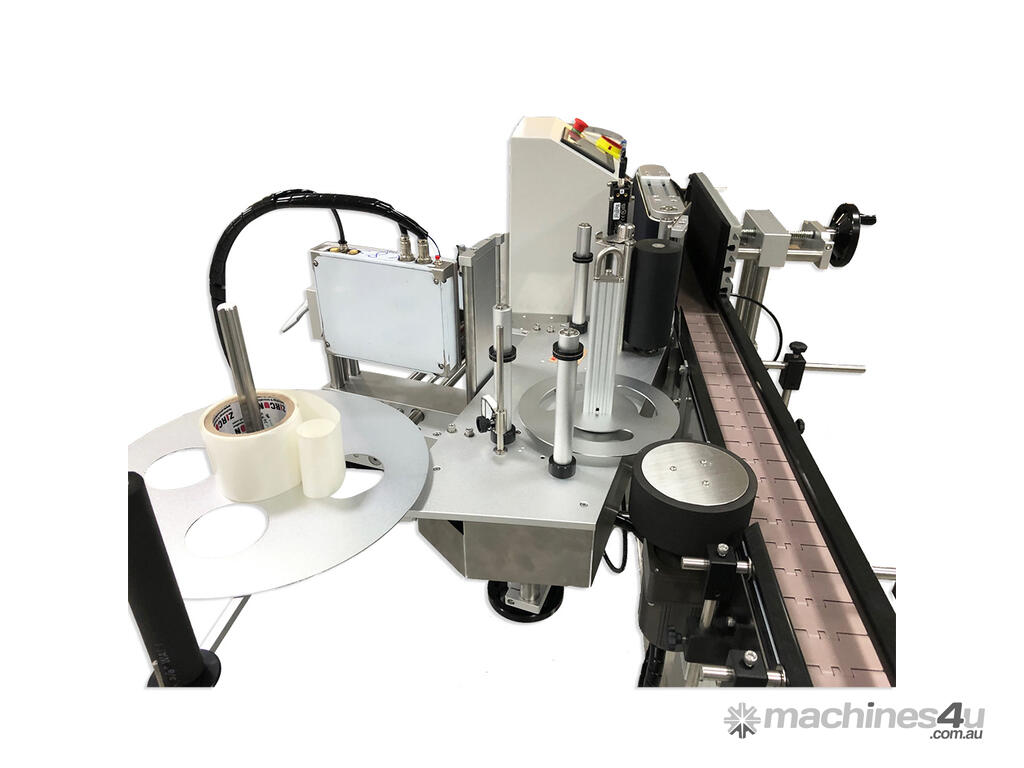

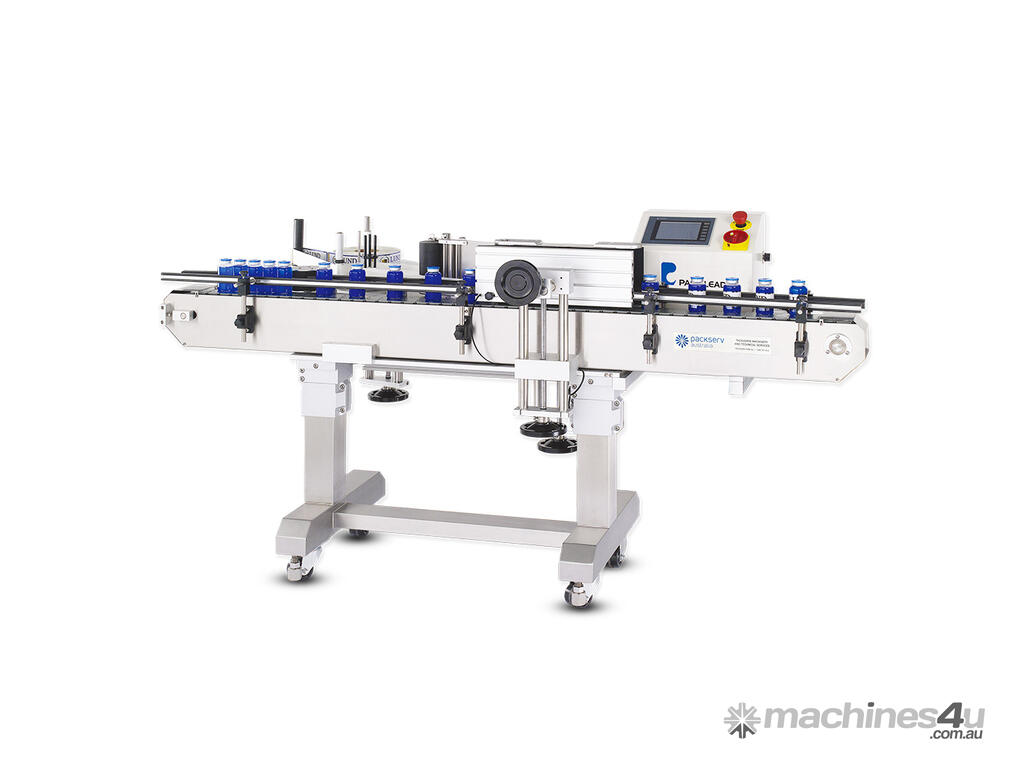

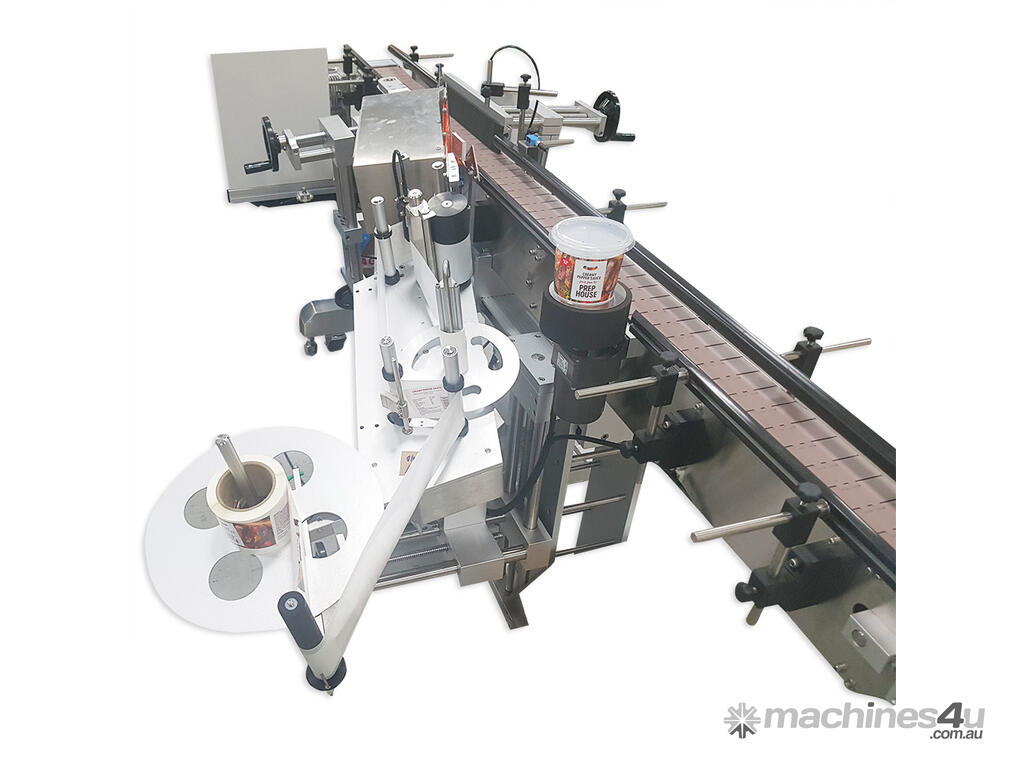

The Pack Leader PL-501 is a fully automatic wrap-around labeller designed for use with round containers. It offers exceptional flexibility, speed and endurance at an affordable price.

Pack Leader’s PL-501 Automatic Wrap Around Labeller is an easy to use automatic labeller, that has established a position in the Craft Brewing industry both here in Australia and internationally, as the industry standard automatic labelling machine of choice. This machine can handle all types of labels and can be relied upon to work reliably in all kinds of environments.

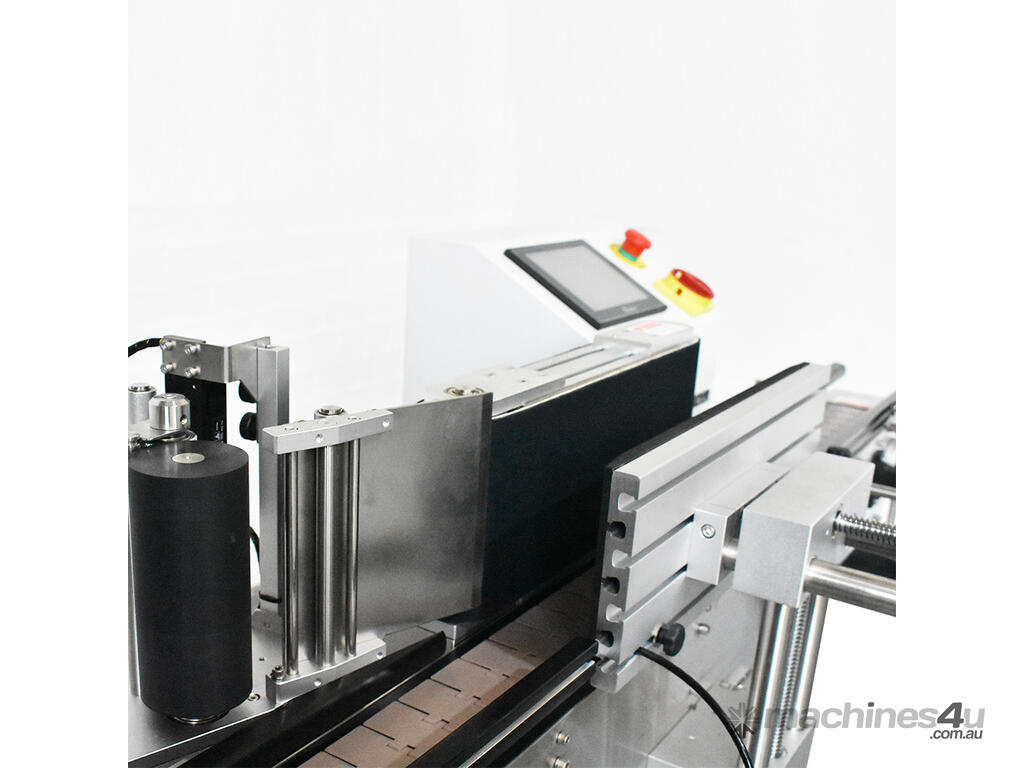

The PL-501 range utilises a touch screen, an in-built digital counter, and a self-diagnostic LED control panel that combine to synchronize the entire machine structure.
The built-in operating instructions and troubleshooting guide offered on the operator interface make for an outstanding operator friendly experience that requires minimal training.

With provision for 30 different, recordable settings and simple, tool-free adjustments, set-up and product changeover is simple, quick and easy.

The PL501 range of machines have a number of additional features that are supplied as standard.

Voltage: 220/110 VAC 50/60 Hz Single Phase
Power 760 VA
Controls Touch Screen
Applicator Height 200 mm
Label Size H:150 mm x L:300 mm Max
Label Roll Size 300mm diameter Max.
Label Roll Core 76mm diameter
Maximum Bottle Diameter 100 mm
Conveyor Width 100 mm
Conveyor Speed 5~23 m/min.
Dispensing Speed 40 m/min. Max
Dispense Driver Stepper Motor
Dimensions 2004mm(L) X 1052 mm (W) X 1043mm (H)
Net Weight Approx. 150 KGS

- Automatic Function
- Adjustments via one-touch screen and label sensors ensure simple set-up of any container
- Manual label position button ensures labels are placed accurately on container
- Modular system allows for simple future upgrades to be conducted (i.e. 3-point roller, orientation sensor, spacing wheel, hot-foil coder)
- Missing-label function ensures no product goes unlabelled
- Fully synchronised controls (i.e. label dispensing, wrap-belt, conveyor speeds) ensure consistent labelling

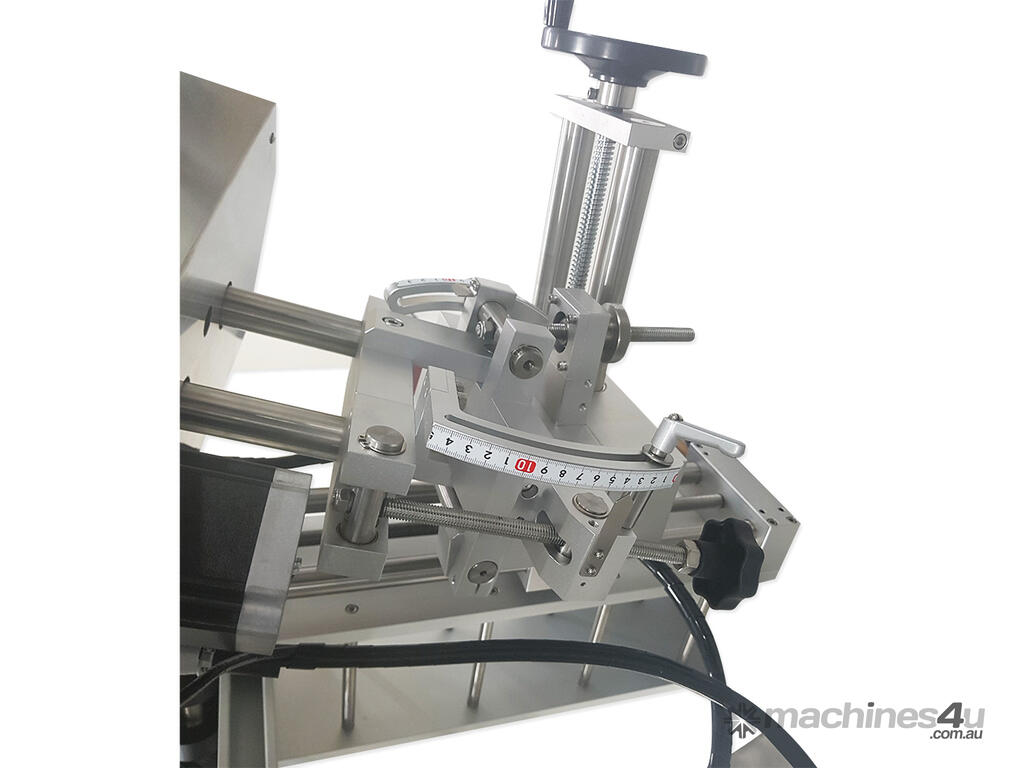

- Independent positioning systems for the wrap-belt, pressure-pad and label applicator for complete flexibility
- Toolless operation
- Label/Product counter system to show overall production progress
- Pre-count to ensure only the number of required units are produced
- Memory storage with ability to store 30 different label settings
- 30 Recallable Memory Spots
- 8 Synchronized Speeds Selection
- In Built Instructions And Trouble Shooting
- Production Counter And Preset Function
- Auto Labelling Start Up Mode
- Castors For Easy Relocation
- Levelling Jacks For Uneven Floors

Mounting:
Frame featuring castors


Purchase Inclusions:
1 x wrap belt
1 x foam pressure-pad
1 x label application system
