PACKSERV Penglai Tube Sealer Ultrasonic Semi-Automatic * 15 units / minute * - Hire

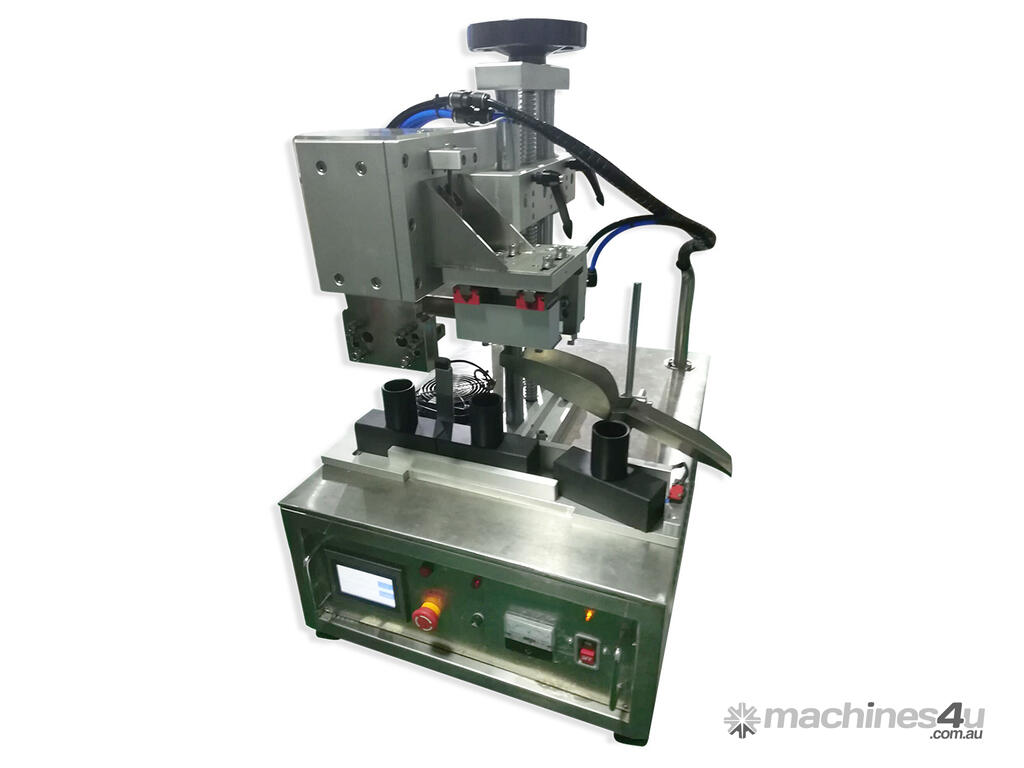

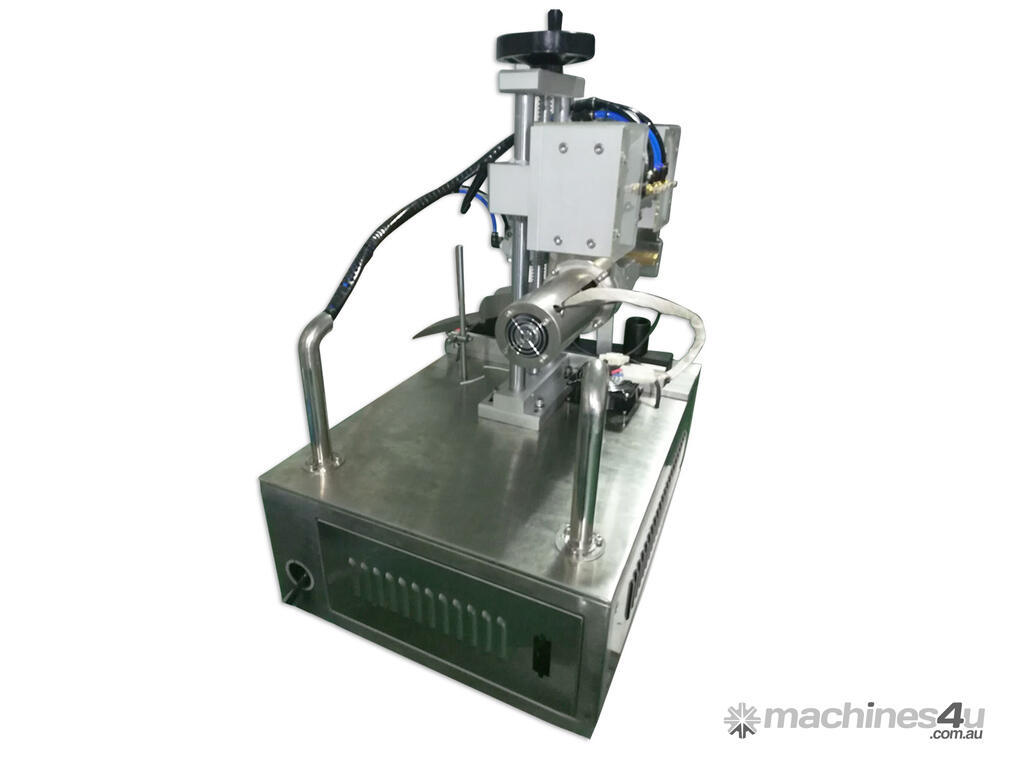

The Penglai YX-007 Ultrasonic Semi-Automatic Tube Sealer is an efficient and simple solution for the sealing, coding and clipping of all plastic tubes.

The YX-007 Semi-Automatic Tube Sealer is the latest technology in small to medium sized tube sealing.

It combines ultra-sonic sealing, batch stamping, trimming and a corrugated cosmetic/pharmaceutical grade finish. This machine requires an operator to load the tube pucks and move the tubes through the stations. Capable of running up to 15 units per minute this machine works perfectly with one of our bench top fillers and labellers.

This machine is designed to produce perfectly sealed tubes that look to have been manufactured on a much larger more expensive fully automatic machine. Featuring all the modern components and functions of state of the art automated machinery, this small portable tube sealer is all any SME business needs and can be operated by anyone with very basic instruction.

Manufactured from 316 stainless steel this machine is suitable for any food or pharmaceutical application. Requiring a small air compressor and standard 10amp power point its easily connected and set up in any manufacturing location. This machine can seal any plastic and laminate tube material up to 57mm in diameter.


Width 20"
Depth 25.5"
Height 35.5"
Weight 175lbs (79 kg)
Tube Length 1" – 10"
Tube Diameter 10mm – 57mm
Electrical 110v, single-phase, 60 Hz
Power 1.6 KW
Air Requirement 0.7 – 0.8 Mpa
Ultrasonic Frequency 20 Khz

- Semi-Automatic Function
- Seal All plastic and laminate tubes, ANY shape or size
- Production speeds of up to 15 tubes per minute

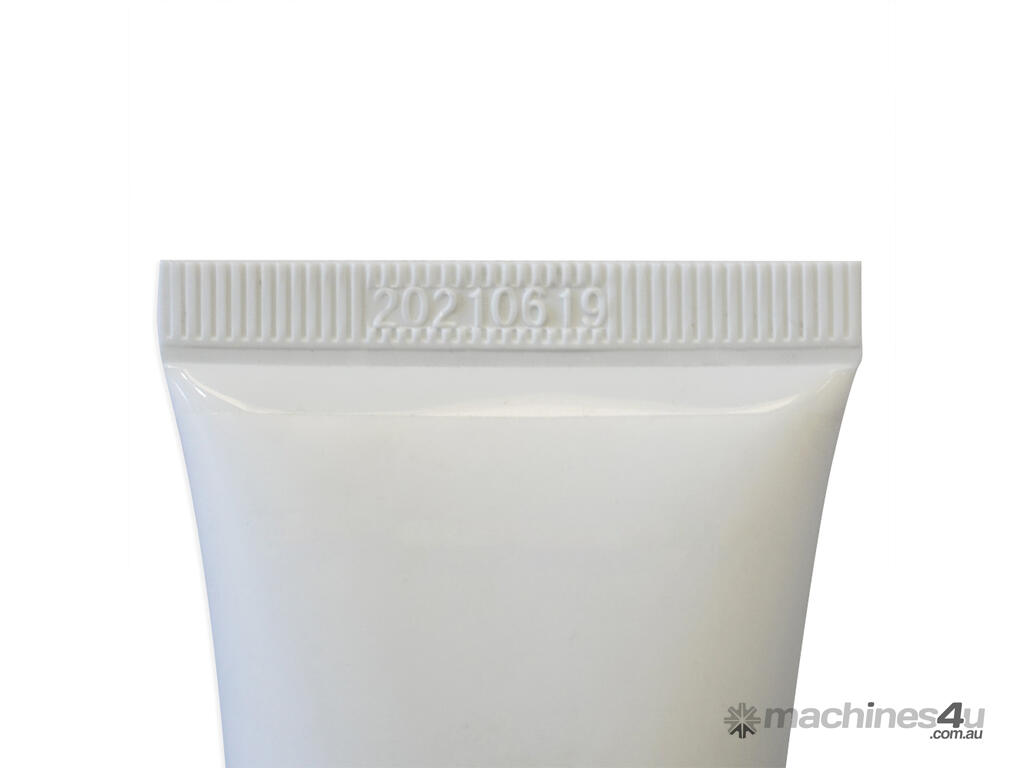

- Date / Lot Coding of all tubes already built-in
- Seals through product contamination
- Very low reject rate, less than 1%
- Ultrasonic sealing eliminates ‘flash’ and ‘ears’ versus hot-air sealing methods
- Rotary cutting knife to cleanly cut even the thickest tube materials
- Change-over time of less than 5 minutes
- Virtually NO CHANGE PARTS
- Line operators can setup and run machine, no mechanics required
-Training new operators is literally a 10-minute procedure, extremely simple
- Small footprint, table-top design
- Perfect for small production runs and lab use
- No warm-up time needed, plug in and it’s ready to seal tubes right away

Mounting:
Trolley (on wheels)



No water requirement
Needs only a very small air compressor for air requirements
