PACKSERV Single Head 5Ltr Auto BUF Filler Non Automated * 10 - 15 units / minute *

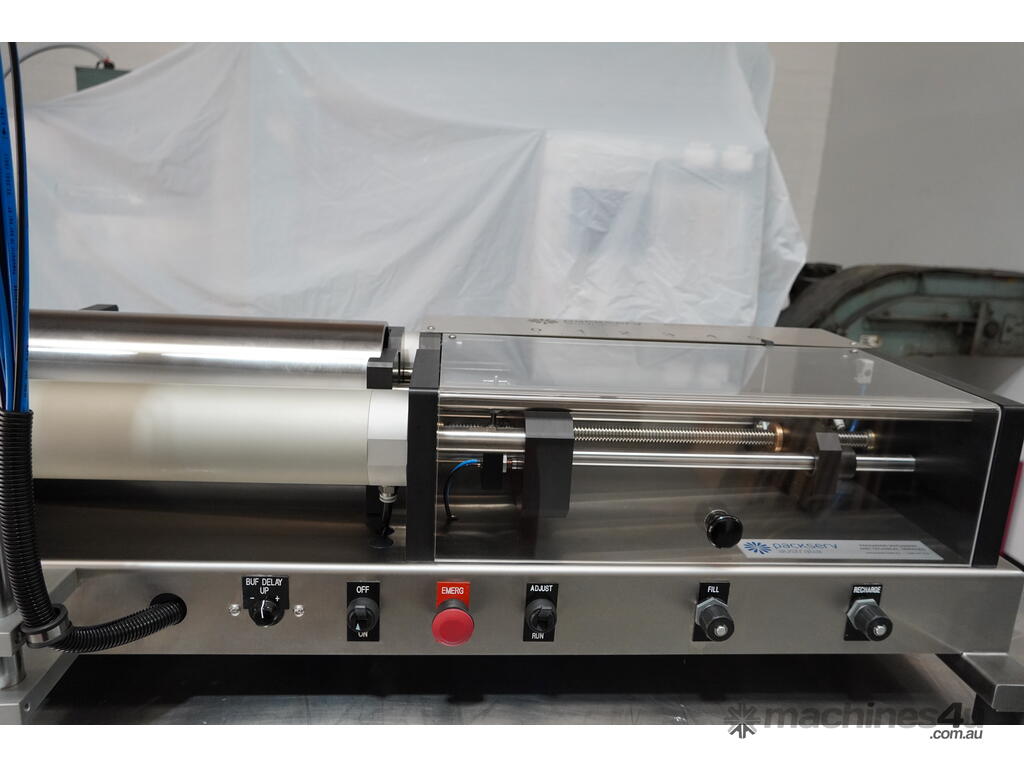

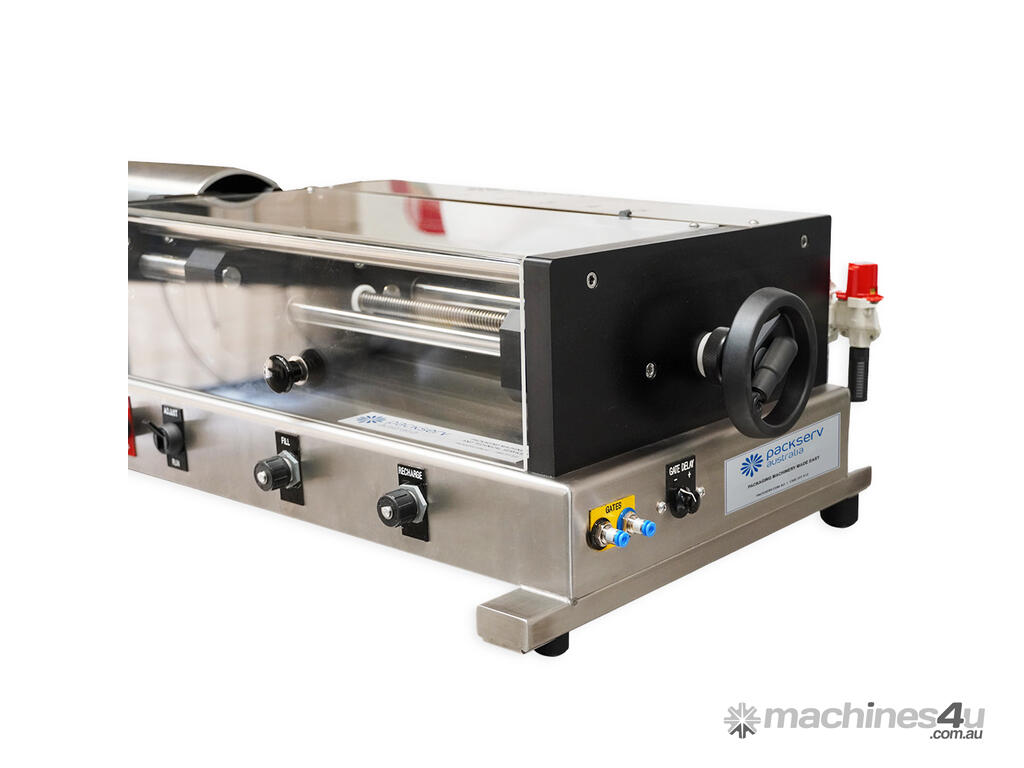

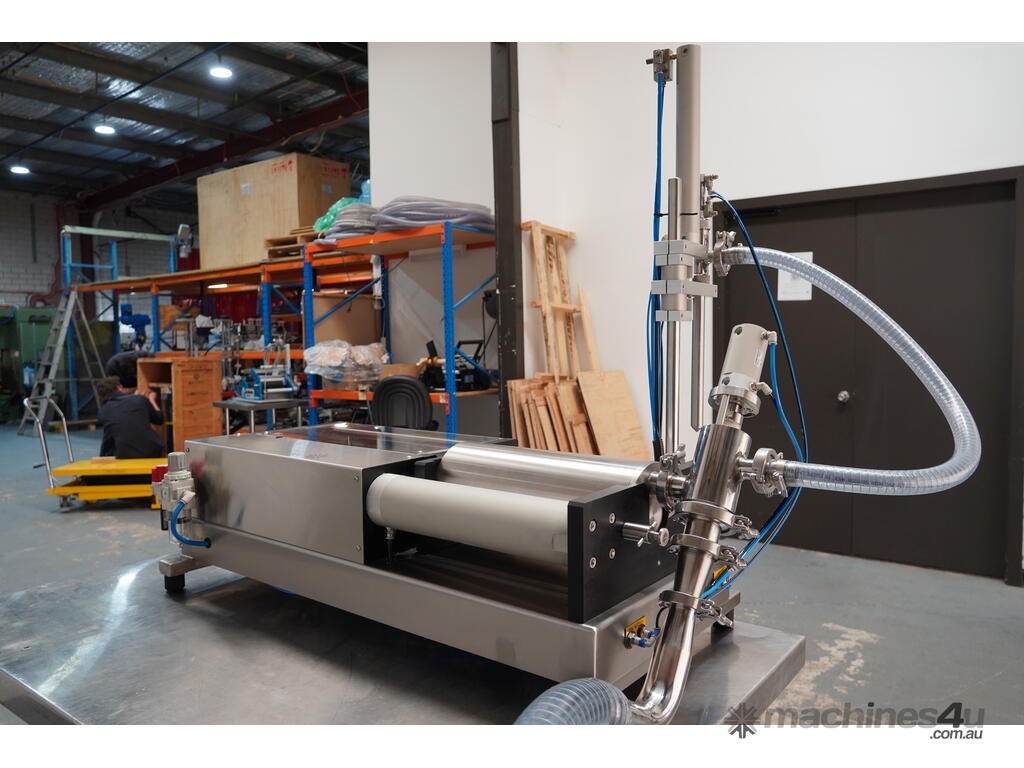

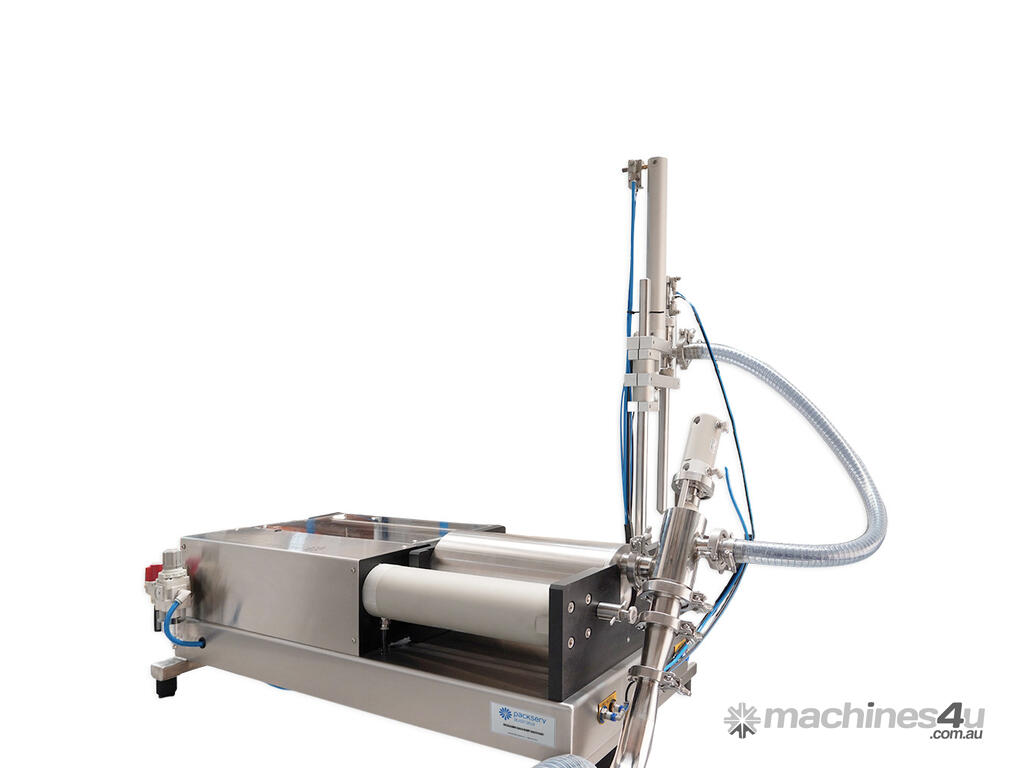

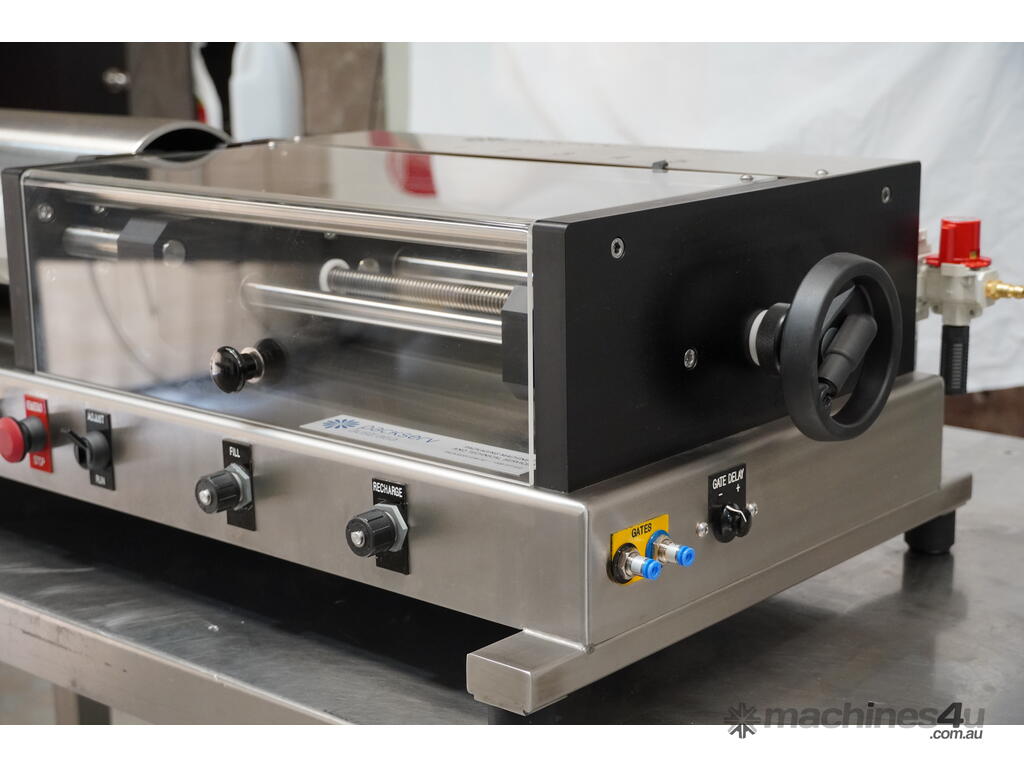

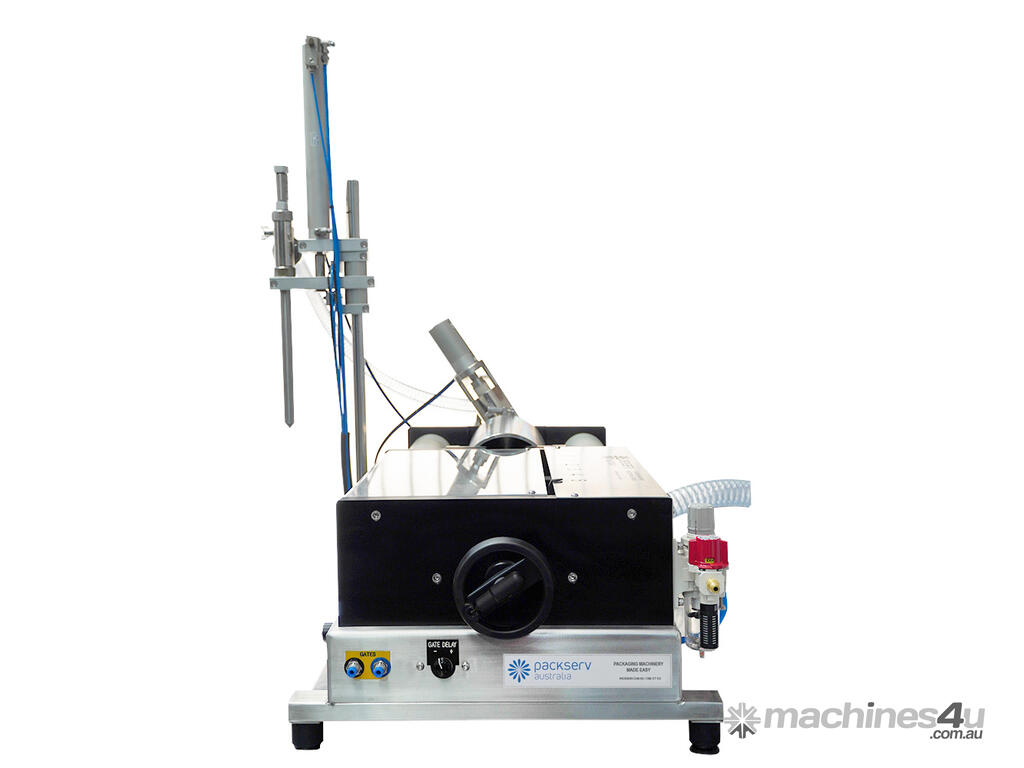

The Packserv PFM-5-BUF-NA is a single head semi-automatic bottom up liquid, cream and paste filling machine.

It has been designed for use as a semi-automatic bench top machine or to be quickly and easily upgraded into a fully-automatic filler to be mounted over the top of a conveyor. This machine fill 5 litres per a shot.

The heavy duty, all pneumatic design of the PFM-5-BUF-NA is compact, reliable and easy to clean and is designed for semi-automatic benchtop function.

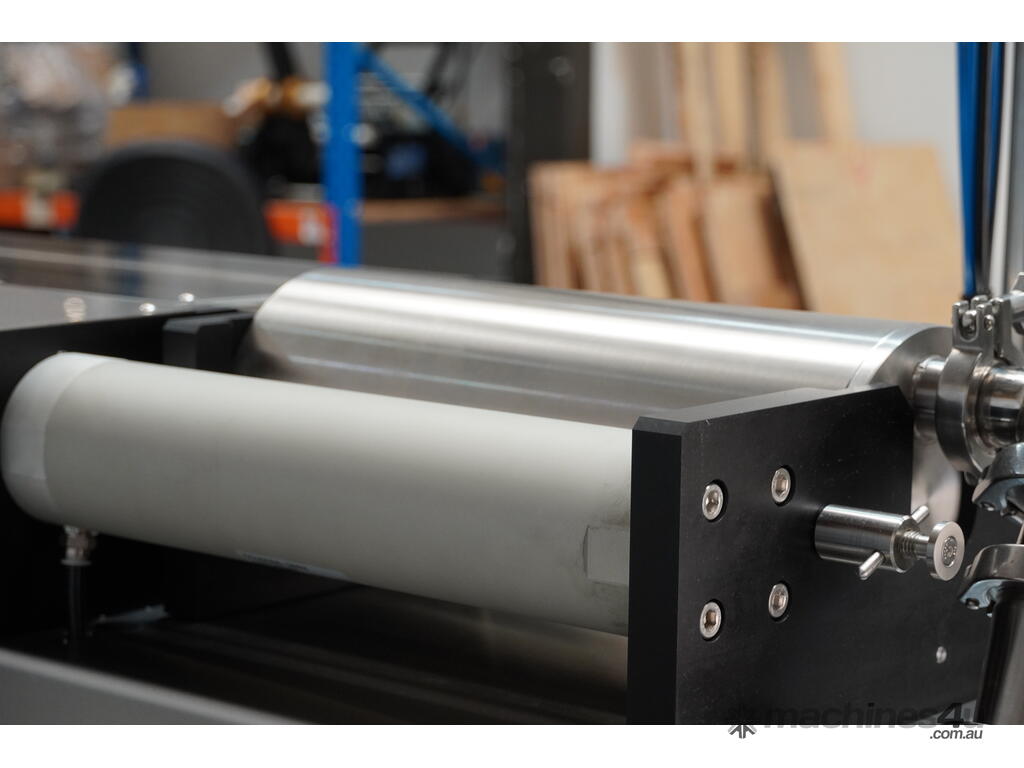

This machine features a 5 litre product cylinder allowing for single-shot filling of containers anywhere from 500ml-5000ml.

The PFM-5-BUF-NA also comes standard with positive shut-off nozzles and a bottom up fill assembly. The spool-valve system of the PFM-5-BUF-NA handles all types of bottling products from thin liquids to creams and thick pastes as well as hot and cold filling. It can handle temperatures up to 95°C with ease during the filling process.

The cylinder design of the PFM-5-BUFN-A enables quicker dismantling and easier, more thorough cleaning of wet parts. A number of product supply methods can be used to suit the nature of the product or our customers needs – examples include: hoppers and inlet assemblies.

Weight 75 kilograms
Length 1200mm
Width 500mm
Height 800mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type Any bottles, bags, sachets, vials, tubes, cartridges,
Mounting: Benchtop (trolley mountable)
Industries Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure 600kpa (80psi)
Units Per Minute 10-15UPM (guide only)
Noise Medium
Flameproof Yes
Timer Control Pneumatic
Speed Totally speed adjustable for all functions
Fill Range 500ml – 5ltr
Fill Temperature Cold and hot fill
Fill Type Liquids, creams, lotions
Not Suitable Products Dry powder and granules
Machine Cleaning Easy to disassemble for full wash up
Volume Fully adjustable
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 5000ml
Automatic Function: Fully automatic when mounted over a conveyor line

- Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation suitable for use with flammable products
- Easy volume adjustment while running a single cylinder
- Adjustable piston fill and recharge stroke speed
- Simple tool-free dismantling makes for easier cleaning
- Quick changeover of products and parts
- Suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Various methods to feed product to machine available

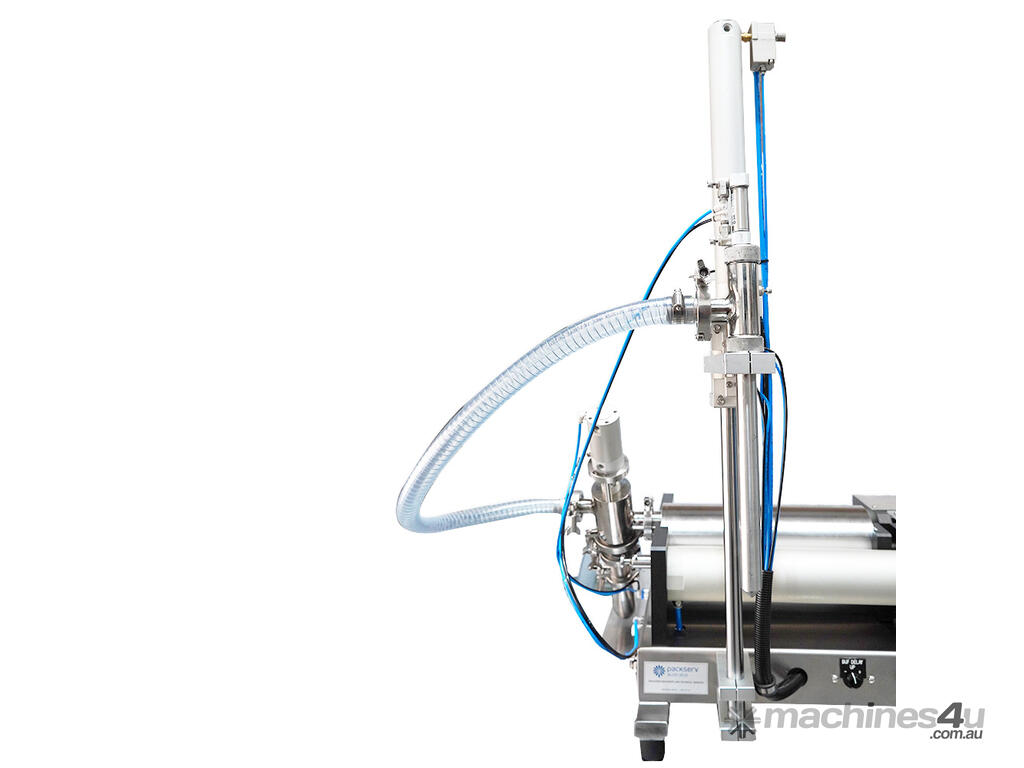

- Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
- Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot

Mounting:
Benchtop (Trolley available)


Purchase Inclusions:

1 x base machine
1 x installed bottom up fill (BUF) assembly
1 x positive shut off nozzle
1 x 1 transfer hose & fittings
1 x spool valve
1 x 5L product cylinder
2 x outlet hose barbs
6 x triclover clamps (including seals)
2 x reducers
