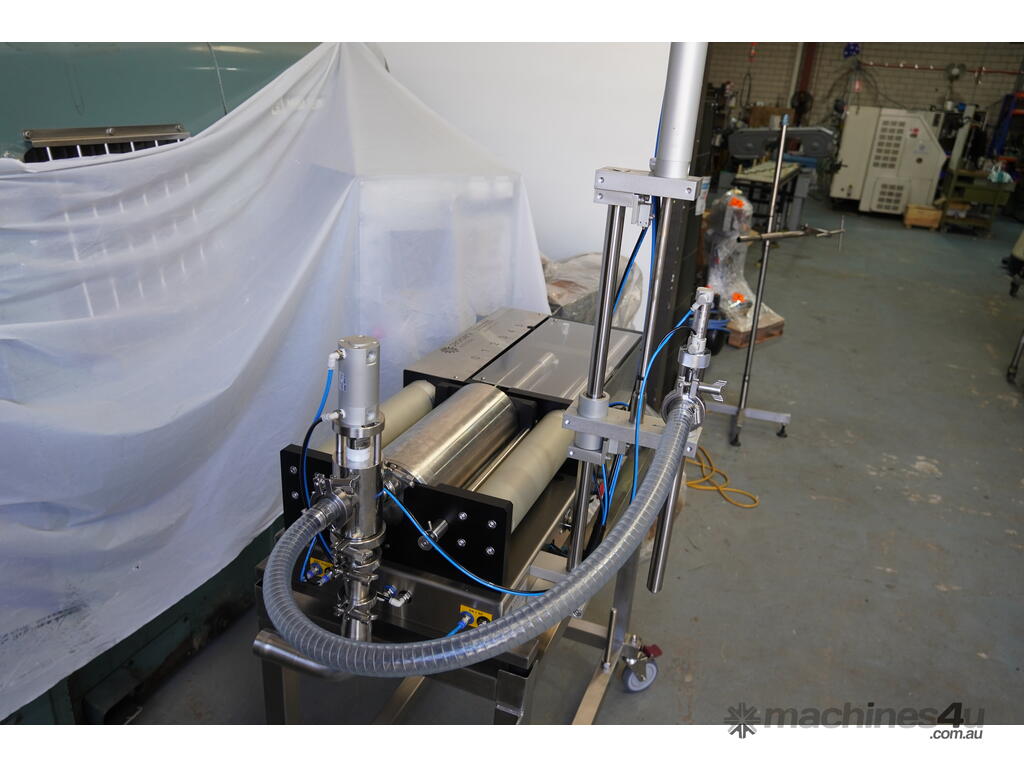

PACKSERV Single Head 5Ltr BUF Filler

The Packserv PFM-5-BUF Single Head 5Ltr Bottom Up Filler is a semi-automatic liquid, paste and cream filling machine that is both user friendly and versatile and features a 5 litre product cylinder.
It has been designed for use as a heavy duty, all pneumatic semi-automatic inline bottom up filling machine which offers reliability and ease of use with tool-free cleaning and parts change-over.

Designed to be both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-5-BUF is compact, reliable and easy to clean and is designed for semi-automatic benchtop function. This machine features a 5 litre product cylinder allowing for single-shot filling of containers anywhere from 500ml-5000ml.

It also comes standard with positive shut-off nozzle and a bottom up fill assembly. The spool-valve system of the PFM-5-BUF-A handles all types of bottling products from thin liquids to creams and can handle particles as well as hot and cold filling. It can handle temperatures up to 95°C with ease during the filling process.

The cylinder design of the PFM-5-BUF enables quicker dismantling and easier, more thorough cleaning of wet parts.

Weight 75 kilograms
Length 1200mm
Width 500mm
Height 800mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type Any bottles, bags, sachets, vials, tubes, cartridges,
Mounting: Benchtop (trolley mountable)
Industries Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure 600kpa (80psi)
Units Per Minute 10-15UPM (guide only)
Noise Medium
Flameproof Yes
Timer Control Pneumatic
Speed Totally speed adjustable for all functions
Fill Range 500ml – 5ltr
Fill Temperature Cold and hot fill
Fill Type Liquids, creams, lotions
Not Suitable Products Powder and granules
Machine Cleaning Easy to disassemble for full wash up
Volume Fully adjustable
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 5000ml
Automatic Function: Semi-automatic (requires operator to place and remove containers during fill cycle)

- Semi-Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation suitable for use with flammable products

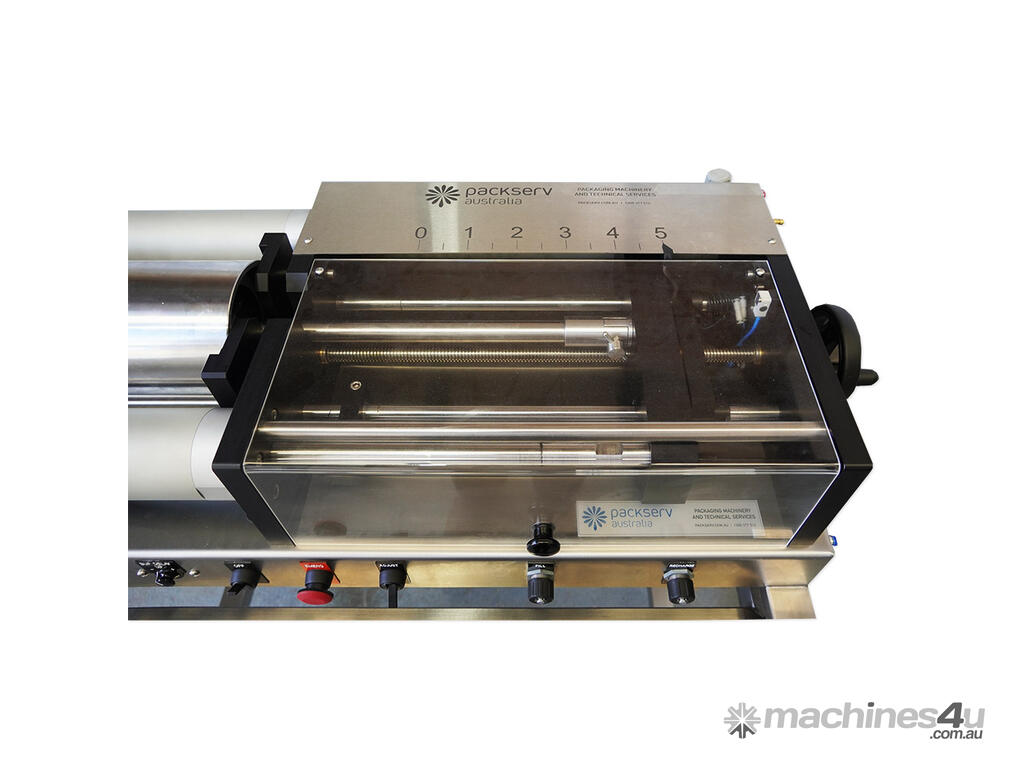

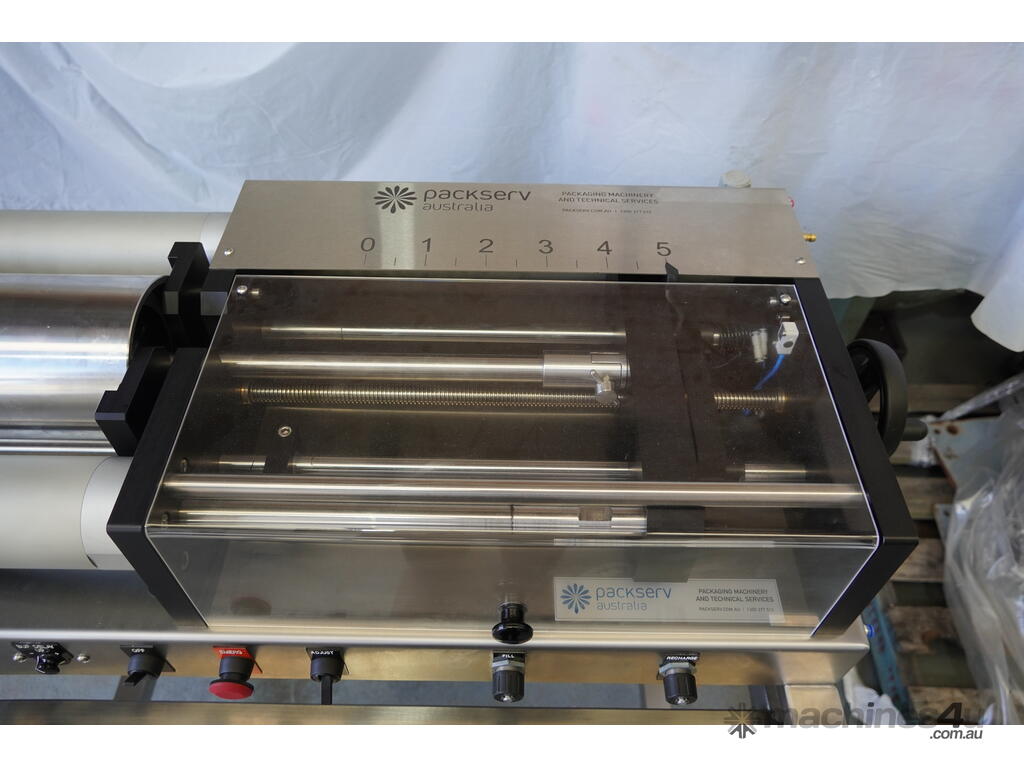

- Easy volume adjustment while running a single cylinder

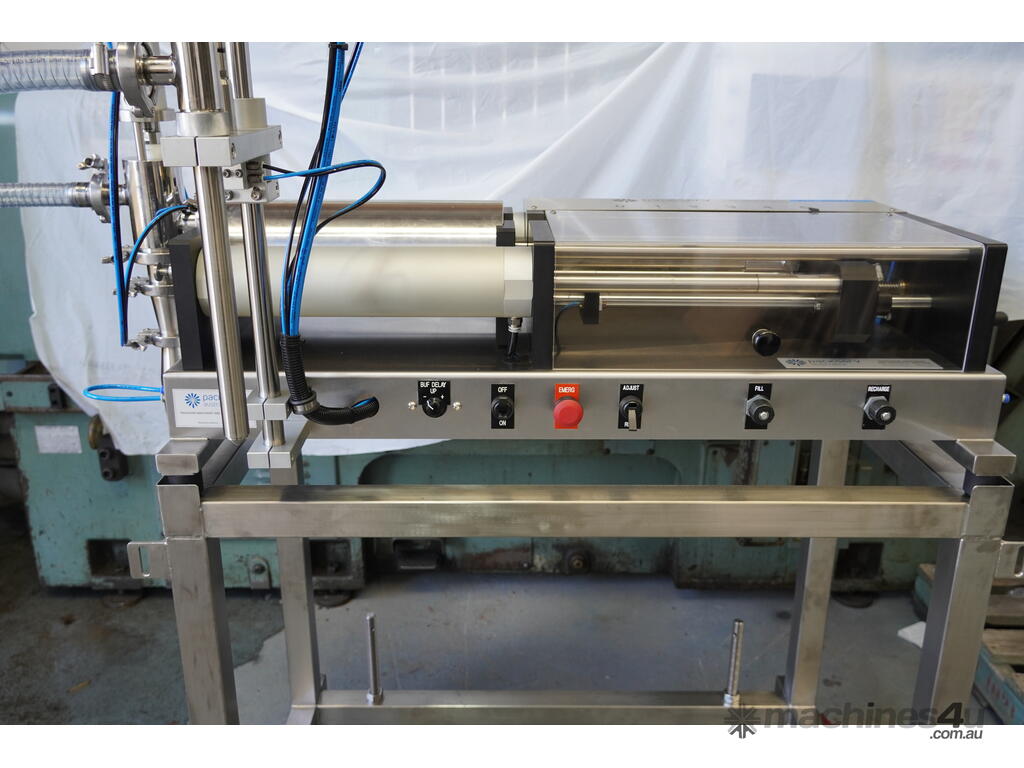

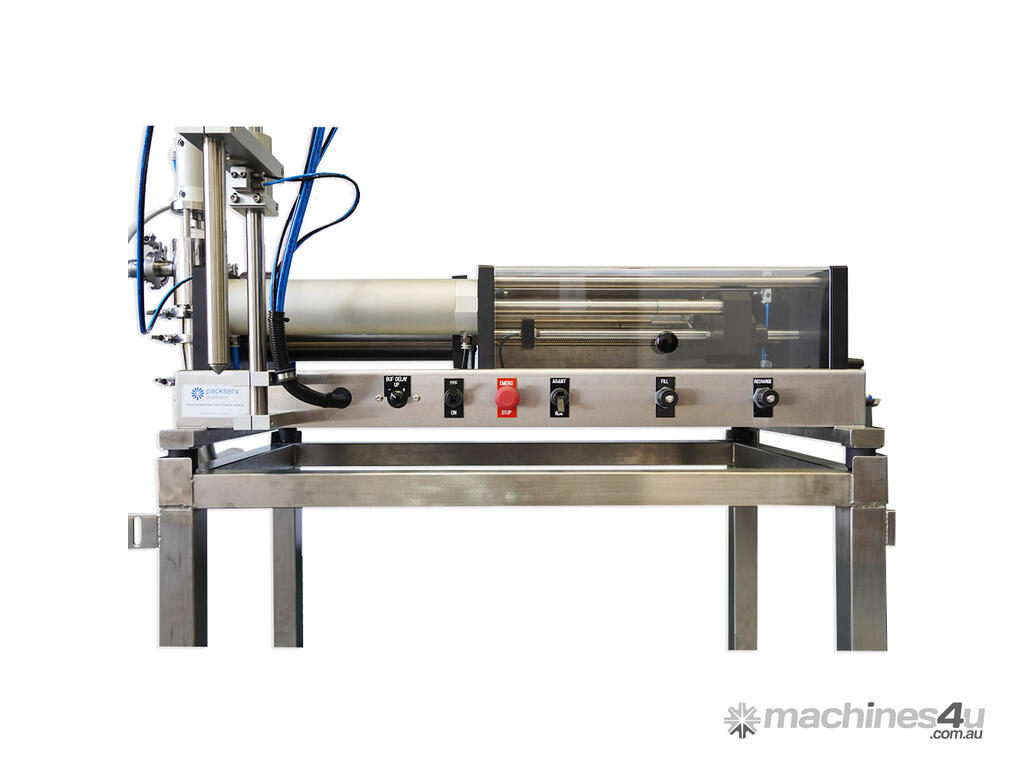

- Adjustable piston fill and recharge stroke speed
- Simple tool-free dismantling makes for easier cleaning
- Quick changeover of products and parts
- Suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Various methods to feed product to machine available

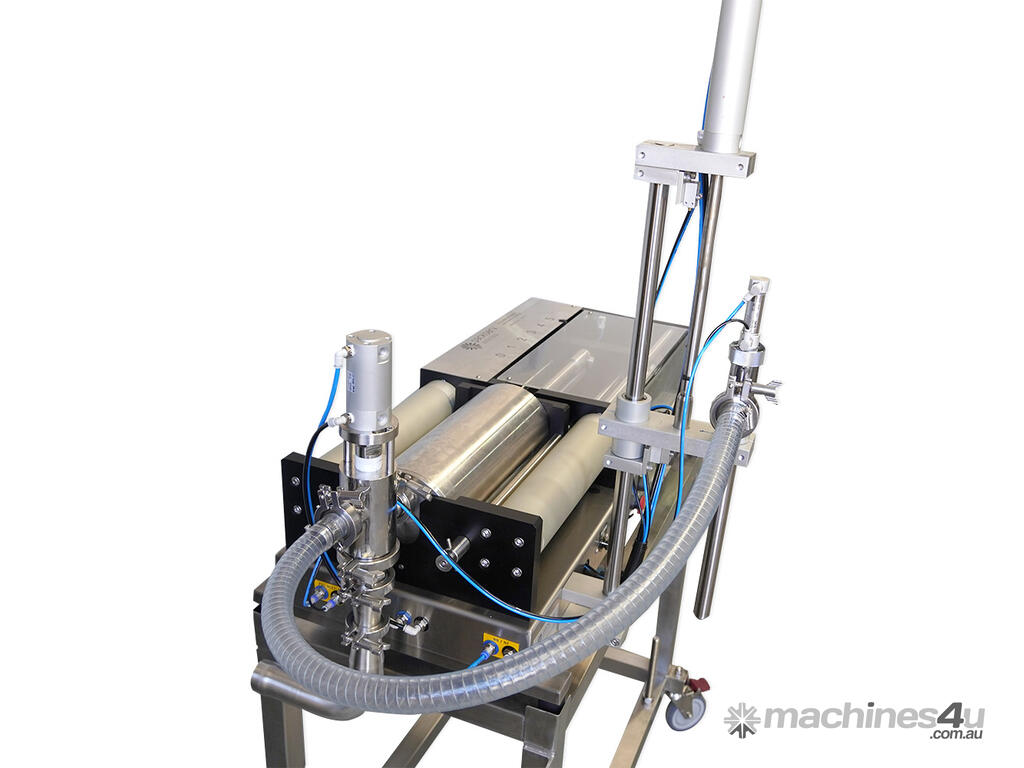

- Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
- Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot

Mounting:

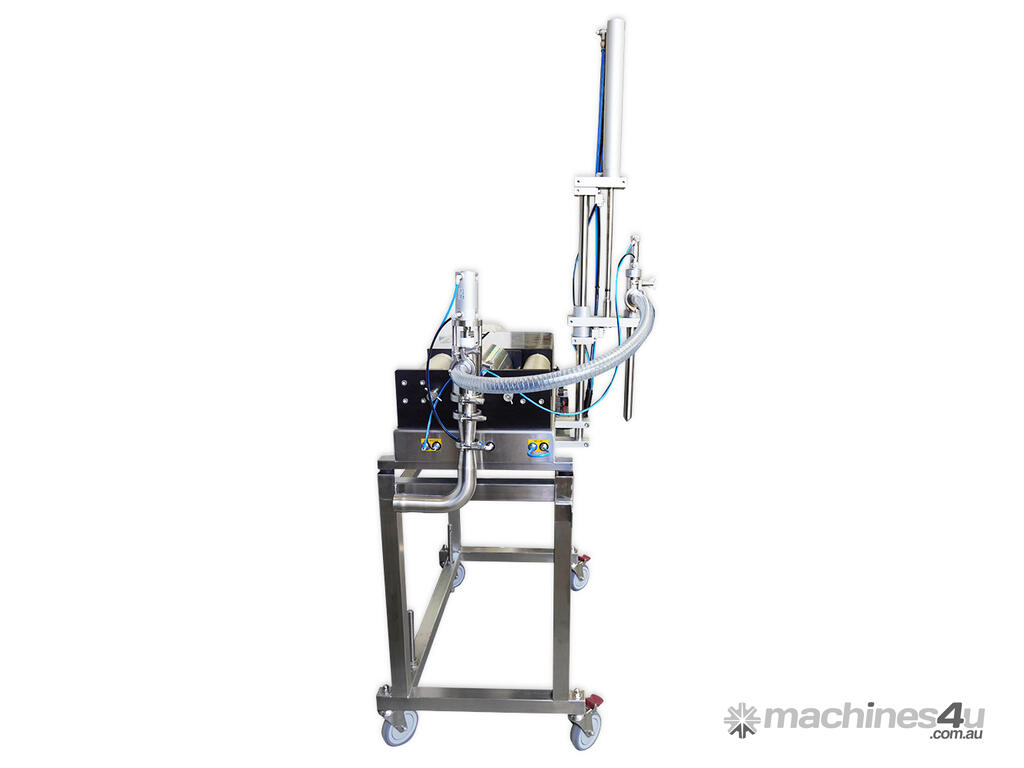

Benchtop (Trolley available)

Purchase Inclusions:

1 x base machine
1 x installed bottom up fill (BUF) assembly
1 x positive shut off nozzle
1 x 1? transfer hose & fittings
1 x spool valve
1 x 5L product cylinder
2 x outlet hose barbs
6 x triclover clamps (including seals)
2 x reducers
