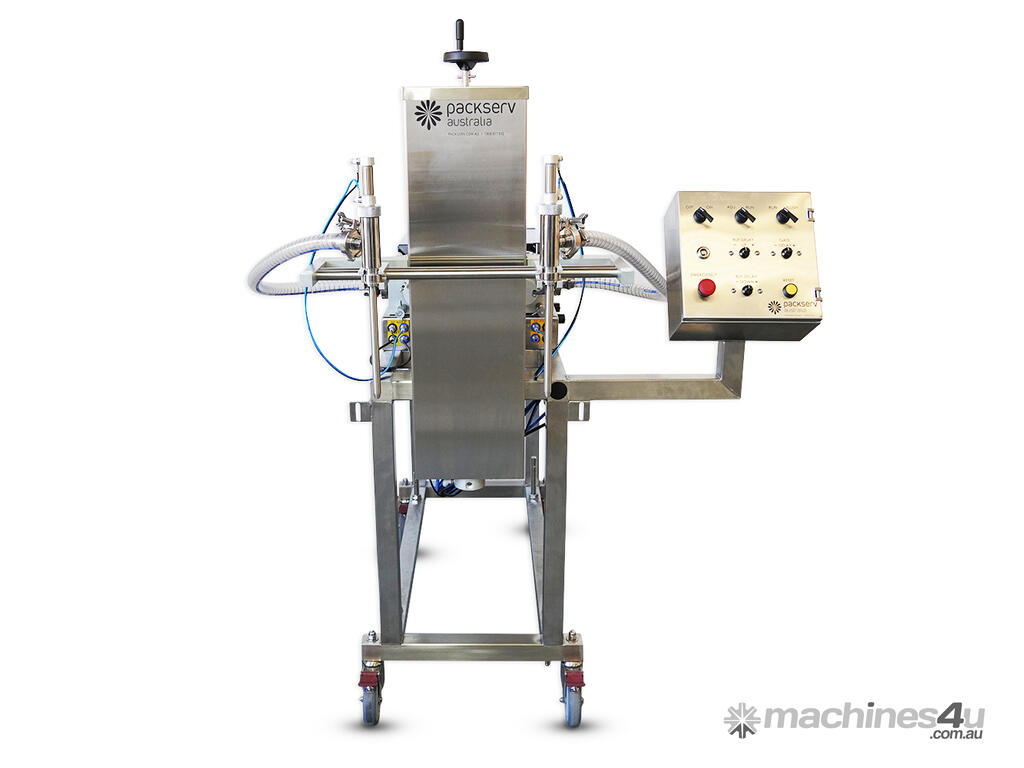

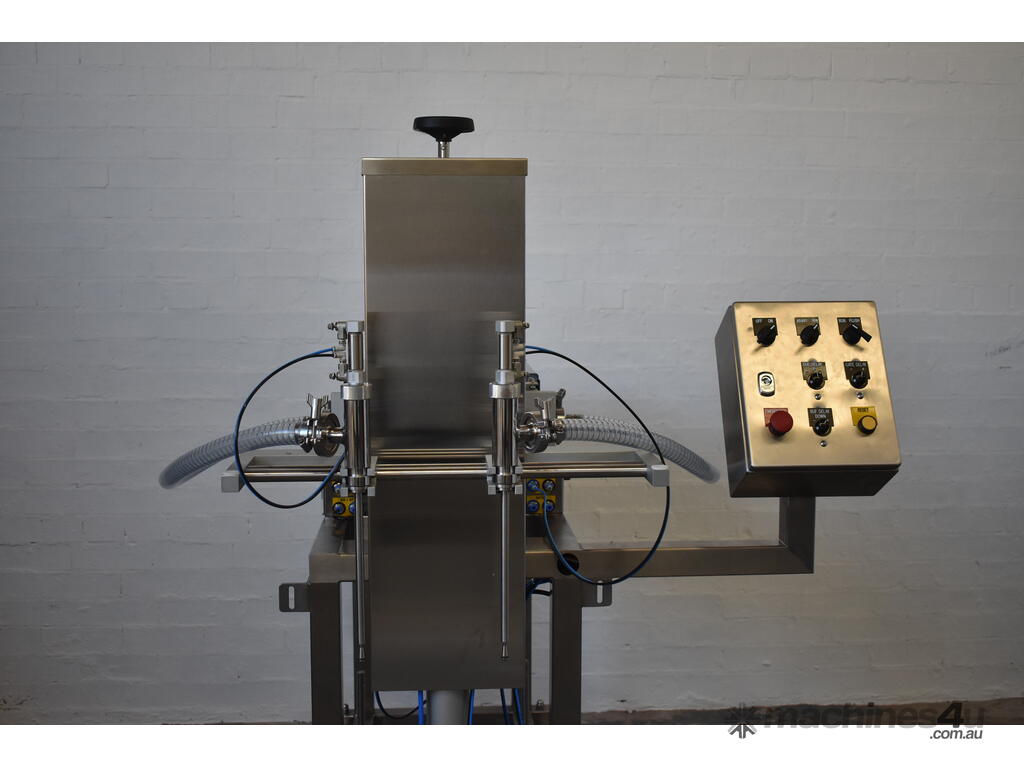

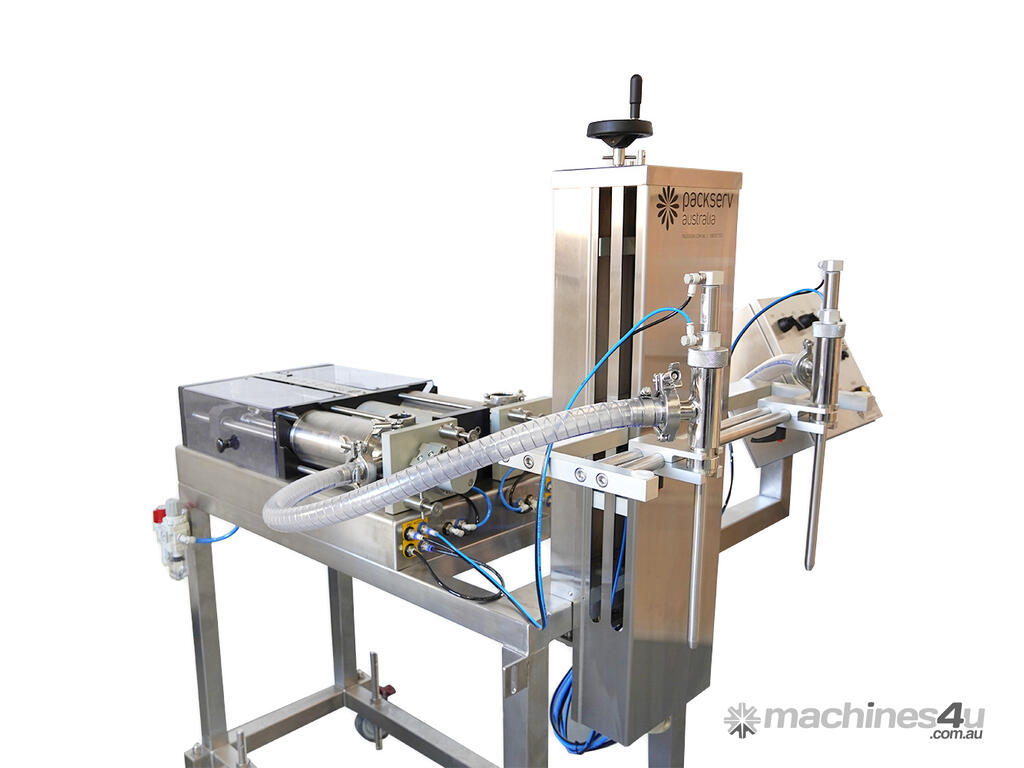

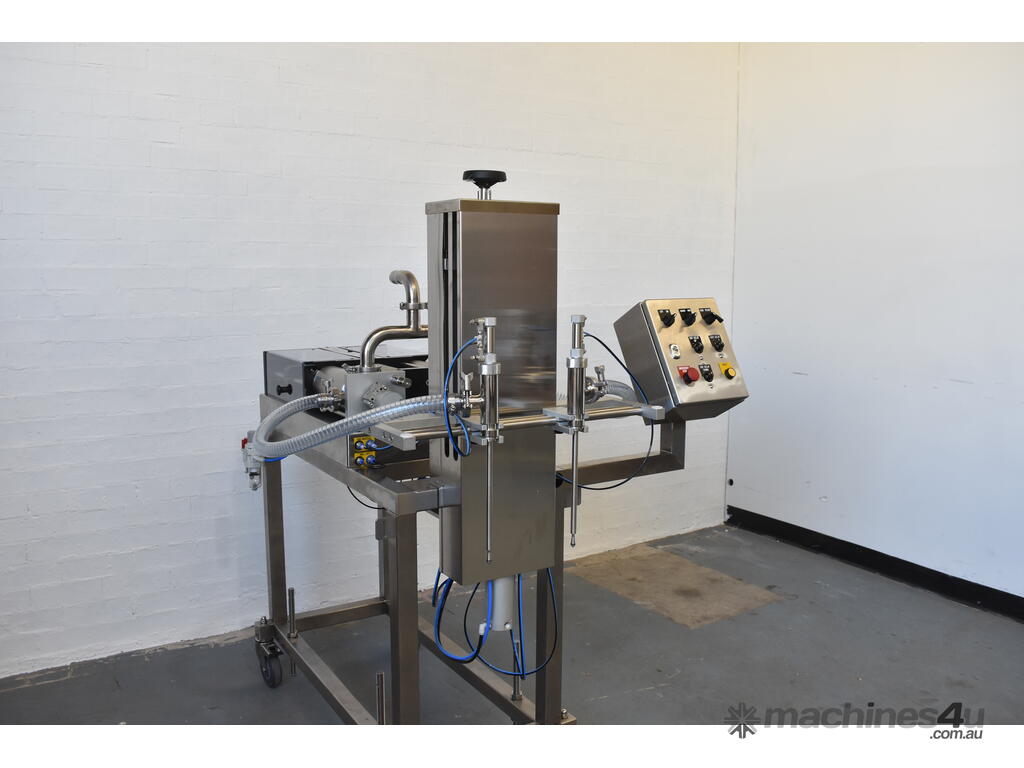

PACKSERV Twin Head Auto Filler

The Packserv PFM-3-2C Auto Twin Head Up Filler is a semi-automatic liquid, paste and cream filling machine that is both user friendly, versatile and features 2 separate filling nozzles.
It has been designed for use as a heavy duty, all pneumatic automatic inline bottom up filling machine, which offers reliability and ease of use with tool-free cleaning and parts change-over and is both user friendly and versatile.
The heavy duty, all pneumatic design of the PFM-3-2C is compact, reliable and easy to clean.

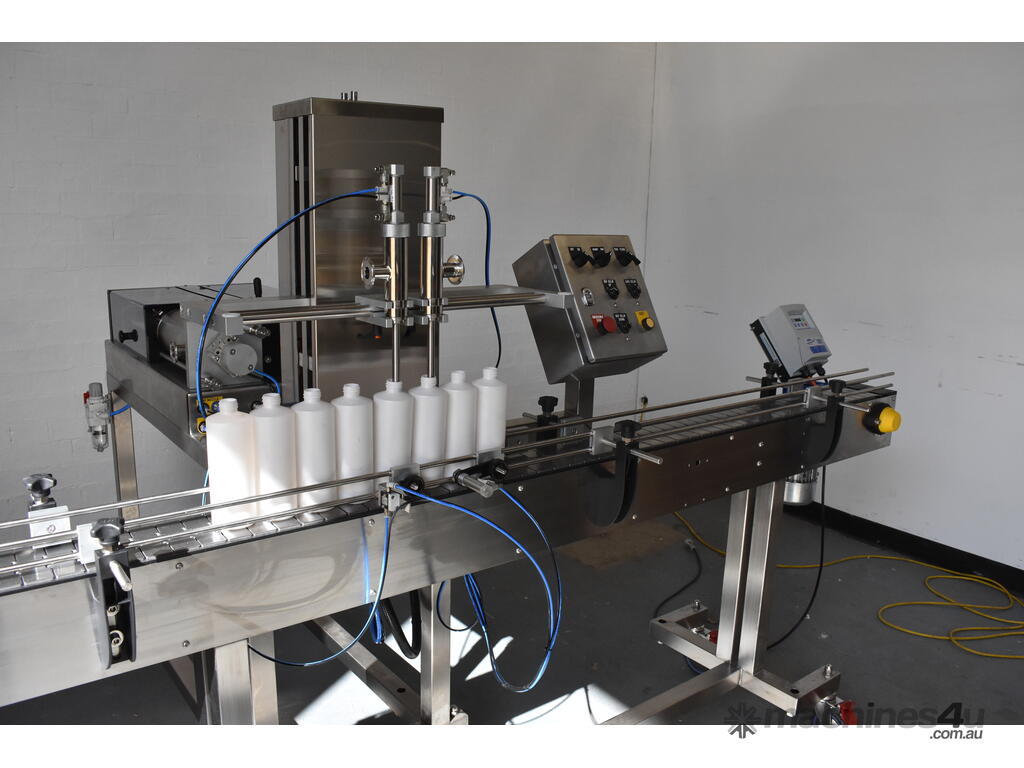

it is designed with a completely automatic function for use in a full-scale production line. The machine is trolley mounted, with lockable castors allowing connection to a continuously running slat conveyor.

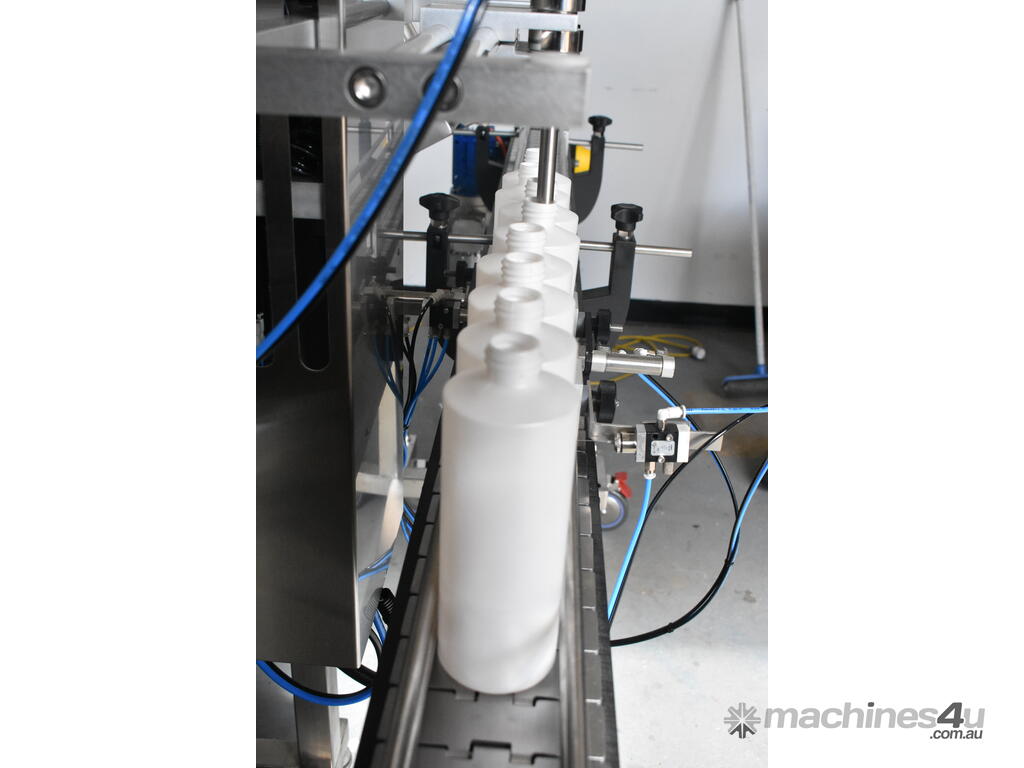

The PFM-3-2C also comes complete with a “no bottle no fill” safety device and container gating system.

The PFM-3-2C also comes as standard with positive shut-off nozzles and a bottom up fill assembly. The valve system of the PFM-3-2C comfortably handles bottling hot or cold products from thin liquids to creams and thick pastes. An optional valve is also available for particularly hot fill applications i.e., those above 650C.

This filling machine will even package products with suspended solids; a task that usually requires two different types of filling machine or an expensive change of parts.

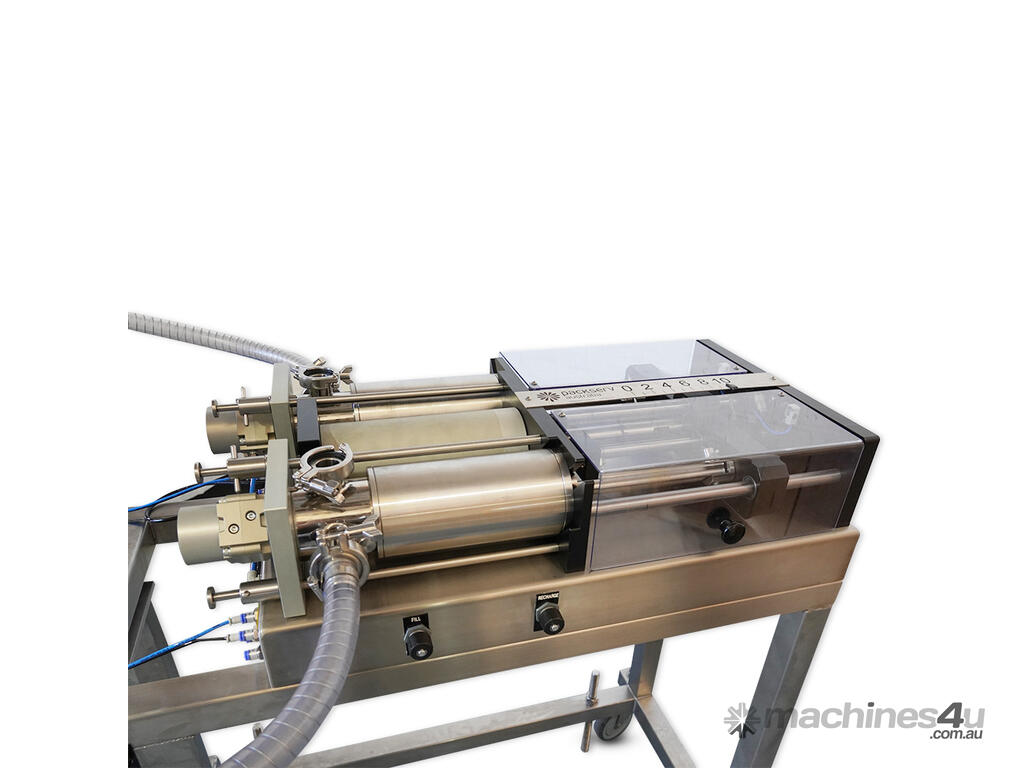

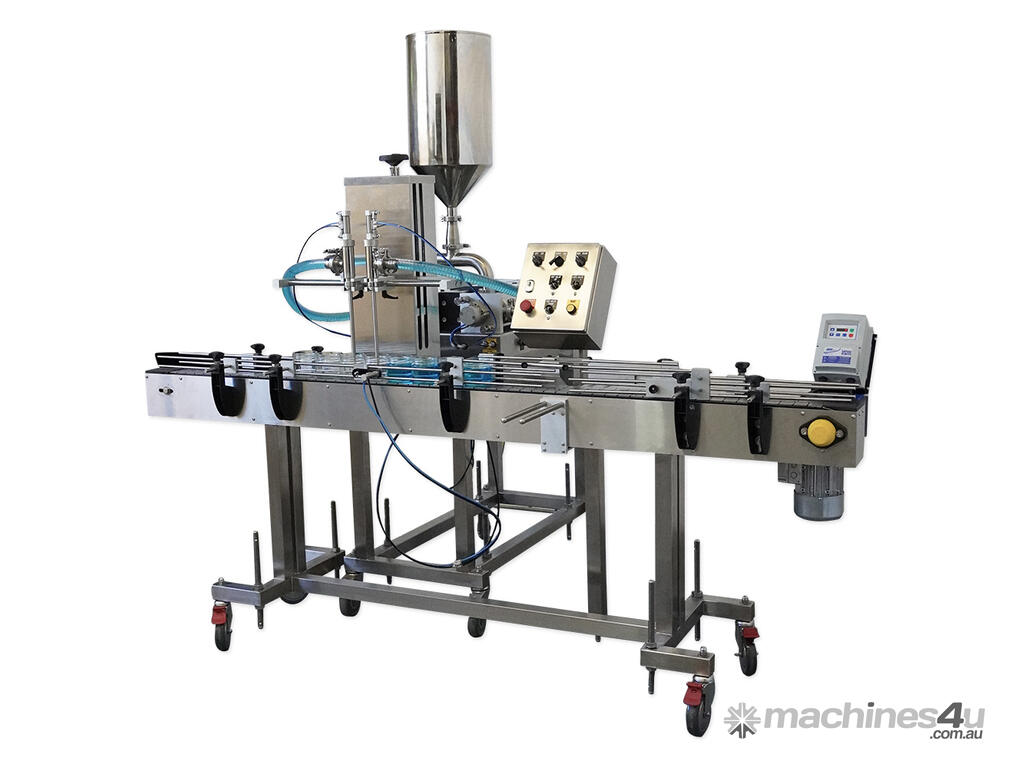

The cylinder design of this Twin Head Auto Filler enables quicker dismantling and easier, more thorough cleaning of cylinder wet parts. A variety of product supply methods can be used to suit the nature of the product, such as ‘twin port hoppers and bespoke inlet assemblies.




Weight 75 kilograms
Length 1400mm
Width 1000mm
Height 1700mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type Bottles, jars, tubs etc (any container type that will stand on a conveyor)
Mounting: Trolley mounted with lockable castors (mounts onto inline conveyor system)
Industries All food, pharmaceutical and industrial applications
Air Pressure 600kpa (80psi)
Units Per Minute 20-60UPM (guide only)
Noise Medium
Flameproof Yes

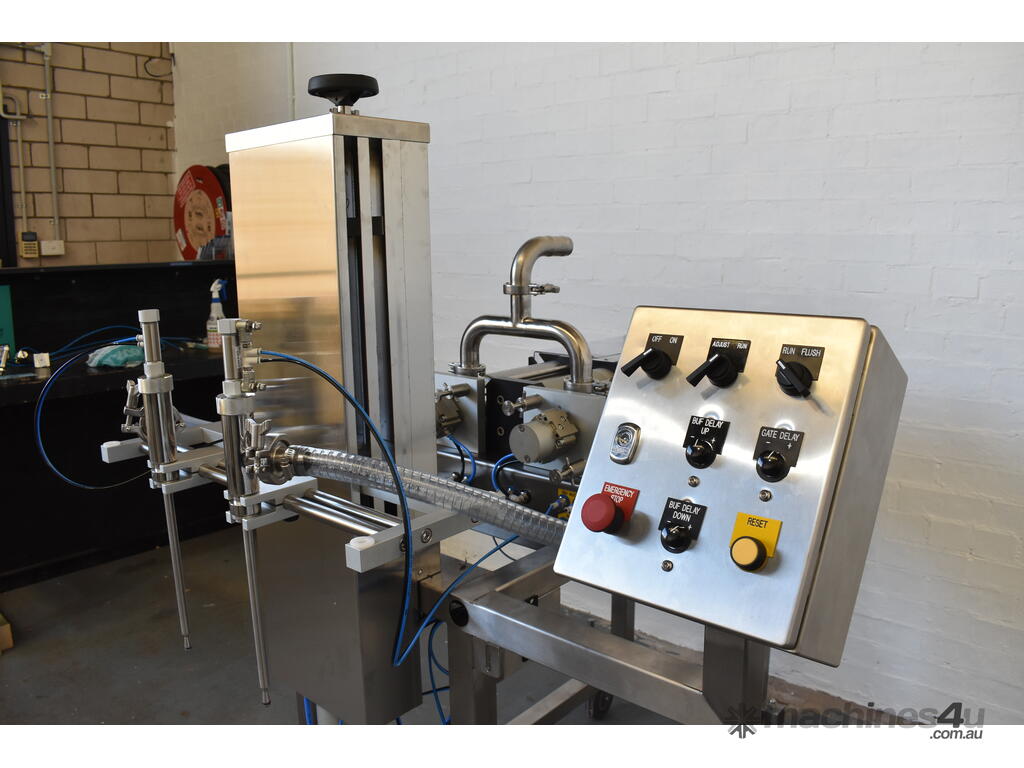

Timer Control Pneumatic
Speed Totally speed adjustable for all functions
Fill Range 2.5ml to 1250mls fill range, single shot
Fill Temperature Cold and hot fill
Fill Type Liquids, creams, lotions (suspended particles acceptable)
Not Suitable Products Dry powder and granules
Benchtop Mounted to mobile welded frame featuring castors/wheels
Machine Cleaning Easy to disassemble for full wash up
Volume Fully adjustable
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 25ml, 50ml, 125ml, 250ml, 500ml, 750ml or 1250ml
Automatic Function: Yes, designed to be completely operator free

- Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation suitable for use with flammable products
- Features a frame mounted on castors/wheels for easy manoeuvrability
- Easy volume adjustment while running a single cylinder
- Adjustable piston fill and recharge stroke speed
- Simple tool-free dismantling makes for easier cleaning
- Quick changeover of products and parts
- Suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Various methods to feed product to machine available

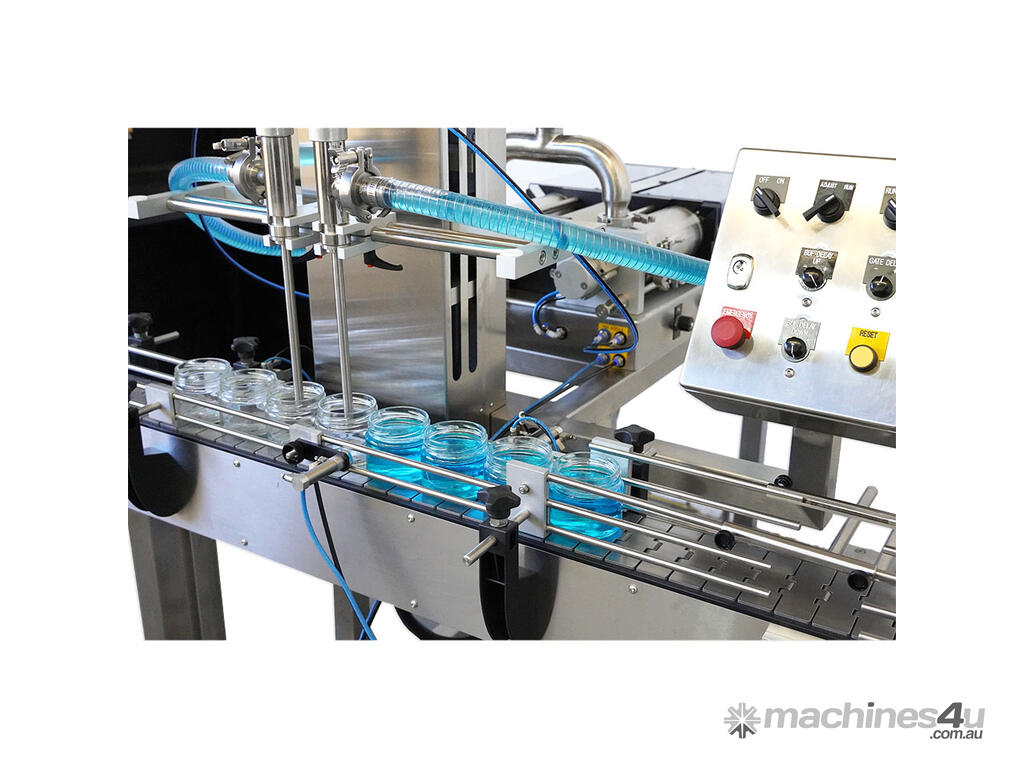

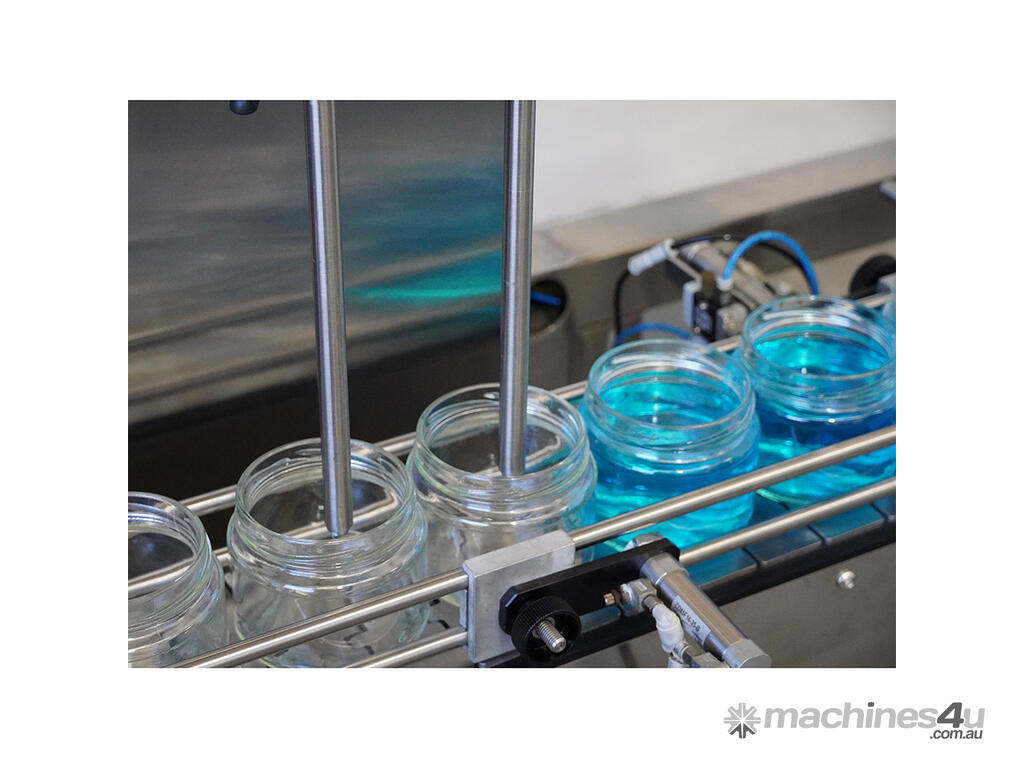

- Features bottom up fill (BUF) to reduce foam/froth/bubbling of products

Mounting:
Frame featuring castors


Purchase Inclusions:

1 x base machine
1 x installed bottom up fill assembly

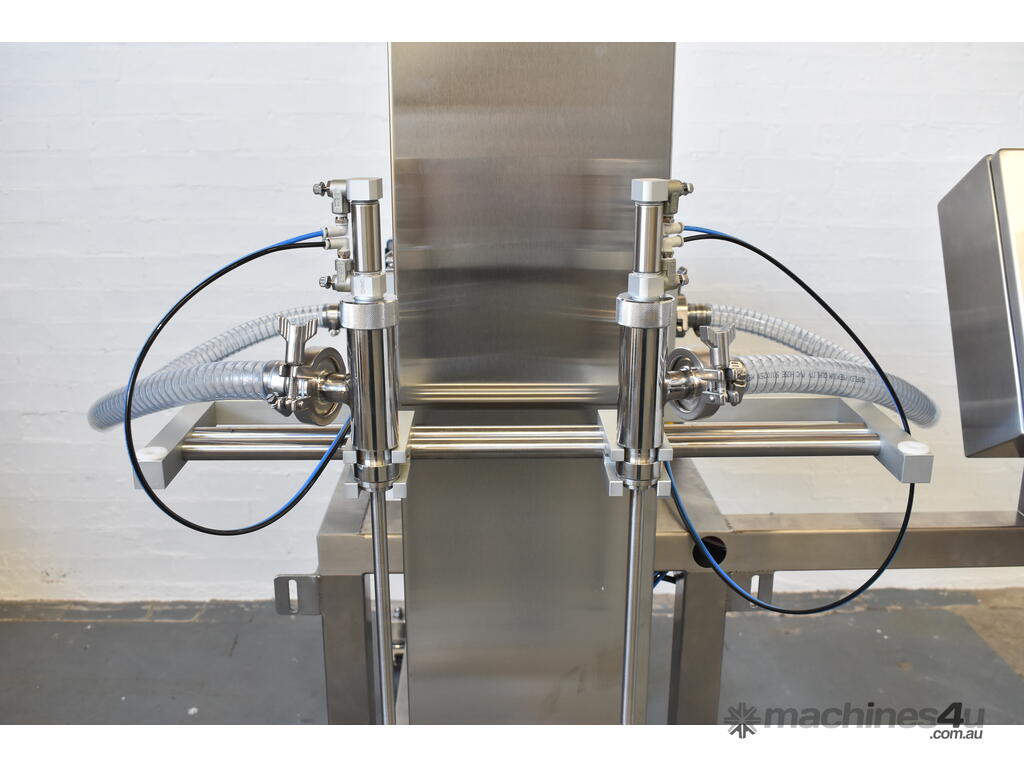

1 x positive shut off nozzle kit (includes 2 x positive shut off nozzles)
1 x set of automatic attachments GDS-A (includes 2 x gates, 2 x sensors and all associated brackets)
1 x set of 4 castors and levelling jacks
2 x rotary valve (includes seals)
2 x Rotary valve body (including suckback pin)
2 x curved outlets
2 x hose barb
6 x triclover clamps (including seals)

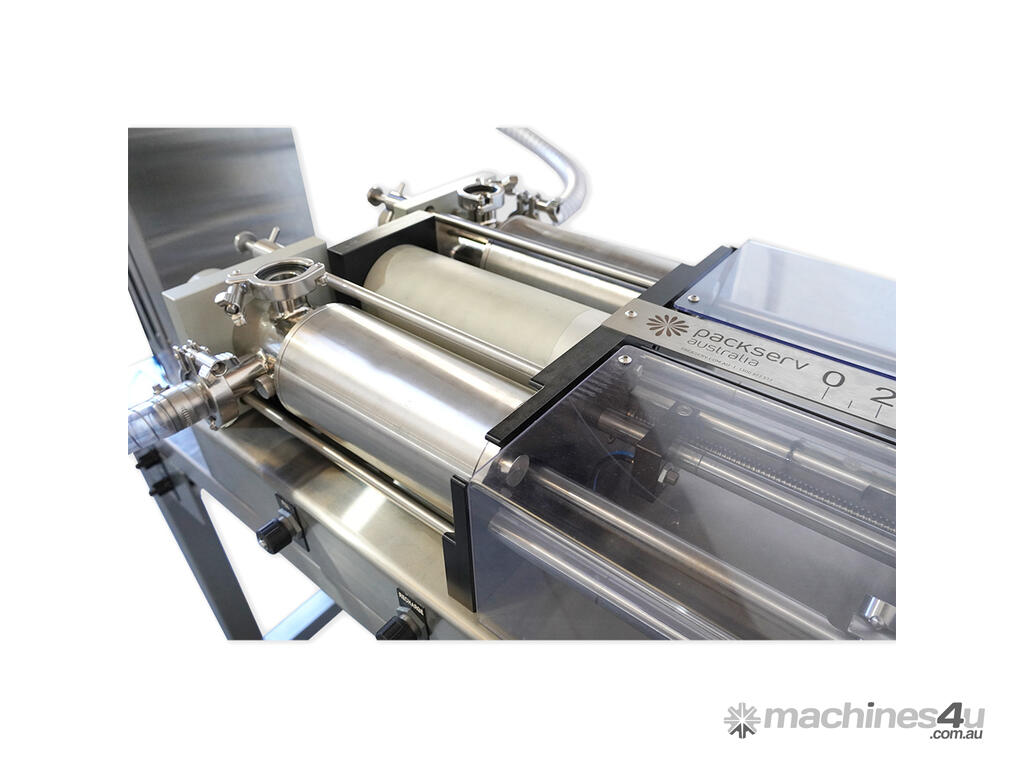

2 x product cylinder (25ml-1250ml options available)
2 x 1 inch transfer hose & fittings
1 x height adjusting handle
