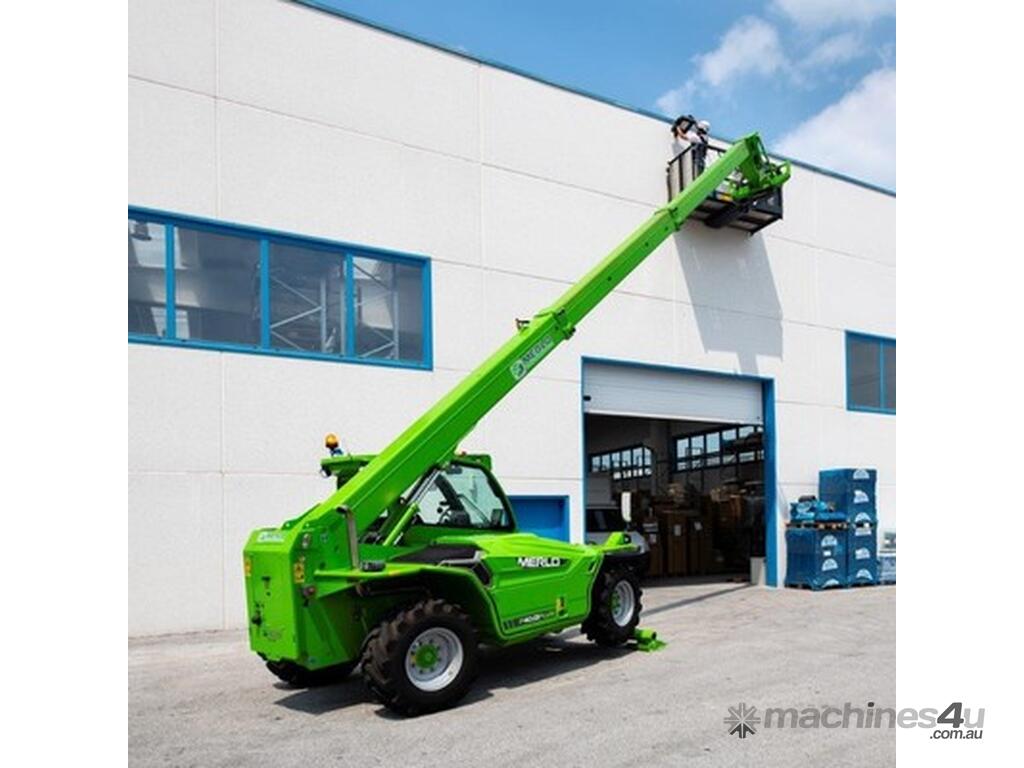

New merlo Telehandler for sale - PANORAMIC 40.17 EE

Proudly representing Merlo in North East Victoria and Southern NSW

Always first in class.

The Panoramic 40.17 offers ease of use and essential features. This model has been developed to meet the needs of every construction site, rental company and large construction company, ensuring record performance and economic efficiency. The PANORAMIC models are easy-to-use machines that ensure reliability and performance. The new high-visibility cab, the four-wheel drive, the high ground clearance and the 55kW-75HP engine guarantee excellent results in terms of performance, comfort and safety.


PERFORMANCE
Everything at your fingertips

Exclusive precision:
Guarantees maximum movement precision, thanks to the hydrostatic transmission, which ensures millimetric variations in the machine's movements and load's positioning.

Compact and lightweight:
The Merlo telescopic handlers are compact and lightweight to reduce manoeuvring space and impact on the ground. These features guarantee safety, manoeuvrability, productivity and lower consumption.

Visibility:
Merlo telescopic handlers are designed to offer the best visibility on the market, ensuring faster and safer operations.

STABILISERS Chassis levelling:
The tilt correction system, integrated into the chassis, is available as standard on this model. It allows the operator to offset the ground slopes to work in total safety. On sloping terrain the operator can correct the lateral inclination by 8% on each side, reaching 24% with the combined action of the stabilisers. This allows the telescopic boom to be moved out perpendicularly to work in conditions of maximum safety.

Boom side-shift:
This model is equipped with the exclusive boom side-shift, a system integrated into the telescopic boom that allows the load to be positioned without further manoeuvring, consequently saving time, avoiding stress and improving the machine's productivity.

The system allows for a boom side-shift up to 870 mm.

COMFORT
The best workplace

Quiet and comfortable:
The new cab, of generous dimensions, is mounted on Silent Blocks, which drastically reduce vibrations, guaranteeing maximum comfort and maximum visibility for the operator.

Quick accessories changeover:
The Tac-Lock system for hydraulic clamping of the attachments further improves operating comfort.

Protection of the handled load:
The boom suspension system (BSS) is available as an option, which protects the load during transfer and maintains a high level of driving comfort on rough terrain.

SAFETY
Not just feelings

Record-breaking safety:
The Merlo integrated safety system controls the operating parameters in real time, allowing the operator to work in peace.

Certified cabs / Certified protection:
The Merlo cab is FOPS - Level II - and ROPS certified, to guarantee a high level of safety for the operator.

Everything under control:
This model is equipped with the exclusive new generation CDC (Dynamic Load Control) Light safety system. The dynamic load control system checks the safety parameters of the telescopic handler in real time and allows the operator to work in total safety, making the most of the telescopic handler's potential and the attachment used.

EFFICIENCY
Simpler and smarter

Simple and precise operations:
The entire range is equipped with hydrostatic transmission, which makes the work phases simpler and more precise. Moreover, the dry disc brakes limit the absorption of energy, thereby reducing the machine’s fuel consumption.

THE WIDEST CAB OF THE CATEGORY

The cab is designed to guarantee a record level of comfort for our customers. At 1010 m, it is the widest in the category, but careful attention has also been given to acoustic and thermal comfort. Furthermore, the low-frequency hydropneumatic shock absorber system allows for the drastic reduction of vibrations inside the passenger compartment and in the driver's seat.

Air conditioning:
The air conditioning system is completely new and has been developed according to automotive standards, halving the warm-up and cool down times to guarantee the optimal temperature in all conditions. The Merlo cab can reach an optimal internal temperature, even in extreme weather conditions. The inlet vent is placed on the side of the cab, away from potential sources of dust and dirt to maximise the service life of the filters. Inside there are 8 vents, three of which are dedicated to defrosting the windscreen, for optimal climate comfort.

ROPS/FOPS:
The Merlo cab is FOPS - Level II - and ROPS certified. This ensures a high level of safety for the operator.

Pressurisation:
The latest generation Merlo cab incorporates a pressurisation system compliant with ISO 10263-3.

Visibility:
Merlo telescopic handlers are known worldwide for their extraordinary visibility, thanks to the large 4.3 m2 glass surface and the exclusive roof design.

Door that can be opened at 180°:
Exclusive door that can be opened at 180° for easy access and featuring an independent upper window: air circulation, visibility and direct contact with those working outside are assured without compromise.


POWERTRAIN

The Merlo designers have adopted technologically advanced diesel engines, advanced hydrostatic transmissions and axles equipped with dry disc brakes, which contribute to reducing power absorption. Diesel engine/transmission management is electronic to optimise performance and minimise energy consumption.

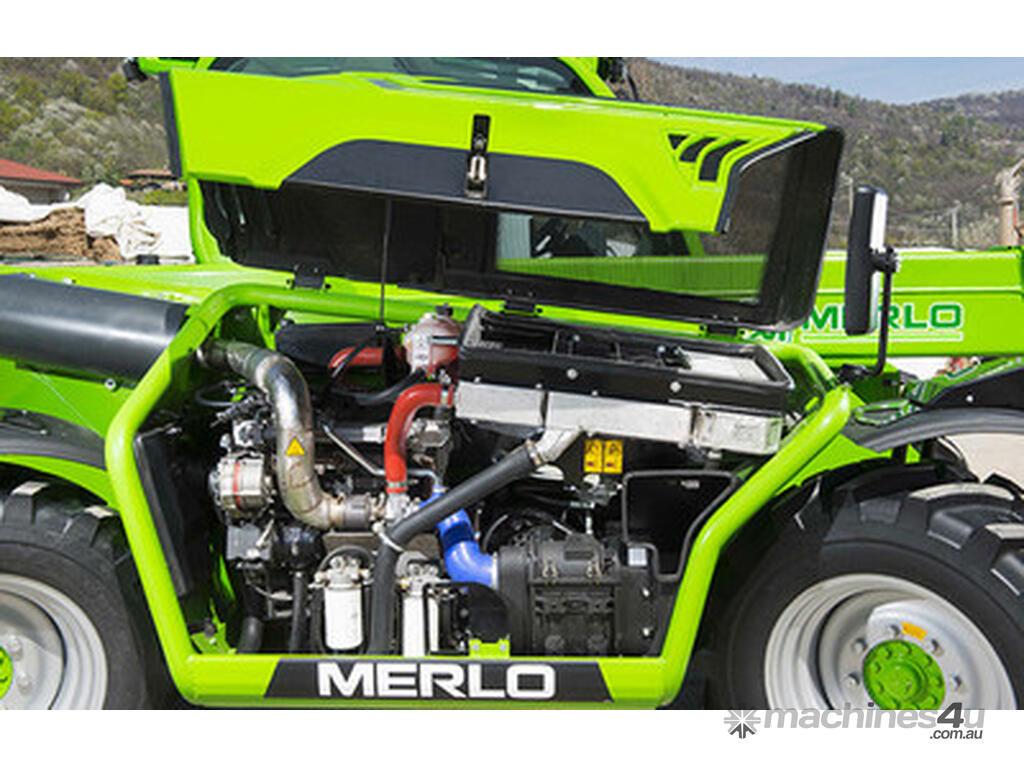

Kubota Tier III engine:
This model is equipped with a 100 HP (74kW) four-cylinder Kubota Stage III engine. The engine complies with anti-pollution regulations with the DOC (Diesel Oxidation Catalyst). This guarantees simplified maintenance and less worries for the operator.

40 KM/H Speed:
This model offers a maximum speed of 40 km/h.

Load sensing:
The variable displacement pump with the Load Sensing hydraulic distributor guarantees higher performance, more efficiency and increased productivity while simultaneously limiting consumption and component wear.
The transmission system is managed in a way that guarantees a high static starting torque, smooth progression and an optimisation of cycle times and consumption.



AXLES

Merlo designs and produces its own axles internally, which are thus made and tailored to each application, enhancing performance and safety for each model.

Portal axles:
The portal axles are made with a crown wheel and pinion gear reducer and ensure ample ground clearance. The kinematic structure reduces noise and pitch during braking and acceleration, improving cornering and transferring under load.

Three steering modes:
Merlo telescopic handlers offer three steering modes: only the front wheels, pivot steering and crab steering.
This exclusive solution adopted on the axles guarantees the maximum steering angle to perform manoeuvres in tight spaces.

Four-wheel drive:
The driving wheels, which are always engaged, are synonymous with maximum traction in all operating conditions.

Braking:
The integral servo-assisted braking system acts on the four wheels for maximum safety in every working context. Parking brake: activates automatically when the engine is switched off or can be engaged manually from the cab.

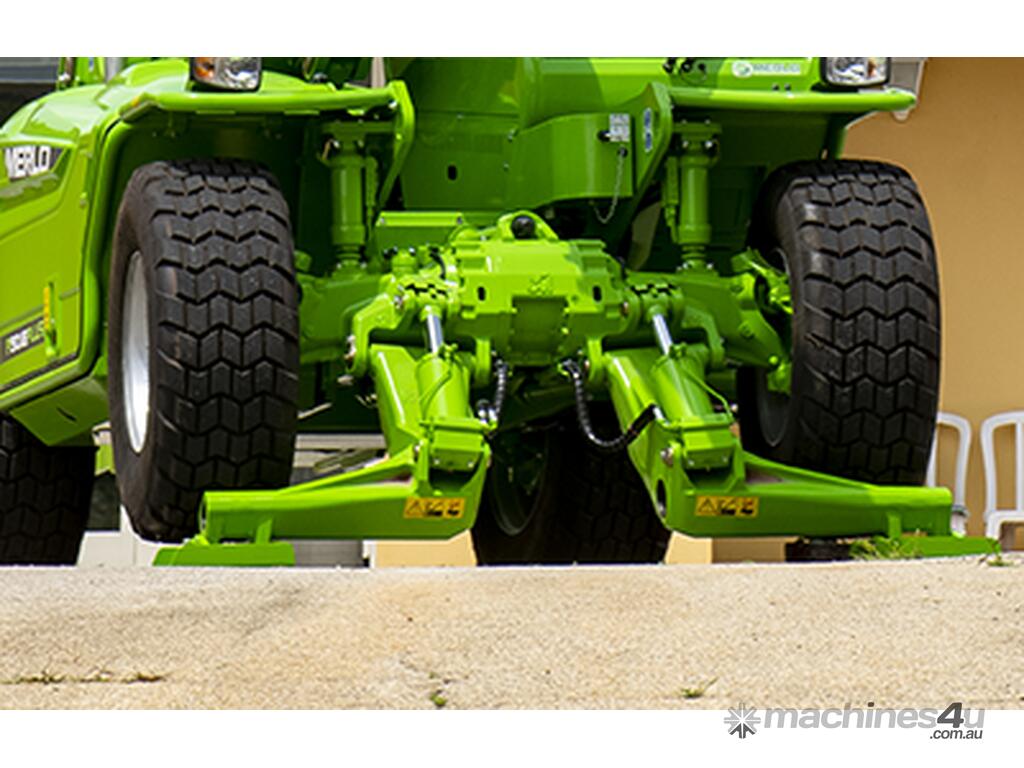

Stabilisers:
The PANORAMIC range’s stabilisers are simply structured to optimise fast and safe installation. The exclusive design of the stabilisers, developed to offer a high structural resistance, guarantees their limited encumbrance during the operating phases, always staying within the machine’s silhouette and limiting the visual encumbrances for the transfer phases. The independent control allows for the single operation of each stabiliser, providing easier positioning on the ground. Moreover, the shape of the support foot guarantees excellent anchorage to the ground, even in the case of soft or steep soils.

BOOM

The Merlo designers have devised a sturdy, compact and lightweight telescopic boom, today a benchmark for design, load capacity and speed when carrying out work. The chosen steel is of the structural type with welds along the neutral bending axis, offering a rectilinear boom in any extension or loading condition.

Boom 16,6 m:

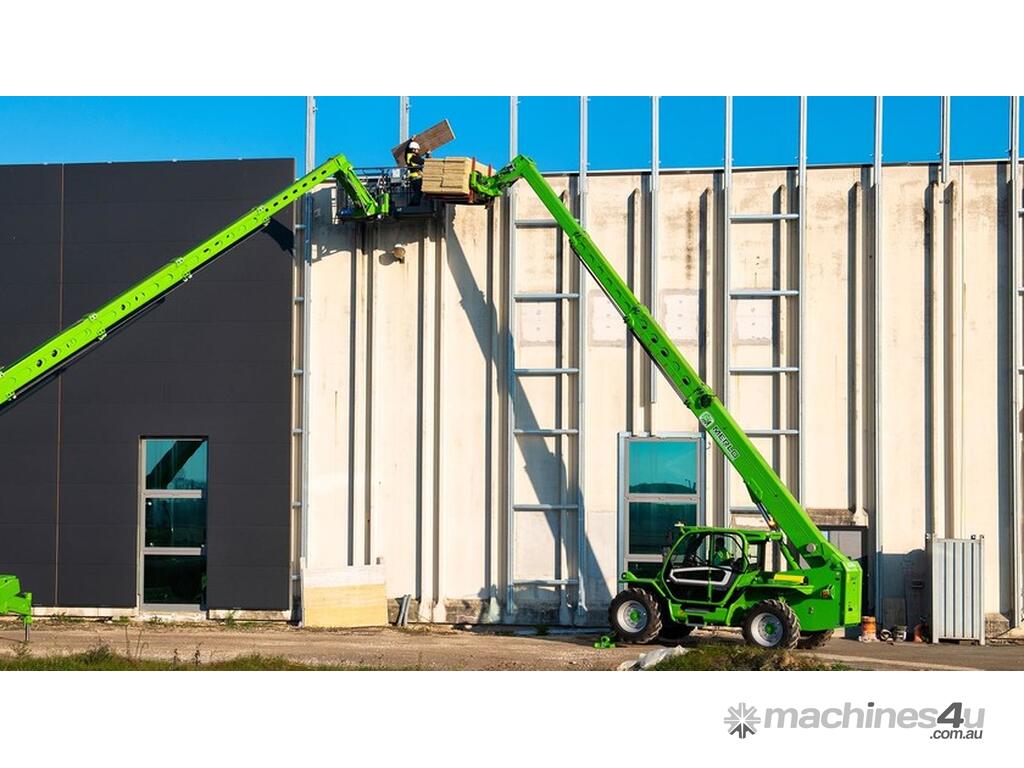

The boom consists of four sections: the maximum lift height is 16.6 metres for unrivalled versatility.
The components - including the boom extension cylinder, the hydraulic pipes and the electric cables - are housed within a cartridge structure inserted in the boom. This exclusive solution considerably increases the longevity of the components and makes the external shape clean and snag free, allowing for rapid maintenance operations.

ZM2:
The ZM2-type tool carrier carriage allows for all Merlo attachments to be connected. The hydraulic locking of the tools is carried out from the cab, while the hydraulic and electrical connections feature quick couplings.

Tac-Lock:
The attachments are easily replaceable, thanks to the exclusive Tac-Lock system for the hydraulic locking of the attachments, thereby improving operating comfort.

Hydraulic and electrical connections:
Hydraulic and electrical connections are available at the end of the boom, allowing for the movements of the various usable attachments to be operated from the cab.

Maximum Capacity (kg)
4000

Lifting Height (m)
16,6

Operating weight (kg)
11670

Standard Tires
400/70-24"

Width (mm)
2420

Height (mm)
2500

Lenght (mm)
5970

Boom side shift (mm)
+/- 435

Frame levelling (%)
+/- 8

Engine
Deutz TD2.9

Displacement/Cylinders
2900 / 4

Engine Power (kW/HP)
55,4 / 75

Emission standard
Stage IIIB, DOC

EPD
NO

Max Speed (km/h)
33

Hydraulic pump
LS

Flow / pressure (l/min - bar)
104 - 250

Cab Suspension
NO

PTO
NO

Number of speed
2

Turret Rotation
NO
