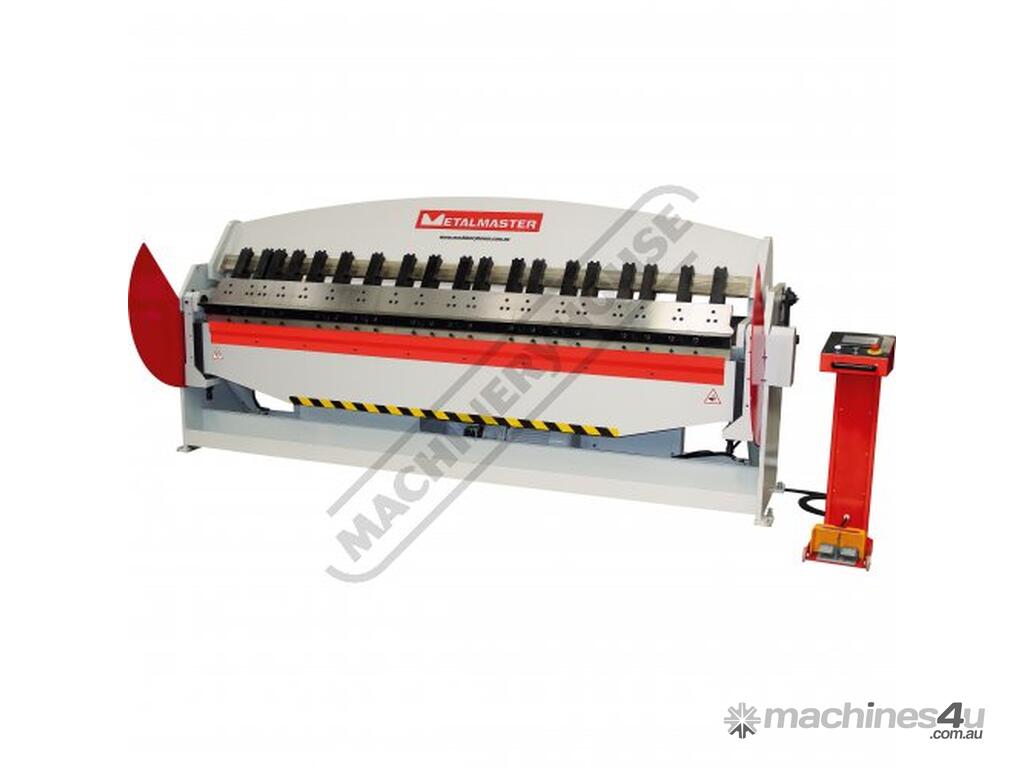

PB-1030T Hydraulic NC Panbrake - Ezy Touch Screen Control 3050 x 3.2mm Mild Steel Bending Capacity

METALMASTER PB-1030T Hydraulic NC Panbrake - Ezy Touch Screen Control 3050 x 3.2mm Mild Steel Bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S585T

The most recent edition to the Metalmaster Hydraulic NC Panbrake range now comes complete with a 7" colour touch screen control panel. The beauty of this Ezy-Touch screen design is it can store a massive 99 programs with 20 bend angles per program, and each bend angle allows you to fine-tune the material bend compensation. This feature simply removes the guesswork out and takes bending to the next level to achieve accuracy & repeatability every time. Another unique attribute built-in is a quick action head allowing adjusting for the different material thickness from 1mm to 3.2mm

The welded frame is constructed from heavy gauge steel for superior strength & minimal flex when operating under full capacity with extreme load. Metalmaster have thought outside the box when designing & manufacturing this machine as they have also made the clamp fingers extra long so you can bend up deep boxes or pans.

Features:
3050mm x 3.2mm bending capacity
Ezy-Touch NC Touch Screen Control features 99 programs each program has up to 20 bends & each bend has material compensation. It also incorporates a quick bend function for jobbing work
Auto cycle: after clamping bottom beam will bend to pre-set angle and return head unclamps to set position
Ezy-Touch NC programmable opening height & bending dwell timer ensures consistent bending angle
Quick action rapid head adjustment to optimise bend radius on 1-3.2mm material thickness
Heavy duty steel fabricated construction
Roving foot pedal incorporates control panel for maximum flexibility
High quality components ensure reliable performance for years of continuous operation
Extended fingers allows bending of pans or boxes to a depth of 200mm
Includes an adjustable rear manual backgauge also adjustable for tapered material
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Panbrake bender is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: S585T
MODEL: PB-1030T
Controller Type: NC EZY Touch Screen
Controller Type: Multiple Program
Bending Length (mm): 3050
Mild Steel Capacity (mm): 3.2
Stainless Steel Capacity (mm): 1.6
Material Clamping Type: Hydraulic Clamp
Material Bending Type: Hydraulic Bend
Bending Angle Indicator (deg): 0-125º
Backgauge Travel (mm): 1000
Motor (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): 3700 x 1540 x 1440
Nett Weight (kg): 3258
