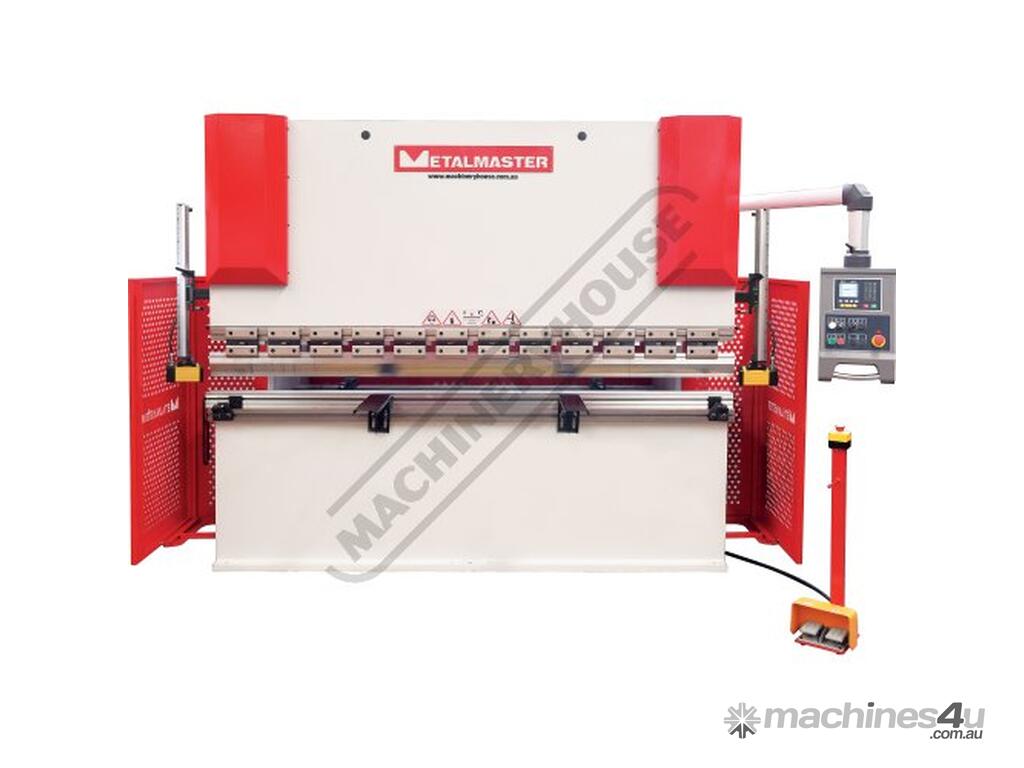

PB-135E Hydraulic NC Pressbrake 135T x 4000mm - Includes Laser Safety Guarding Estun NC-E21 Control

METALMASTER PB-135E Hydraulic NC Pressbrake 135T x 4000mm - Includes Laser Safety Guarding Estun NC-E21 Control 2-Axis with Leadscrew Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S907GL

Metalmaster Press brakes are designed and tested to provide precision bending capabilities demanded in industry. The main structural frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

Featuring a heavy duty adjustable torsion bar with a positive stop system ensures consistent and accurate bending.

All electrical components are of European quality supplied by leading brands such as Siemens, Schneider, Telemecanique, Merlin Gerin and ABB.

Note: Guarding systems are required on pressbrakes for OHS compliance.

Features:
Hydraulic synchronised positive stop design the ram stroke is controlled by a precision mechanical nut depth stop built into each cylinder electronically controlled by Estun NC-E21 digital control assuring accuracy and repeatability.
Mono-block steel frame design welded stress relieved and final machining ensures minimal bed deflection under load.
Bending Parallelism is ensured by the oversize top beam and heavy duty torsion bar.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Estun NC-E21 programmable digital control stores up to 40 unique programs with 25 automatic progressive bending steps in each individual program assuring production accuracy & repeatability every time.
Estun NC-E21 programmable leadscrew back gauge system simply enter the desired measurement into the controller and press start the back gauge then will move quickly into the position you have requested.
Operator adjustable stroke open height & mute height switches enables increased productivity
Adjustable bending pressure control allows the operator to quickly and accurately set the pressure required for different material. This user friendly system incorporates hydraulic overload protection.
European style Intermediate top tool clamping system featuring an adjustable wedge clamping system for crowning as well as a safety key to stop the punch dropping when changing punch positions.
Segmented heavy duty 86° offset top punch is segmented for selective bend width applications and offset for return bend clearance.
Multi vee ('V') bottom die is made from one 4000mm solid die block design to handle heavy plate safety edge vee ('V') is incorporated in bottom die block.
Sliding front material sheet supports enabling a wide range of material sizes to be aligned and supported at the required height. This feature is achieved with a "T" slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
Rear sliding safety gate with micro switch combined with access panels placed at each end of machine allows the operator to clearly view tooling and work piece during the bending operation Metalmaster specially design gates to suit Australian safety requirements
The vertical top beam slides are treated to provide greater wear resistance and increased accuracy.
Mild steel capacity is rated on hot rolled material with 250MPA


Pre-Commissioning:
1. Press brake is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- ESTUN NC- E21 control mounted on a swivel pendant for optimal ergonomics
- Adjustable front sheet support arms
- Emergency stop buttons strategically located on control panel and foot control
- Mobile dual operation foot control
- Segmented 86° offset top punch tooling
- Solid one piece four way multi vee (V) die block
- Top tooling tool intermediate holder system with wedge type adjustment
- Powered leadscrew back gauge with 520mm travel operated by Estun NC-E21 control
- Oil tank level indicator
- Metal constructed safety guarding
- Integrated hydraulic system allowing rapid approach speed switching automatically to slow bend



Specifications:
ORDER CODE: S907GL
MODEL: PB-135E
Control Unit (Type): Estun NC-E21
Nominal Pressure - Tonnage (Ton): 135
Nominal Pressure - Kilonewtons (kN): 1250
Length of Work Table (mm): 4000
Distance Between Columns (mm): 3200
Throat Depth (mm): 320
Maximum Open Height (mm): 400
Ram Stroke (mm): 125
Machine Axis (No.): 2
Safety Guarding System (Type): Laser System
Backgauge Travel (mm): 520
Table Bed Crowning System (Type): ~
Motor Power (kW / hp): 7.5 / 10
Motor Voltage (V): 415
Floor Space Requirements (L x W x H) (mm): 4700 x 2000 x 2600
Nett Weight (kg): 8325
