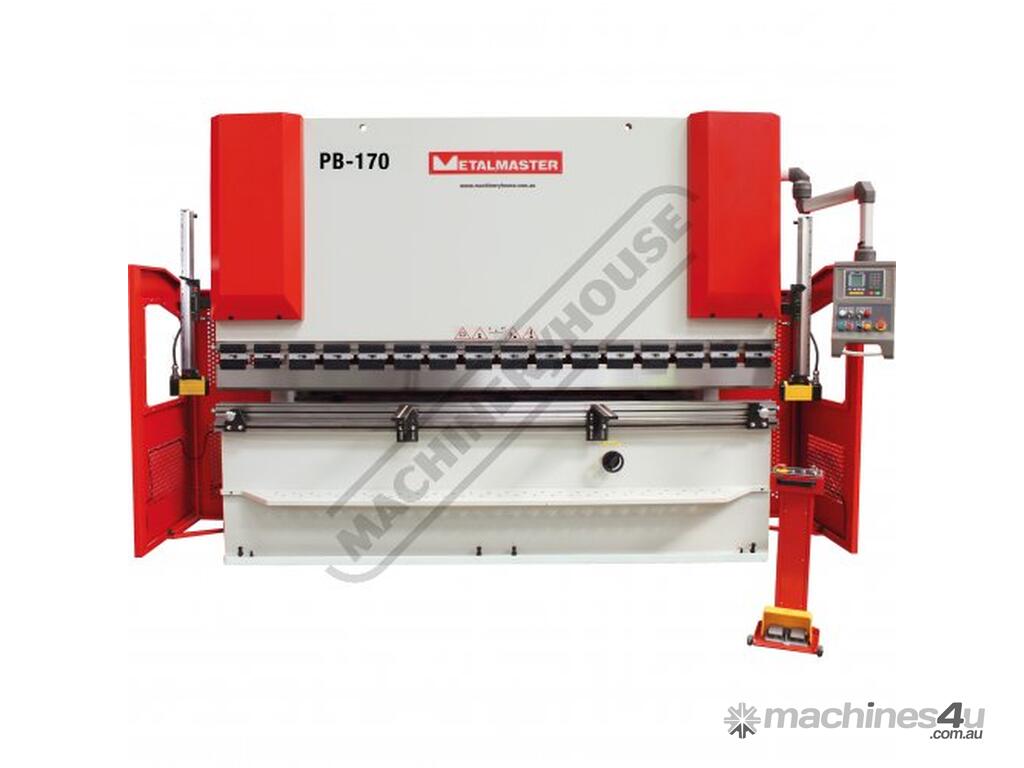

PB-170B Hydraulic NC Pressbrake 176T x 3200mm - Includes Laser Safety Guarding Estun NC-E21 Control

METALMASTER PB-170B Hydraulic NC Pressbrake 176T x 3200mm - Includes Laser Safety Guarding Estun NC-E21 Control 2-Axis with Ballscrew Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S909GL

MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in an affordable price, representing value for money and quicker return on investment.

All electrical components are of European quality supplied by, Telemecanique, Merlin Gerin and ABB

Features:

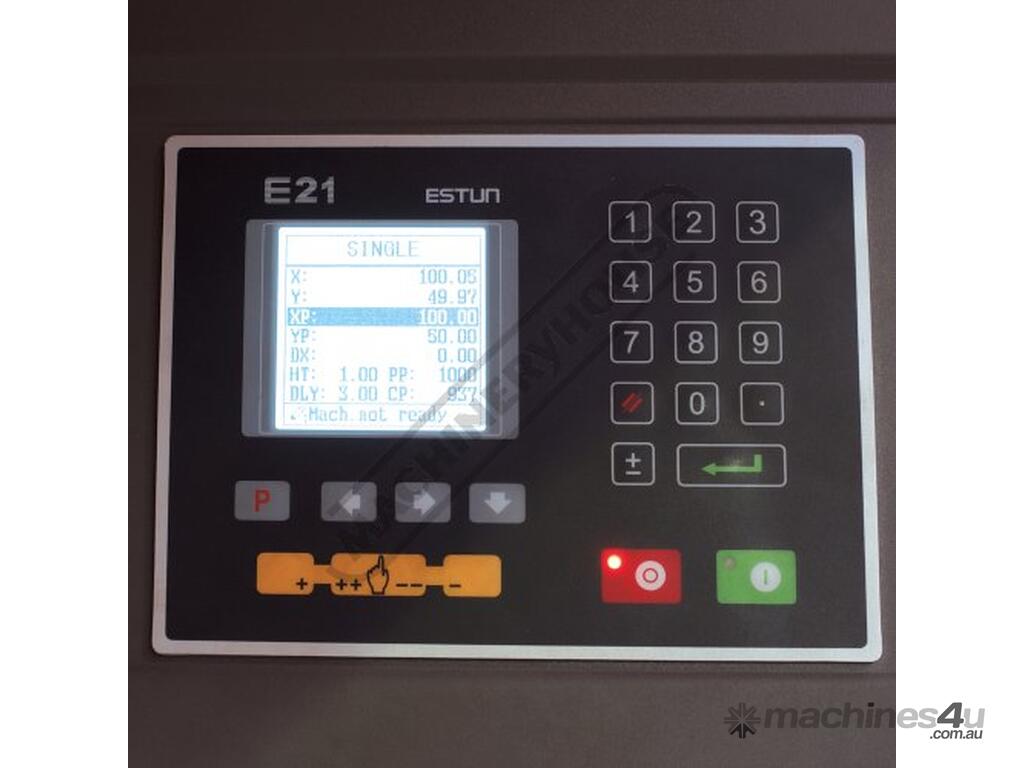

ESTUN E21 NC Controller
Stores up to 40 programs with 25 bending steps per program
Position control of Backgauge
Backgauge retract function
Bottom stroke dwell timer
Work piece counting
One-key backup / restore
LCD Display

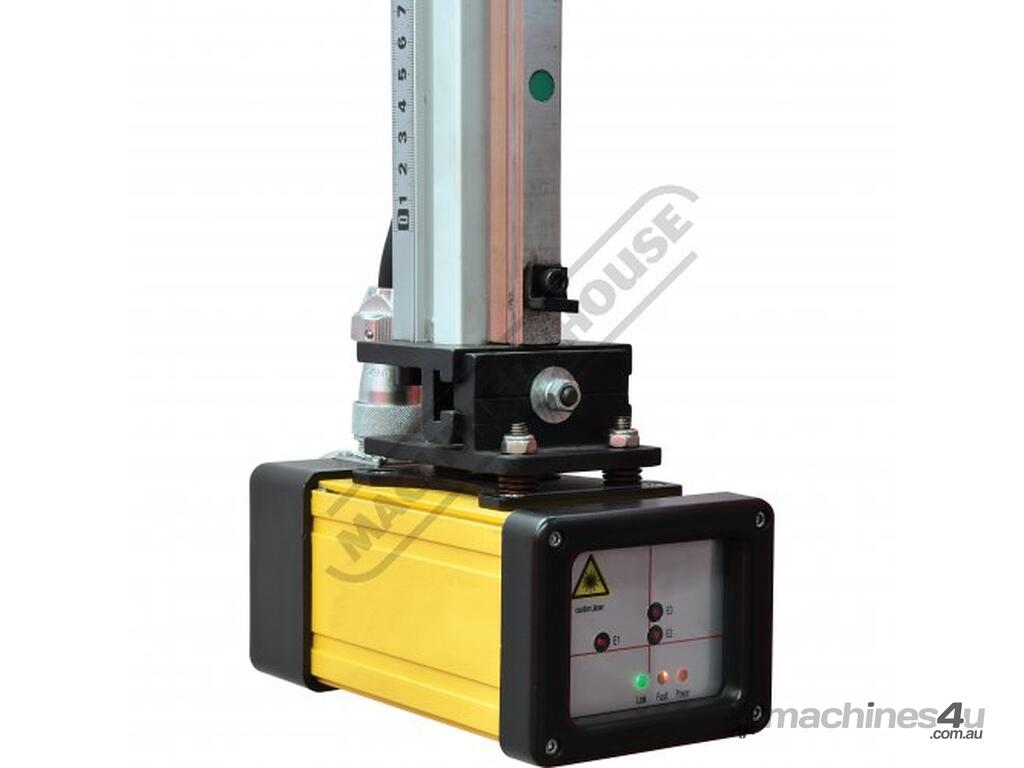

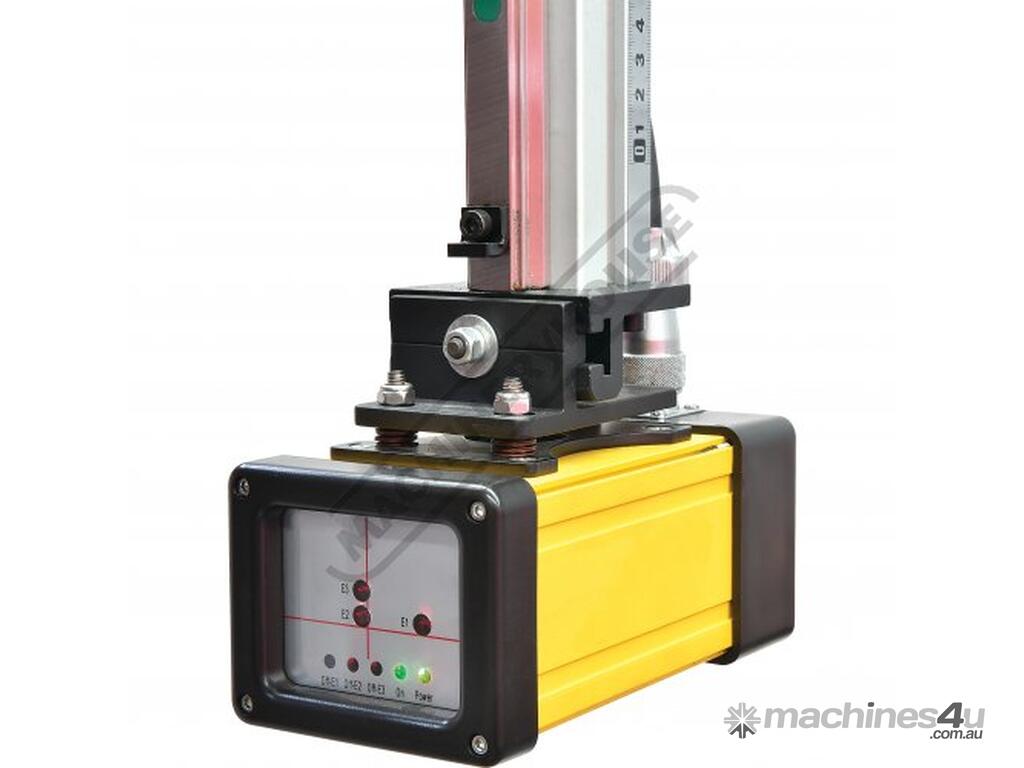

LASER GUARDING -
Laser guarding provides close proximity operator protection allowing faster bending cycles promoting higher productivity
The Laser system is compliant with requirements of EN61496-1 EN61496-2 ISO 13849-1 Ple as well as AS/NZS 4024.1503
Australian designed electrical system featuring dual channel monitoring on all essential machine functions
Top beam speed & stopping performance are all real time monitored to ensure compliance with safety regulations

METALMASTER Pressbrakes -
Dual Hydraulic rams balanced by a heavy duty torsion bar Electronically controlled by the E21 NC control assuring accuracy & repeatability.

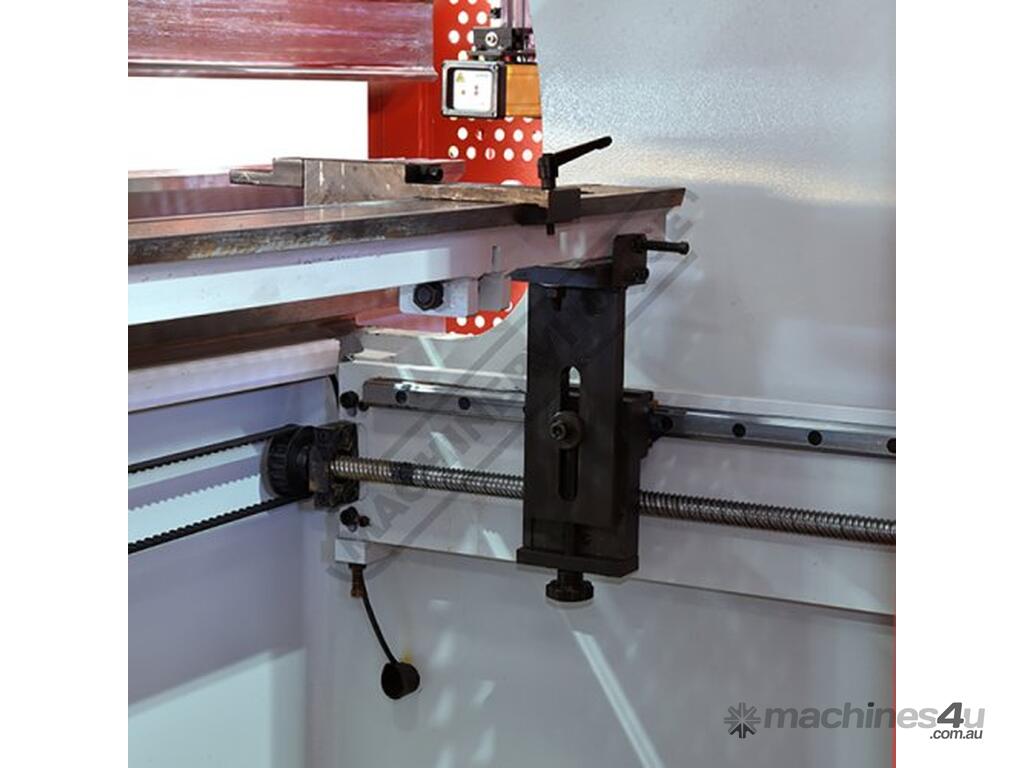

High performance side mount back gauge with linear guides & ballscrew provides fast and accurate positioning

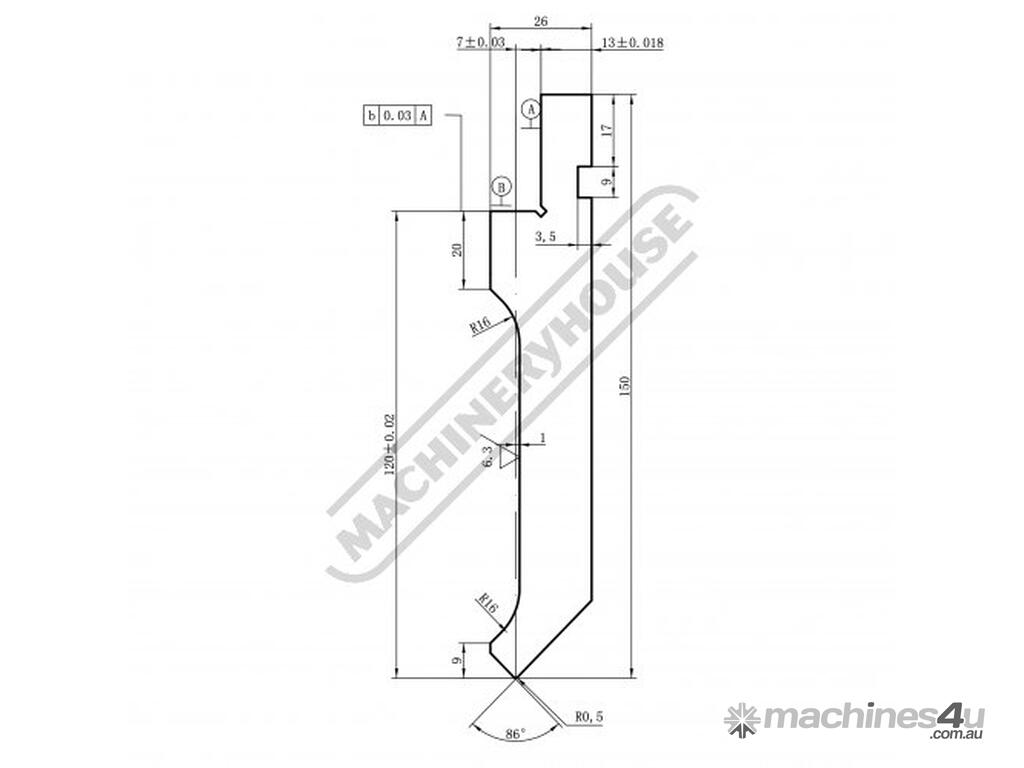

Segmented heavy duty 86° top punch

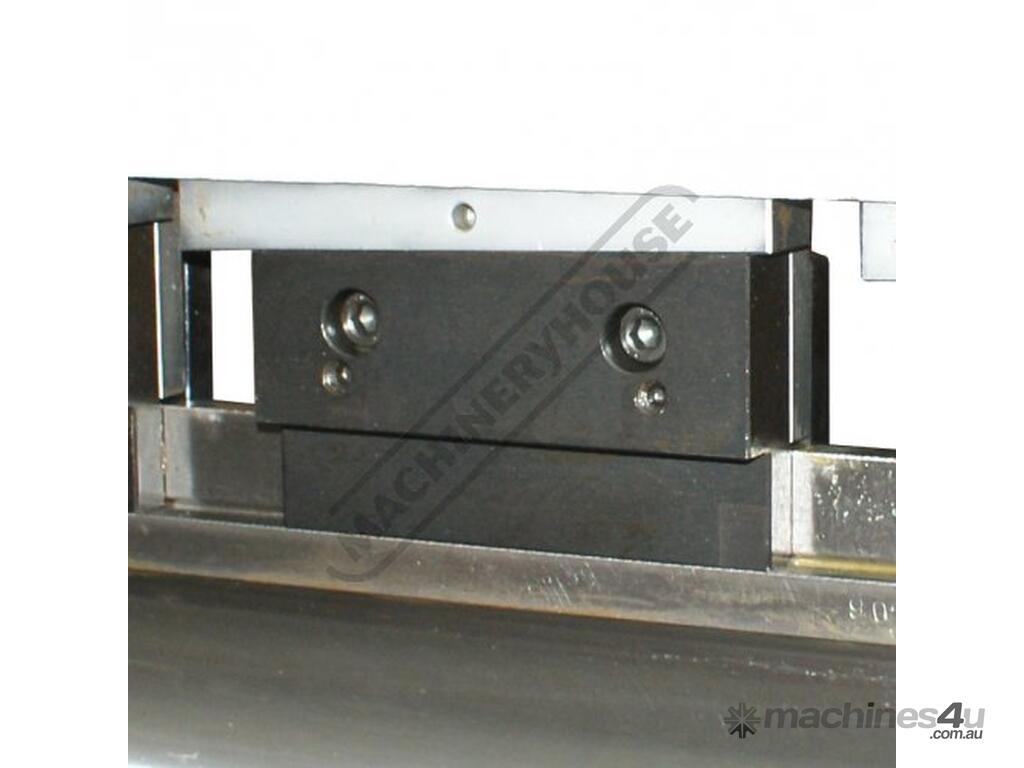

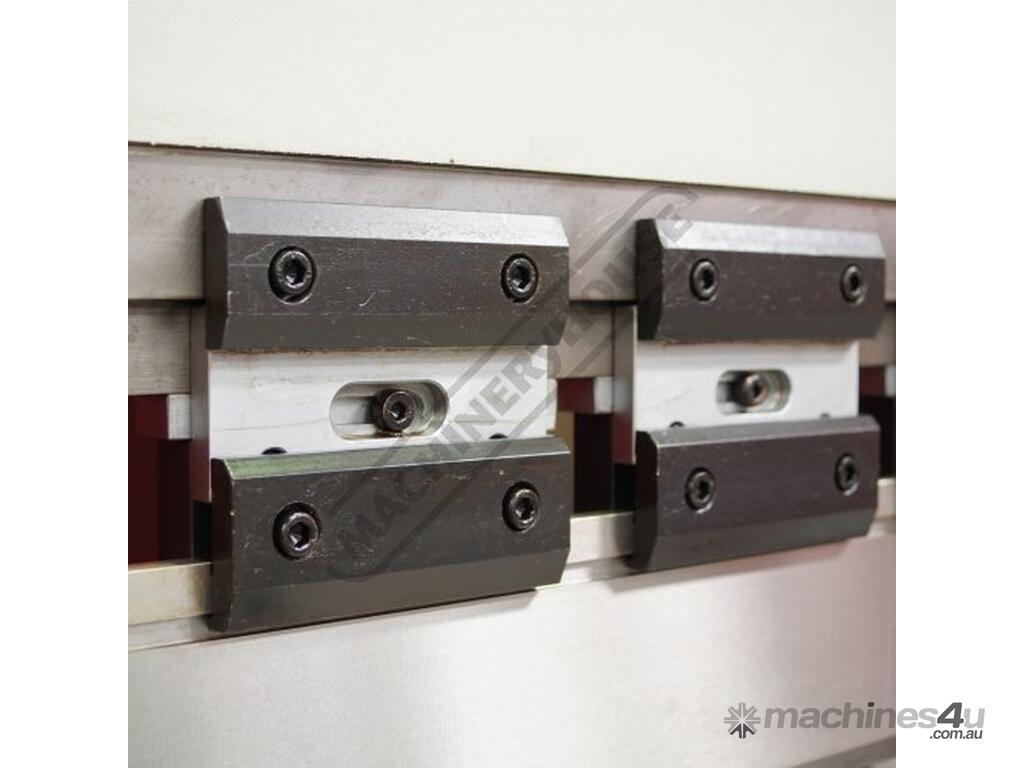

European style punch holder with an adjustable wedge clamping system for crowning
Multi vee ('V') bottom die is made from one solid 3200mm die block design to handle heavy plate safety edge vee ('V') is incorporated in bottom die block.

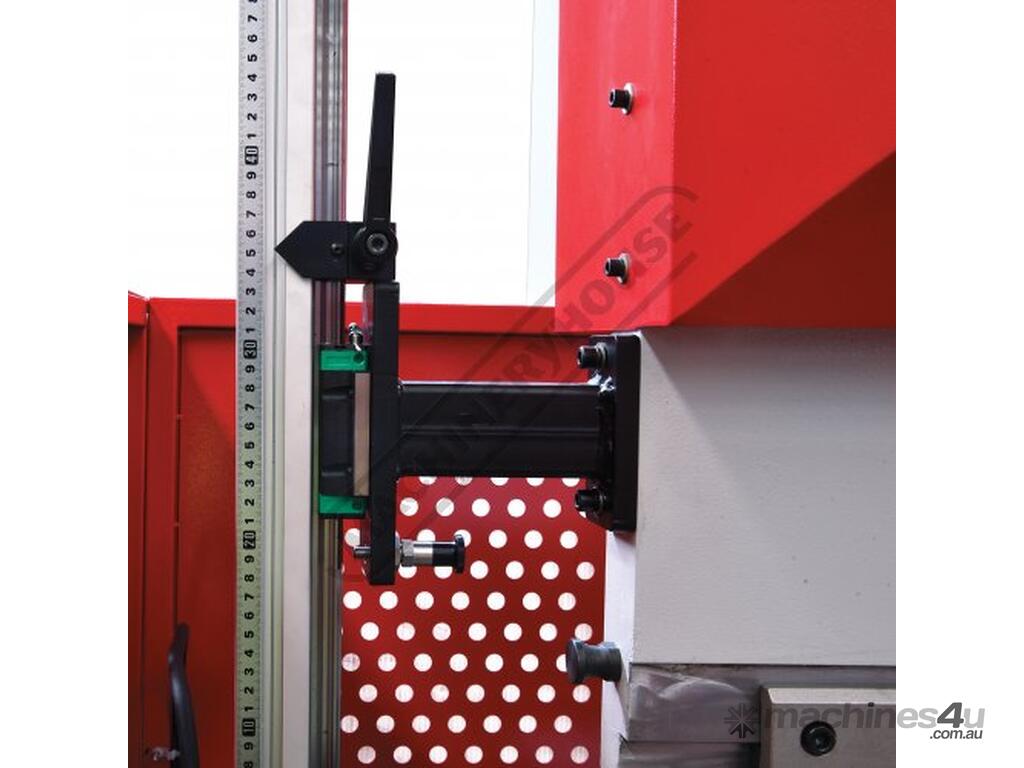

Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.

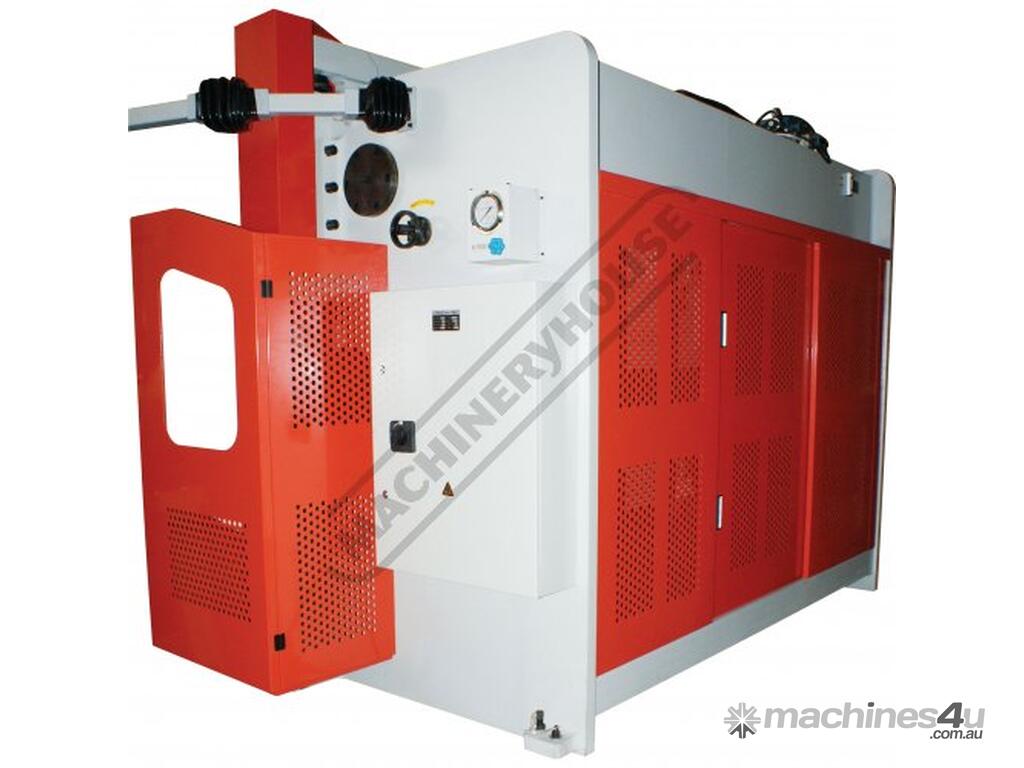

Metal safety guarding surrounding the machine with rear sliding door fitted with micro switch ensuring operator safety.

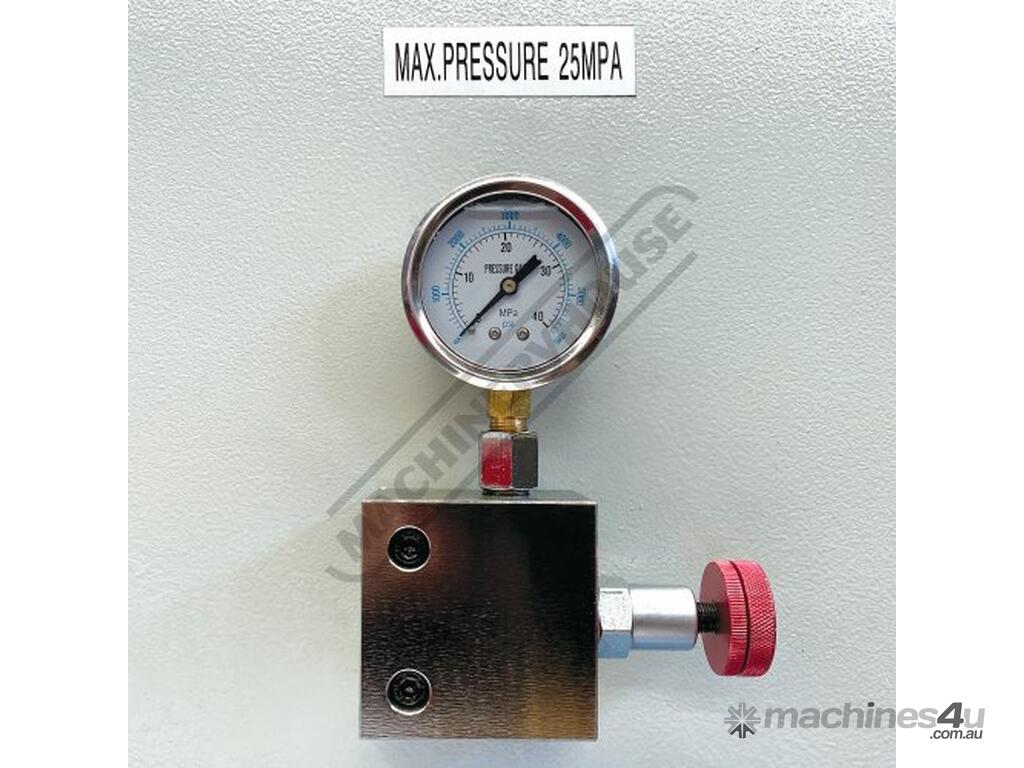

Hydraulic pressure gauge with quick adjust pressure control & over pressure protection allows the operator to accurately set the pressure required for different material thickness.

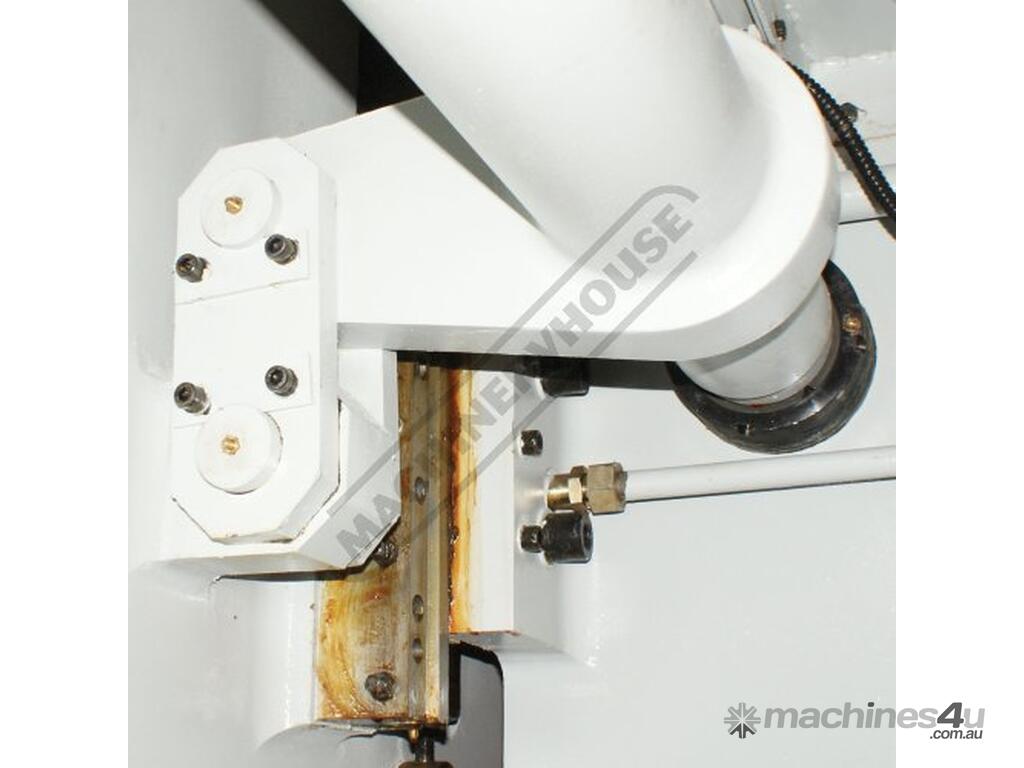

The vertical supporting slides are treated to provide greater wear resistance and increased accuracy.
Reinforced side frames providing addition support strength to machine throat
Includes laser guarding system
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Pressbrake is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:

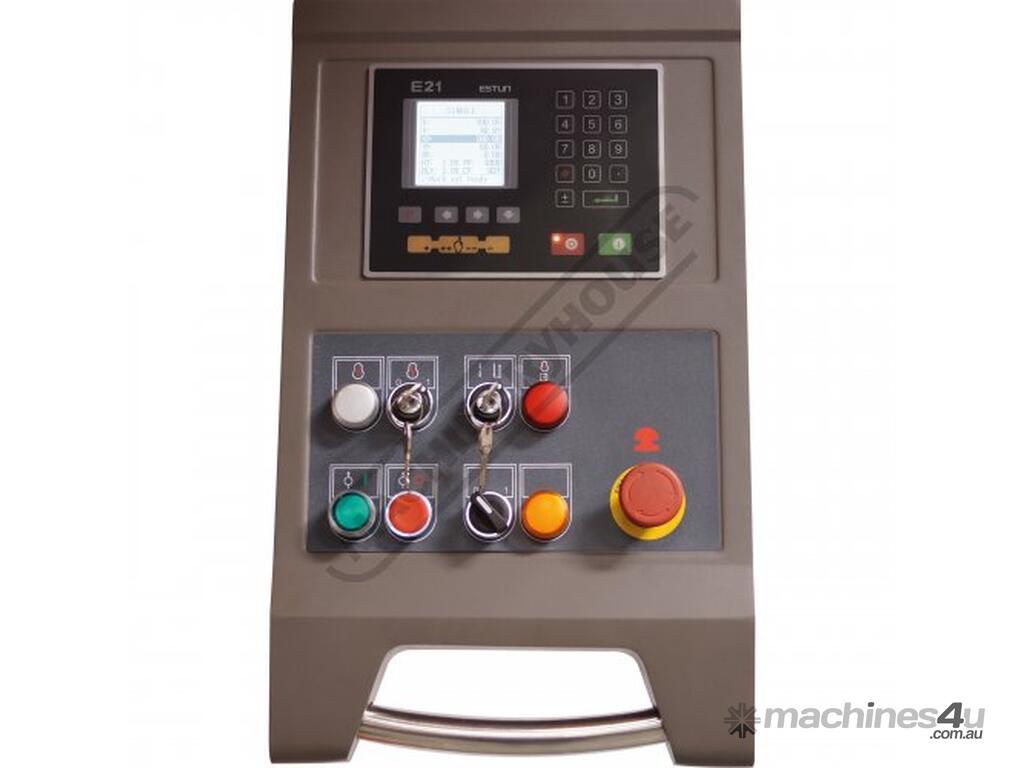

- ESTUN NC- E21 control mounted on a swivel pendant for optimal ergonomics
- LED superior bright work lights provides clearer view to workpiece

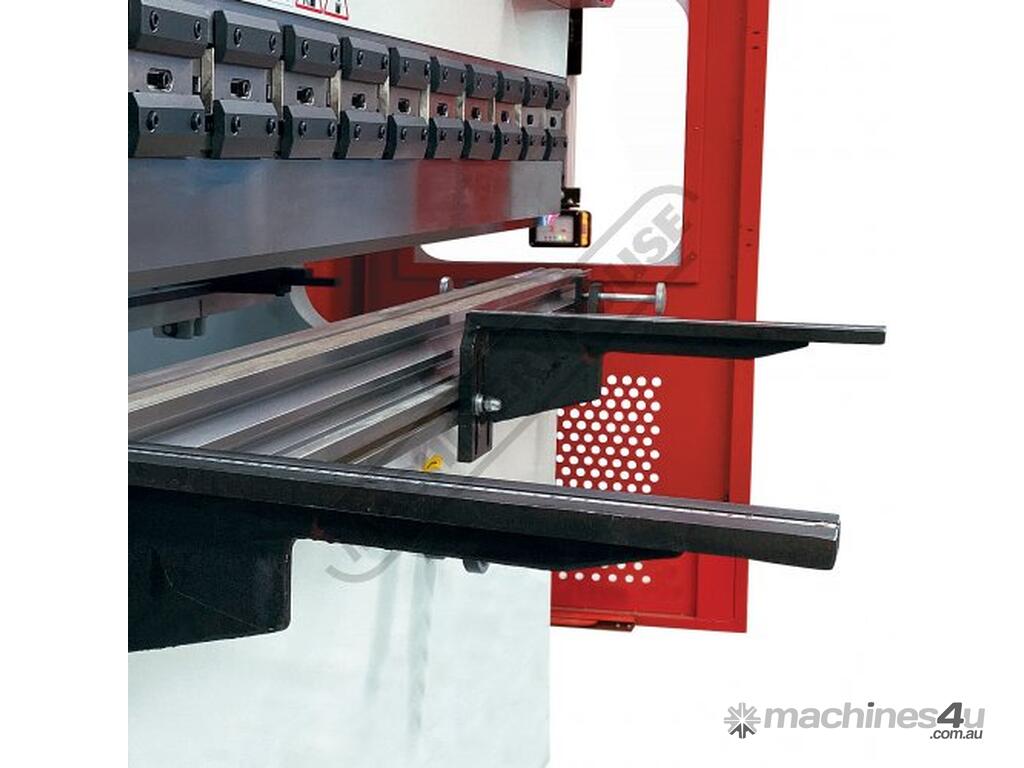

- Sliding front sheet support arms

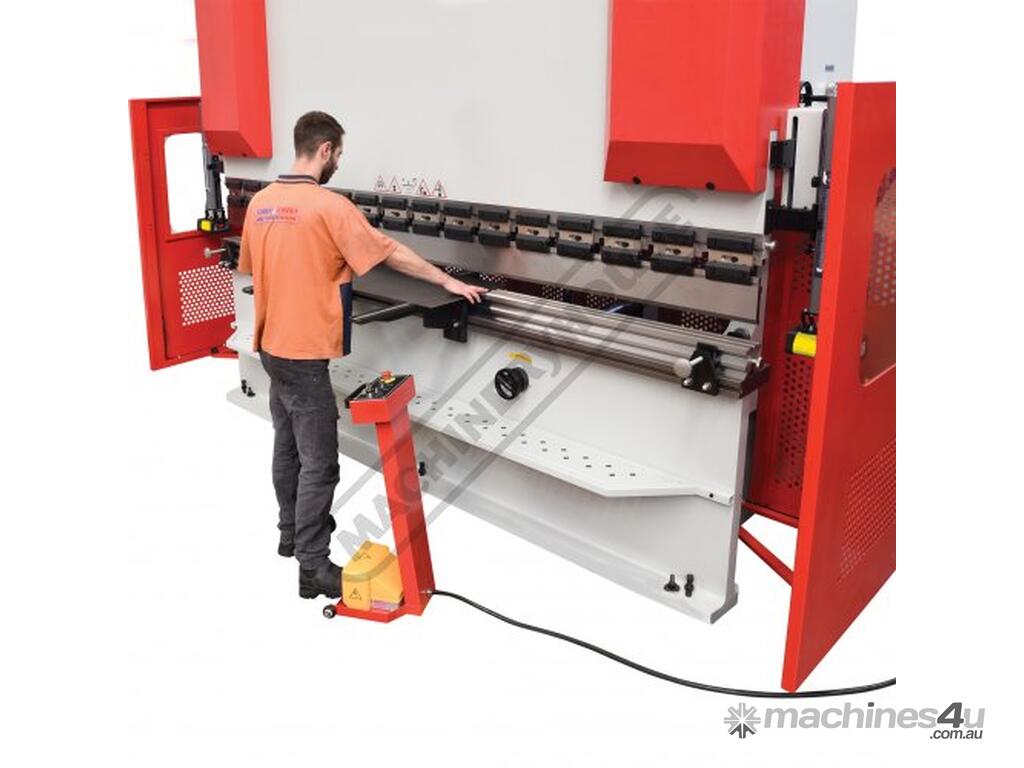

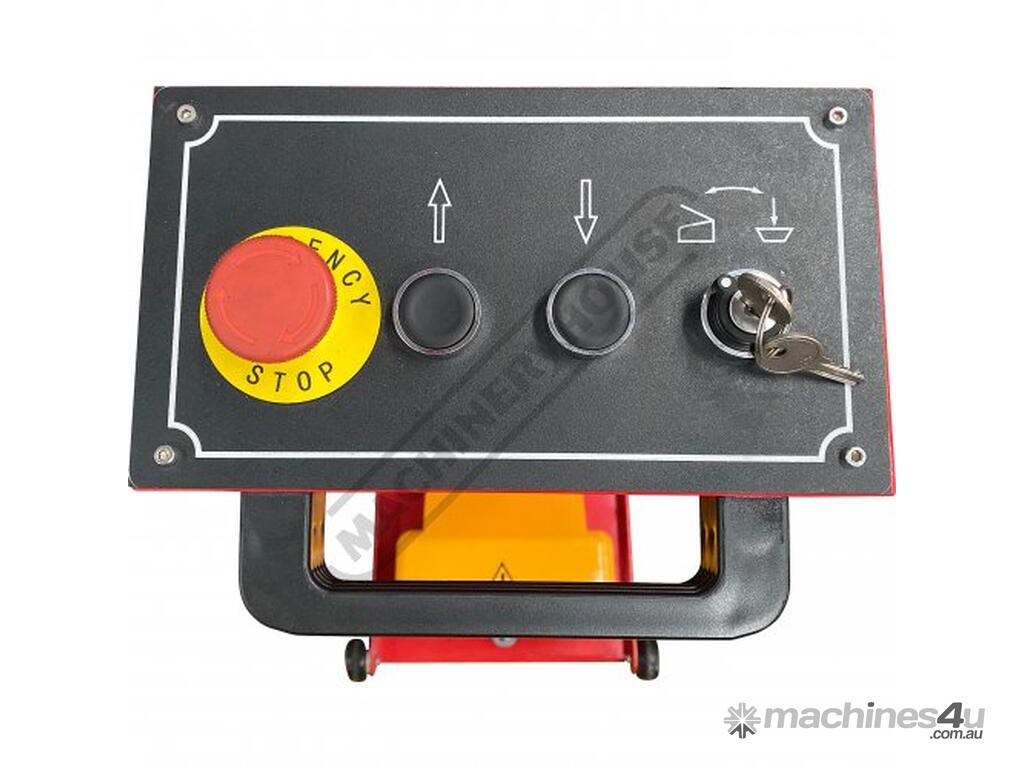

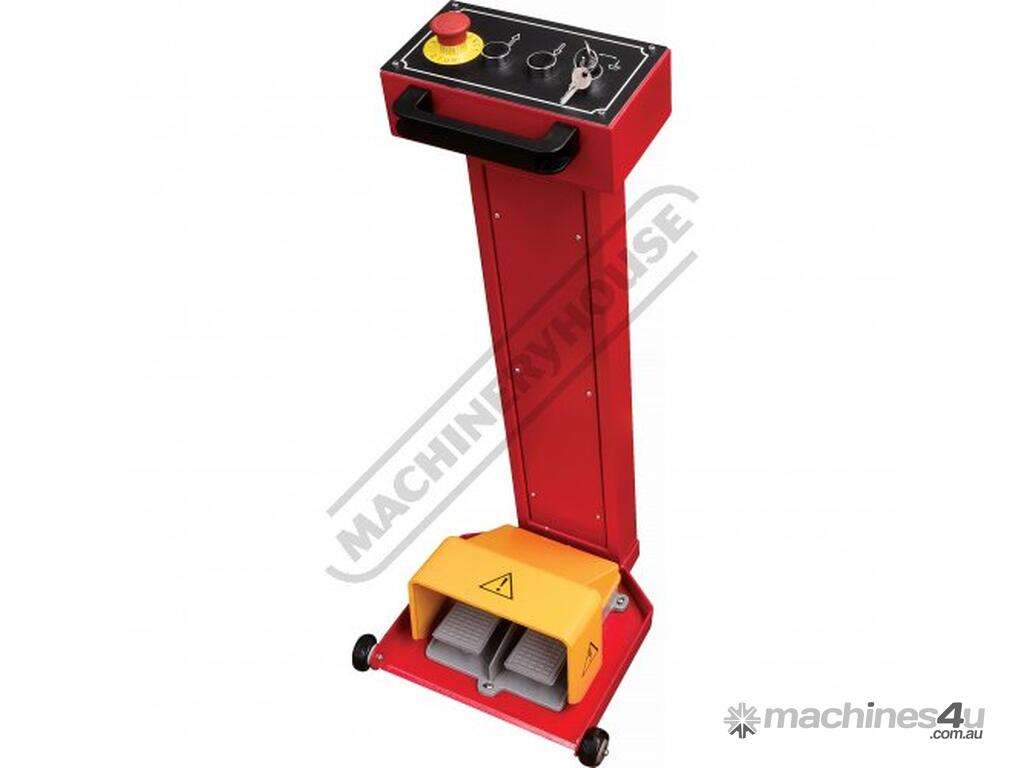

- Mobile dual operation foot control
- 86 Degree Top Punch with Segments (3x800 1x365 1x200 1x100 1x50 1x40 1x20 1x15 1x10)
- Top tooling tool intermediate holder system with wedge type adjustment

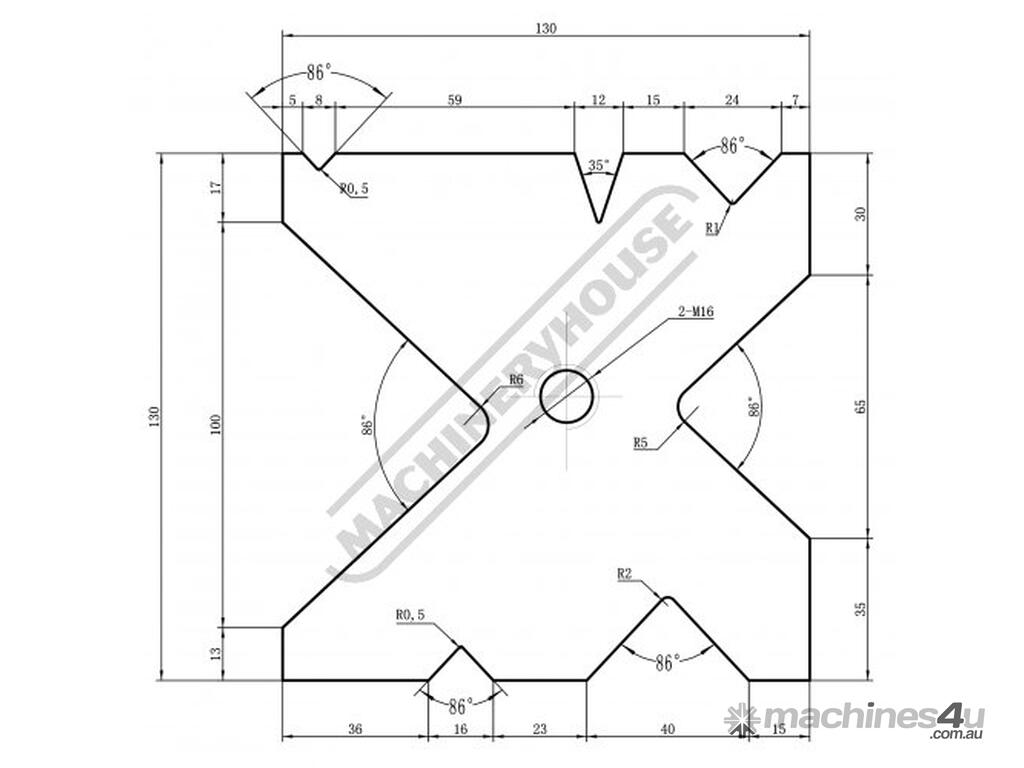

- Multi V bottom die block 130 x 130mm with a range of V's between 8mm~100mm

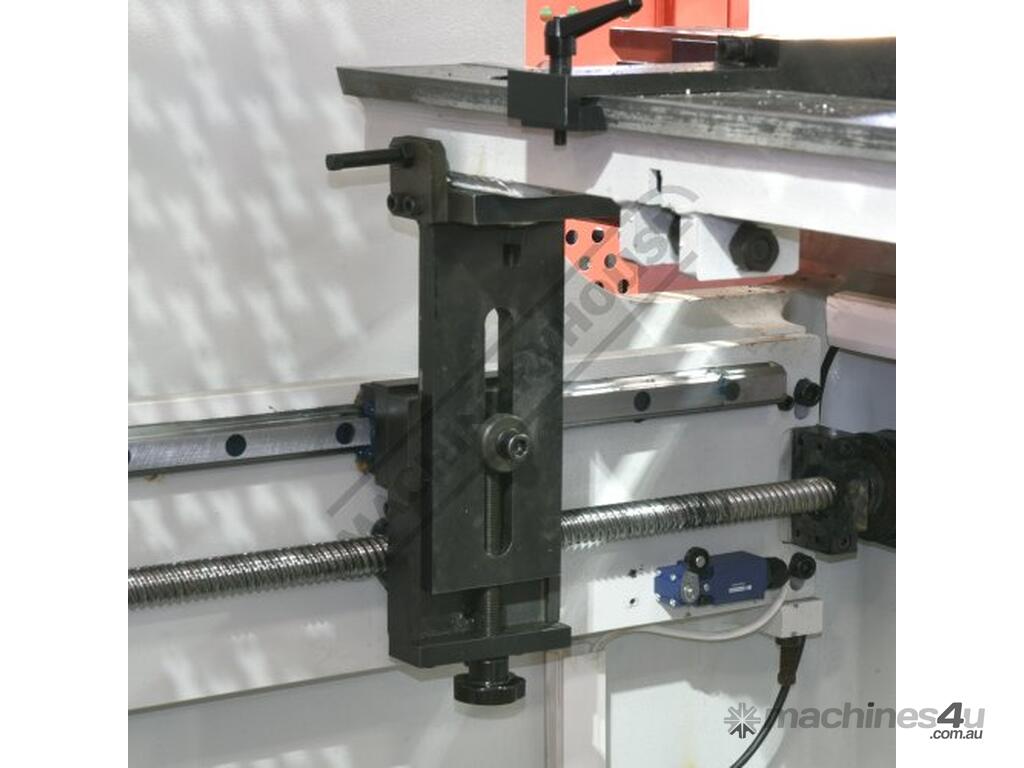

- Premium side mount linear way ballscrew backgauge with 550mm travel
- Metal constructed safety guarding surrounding machine



Specifications:
ORDER CODE: S909GL
MODEL: PB-170B
Control Unit (Type): Estun NC-E21
Nominal Pressure - Tonnage (Ton): 176
Nominal Pressure - Kilonewtons (kN): 1600
Length of Work Table (mm): 3200
Distance Between Columns (mm): 2600
Throat Depth (mm): 420
Maximum Open Height (mm): 470
Ram Stroke (mm): 200
Machine Axis (No.): 2
Safety Guarding System (Type): Laser System
Backgauge Travel (mm): 550
Table Bed Crowning System (Type): ~
Motor Power (kW / hp): 11 / 15
Motor Voltage (V): 415
Floor Space Requirements (L x W x H) (mm): ~
Nett Weight (kg): 11100
