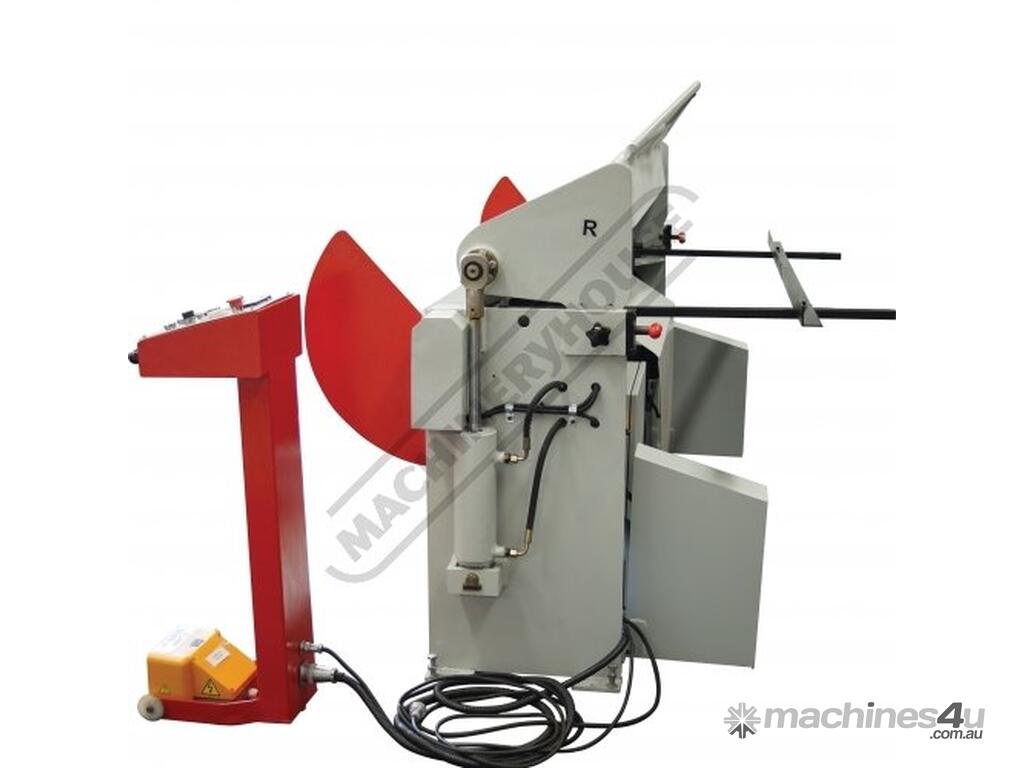

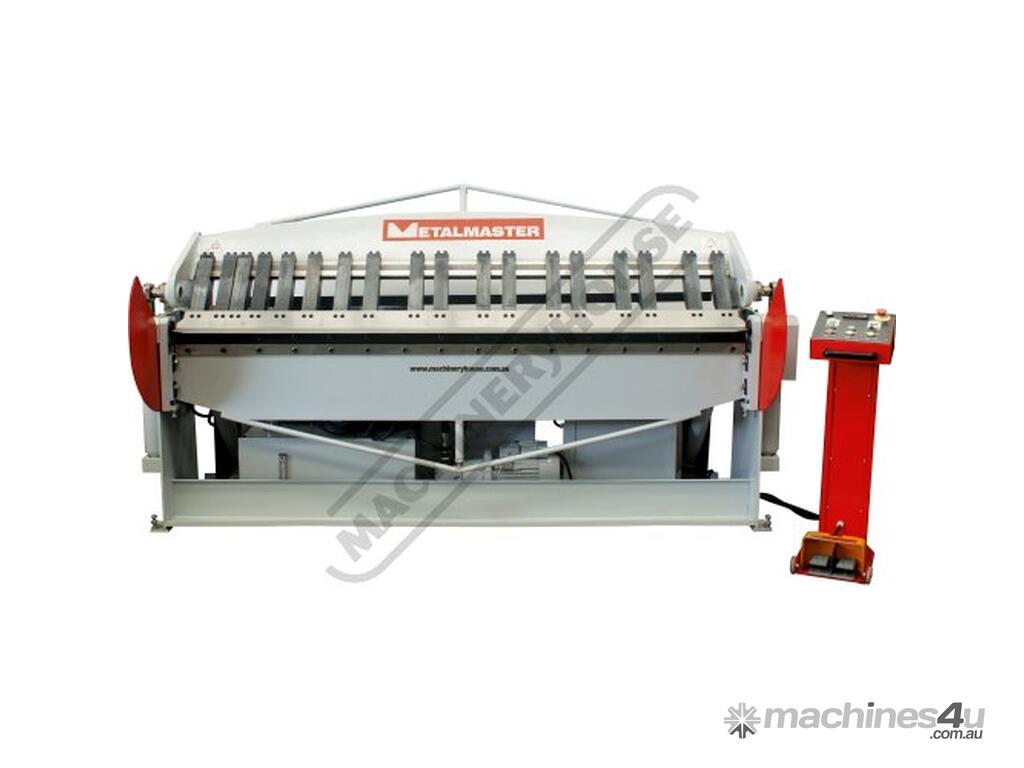

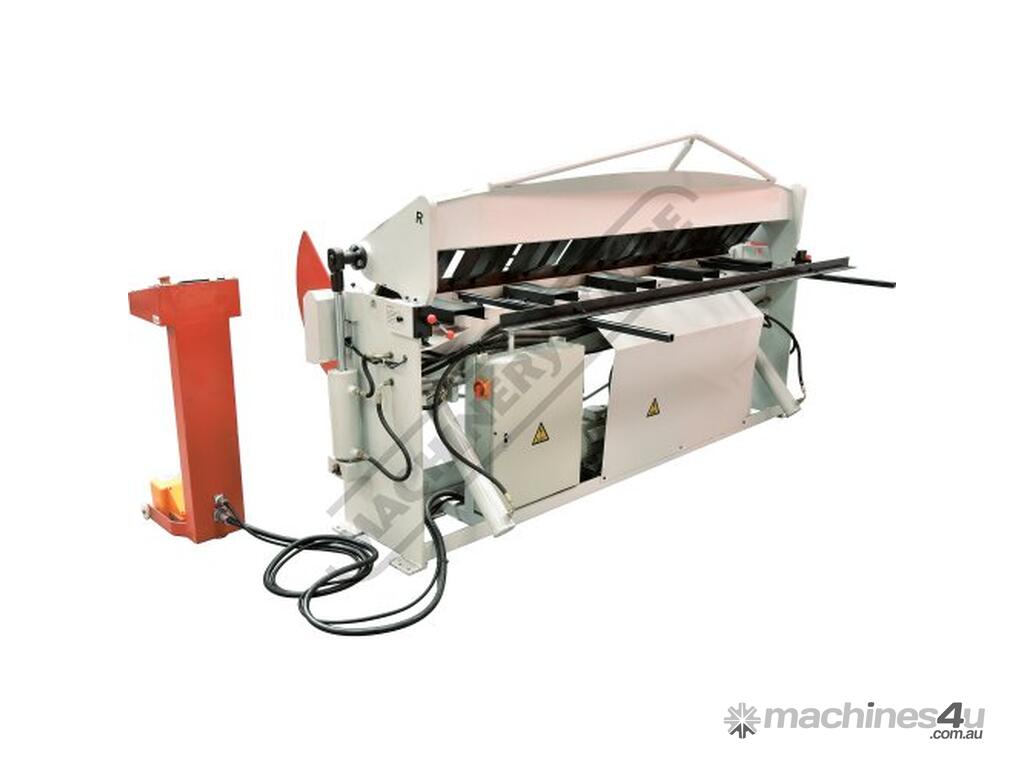

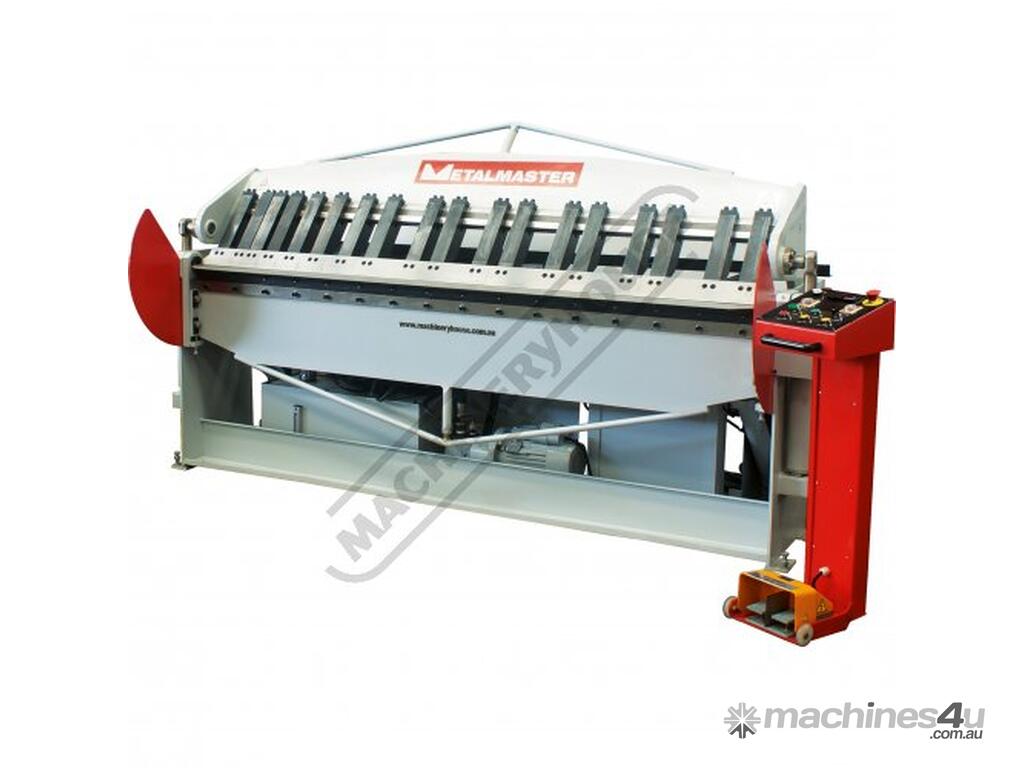

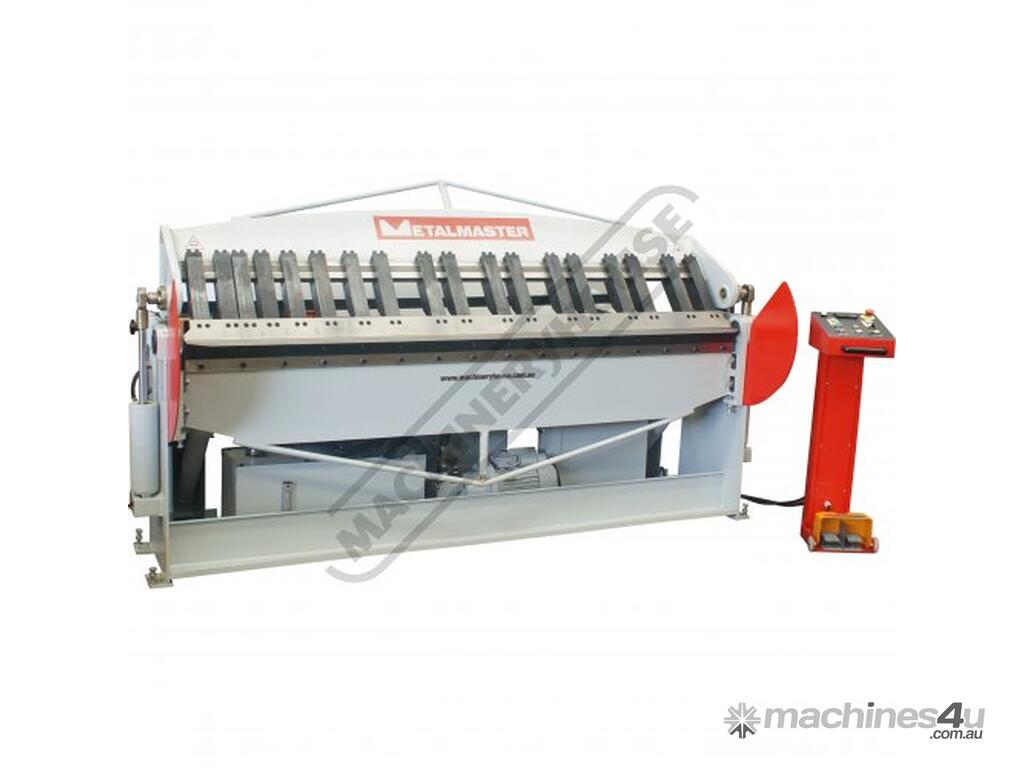

PB-820L Hydraulic NC Panbrake 2500 x 2.0mm Mild Steel Bending Capacity

METALMASTER PB-820L Hydraulic NC Panbrake 2500 x 2.0mm Mild Steel Bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S583

Features:
2500mm x 2.0mm capacity

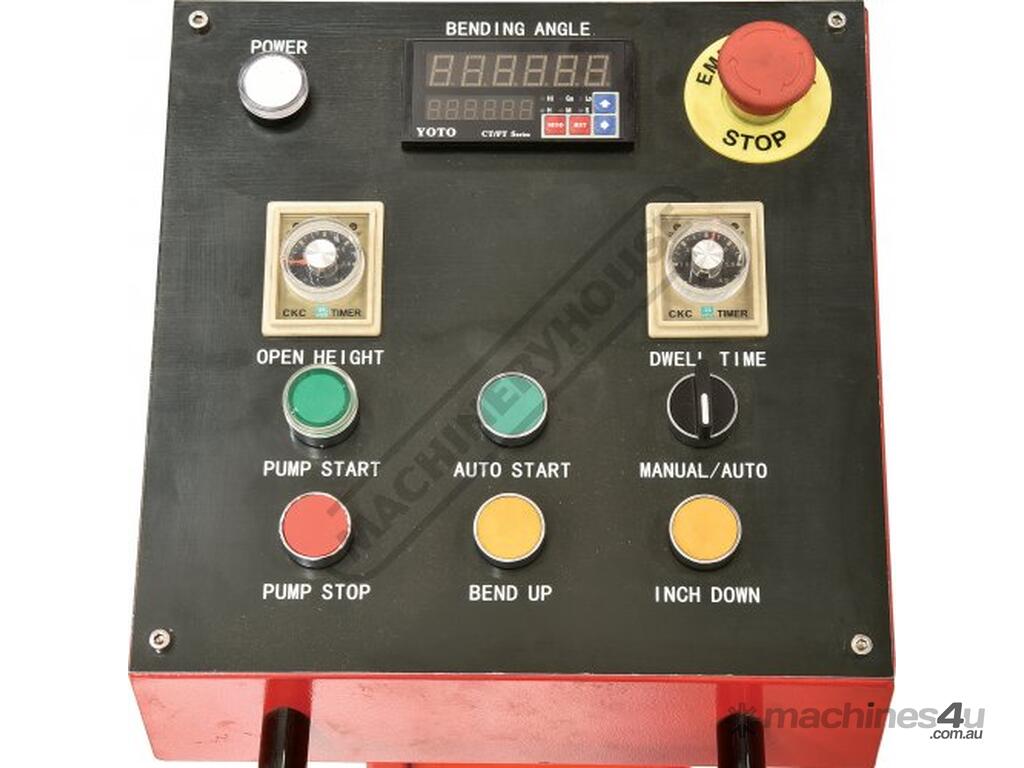

Easy to use single angle programmable control incorporating digital readout for angles from 0-125º
Auto cycle: after clamping bottom beam will bend to pre-set angle and return

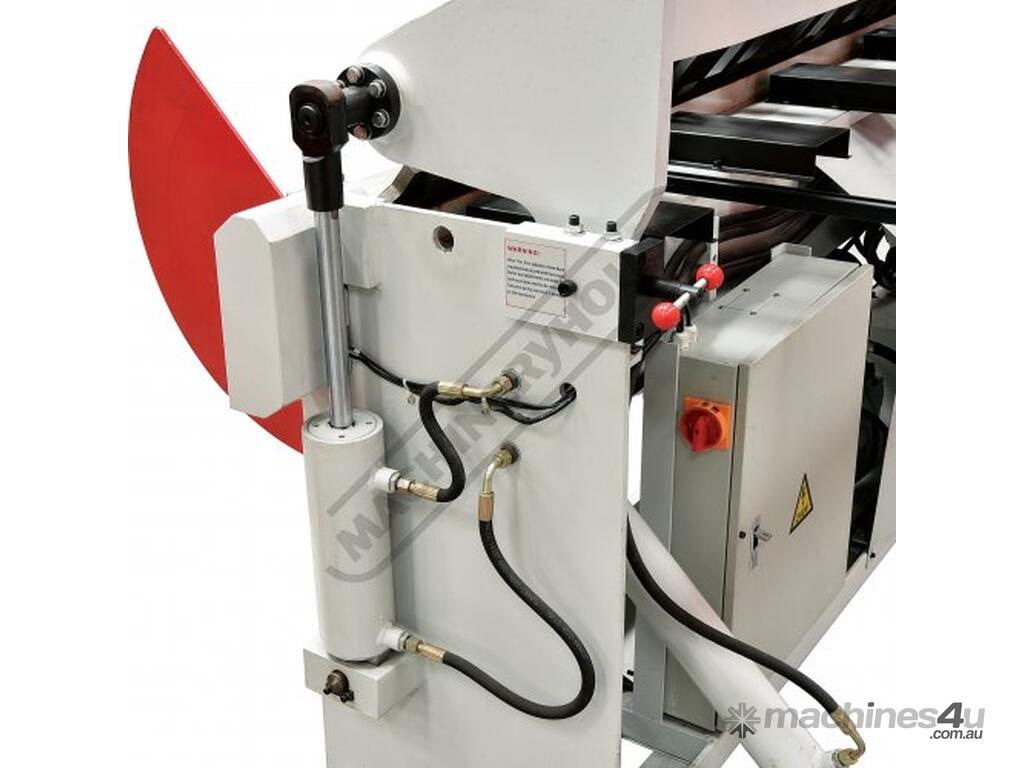

Hydraulic bending & hydraulic material clamp system

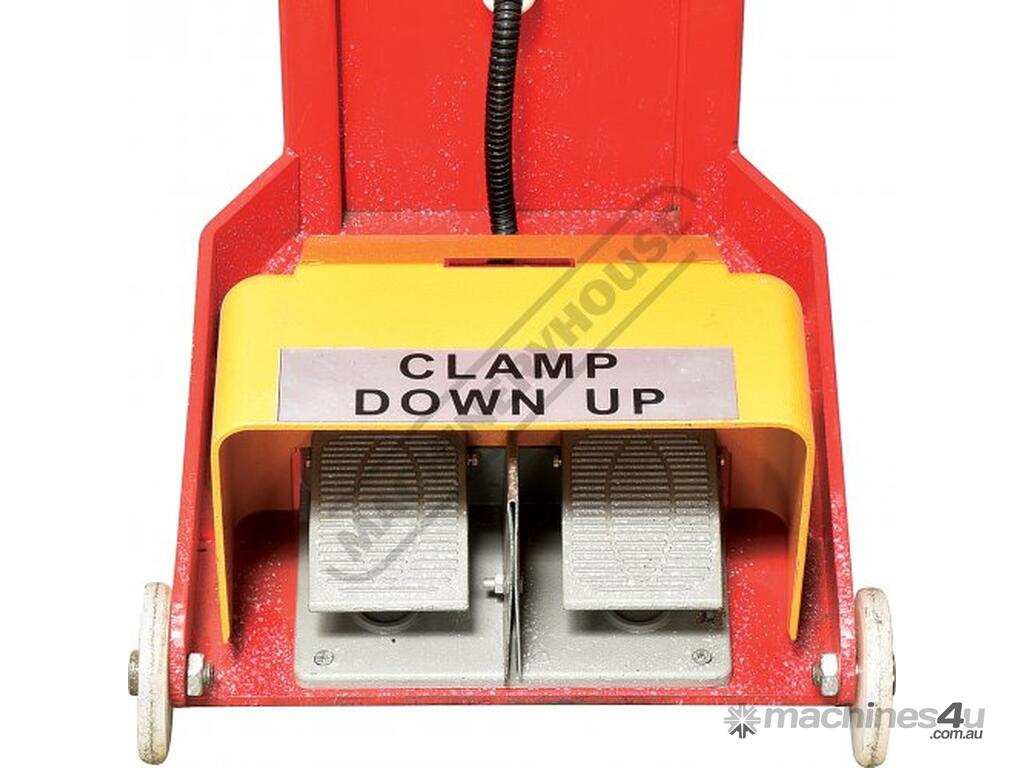

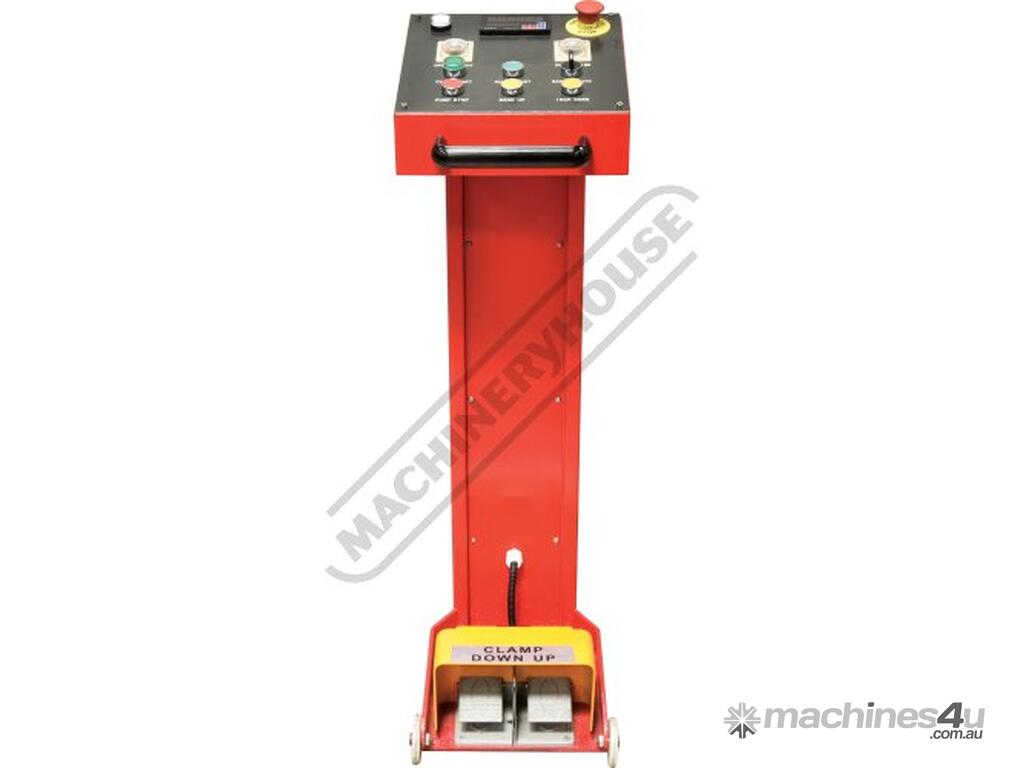

Roving foot pedal incorporates control panel for maximum flexibility
Extended fingers allows bending of pans or boxes to a depth of 230mm

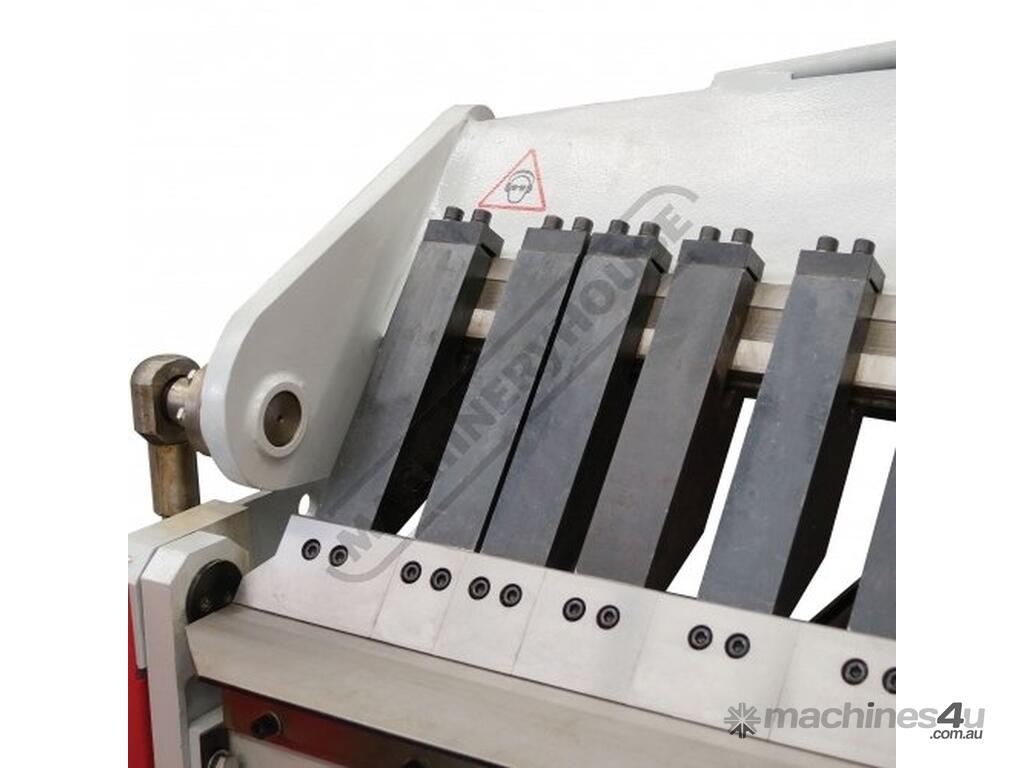

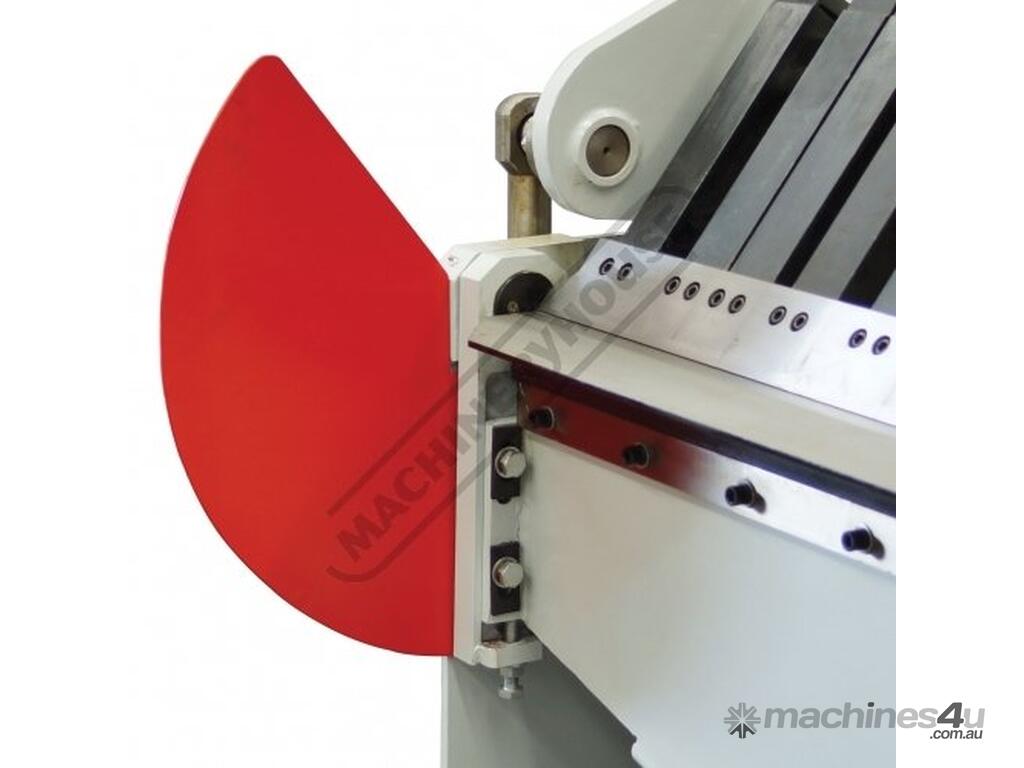

Ground segmented fingers can be repositioned to suit many applications
Heavy duty steel fabricated frame provides accurate bends

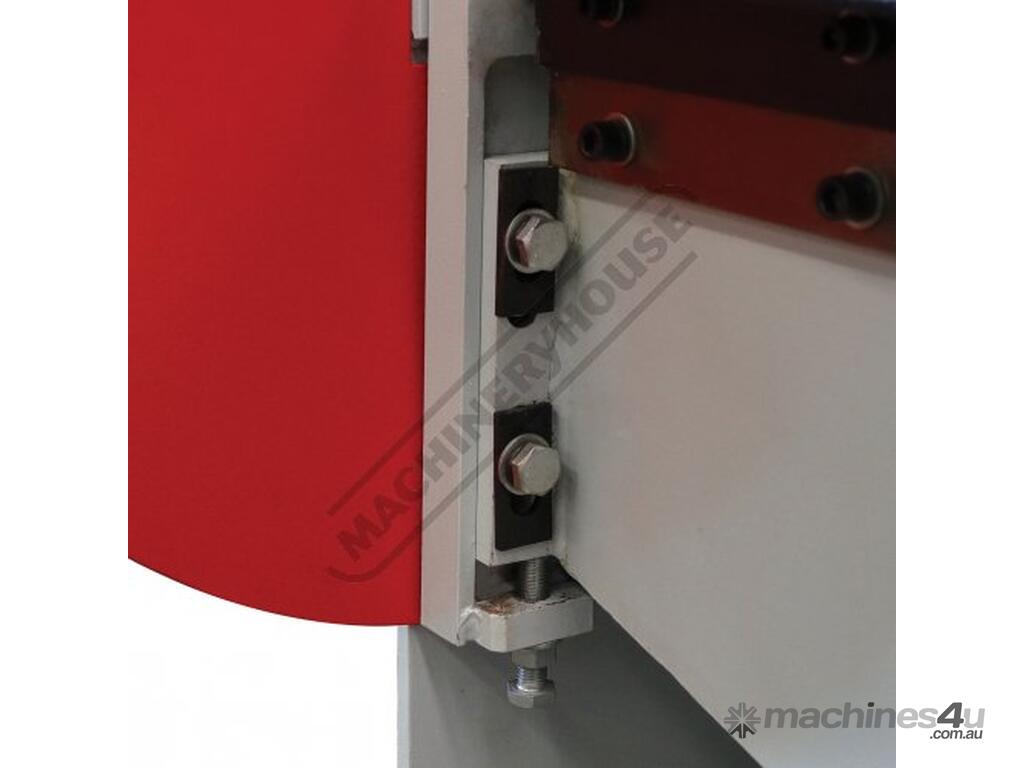

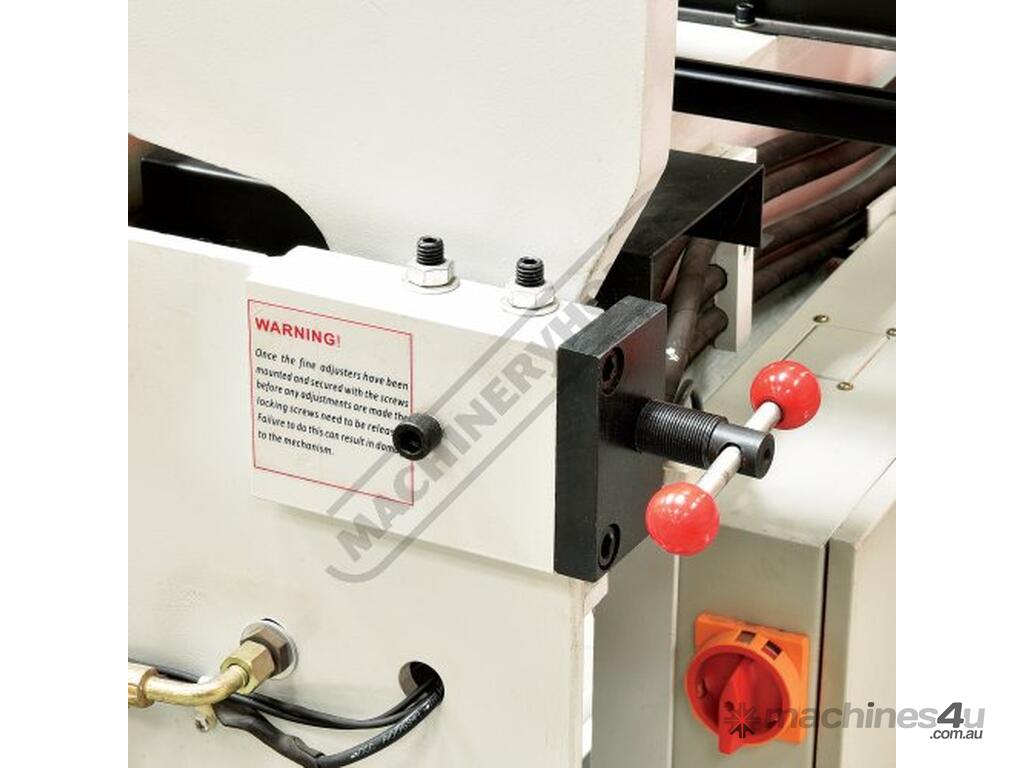

Adjustment clamp beam for varying material thickness

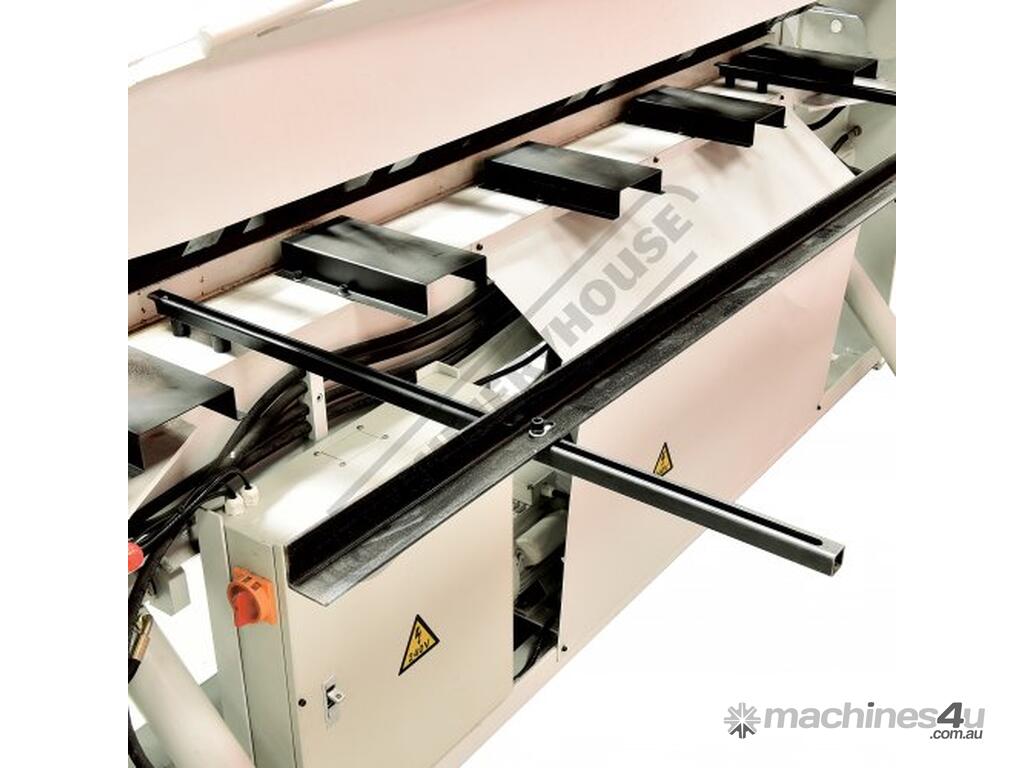

Includes an adjustable rear manual backgauge also adjustable for tapered material
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Panbrake bender is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: S583
MODEL: PB-820L
Controller Type: Digital Single Program
Controller Type: ~
Bending Length (mm): 2500
Mild Steel Capacity (mm): 2
Stainless Steel Capacity (mm): 1
Material Clamping Type: Hydraulic Clamp
Material Bending Type: Hydraulic Bend
Bending Angle Indicator (deg): 0-125º
Backgauge Travel (mm): 1000
Motor (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Floor Space (L x W x H) (mm): 2870 x 1470 x 1530
Nett Weight (kg): 1600


To Purchase Online Please Visit The Machineryhouse & Search For 'S583'
