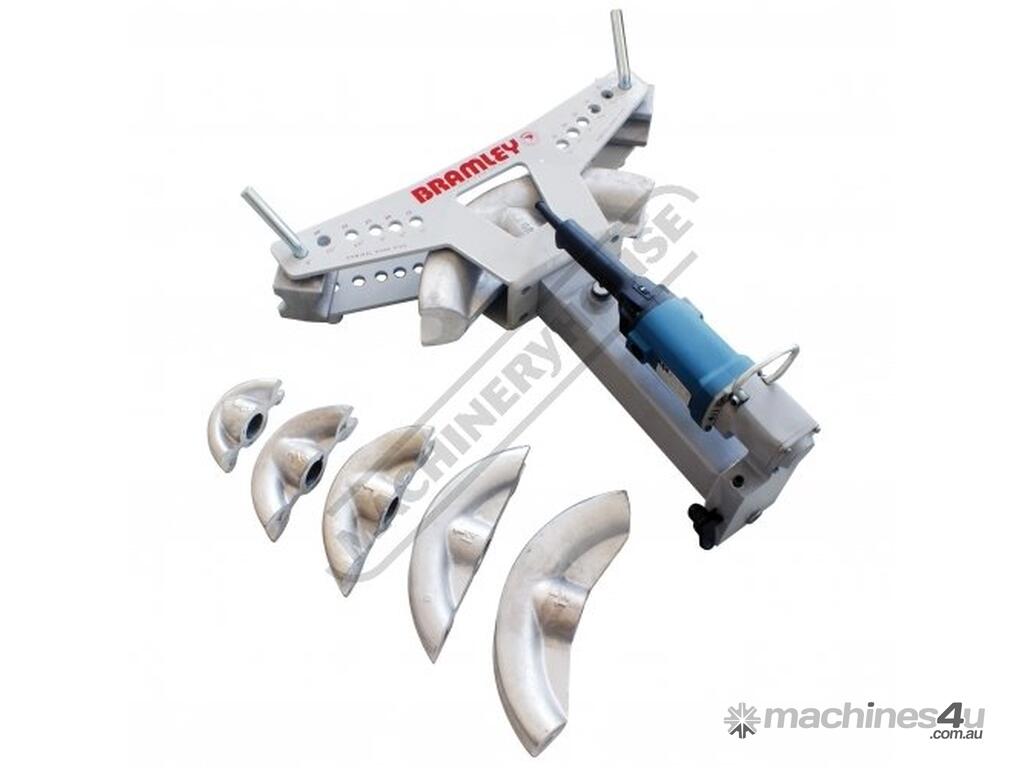

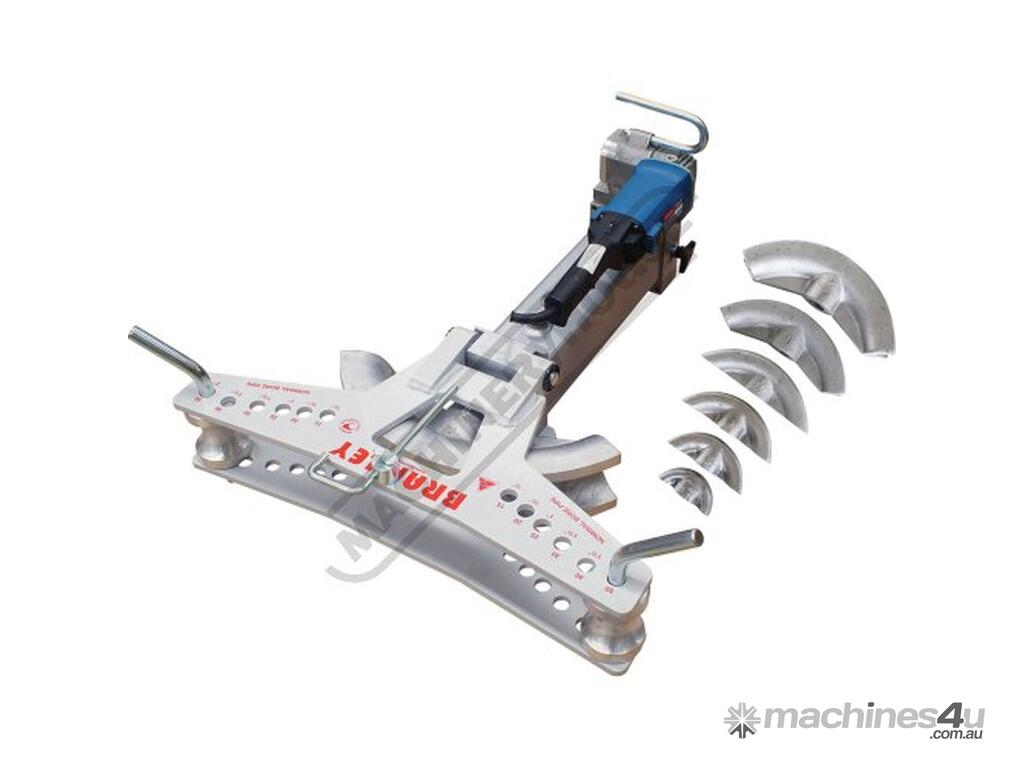

BRAMLEY PB2-E Electric Hydraulic Pipe Bender Ø1/2 - Ø2" NB Pipe Capacity Includes Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" Cast Aluminium Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P080
Features:
Easy and simple operation connect direct into 240V power
Light weight aluminium alloy formers with large angle of arc to support pipe during bending
Enclosed maintenance-free mono-block hydraulic system with automatic piston return
High thrust hydraulic pump with 150kN (15T) piston rating for high speed operation
Powerful 240V compact motor for efficiency with portability
Quick & easy to adjust guide pins to suit pipe
Bends pipe up to a maximum of 90º
Complete with six formers two bobbins (support rollers) & pins
Includes:

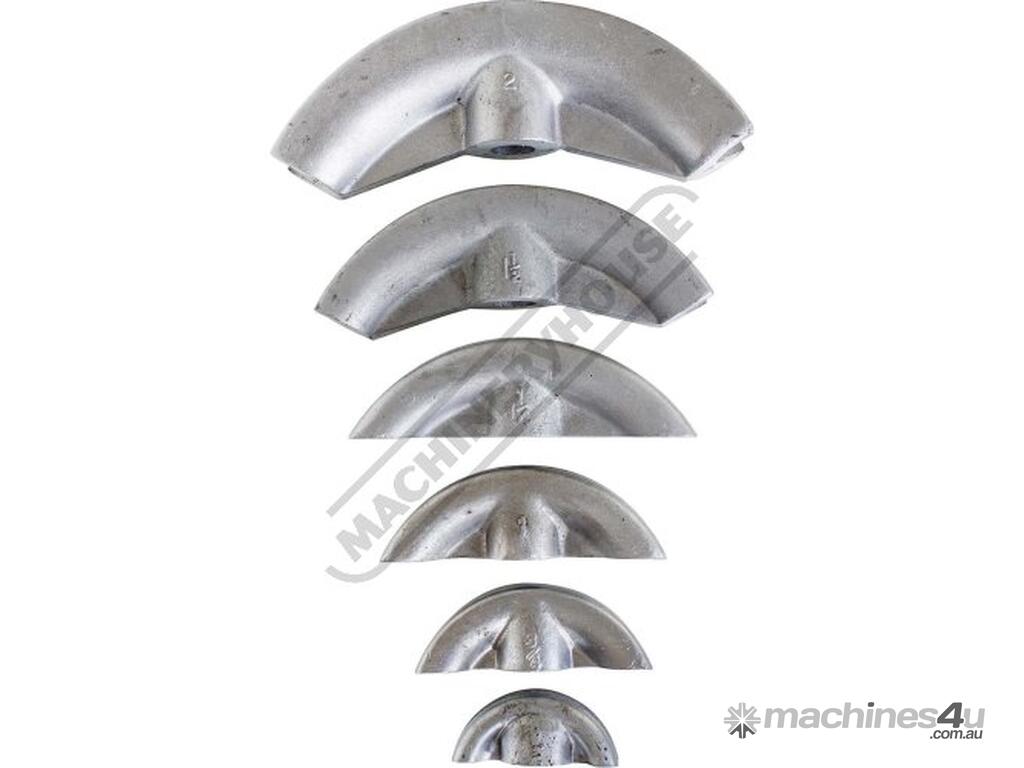

- Cast Aluminium Pipe Formers:
- Ø1/2" has 75mm centreline radius
- Ø3/4" has 105mm centreline radius
- Ø1" has 140mm centreline radius
- Ø1-1/4" has 175mm centreline radius
- Ø1-1/2" has 200mm centreline radius
- Ø2" has 240mm centreline radius
Specifications:
ORDER CODE: P080
MODEL: PB2-E
Material (Type): Pipe
Material Section (Type): Round
Machine (Type): Electric Hydraulic
Hydraulic Jack Size (Tonne): 15
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2"
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2", 3/4", 1", 1-1/4",
Pipe Formers Included (inch / mm): 1-1/2", 2"
Spigot Size on Ram (inch / mm): 38
Angle Capacity (deg): ~
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 68
