PBA-45 Pressbrake Attachment - Suits Hydraulic Presses 450 x 4mm Capacity

METALMASTER PBA-45 Pressbrake Attachment - Suits Hydraulic Presses 450 x 4mm Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P450

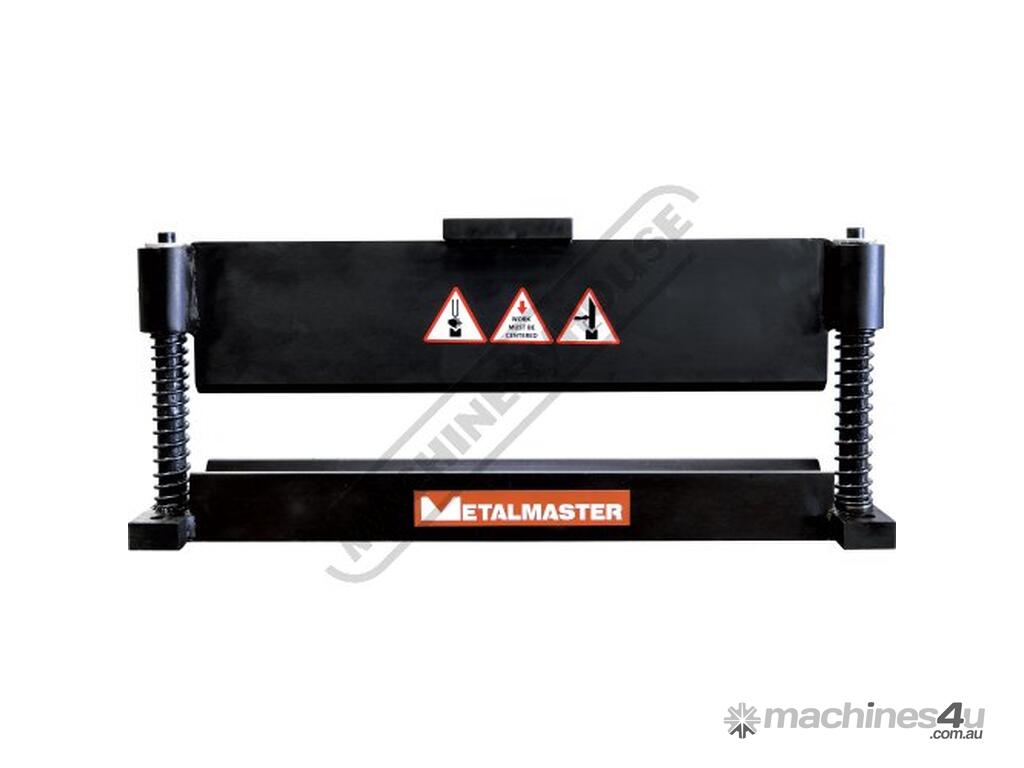

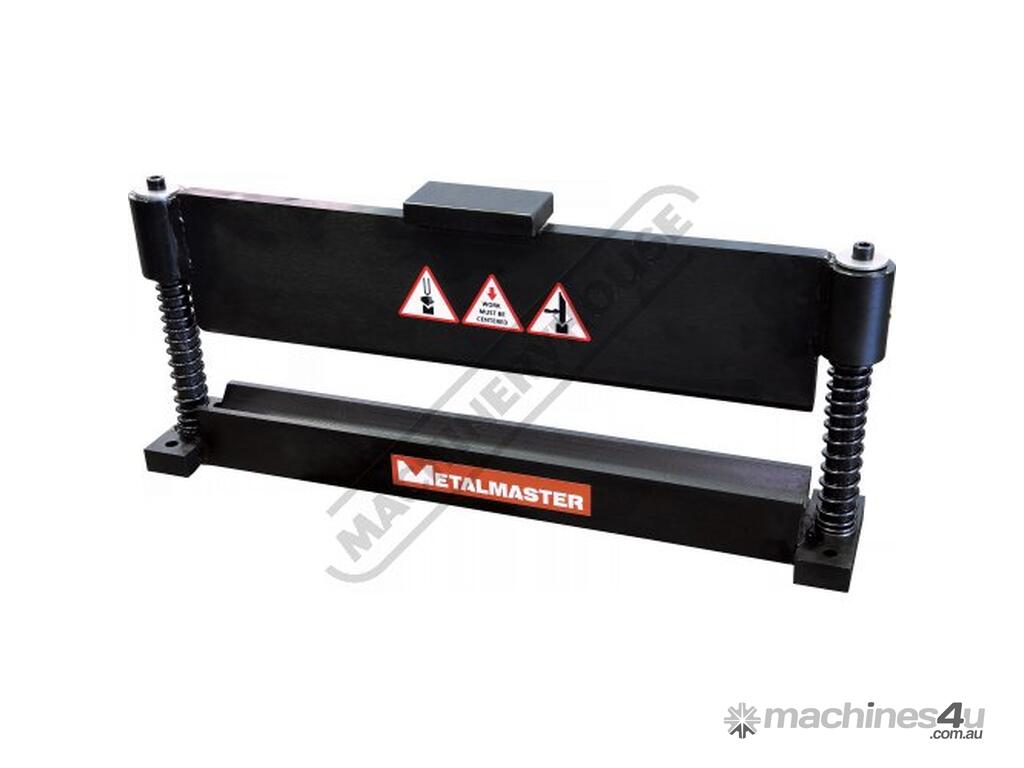

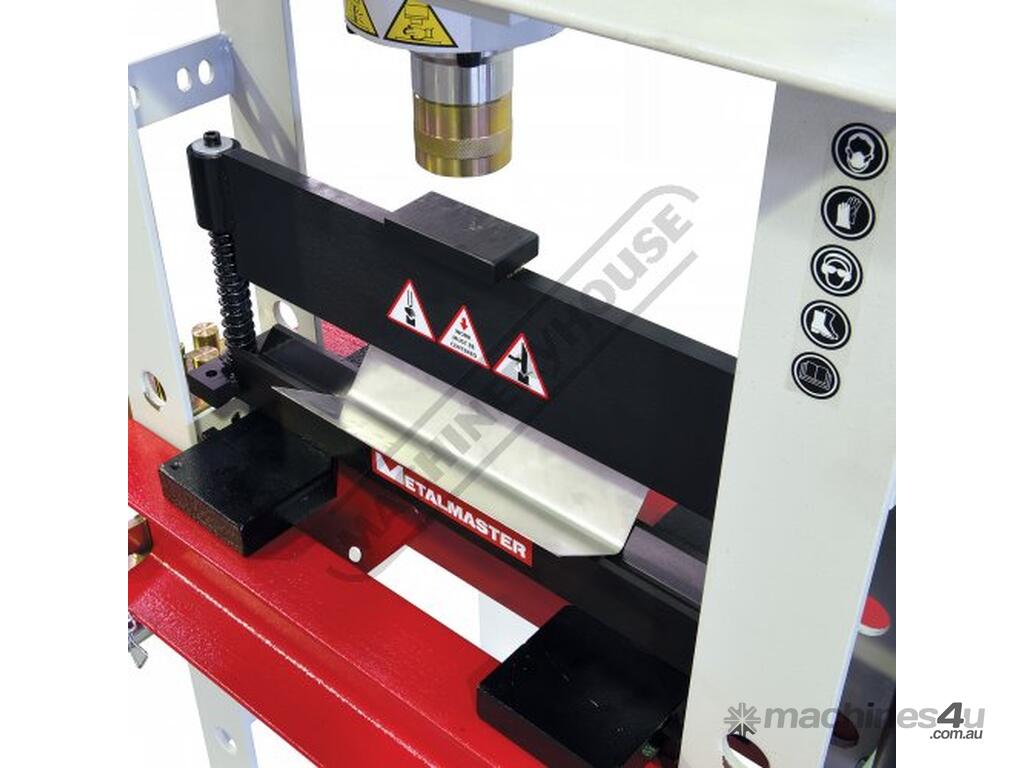

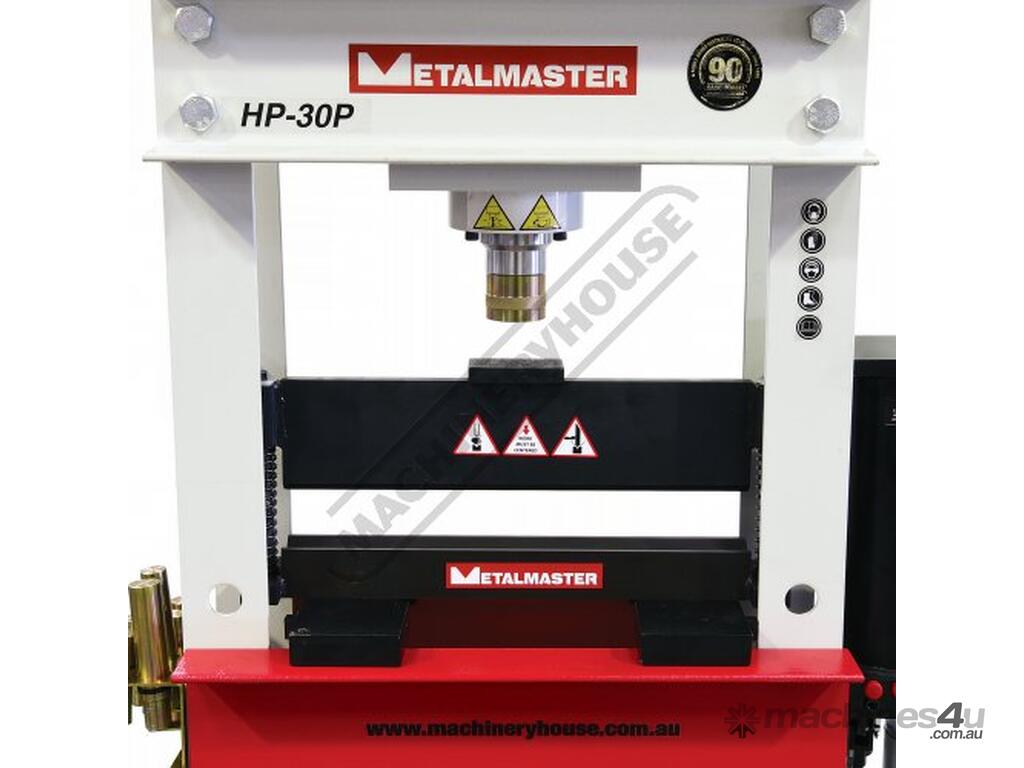

This PBA-45 attachment is designed to bend sheet metal or plate steel using a standard hydraulic press. The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to home position once you have released the hydraulic pressure.

Features:
Fabricated steel construction
450mm bending length
40mm wide vee block die
50mm open height
Top die with return springs & guide rods

Overall Dimensions:
530 x 85 x 225mm (LxWxH)

Please Note:
Will only fit at an angle on the HP-20 (P144) Hydraulic Press


Specifications:
ORDER CODE: P450
MODEL: PBA-45
Bending Capacity (mm): 450 x 4 or
Bending Capacity (mm): 300 x 6
Bending Length (mm): 450
Vee Opening (mm): 40


To Purchase Online Please Visit The Machineryhouse & Search For 'P450'
