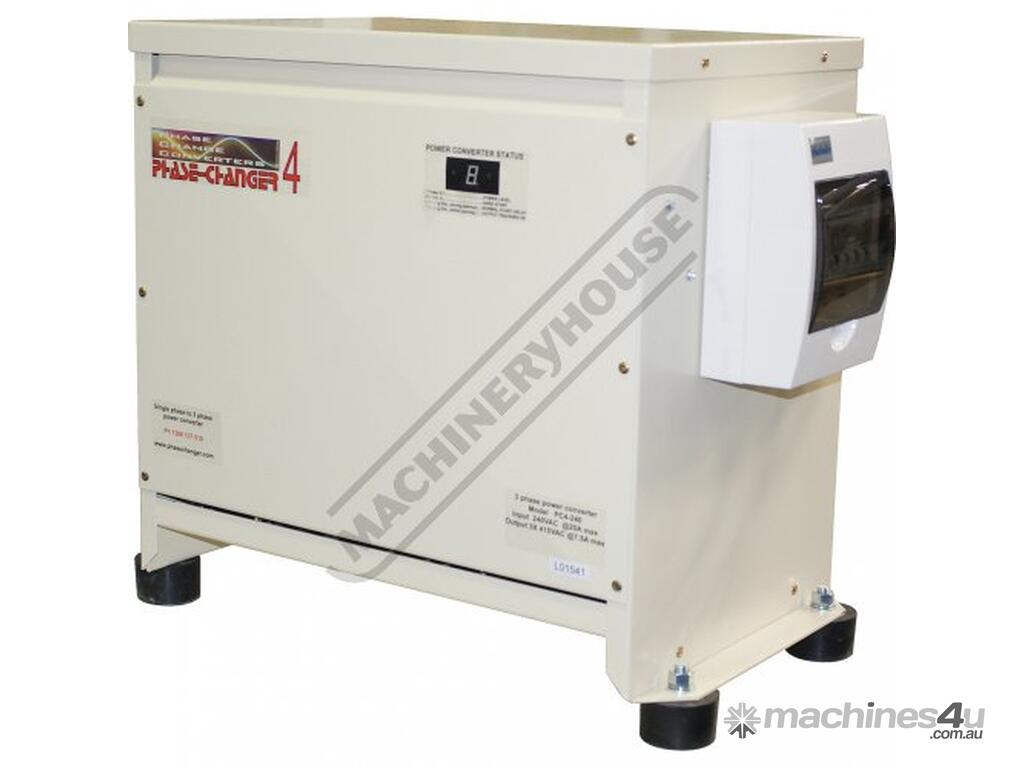

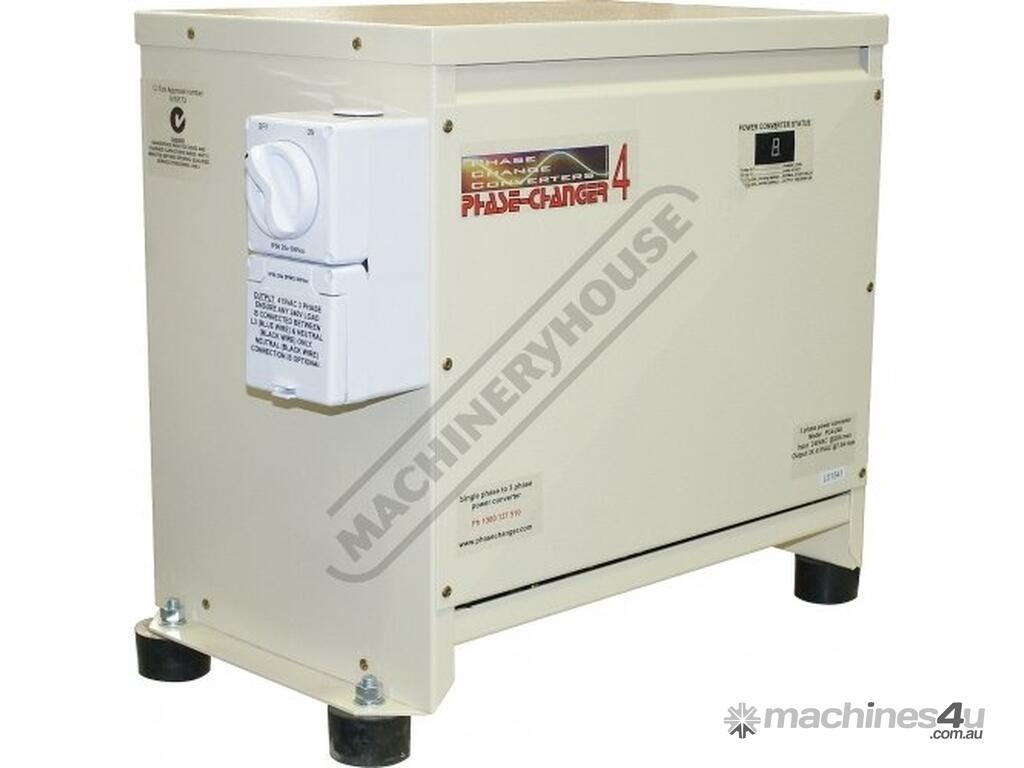

PC4 Phase Change Converter - 240V into 415V Run 4kW / 5.5hp, 415V Machines from 240V Power Supply Tr

PHASE CHANGE CONVERTERS PC4 Phase Change Converter - 240V into 415V Run 4kW / 5.5hp, 415V Machines from 240V Power Supply True 3 Phase 415V Output
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: E152

The Phase-Changer Converter Range

All Phase-Changer converters have the "heart" of our new micro-control technology mixed in with the proven rotary converter principle. This unique formula greatly improves real world performance and reliability, when compared to most other converter technologies.

At the small end of the Phase-Changer range, the 2.2KW and 3KW converters are offered as a "plug-in to socket-out" design, meaning you simply plug the converter in to a standard 10A or 15A single phase outlet, and you get 3 phase 415V immediately on the 3 phase outlet that you can plug your machine in to. It's as simple as that!

For converters to 4KW, you also have the choice of the full multistage control or an alternative lower cost single stage control. The single stage Phase-Changer (Phase-Changer S) still provides hard start capability, but does not have the automatic voltage trimming stages, that the multi-stage unit has.
This is still good in many applications; typically single motor loads where voltage symmetry may be less important.

All converters from 4KW upwards require hardwiring to a power board fitted with the correctly sized circuit breakers or fuses. A comprehensive installation guide is included with your Phase-Changer.

Suitable for ANY 3 Phase Application with models from 2.2 to 37KW (3HP to 50HP) standard, ideal for multi-load applications.

Features:
Australian Designed & Made in both Australia & China with Local Support and a 3 Year Guarantee
New Industrial Micro-Processor Controlled Technology Custom Designed in Australia For the World Market
Micro-Controlled 9 Stage Automatic Output Voltage & Balance Control For Stable Voltages Over the Full Load Range
"Stress Free" Solid State Capacitor Switching using Industrial High-Power Thyristors - Means No Ongoing Maintenance Issues
Extremely Reliable
True 3 Phase 415V Output
High 95% Efficiency
Automatic Hard Start and Boost Standard
Delayed Output / Load Contactor Standard
Improves Power Quality: (Rides Through Short Term Over Voltage Spikes and Voltage Sags)
Balances Incoming Supply Power Factor
Maintenance Free
Designed to Not Increase Your Power Bill
Low Cost (when compared to a utility 3 phase connection)


Specifications:
ORDER CODE: E152
MODEL: PC4
Total Output (kW / hp): 4 / 5.5
240V Input Power Required (Amp): 20 - Hardwired
480V Input: Yes

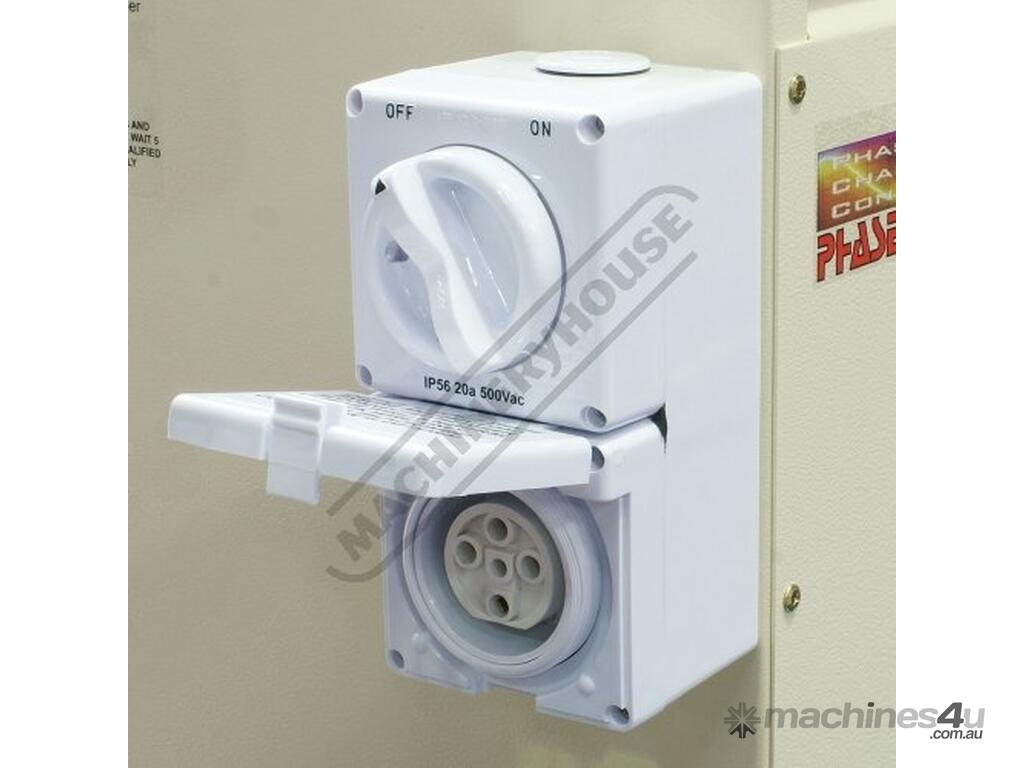

415V / 10A Outlet - 5 Pin: Option
Auto Hard Start & Boost: Yes
Multi Motor & Electronic Loads: Yes
Nine Stage Voltage Control & Boost: Yes
Max. Starting & Running Load (kW / hp): 4 / 5.5
Pilot Motor Position (Type): Internal
Supply Circuit Breaker Fuse Current 240V / 480V (Amp): 20 / 10
Enclosure Dimensions l x W x h (mm): 685 x 360 x 540
Weight (kg): 105


To Purchase Online Please Visit The Machineryhouse & Search For 'E152'
