PCS Plasma Bevel Head - Patented, Revolutionary Design!

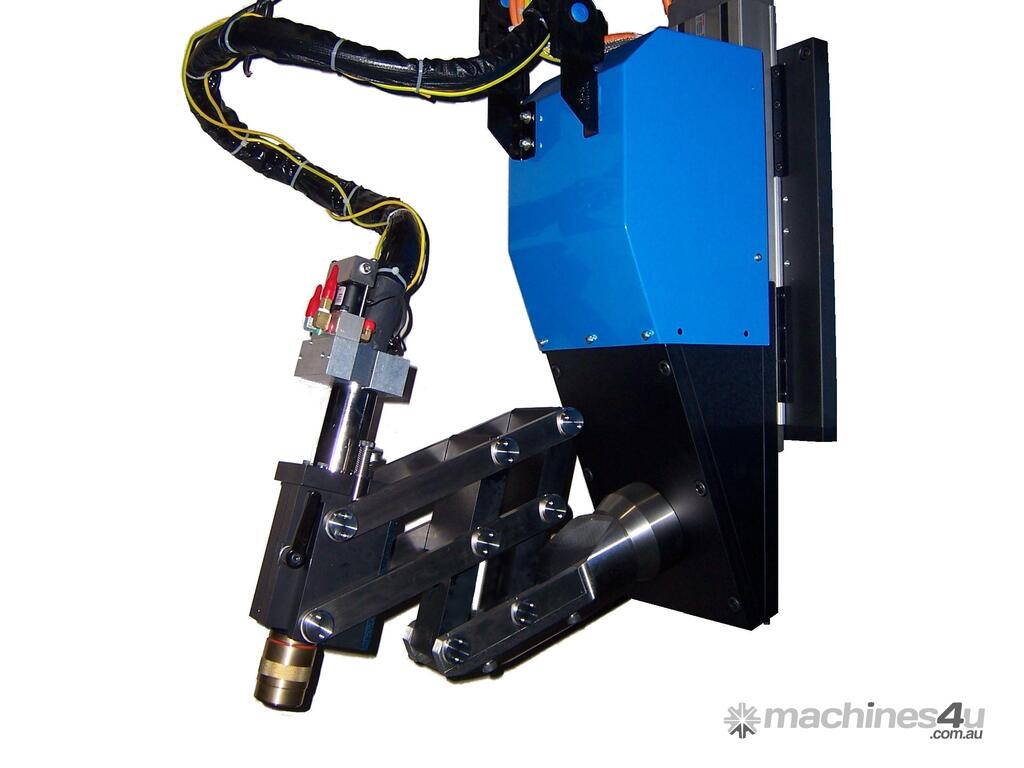

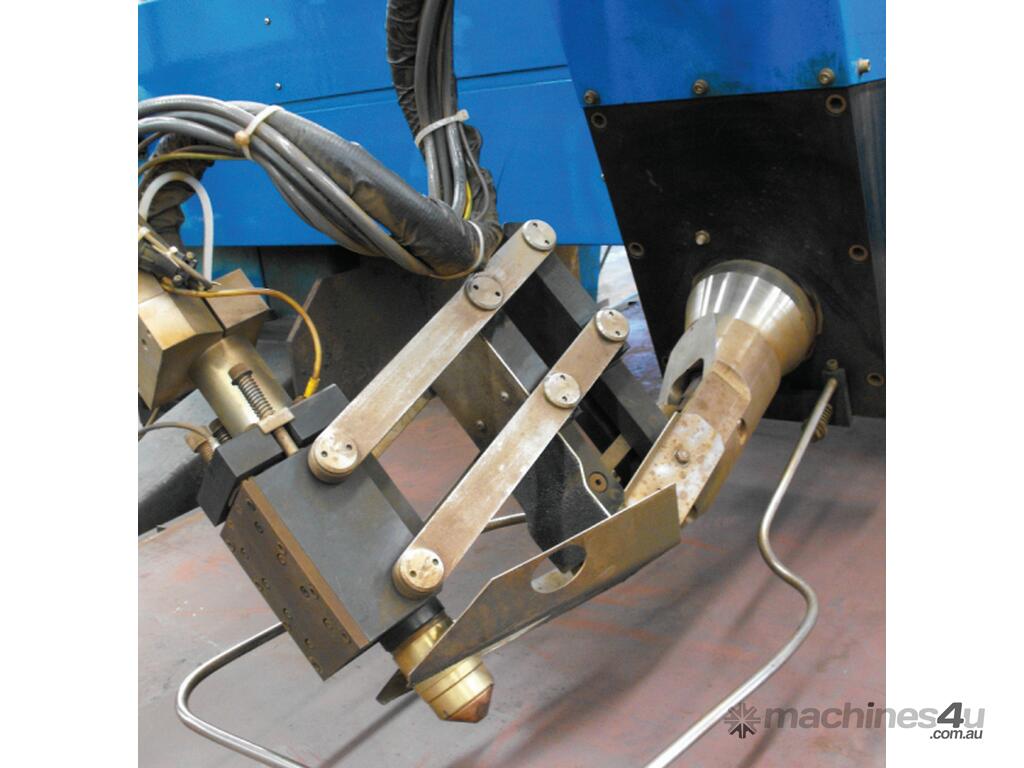

The PCS Plasma Bevel Head is designed and manufactured by Profile Cutting Systems (PCS). This PATENTED and revolutionary design has taken the metalworking industry by storm! Unlike other cumbersome, rotary type bevel heads, the PCS Bevel Head is compact, lightweight and FAST. It sets a new standard in Plasma Bevelling Technology.

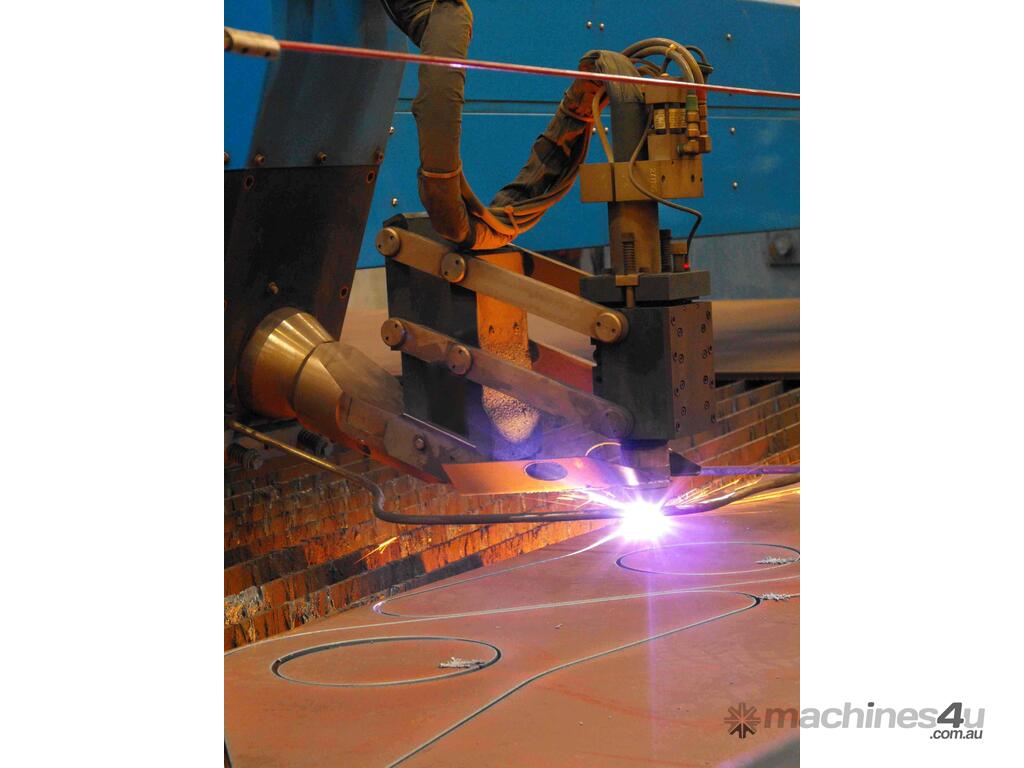

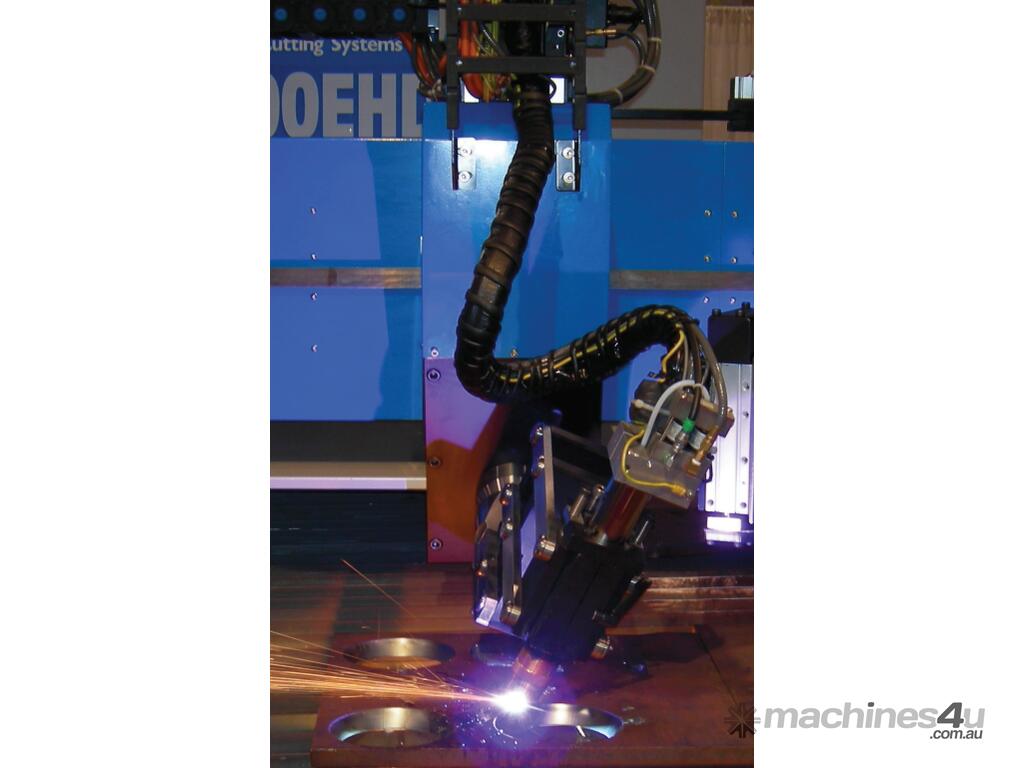

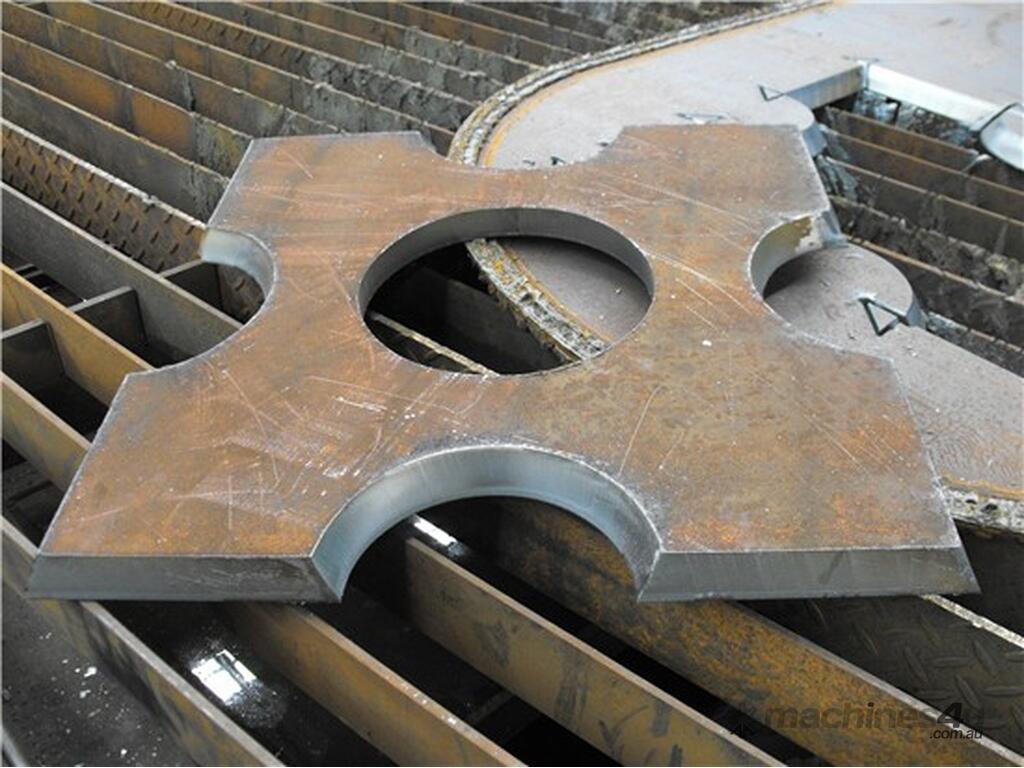

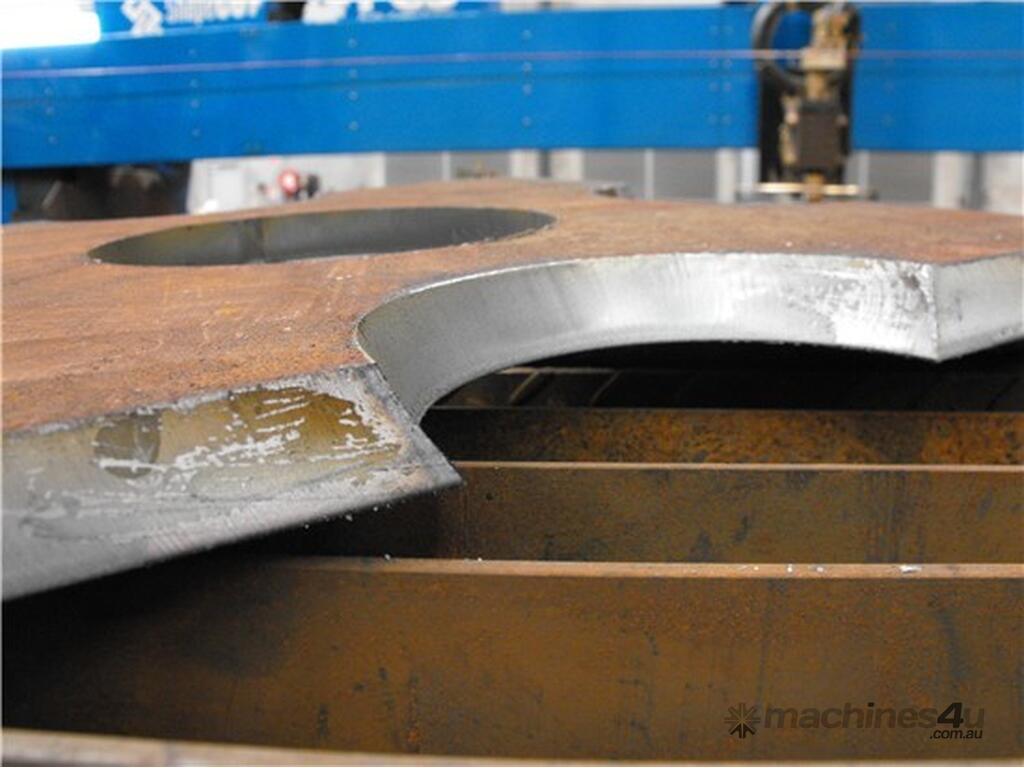

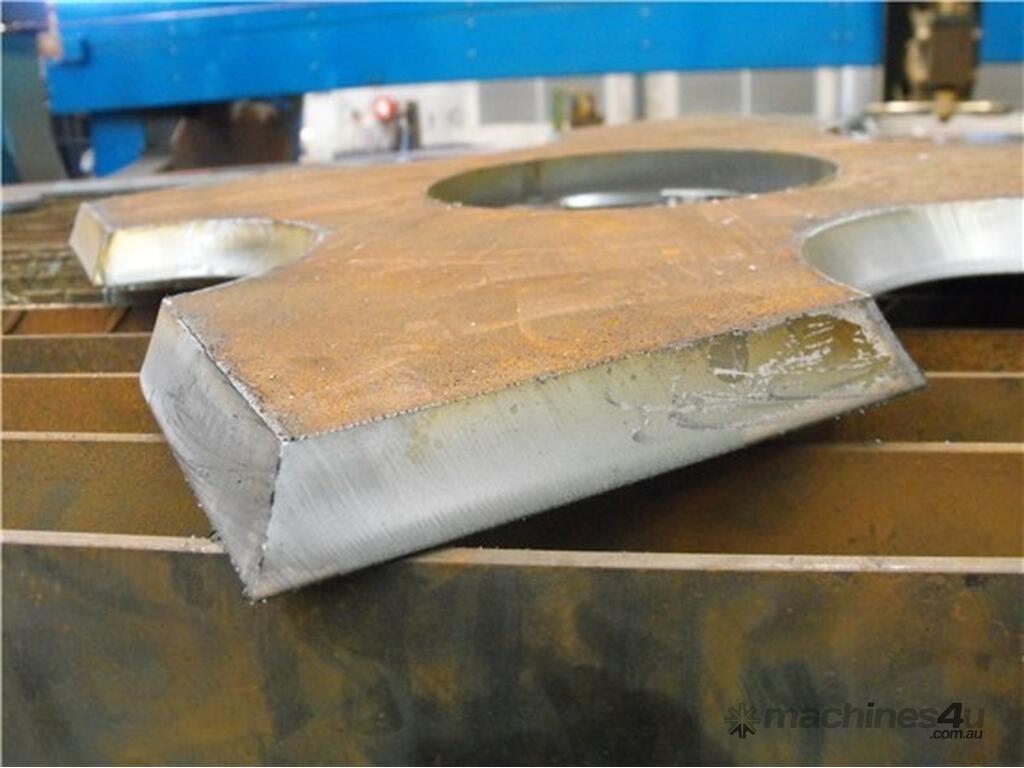

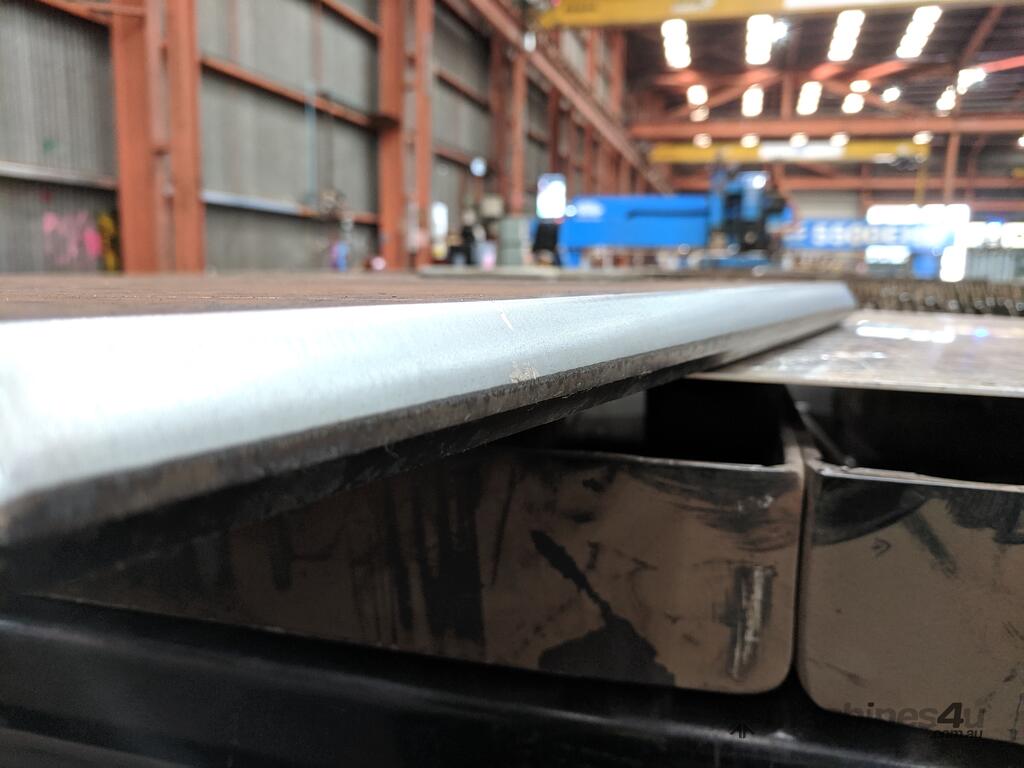

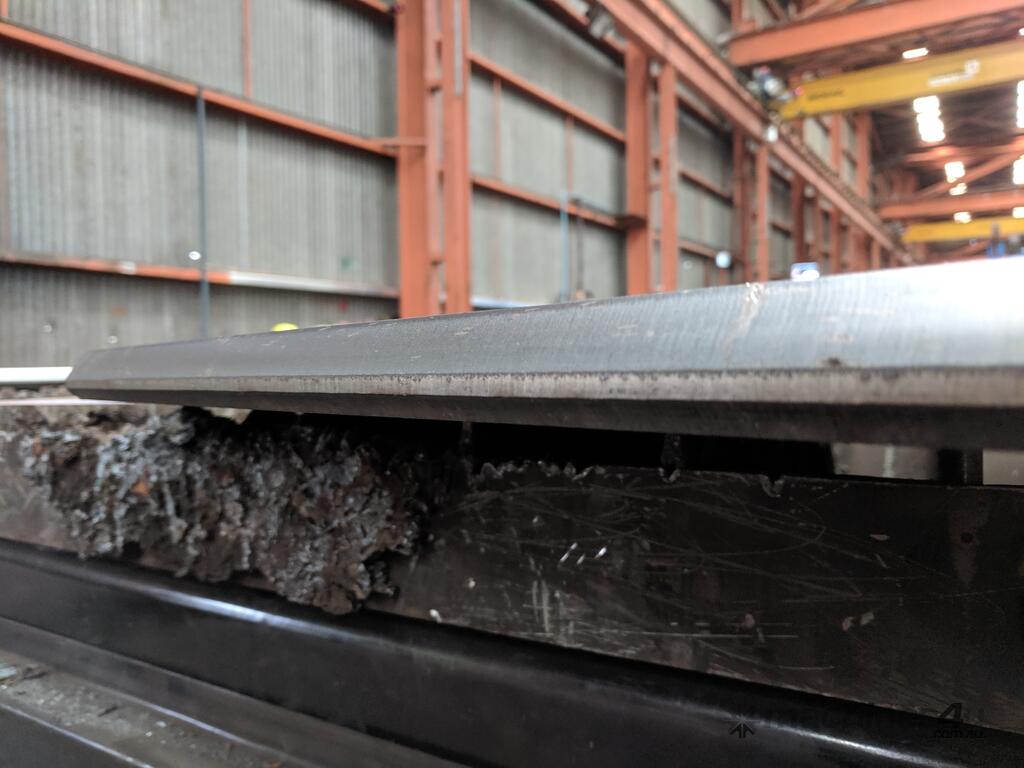

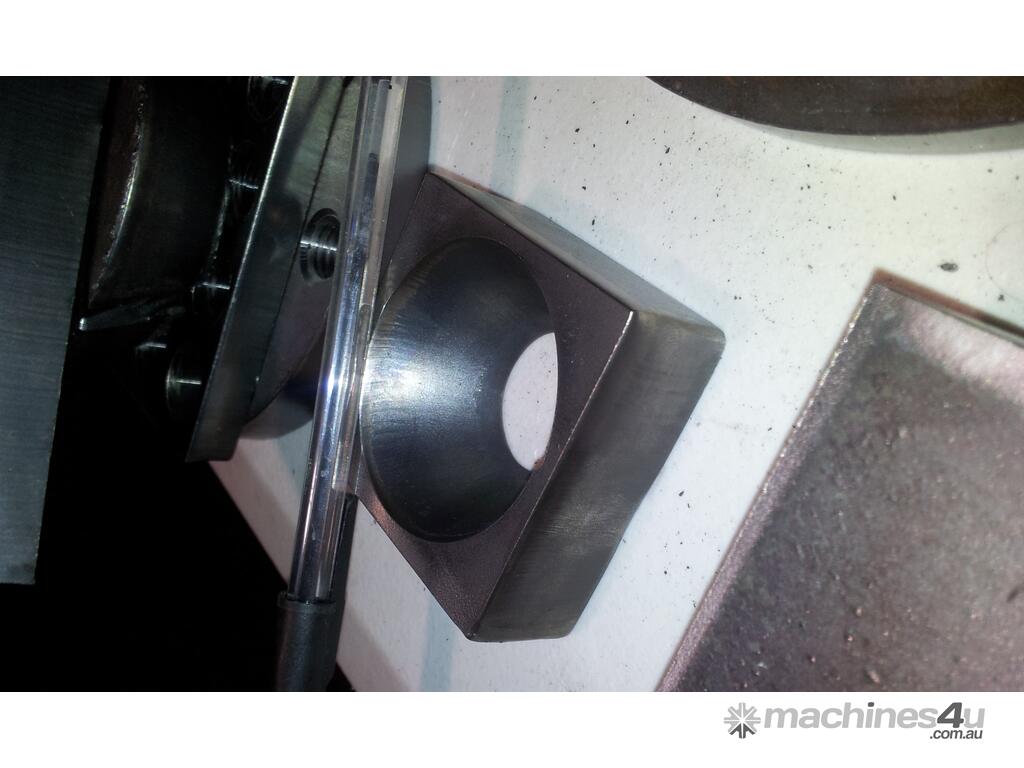

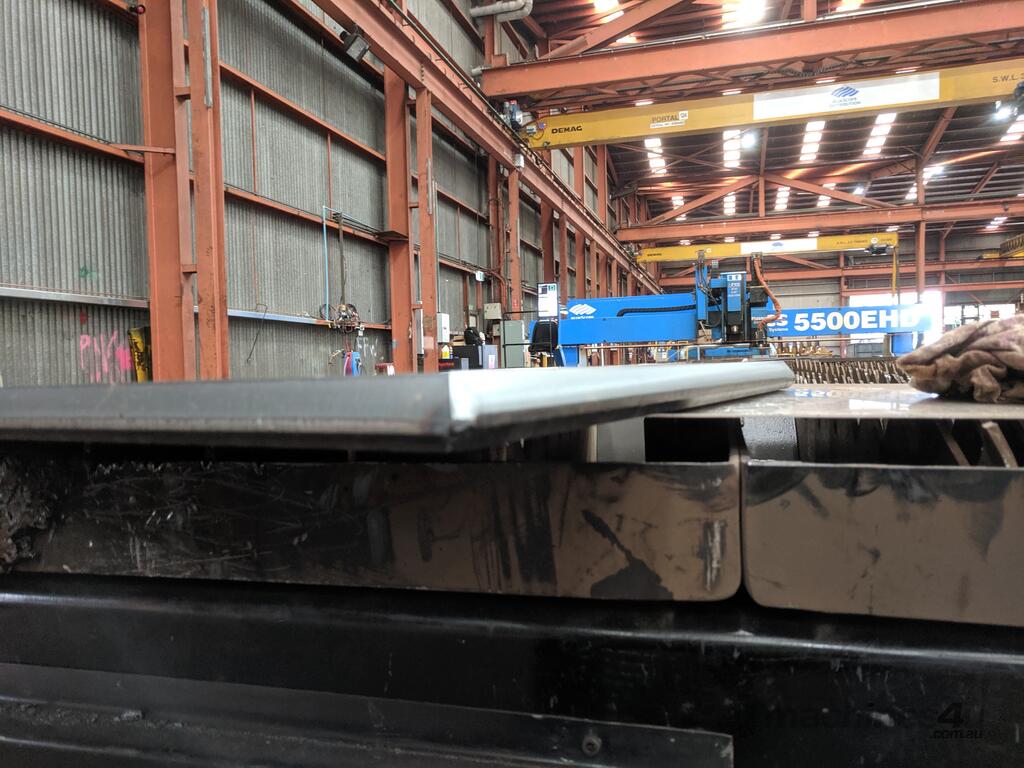

It is fully programmable to cut parts with bevel and straight cuts. This multitasking method will eliminate double handling of material and parts, which in turn will save your business time and money!

KEY BENEFITS EXPLAINED:
Lightweight, Fast and Precise!
Unlike other bulkier and cumbersome designs currently available, the PCS Bevel Head is extremely compact and lightweight (~50kg). This allows super-fast acceleration and top speed (up to 90 degrees/sec) and allows the head to achieve any angle (+/- 47 degrees) rapidly and precisely which in turn results in greater productivity and less plate wastage. As a result of its innovative yet simple design, the PCS Bevel Head also allows easy setup and adjustment of the focal point.

Zero Offset!
The PCS Bevel Head is a truly ZERO OFFSET design. This means that it can achieve all of its angles without any offset movement from the cutting machines X, Y, Z axis. Other designs currently available rely on offset movements from the cutting machines X, Y, Z axis for the bevel head to achieve its angles. This often results in slower, less repeatable motion. With the PCS Bevel Head the machine remains completely stationary while the PCS Bevel Head achieves its angles.

No twisting/working of cables and hoses!

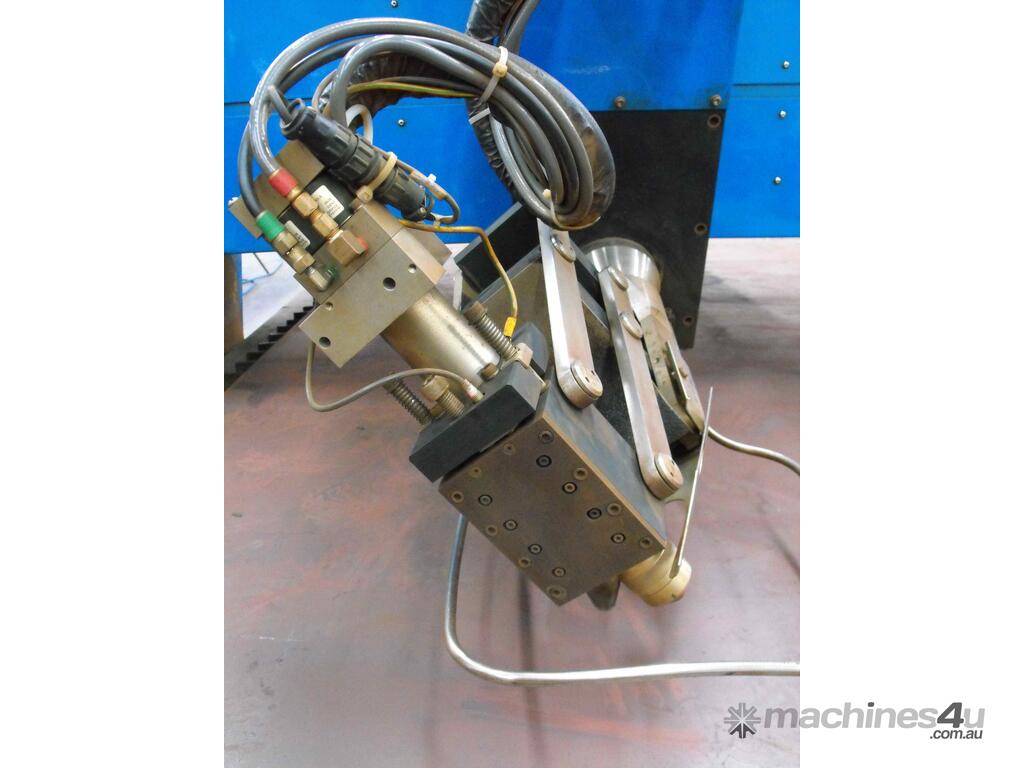

The PCS Bevel Head is extremely gentle on the torch leads and cables. This is because there is NO ROTATION involved. The torch TILTS rather than rotates to achieve its angles. Other designs currently available rely on the torch rotating within a bearing mount, which is prone to failure and destruction of torch leads and cables. This is not the case with the PCS Bevel Head and amounts to lower maintenance costs and lesser downtime.

Top Quality Parts and Workmanship
The PCS Bevel Head is a precision device and as such utilises high quality components and is built to an extremely high standard by Profile Cutting Systems Australia. With several units in operation world-wide, PCS stand by their product offering first class service, support and spare parts.


SPECIFICATIONS

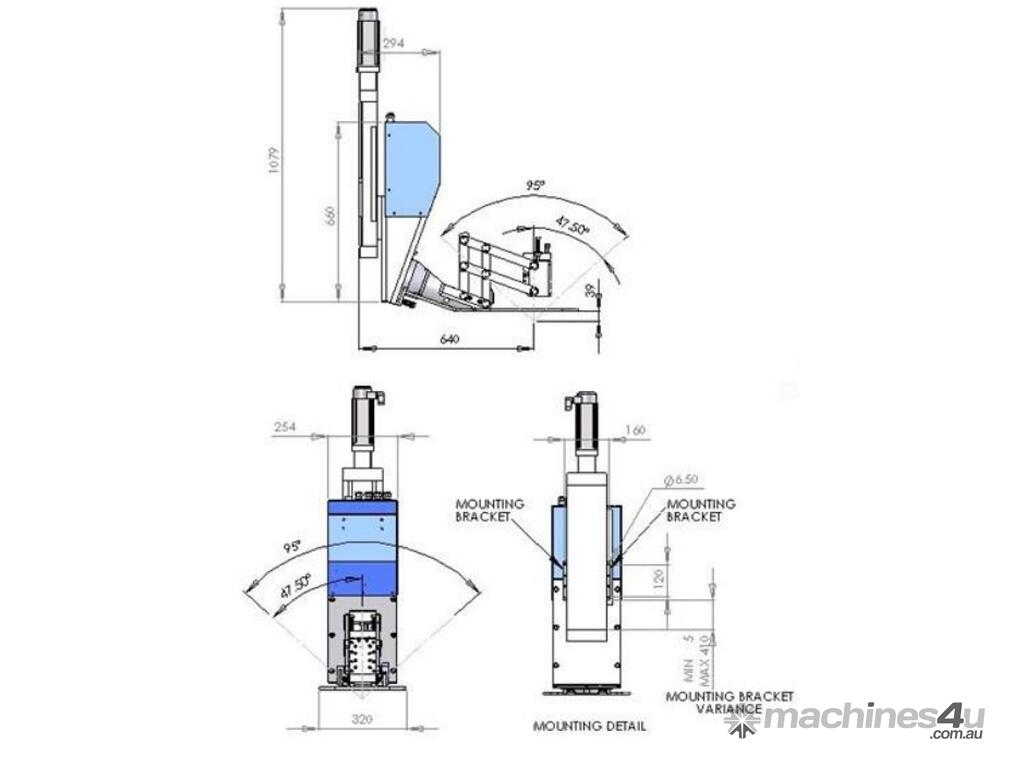

Side-Side movement: 95 degrees
Forward-Back movement: 95 degrees
Full Rotation: 360 degrees
Speed: 1 degree/0.02 Seconds
Operating Height: Bevel Head body 39mm from cutting surface
Weight: 84 kg

Drive motors and Gearboxes:
Side-Side - 0.90kW AC, 1.8Nm Max Torque Rexroth AC servo motor with planetary grease packed 50:1 Gearbox
Forward-Back - 1.86kW AC, 8.1 Nm Max Torque Rexroth servo motor with planetary grease packed 5:1 Gearbox
Lifter - 1.86kW AC, 8.1 Nm Max Torque Rexroth servo motor

Lifter: Bosch Rexroth CK20 Linear Module 320mm Stroke
Height Control: Automatic SHC

Bearings:
Pivot Bearings - All Pivot Bearings are Combination Pivot Thrust Type
Forward-Back - Linear Guide-Ball Screw Driven
Side-Side - Precision Angular Contact
Torch Holder - Linear Rail Type

Homing: Absolute Encoders
Over Travel Limits: Software Controlled with Proximity Fail Safe

Bevel Head Material:
Body & Moving Components - Stainless Steel
Carriage & Torch Holder - Aluminum

ORDERING INFO:
PART NO.
BHP00160 - Premium Spec PCS Plasma Bevel Head assy. Inc. gearboxes and Z axis Lifter*
BHP00260 - Standard Spec PCS Plasma Bevel Head assy. Inc. gearboxes and Z axis Lifter **

* Premium Spec model has machined billet Stainless Steel main body and linkages. Precision gearboxes (
