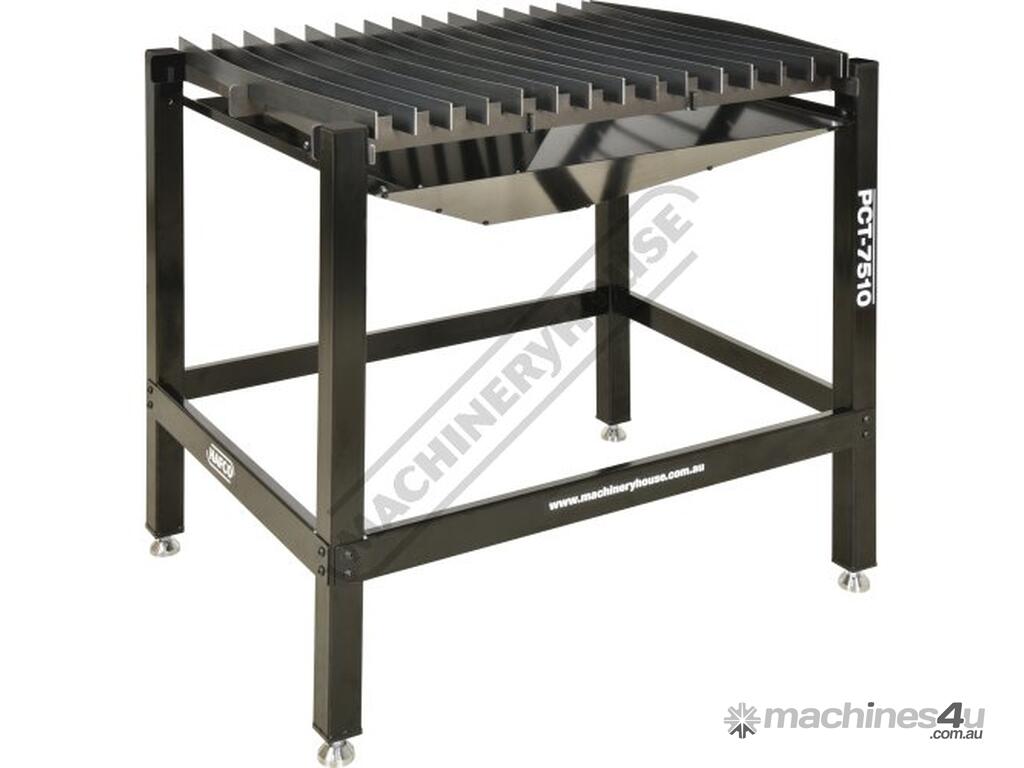

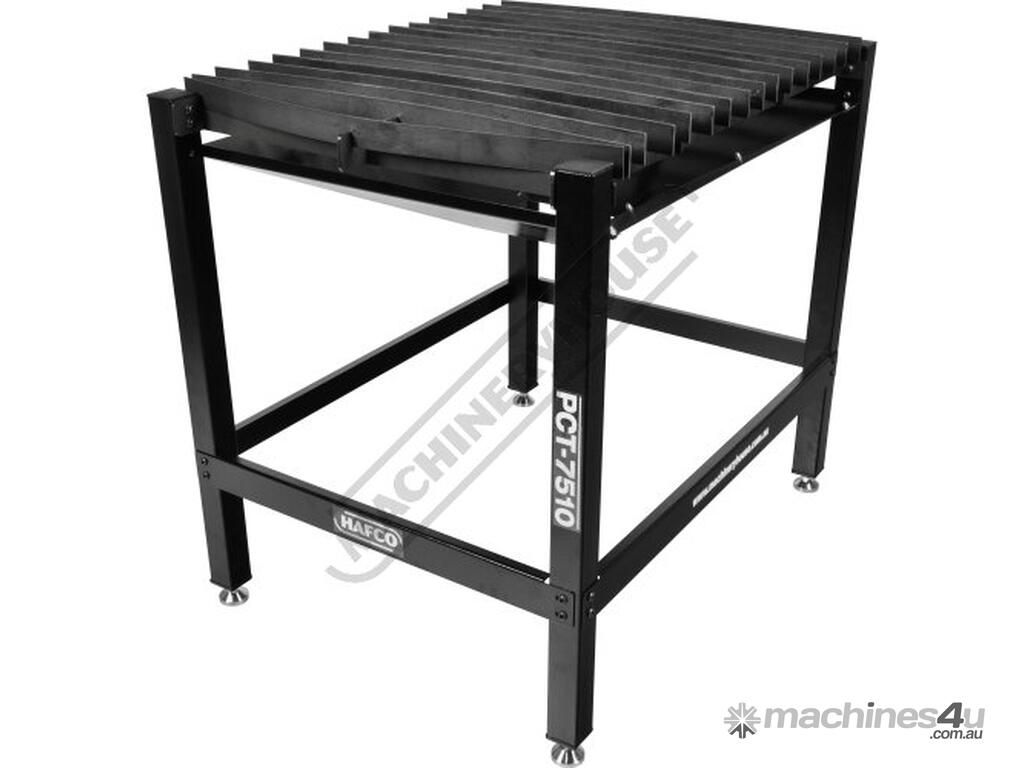

PCT-7510 Plasma Cutting Table Includes dust chute 750 x 1000 x 900mm (LxWxH)

HAFCO PCT-7510 Plasma Cutting Table Includes dust chute 750 x 1000 x 900mm (LxWxH)
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08602

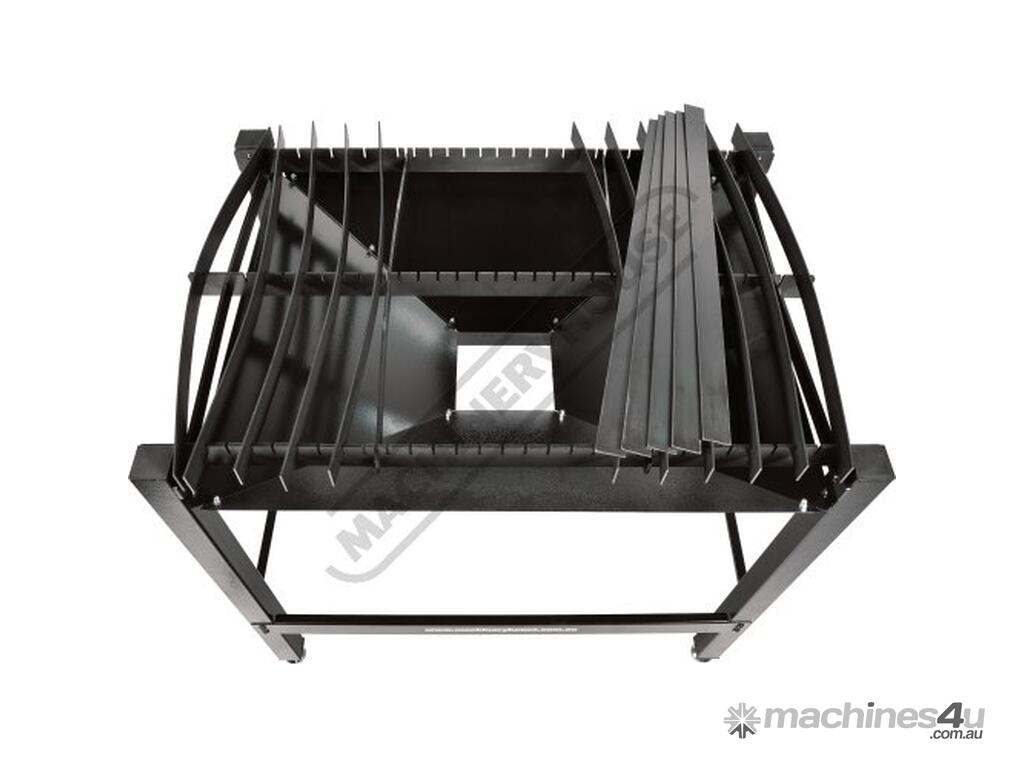

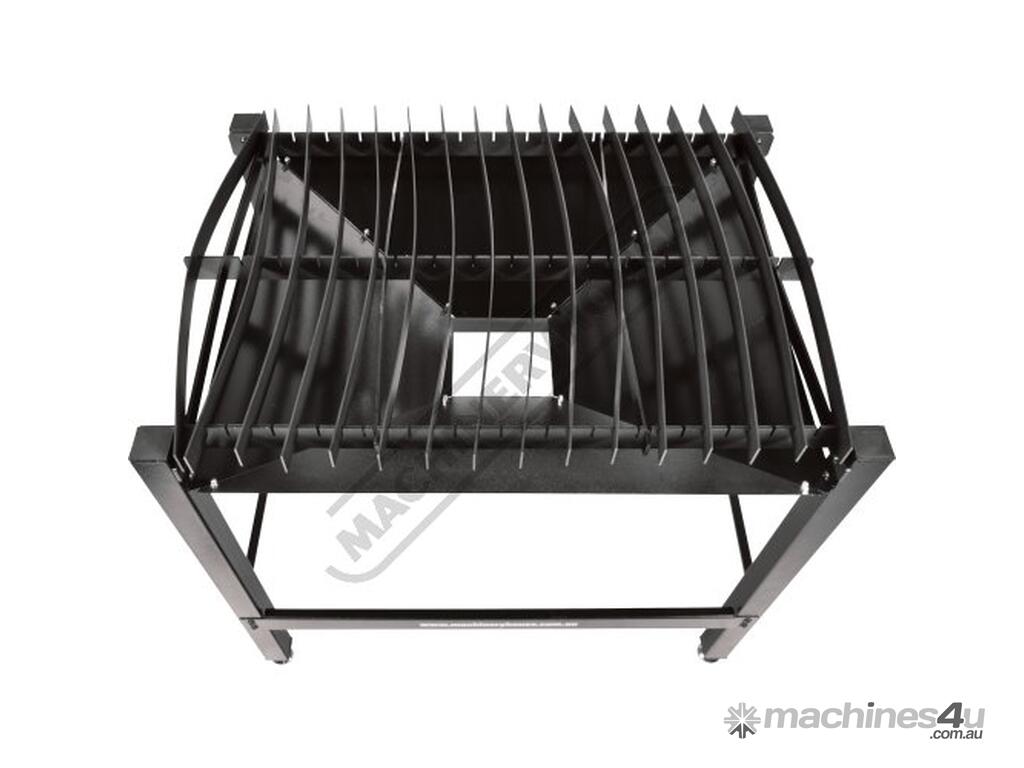

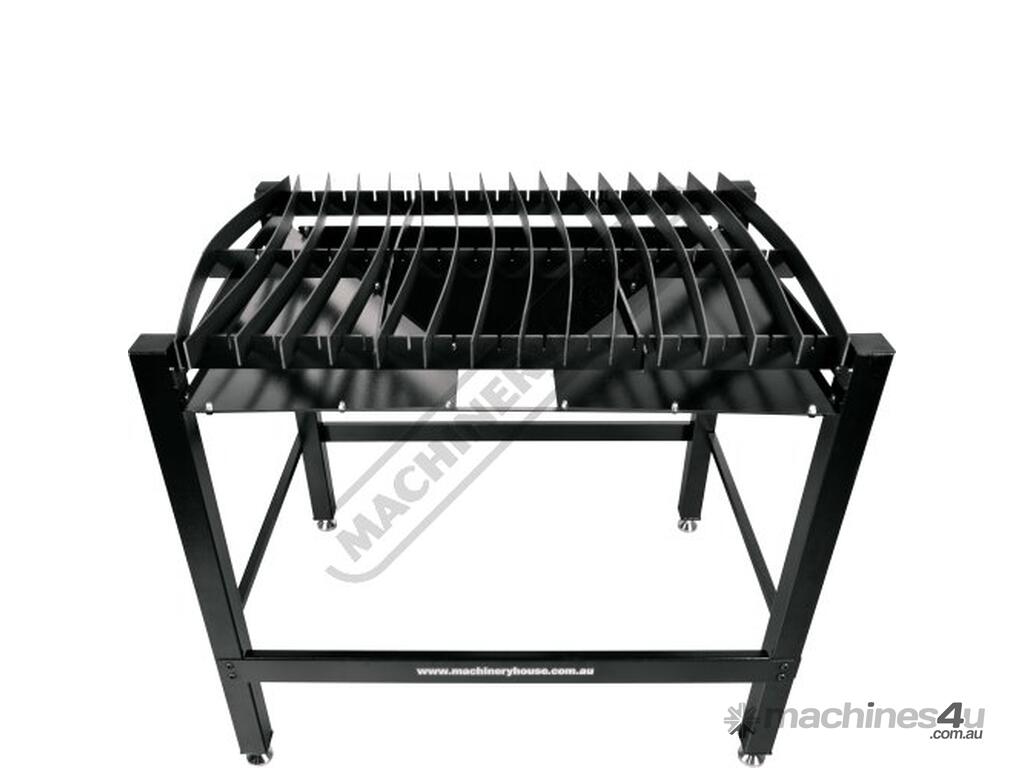

Design was developed in Australia as an economical free-standing plasma cutting table, the design is based around tubular steel legs along with a frame that is precision laser from 5mm steel with inter-locking steel ribs & steel sacrificial cutting slats giving you a generous 750 x 1000mm overall working size.

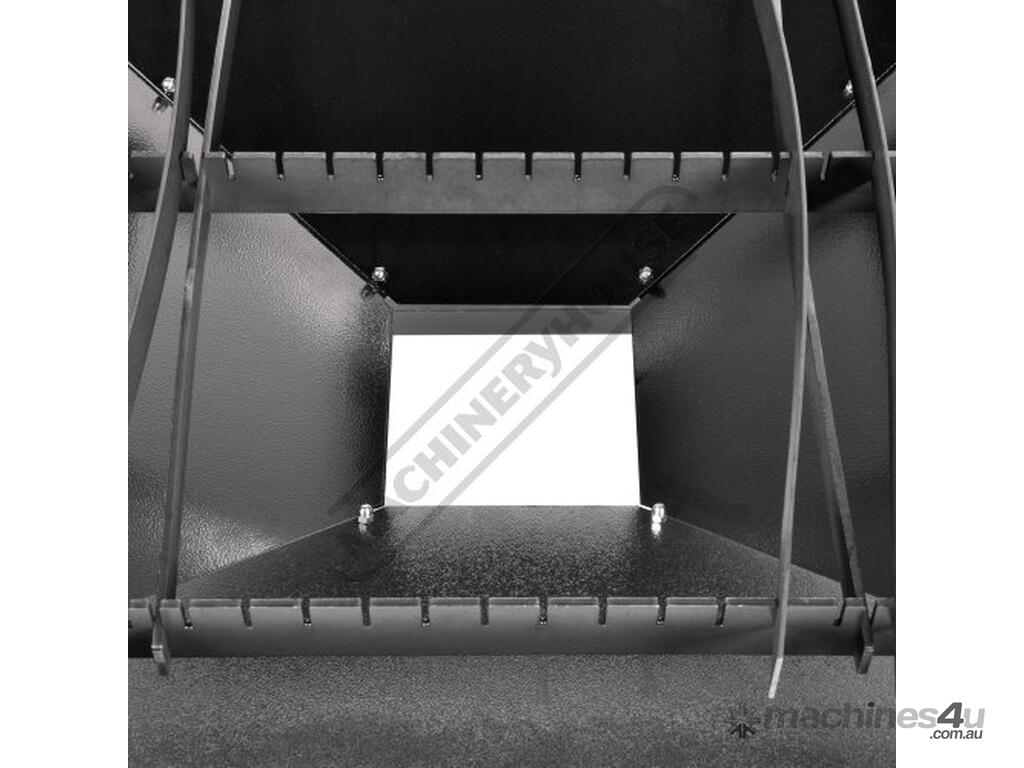

The construction consists of powder-coated 50mm square tube steel legs that come complete with adjustable levelling feet to ensure a stable working surface plus the sacrificial steel slats are easily replaceable with 40 x 3mm flat bar, readily available at most hardware or local steel suppliers. Under the table surface we have included a sheet metal dust chute, simply place a steel bucket under the table to be able to easily dispose any waste or offcuts that fall through the cutting slats.
NOTE - THIS ITEM COMES FLAT PACKED & REQUIRES ASSEMBLY, please review our construction guide via our downloads.

Features:
Convenient bolt together design for easy assembly
Designed & developed in Australia

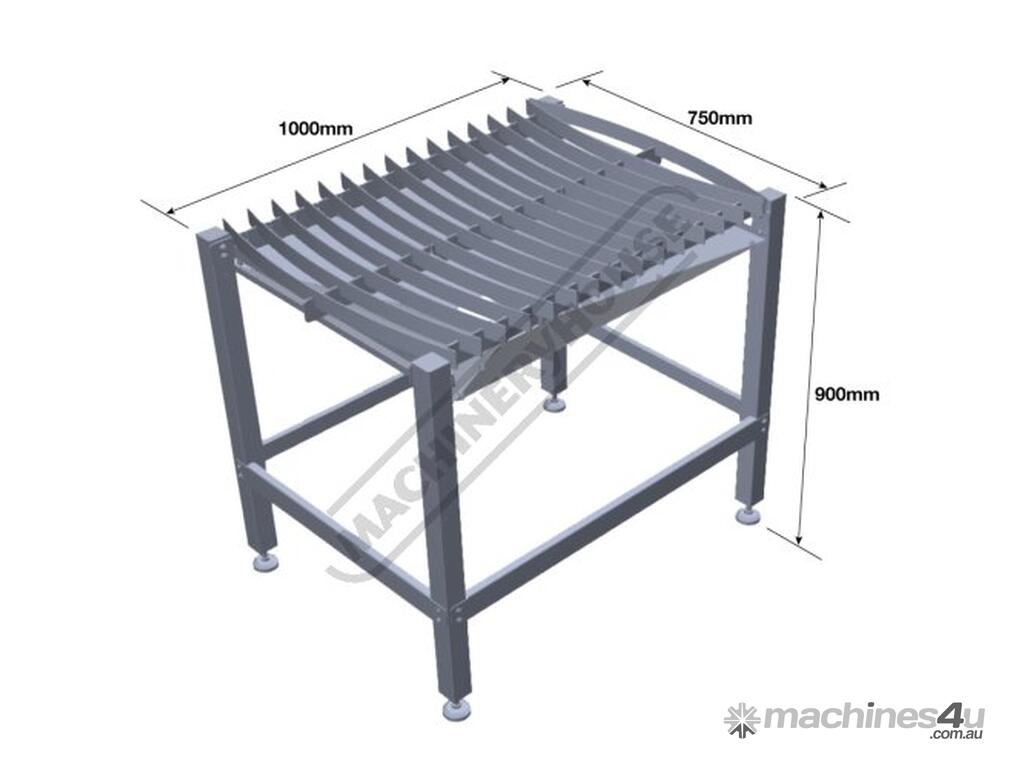

Generous 750 x 1000mm overall size
Precision laser cut components
Replaceable sacrificial 40 x 3mm steel cutting slats
Dust/waste chute

Includes:

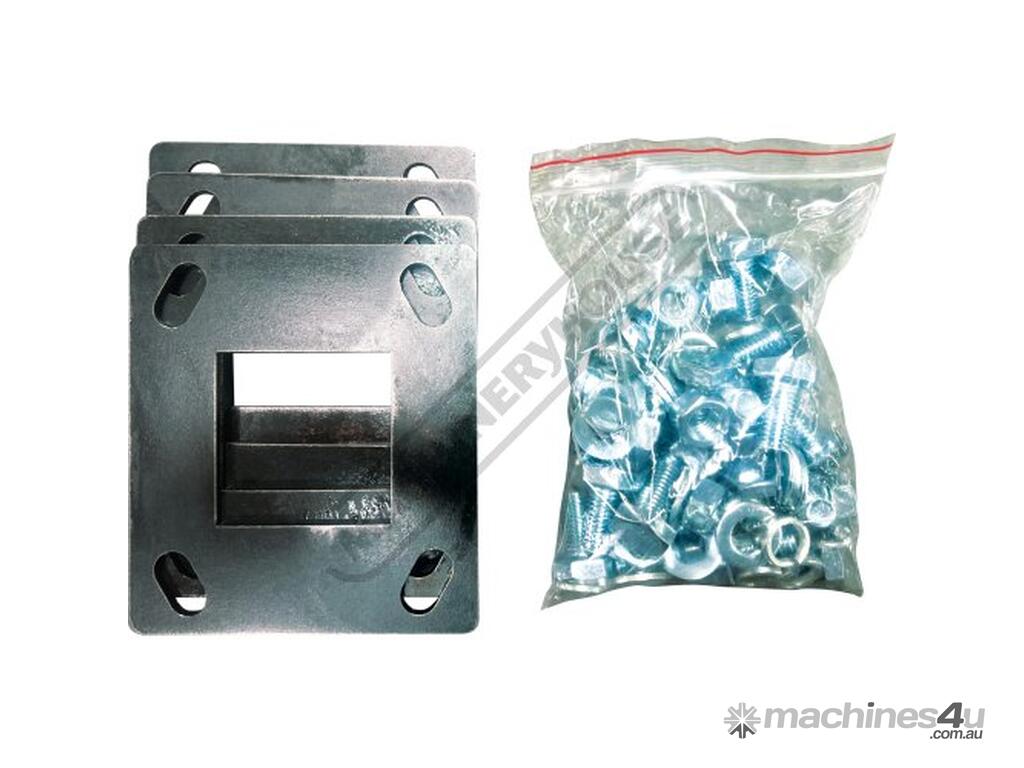

- 5mm laser cut steel frame
- 50 x 50mm powder coated steel tube legs c/w adjustable feet
- 16pcs of 40 x 3mm sacrificial cutting slats
- Sheetmetal dust chute

Specifications:
ORDER CODE: W08602
MODEL: PCT-7510
Type: Plasma Cutting Table
Table Hole Diameter (Ø): ~
Table Top Size (mm): ~
Table Height with Stand (mm): 900
Table Side Height (mm): ~
Top Plate Thickness (mm): 3
Grid Pattern (mm): ~
Table Slots (mm): ~
Table Load Capacity (kg): ~
Nett Weight (kg): 42
