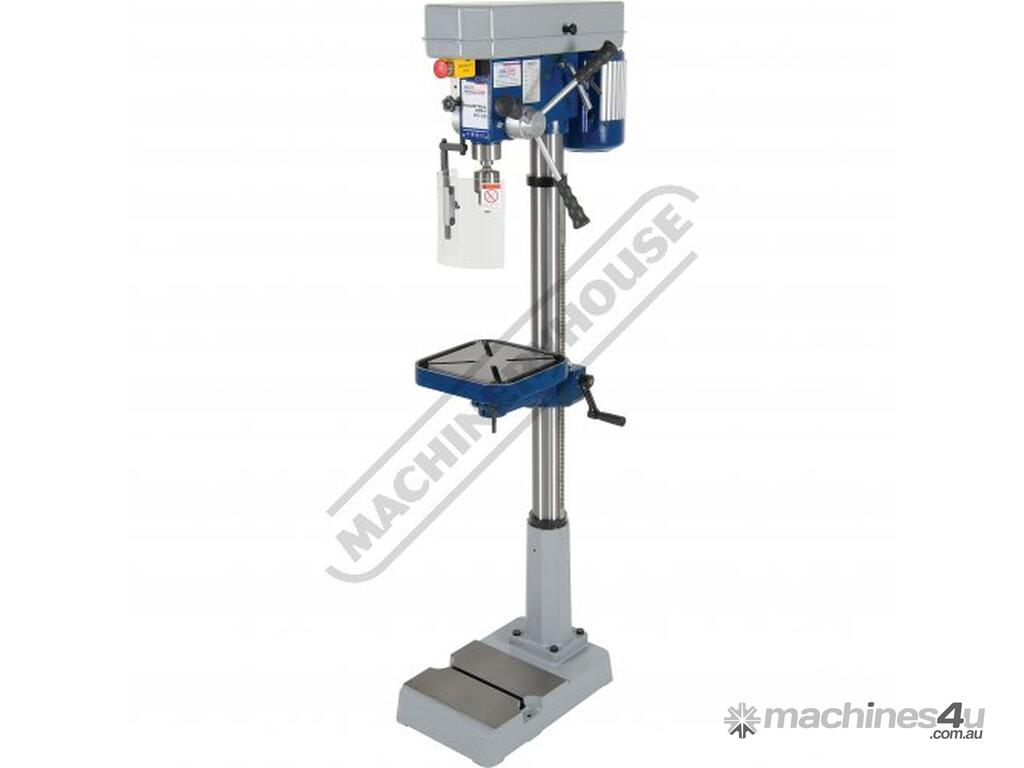

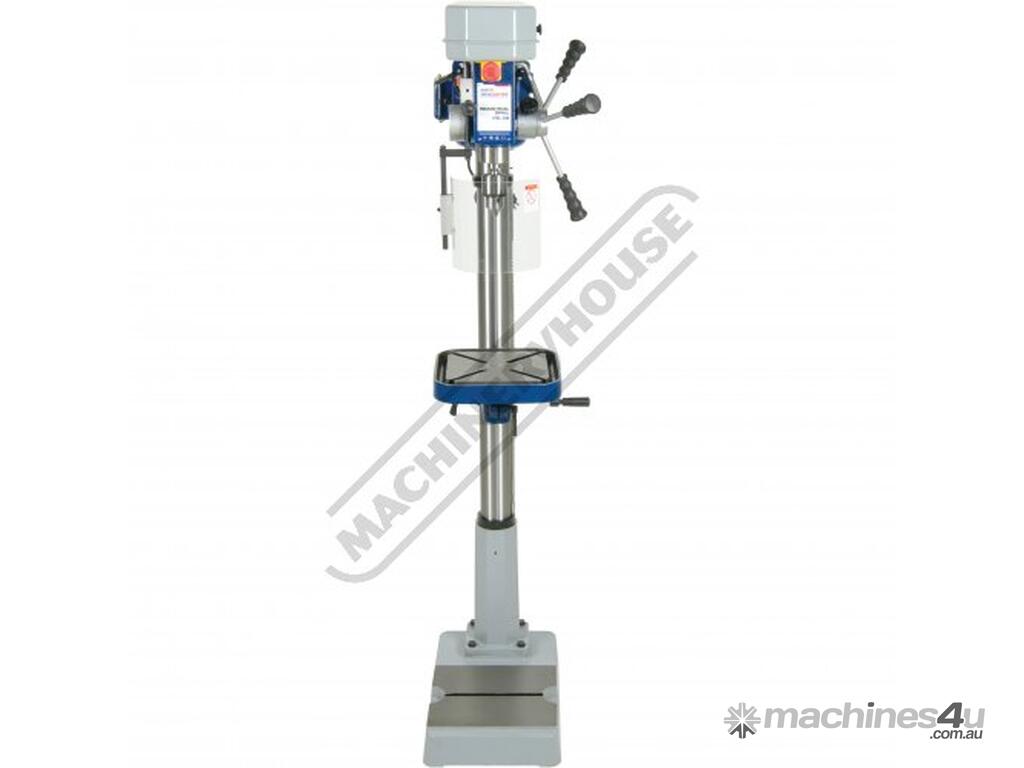

PD-28 Industrial Pedestal Drill - Belt Drive Table Rotates 360º Ø23mm Drill Capacity with 2MT Spindl

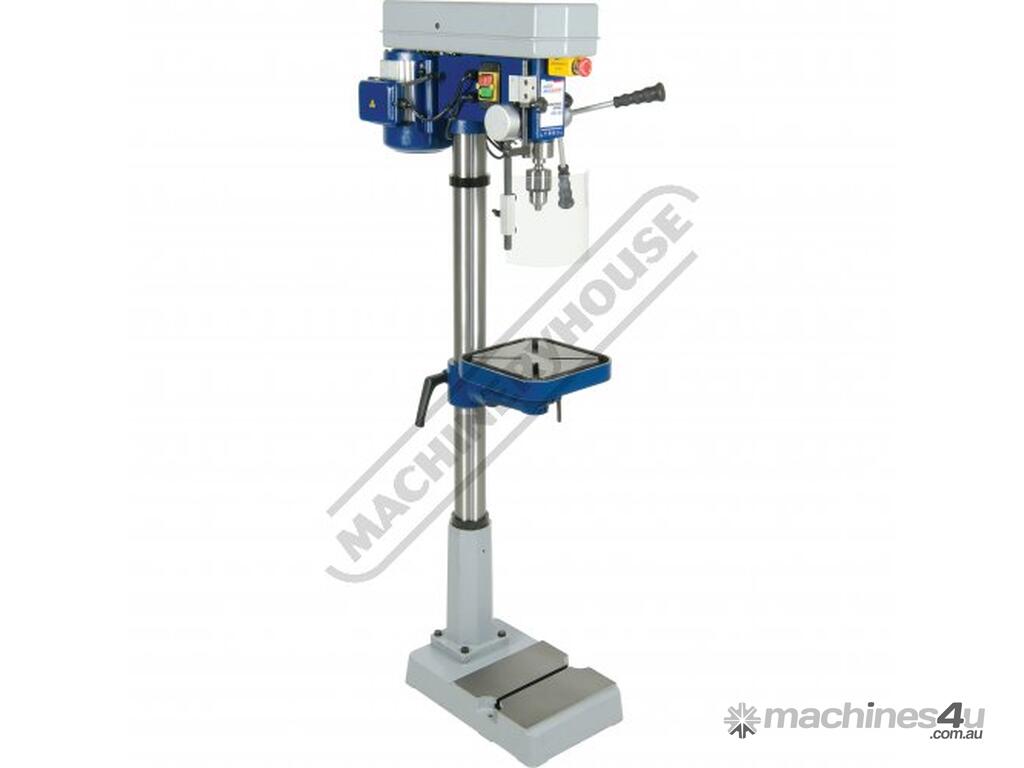

HAFCO-METALMASTER PD-28 Industrial Pedestal Drill - Belt Drive Table Rotates 360º Ø23mm Drill Capacity with 2MT Spindle Taper
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D160

If you are in the market for a superior quality industrial belt drive drilling machine with a capacity of Ø23mm, and need it to take some serious work load duration then this machine would definitely perform to the task. This PD-28 pedestal drill manufactured in Taiwan to precision engineering tolerance & excellence will certainly transform your drilling holes experience to the next level of expertise.

What makes this machine different from the others is that the casting have been made heavier & thicker walled, which in this case relates to a total weight of 102kg on this model, that is approximately 70% heavier to its rival in this range.

Therefore, this range of drilling machines offers all the basic feature necessities to outperform & outlast the competitor machines all day everyday.

Features:
Ideal for industrial workshop use

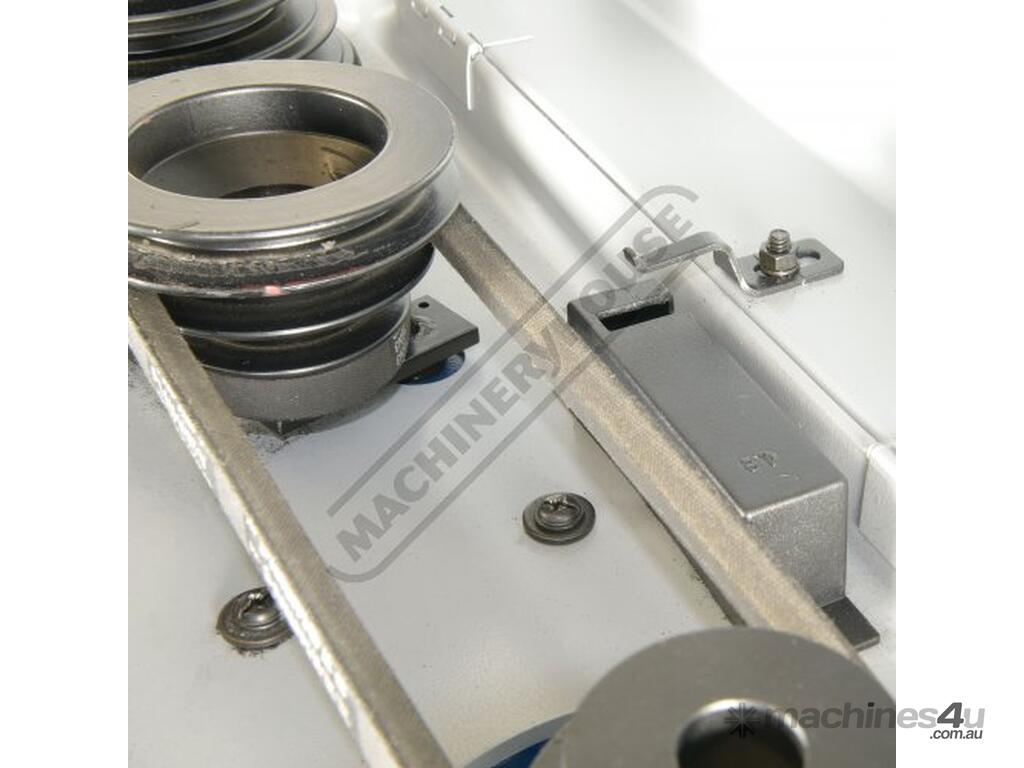

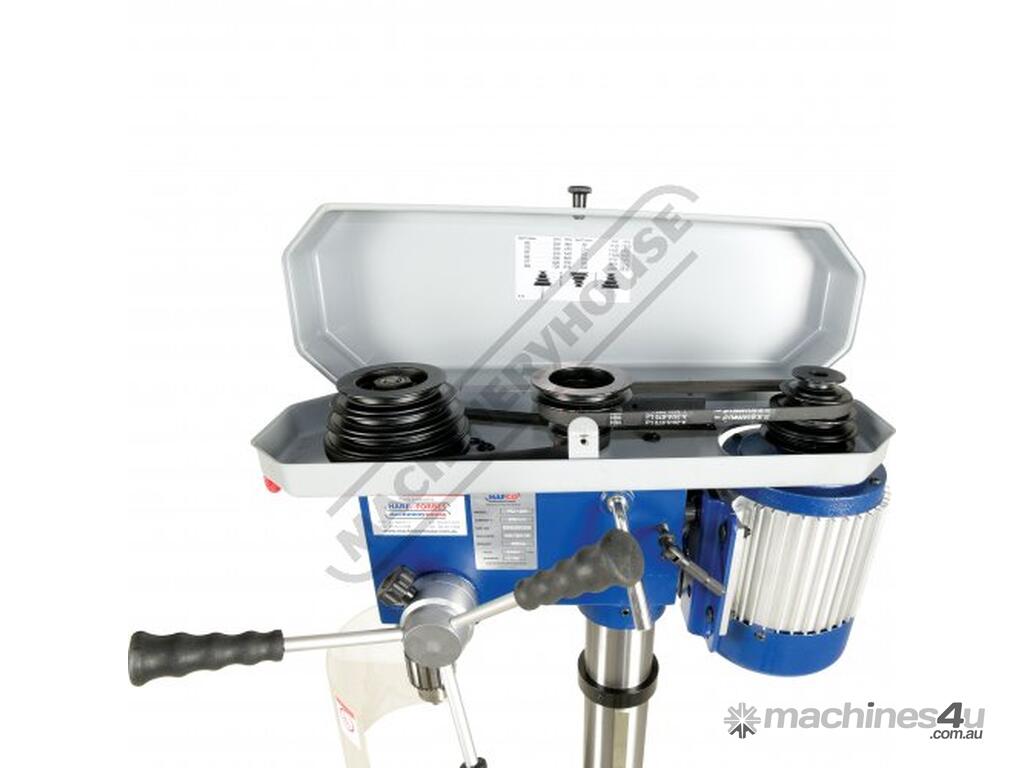

Quiet A section V-belt drive system
Quick action belt tensioning lever

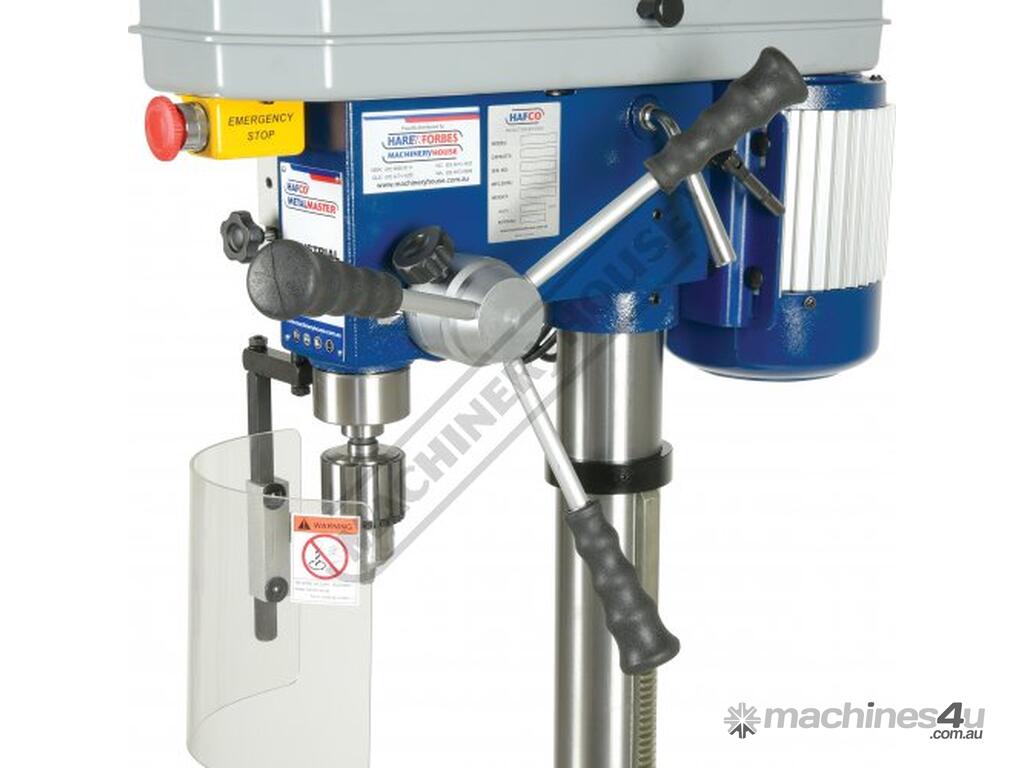

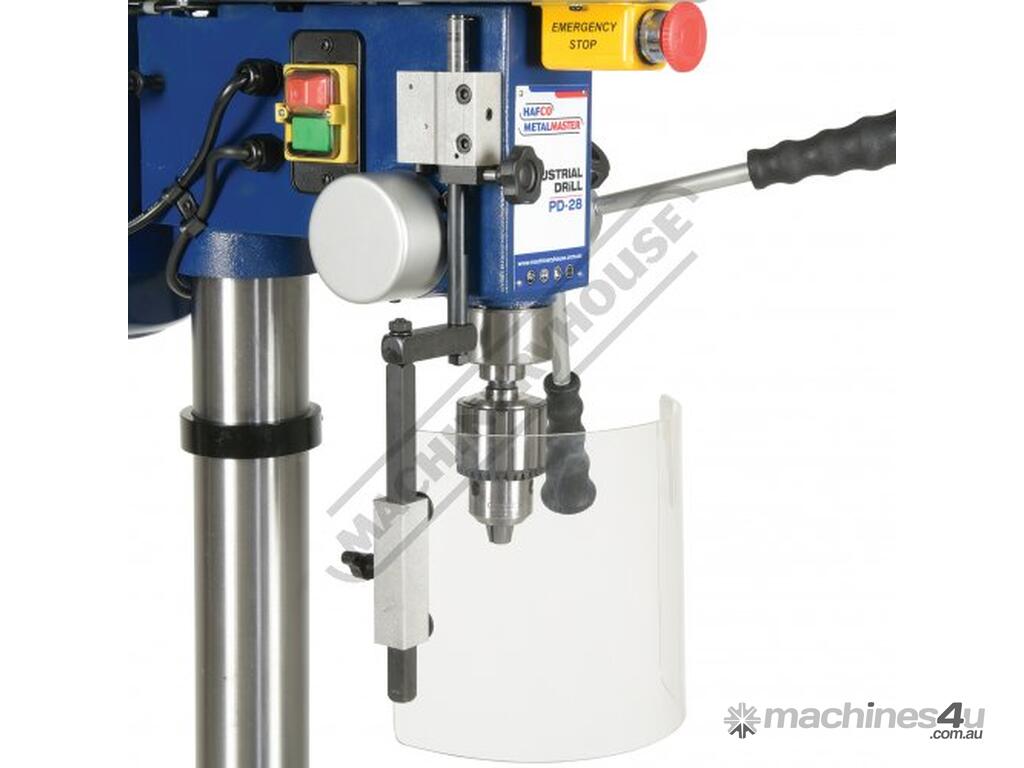

Adjustable safety drilling chuck guard with micro switch
Safety micro switch on pulley guard

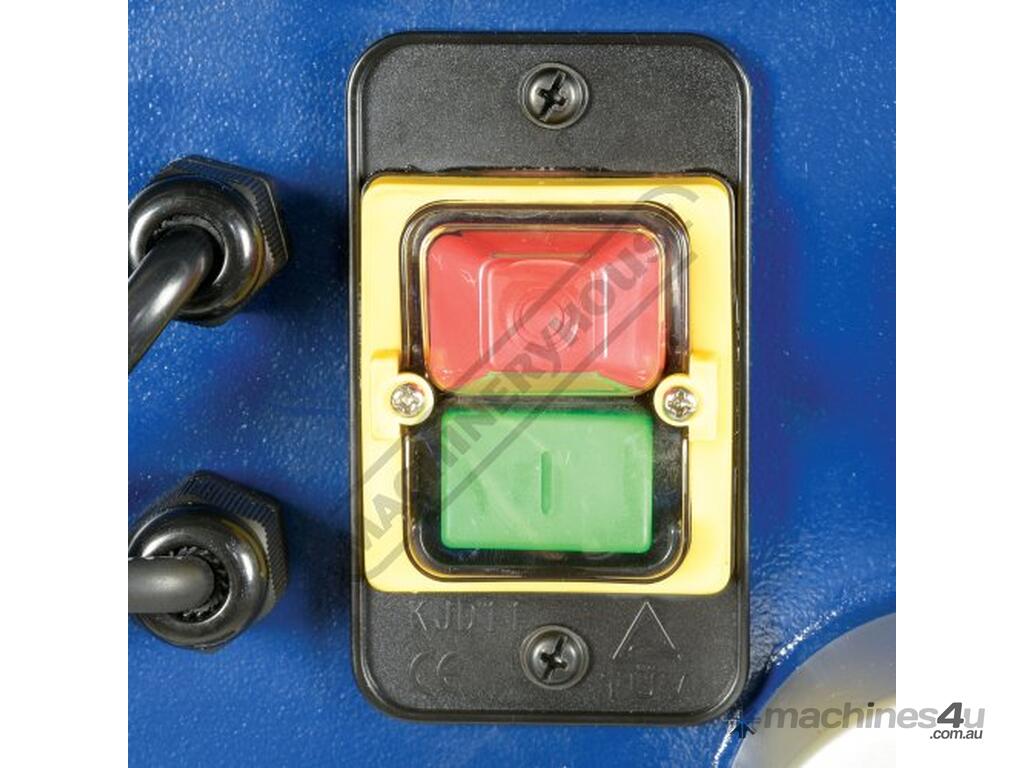

Safety magnetic-type switch

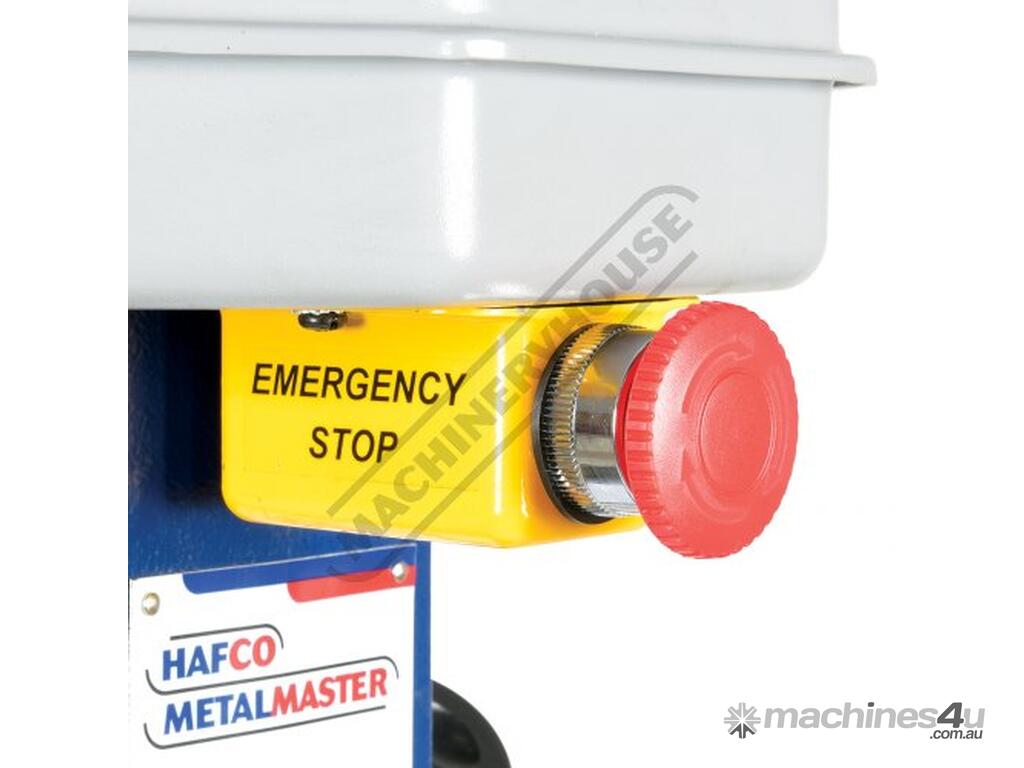

Emergency stop switch
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Table rotates 360º

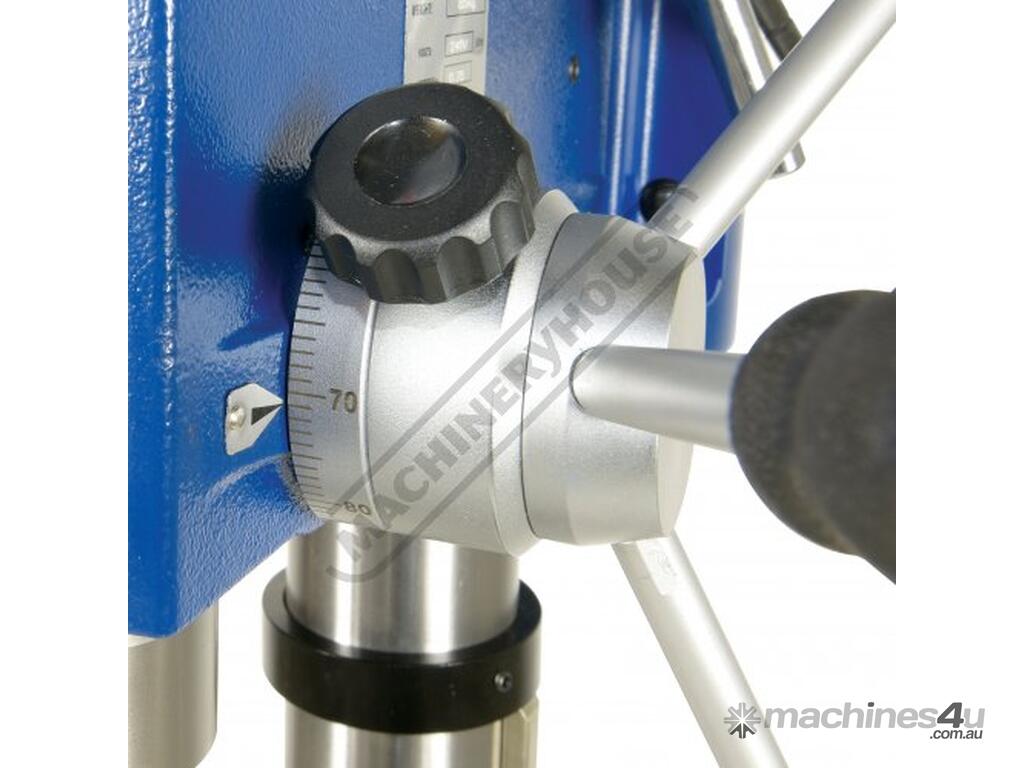

Drilling depth stop setting with scale

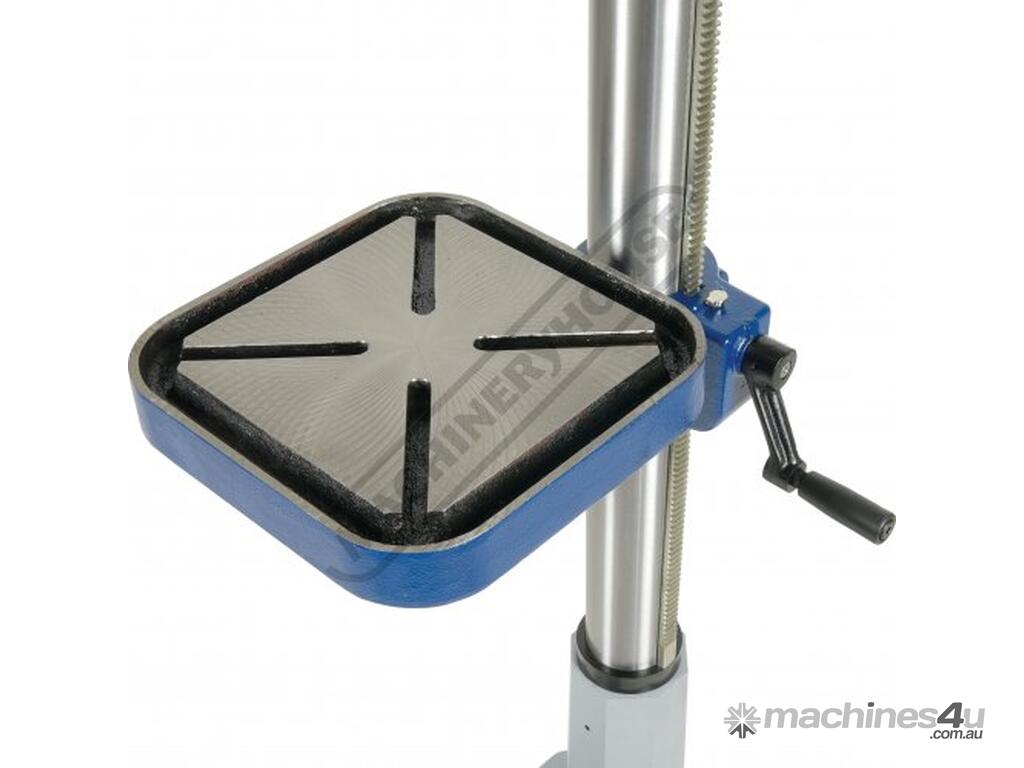

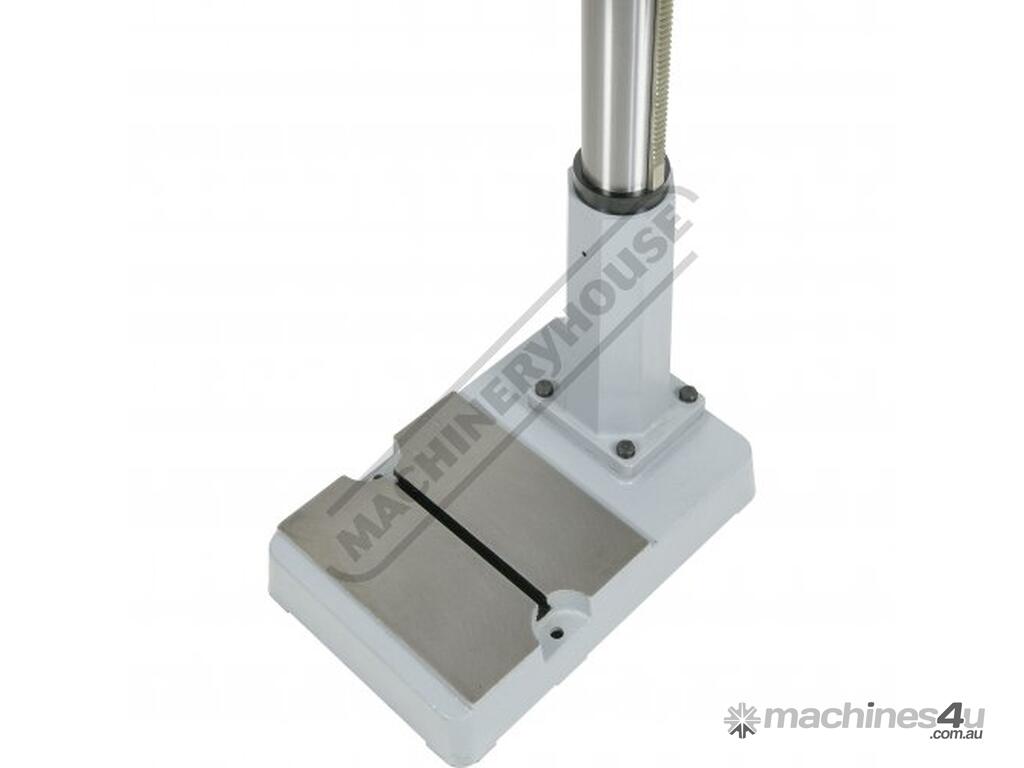

T slotted work table

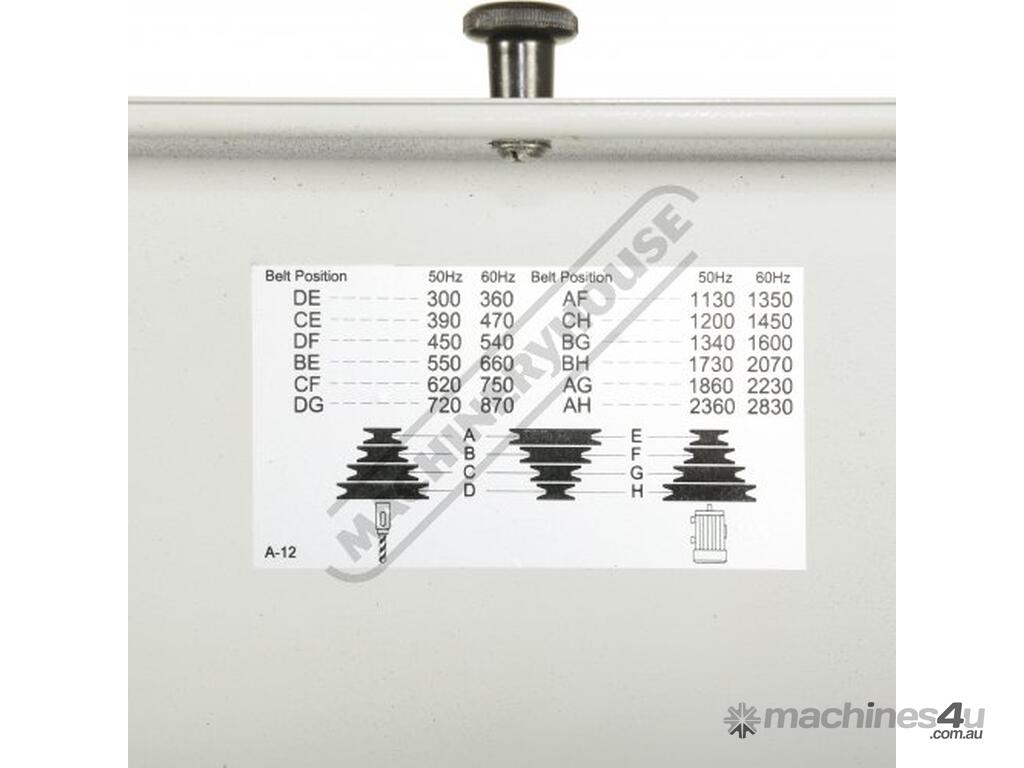

12 spindle speeds - rpm

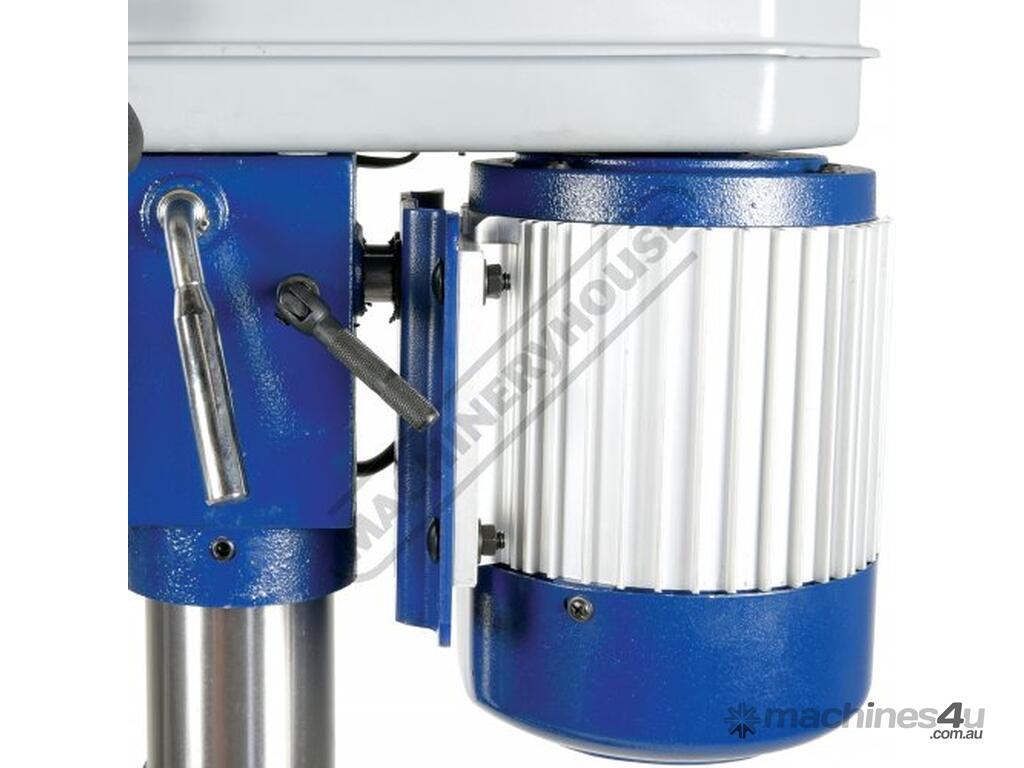

240V Fan-cooled motor rated for continuous use with overload protection
Made in Taiwan

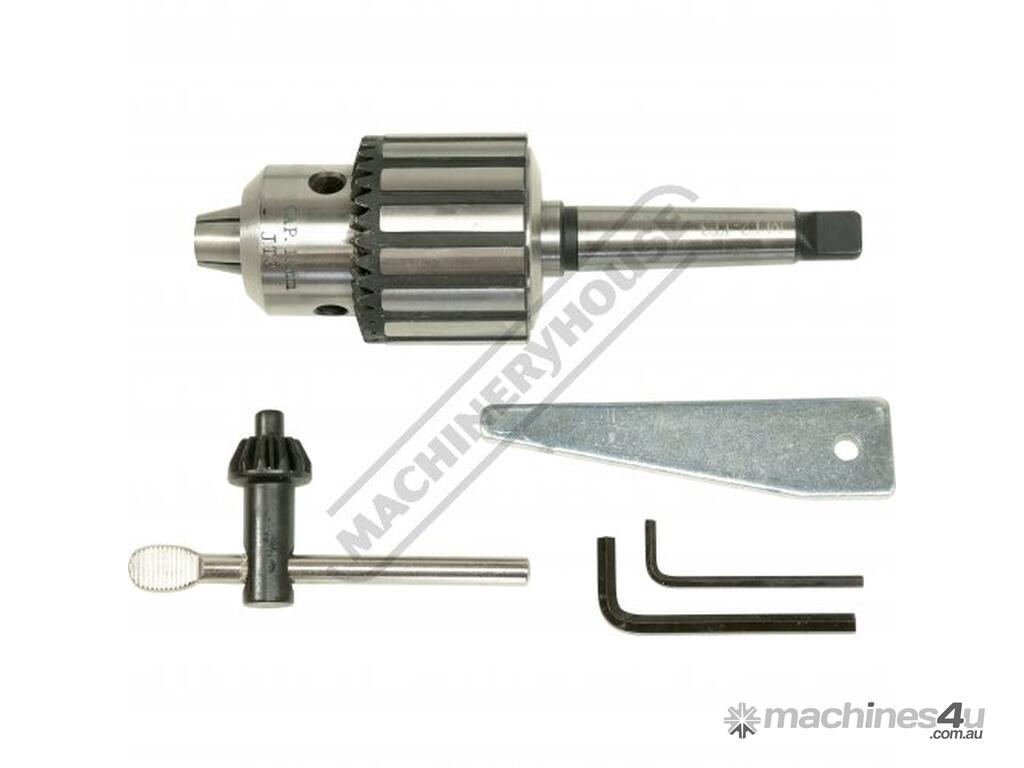

Includes:

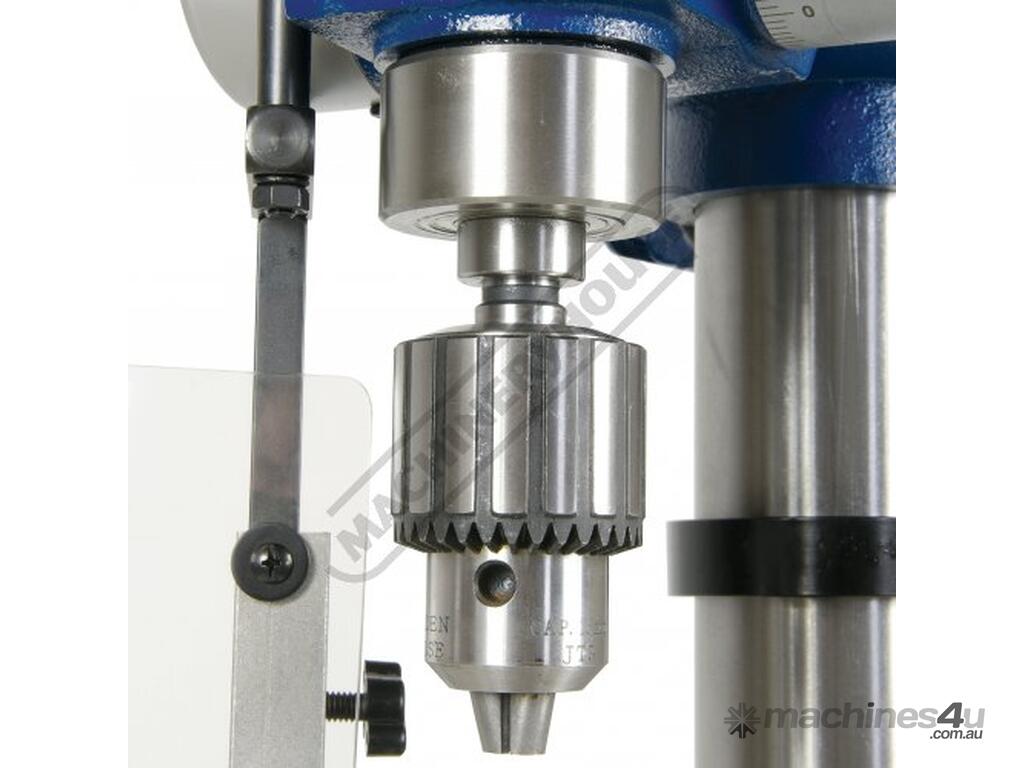

- Drill chuck & arbor
- Chuck key to suit
- Drill drift



Specifications:
ORDER CODE: D160
MODEL: PD-28
Type - Bench / Pedestal: Pedestal
Duty Type: Industrial-Duty
Drilling Diameter Capacity (mm): Ø23
Spindle Taper (MT): 2
Spindle Travel (mm): 83
Throat Depth (mm): 185
Quill Diameter (mm): 47
Collar Diameter (mm): 65
Column Diameter (mm): 80
Spindle To Table (mm): 645
Spindle To Base (mm): 1180
Table Shape: Square
Table Size (mm): 285 x 285
Work Light: ~
Micro Switch On Pulley Guard: Yes
Drive Belt Type: A Section
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 300 - 2360
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Overall Height (mm): 1710
Nett Weight (kg): 98
