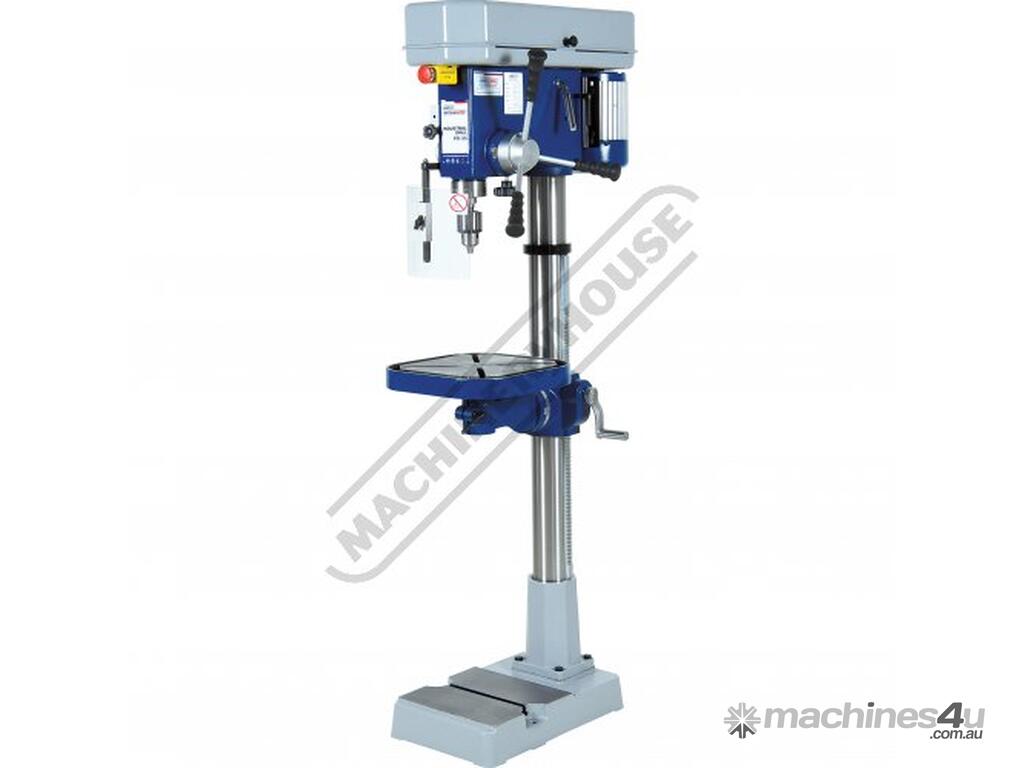

HAFCO-METALMASTER PD-35B Industrial Pedestal Drill - Belt Drive Table rotates 360º Ø31.5mm Drill Capacity with 3MT Spindle Taper
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D161
If you are in the market for a superior quality industrial belt drive drilling machine with a capacity of Ø31.5mm, and need it to take some serious work load duration then this machine would definitely perform to the task. This PD-35B pedestal drill manufactured in Taiwan to precision engineering tolerance & excellence will certainly transform your drilling holes experience to the next level of expertise.
What makes this machine different from the others is that the casting have been made heavier & thicker walled, which in this case relates to a total weight of 155kg on this model, that is approximately 30% heavier to its rival in this range.
The PD-35B drill has been designed to include large B section drive belts to ensure a much superior drive is achieved and less belt slippage when using larger drill bits.
Therefore, this range of drilling machines offers all the basic feature necessities to outperform & outlast the competitor machines all day everyday.
Features:
Ideal for industrial workshop use

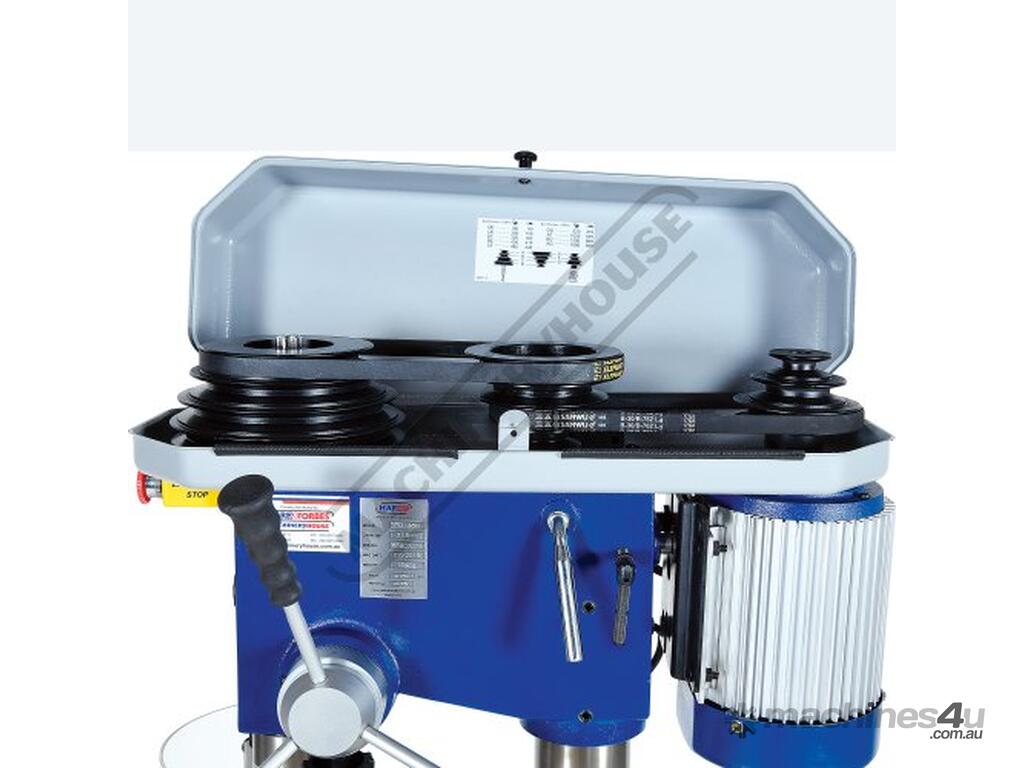

Quiet B section V-belt drive system

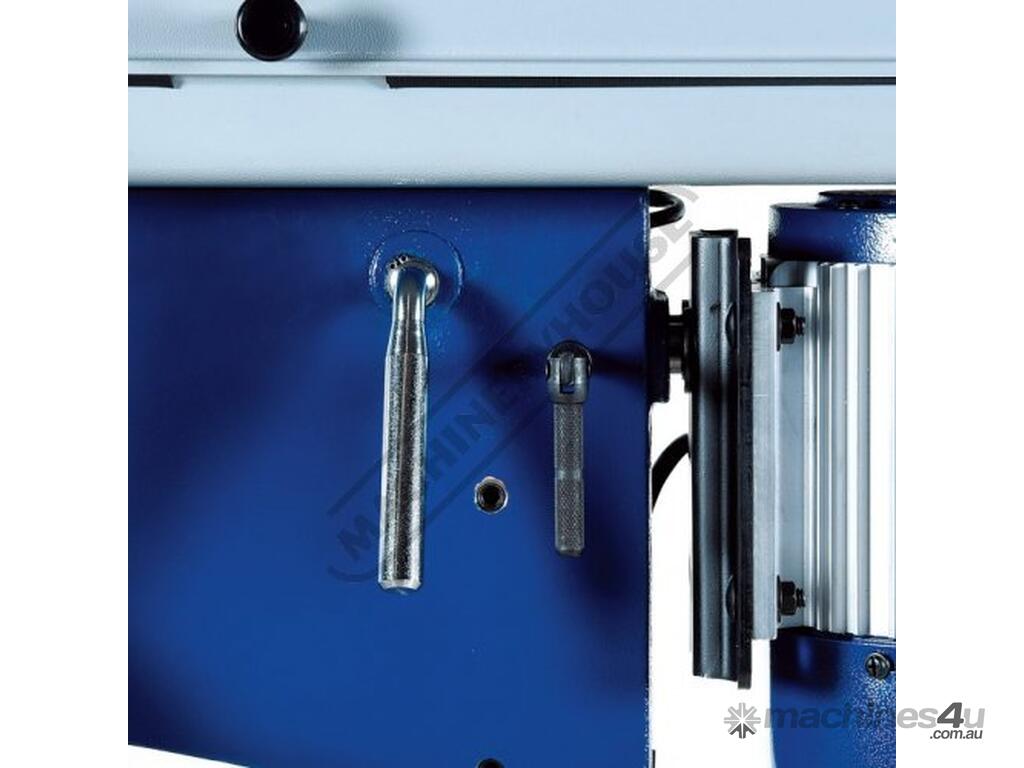

Quick action belt tensioning lever

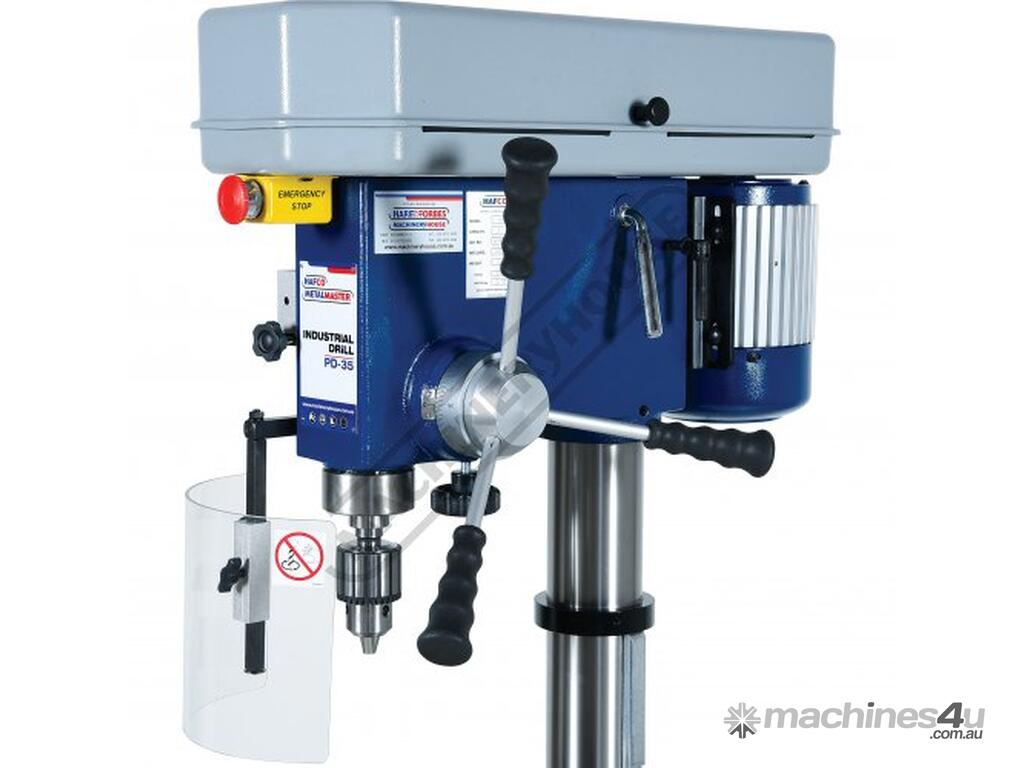

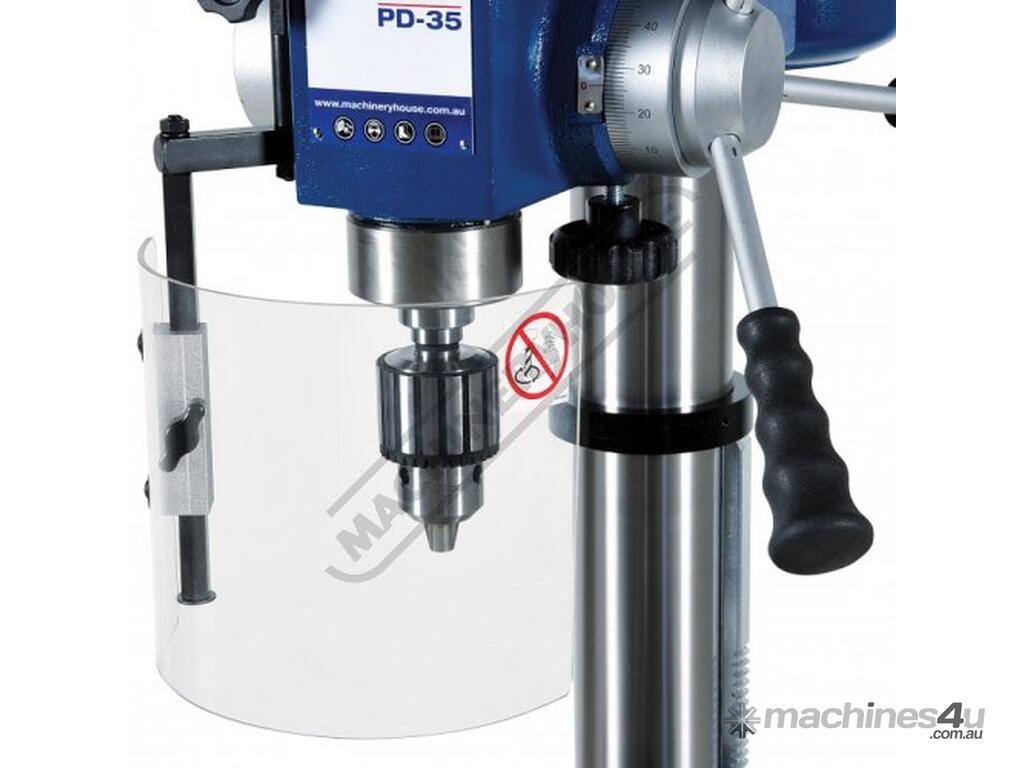

Adjustable safety drilling chuck guard with swivel screen
Safety micro switch on pulley guard

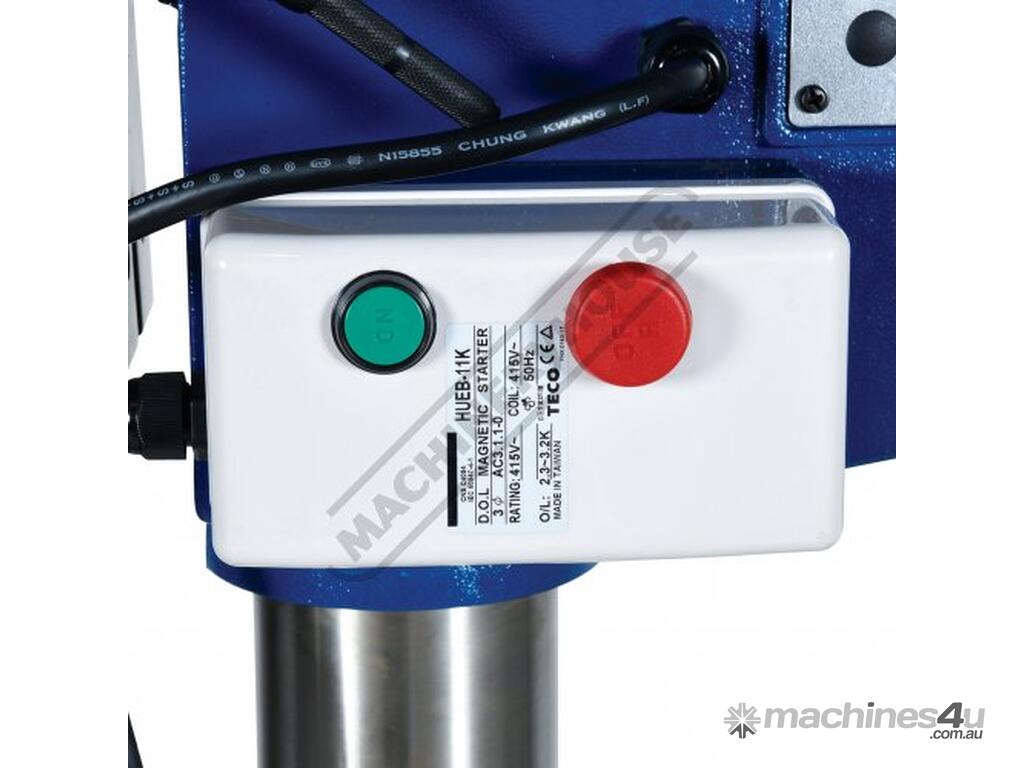

Safety magnetic-type switch

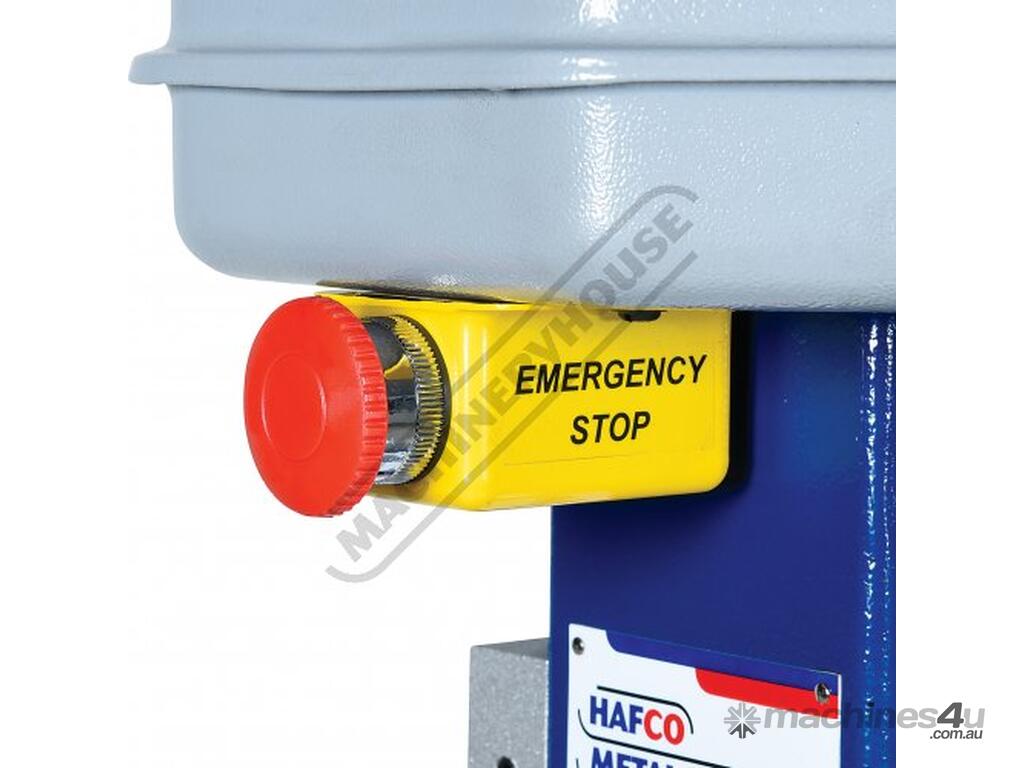

Emergency stop switch

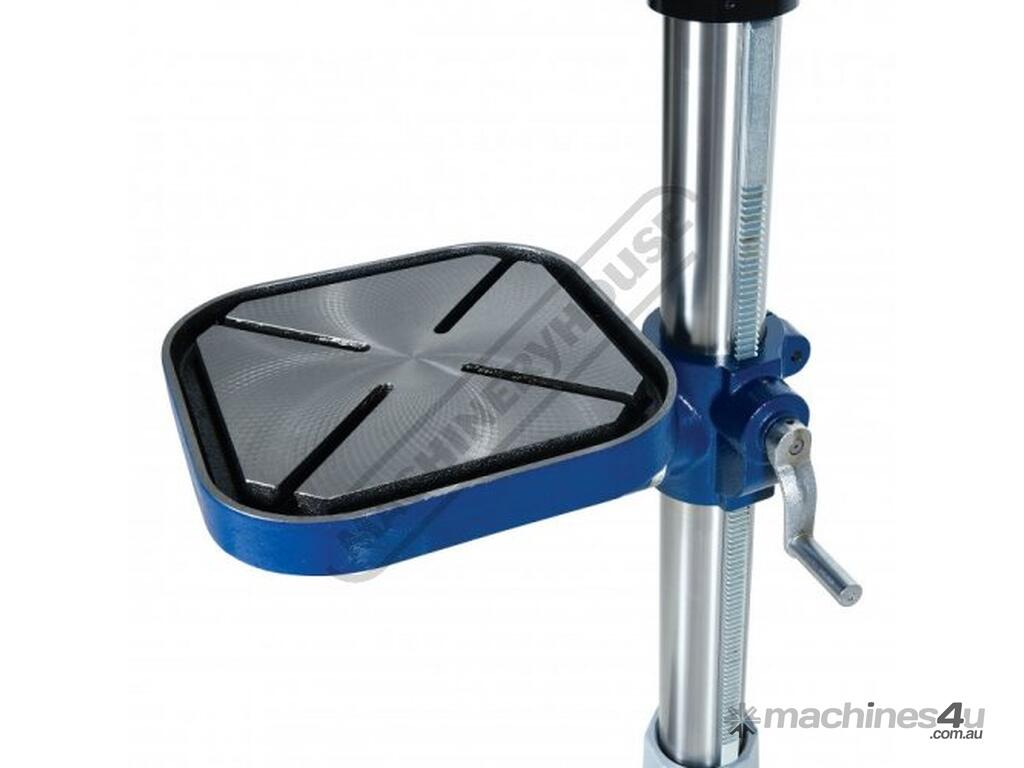

Rack & pinion table height adjustment with locking lever

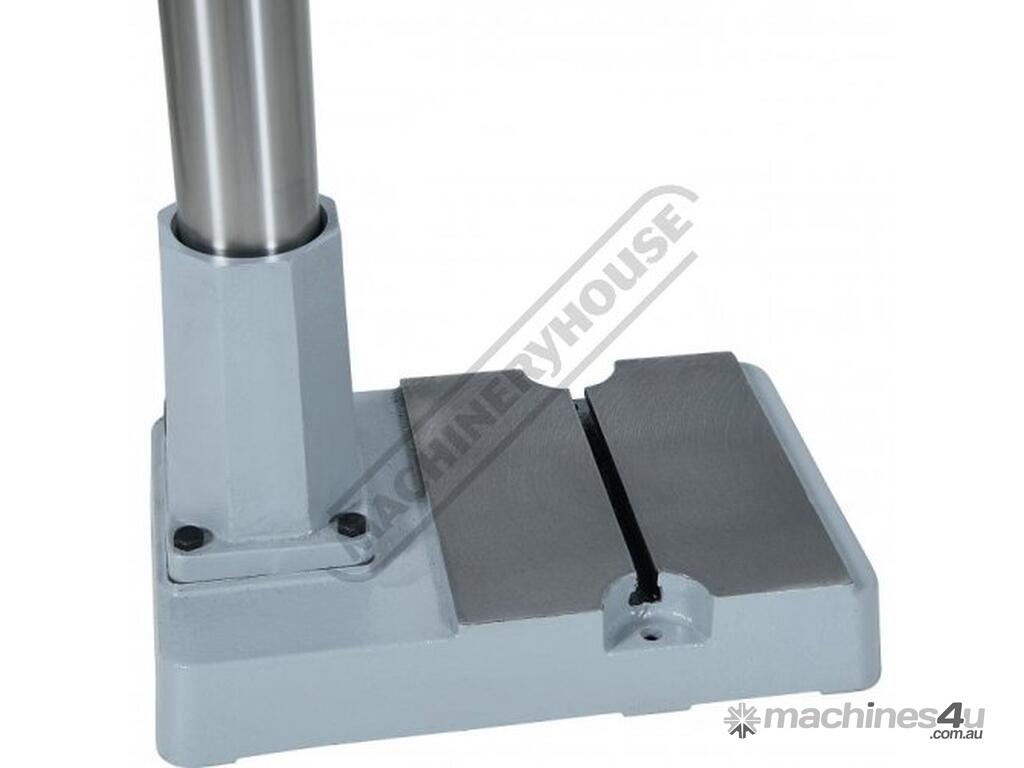

Thick walled column ensuring greater rigidity

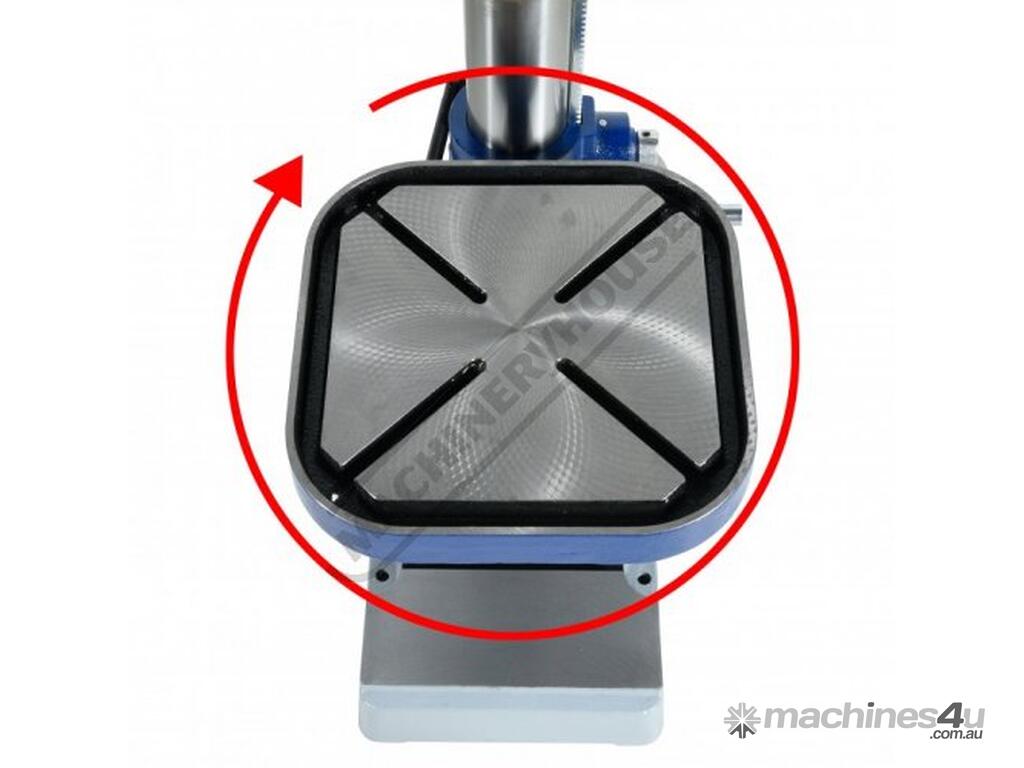

Table rotates 360º

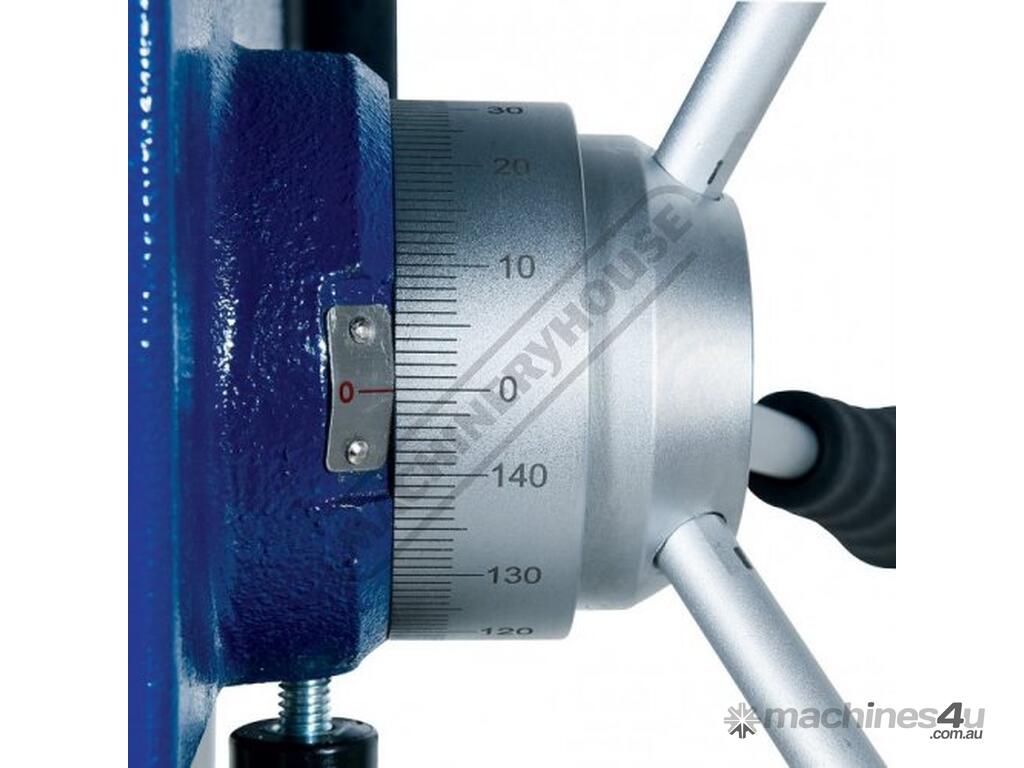

Drilling depth stop setting with scale
T Slotted work table

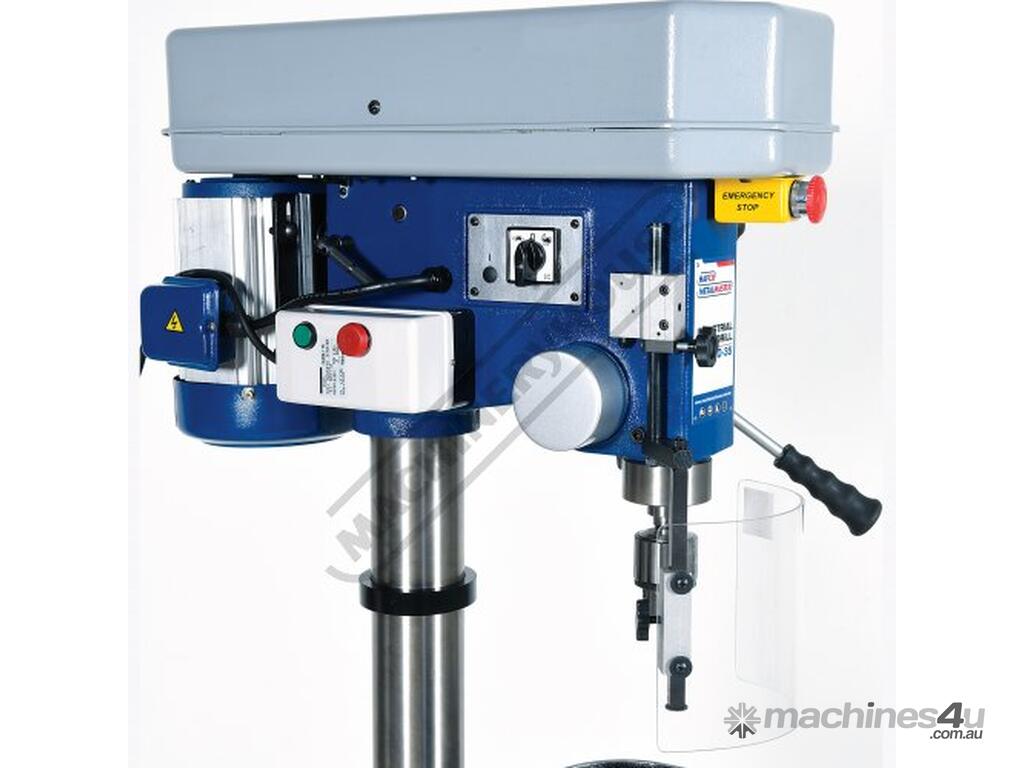

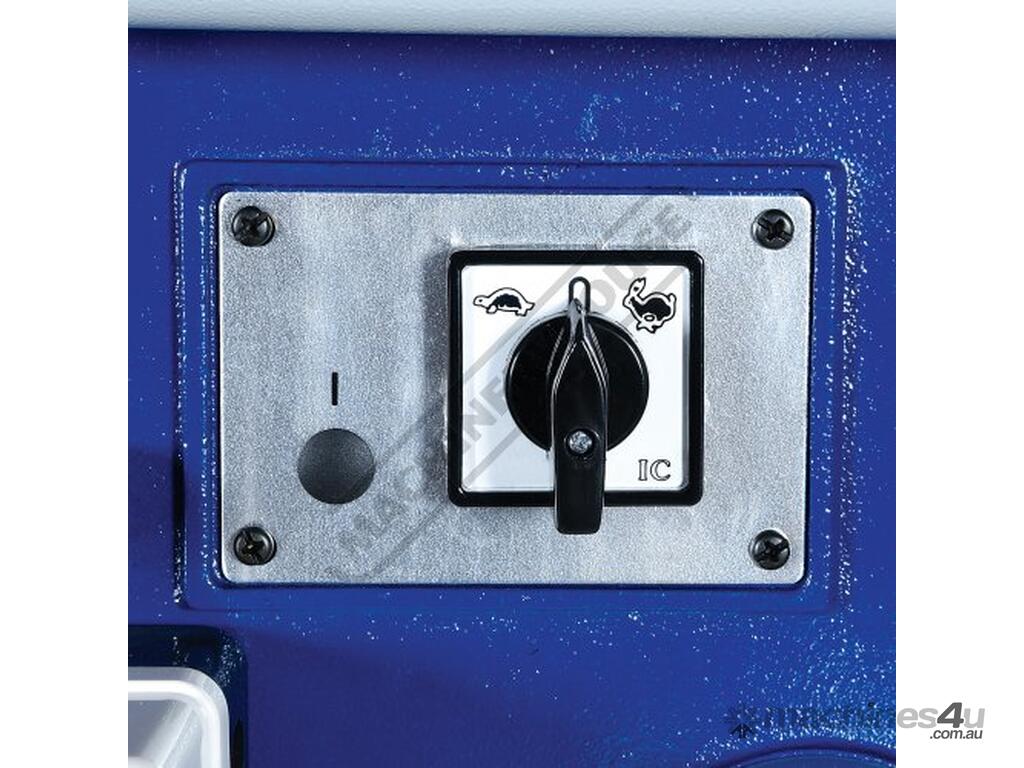

2 Speed high /low motor switch

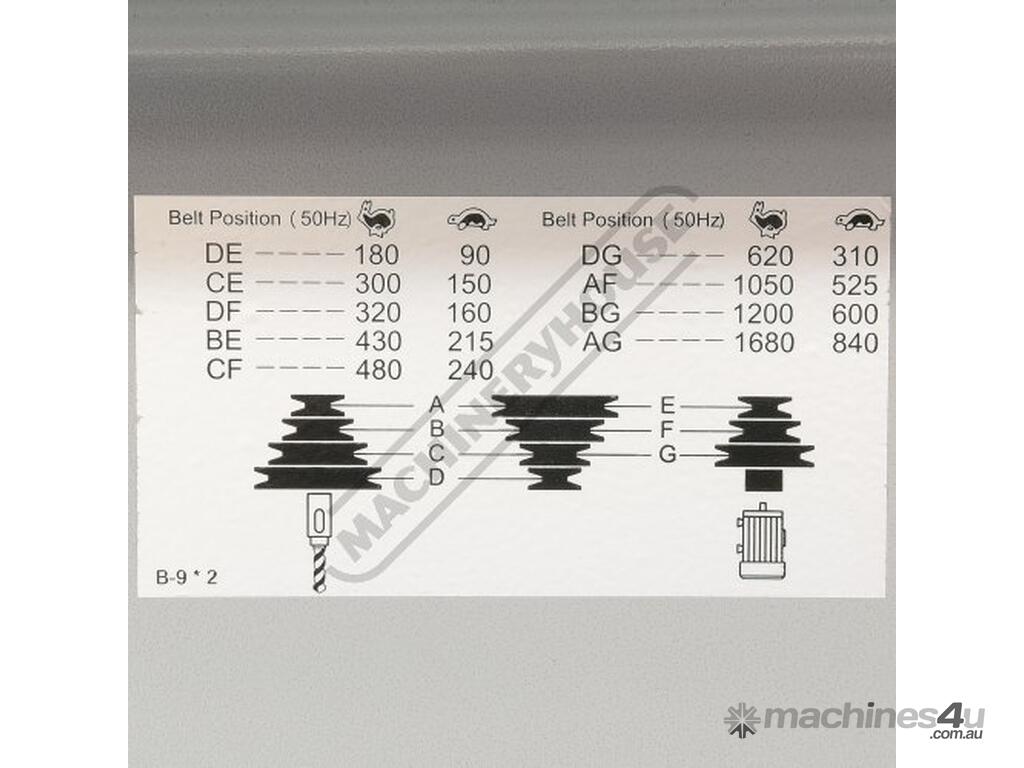

18 Spindle speeds - - -1680rpm

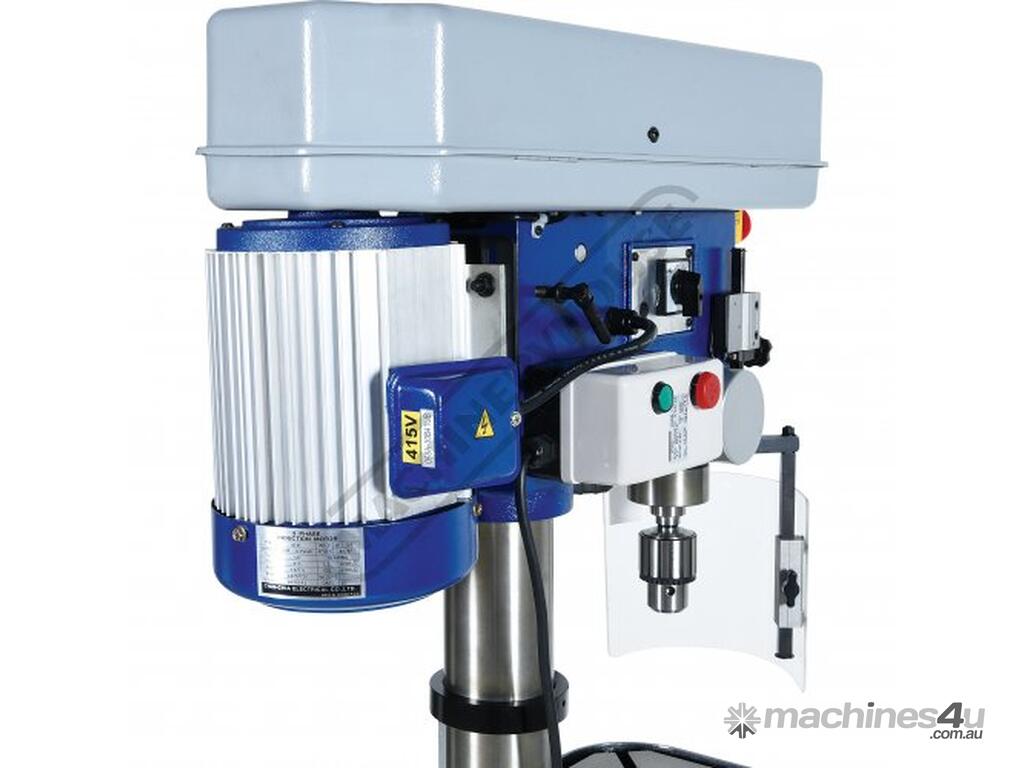

415V Fan-cooled motor rated for continuous use with overload protection
Includes:

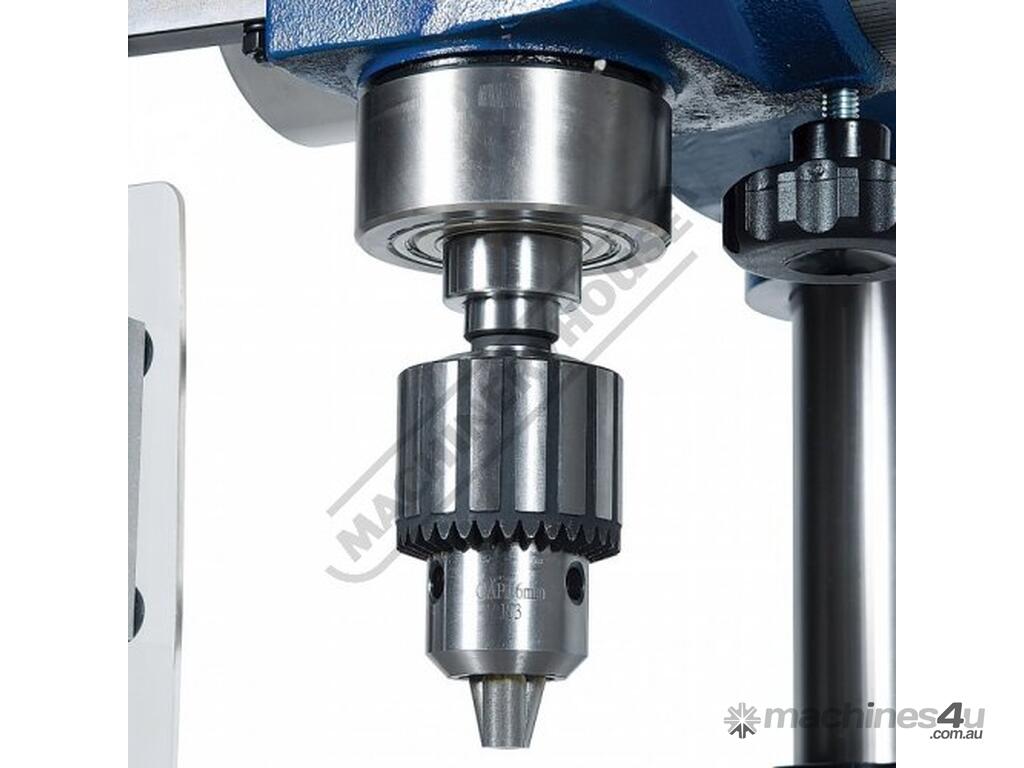

- Drill chuck & arbor
- Chuck key to suit
- Drill drift
Specifications:
ORDER CODE: D161
MODEL: PD-35B
Type - Bench / Pedestal: Pedestal
Duty Type: Industrial-Duty
Drilling Diameter Capacity (mm): Ø31.5
Spindle Taper (MT): 3
Spindle Travel (mm): 125
Throat Depth (mm): 225
Quill Diameter (mm): 72
Collar Diameter (mm): 92
Column Diameter (mm): 92
Spindle To Table (mm): 730
Spindle To Base (mm): 1175
Table Shape: Square
Table Size (mm): 350 x 350
Work Light: ~
Micro Switch On Pulley Guard: Yes
Drive Belt Type: B Section
Spindle Speed Steps (No.): 18
Spindle Speed Range (rpm): 90 - 1680
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 415
Overall Height (mm): 1700
Nett Weight (kg): 149
