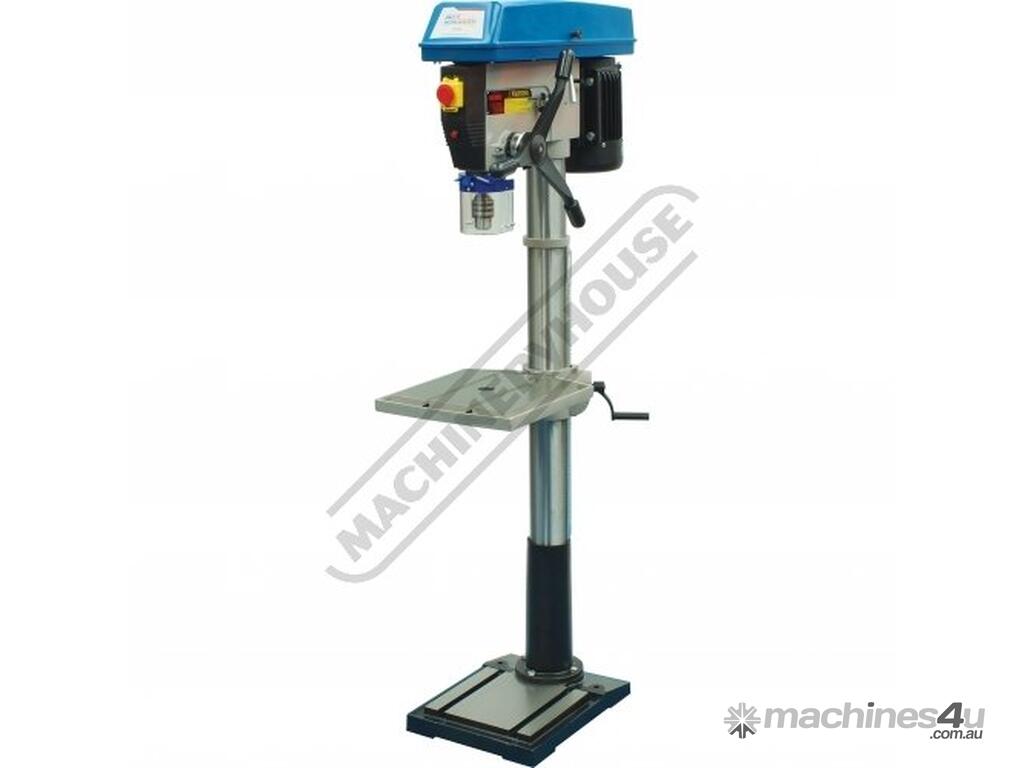

PD-440 Heavy-Duty Pedestal Drill - Belt Drive Table Tilts Left & Right To 45º Ø28mm Drill Capacity w

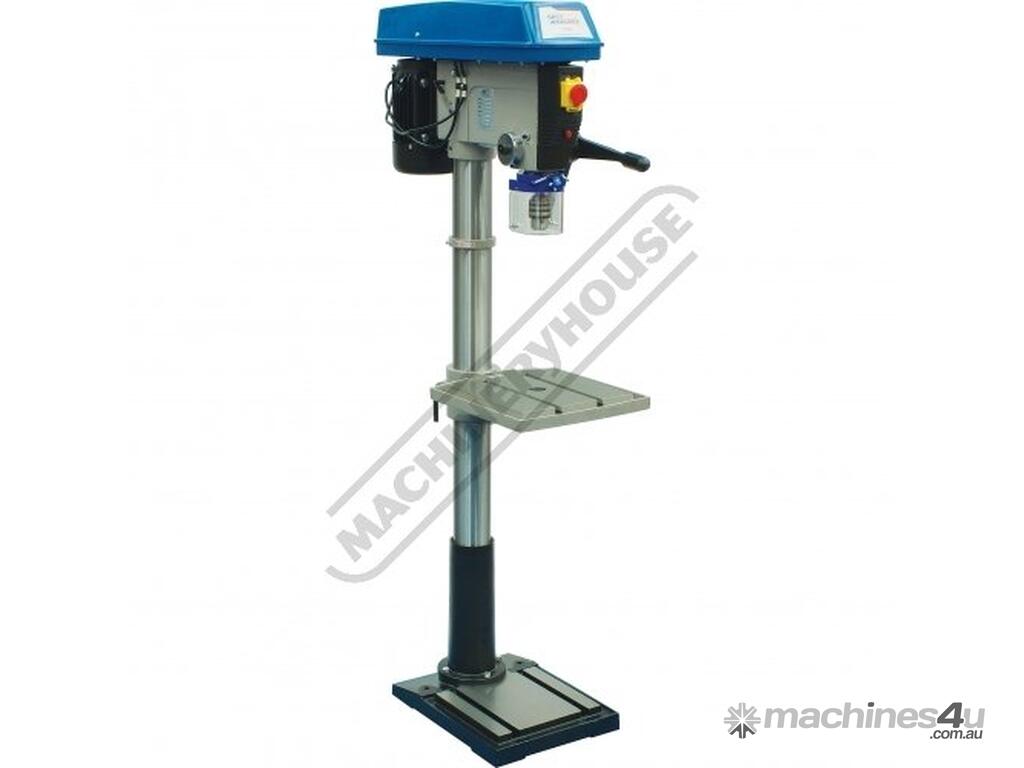

HAFCO-METALMASTER PD-440 Heavy-Duty Pedestal Drill - Belt Drive Table Tilts Left & Right To 45º Ø28mm Drill Capacity with 3MT Spindle Taper
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D598

If your needed to drill holes up to Ø28mm & require a heavy-duty 3 morse taper drilling machine with all the features to make your job easier and that represents great value for investment, this PD-440 pedestal drill could be the machine for you.

This machine is heavy duty rated and the large drill head has a work light fitted underneath to shine onto your job, the quill diameter is lager to increase accuracy when using & the unique square table offers more surface area to work on, and additionally allows T-nut & clamps to be used on this design.

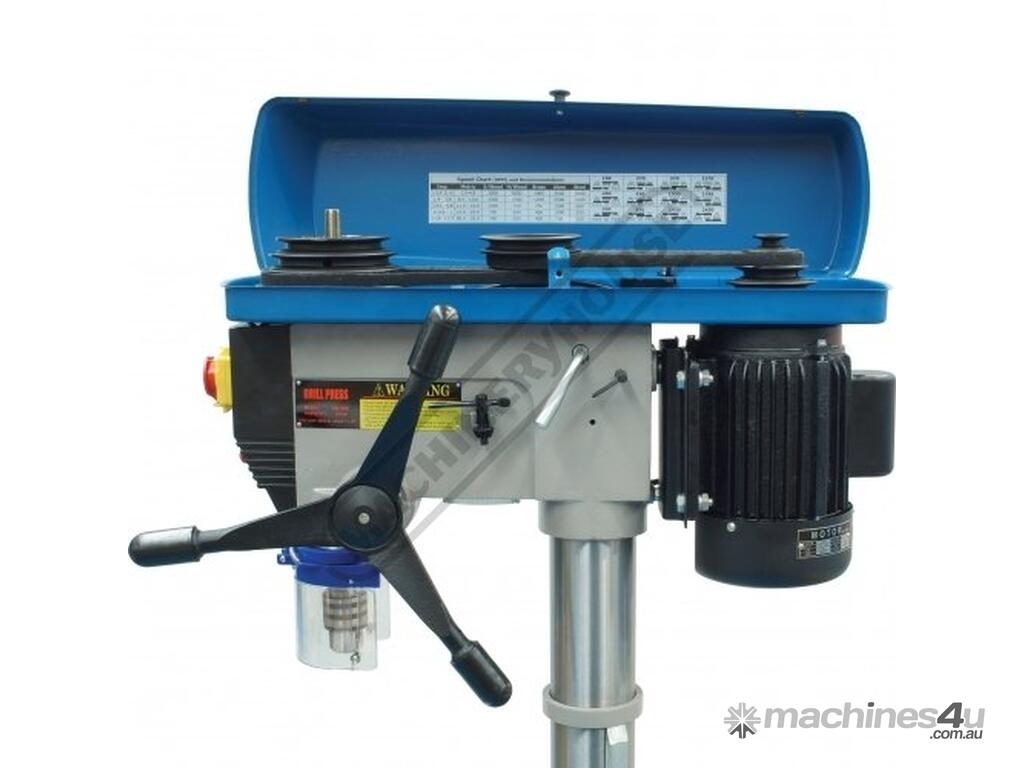

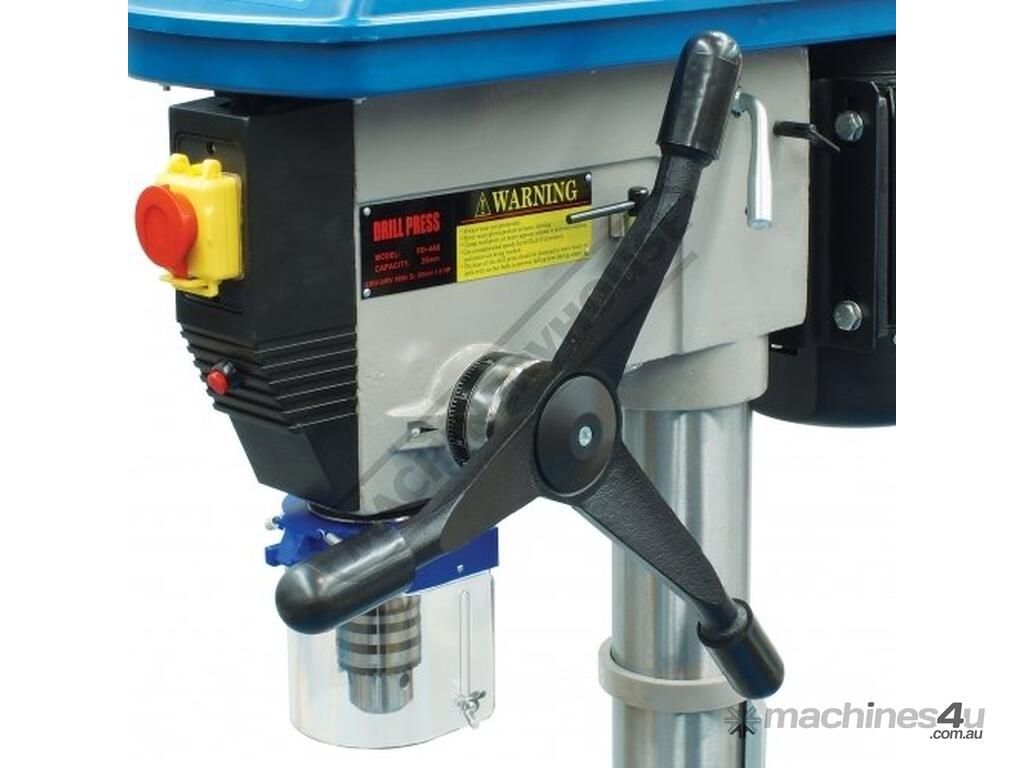

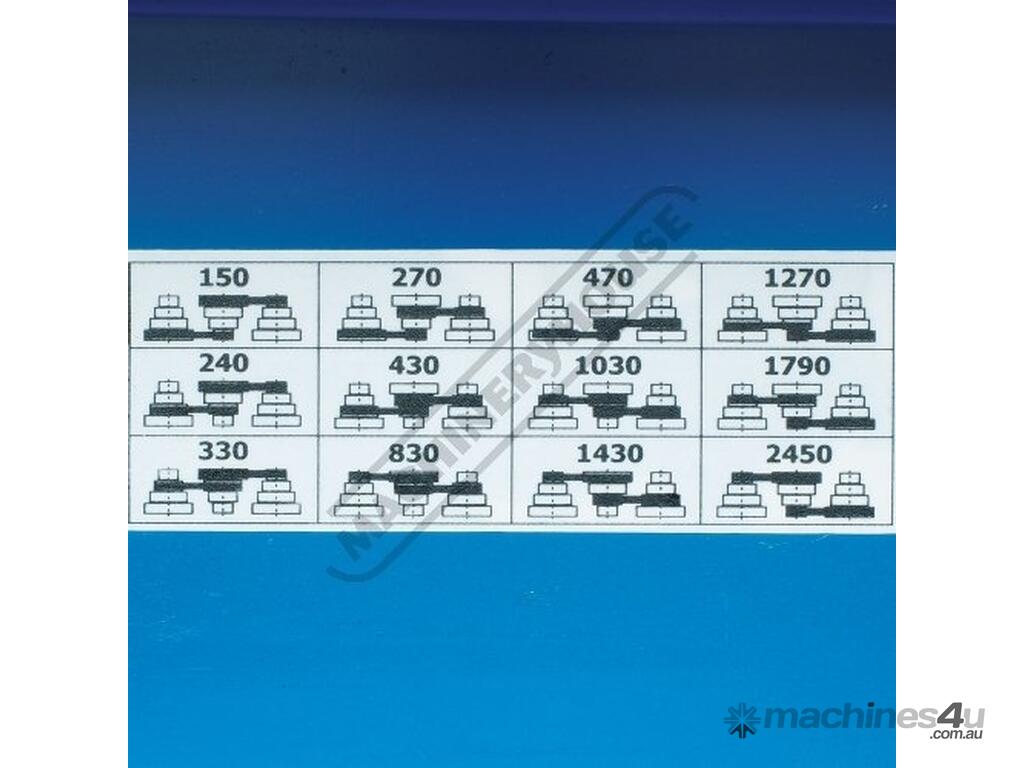

Mostly constructed from cast iron and machined steel to provide superior stability and strength. Powered by a 1.1kW, 1.5hp, 240-volt induction motor and coupled to a 12-belt speed pulley system offering wide range of speeds between 150-2450rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

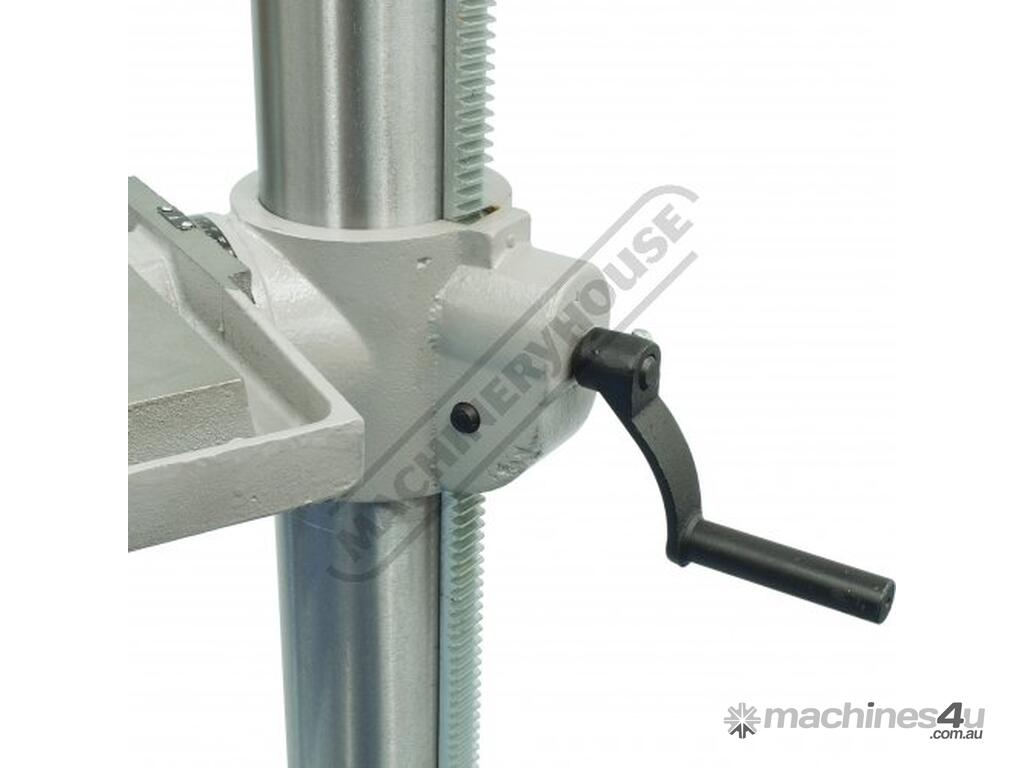

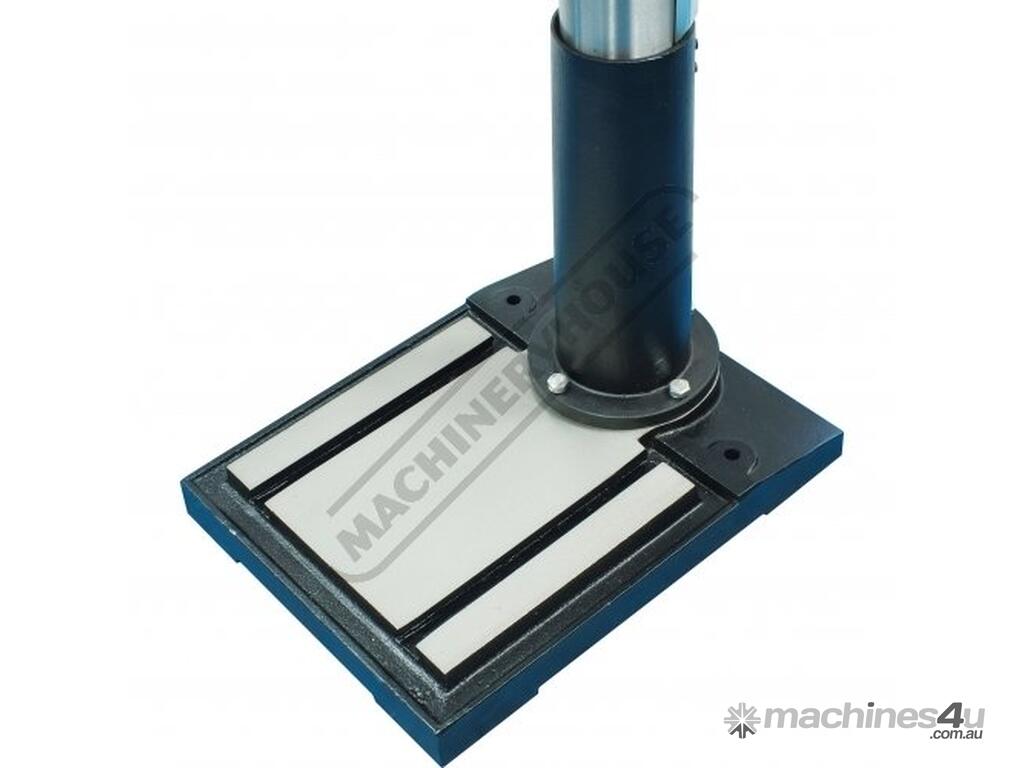

The drill quill is equipped with a 3 morse taper spindle allowing you to fit 3MT drill bits to the spindle or 1-2MT drill bits with optional adaptors. A quality Ø3-Ø16mm keyed drill chuck with 3MT arbor is included & fitted. The drill table can tilt left or right, rotate and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

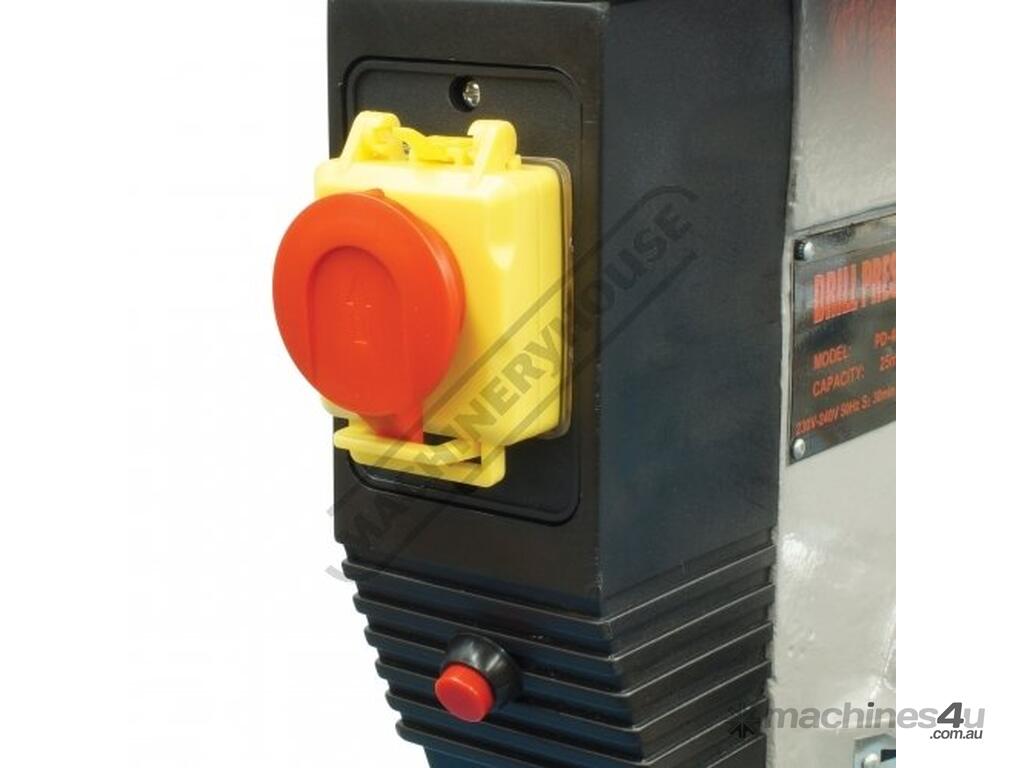

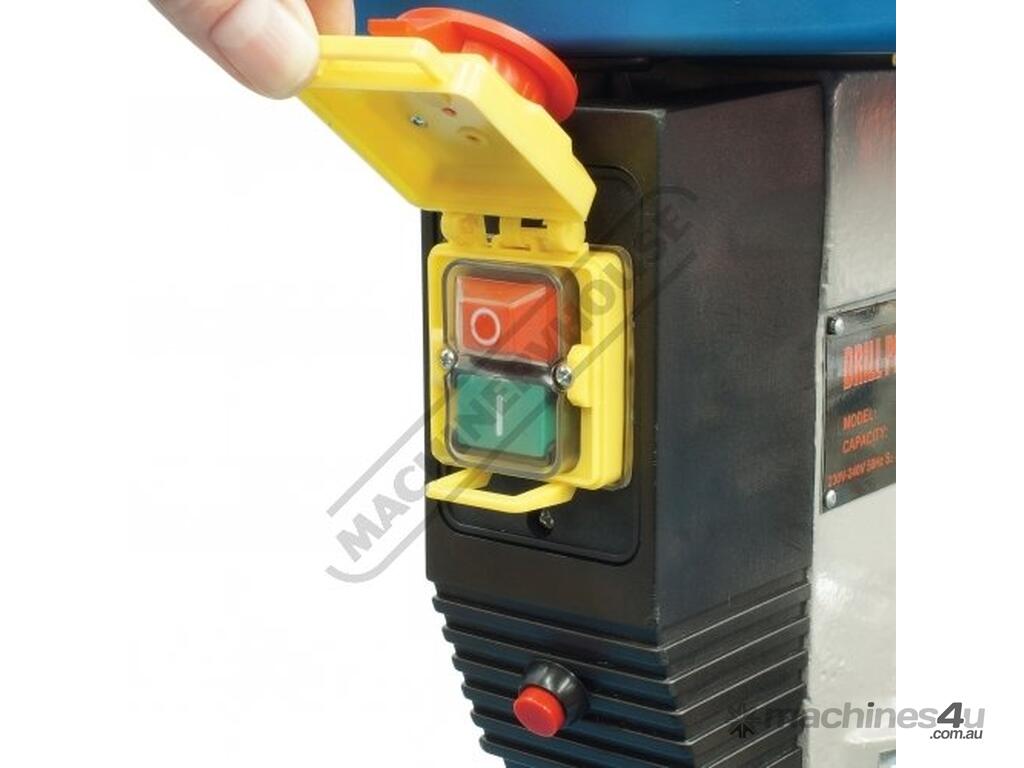

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

Features:
Ideal for home workshop or farm use
Quiet V-belt drive system

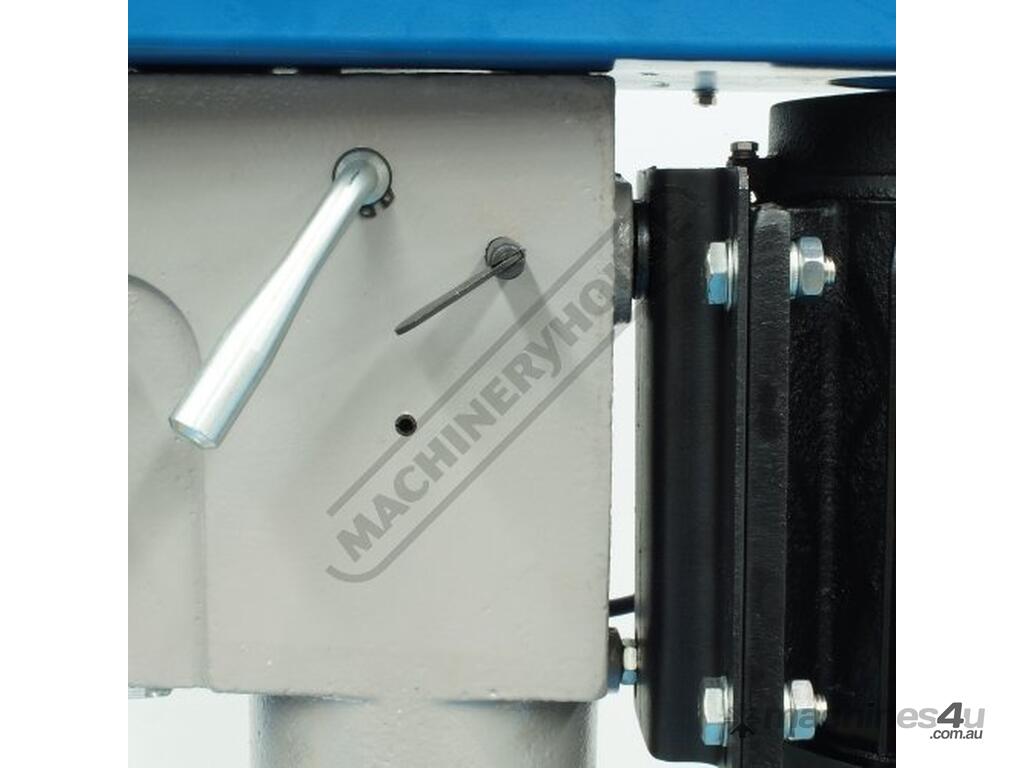

Quick action belt tensioning lever

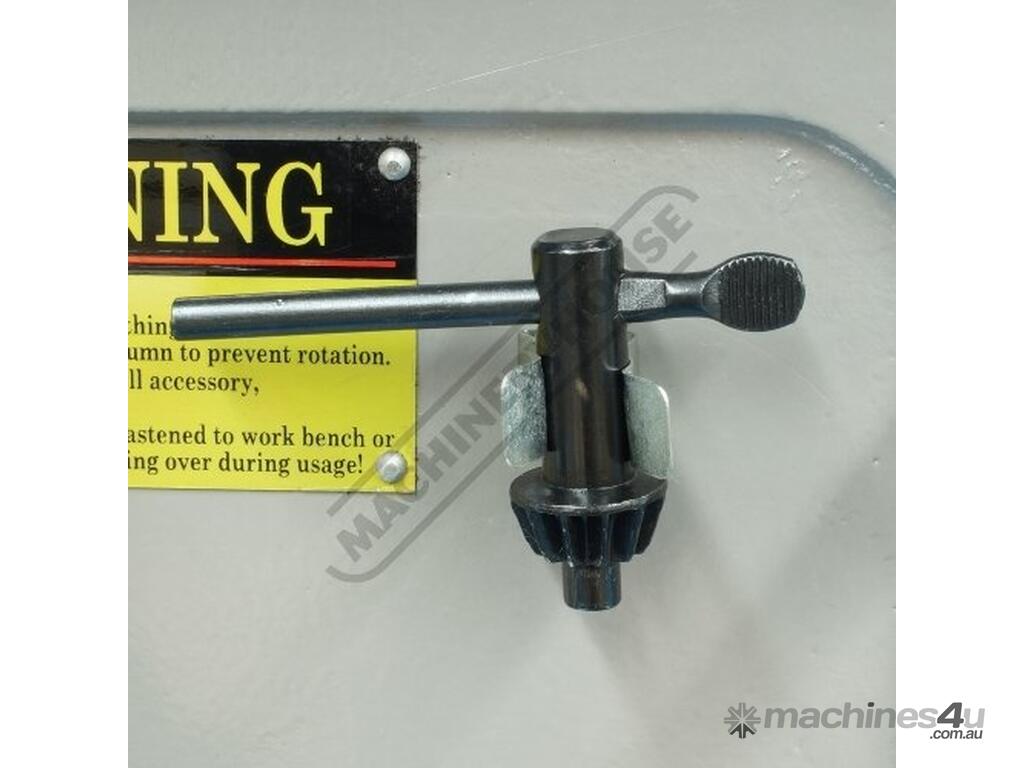

Drill chuck key holder mounted on right side of the machine

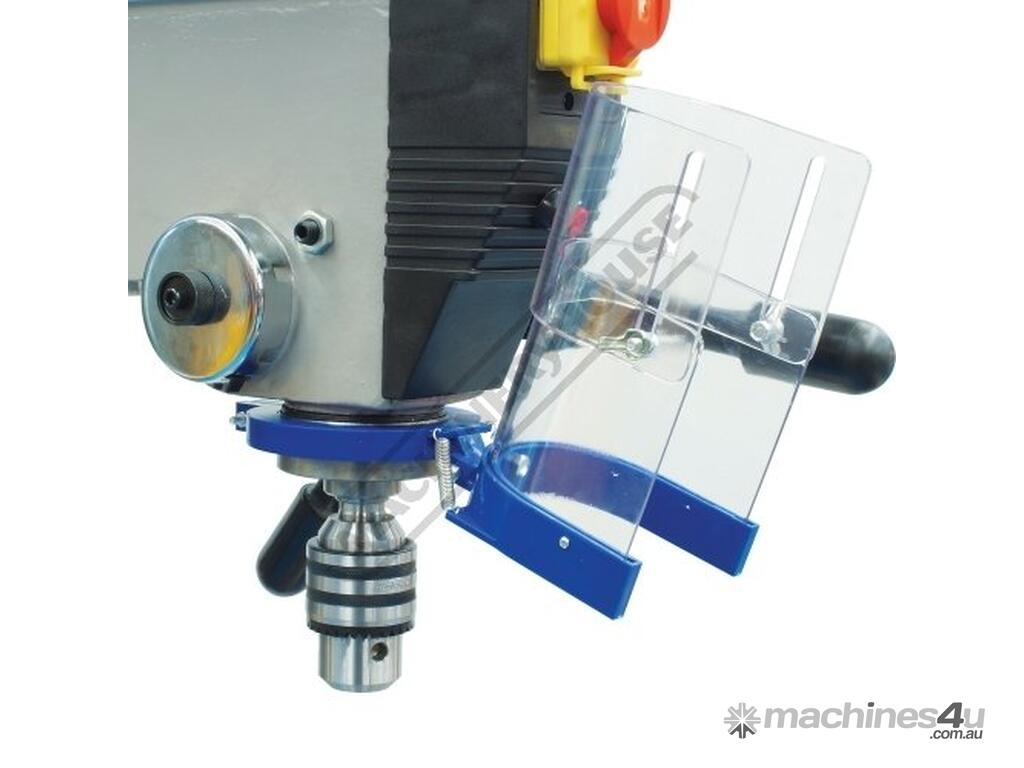

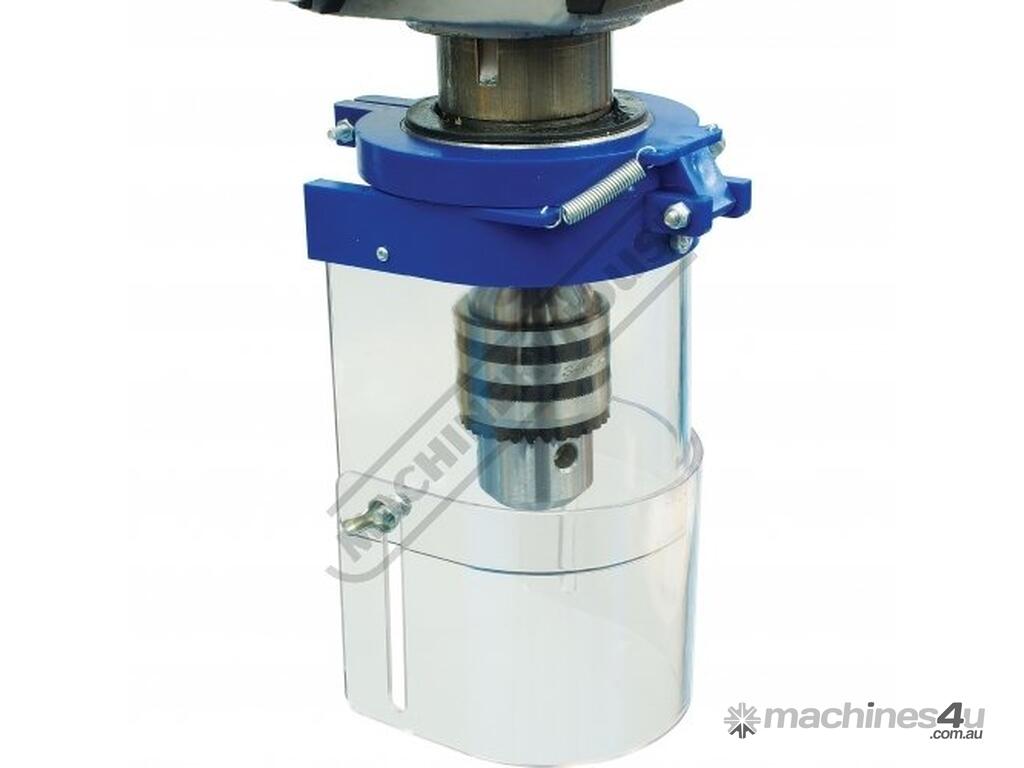

Adjustable safety drilling chuck guard with flip up screen
One piece cast iron drilling lever with comfort grips

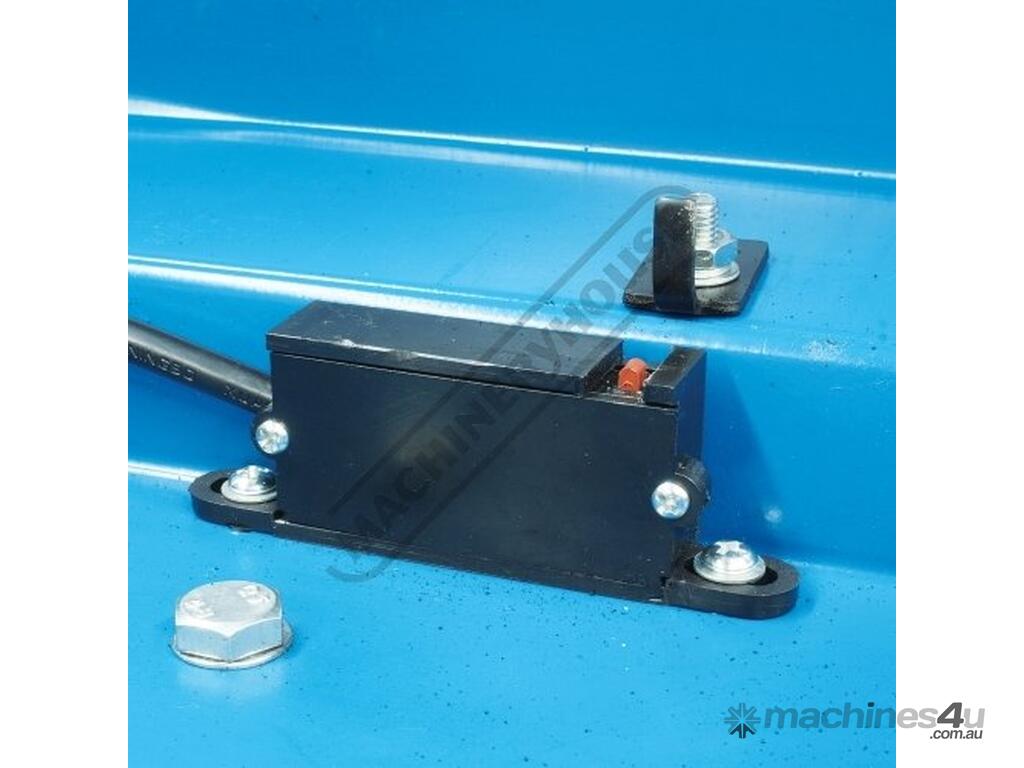

Safety micro switch on pulley guard
Safety magnetic-type switch
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity

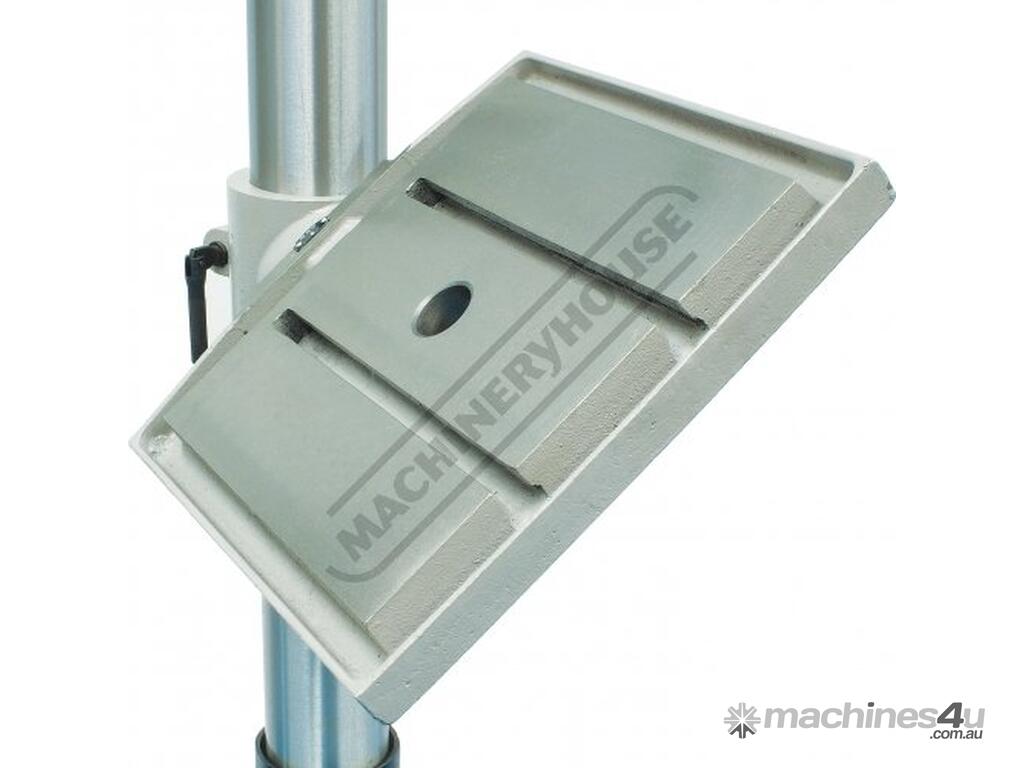

Table tilts left & right to 45º

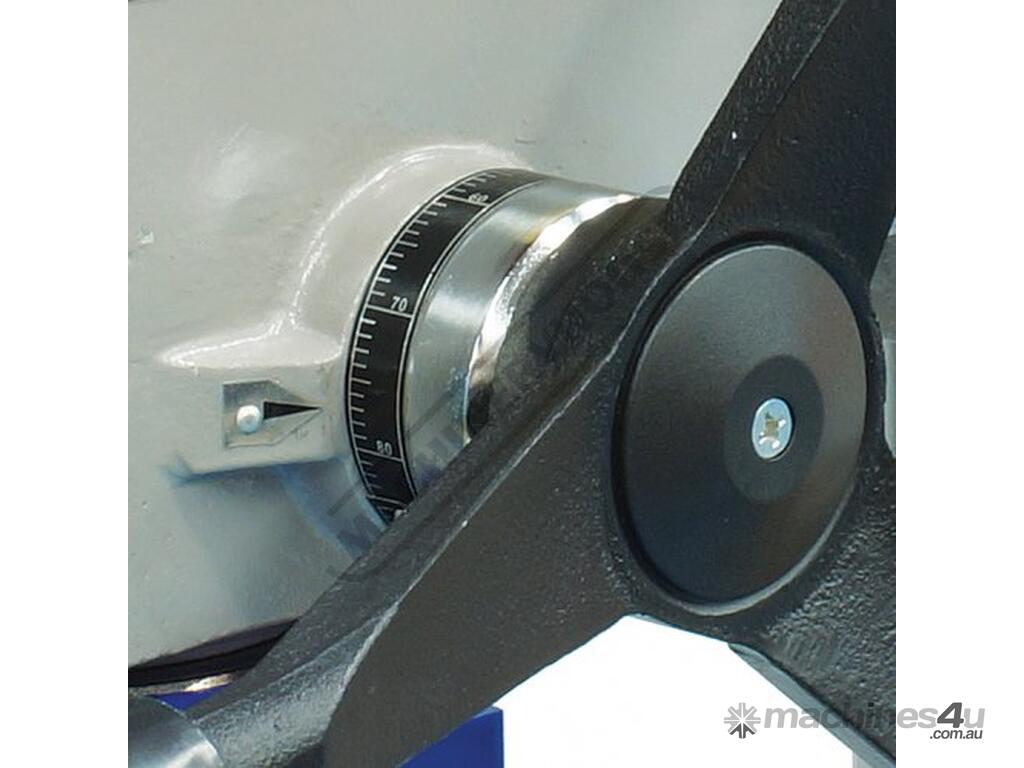

Drilling depth stop

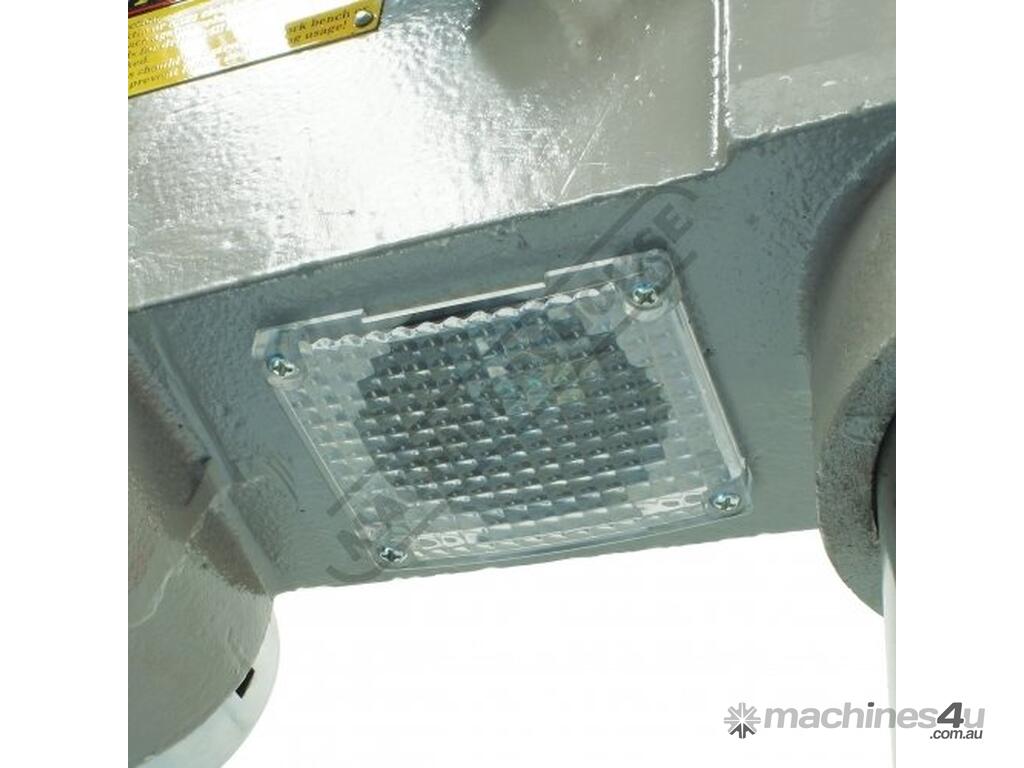

Work light mounted underneath drill head to provide direct light onto the work piece

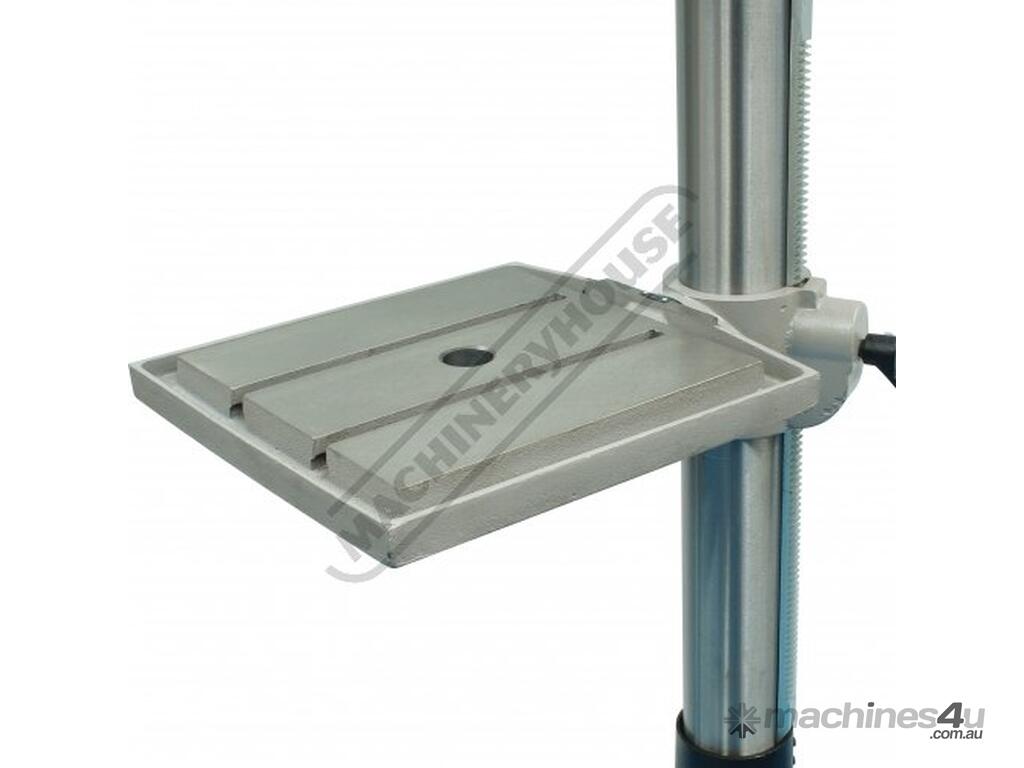

T slotted work table

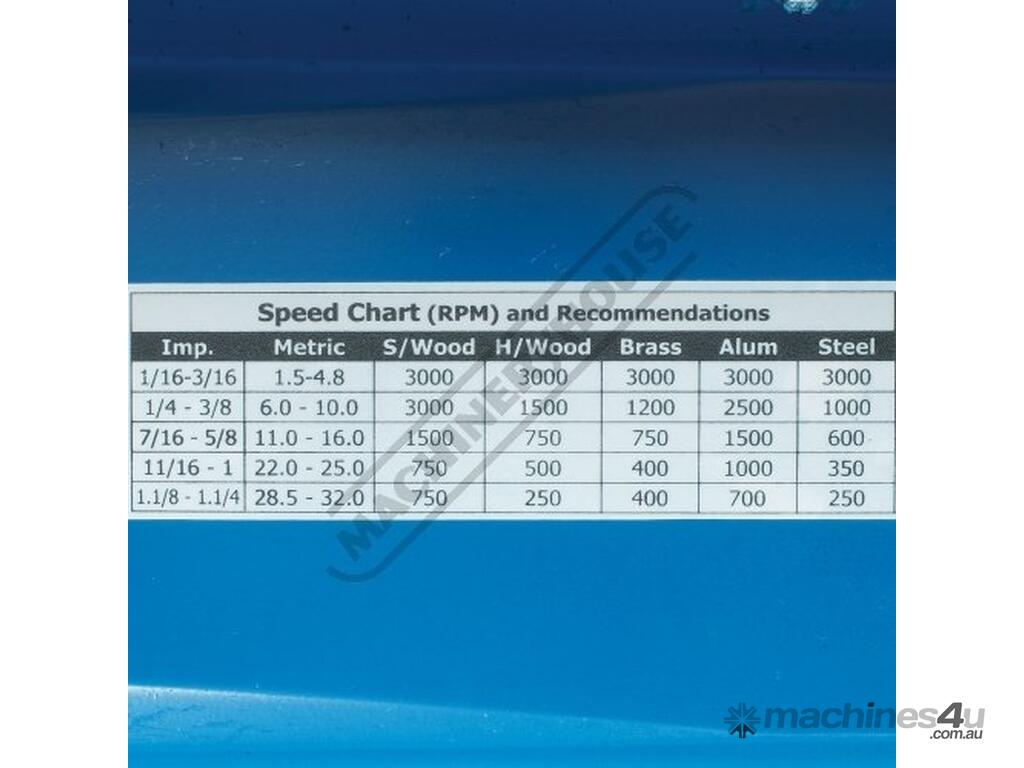

12 Spindle speeds - rpm

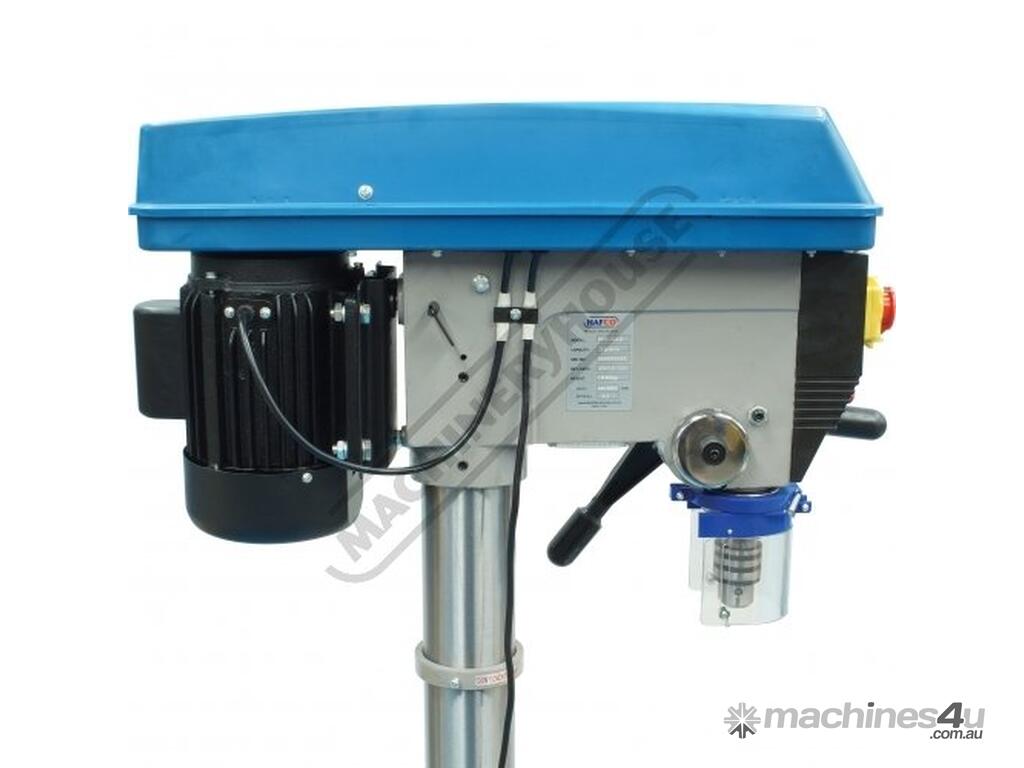

Fan-cooled copper wound 240V motor

Includes:
- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills



Specifications:
ORDER CODE: D598
MODEL: PD-440
Type - Bench / Pedestal: Pedestal
Duty Type: Heavy-Duty
Drilling Diameter Capacity (mm): Ø28
Spindle Taper (MT): 3
Spindle Travel (mm): 120
Throat Depth (mm): 220
Quill Diameter (mm): 52
Collar Diameter (mm): 75
Column Diameter (mm): 92
Spindle To Table (mm): 765
Spindle To Base (mm): 1225
Table Shape: Square
Table Size (mm): 350 x 350
Work Light: Yes
Micro Switch On Pulley Guard: Yes
Drive Belt Type: A Section
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 150 - 2450
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Overall Height (mm): 1710
Nett Weight (kg): 106
