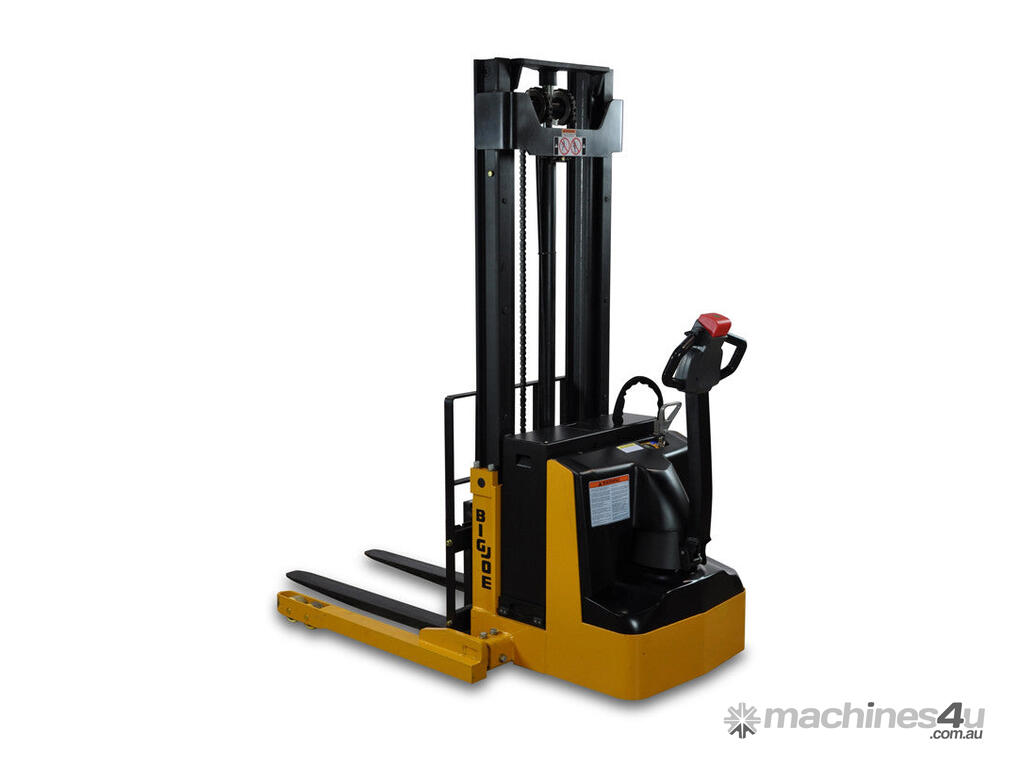

PDS Heavy Duty AC Straddle Stacker

Move, Position And Stack In Tight Spaces, Up To 157” High With The PDS!

2,500lb. capacity models with lift heights to 157``

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

The PDS Features:
• 24 volt ZAPI transistor control
• High torque AC drive motor.
• Double reduction helical ZF GK10 transmission
• Shaft mounted electromechanical brake
• Creep speed operation for tight turning in close quarters
• Ergonomic handle with safety reversing switch and horn
• 224AH Maintenace free battery pack with integral charger
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel

The PDS Specifications:
• Vehicle Type
Walkie Straddle Stackers
• Capacity
2,500lbs. 24” load center
• Power
24 volt AC electric with ZAPI transistor control-inverter
• Max Lift Height
Masts available up to 157``
• Collapsed Height
Masts available as low as 71``
• Fork Dimensions
42`` L x 4`` W x 1.5`` Thick
• Vehicle Dimensions
64.5`` OAL x 44`` OAW
• Turning Radius
60.7``
• Travel Speed
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
• Battery Compartment
26.37” x 9.06” x OPEN
• Battery Capacity
224AH Maintenace free battery pack
• Charger
Integral to pack, 110v plug-in

ISS Equipment is a leading provider of high-quality material handling and warehouse solutions in Australia. Specializing in a wide range of equipment since 1993, including forklifts, stackers, and pallet trucks, ISS Equipment delivers innovative and cost-effective solutions to meet the demands of diverse industries. With a commitment to exceptional customer service, the company offers comprehensive sales, rental, and maintenance options, ensuring that businesses operate efficiently and safely. Backed by a team of experts with in-depth industry knowledge, ISS Equipment stands as a trusted partner, dedicated to delivering excellence and supporting the growth of its clients.

Go to the ISS Equipment showroom on Machines4u to see the range of machinery available for national delivery, send ISS Equipment a message about the item you are interested in or give ISS Equipment a call, we are more than happy to answer any of your questions.

* Click on the pdf spec sheet for more detailed information *
