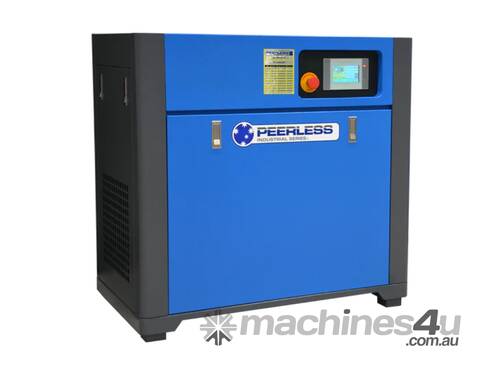

PEERLESS HQD30 Direct Drive Compressors

Save power & money! Variable speed technology! 120CFM / 8 Bar (3396L/min 116PSI). Optional high pressure! Get as a base, or with screw, dryer and tank as one.

Peerless Products Variable Speed Rotary Screw Compressors are here to save you money! Stop buying air compressors that run continuously when you're not using the air. This machine will perform to your requirements and save you money at the same time.

Variable speed means, if you're using 8 bar, consuming 6 bar 800LPM and the compressor is designed to produce 3400LPM, it will slow down to the air required without any air fluctuation between load and unload pressures keeping a constant pressure (1bar = 5% energy).

With the motors high efficiency for lower HP consumption, the speed regulation of a minimum and maximum speed plays a huge part in energy savings. The energy savings from this design is practically putting money back in your pocket! Our HQD Variable Speed Compressors will reduce your power consumption and give you a quick return on your investment within no time.

Air dryers are available to suit each model and you have the flexibility of choosing your own tank size that will best suit your individual needs in terms of capacity and overall size.

Ease of servicing also makes this unit very attractive. All main componentry have easy access panels along with our basic service guide so you or your local service agent can service without any issues.

Services on Screw compressors are based on hourly usage. The first inspection is in 500 hours of use, this is like a new car inspection. This is to make sure that all seals, valves, filters and oil condition is all working correctly. From there the services are based on the following;

2000 Hours
4000 Hours
6000 Hours
8000 Hours and so on.

The services are also based on the environmental conditions – if it is in a fairly dirty environment, services maybe at sooner intervals.

Most sites where an air compressor is installed you may have your own maintenance team, if this is so, yes you can service your own air compressor. This does not void your warranty if serviced correctly under the manufacture guidelines.

All parts and service kits are readily available through Peerless Products along with technical support if required. For help sizing up what compressor will best suit your application speak to a Peerless Specialist.

Please note: Power supply is very important when selecting an air compressor, along with selecting the right one for the application. Please talk to your local Peerless representative.

Base Mount (No tanks)
The base mount option is a great option if you're limited on space or if you already have an air receiver. Don't forget, if you're upgrading from an older piston model, you may be able to utilise the tank.

Full Feature - Screw, dryer & tank The Full Feature models is the ultimate space saver with the screw component and air dryer situated on top of a 200L air receiver in order to properly utilise valuable floor space.

Key things to check:
Check the positioning of your air compressor – no direct sunlight, efficient air flow, non-dusty environment, cool if required.
Change the oil - if discoloured change immediately, this is the life line of your air compressor.
Change the air intake filter - This will keep the pump working efficiently and keep the oil clean protecting your bearings or Air-end.
Check your air fittings – Air leaks create increased duty cycles making your air compressor work harder, creating heat.


Code : HQD30VSHP
HP / KW : 30HP / 22kW
Dimensions (LxWxHmm) : 1350x780x1250
Weight : 590
Amps Required : 42.4
Tank Capacity (L) : -
Cooling Method : Air cooled
Discharge temp (°C) : Ambient temp +15°C
Driving Type : Direct drive
dBa (+/-2) : 70
Outlet Thread : 1.1/2" BSP
Electricity : 415V
Amps draw (Full load) : 42.4

Free Air Delivery
Code : HQD30VSHP-8
PSI : 116
Bar : 8
LPM : 3396
M3/H : 204
CFM : 120
Dryer Specifications
Code : WB30D
Model : WB30D
Compressor KW : 843KW
Working Pressure : Min. 6 Bar / Max. 13 Bar
LPM : 4000
m3/h : 240
CFM : 56.5
Power Plug : 10A

Peerless HQD30VSHP-FF
Code : HQD30VSHP-FF
HP / KW : 30HP / 22kW
Dimensions (LxWxHmm) : 2100x820x1700
Weight : 750
Amps Required : 42.4
Tank Capacity (L) : 300L
Cooling Method : Air cooled
Discharge temp (°C) : Ambient temp +15°C
Driving Type : Direct drive
dBa (+/-2) : 70
Outlet Thread : 1.1/2" BSP
Electricity : 415V
Amps draw (Full load) : 42.4

Free Air Delivery
Code : HQD30VSHP-8
PSI : 116
Bar : 8
LPM : 3396
M3/H : 204
CFM : 120
Dryer Specifications
Code : WB30D
Model : WB30D
Compressor KW : 843KW
Working Pressure : Min. 6 Bar / Max. 13 Bar
LPM : 4000
m3/h : 240
CFM : 56.5
Power Plug : 10A
