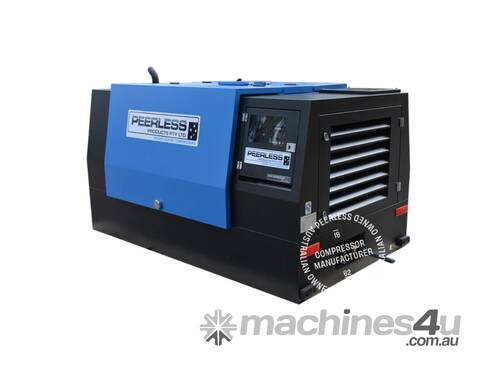

PEERLESS P185D Direct Drive Compressors

Trailer or skid, air on demand: 185CFM 7 Bar max 10 Bar. The ultimate performing air compressor with great aftermarket support and service.

The Peerless diesel P185D Rotary Screw Compressor has an impressive 50HP, 4 cylinder - direct injected diesel motor which drives a huge Peerless air end delivering 185CFM (5232 litres) of free air delivery.

A great feature of this motor is that all coolant is ran through a hydraulic system achieving a greater flow rate.

This unit is controlled through an intuitive intelligent LCD digital display that is carefully protected behind a cabinet door. This digital display allows you to see all the functionalities of what the diesel screw compressor is doing with live feedback. From the RPM of the engine, pressure range delivering, fuel consumption, service hours, run time and much more.

Just like all our other engine driven air compressors this will revv up when the air demand is required and then idle back when pressure has been reached. We have also implemented the air compressor to have a battery isolation switch which is located inside the lockable doors.

The P185D has been designed with twin air outlets making it easy to either to regulate one outlet for air tools and then have direct pressure for blow downs or tyre inflation.

Trailer mount: The P185D-T has been designed with twin air outlets making it easy to either to regulate one outlet for air tools and then have direct pressure for blow downs or tyre inflation. Solid metal construction with an extended "A" frame for ease of towing and reversing. The top of the A frame has a top plate for ease of a retractable hose to be mounted along with a spare tyre.

Base / Skid: If the trailer isn't an option and you want to place on the back of the truck, no problem. A lifting eye at the centre on the unit for easy placement.

Features:

Water cooled Engine
Huge air intake filters that are easily accessible for maintenance or replacing
Internal heat shields installed
Fuel filter with sight glass for easy identification
Central lifting hook
Backlit LCD control panel
2 air outlets (3/4")
Ease of servicing with easy access parts
Lockable panel with gas struts
Battery isolator switch
Isolating switch at control panel
Diesel engine will idle when pressure reached
Sound proofed cabinet
Low diesel consumption
Automated fault finding and recording
Storage battery included

Peerless P185

Code: P185
HP / KW : 50HP / 37kW
Compressor Type Oil Injected Rotary Screw
Pressure 7Bar / 100PSI
Flow Rate 5232 LPM / 185 CFM
Air Outlet Thread 2 x 3/4" BSP
Engine Peerless 4 Cyl
Starting System Electric start / 12V Electric
Charging System 12 Volt 15Amp
Cooling System Water
Driving Type Direct Drive
Bore x Stoke 90 x 100
Engine Displacemnt 2.54 (L)

Peerless P185-T

Code: P185-T
HP / KW : 50HP / 37kW
Compressor Type Oil Injected Rotary Screw
Pressure 7Bar / 100PSI
Flow Rate 5232 LPM / 185 CFM
Air Outlet Thread 2 x 3/4" BSP
Engine Peerless 4 Cyl
Starting System Electric start / 12V Electric
Charging System 12 Volt 15Amp
Cooling System Water
Driving Type Direct Drive
Bore x Stoke 90 x 100
Engine Displacemnt 2.54 (L)
