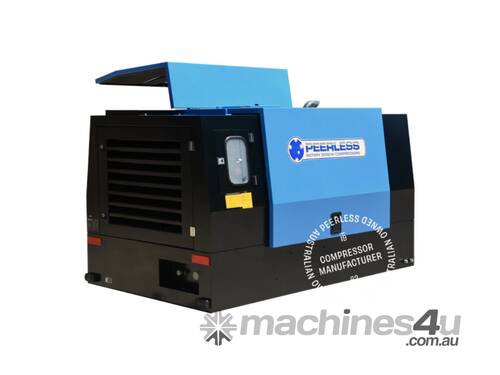

PEERLESS P250D Models Diesel Rotary Screw Air Compressor

Trailer or skid, air on demand: 250CFM 7 Bar max 10 Bar. The ultimate performing air compressor with great aftermarket support and service.

The Peerless diesel P250D-T Rotary Screw Compressor has an impressive 75HP, turbo - direct injected diesel motor which drives a huge Peerless air end delivering 250CFM (7075 litres) of free air delivery.

A great feature of this motor is that all coolant is ran through a hydraulic system achieving a greater flow rate. This unit is controlled through an intuitive intelligent LCD digital display that is carefully protected behind a cabinet door. This digital display allows you to see all the functionalities of what the diesel screw compressor is doing with live feedback.

From the RPM of the engine, pressure range delivering, fuel consumption, service hours, run time, and much more. Just like all our other engine driven air compressors this will revv up when the air demand is required and then idle back when pressure has been reached. We have also implemented the air compressor to have an battery isolation switch which is located inside the lockable doors.

The P250D-T has been designed with 2 air outlets making it easy to either regulate one outlet for air tools and then have direct pressure for blow downs or tyre inflation.

P250D-T pictured has been fitted with twin 00547 - 20M x 3/4" Retractable air hose reels as an example.

Features:

Water cooled Engine
Huge air intake filters that are easily accessible for maintenance or replacing
Internal heat shields installed
Fuel filter with sight glass for easy identification
Central lifting hook
Backlit LCD control panel
Twin air outlets (1 x 1 1/4" - 1 x 3/4")
Ease of servicing with easy access parts
Lockable panels with gas struts
Battery isolator switch
Isolating switch at control panel
Diesel engine will idle when pressure reached
Sound proofed cabinet
Low diesel consumption
Automated fault finding and recording
Storage battery included

Peerless P250D
Code : P250D
HP / KW : 75HP / 55kW
Compressor Type : Oil Injected Rotary Screw
Pressure : 7Bar / 100PSI
Flow Rate : 7075 LPM / 250 CFM
Air Outlet Thread : 3/4" & 1.1/4" BSP
Engine : Peerless 4 Cyl / Direct injected turbo
Starting System : Electric start / 12V Electric
Charging System : 12 Volt 15Amp
Cooling System : Water
Driving Type : Direct Drive
Bore x Stoke : 90 x 100
Engine Displacemnt : 2.54 (L)


Peerless P250D-T
Code : P250D-T
HP / KW : 75HP / 55kW
Compressor Type : Oil Injected Rotary Screw
Pressure : 7Bar / 100PSI
Flow Rate : 7075 LPM / 250 CFM
Air Outlet Thread : 3/4" & 1.1/4" BSP
Engine : Peerless 4 Cyl / Direct injected turbo
Starting System : Electric start / 12V Electric
Charging System : 12 Volt 15Amp
Cooling System : Water
Driving Type : Direct Drive
Bore x Stoke : 90 x 100
Engine Displacemnt : 2.54 (L)
