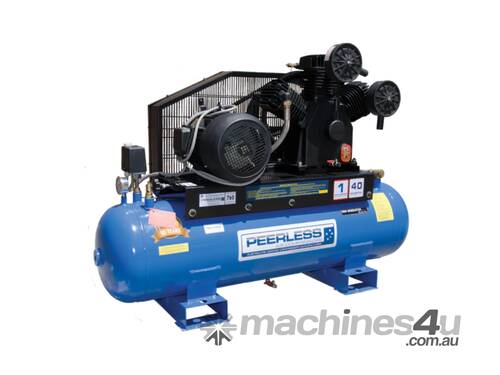

PEERLESS PHP40 Industrial Belt Drive Compressor 00071

Maximum air performance: 720L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.

This 7.5HP three phase, three cylinder, two stage compressor is again similar to the PHP30. Upgraded to a bigger motor and pump. Running off this copper wound motor is an impressive W95II Peerless oil injected pump. That's two 95mm pistons driving air into a 90mm high pressure cylinder. Pushing 720 litres of air per minute at the end of your air line at an incredible 100PSI. This is while the pump is only working at 746RPM! A very low speed making this one of our quietest three phase compressors compared to others.

We recommend this compressor to workshops with around 3 - 4 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order. If you require more air we recommend upgrading to our PHP52 which features the same pump only a bigger 10HP motor. This compressor is perfect for workshops with medium levels of demand, offering reliable performance and easy maintenance. It's designed to raw maximum power at low RPMs for a quieter operation and advanced energy efficiency.

Helpful tip:
When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration. Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637. For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Code : 71
Model : PHP40
Pump Displacement (CFM) : 40 CFM
Free Air Delivery (LPM) : 720 LPM
Max PSI : 175
Motor HP : 7.5
Warranty Pump : 1 Year
Warranty Motor : 1 Year
Tank Capacity (L) : 150L
Pump up time to 100PSI : 1.35 - 1.40 Min
Dimensions (mm) / Weight (kg) : 1500Lx550Wx1100H / 245kg
Cooling Method : Air cooled
Pump Type : W95II 2 Stage
Cylinders : 3
Pump Head Tension : 35 FT LB 47.45NM
Oil Capacity : 2.3L
Pump RPM : 1075
Outlet Thread : 1/4" BSP & 1/2" BSP
Electricity : 415V
Amps draw : 10.2
