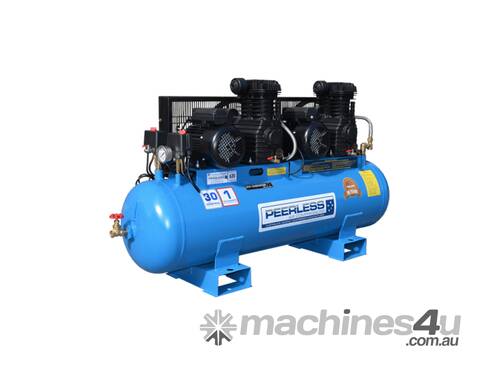

If you only have single phase power and require a large volume of air, this could be the solution for you. The Peerless PT30 model is designed using two N75 pumps and 2.75 HP motors. All fitted on a 150 litre air receiver.
The pumps are designed to restart 5 PSI apart and require two 10 Amp dedicated power plugs (draws 2 x 10 Amp) back to your fuse box to operate this machine. It is very important to ensure that this machine is wired correctly as failure to do so will cause motor failure.
The benefit of this air compressor is that its producing a massive 550 litres of free air per minute. But, if you are only cycling 1 motor and pump (continuous running and not stopping) without the secondary kicking in, you're wearing and over running the primary.
This is where you could use a single phase screw compressor to achieve a greater result. When looking into this particular model, its always best to discuss with Peerless as we want to make sure the unit is a best fit for your applications.
On going servicing, alternating primary to secondary and secondary to primary is required to get equal wear.
Code : 00093-2
Model : PT30
Pump Displacement (CFM) : 30 CFM
Free Air Delivery (LPM) : 5500 LPM
Max PSI : 145
Motor HP : 3.5
Warranty Pump : 1 Year
Warranty Motor : 1 Year
Tank Capacity (L) : 150L
Pump up Time to 100PSI : 1.35 - 1.45 Min
Dimensions (mm) Weight (kg) : 1500Lx400Wx900H / 184kg
Cooling Method : Air cooled
Pump Type : N75
Cylinders : 2
Pump Head Tension : "16 FT LB
22.4NM"
Oil Capacity : 1L
Pump RPM : 852
Outlet Thread : 1/4" BSP
Electricity : 240V / 10A (2)
Amps draw : 9
